Omega ORCG60MB User manual

Instruction Manual
OMEGA CURVED GLASS RANGEHOOD
ORCG60MB / ORCG90MB

2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.com.au (if you are in Australia) and
omegaappliances.co.nz (if you are in New Zealand) or contact our Customer Care team on the below email
or phone numbers.
Registering Your Warranty
For peace of mind you can register your warranty at omegaappliances.com.au. Further information on the
Warranty can be found at the end of this manual.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
Australia Contact Details
Monday to Friday 8.30am –5.00pm
Email: [email protected]
Phone: [phone]
New Zealand Contact Details
Monday to Friday 8.30am –5.00pm
Email: [email protected]
Phone: [phone]
To stay up to date and find simple and easy recipes, follow us on our socials:
facebook.com/omegaappliances
instagram.com/omegaappliances_aus

3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE
AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important
documents about this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances
without notice.
Contents
Important Safety Warnings ............................................................................................................................................... 4
Appliance Details............................................................................................................................................................... 5
Installation Instructions..................................................................................................................................................... 6
Operating Instructions .................................................................................................................................................... 10
Maintenance and Cleaning ............................................................................................................................................. 11
Troubleshooting .............................................................................................................................................................. 13
New Zealand Product Warranty Statements of Standard Warranty Conditions ............................................................ 14
Disposal Information
•Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them into appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

4
Important Safety Warnings
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before
removing the contents of this carton.
1. In certain circumstances electrical appliances may be a safety hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
3. Do not check the status of the filters whilst the cooker hood is operating.
4. Do not touch the light bulbs after use.
5. Do not disconnect the appliance with wet hands.
6. Do not disconnect the power supply by pulling on the cable.
7. Do not flambé/flame underneath the range hood.
8. Avoid free flame, as it may cause damage to the filters and can be a fire hazard.
9. Unplug the appliance before carrying out maintenance, cleaning or replacing lamps.
10. If the power cord is damaged, it must be replaced by the manufacturer, an authorised service
centre or similarly qualified persons to avoid a hazard.
11. For indoor use only.
12. It is recommended to operate the range hood prior to cooking.
13. It is recommended to leave the range hood in operation for 15 minutes after cooking is
terminated in order to completely eliminate cooking vapours and odours.
14. Turn off the range hood when not in use.
15. Do not use the range hood if it is damaged, especially the supply cord and the case.
16. Do not immerse the range hood in liquid.
17. The exhaust air must not be discharged into a flue which is used for exhausting fumes from an
appliance burning gas or other fuels.
18. Regulations concerning the discharge of air have to be fulfilled.
19. There shall be adequate ventilation of the room when the range hood is used at the same time
as appliances burning gas of other fuels.
20. Clean the surface of the cooker hood regularly using a cloth moistened with denatured alcohol or
a non-abrasive liquid detergent.
21. There is a fire risk if cleaning is not carried out in accordance with the instructions.
22. The range hood must be mounted at a minimum distance of 60cm above the cooking surface.
23. CAUTION: Accessible parts may become hot when used with cooking appliances.
24. WARNING: Failure to install the screws or fixing device in accordance with these instructions
may result in electrical hazards.

5
Appliance Details
Rangehoods
ORCG60MB / ORCG90MB
Rated Voltage
220 to 240V ~ 50Hz
Motor Input Power
190W
Lamp (LED)
2 x 1.5W
Rated Input Power
193W
Max Airflow
750m3/Hr
Outlet Diameter
150 mm
Power Connection
10 A Plug
ORCG60MB
ORCG90MB

6

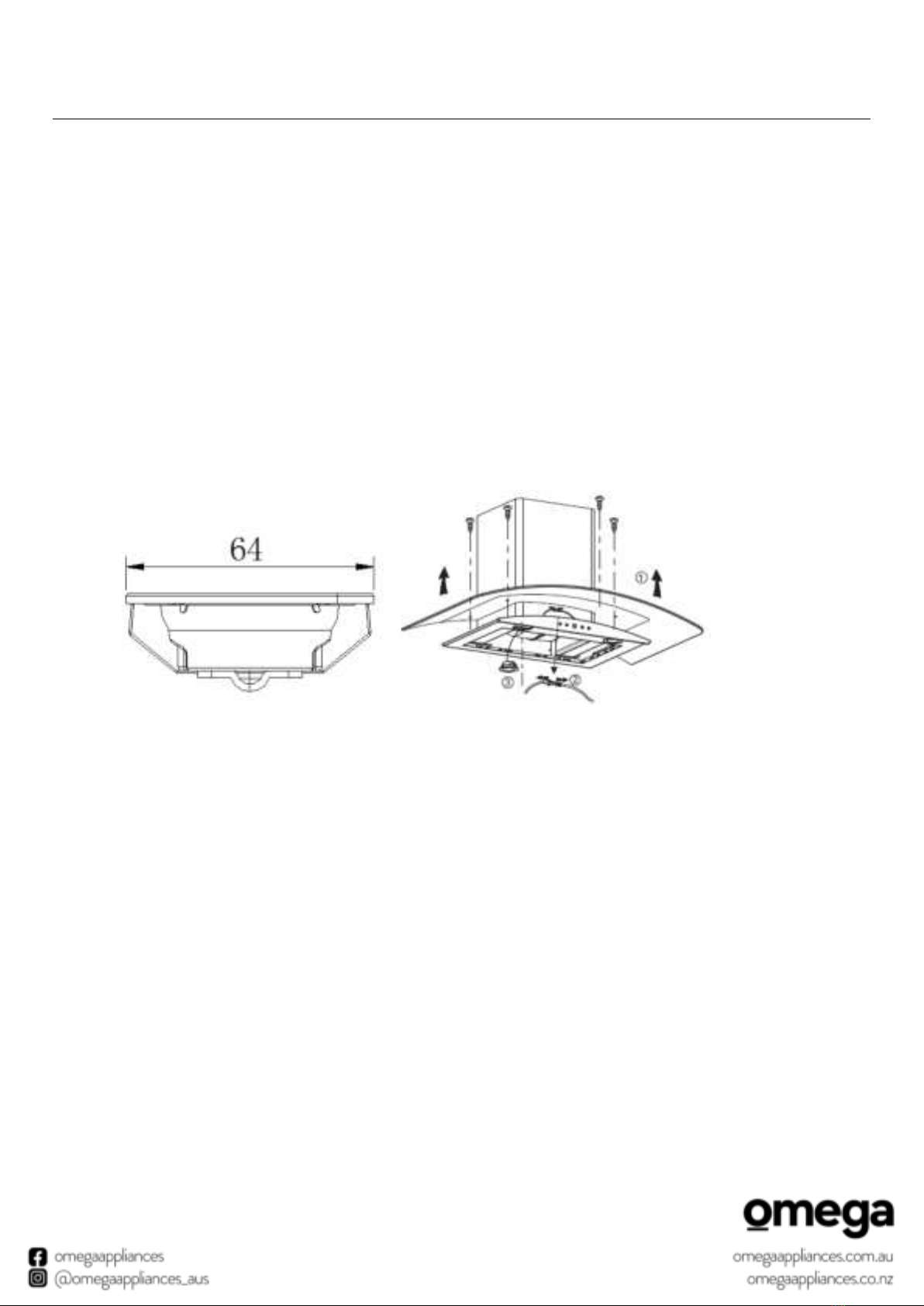

Installation Instructions
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The
images only show an example of how to mount the V-flap, because the outlet may vary according to
different models and configurations.
To mount the V-flap 1 you should:
1. Mount two half-parts 2 into the body 6.
2. The pin 3 should be top oriented.
3. The axis 4 should be inserted into the holes 5 on the body.
4. Repeat all the operations for the 2nd half-part.
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an
extraction duct (enamel, aluminium, flexible pipe or non-flammable material with an interior diameter of
150mm).

7
Installation Instructions
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best
effect.
3. After deciding the cooker hood height, measure the position of the holes for hanging the hood and
inside chimney bracket. Drill 4 pcs φ8 holes, they are for fixing inside chimney bracket and the
hood and keep the hood level. The fixed position of the outside chimney bracket is the highest place
of outside chimney. See pic 2.
4. Screw 2 pcs of ST4*30mm screws on the wall with wall plugs and then use 2 pcs of ST4×40mm
screws to fix the inside chimney bracket. See pic 2.
5. Fix the glass onto the cooker hood body with screws, washers and wall plugs. See pic 3.

8
Installation Instructions
6. Equip the v-flap and expansion pipe to the outlet and fixed with a cable tie. See pic 3. Put the cooker
hood on the wall mounted screws. See pic 4.
Note: Expansion pipe or ducting kit need to be purchased separately.
7. Install the outside chimney bracket onto the outside chimney with 2 pcs of ST4*8mm screws, here
should be sure the inside chimney can be moved inside freely. See pic 6.
8. After adjusting the height, fix the body with 2 pcs of ST4*30mm safety screws. Note: The two safety
vents are positioned on the back housing, with a diameter of 6mm. Then put the two chimneys
together onto the cooker hood body, also lead the expansion pipe outside of the room. See pic 7.
9. Adjust the height of the inside chimney into the suitable height and fix the inside chimney to the
inside chimney bracket with 2 pcs of ST4*8mm screws. See pic 8.

9
Installation Instructions
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
•Keep expansion pipe short and straight.
•Do not reduce the size or restrict the expansion pipe.
•When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
•Failure to observe these basic instructions will reduce the performance and increase noise levels of
the cooker hood.
•Any installation work must be carried out by a qualified electrician or competent person.
•Do not connect the ducting system of the hood to any existing ventilation system which is being
used for any other appliance, such as warmer tube, gas tube, hot wind tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe
horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an
outer wall.
•After the installation, make sure that the cooker hood is level to avoid grease collection at one end.
•Ensure the expansion pipe selected for installation complies with relevant standards and is fire
retardant.
WARNING:
•For safety reason, please use only the same size of fixing or mounting screws which are
recommended in this instruction manual.
•Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.

10
Operating Instructions
Electronic button
There are five buttons: (Low), (Mid), (High), (Lamp), (Power).See picture above.
1. After connecting to power, indicator light will lit on, all the output close and the hood will enter
standby mode. The indicator light will be off automatically after reminding if no operation.
2. Power on: Press power button once, its indicator light will lit on, the hood works at low speed.
Indicator light of low speed will be bright. Press power button again to close it, and its indicator
light will be off. All the function operation of the hood will be closed, the hood enters into standby
mode, and run by circle. The speed buttons and lamp button can work separately and not controlled
by the power button. When a certain function button is pressed, the hood operates at that function
status. Press (Power) button under any status, the cooker hood will be switched off without any
functions.
3. Press lamp button once; lights will be turn on. Indicator light of lamp button and power
button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button
and power button will be off. And recycle like this.
4. Press the (High) button once, motor runs on high speed, the indicator light of high button and
power button will beam. Press high button again and the motor will stop. Indicator light of
high button and power button will be off and run by circle.
5. Press the (Mid) button once, motor runs on middle speed, the indicator light of middle button
and power button will beam. Press middle button again and the motor will stop. Indicator light
of middle button and power button will be off and run by circle.
6. Press the (low) button once, motor runs on low speed, the indicator light of low button and
power button will beam. Press low button again and the motor will stop. Indicator light of low
button and power button will be off and run by circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed,
press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will
turn to middle speed immediately, and so on.

11
Maintenance and Cleaning
Safety Precaution
•Before cleaning your rangehood or performing any maintenance, please ensure that the range hood
is turned off at the power point.
•Do not use abrasive cleaners to clean the range hood. The use of warm soapy water and a cloth are
recommended.
•Ensure that the range hood is cleaned regularly, as a build-up of grease and fat may occur
otherwise.
•The filters on the range hood must be cleaned regularly to maintain efficiency, and prevent grease
build up. The filter mesh is made of metal. It is recommended that this is undertaken every 4 –6
weeks, depending on frequency of use. The filters can be cleaned with warm soapy water or a cloth.
•The stainless steel must be cleaned regularly (e.g., Weekly) to ensure a long-life expectancy. Dry
with a clean, soft cloth. A specialized stainless steel cleaning fluid may be used.
•The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well
wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.
•Cleaning of the range hood must be performed as described above. Otherwise, there is a possibility
of a fire hazard due to grease and fat build up.
INSTALLING GREASE MESH FILTERS
•To install filters for the following four steps:
•Angle the filter into the slots at the back of the hood.
•Push the button on the handle of the filter.
•Release the handle once the filter fits into a resting position.
•Repeat to install all filters.

12
Maintenance and Cleaning
BULB REPLACEMENT
WARNING: The bulb must be replaced by the manufacturer, its service agent or similarly qualified
persons.
•Remove the grease filter.
•Use a screwdriver to remove the 4pcs screws on the large glass and carefully remove the glass.
•Then slightly pull the light connecting wire out and dismantle the terminal of the light connecting
wire. Replace the lamp.
•Apply the reverse procedure to install the light back.
ILCOS D code for this lamp is: DSR-1.5/65-S-64
–LED modules–round lamp
–Max wattage: 2×1.5 W
–Voltage: DC 12V
Dimensions:
NOTE.
•Always switch off the electricity supply before carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled down before any direct contact with hands.
•When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact
with the bulb as this can reduce the life of the bulb.
•Before changing the lights, make sure that the appliance is turned off and unplugged.
•Protect against danger when changing lights, such as wearing gloves.

13
Troubleshooting
Fault
Possible Cause
Solution
Light on, but
motor does not
work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact Service Department.
Motor failed
Contact Service Department.
Light does not
work, motor
does not work
House fuses blown
Reset/Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the air ventilation
entrance are not tightly sealed
Take down the one way valve and seal
with sealant.
Leakage from the connection of U-
shaped section and cover
Take U-shaped section down and seal.
Lights not
working
Broken/Faulty globes
Contact Service Department.
Insufficient
suction
The distance between the range hood
and the gas top is too far
Refit the range hood to the correct
distance.
The Range hood
inclines
The fixing screw not tight enough
Tighten the hanging screw and make it
horizontal.

14

1
