OMEZ LIGHTING TitanPar 3W-Par64 Installation instructions

OMEZ LIGHTING
TitanPar™ 36*3w par64
Item #104
User Instructions
OMEZ Group Inc
11301 IRIS LN, #B
EL MONTE, CA 91731
www.omezlighting.com

3W-Par64 Specifications
Model: 3W-Par64
SPECIFICATIONS:
LED’s: 36 LED’s (12 Red, 12 Green, 12 Blue)
Working Position: Any safe working position
Current 2A
Voltage: AC 90V-240V/60Hz
Wattage: 108W
Power Draw: 0.2 Amps
Weight: 10lbs
Dimensions: 12.2” (L) x 9” (W) x 9” (H)
Packing Size: 13” (L) x 9.25” (W) x 9.25” (H)
Colors: RGB Multi Color
DMX Channels: 7 DMX Channel
Please Note: Specifications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
Unpacking: Thank you for purchasing the 3W-Par64 by OMEZ. Every 3W-Par64
has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the ship-ping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has arrived intact.
PLEASE recycle the shipping carton when ever possible.
Introduction: The 3W-Par64 is part of OMEZ’s continuing pursuit for creating
high quality affordable intelligent fixtures. The 3W-Par64 is a DMX intelligent LED
Par Can. This Par Can is light weight and compact which makes it a great piece for
mobile DJ’s and clubs. This unit can be used as a stand alone, or be controlled via
DMX controller.
Customer Support: OMEZ provides a toll free customer support line, to provide
set up help and to answer any question should you encounter problems during
your set up or initial operation. You may also visit us on the web at
www.omezlighting.com for any comments or suggestions. Service Hours are
Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
E-mail: [e-mail]

Set Up
Before plugging your unit in, be sure the source voltage in your area matches the
required voltage for your OMEZ 3W-Par64. The OMEZ 3W-Par64 is available in a
120v and 220v version. Because line voltage may vary from venue to venue, you
should be sure your unit voltages match the wall outlet voltage before attempting to
operate you fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a
form of communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fixture. DMX data
is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA
“OUT” XLR terminals located on all DMX fixtures (most controllers only have a
DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different
manufactures to be linked together and operate from a single controller, as long as
all fixtures and the controller are DMX compliant. To ensure proper DMX data
transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order in which fixtures
are connected in a DMX line does not influence the DMX addressing. For example; a
fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the
beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX
address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The 3W-Par64 can be controlled via DMX-512 protocol. The
3W-Par64 can be a three, six, or seven channel DMX unit.
The DMX address is set on the back panel of the 3W-Par64.

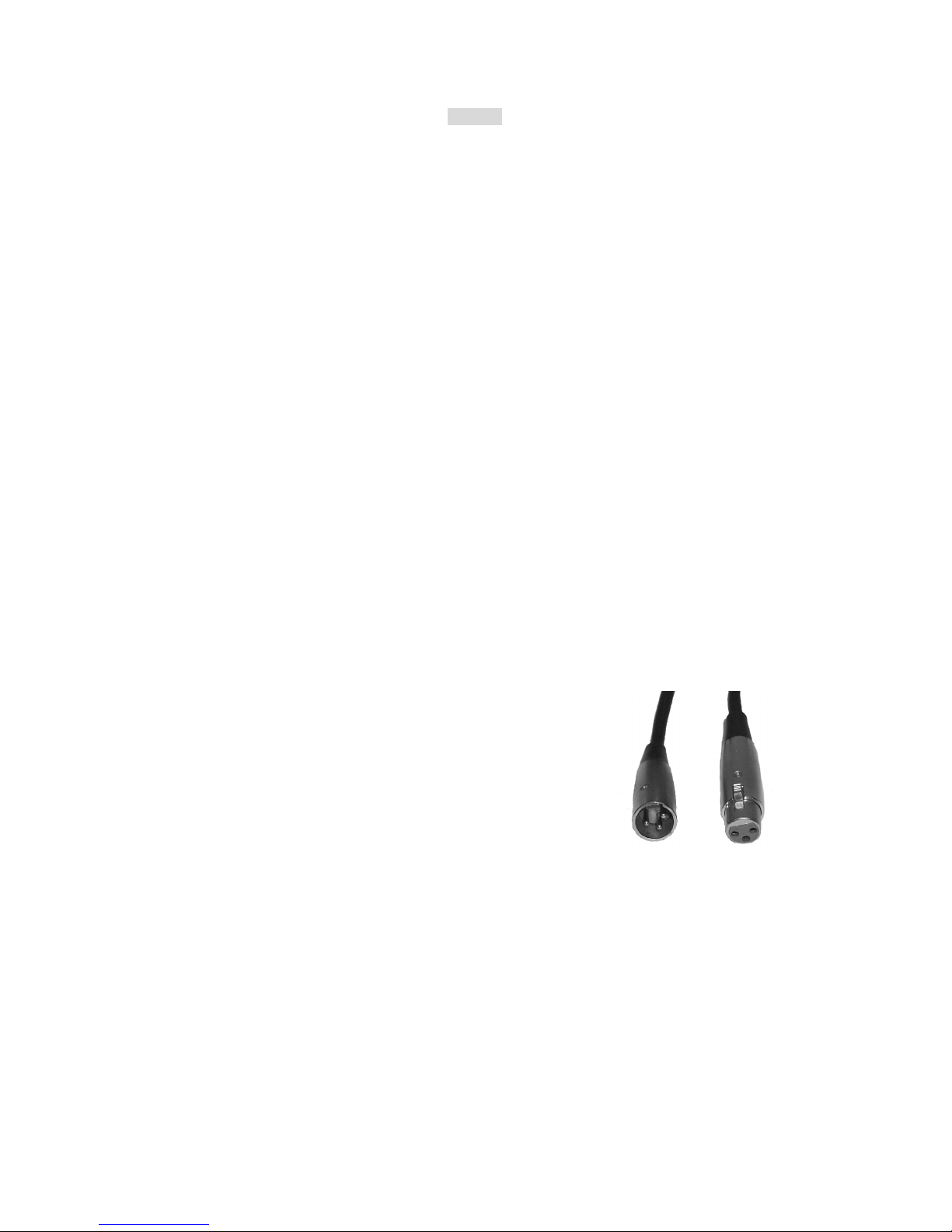

Your unit and your DMX controller require a standard 3-pin
XLR connector for data input and data output (Figure
1). If you are making your own cables, be sure to use
standard two conductor shielded cable (This cable may be
purchased at almost all pro sound and lighting stores). Your
cables should be made with a male and female XLR connector on either end of the
cable. Also remember that DMX cable must be daisy chained and can not be split.

Operation
1. Display：
A．Function
B．UP
C．DOWN
E
A B C D E．LED DISPLAY
Instructions:
Press the function key A will activate the cycle of eight different functional effects.
In the digital display, the first two digits represent the current function (see menu).
The last two digits represent the functions' Address Code. For speed specification.
Press B or C key to change its value. Press the D key to confirm.
2. LED display function
(Note: All the functions will active by pressing the D key to confirm)
No. display function
1 D0001 7-channel address code, (001-512)
B, C key add or subtract address code value
2 CC00 Color jump, (01-99)
B, C keys to modify the speed
3 CP00 Color gradual change, (01-99)
B, C keys to modify the pulse, fading rate
4 CS00 Color selection, (01-99)
B, C keys to modify the color selection
5 DE00 Color combination change (01-99)
B, C key to modify the rate of change
6 BF00 Color sound-active change (01-99)
B, C keys to modify the rate of change by sound

3．DMX512 channels:
No. function Detail function
1CH Total dimming R、G、B dimming from dark to bright
2CH Total strobe R、G、B strobe from slow to quick
3CH Function
selection
0 - 50 DMX 7ch control；
51- 100 jump change；
151-200 Gradient, variable pulse;
201—255：sound action
4CH Function speed From slow to quick
5CH R dimming Linear dimming, from dark to bright
6CH G dimming Linear dimming, from dark to bright
7CH B dimming Linear dimming, from dark to bright
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical
lenses must be carried out periodically to optimize light output.
1. Use a soft cloth to wipe down the outside casing.
2. Clean the external optics with a soft cloth every 20 days. Cleaning frequency
depends on the environment in which the fixture operates (i.e. smoke, fog
residue, dust, dew).
