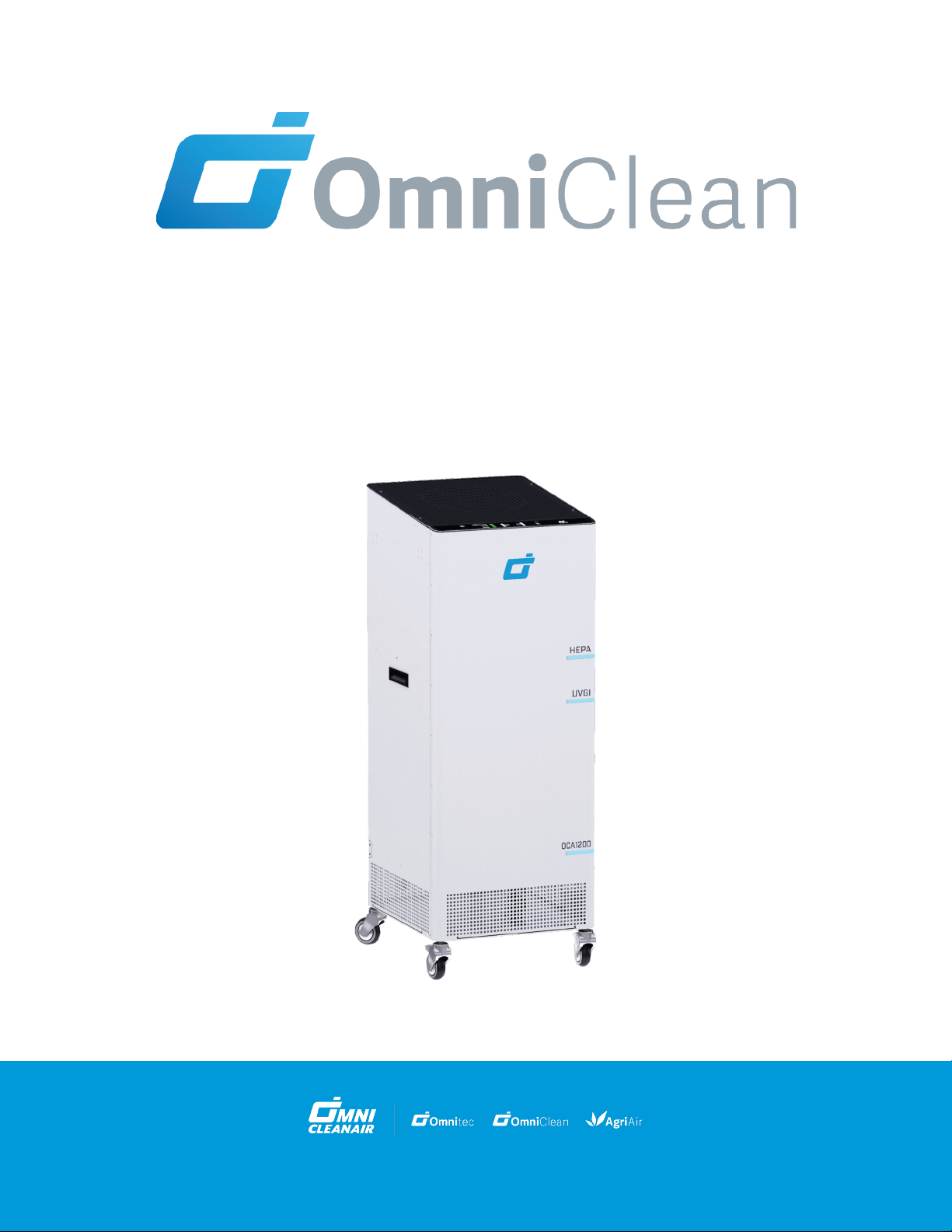

Omni Clean Air OCA 500 User manual

OCA 500/1200/1500 Family
Air Purification Machines
Operation and Maintenance Manual
omnicleanair.com | 425.512.0379 | 4640 Campus Place, Suite 100, Mukilteo, WA 98275 USA

2
Table of Contents
Safety Warning Instructions . . . . . . . . . . . . . . . . 3
Product Descriptions . . . . . . . . . . . . . . . . . . . . . 4
Receiving & Unpacking Instructions . . . . . . . . . . . 4
OCA500/1200/1500 Specs . . . . . . . . . . . . . . . . . . 4
Display and Monitoring Panel . . . . . . . . . . . . . . . 5
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . 6
First Time Set Up. . . . . . . . . . . . . . . . . . . . . . . . 9
Turning on the Machine . . . . . . . . . . . . . . . . . . . . . .9
Room Size Selection . . . . . . . . . . . . . . . . . . . . . . . . .9
Assigning Location ID . . . . . . . . . . . . . . . . . . . . . . .9
Lock/Unlock Settings . . . . . . . . . . . . . . . . . . . . . . . .9
Settings Review . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Normal Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Machine Information Check . . . . . . . . . . . . . . . . . . .10
HEPA Filtration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
UVGI Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Machine Status Check . . . . . . . . . . . . . . . . . . . . . . .11
Maintenance & Troubleshooting . . . . . . . . . . . . . . . . .11
Status Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . .11
Error and Status Table . . . . . . . . . . . . . . . . . . . . . . .11
HEPA Filter Replacement . . . . . . . . . . . . . . . . . . . . .12
UVGI Bulb Replacement . . . . . . . . . . . . . . . . . . . . . .12
PreFilter Replacement . . . . . . . . . . . . . . . . . . . . . . .12
Resetting the Machine Status . . . . . . . . . . . . . . . . . .12
System Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Additional Troubleshooting . . . . . . . . . . . . . . . . . . .13
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OmniClean Limited Warranty. . . . . . . . . . . . . . . . . .13
To Submit a Warranty Claim. . . . . . . . . . . . . . . . . . .14
Technical Support Contact. . . . . . . . . . . . . . . . . . . .14

3
WARNING
SAFETY WARNING INSTRUCTIONS
L’ AVERTISSEMENT
INSTRUCTIONS D’AVERTISSEMENT DE SÉCURITÉ
READ AND SAVE THESE INSTRUCTIONS
• This equipment to be operated only after reading the instructions. Do not
use near combustible or explosive material. Fire may occur.
• Do not expose to water or rain. Electrical shock may occur. Connect only to
grounded outlet.
• Disconnect power for cleaning and servicing.
• Disconnect power cord before moving.
• Be careful not to tip the unit when moving, as this may cause injury.
• Do not operate if cord or plug is damaged. Contact an authorized service
facility for examination and/or repair.
• Arrange cord away from traffic areas and where it is not a tripping hazard.
Do not cover with rug or carpet.
• High-intensity Ultraviolet light inside. Avoid eye and skin exposure.
LIRE ET CONSERVER CES INSTRUCTIONS
• Cet équipement ne doit être utilisé qu’après avoir lu les instructions.
• Ne pas utiliser à proximité de matériaux combustibles ou explosifs. Un
incendie peut se produire.
• Ne pas exposer à l’eau ou à la pluie. Un choc électrique peut se produire.
• Connecter uniquement à une prise mise à la terre.
• Débranchez l’alimentation pour le nettoyage et l’entretien.
• Débranchez le cordon d’alimentation avant de vous déplacer.
• Veillez à ne pas renverser l’appareil lorsque vous le déplacez, car cela
pourrait causer des blessures.
• Ne pas utiliser si le cordon ou la prise est endommagé. Contactez un centre
de service agréé pour examen et/ou réparation.
• Disposez le cordon loin des zones de circulation et où il n’y a pas de risque de
trébuchement. Ne pas recouvrir de tapis ou de moquette.
• Lumière ultraviolette à haute intensité à l’intérieur. Éviter l’exposition des yeux
et de la peau.

4
Product Description
The OmniClean OCA500, OCA1200, and OCA1500 Professional Series air sanitizing machines are equipped
with medical grade 99.99% HEPA filters and optional SureUVCTM UV-C germicidal lights, which work together
to eliminate sub-micron particulates and microbial contamination for healthcare services, dentist offices,
personal care facilities, and other work environments.
The OCA500, OCA1200, and OCA1500 are designed to purify air in public and professional environments
and are not suitable for abatement or restoration projects. They all feature variable air flow, quiet operation,
upright housings for a small footprint, and locking medical grade casters for easy mobility.
Receiving & Unpacking Instructions
Carefully remove unit from packaging. Remove Quick-Start Guide for assistance in setting up the machine for
operations. Visually inspect the unit for damage.
If there is any visible damage or missing parts, please contact OmniClean immediately.
OCA 500/1200/1500 Specifications
Machine OCA500 / OCA510 OCA1200 / OCA1210 OCA1500 / OCA1510
Dimensions 14” x 14.5” x 36” 16.25” x 20.5” x 50” 20” x 18” x 48”
MIN CFM 100 655 800
MAX CFM 450 1200 1500
Sound level 45-55dB 57-59dB 57-66dB
UVC Bulb Spec 2 x 16W* (OCA510 only) 4 x 16W* (OCA1210 only) 4 x 16W* (OCA1510 only)
Electrical input 120V/220V 120V/220V 120V/220V
Power requirement 110 VAC / 60 Hz / 1.5A 110 VAC / 60 Hz / 7.1A 110 VAC / 60 Hz / 7.1A
Weight 50 lbs./22.5kg 110 lbs./50kg 110 lbs./50kg
HEPA Dimensions 12” x 12” x 12” 16” x 16” x 12” 16” x 16” x 12”
PreFilter dimensions 12” x 12” x 2” 16” x 16” x 2” 16” x 16” x 2”
Warranty 2 years 2 years 2 years

5
Accessories & Filters
Gold Care Membership* GCM-1 GCM-1 OCA1500 / OCA1510
UVC bulbs, Pack of 2 or 4 SureUVC-2pk (OCA510) SureUVC-4pk (OCA1210) SureUVC-4pk (OCA1510)
HEPA filter HEPA-500H HEPA-1200H HEPA-1500H
PreFilter, Pack of 4 M11PF-500-4pk M11PF-1200-4pk M10PF-1500-4pk
* Gold Care Membership renewed annually; per machine, delivering over $1000 in value each year. Benefits
include once per year FREE shipment of replacement filters and UV-C light bulbs for that machine, extended
warranty for as long as Gold Care Membership is maintained, free loaner units whenever a machine needs to
be returned to us for in-warranty repair, discounts on future product purchases and more.
For more information, see www.omnicleanair.com/Gold-Care-Membership.

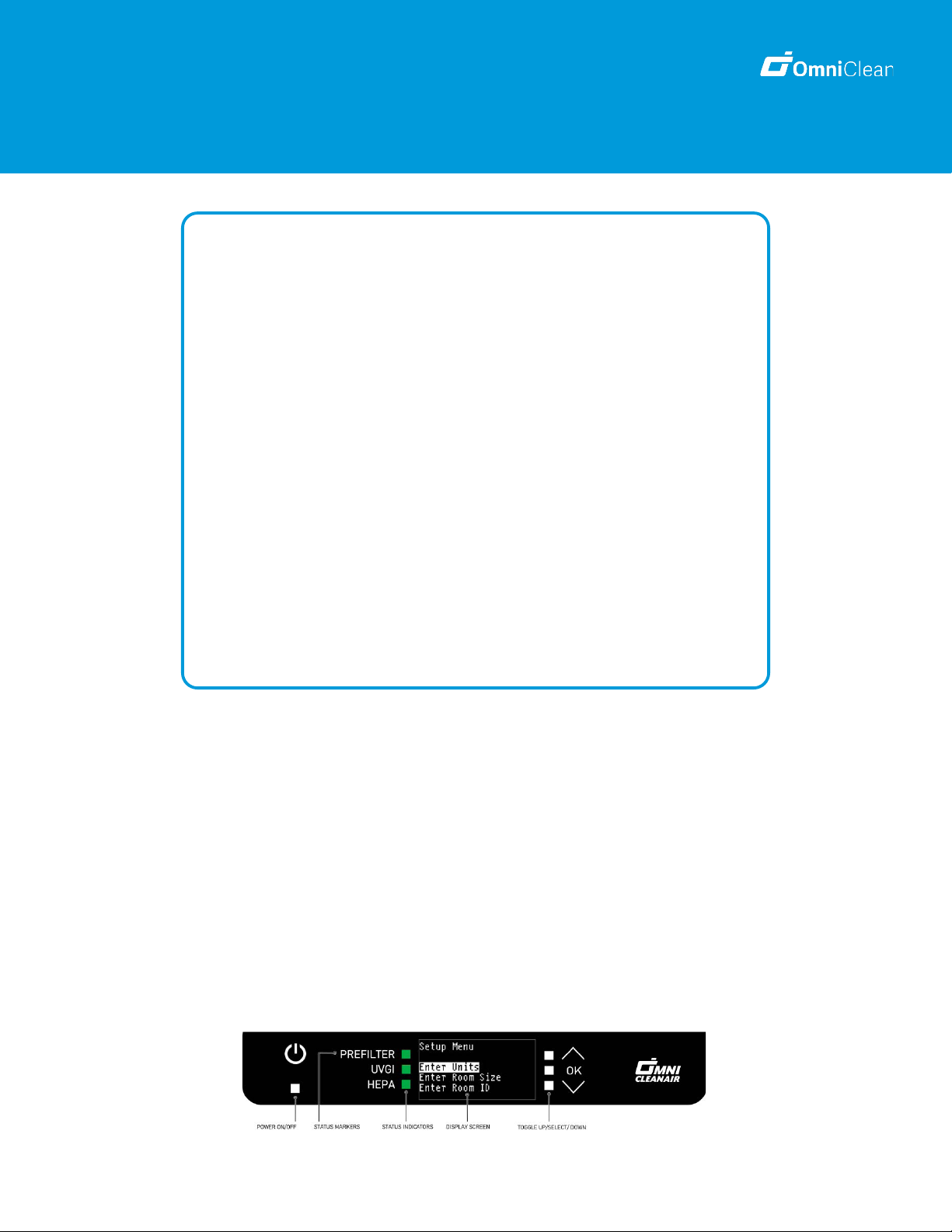

Display and Monitoring Panel
User interface with UVGI
(OCA510, OCA1210, OCA1510)
User interface without UVGI
(OCA500, OCA1200, OCA1500)

6
Quick Start Guide
WARNING
SAFETY WARNING INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
• This equipment to be operated only after reading this Quick-start Guide.
• Do not use near combustible or explosive material. Fire may occur.
• Do not expose to water or rain. Electrical shock may occur.
• Connect only to grounded outlet.
• Disconnect power for cleaning and servicing.
• Disconnect power cord before moving.
• Be careful not to tip the unit when moving, as this may cause injury.
• Do not operate if cord or plug is damaged. Contact an authorized service
facility for examination and/or repair.
• Arrange cord away from traffic areas and where it is not a tripping hazard.
Do not cover with rug or carpet.
• High-intensity ultraviolet light inside. Avoid eye and skin exposure.
First Time Setup
• Carefully remove OCA unit from packaging. Inspect for damage and make sure that the HEPA filter is
installed correctly.
• Place the OCA unit in a suitable and effective spot. The Placement Guides on our website can assist you in
finding the right location for your space.
• Plug OCA unit into appropriate power source (see manual for more information). The power button will
flash white.
• Press power button. The unit will perform an internal safety/maintenance check. If there are any safety or
maintenance issues, one or more of the HEPA, UVGI or PreFilter indicators will turn red and the housing
light for that area will flash blue. If this occurs, consult the Operations and Maintenance Manual.
Quick Start Guide

7
Quick Start Guide
You will then access the Enter Guided Setup screen.
Press OK to enter room size and room ID information,
or select Do this later to bypass setup. (Note: if the
Guided Setup is not completed, machine cannot
display Air Changes per Hour).
Enter Units prompts to select either US Standard
(ft., in.) or Metric (M,cm ). You can also enter “Go
Back” to return to the previous menu.
Enter Room Size lets you either enter the dimensions
of the room the unit will be in, the volume of the
room (if known), or select I Don’t Know. I Don’t Know
sets the unit at its highest output.
If DIMENSIONS or VOLUME is chosen, use the
UP/DOWN arrows to increase or decrease the
highlighted dimension or room size. Press OK to
enter and when complete.
Enter Room ID allows you to assign a 3 digit alpha-
numeric code to the space the unit is located in. This
is helpful if you plan to move it frequently. Use the UP/
DOWN arrows to change; OK to select.
The display will then read Guided Setup is complete,
and the machine will enter operational mode. The
display will show Cubic Feet per Minute (CFM) or
Cubic Meters per Minute (CMM). This can be adjusted
using the UP/DOWN arrows.
Press OK to return to the Main Menu. Select Activate
Safety Lock, then press OK again to lock the current
settings. This will prevent tampering. Press OK twice
again to unlock and adjust settings.
In addition to the above, from the Main Menu
there is also an option for Passcode Setup. This
feature is reserved for administrators or authorized
users to provide additional security. Contact your
administrator for more information.
In addition to the CFM/CMM reading, this menu also shows you the current number of Air Changes per Hour
(ACH), based on your fan settings and the room size you have entered. For instance, if you had a 2500 cubic
foot room and your fan was set at 500cfm, your ACH would be 12 (60 minutes divided by 2500/500). The
example above shows an ACH of ???; this would be the reading if you skipped the Guided Setup or entered “I
Don’t Know” in the Enter Room Size menu.

Operation &
Maintenance Manual
OCA 500/1200/1500 Family
Air Purification Machines

9
OCA 500/1200/1500 Operation and Maintenance Manual
Plug OCA unit into appropriate power source. The power button will flash white.
Press power button. The unit will perform an internal safety/maintenance check. If there are any safety or
maintenance issues, one or more of the HEPA, UVGI or PREFILTER indicators will turn red and the housing light
for that area will flash blue. If this occurs, consult the Troubleshooting section of this manual.
You will then access the Enter Guided Setup screen.
Press OK to enter room size and room ID information,
or select Do this later to bypass setup. (Note: if the
Guided Setup is not completed, machine cannot
display Air Changes per Hour).
Enter Units prompts to select either US Standard
(ft., in.) or Metric (M,cm ). You can also enter “Go
Back” to return to the previous menu.
Enter Room Size lets you either enter the dimensions
of the room the unit will be in, the volume of the
room (if known), or select I Don’t Know. I Don’t Know
sets the unit at its highest output.
If DIMENSIONS or VOLUME is chosen, use the
UP/DOWN arrows to increase or decrease the
highlighted dimension or room size. Press OK to
enter and when complete.
First Time Setup
Enter Room ID allows you to assign a 3 digit alpha-
numeric code to the space the unit is located in. This
is helpful if you plan to move it frequently. Use the UP/
DOWN arrows to change; OK to select.
The unit will then go into operational mode. The
display will show Cubic Feet per Minute (CFM) or
Cubic Meters per Minute (CMM). This can be adjusted
using the UP/DOWN arrows.
Press OK to return to the Main Menu. Select Activate
Safety Lock, then press OK again to lock the current
settings. This will prevent tampering. Press OK twice
again to unlock and adjust settings.
In addition to the above, from the Main Menu
there is also an option for Passcode Setup. This
feature is reserved for administrators or authorized
users to provide additional security. Contact your
administrator for more information.

10
OCA 500/1200/1500 Operation and Maintenance Manual
Machine Information Check
Information about your OCA machine can be
reached from the Main Menu by pressing OK; then
using the UP/DOWN arrows and selecting Show
Machine Info. The display will show Model Number,
Serial Number, Software Revision and Date of
Manufacture. Press OK to return, then UP/DOWN to
Go Back to Main Menu.
In addition to the CFM/CMM reading, this menu also shows you the current number of Air Changes per Hour
(ACH), based on your fan settings and the room size you have entered. For instance, if you had a 2500 cubic
foot room and your fan was set at 500cfm, your ACH would be 12 (60 minutes divided by 2500/500). The
example above shows an ACH of ???; this would be the reading if you skipped the Guided Setup or entered “I
Don’t Know” in the Enter Room Size menu.
Now that Guided Setup has been completed, your unit will return to those settings each time it is turned on. To
change these settings, press OK and toggle to Enter Setup Mode. Make desired changes and select Go Back
to return to normal operating status.
The machine must be operated with a HEPA and pleated PreFilter in place.
Normal Operations
HEPA Filtration
The HEPA filter purifies the air and will gradually become loaded with sub-micron particulates. Even when
the HEPA filter is fully loaded, the filter is still removing particulates from the air at the rated efficiency, yet at a
reduced airflow. This will affect the ability of the machine to provide positive or negative pressure within the
containment. We recommend changing the HEPA filter after no more than 365 days of operation.
SureUVC™ Germicidal Lights
UVGI lights are installed in the compartment below the HEPA filter. The air passing by the UVGI lights is
sterilized and the bio-contaminants captured on the HEPA are killed or deactivated. To maintain the full
effectiveness of the UV Germicidal we recommend replacing the lights after 365 days of operation.
PreFilter
Near the bottom of the machine and right above the air intake grate is an access door for the pleated
PreFilter. The PreFilter is rated Minimum Efficiency Reporting Value (MERV) 11, and is designed to remove dust,
pollen, mold spores and other small particles from the air before it passes through the HEPA filter. This will
significantly extend the usable lifetime of the HEPA filter, which is much more costly to replace. We recommend
changing the PreFilter after no more than 90 days of operation.

11
OCA 500/1200/1500 Operation and Maintenance Manual
Machine Status
You can check the status of the unit at any time from the
Main Menu by pressing OK; then using the UP/DOWN
arrows and selecting Machine Status. This will show
the number of days the unit has been in operation, as
well as the number of days of use for the HEPA filter, UV
lamps and PreFilter. The HEPA filter and UV bulbs each have a usage life span of 365 days before replacement is
required; the PreFilter has a 90 day life span. The example shows that the HEPA filter has been in use for 372 days,
and therefore should be replaced.
Machine Status
The OCA Series machines continuously monitor the
UVGI, HEPA and PreFilter systems for failures, errors and
scheduled replacement times. If any of these systems
require attention, the Display screen will show a “Check
Status” advisory and “Warning” triangle symbol. At the
same time, the panel status indicator LEDs and the lights in the corresponding areas on the front casing will alert
the user and describe the issue. The table below lists the errors in order of their priority. If more than one error
occurs simultaneously, the display will show the higher priority error first; then move on to the next when the first
one is resolved.
Maintenance and Troubleshooting
Troubleshooting Error and Status Table
Priority HEPA UV PreFilter HEPA UV PreFilter
1 Error: HEPA Install Error Red On On Flash Off Off
2 Error: HEPA Filter Change Red On On Flash On On
3 Error: UV Door Open On Red On Off Flash Off
4 Error: UV Bulb Burned Out On Red On On Flash On
5 Error: UV Bulb Change On Red On On Flash On
6 Error: PreFilter Install Error On On Red On On Flash
7 Error: PreFilter Change On On Red On On Flash

12
OCA 500/1200/1500 Operation and Maintenance Manual
HEPA Filter Installation/Replacement
To replace the HEPA filter, unplug the machine and remove the top grill. You will see 4 filter tabs holding the
HEPA filter in place. These tabs are secured with 1/4-20 Nylock nuts, which require a 7/16” wrench or socket.
WARNING: Unplug the unit before opening filter compartment. Remove all 4 filter tab retaining nuts and
remove the filter tabs and set aside. Lift HEPA filter out. Replace with new HEPA filter and replace the filter tabs.
Be sure to tighten the locknuts securely to ensure a tight seal with the filter gasket. ALWAYS TREAT THE USED
HEPA FILTER AS HAZMAT AND PROCESS IT ACCORDING TO YOUR ESTABLISHED HAZMAT PROCEDURES.
Replacing UV Germicidal lights
If the UVGI indicator light turns red, you will need to access the lights to replace the bulbs. We recommend
changing all bulbs simultaneously. WARNING: Unplug the unit before opening UVGI light compartment.
Remove the 2 screws on each side of the SureUVC™ compartment and gently slide the drawer forward to
access the bulbs. The lights are each held in with (2) clips; gently pull the light out of the two U-clips, then
disconnect the 4-pin connector. Replace the 4 bulbs and return the drawer to its original position. Reinstall the
light compartment door. Plug in and turn the unit back on; if the UVGI indicator is still red, the problem could
be one or more of the ballasts. Call OmniClean Technical Support for additional assistance
PreFilter Replacement
The pleated filter should be changed when it becomes loaded with dust. To change the filter, turn off the
machine, remove the 2 screws on each side of the PreFilter compartment and remove the compartment
cover. Remove the dirty filter and replace; then reinstall the cover.
Resetting the Machine Status

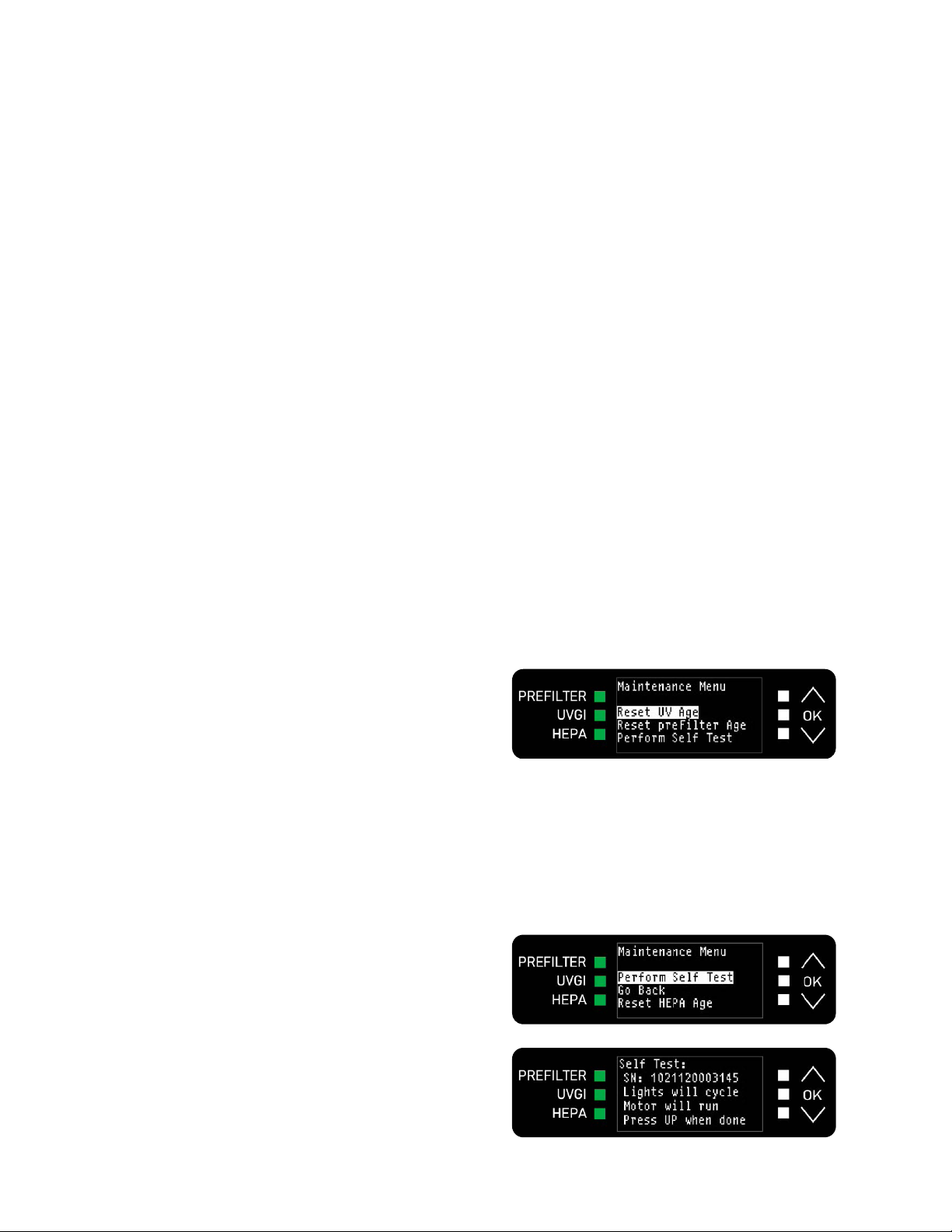

After completing the above required maintenance, you
will need to reset the Machine Status for the affected
item. From the Main Menu press OK; then use the UP/
DOWN arrows to select the Maintenance Menu. Scroll to
the desired reset and press OK. This will turn the status
back to day 0 for that item. The sample screen shows
resetting the UV Bulb age.
DO NOT reset other fields; only the one you have
performed maintenance/replacement on.
System Self-Test
You can confirm that all of your indicator lights are
performing correctly by performing a system self-test.
To access the self-test, press OK to enter the main
menu.
The self-test alternates illuminating the Status Indicator
LEDS in green and red, while simultaneously flashing
the Front Casing Lights.

13
OCA 500/1200/1500 Operation and Maintenance Manual
Additional Troubleshooting
1. The machine does not start
a. Check that the unit is plugged in and there is sufficient power available.
b. Check the power button, which should glow white.
c. Check all error indicators and confirm that all functions are operating correctly.
d. Contact OmniClean Technical Support to troubleshoot further.
2. The machine just hums when turned on
a. Unplug the unit.
b. Contact OmniClean Technical Support for further information.
3. The machine vibrates excessively when running
a. Unplug the unit
b. Contact OmniClean Technical Support for further information.
This warranty policy covers Air Purification Systems sold by OmniClean.
OmniClean warrants that our products are free from defects in workmanship and materials under normal
use during the warranty period
All OmniClean Air Sanitizing machines, excluding the consumables including the MERV prefilter, HEPA filter
and UV light bulbs, come with a standard two (2) year warranty.
The warranty extends to the following parties:
- Customers (individuals or companies) to whom OmniClean directly sells covered products.
- Customers (both individuals and companies) who purchase OmniClean products from an
authorized distributor or reseller.
This limited warranty is not transferable or assignable to any subsequent purchaser, and only applicable in
the country where the product was originally purchased.
The following circumstances are not covered by this warranty policy
- Damage caused by an act of nature such as flood, fire, wind, earthquake or lightning.
- Damage caused during shipping or an impact event with other objects.
- Damage caused by improper care or negligence.
- Damage caused by misuse, abuse, mishandling or misapplication.
- Damage caused by alteration or adjustments by unauthorized personnel.
OmniClean Limited Warranty Policy

14
Under no circumstances shall OmniClean or any supplier of OmniClean be liable for any loss, damage or
expense, including, but not limited to, loss or damage arising out of the failure of the products to operate
for any period of time, inconvenience, the use of rental or replacement equipment, loss of profits or other
economic loss, or general, direct, special, indirect, incidental or consequential damages or property
damages.
OmniClean offers extended warranty through the Gold Care Membership Program, for as long as
membership status is maintained.
For more information, please visit www.omnicleanair.com/Gold-Care-Membership.
To Submit a Warranty Claim
Contact our Technical Support department. Hours are Monday through Friday 7:30am - 4:00pm PST
For ease of service, please have the product model name and serial number available, along with the
purchase date and invoice number, if applicable.
Our service technicians will work with you to diagnose your technical issue and recommend a suitable course
of action to solve your problems swiftly and to your satisfaction.
If it is determined that your product is defective and under warranty, OmniClean will repair or replace, at our
discretion, any faulty parts or equipment.
A Return Merchandise Authorization (RMA) will be issued for the defective product.
Upon receipt of the RMA, securely package the item being returned, in its original packing material if possible,
and write the RMA number on the outside of the box. Include a copy of the RMA with the return.
Contact OmniClean for pickup of the defective product. Failure to return defective products in a timely
manner may result in additional shipping charges.
Phone: [phone] Email: [e-mail]
omnicleanair.com | 425.512.0379 | 4640 Campus Place, Suite 100, Mukilteo, WA 98275
Rev. 032022 | ©2021 OmniCleanAir
