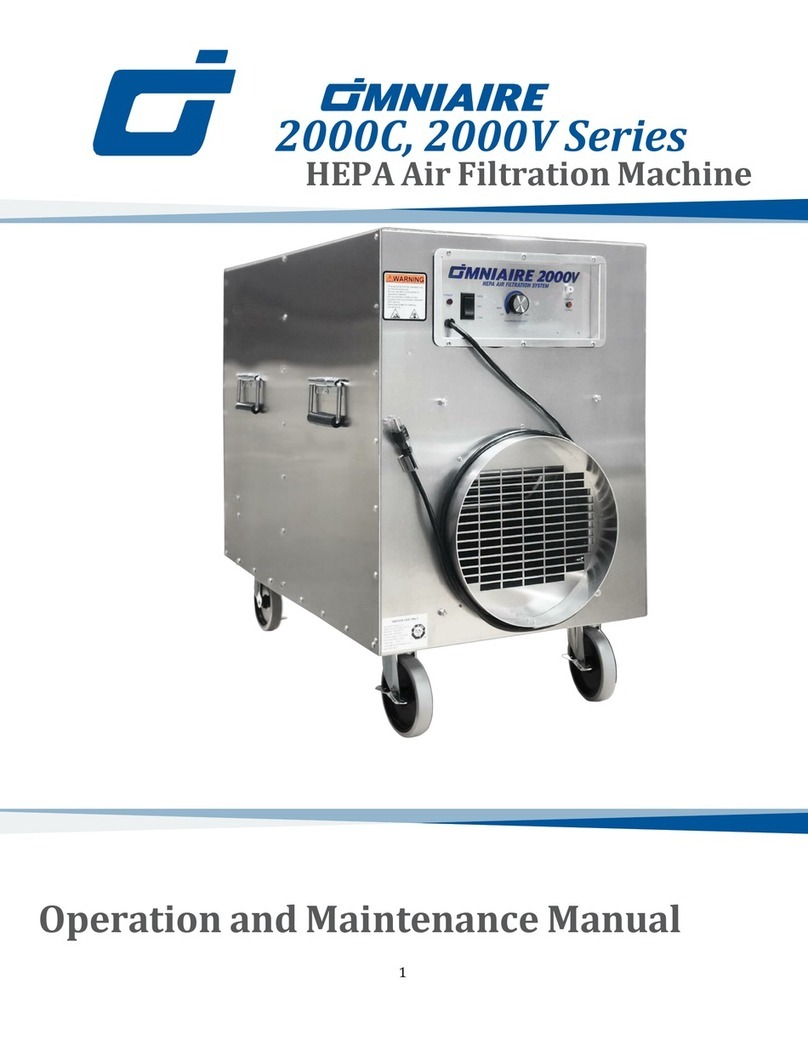

Omnitec OmniAire 2000V User manual

Operation and Maintenance Manual
2000V
HEPA Air Filtration Machine

CONFORMS TO UL STD 507
CERTIFIED TO CAN/CSA STD
C22.2 NO. 113-M1984
WARNING
Do not use with combustible or explosive material. Do not expose to water or rain. Connect
only to grounded outlet with GFCI device. Disconnect power for cleaning and servicing.
This equipment to be operated only by trained personnel.
Safety Warning Instructions:
READ AND SAVE THESE INSTRUCTIONS
This equipment to be operated only by trained personnel.
Do not use with combustible or explosive material.
Do not expose to water or rain.
Connect only to grounded outlet with GFCI device.
Disconnect power for cleaning and servicing.
Do not operate if cord or plug is damaged. Contact a authorized service facility for examination and/or repair.
Do not run cord under carpeting.
Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic areas and where it is
not a tripping hazard.
Avertissement de sécurité Instructions:
LIRE ET CONSERVER CES INSTRUCTIONS
Cet équipement doit être utilisé que par un personnel formé.
Ne pas utiliser avec des matières combustibles ou explosives.
Ne pas exposer à l’eau ou à la pluie.
Connectez uniquement à une prise mise à la terre avec un dispositif GFCI.
Coupez l’alimentation électrique pour le nettoyage et l’entretien.
Ne pas utiliser si le cordon ou la fiche est endommagé. Contactez un centre de service autorisé pour examen et / ou
réparation.
Ne pas passer le cordon sous un tapis. Ne pas couvrir le cordon avec des carpettes, les coureurs, ou revêtements simi-
laires. Éloigner le cordon des endroits passants et où il n’est pas un risque de déclenchement.

The OmniAire 2000V is a compact and versatile, variable speed HEPA air filtration machine/air scrubber that delivers
the performance of full size negative air machines. It is used for removal of toxic mold, asbestos and lead dust during
renovation and abatement projects, and for purifying air in commercial, factory sites and medical facilities. Designed
and built with multiple filter options including HEPA, 8-Pocket Bag filter for construction dust, and activated carbon
filters to meet your job requirements. Additional accessories include intake manifold, flex ducting and quick clamps.
Application Examples
OmniAire 2000V Specifications
Airflow: 400-1600 CFM
Power Requirements: 115VAC/60 Hz/10.6 Amp
Motor: 1.25 HP with thermal overload
Filtration:HEPA filter 99.97% @ 0.3μ; MERV 9 primary/secondary filter
Optional: MERV 15 bag filter; OdorGuard 600 activated carbon web filter; VaporTrap V-bank filter (27 lbs of active
carbon); HEPA filter 99.99% @ 0.3μ
Recessed Controls: speed switch - HIGH/OFF/Speed Control; variable speed controller;
amber change filter light; red power indicator light
Housing: aircraft grade aluminum; silicone sealed before riveting; 12” outlet;
(4) rubber grip handles; (2) 5” hospital grade locking casters; (2) 5” rigid casters
Size/Weight with Filters: 20”W x 32”H x 34”L; 117 lbs.
Receiving Instructions
Receiving Instructions
Visually inspect the unit for damage. Remove the primary/secondary filter and ensure that the HEPA filter has not been
dislodged during shipping. The HEPA filter should be sitting on the filter guides and the filter tabs that hold the HEPA
filter in place should be tight.
If the filter is not seated correctly then remove the filter tabs, reposition the filter, and reinstall the filter tabs before
operation to ensure that there is no bypass around the filter. If the filter tabs are loose verify that the filter is in the
correct position and retighten the filter tab nuts.
Operations
For Asbestos and mold abatement, the machine must be operated with a HEPA filter in place. Also, it is recommended
to use the primary/secondary filer and replace it frequently to extend the life of the HEPA.
contaminated
containment area
positive pressure
clean contained area
clean
ltered
air
sealed contaminated
containment area
sealed
clean room
clean
ltered
air
recirculation
sealed contaminated
clean
ltered
air
contaminated
air
negative pressure
sealed contaminated
sealed
clean room
clean
ltered
air
negative pressure
contaminated room
clean
ltered
air
contaminated
air
contaminated
air
contaminated
air
contaminated
containment area
positive pressure
clean contained area
clean
ltered
air
sealed contaminated
containment area
sealed
clean room
clean
ltered
air
recirculation
sealed contaminated
clean
ltered
air
contaminated
air
negative pressure
sealed contaminated
sealed
clean room
clean
ltered
air
negative pressure
contaminated room
clean
ltered
air
contaminated
air
contaminated
air
contaminated
air

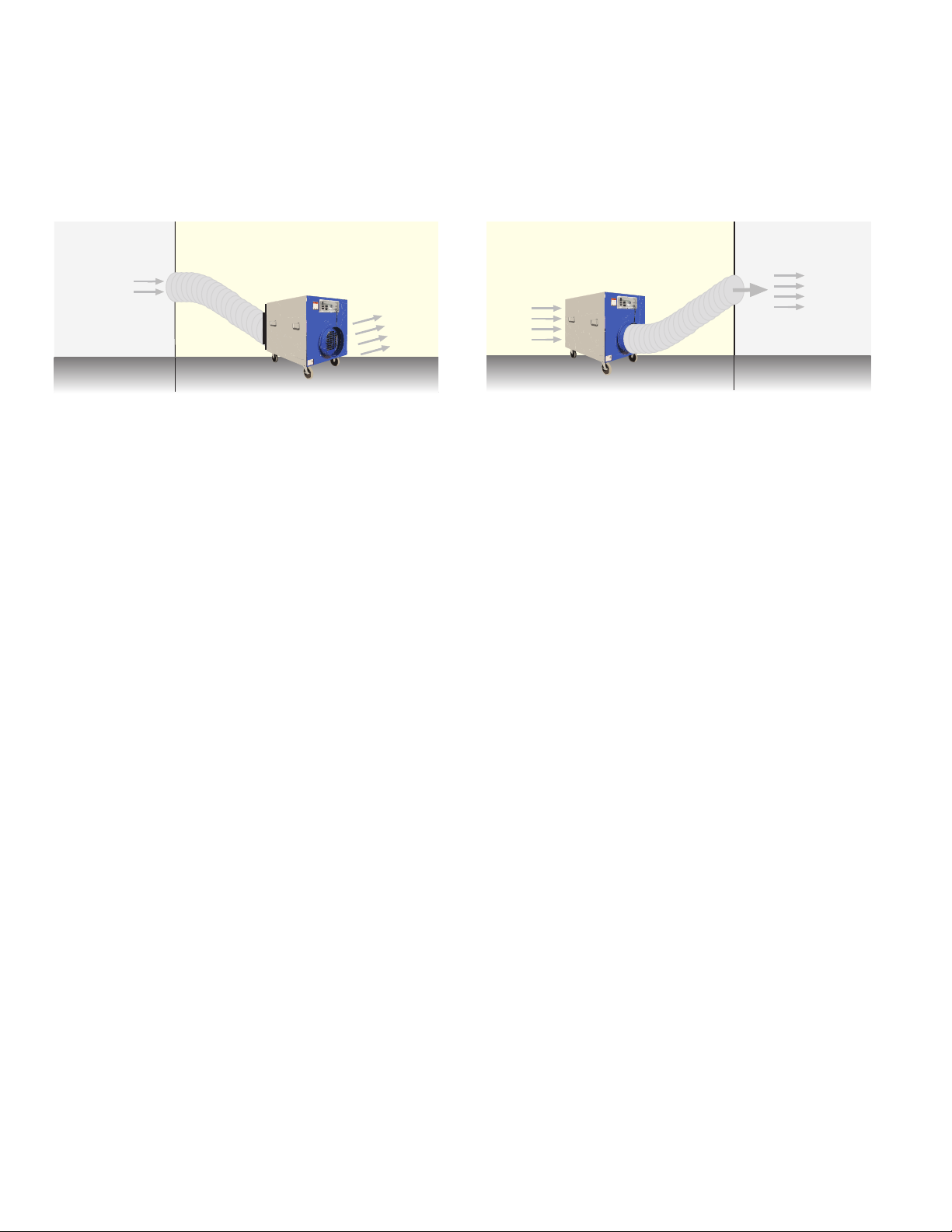

To create NEGATIVE PRESSURE inside the containment,
more air has to be exhausted out than leaks into the
containment. Place the machine inside the containment
and hook a flexible duct to the outlet ring of the
machine exhausting to outside the containment.
(See Above) All of the air being exhausted has been
treated by the HEPA filter so no contaminants are being
exhausted from the containment.
To create POSITIVE PRESSURE inside the containment,
more air has to be pumped in than leaks out of the
containment. Place the machine outside the containment
and hook a flexible duct to the outlet ring of the machine
ducting the exhaust into the containment. (See Above)

Speed Control
The air flow can be regulated from 300 to 1900 cfm by using the HIGH/VARIABLE speed selector switch and the SPEED
CONTROL knob.
Start the Machine
To start the machine in high speed, set the rocker switch HIGH/VARIABLE speed to the HIGH position. In this position
the SPEED CONTROL is disabled.
To start the machine in VARIABLE SPEED, set the rocker switch to the VARIABLE SPEED position and rotate the SPEED
CONTROL knob clockwise to obtain the desired airflow. As the filters fill with dust, the efficiency of the filters are
maintained, but the airflow will decrease and the vacuum reading will increase. Change the primary/secondary filter
frequently to protect the HEPA and to get more air flow. When amber indicator light comes on, the REPALCE FILTER
indicating light will turn on and the HEPA filter will have to be replaced to increase the air flow. Accessories such as
an optional intake manifold can be used on the suction side of the unit providing 12” connection for the flex duct. The
discharge side of the unit has a 12” diameter ring for a flex duct.
Maintenance
The blower and motor do not require any maintenance when the machine is operated with the HEPA filter in place.
Pre-Filter Replacement
The primary/secondary filter should be changed when the orange side shows it is loaded with dust. Changing the
filter can be done while the machine is running. Ensure that the orange side of the prefilter is facing the HEPA filter.
HEPA Filter Replacement
During your projects, your HEPA filter purifies the air and gradually becomes loaded
with sub-micron particulates. Even when the HEPA filter is fully loaded, the filter is still
removing particulates from the air at the rated efficiency yet at a reduced airflow. This
will affect the ability of the machine to provide positive or negative pressure within the
containment.
To replace the HEPA filter unplug the machine and remove the screen/manifold to
remove the prefilter. You will see 4 filter tabs holding the HEPA filter in place (see photo).
These tabs are secured with 1/4-20 Nylock nuts, which require a 7/16” wrench or socket.
Remove all 4 filter tab retaining nuts and remove the filter tabs and set aside. Slide the HEPA filter out along the
filter guides and remove it from the machine. ALWAYS TREAT THE USED HEPA FILTER AS HAZMAT AND PROCESS IT
ACCORDING TO YOUR ESTABLISHED HAZMAT PROCEDURES.
To replace the HEPA filter ensure that the gasket on the HEPA filter faces inwards toward the flange, slide the filter
in place along the filter guides and re-install the filter tabs and filter tab securing nuts. The nuts should initially be
tightened to where the stud is flush with the end of the nut. This will compress the gasket on the filter approximately 1/2
of the thickness. This allows for the filter to be reseated and tightened at a later time if necessary.
Bag Filter Replacement
For the projects that do not require a HEPA filter, the economical bag filter can be used to control the dust at
construction sites. The bag filter housing can be installed in place of the HEPA filter. The Bag filter with a MERV 15
rating and multi pocket configuration has a large dust holding capacity and requires replacement when the airflow
of the machine drops below your required minimum flow. Typically bag filters do not require the use of prefilters. The
filter tab

bag filter housing can be installed in the place of the HEPA filter using the filter tabs and Nylock nuts. The bag filter is
secured inside the housing with 4 P-clips. To remove the filter turn the P-clips 90 degrees and pull it out. Then install the
new bag filter and secure it using the P-clips.
Vapor Trap Carbon Filter
Activated carbon filters are designed to remove odors and gaseous pollutants from air. These filters are an effective
and quick solution to your VOCs and odor problems. The selection of the carbon filter depends on the type and
amount of the gaseous pollutants. You will need to determine the requirements of your application. The Vapor Trap is
a disposable V-Bank, 24”x18”x12” filter and contains 27lb of activated granular carbon. It can be installed in place of a
HEPA filter. We recommend using our primary/secondary filter in front of the Vapor Trap to extend its odor absorption
capacity.
Troubleshooting
Your Omnitec Design machine is designed and engineered to provide years of trouble free service. Occasionally
problems occur. Here are some helpful tips and solutions
The machine does not start
1. Check that the unit is plugged in and there is 115VAC available. Select either LOW or HIGH speed to turn the machine
on. If the red indicator light comes on, power is coming to the unit from the outlet.
2. Call Omnitec technical support to troubleshoot further.
The machine just hums when turned on
1. Unplug the unit.
2. Remove the HEPA filter and push the blower wheel by hand. If it does not move freely or if you hear a grinding/
scrapping noise as you spin it, then the blower wheel is touching the side of the blower housing. This may be due to
an impact of some kind and the motor mounts have been bent. Remove the motor/blower assembly and replaced
the bent motor mounts.
3. If the blower spins freely, check the capacitor. With the HEPA filter still removed from the machine, insure that the
wiring connected to the capacitor is plugged in and not broken. Re-plug the unit into the power outlet keeping the
switch in the OFF position. Then push the blower wheel and as it is spinning, turn the speed selector switch to HIGH. If
the machine keeps running, the capacitor needs to be replaced.
The machine will run for a few minutes then turn off
1. The machine must have a HEPA filter installed to operate properly. If you are trying to run it without a filter in place,
the motor will overheat within a few minutes and the thermal overload will engage and shut it down. Let the motor
cool off for 30 minutes, install the filter and try running the machine again.
2. If the filter is in place and the machine still shuts off after a few minutes then the motor is faulty. Replace the motor.
The machine vibrates excessively when running
1. This is an indication that the motor bearings are worn out. If the machine continues running, at this point the
vibration will cause the center hub of the blower wheel to separate from the wheel requiring replacement of both the
motor and blower. Replace the motor.
2. If the machine does require electrical servicing of the motor or switches the following page contains a wiring
diagram to aid in repair or troubleshooting.

4640 Campus Place, Suite 100
T. 425.290.3922 | F. 425.290.3964
Wiring Diagram
DRAWN BY: REV
SCALE DAT E SHEET
A. Briceno A
Not to Scale Nobember 9, 2018
MODEL
Diagram Legend
Terminated (Capped) Wire
Wiring Connector
Red LED Light
R
Green LED Light
G
Amber LED Light
A
OA2000V
115
VAC
60Hz RED
WHITE
BLACK
GREEN
WHITE
BLACK
GREEN
LED
R
1.25 HP
MOTOR
30 μF
CAPACITOR
SPEED
CONTROLLER
ON
OFF
ON
GREEN
1 of 1
Ordering Info Part #
OmniAire 2000V OA2000V
Primary/Secondary Two-Stage Filters (box of 20) OFP2518
HEPA Filter 99.99%, 0.3μ (metal frame) OAH2418G
HEPA FILTER 99.97%, 0.3μ (pb frame) OAH2418
Bag Filter Housing (includes 1 Bag Filter) HBF2000
Bag Filter MERV 15 OBF9
Vapor Trap V-bank Filter OCVT18
OdorGuard 600 Carbon Filter OG2418D
Intake Manifold Kit (Manifold, Clamp & 3’ Duct) OAIM2000-12KIT
ABS Plastic Intake Manifold, 12” Dia. OAIM2000-12
Quick Clamp, 12”-16” Dia. QCW14
Flexible Duct, 12” Dia. x 25’ L OAD12
Flexible Duct, Wire & Fiber Reinforced OAD12R

Omnitec Design 4640 Campus Place Ste. 100 Mukilteo, WA 98275
www.omnitecdesign.com 425-290-3922
Omnitec Design LIMITED WARRANTY
Omnitec Design warrants, for a period of twelve (12)
months from the date of purchase, that all Products,
component parts and accessories, excluding filters,
will be free from defects in material and workmanship
under normal use and service.
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS F.O.B., Omnitec
Design 4640 Campus Place Ste. 100, Mukilteo, WA 98275
Phone: [phone]
In order to keep this warranty in effect for the
aforementioned twelve-month period, the purchaser
must (i) promptly, i.e., immediately upon discovery,
inform Omnitec Design’s customer service of any
defects, and (ii) properly use and maintain the Product
prior to the discovery of any defect.
This warranty does not cover normal wear and tear or
defects caused by (i) improper or negligent handling or
unauthorized modifications; (ii) defective or improper
premises, chemical, or electrical influences; or (iii)
weather or other forces of nature.
In order to provide the best customer service possible,
Omnitec Design requests that purchaser completes the
enclosed LIMITED WARRANTY REGISTRATION FORM
and returns it to Omnitec Design within 30 days of
purchase date.
LIMITATIONS OF WARRANTY
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL
OTHER WARRANTIES AND OBLIGATIONS OF Omnitec
Design OR ITS SUPPLIERS, EXPRESS OR IMPLIED,
AND Omnitec Design EXPRESSLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE.
LIMITATION OF REMEDY
Under no circumstances shall Omnitec Design or
any supplier of Omnitec Design be liable for any
loss or damage, including, but not limited to, loss or
damage arising out of the failure of the Products to
operate for any period of time, inconvenience, the use
of rental or replacement equipment, loss of profits or
other economic loss, or general, direct, special, indirect,
incidental or consequential damages or property
damages.
PRODUCT SUITABILITY
Many states and localities have their own varied
codes and regulations governing sales, construction,
installation, and/or use of Products for certain
purposes. While Omnitec Design attempts to assure
that its Products comply with such codes, it cannot
guarantee compliance, and cannot be responsible for
how the Products are installed or used. Omnitec Design
recommends that, before purchasing and using a
Product, purchasers review the Product application, and
federal, state and local regulations, to be sure that the
Products, installation, and use will comply with them.
