ON Control SUSB-E8 User manual

2010-02-18
___________________________________________________________________
ON Control AB, Hjortstigen 5, SE-507 70 GÅNGHESTER, Sweden
Tel: [phone], Mobile: [phone], Fax: [phone] Page 1
Beskrivning SUSB-E8 eng V2.doc
SUSB-E8
EXPANSION UNIT
FOR CONTROL AND
MONITORING PANEL.
Description
The expansion unit is used to monitor
fire/smoke dampers in conjunction with the
control and monitoring unit.
If there are too many dampers to be connected
to the control and monitoring unit, the number
of inputs can be increased with expansion
units. One or more units can be connected.
There is no upper limit. Each expansion unit
can control up to 16 dampers and has eight
groups. This means that all the inputs can have
two dampers if necessary.
General
• Must be connected to the control and
monitoring unit
• Eight groups
• Damper position indication
• Input for more expansion units
• Integrated transformer
• 24 V supply to actuator
Maximum configuration.
Up to 16 actuators (dampers) can be connected
in eight groups.
Installation
Designed for wall installation.
Supply voltage
230 VAC 50 Hz 110VA. Protected with 2A at
least.
Protection class
IP65.
Ambient temperature
Max +30°C, min 0°C.
Weight
3 Kg
Outputs
• 8 groups for dampers
• For next expansion unit.
Inputs
• For next expansion unit.
• For the main unit
Size
255*180*103 mm. (b*h*d)

2010-02-18
___________________________________________________________________
ON Control AB, Hjortstigen 5, SE-507 70 GÅNGHESTER, Sweden
Tel: [phone], Mobile: [phone], Fax: [phone] Page 2
Beskrivning SUSB-E8 eng V2.doc
SPJ1 SPJ2 SPJ3 SPJ4 SPJ5 SPJ6 SPJ7 SPJ8
23
171819202122
26
27
28
29
2345678
ANTAL
SPJÄLL
1AT
4AT
SSSSSSSSÖÖÖÖÖÖÖÖ
ON om spjäll ansluts
GMGMGMGMGMGMGMGM
+
1000u
+
X
L0
1
+
1
RL1
FS2
FS3
BR1
D1
CONN1
C1
RL2
D4
T1
BR2
Fuses.
The connection card has three fuses. 1 AT fuse
protects the entire unit. The 63 mAT protects
just the electronics and the 2.5 A protects the
dampers (actuators). 2.5 A has now been
replaced with 4 AT.
Jumpers.
Jumper settings are used to specify the number
of connected dampers (groups). There are two
jumpers for each group. Group 1 must always
be connected, so there are no jumpers for this
group. The jumpers are inserted ”vertically” so
that the upper and lower pins are shorted by
the jumper. Jumpers are supplied in the plastic
bags provided. If the jumpers are set
incorrectly, either the control and monitoring
unit generates an alarm or the function test will
not detect dampers with no jumpers set.
Jumper X
Jumper X must always be set to ON.
Connections
230V 50Hz connected between terminals 2 and
3.
Expansion unit Control Panel
SUSB.
Terminal 17 to Terminal 20
Terminal 20 to Terminal M at SPJ1
Terminal 21 to Terminal 21
Terminal 22 to Terminal 22
Terminal 18 To next expansion
unit terminal 20
Actuator connection.
The dampers are connected using 4 wires as
with the SUSB.
Fuses
Jumper X. See
text.
Jumper panel to program the
number of dampers.

2010-02-18
___________________________________________________________________
ON Control AB, Hjortstigen 5, SE-507 70 GÅNGHESTER, Sweden
Tel: [phone], Mobile: [phone], Fax: [phone] Page 3
Beskrivning SUSB-E8 eng V2.doc

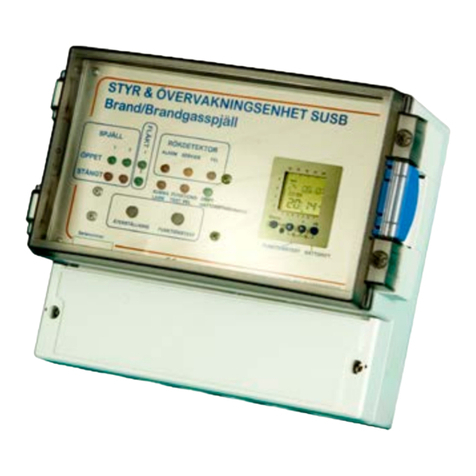

Interconnection diagram for SUSB and SUSB-E8.
8*15K
1 2 3 4 5 6 7 8 9 101112131415161718
+-+-
MSGÖMSGÖ
SPJ1 SPJ2
FAN1 FAN2
EXT DET1 DET2
ABCDEFG
1
00K
160mAT
230V
SUM-TRIPPED
DET. ALARM
ON Control AB GÅNGHESTER [phone]
100K
100K
10K
21 2220
H0L
10K 10K
100K 100K
33K 33K
NIGHTAUX FIRE
ALARM
SUSB
SPJ1 SPJ2 SPJ3 SPJ4 SPJ5 SPJ6 SPJ7 SPJ8
23
171819202122
SSSSSSSSÖÖÖÖÖÖÖÖ
GMGMGMGMGMGMGMGM
X
L0
1
FS2
D4
Expansion unit
SUSB-E8.
To connect more expansion units to a main unit, 17, 21 and 22 in all the expansion units must be
connected in parallel.
Disposal of old Electrical & Electronic Equipment (Applicable
throughout the European Union and other European countries with
separate collection programs)
This symbol, found on your product or on its packaging, indicates that this
product should not be treated as household waste when you wish to dispose of
it. Instead, it should be handed over to an applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences to
the environment and human health, witch could otherwise be caused by
inappropriate disposal of this product. The recycling of materials will help to
conserve natural resources. For more detailed information about the recycling o
this product, please contact your local city office, household waste disposal
service or retail store where you purchased this product.
