Onsite Cameras AutoCam GPS FHD User manual

AutoCam GPS FHD v2 MANUAL
Please read extra notes that are in the camera box.
Please set UMTC+ time after each daylight savings ends and starts in the
MENU settings. if you do not do this your time may be out by one hour.
Ie Victoria and NSW are +10, but during daylight savings are +11.
1
AutoCam GPS FHD v2

2
About ............................................................... 3
BSMI Statement ....................................................... 3
FCC Statement ........................................................ 3
CE and RoHS Statement ................................................ 3
1、Product ......................................................... 4
1.1 Features ...........................................................................................................................................4
1.2 Content ............................................................................................................................................7
1.3 Appearance......................................................................................................................................8
2、Installation Guide .............................................. 9
2.1 Installation Instruction.....................................................................................................................9
2.2 Device Installation/Uninstallation .................................................................................................10
2.3 Wiring Suggestion..........................................................................................................................10
2.4 Power Connection .........................................................................................................................11
2.5 Device ON/OFF ..............................................................................................................................11
3、Usage Guide .................................................... 12
3.1 Recording .......................................................................................................................................12
3.2 Emergency Recording ....................................................................................................................12
3.3 Snapshot ........................................................................................................................................12
3.4 GPS Positioning and Fixed-Point Speed Cam Alert........................................................................13
3.5 Self-set Speed Point.......................................................................................................................13

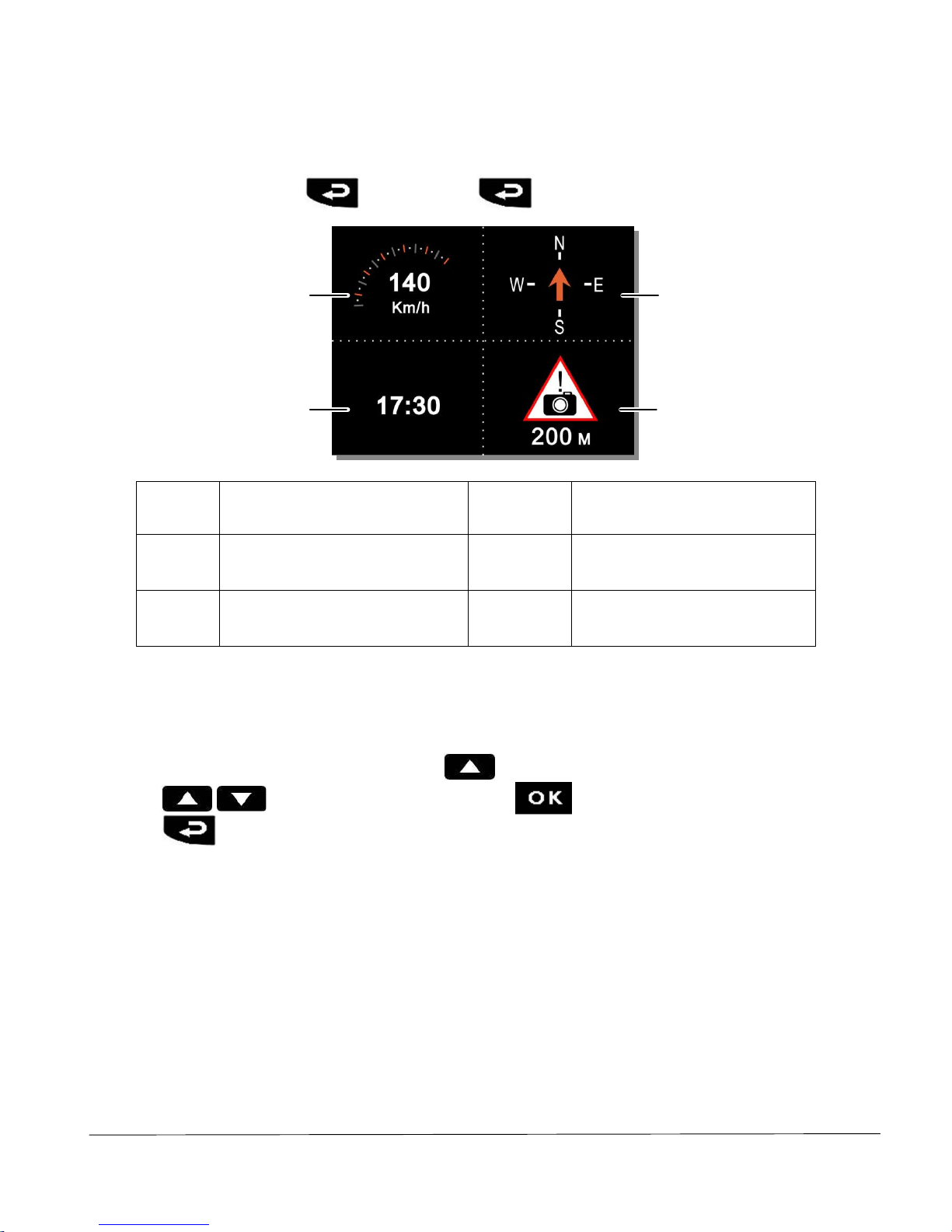

3.6 Instant Driving Info Display............................................................................................................14
3.7 File Playback Overview ..................................................................................................................14

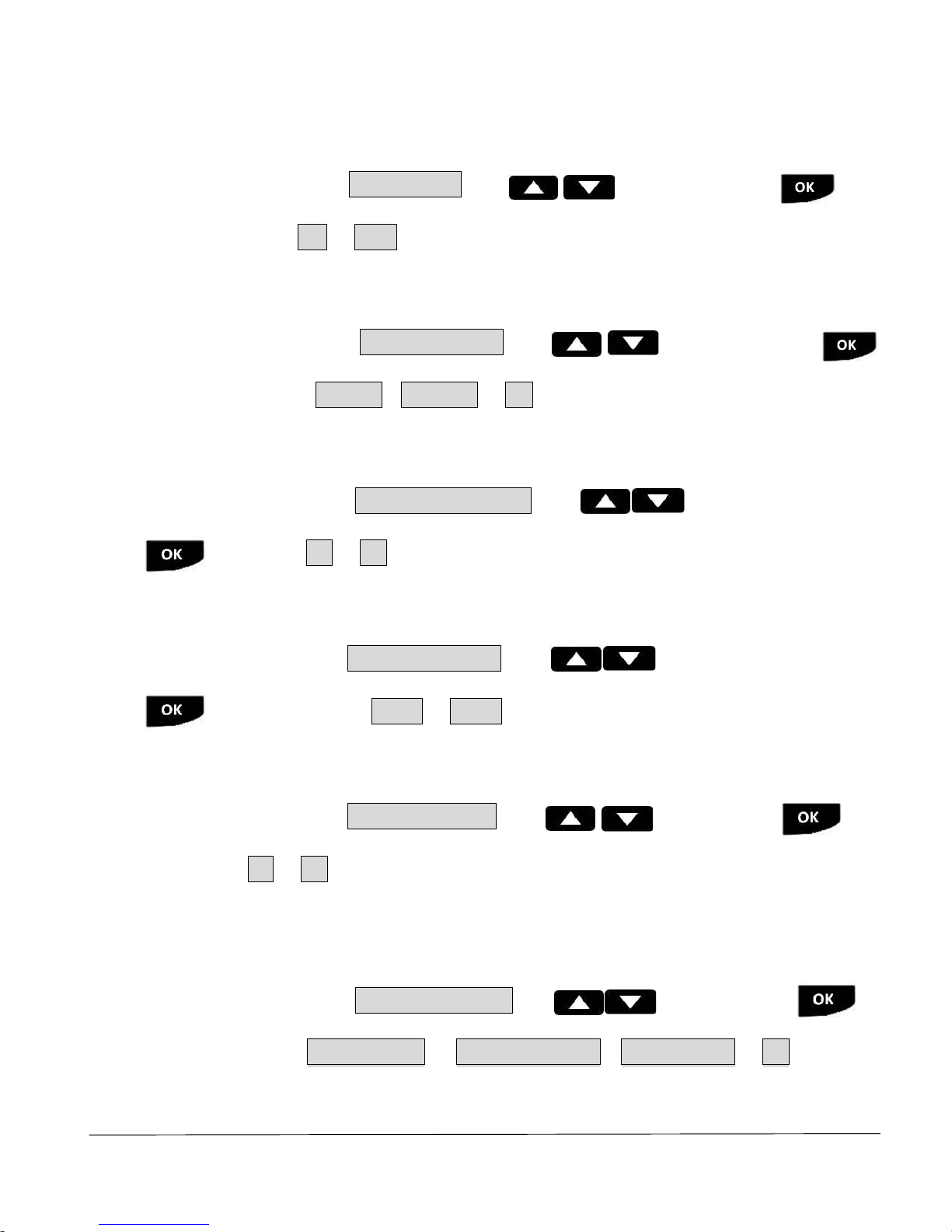

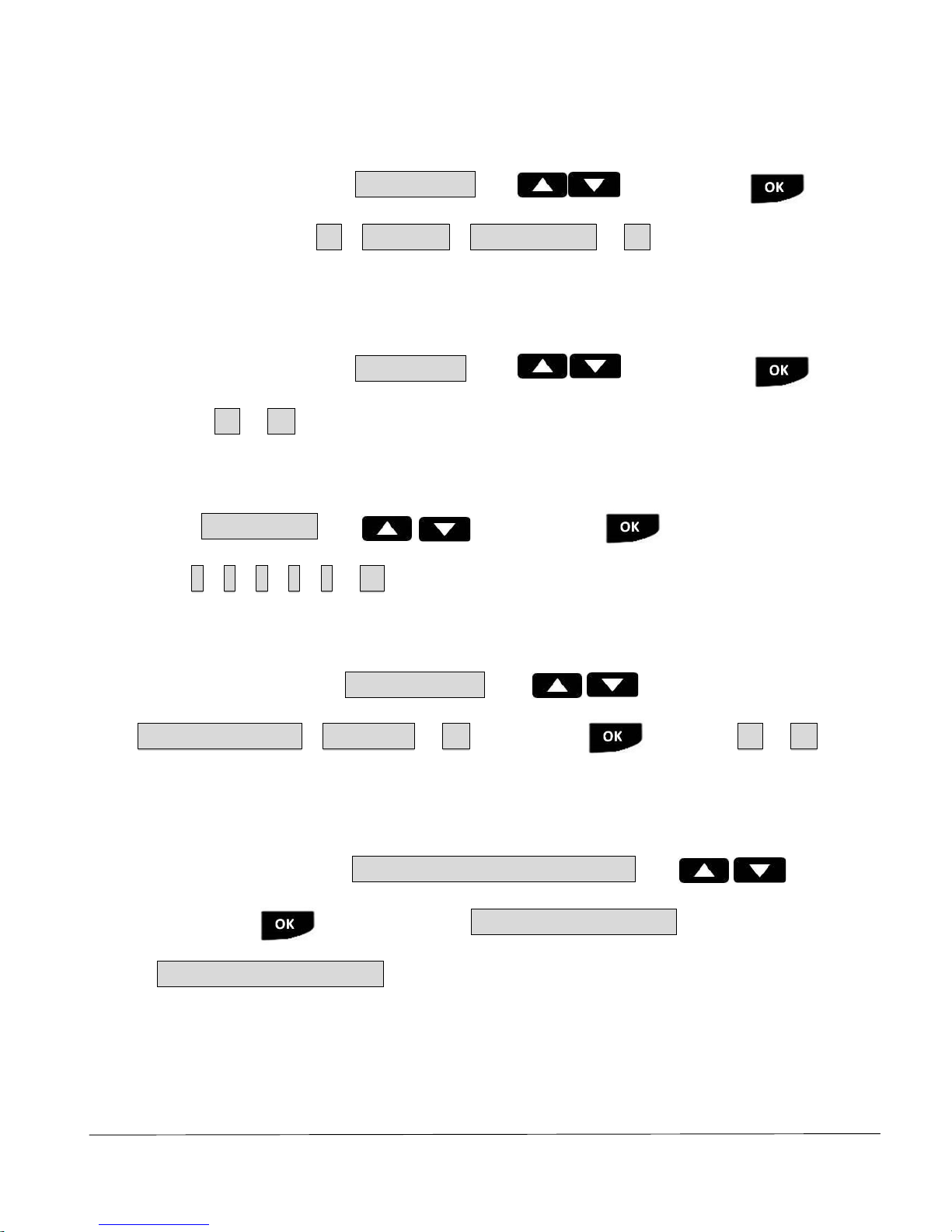

3.8 Menu / Functions...........................................................................................................................15
4、Micro SD Card File Access ...................................... 24
5、DVR Player Installation ........................................ 24
5.1 DVR Player: Installation, Interface and Playback...........................................................................24
6、Specification .................................................. 27
AutoCam GPS FHD v2

3
About
The content of this manual is for reference only. The producer retains the rights to
adjustment without prior notice. We keep working on the accuracy and completeness of
our manual. Feel free to contact us if you find anything lacking.
BSMI Statement
This product has passed the inspection of Bureau of Standard, Metrology and Inspection,
and is accordance with all the relevant current law and regulation; make sure this product
will not disturb all the other in-car electronic devices, and can be sold in Taiwan.
FCC Statement
In accordance with Part 15 of the FCC Rules, our device has been tested and proven to
comply with the limits for a Class B digital device. The limits are set to prevent against
harmful interference in a residential installation.
Complying with Part 15 of the FCC Rules, our device operation satisfies the following
conditions: (1) Device does not cause harmful interference, and (2) must accept any
interference received, including such that may cause undesired operation.
Our device is FCC approved to cause no interference with other in-car electronics.
FCC Caution: Any unauthorized changes or modifications could void the user’s rights to
safe and correct operation of the device.
CE and RoHS Statement
Our device is CE certified and thus complies with the requirements set forth in the
Council Directives on the Approximation of the Laws of the Member States relating
Electromagnetic Compatibility(2004/108/EC).
Restriction of Hazardous Substance(2002/95/EC) is a directive set forth by the European
Union concerning the usage of 6 harmful substances including lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ether. The
production process of our device complies with RoHS standards.
AutoCam GPS FHD v2

4
1、Product
Thank you for purchasing AutoCam GPS FHD car camera recorder. Our company is
dedicated to providing innovative, high quality electronics to our customers. This
device functions as a video and audio recorder in the car and on condition that its
built-in battery is fully charged, it also supports off-car usage.
1.1 Features
●Super HD 1296P：2304x1296, high resolution for super clear video quality.
●HDR1080p：HDR High dynamic exposure imaging technology to display real color.
●DSP：Ambarella A7L high processing chipset for better efficiency.
●Image Sensor：New generation low-light CMOS image sensor.
●Display：2.4” TFT LCD colorful screen for a clear view
●Smart Scenario Mode：Provide Parking and Landscape Mode to capture your journey.
●Wide Angle Lens：F1.8 big aperture, 156°(D) flat wide angle for a broader view.
●All-glass Lens：6G all-glass optical plus IR filter lens.
●GPS Information：Completely sync and record the driving time, speed, direction and
the coordinates.
●Fixed-point Speed Cam Alert
：National fixed-point speed cam data built in, alerting
you with voice prompt to avoid speeding. It is available to update your database by
internet. Not enabled in Australia or NZ. leave switched OFF.
●Add Self-set Speed Cam Position：Supporting manual registration of speed cam point
up to 200 entries. Not enabled in Australia or NZ. leave switched OFF.
●Self-set Speed Limit Alert：Customized speed limit to alert driver when reaches the
self-set speed limit.
●LDWS (Lane Departure Warning System)：Alert is issued when the speed exceeds 70
km/h and diverts from the original lane. Set to OFF.
●Circular Recording：Customized 3or 5-mins interval recording to not lose a second.
●Emergency Recording：To protect important files from being overwritten.
●Collision Detection：G-Sensor keeps track on gravity info and initiate emergency. Set
to OFF
AutoCam GPS FHD v2

5
●High Temperature Resistance：Parts and lithium battery both passed the
high-temperature test to ensure user safety.
●Built-in High Temperature Resistance Lithium Polymer Battery：Supporting off-car
recording when runs into emergency.
●Compatible with micro SDHC card up to 32GB. 5.5 hours approx record at 1080
●Exclusive DVR player showing video, map, driving direction and G-sensor data at
the same time.
●CE/FCC/BSMI certified, no interference with in-car devices and GPS.
●Compliance with RoHS.
Attention
Usage
Please use Class 10 or above micro SDHC card to avoid image lagging.
When setting up the device for the first time, please do not record at the same time.
Please use original bracket and accessories for AutoCam GPS FHD.
In vehicles which power to the cigarette lighter remains on after the engine has been
turned off, please remove the cigarette lighter plug to avoid draining your car battery
or other accidents.
After the car engine has stopped, the power supply been cut off, or any event that
interrupts the power supply occurs, the built-in battery allows continuous recording to
the memory card. Do not remove the micro SDHC memory card or the file might be
damaged.
Do not place the device in direct sunlight when you get off the car.
Do not connect the device directly to the power source on the car. A setup this way
will render the warranty void. You must use Hardwire Kit from OnSiteCameras only.
The device might slightly heat up when used for a long period of time. This
phenomenon is normal.
Do not disassemble or modify the device. Simply consult the dealer or our customer
service center when encountering problem with the device.
AutoCam GPS FHD v2

6
Do not drop or subject the device to blows or force. Do not press hard on the touch
screen. This may damage the device or cause it to malfunction.
Driving safety should always come first. Please do not operate this device while
driving.
The current speed, direction, current distance might vary slightly and are for
reference only.
Please avoid contact with water and make sure both hands are dried when
operating the device.
Please avoid cleaning the product with cleanser containing strong acid or alkaline.
Please follow local regulations when disposing the device and its built-in battery.
The driving safety calculation is for reference only. Please drive according to local
traffic rules and actual traffic situation.
GPS positioning result is for reference only. The accuracy of this function is subject to
weather, location and other external factors. Please note that GPS signals cannot go
through buildings and window films containing metallic substances.
For correct usage, please read the user manual carefully.
Micro SDHC Memory Card
1. Please use at least 8G micro SDHC memory card Class 10 or above supporting up to
32GB.
2. Please format the card via the device before use.
※Please do not insert or extract the memory card while the device is in operation.
AutoCam GPS FHD v2

7
1.2 Content
Device
Bracket
Car Charger
manual and GPS mapping software is supplied on USB stick in the box
AutoCam GPS FHD v2

8
1.3 Appearance
No.
Item
No.
Item
1
ON/OFF Key
8
Recording Indicator
2
Memory Card Slot
9
Mini USB port
3
Screen
10
GPS Module
4
Menu/Instant Driving Info/Back
11
Bracket Socket
5
Up Select/Self-set Speed Cam
Point/Play
12
Loudspeaker
6
Dn. Select/Pause/Snapshot
13
Lens
7
Recording/Confirm/Emergency
Recording/Pause/Play
14
Microphone
AutoCam GPS FHD v2

9
2、Installation Guide
2.1 Installation Instruction
Install your product as close as possible to the rearview mirror in your car to get the
best view, as illustrated.
To ensure clear recording in rains, please install the device within the range of
windshield wipers.
Please avoid hindrance of the safety airbag operation.
Wipe clean the selected area and the suction cup prior to installation.
Do not touch the lens lest the finger grease smudges the lens and thus affects
recording quality; use exclusive cloth for cleaning lens with lens whenever necessary.
Do not install on colored windshield, which affects recording quality.
Optimal Installation Area
※Warning
Do not install AutoCam products over an air bag cover or within the air bag
deployment zone. The company assumes no responsibility or liability for injury
or death as a result of car crashes and/or air bag deployment.
AutoCam GPS FHD v2

10
2.2 Device Installation/Uninstallation
Installation
1. To attach the bracket to the device, slide the bracket
into the bracket slot until a click sound appears.
2. To attach the device on the windshield, put the
suction cup onto the windshield and press down the
clamp.
3. Make sure the bracket has been firmly installed. To
adjust the vertical angle, loosen the top knob; to
swivel the device horizontally, unscrew the bottom
knob screw. Screw back tightly to secure recording angle.
Uninstallation
1. Device Uninstallation ：
To disconnect the suction cup and the windshield, pull down the
clamp. Make sure the device is securely in your hand in advance.
2. To disconnect the bracket and the device, press on the part on the bracket base that
sticks out and push outward while pulling the device inward.
2.3 Wiring Suggestion
1. Take the cigarette charger cable upward and
set it along the inside seam of car towards the
door of the shotgun seat.
2. Extend the cable to the door-frame strip
(front pillar inner side), downward to fix under
the mat and into the console.
3. Tuck the extra cable under the mat if applicable.
※Coins or other solid objects could be helpful in fixing the cable to its position.
AutoCam GPS FHD v2
