Onwa KP-32 User manual

æ
KP-32
µ
µ
MODEL KP-32MODEL KP-32
OPERATOR`S MANUAL
MARINE GPS/SBAS NAVIGATOR

SAFETY INSTRUCTIONS
WARNING
Do not open the equipment.
Only qualified personnel should work
inside the equipment.
Do not disassemble or modify the
equipment.
Fire,electrical shock or serious injury can
result.
Immediately turn off the power at the
switchboard if the equipment is
emitting smoke or fire.
Continued use of the equipment can
cause fire or electrical shock.Contact a
agent for service.ONWA
Use the proper fuse.
Useofawrongfusecandamagethe
equipment or cause fire.
Safety instructions for the Operator
WARNING
Be sure the power supply is compatible
with the equipment.
Incorrect power supply may cause the
equipment to overheat.
The useable temperature range for the
antenna unit is -25 to 70 ; -15 to
55 for the display unit.
Use of the equipment out of those
ranges may damage the equipment.

Safety Instructions for the Installer
WARNING
Do not open the cover unless totally
familiar with electrical circuits and
service manual.
Improper handling can result in electrical
shock.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Be sure that the power supply is
compatible with the voltage rating of the
equipment.
Connection of an incorrect power supply
cancausefireorequipment
damage.The voltage rating of the
equipment appears on the label above
the power connector.
Use the proper fuse.
Use of a wrong fuse can damage the
equipment or cause fire.
NOTICE
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Standard
compass
Steering
compass
Display
unit
0.80 m 0.55 m

TABLE OF CONTENTS
FOREWORD 1
SYSTEM CONFIGURATION 2
WHAT IS SBAS 3
1. OPERATIONAL OVERVIEW 4
2. PLOTTER DISPLAY OVERVIEW 12
3. WAYPOINTS (MARKS) 15
4. ROUTES 21
1.1 Controls 4
Stopping Plotting
E
1.2 Turning On and Off Power 5
1.3 Adjusting Brilliance and Contrast 5
1.4 Display Modes 6
1.5 Menu Overview 10
1.6 Simulation Display 11
2.1 Choosing the Display Range 12
2.2 Shifting the Cursor 12
2.3 Shifting the Display 13
2.4 Centering Own Ship's Position 13
2.5 Changing Track Plotting Interval
13
2.6 Erasing Track 14
3.1 Entering Waypoints 15
3.2 Entering the MOB Mark 17
3.3 Displaying Waypoint Name 18
3.4 Operations on the Waypoint List 18
3.5 Erasing Waypoints 19
3.6 Speed for Calculating Time-to-Go,
timated Time of Arrival 20
4.1 Creating Routes 21
4.2 Editing Routes 25
4.3 Erasing Routes 27
5. DESTINATION 28
6. ALARMS 30
7. OTHER FUNCTIONS 34
8. MAINTENANCE &
TROUBLESHOOTING 45
5.1 Setting Destination by Cursor 28
5.2 Setting Destination by Waypoint 28
5.3 Setting Route as Destination 29
5.4 Setting User Waypoint as Destination 29
5.5 Canceling Destination 29
6.1 Arrival Alarm Anchor Watch Alarm 30
6.2 XTE(Cross Track Error) Alarm 31
6.3 Speed Alarm 32
6.4 Time Alarm 32
6.5 Trip Alarm 33
6.6 Odometer Alarm 33
6.7 Buzzer Type Selection 33
7.1 Calculating Range, Bearing, TTG and
ETA 34
7.2 Bearing Reference 35
7.3 Magnetic Variation 36
7.4 Geodetic Chart System 36
7.5 Units of Measurement 36
7.6 Time Difference (using local time),
Time Format 37
7.7 GPS Setup 37
7.8 User Display Setup 38
7.9 Resetting Trip and Odometer,
Distances 40
7.10 Uploading, Downloading Waypoint,
Route Data 40
7.11 Language 44

8.1 Maintenance 45
8.2 Displaying the Message Board 45
8.3 Replacing the Fuse 46
8.4 Satellite Monitor Display 46
8.5 Diagnostics 47
8.6 Clearing Data 47
9.1 Installation of Display Unit 50
9.2 Installation of Antenna Unit 50
9.3 Wiring 51
9.4 Initial Settings 52
9. INSTALLATION 50
APPENDIX 54
SPECIFICATIONS 56
INDEX 58

FORWORD
A Word to the Owner of the
KP-32
Congratulations on your choice of the KP-32 GPS
Navigator.
For over 10 years ONWA has enjoyed an
enviable reputation for innovative and dependable
marine electronics equipment.
Your navigator is designed and constructed to
meet the rigorous demands of the marine
environment. However, no machine can perform
its intended function unless installed, operated
and maintained properly. Please carefully read
and follow the recommended procedures for
installation, operation, and maintenance.
We would appreciate hearing from you, the end-
user, about whether we are achieving our
purposes.
Thank you for considering and purchasing
ONWA equipment.
Features
The KP-32 is a totally integrated GPS receiver
and video plotter, and mainly consists of a display
unit and an antenna unit.
The high sensitivity GPS receiver tracks up to
13 satellites (12 GPS, 1 WAAS or EGNOS or
MSAS) simultaneously.
The main features of the KP-32 are
WAAS/EGNOS/MSAS capability.
Storage for 999 waypoints and 50 routes and
2,500 track points.
Alarms: Arrival/Anchor Watch, XTE (Cross-
track Error), Trip, Odometer, Time, and
Speed.
Man overboard feature records position at
time of man overboard and provides
continuous updates of range and bearing
when navigating to the MOB position.
Bright 95 x 63 mm LCD with adjustable
contrast and brilliance.
Autopilot (option) may be connected, and
steering data output to the autopilot.
Unique Highway display provides a graphic
presentation of ship's progress toward a
waypoint.
User displays definable by operator.
Waypoint and route data can be uploaded
from a PC and downloaded to a PC.
1

SYSTEM CONFIGURATION
Note: This equipment is intended for use on marine vessels. Do not use it in other applications.
2
KP-32 system configuration
12-24 VDC
: Standard Supply
: Option
NAVIGATOR
PERSONAL COMPUTER
ANTENNA UNIT
KA-07
PROCESSOR UNIT

WHAT IS SBAS
An SBAS provider furnishes GPS signal corrections to SBAS users, for even better position accuracy,
typically better than three meters. WAAS, available in North America, MSAS (Multi-Functional
Satellite Augmentation System) for Japan and EGNOS (Euro Geostationary Navigation Overlay
Service) for Europe, those are the provider in the worldwide SBAS (Satellite Based Augmentation
System) navigation system. All providers will be compatible with one another, thus providing
seamless position fixes to SBAS users
Satellite,Region Position
120,AOR-E 15.5 W
122,AOR-W 54 W
131,IOR 64.5 E
134,POR 178 E
150 W 120 W0
30 W 60 W 90 W 150 E120 E 30 E60 E90 E
150 W 120 W0
30 W 60 W 90 W 150 E120 E 30 E60 E90 E
40 N
20 N
0
20 S
40 S
60 S
40 N
20 N
0
20 S
40 S
60 S
60 N
3

1. OPERATIONAL OVERVIEW
1.1 Controls
Press once
Press twice
: Zoom, centering,
or escapes from current
operation,depending on display
in use.
: Opens menu.
Cursor Pad
Shifts cursor (cursor displayed)
and display (cursor off).
Selects items on menus.
Enters alphanumeric data.
Registers items on menus.
Sets/cancels destination.
Momentary press
Long press
: Inscribes mark.
: Inscribes MOB mark.
Momentary press
Long press
: Turns power on.
With the power on, press to adjust
dimmer and contrast.
: Turns power off.
Control panel
How to attach and remove the hard cover
To attach the hard cover, set it to the display unit at an angle.
To remove the hard cover, do as follows:
Chooses display mode.
Press at arrows
and pull toward
you to remove.
4

1.2 Turning On and Off Power
Turning on the power
Note:
Press the [DIM/PWR] key. The unit beeps and
then starts up with the last-used display mode.
The example screens shown in this
manual may not match the screens you see on
your display. The screen you see depends on
your system configuration and equipment
settings.
Your equipment takes about 90 seconds to find
its position when turned on for the very first time.
Thereafter it typically takes about 12 seconds.
The equipment shows receiver status indication
at the top left-hand corner in most display modes.
The table below shows these indications and
their meanings.
Receiver status indications
* = DOP (Dilution of Precision) is the index of
position accuracy and is the distribution pattern
of satellites used in position fixing. Generally,
the smaller the figure the better the position
accuracy.
Meaning
2D 2D GPS position fix
3D 3D GPS position fix
S2D 2D SBAS position fix
S3D 3D SBAS position fix
SIM Simulation mode
Indication
Turning off the power
Press and hold down the [DIM/PWR] key until
the screen goes blank (about three seconds). The
time remaining until the power is turned off is
counted down on the display.
1. Press the [DIM/PWR] key momentarily. The
display shown below appears.

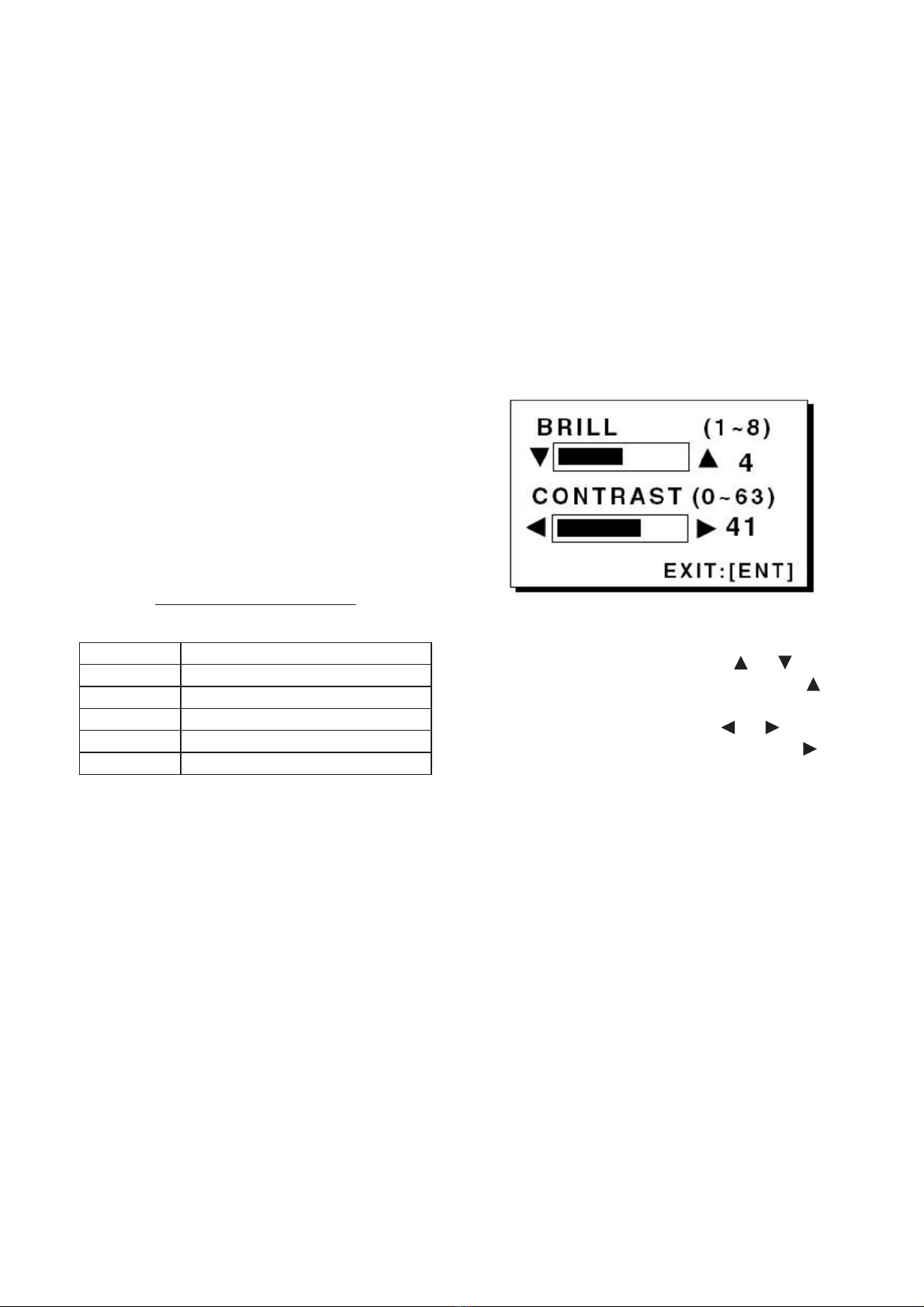

1.3 Adjusting Brilliance and
Contrast
2. To adjust the brilliance, press or .
Current setting is shown to the right of .
Maximum setting is 8.
3. To adjust the contrast, press or .
Current setting is shown to the right of .
Maximum setting is 63.
4. Press the [ENT] key to finish.
Brilliance and contrast adjustment window
5

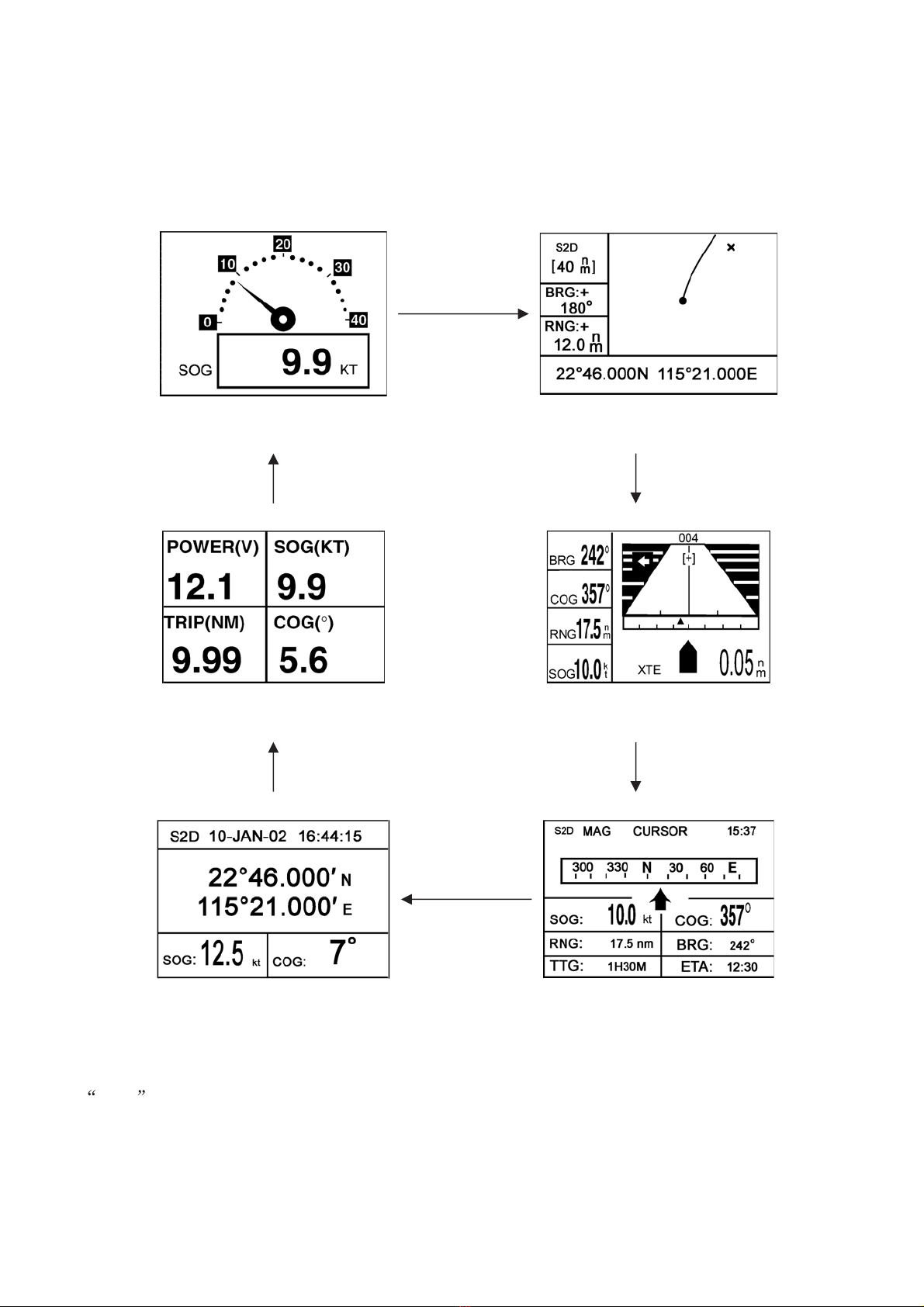

1.4 Display Modes
Your unit has five display modes: Plotter Display, Highway Display, Steering Display, Nav Data
Display and User Display (digital data and speedometer). Press the [DISP] key to choose a display
mode. Each time the key is pressed, the display mode changes in the sequence shown below.
[DISP] key
[ User Display:Speedometer ] [ Plotter Display ]
[DISP] key (Display format
Depends on user setting.) [DISP] key
[ User Display:Digital [ Highway Display ]
[DISP] key (Display format
Depends on user setting.) [DISP] key
[DISP] key
[ Nav Data Display ] [ Steering Display ]
Display modes (default user displays)
Note 1: The unit measures distances up to 9999 nm. Any distance greater than 9999 nm is shown as
*999 ..
6
0.5 0.5

Plotter display
The plotter display traces own ship's track, and shows position, bearing to cursor, range to cursor,
horizontal display range setting and receiver status.
Plotter display
Highway display
The highway display provides a 3-D view of own ship's progress toward destination (waypoint).
Nav data is also shown.
Receiver status
(See table on page 6.) Own ship mark (blinding)
Horizontal display
Range setting
Bearing
to cursor*
Range
to cursor*
Waypoint mark
(Shape selectable)
Boat's track
Cursor
(Displayed six seconds.)
Cursor position
(Own ship position when
Cursor is ot displayed.)
*=COG and SOG replace bearing to cursor and range
to cursor when the cursor is not displayed.
7
Highway display
Bearing from own ship to destination
waypoint
Course
over
ground
Speed
over
ground
Range from
own ship to
destination
waypoint
Analog XTE (Cross-track error) scale
Arrow shifts with boat's XTE.When the
arrow is aligned with the centerline the
boat is on course.The arrow blinks if
boat's XTE is greater than XTE scale
range."N" (North) is displayed instead
of the arrow when no destination is set.
C (Delta Course)
The boat mark displays
Course as follows:
The mode is North-up and the
arrow shows boat's course.
The arrow shows boat's course
towards destination.
When no waypoint is set;
When a waypoint is set;
Digital XTE indication
(in nautical miles)
Destination waypoint
Moves forward as boat
nears destination.
Destination waypoint name
CURSOR (cursor-selected
destination) or waypoint name.
Direction to steer (to return to course)
Appears to right or left of centerline
depending on direction to steer;
Steer right, Steer left.
+22 46.000 N 115 21.000 E

Steering display
The steering display provides steering information such as ship's speed, course, range, bearing,
ETA and TTG.
Steering display
Receiver status
Bearing reference (MAG or TRUE)
Destination (CURSOR or waypoint name)
Bearing scale
Own ship mark
Course over ground
Bearing
Estimated Time of
Arrival at destination
(*9:*9 shown when
ETA is over 99h59min.)
Time-To-Go
to destination
(*9H*9M is displayed
when TTG is over 99
h59min.)
Range from own
ship to destination
Speed over ground
Nav data display
The nav data display shows receiver status, position in latitude and longitude, course
over ground, speed over ground, date and time.
Nav data display
Receiver status
Speed over ground
Date and time
Position in latitude
and longitude
Course over ground
8

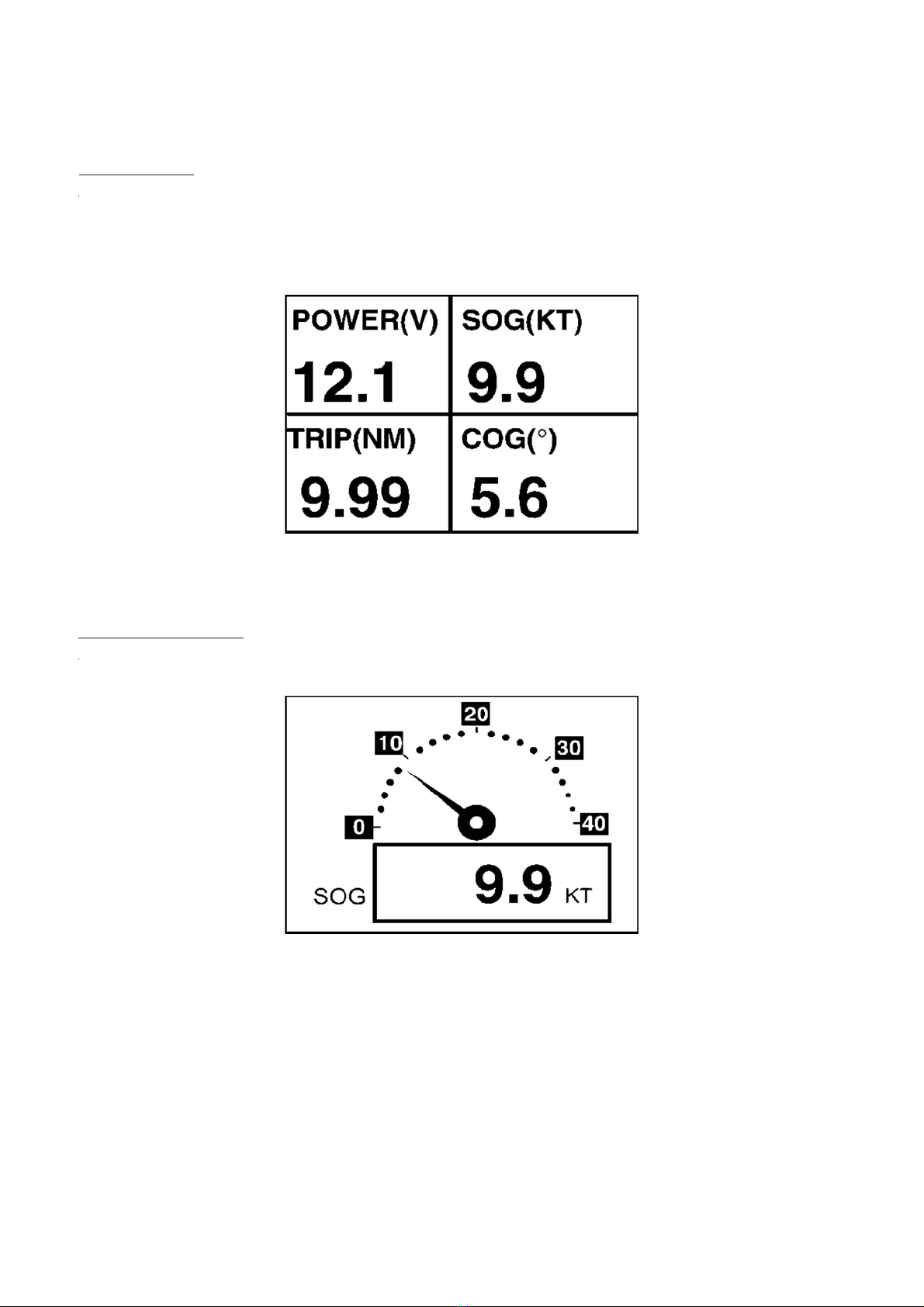

User displays
Two user displays are available, digital and speedometer.
Digital display
The digital display shows digital navigation data. The user may choose what data to display in one to
four cells. The choices of data are time, speed over ground, cross-track error, odometer distance,
position, course over ground, time-to-go to destination, trip distance, power source voltage, range and
bearing to waypoint, and estimated time of arrival at destination.
Speedometer display
The speedometer display provides both digital and analog displays of speed over ground.
Digital display (default display)
Speedometer display
9

1.5 Menu Overview
Most operations of your unit are carried out
through the menu. Below is a quick introduction
to how to choose a menu and change menu
settings. If you get lost in operation, press the
[MENU] key to return to the MAIN MENU. For
your reference, a complete menu tree appears in
the Appendix.
1. Press the [MENU] key once or twice to
display the menu.
Steering display, nav data display
and user display.
Plotter display, highway
display.
One press:
Two presses:
2. Operate the cursor pad to choose a menu and
then press the [ENT] key. For example,
choose PLOTTER and then press the [ENT]
key.
3. Use or to choose menu item. For
example, choose TRACK REC.
4. Press the [ENT] key. A window shows the
options for the item selected. (The illustration
at the top of the next shows the options
available for TRACK REC.)
Main menu
PLOTTER SETUP menu
5. Press or to choose option desired.
6. Press the [ENT] key to register your selection.
7. Press the [MENU] key twice to close the
menu.
In some instances it is necessary to enter
alphanumeric data. The example below shows
how to enter a time difference of -6:30, to use
local time instead of UTC time.
1. Press the [MENU] key once or twice to
display the menu.
2. Choose SYS SETUP and then press the [ENT]
key.
How to enter alphanumeric data
Track recording options
SYSTEM SETUP menu
3. Choose TIME DIFF.
4. Press the [ENT] key. A cursor circumscribes
+ . This cursor appears whenever selected
data can be changed with the cursor pad.
SYSTEM SETUP menu
TIME DIFF selected
10

5. Press to display - .
6. Press to send the cursor to the next digit.
7. Press or to display 0 .
8. Press to send the cursor to the next digit.
9. Press or to display 6 .
10. Press to send the cursor to the next digit.
11. Press or to display 3 .
12. Press to send the cursor to the last digit.
13. Press or to display 0 .
14. Press the [ENT] key.
15. Press the [MENU] key twice to finish.
The simulation display provides simulated
operation of this unit. You may set the speed
manually and course manually or automatically.
All controls are operative you may enter marks,
set destination, etc.
1. Press the [MENU] key once or twice to
display the menu.
2. Choose SYS SETUP and then press the
[ENT] key.
3. Choose SIMULATOR and then press the
[ENT] key. (Note that position shown
depends on language selected on the SYS
SETUP menu. After changing the language,
the memory is cleared.)
1.6 Simulation Display
4. The cursor is selecting MODE. Press the
[ENT] key. A window shows the choices ON
and OFF.
5. Choose ON and then press the [ENT] key.
SIMULATOR menu
6. Press the [ENT] key, use the cursor pad to
enter speed to use for the simulation, and then
press the [ENT] key.
7. Press the [ENT] key.
8. Choose course (AUTO or MAN) and then
press the [ENT] key. For manual entry of
course, press the [ENT] key, enter course with
the cursor pad, and then press the [ENT] key.
The AUTO course tracks a circular course.
Note: Course must be AUTO to set simulation
destination.
9. Press the [ENT] key, enter latitude with the
cursor pad, and then press the [ENT] key.
10. Press the [ENT] key, enter longitude, and then
press the [ENT] key.
11. Press the [MENU] key twice.
12. Choose the PLOTTER display with the
[DISP] key. SIM appears at the upper left-
hand corner when the simulator display is
active.
13. To turn off the simulator display, choose OFF
at step 5 in this procedure, press the [ENT]
key and then press the [MENU] key twice to
finish.
Note: If the power is turned off while the
simulator display is in use, SIMULATION
MODE will turn off at the next power up.
Simulator display, auto course selected
Course traced
in AUTO
course
11
22 46.000 N 115 21.000 E

2. PLOTTER DISPLAY OVERVIEW
2.1 Choosing the Display Range
You may choose the display range on the plotter
and highway displays. The horizontal range in the
plotter display is available among 0.02 (40 yd),
0.05 (101 yd), 0.1 (202 yd), 0.2 (405 yd), 0.5, 1, 2,
5, 10, 20, 40, 80, 160 and 320 nautical miles.
(Nautical mile is the default unit of display range.
Display range may also be shown in kilometers
or miles. Ranges shorter than the 0.5 nm are also
shown in yards or meters on the plotter display.)
The horizontal range in the highway display is
available among 0.2, 0.4, 0.8, 1, 2, 4, 8 and 16
nautical miles.
1. Press the [MENU] key. The zoom, ship
centering window appears.
Note: SHIP TO CENTER does not appear
when the highway display mode is active.
2. ZOOM IN/OUT is selected. Press the [ENT]
key to show the zoom window.
Zoom, ship centering window
Zoom window
3. Use (increase) or (decrease) to choose
range desired.
4. Press the [ENT] key to close the zoom, ship
centering window.
Use the cursor pad to shift the cursor. The cursor
moves in the direction of the arrow or diagonal
pressed on the cursor pad.
Cursor state determines what data is shown on the
display.
Cursor position is displayed in latitude and
longitude at the bottom of the plotter display
when the cursor is on. The range and bearing
from own ship to the cursor appear at the left-
hand side of the display.
2.2 Shifting the Cursor
Cursor state and data
Cursor turned on
Plotter display, cursor turned on
Bearing from own
ship to cursor Own ship Cursor
Cursor mark Cursor position in
latitude and longitude
Range from own ship to cursor
12
+22 46.000 N 115 21.000 E

Cursor turned off
The cursor is erased when there is no cursor pad
operation for about six seconds. Ship's position,
speed and course appear when the cursor is off.
Plotter display, cursor turned off
Own ship's position
(Blinking)
Course over ground
Speed
over
ground
Own ship's position in
latitude and longitude
2.3 Shifting the Display
2.4 Centering Own Ship's Position
The display can be shifted on the plotter display.
Operate the cursor pad to place the cursor at an
edge of the screen. The display shifts in the
direction opposite to cursor pad operation.
When own ship tracks off the plotter display, the
own ship mark is automatically returned to the
screen center. You can also return it manually as
follows:
1. Press the [MENU] key.
2. Choose SHIP TO CENTER .
3. Press the [ENT] key.

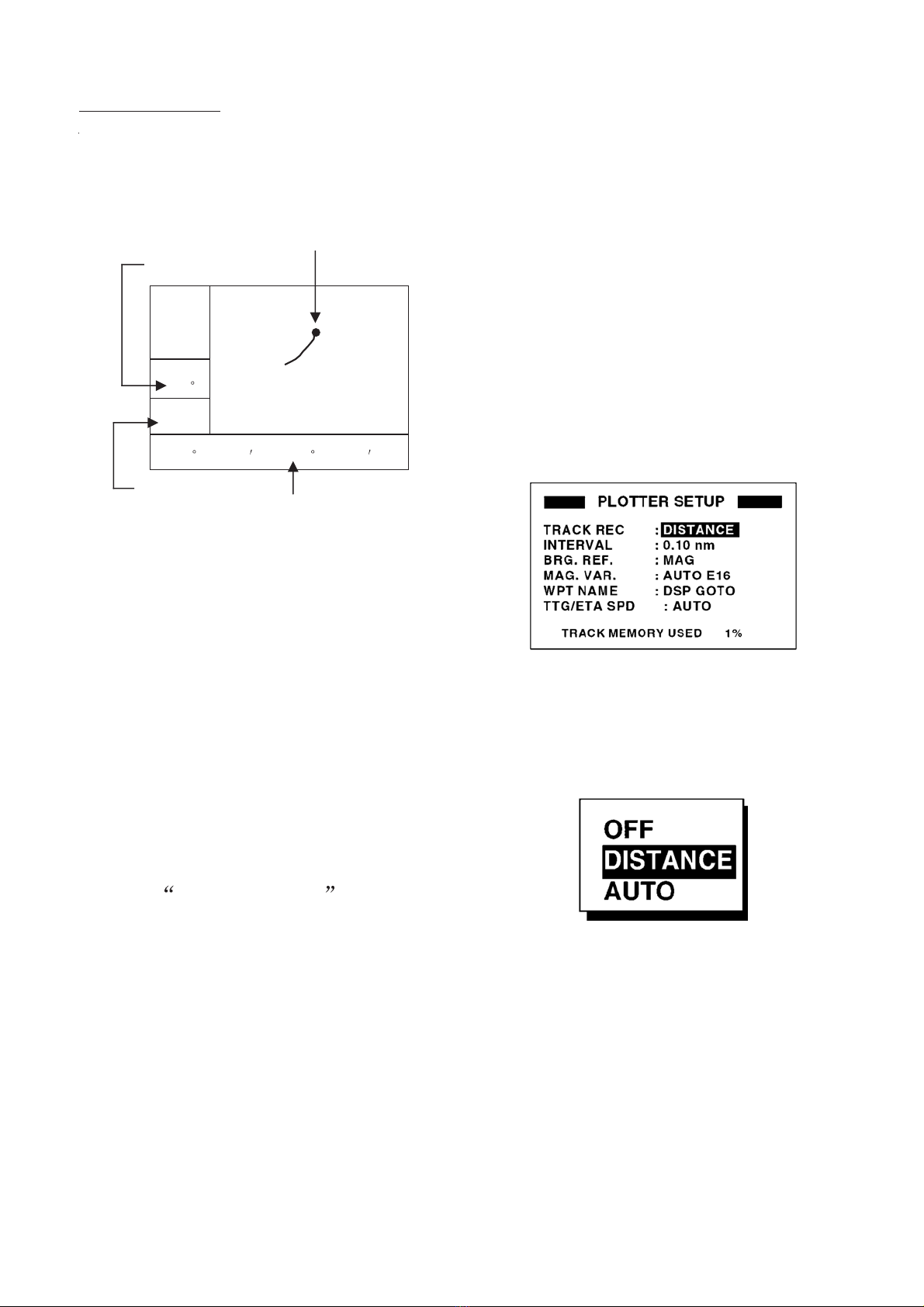

2.5 Changing Track Plotting
Interval, Stopping Plotting
To trace the ship's track, the ship's position is
stored into the memory at an interval of distance
or according to display range. For distance, a
shorter interval provides better reconstruction of
the track, but the storage time of the track is
reduced. When the track memory becomes full,
the oldest track is erased to make room for the
latest.
1. Press the [MENU] key once or twice to
display the menu.
2. Choose PLOTTER.
3. Press the [ENT] key.
PLOTTER SETUP menu
4. The cursor is selecting TRACK REC. Press
the [ENT] key to show the track recording
method options.
Track recording method options
5. Choose OFF, DISTANCE or AUTO and then
press the [ENT] key.
Track is neither recorded nor plotted.
This setting is useful when you do not need to
record track, for example, when returning to
port.
Track is recorded and plotted at
the distance interval set.
Plotting and recording interval
changes with display range selected.
OFF:
DISTANCE:
AUTO:
13
22 46.000 N 115 21.000 E
n
m
S2D
[.02 ]
40 Y
d
COG:
15
SOG:
7.0 k
t

6. For AUTO or OFF, go to step 7. For
DISTANCE, enter the recording interval as
follows:
a) Press the [ENT] key.
b) Use or to choose digit to change.
c) Use or to change value.
d) Press the [ENT] key after setting the
recording interval.
7. Press the [MENU] key twice to finish.
All tracks can be erased. Track cannot be restored
once erased, therefore be absolutely sure you
want to erase all track.
1. Press the [MENU] key once or twice to
display the menu.
2. Choose ERASE and then press the [ENT] key
to display the ERASE menu.
2.6 Erasing Track
ERASE menu
3. Choose TRACK? and then press the [ENT]
key. The message shown below appears.
4. Press to choose YES and then press the
[ENT] key.
5. Press the [MENU] key twice to finish.
Prompt for erasure of track
14

3. WAYPOINTS (MARKS)
3.1 Entering Waypoints
In navigation terminology a waypoint is a
particular location on a voyage, whether it be a
starting, intermediate or destination waypoint.
Your unit can store 999 waypoints. Waypoints
can be entered on the plotter display three ways:
at cursor position, at own ship's position, and
from the waypoint list.
1. Use the cursor pad to place the cursor on the
location desired for a waypoint.
2. Press the [ENT] key. The following window
appears.
Entering a waypoint with the cursor
Waypoint name entry window
3. The cursor is on the second line of the display.
This is where you may enter waypoint name,
which may consist of six alphanumeric
characters. The number shown is the youngest
empty waypoint number. If you would rather
have the unit register the waypoint under that
number, and you do not need to change mark
shape or enter a comment, press the [ENT]
key twice to register the waypoint and finish.
To enter XAIMAN as the waypoint name, for
example, do the following:
a) Press or to display X.
b) Press to move the cursor one place and
then press or to display A.
c) Press to move the cursor one place and
then press or to display I.
d Press to move the cursor one place and
then press or to display M.
)
e) Press to move the cursor one place and
then press or to display A.
f) Press to move the cursor one place and
then press or to display N.
g Press the [ENT] key. The following window
appears.
)
TTG and ETA calculated according to
speed set at TTG/ETA SPEED on
PLOTTER menu.
Comment (default:date/time)
Mark shape
Waypoint attribute edit window
4. This window is where you can choose mark
shape, enter a comment, and log the waypoint
to a route (LOG RTE?). (If you do not need to
change mark shape or enter a comment,
choose. Exit? and then press the [ENT] key to
finish. LOG RTE? is discussed in chapter 4.)
a) Use the cursor pad to place the cursor
under MARK .
b) Press the [ENT] key.
c) Use or to choose mark desired.
Press
Mark selection sequence
Note: Operating
changes the
sequence reversely.
15
