This brochure covers Zafira Life, Club, Design, Elite,
SRi and OPC models only. Some of the models shown
include options and accessories available at extra
cost. And not all of the features described are
available on every model. So please check in the
Opel Zafira Price Guide for further details. From time
to time, we also offer alternative Zafira models such
as Special Editions, featured in separate literature or
can be found on the Opel website www.opel.ie
Exterior styling 4
Interior styling 6
Flex7®seating 8
Environmental issues 12
Panoramic roof 10
Driving dynamics 14
Safety and security 16
Interior features 18
Model line-up 20
Accessories 26
Zafira OPC 28
Technical data 32
Features explained 38
Colours and trims 30
Zafira shows what can be achieved
with clever thinking. All that dynamic
driving experience, interior comfort
and built-in, seven-seater flexibility
– but with sharp styling, cool interior
finishes and impressive safety features.
make the world
adjust to you
T21073 Opel Zafira.indd 3T21073 Opel Zafira.indd 3 31/10/08 11:08:4931/10/08 11:08:49

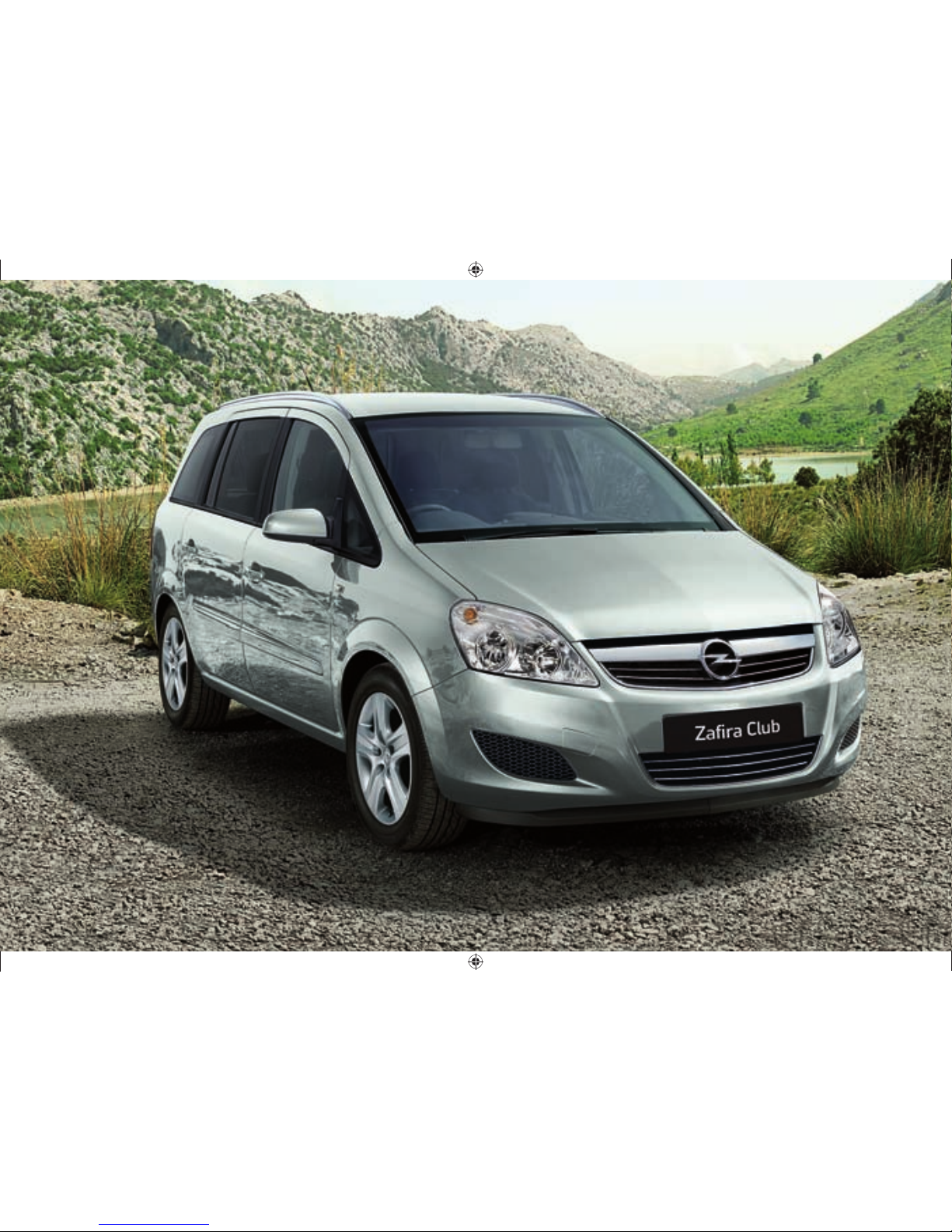

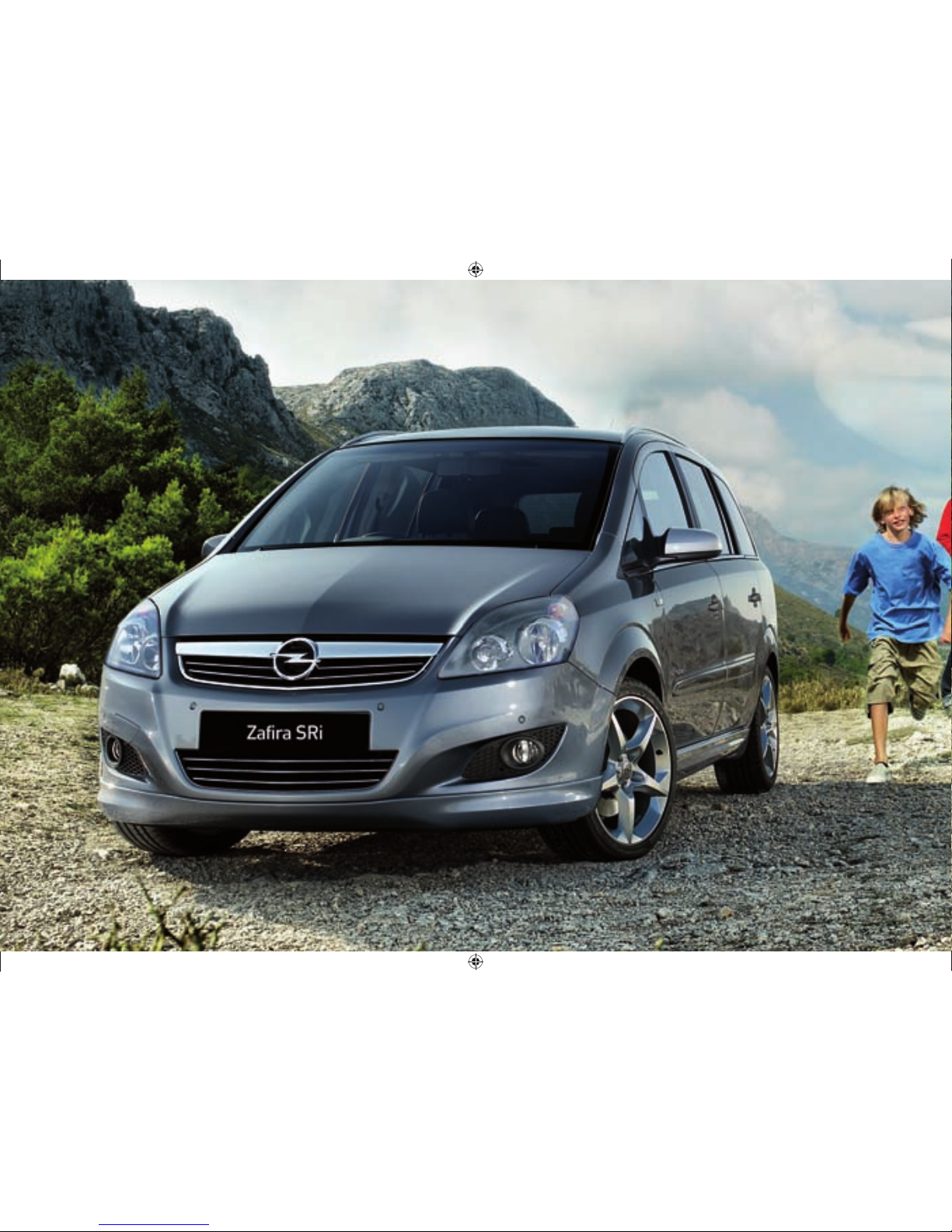

Fed up with boxy looking MPVs? Here’s a
welcome change. A seven-seater compact
people carrier that’s definitely got the
X-factor. With its radical, tapered roofline,
dynamic front grille and bumper shapes,
chrome headlight surrounds and great
alloy wheel designs too, family travel has
never been so attractive.
always cruise
in style
T21073 Opel Zafira.indd 4T21073 Opel Zafira.indd 4 31/10/08 11:08:5131/10/08 11:08:51

5
T21073 Opel Zafira.indd 5T21073 Opel Zafira.indd 5 31/10/08 11:08:5631/10/08 11:08:56

Zafira’s design themes move effortlessly from outside to
inside with a driver-friendly facia and high quality interior
finishes throughout. And while it’s easy for the driver to get
comfortable, this is a car designed to make travel easy for
the whole family. So it’s light and spacious, comfortable
and clever – wherever you’re sitting.
real comfort
wherever you sit
T21073 Opel Zafira.indd 6T21073 Opel Zafira.indd 6 31/10/08 11:08:5931/10/08 11:08:59

7
T21073 Opel Zafira.indd 7T21073 Opel Zafira.indd 7 31/10/08 11:09:0331/10/08 11:09:03

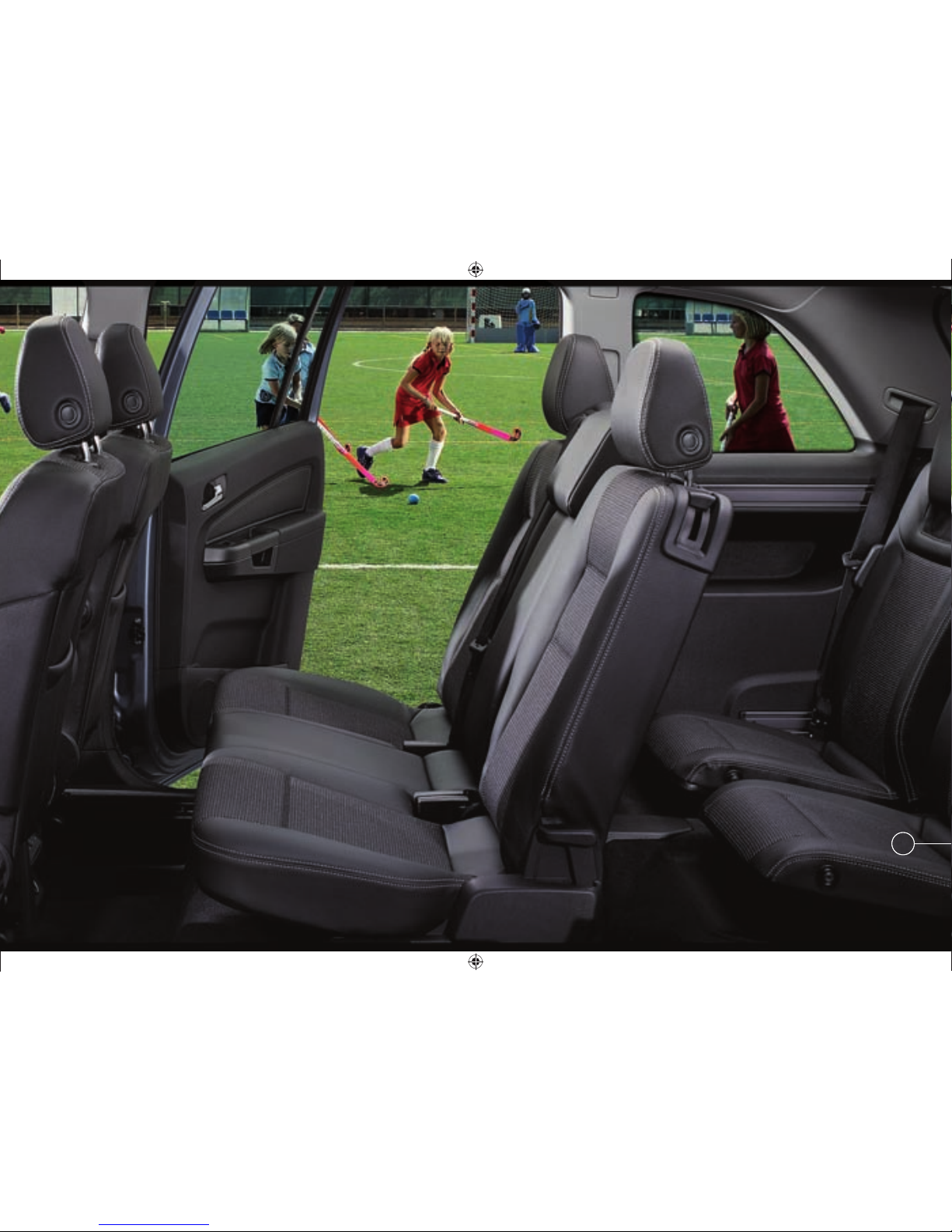

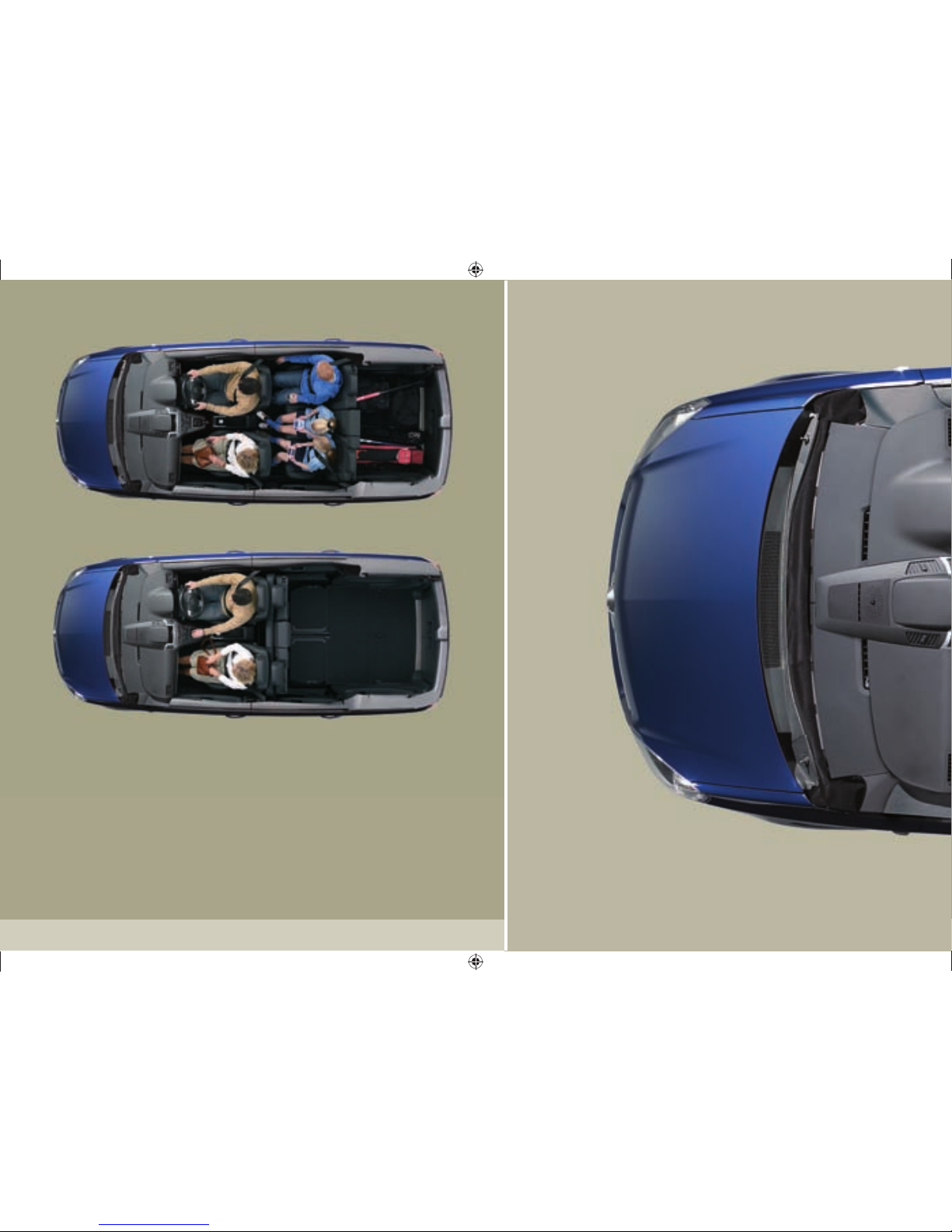

This is what versatility looks like. And it’s all down to clever design –
Flex7®seating, adaptable luggage space and plenty of smart storage
ideas for all your essential travelling kit.
space for a quality lifestyle
T21073 Opel Zafira.indd 8T21073 Opel Zafira.indd 8 31/10/08 11:09:0731/10/08 11:09:07

9
T21073 Opel Zafira.indd 9T21073 Opel Zafira.indd 9 31/10/08 11:09:0931/10/08 11:09:09

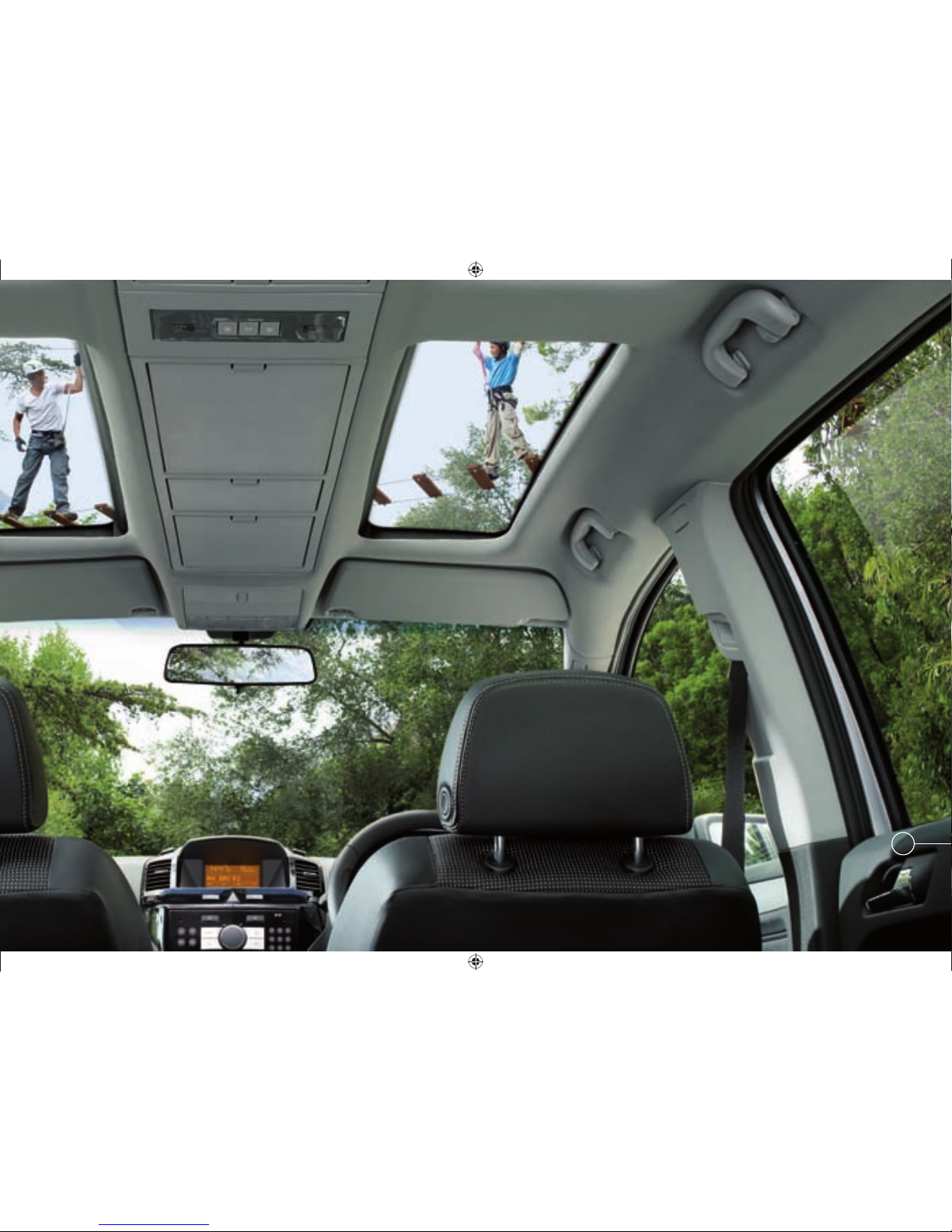

Talk about personalised travel arrangements! The
optional Zafira panoramic roof gives you four tinted
glass roof panels – with separate, electrically-operated
sunblinds – and a five-compartment, central overhead
console. So there’s always somewhere to put your
mobile phone, personal music player, sunglasses
or hand held games console.
a different look at life
T21073 Opel Zafira.indd 10T21073 Opel Zafira.indd 10 31/10/08 11:09:1131/10/08 11:09:11

11
T21073 Opel Zafira.indd 11T21073 Opel Zafira.indd 11 31/10/08 11:09:2031/10/08 11:09:20

T21073 Opel Zafira.indd 12T21073 Opel Zafira.indd 12 5/11/08 12:43:535/11/08 12:43:53

We all share a responsibility to look after our world. That’s why Opel has always been
at the forefront of green automotive initiatives. Most recently, we are looking at ways
to further reduce vehicle CO2emissions and working on even cleaner, alternative power
sources, including zero-emission fuel cell technology.
But our commitment to preserving the environment goes even further. We have
dramatically reduced manufacturing emissions, for example, and our new vehicles
use more recycled materials and more recyclable parts than ever before. We also
offer free and easily accessible, environmentally friendly, end-of-life vehicle disposal.
That way, we reduce our environmental impact in every phase of every vehicle’s life cycle.
Because your world is our world, too.
respect
your world.
13
T21073 Opel Zafira.indd 13T21073 Opel Zafira.indd 13 5/11/08 12:43:575/11/08 12:43:57

Petrol engines. Zafira’s 115PS 1.6i 16v
and 140PS 1.8i 16v VVT engines use
Double Continuous Variable Cam
Phasing (DCVCP), to provide most
of the available torque across a wide
rev band. The result? More power and
lower fuel consumption. The 2.0i 16v
Turbo makes Zafira one of the only
compact MPVs with 200PS on tap. And
the all-aluminium, 150PS 2.2i 16v Direct
uses direct petrol injection for
outstanding fuel economy, flexibility
and refinement.
CDTi diesels. That’s ‘CD’ for common
rail diesel technology, ‘T’ for
turbocharged and ‘i’ for fuel injected.
Put them all together and you’ve got
the most up-to-date diesel technology
around. All Zafira engines are CDTi,
providing serious diesel performance
and economy and tough emissions
control. Choose from a 1.7CDTi 125PS
engine or two 1.9CDTi diesels – one
rated at 120PS, the other at 150PS.
Life is better on the move
Think Zafira. Think advanced engine and chassis technology. Four petrol engines and three common
rail turbo diesels – all brilliantly efficient with an impressive spread of power. And out on the road,
a reassuring sense of control, helping you feel relaxed and secure under any conditions.
T21073 Opel Zafira.indd 14T21073 Opel Zafira.indd 14 31/10/08 11:09:3531/10/08 11:09:35

15
Driving dynamics
Interactive Driving System (IDS-plus).
This optional system senses changes in
the vehicle dynamics and automatically
adjusts the damper rates – in real time.
The result is confident cornering and
sharper handling with reduced body
roll. Pretty smart for seven-seater
compact MPV. For further information
please see page 39.
Sport switch. Sports performance
to suit your mood. Hit the optional Sport
switch and you get a sharper throttle
and more responsive steering. With
optional IDS-plus you also get sportier
chassis dynamics with more body
control. It also controls the automatic
transmission’s Sport mode. For further
information please see page 39.
Easytronic transmission. Choose
the optional Easytronic transmission
and you’ll get a five-speed manual
gearbox with a fully automatic mode.
In manual mode, you simply push the
lever forward or back to shift gears
up or down. The facia display tells
you what gear you’re in – 1 to 5, N for
Neutral or A for Auto. Switch to fully
automatic mode and it has many of
the features of a regular automatic
including a kickdown function. There’s
no clutch pedal so you can drive it on
an automatic-only driving licence.
ESP-plus. Especially useful on
wet roundabouts and greasy roads or
whenever a slippery surface catches
you out, the optional Electronic Stability
Programme (ESP-plus), senses if the car
starts to slide on a bend and applies
corrective braking to the appropriate
wheels to help you regain control. For
further information please see page 38.
Six-speed. Zafira comes with
a six-speed manual gearbox as
standard on all 2.2i 16v, 1.7CDTi and
1.9CDTi 150PS engines. Others come
with a five-speed manual as standard,
with four- and six-speed automatic
and five-speed Easytronic transmission
options also available at extra cost.
Automatic transmission. The
electronically-controlled, six-speed
automatic has an adaptive driving
function and a Winter mode, which
selects third gear for standing starts in
slippery conditions. It’s available on both
1.9CDTi diesels. A four-speed automatic
is available on 2.2i 16v Direct models.
T21073 Opel Zafira.indd 15T21073 Opel Zafira.indd 15 31/10/08 11:09:3731/10/08 11:09:37

Adaptive Forward Lighting (AFL).
The optional lighting system swivels
the headlight beams up to 15 degrees
for improved vision as you turn a
corner. Above 105 km/h, it raises the
dipped headlight beam slightly, also
to increase safety – returning to
normal beam automatically as speed
is reduced. Turn to page 39 for more
detailed information.
Intelligent, reassuring safety and security
Zafira has a strong reputation for safety and security, and with good reason. Every model has a five star
EuroNCAP adult occupant safety rating, with six full-size airbags and a chassis that is packed with active
safety innovations that help you avoid accidents before they happen. Security features include remote
control central locking.
T21073 Opel Zafira.indd 16T21073 Opel Zafira.indd 16 31/10/08 11:09:3831/10/08 11:09:38

Adult occupant rating
17
Safety and security
Anti-lock Braking System (ABS). On its
own, ABS is a huge benefit in emergency
braking, but Zafira goes even further.
Emergency Brake Assist (EBA), Electronic
Brakeforce Distribution (EBD) and
Cornering Brake Control (CBC) all make
the car easier to control and stop under
extreme cornering and braking.
Six airbags. Zafira now protects
you and your family with six full-size
airbags as standard on every model.
Specially developed to provide
maximum protection, every model has
twin front airbags, enlarged ‘thorax-
pelvis’ front seat side-impact airbags
and full-size curtain airbags too.
Remote control alarm system.
Standard on SRi and OPC, the
ultrasonic security alarm system
features forced entry detection, along
with tilt, movement and rear glass
breakage sensors, plus a power siren
complete with its own power supply.
ISOFIX Child Seat Restraint System.
The rigid ISOFIX anchoring mechanism
virtually eliminates the dangers of
incorrect child seat installation. You
simply click the accessory Opel ISOFIX
child seat into the mounting points
engineered into the Zafira outer rear
second-row seats.
T21073 Opel Zafira.indd 17T21073 Opel Zafira.indd 17 31/10/08 11:09:4131/10/08 11:09:41

Keeping everybody happy
Zafira’s Flex7®seating. It’s not just about quantity. It’s about quality too, making everyone feel comfortable
– front and rear. Wherever you’re sitting, you’ll be amazed at what Zafira has to offer, whether it’s features
like air conditioning and rear seat audio or clever storage space for all your bits and bobs.
Versatile load space.
When you’re not using Zafira’s third
row seats, there’s no need to remove
them completely. Each one folds down
separately, flush with the load floor. Add
the optional FlexOrganiser®Pack, and
you’ve got the smartest, most versatile
way to manage your load area ever!
T21073 Opel Zafira.indd 18T21073 Opel Zafira.indd 18 31/10/08 11:09:4331/10/08 11:09:43

19
Interior features
Multi-function trip computer. Standard
on all models (except Life), this
invaluable driver information system
provides instantaneous and average
fuel consumption, fuel consumed,
average speed, distance travelled and
range based on fuel remaining.
Cruise control. The easy-to-use,
tap-up/tap-down cruise control allows
you to maintain a steady speed without
keeping your foot on the throttle. So
it’s more comfortable on long journeys
and easier to keep to speed limits too.
Standard on Elite and optional on most
other models, cruise control is also
included in the Technical Pack.
*Please contact your local Opel dealer for
further information.
Mobile phone system with
Bluetooth®*. With the optional mobile
phone system, your phone interfaces
with the audio unit, for operation via
the steering wheel controls and facia
display. Bluetooth®wireless technology
with voice activation is included.
Bluetooth®is also available as part
of the Technical Pack.
Quality sounds. Every Zafira features
a quality stereo radio/CD player, with
steering wheel mounted audio controls
on many models. Optional systems add
MP3/CD format, user-friendly satellite
navigation with colour display, and
our independent rear seat Twin Audio®
system, where the front and two second-
row rear passengers can listen to the
radio or a CD independently and at the
same time. It comes with separate
second-row rear seat audio controls –
an on/off switch, independent volume
controls for each headset, switching
between CD and radio tuner and a scan
function. And it even mutes the rear
speakers when the headphones are in
use. Accessory headphone sets and
alternative earhook headphones are
also available.
Air conditioning. It makes for a fresher
interior atmosphere all year round,
with chilled air on hot days and faster
demisting when it’s damp. Move up
to Electronic Climate Control (ECC),
standard on Elite and optional on most
other models and you can maintain
the interior temperature to within a
single degree.
Satellite navigation. You’ll never get
lost with optional satellite navigation.
It can determine your precise location
and guide you to your destination by
the best and fastest route.
T21073 Opel Zafira.indd 19T21073 Opel Zafira.indd 19 31/10/08 11:09:4531/10/08 11:09:45

20
Life
LIFE
Standard features include:
• Anti-lock braking system
• Power-assisted steering
• Twin front airbags
• Front seat side-impact airbags
• Full-size curtain airbags
• Driver’s seat height adjuster
• Electric door mirrors
• Electric front windows
• Remote control central locking
• Steering wheel adjustable
for reach and rake
• Air conditioning*
• CD player/stereo radio (CD 30)
• 12-volt auxiliary power socket
located in luggage compartment
• Black roof rails
Engine availability
1.6i 16v VVT
1.8i 16v VVT
1.8i 16v VVT Easytronic
1.7CDTi 16v (125PS)
1.9CDTi (120PS) Automatic
*Non-air conditioned 1.6i 16v model also available.
T21073 Opel Zafira.indd 20T21073 Opel Zafira.indd 20 31/10/08 11:09:4631/10/08 11:09:46
