Opel Corsavan 2014 User manual

2014 Models Edition 1
OPEL COMMERCIAL VEHICLES

Opel commercial vehicles.
Built for you and your business.
The purchase of a commercial vehicle represents a
signicant investment. Its true value can be judged by
how efciently it works for you and your business. All
Opel vehicles excel to meet the demands of operators
and we go to extraordinary lengths to ensure that they
also spend the maximum time where they work their
hardest – on the road.
3
4-9 Corsavan
10-15 Astra 5 Door Van
16-21 Combo
22-31 Vivaro

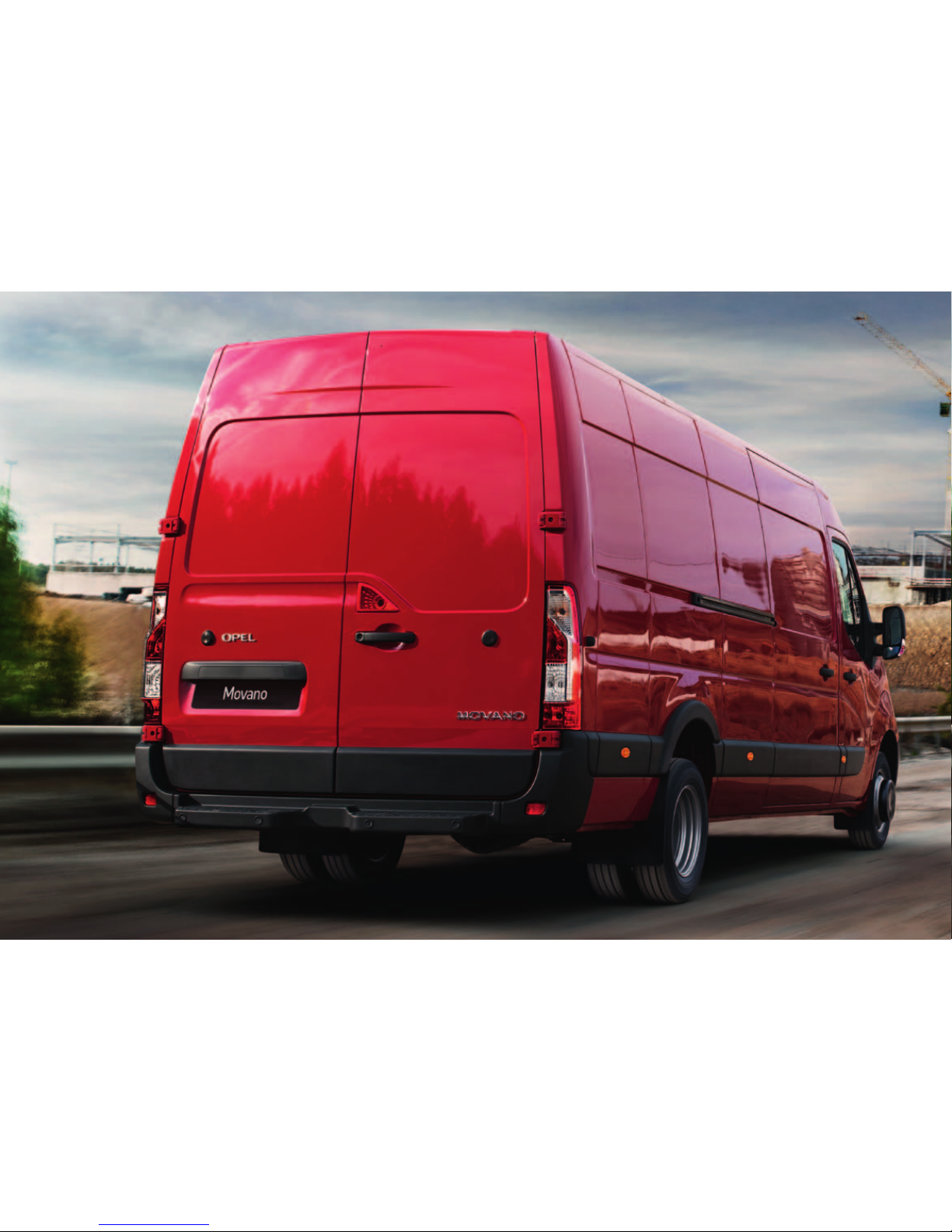

32-41 Movano
42 Options
43 Accessories
44 Colours
47 Trims
Some of the vehicles shown in this brochure include options and accessories available at extra cost. And not all of the features
described are available on every model. So please check the Commercial Vehicle Price Guide available from your Opel dealer.
Or log on to www.opel.ie for more information.

4

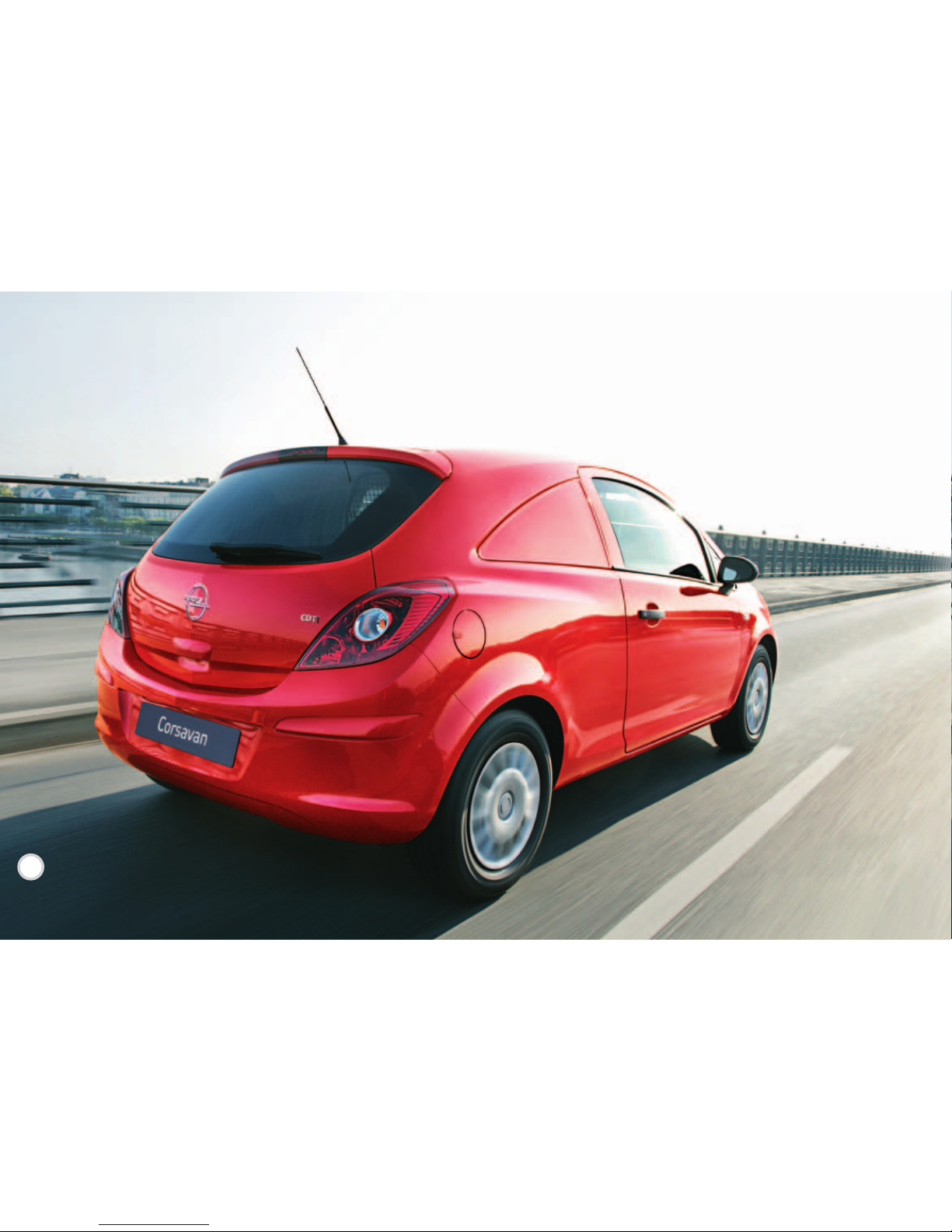

Corsavan.
The small van that gives you more.
Small enough for congested city streets, yet big enough to
eat up the miles on the open road, Corsavan matches
stunning looks with a dynamic chassis, spacious cabin and
high levels of safety and security. The load area is also easy
to access, with purpose-built load protection and a class-
leading 550kg payload.
On the road, few vans can match Corsavan’s low running
costs. Our 75PS 1.3CDTi 16v diesel engine – in particular
– matches superb driveability with excellent fuel economy.
Inside, the Corsavan cabin is built for long-term driver
comfort complete with supportive seats and plenty of useful
in-cab storage for paperwork, drinks and other essentials.
With a choice of engines, a 1.2i 16v petrol engine or a
1.3CDTi 16v common rail turbo diesel, both Euro 5 compliant
– it’s clear to see it’s the small van that gives you more.
5

6

7
Corsavan takes its load carrying duties very seriously, with strong
attention to detail in areas that really matter. A tall, wide tailgate
aperture makes it easy to load. The long, high load area has
superb load and occupant protection features. Most of all, it
carries an impressive 550kg maximum payload – a figure that
puts all its competitors in the shade.
Loadspace
Easy loadability
Corsavan has never been easier to
load. The tall tailgate aperture allows
larger items to be loaded. The tailgate
itself lifts high (for good headroom)
and extends down into the bumper
making for a low loading height.
Load protection
A sturdy steel  oor and half-height steel
bulkhead, tough sidewall half-height
panelling and load restraint lashing
eyes are all standard. An upper load
restraint mesh,  tted rubber  oor mat
and four-piece load compartment
cover are optional for even more load
protection.
Loadspace dimensions mm inches
Maximum load oor length 1257 4 9.5
Maximum load area height 924 36.4
Maximum load area width 1264 49.8
Width between wheel arches 969 38.1
Load sill height (unladen) 691 2 7. 2
Maximum tailgate aperture height 650 25.6
Maximum tailgate aperture width 980 38.6
Loadspace volume cu. m cu.ft
Maximum loadspace volume (VDA method) 0.92 32.5
Features include:
>
550kg maximum payload
>
Steel load area  oor
>
Half-height steel bulkhead
>
Sidewall half-height panelling
>
Load restraint lashing eyes
>
14-inch steel wheels with  ush covers
>
Upper load restraint mesh (optional)
>
Fitted rubber  oor mat (optional)
>
Four-piece load compartment cover
(optional)
Loadspace

8

9
1.2i 16v Twinport
The 70PS 16v petrol engine uses
advanced Twinport technology for
increased performance and fuel
economy and meets Euro 5 emission
standards.
1.3CDTi 16v common rail diesel
Our 1.3CDTi 16v (75PS) common rail
diesel engine is matched to a  ve-
speed gearbox. This delivers
outstanding performance combined
with excellent fuel economy.
Dynamic SAfety Suspension (DSA)
The latest ABS system with Electronic
Brakeforce Distribution (EBD) and
Emergency Brake Assist (EBA) can
reduce emergency stopping distances
even further, particularly on slippery
roads and help drivers retain steering
control.
Anti-lock Braking System (ABS)
When any vehicle brakes on surfaces
with differing levels of grip (e.g. gravel
or mud versus dry tarmac), there is
always the potential for loss of control.
Corsavan’s DSA suspension helps
correct this tendency, making the van
safer under ‘break away’ conditions.
Electronic Stability Programme-plus
The optional ESP-plus with Enhanced
Understeering Control works in
conjunction with the vehicle’s Traction
Control system to help you maintain
control during adverse or emergency
conditions. Traction control also stops
wheelspin during acceleration.
Driving comfort, affordability and safety are major considerations
for any busy working van driver. So Corsavan’s car-like ride and
handling help ensure a comfortable and relaxing day at the wheel
– especially now with modifications to the spring, damper and anti-
roll bar settings providing even more driving comfort.
The Euro 5 compliant engine choices – common rail diesel and
multi-valve petrol – are designed to save you money. Anti-lock
Braking System (ABS) with Electronic Brakeforce Distribution (EBD)
is standard, as is speed-sensitive power-assisted steering, making
Corsavan especially easy to manoeuvre and park.
Dynamics and efficiency
Dynamics and efficiency
Choice of engines
>
1.2i 16v (70PS/115Nm)
>
1.3CDTi 16v (75PS/190Nm)
Features include:
>
Five-speed manual gearbox
>
Anti-lock Braking System with
Electronic Brakeforce Distribution
>
Electric speed-sensitive
power-assisted steering
>
Dynamic SAfety Suspension
>
Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty
Anti-lock Braking System
ABS with EBD and EBA is  tted as
standard to all Corsavan models.

10

Astra 5 door Van.
Puts your business in the spotlight.
The ultimate in Astra sporting style is now available as
a van. So you get modern hatchback styling and a
dynamic drive together with a choice of two multi-valve
turbo-diesel engines.
Plus two generously equipped trim levels. Combine all that
with supreme loadspace versatility and real world carrying
capacity and it’s easy to see why the Astra 5 door Van is for
businesses who know what it takes to deliver in style.
11

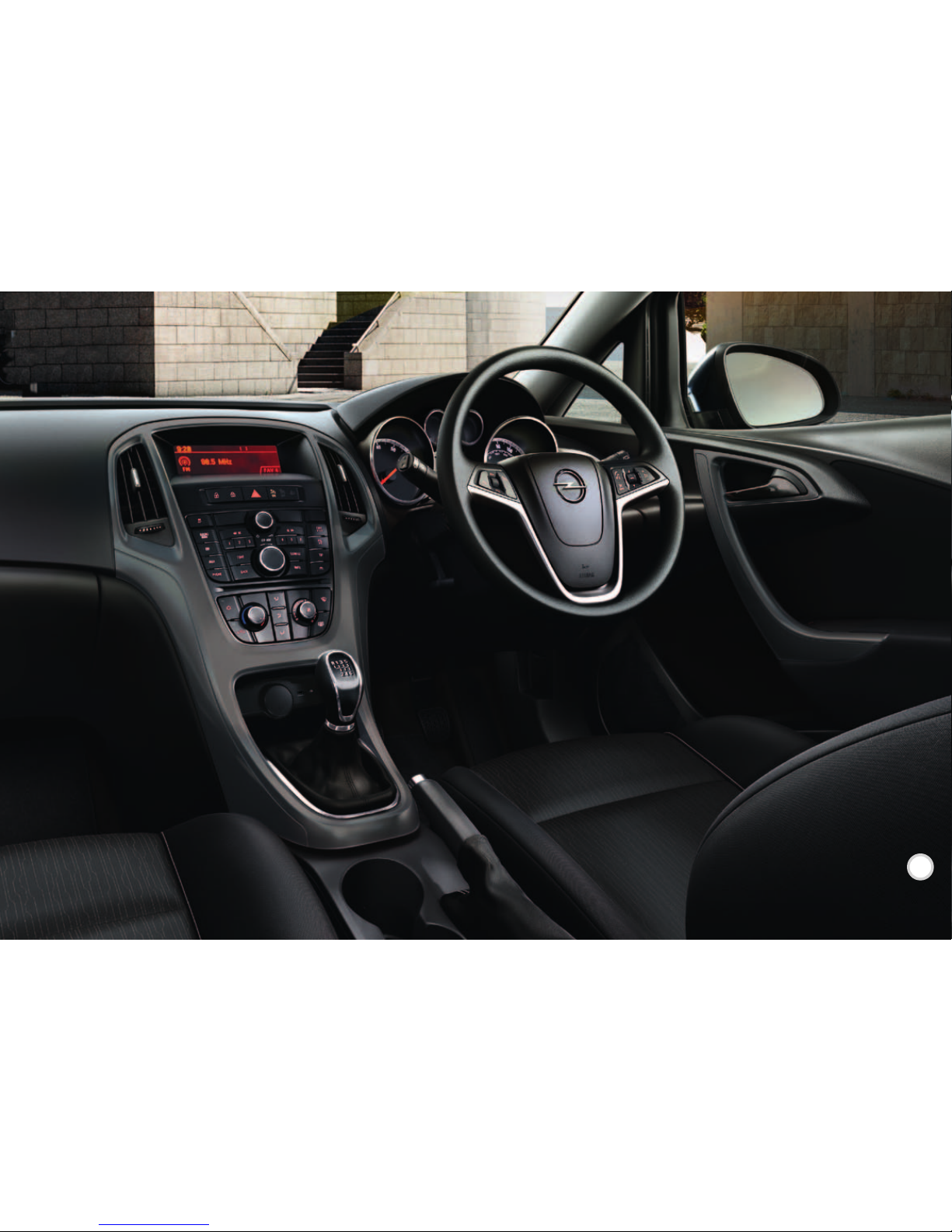

SC model illustrated features Navi 650 satellite navigation system and two-coat metallic paint,
optional at extra cost.

The Astra 5 door Van load compartment provides a completely flat inner load floor area that
combines a maximum load length of 1400mm, with generous width and height. There’s a maximum
carrying capacity of 1100 litres and with a payload of over 400kg there’s more than enough flexibility
at the business end too.
A full-height mesh steel bulkhead as standard provides valuable protection against shifting loads.
The load area is fully lined and comes complete with load restraint lashing eyes that allow you to
secure the load. And, access to the load area is made easy by the rear side doors and high-lifting
tailgate. We’ve even added raised load area side walls to prevent items falling out when the side
doors are opened.
Loadspace and features
Loadspace dimensions mm inches
Max. load area height 850 33.4
Max. load area width 1250 49. 4
Width between wheel arches 985 38.8
Load oor length 1400 55.1
Loadspace volume
litres cu.ft
All models 110 0 38.8
12
*Please see the Commercial Vehicle Price Guide
for full details.
Features include:
S models
> Full-height steel mesh bulkhead
>Raised load area side walls
> Panelled rear side windows
> Driver’s seat height adjuster
> Reach/rake adjustable
steering wheel
> CD/MP3 CD player/stereo radio
>Electric front windows
> Electrically adjustable/heated
door mirrors
> Heated rear window with wash/wipe
> 16-inch steel wheels with  ush
wheel covers
SC models add the following
additional features:
> 17-inch 10-spoke alloy wheels
> Air conditioning
>Cruise control
>Steering wheel mounted
audio controls
Options include:*
> B l u e t o o t h ® mobile phone system
> USB connection
> Satellite navigation system with
seven-inch colour monitor and USB
connection – SC model
> Front and rear parking distance
sensors – SC model
> Space-saver spare wheel (in lieu of
emergency tyre in ation kit)
> Two-coat metallic or
pearlescent paint

Loadspace and features
13

Safety assured
A safe working environment is assured
thanks to a full complement of active
and passive safety features such as
an anti-lock braking system with
emergency brake assist with no less
than four airbags as standard.
Common rail diesel engines
The Astra 5 door Van comes with a
choice of ecoFLEX turbo diesel
engines; the 95PS 1.3CDTi 16v and a
powerful 110PS 1.7CDTi 16v unit, both
featuring Euro 5 compliance and the
very latest common rail technology.
Low running costs
Astra 5 door Van owner’s can also look
forward to extended service intervals
of 30,000km/one-year, plus there’s a
two-year unlimited mileage warranty.
With its smart yet sporty styling, the Astra 5 door Van looks better
than a van should. And with a dynamic chassis it performs
better than a van should too. But with fuel economy of up to
4.2 litres/100km for the 1.3CDTi 16v model and ease of serviceability
for low running costs, it’s easy to see why the Astra 5 door Van
makes total business sense.
Dynamics and efficiency
Engine:
>
1.3CDTi 16v (95PS)
>
1.7CDTi 16v (110PS)
Features include:
>
Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty
>
Electronic Stability Programme-plus
(ESP-plus)
>
Emergency Brake assist (EBA)
>
Electronic Brakeforce
Distribution (EBD)
>
Anti-lock Braking System (ABS)
with EBA and EBD
>
Driver’s and front passenger’s
airbags
>
Front seat side-impact airbags
>
Daytime running lights
>
High-level LED brake light
14
SC model illustrated features two-coat metallic paint, optional at extra cost.

15
Dynamics and efficiency

16

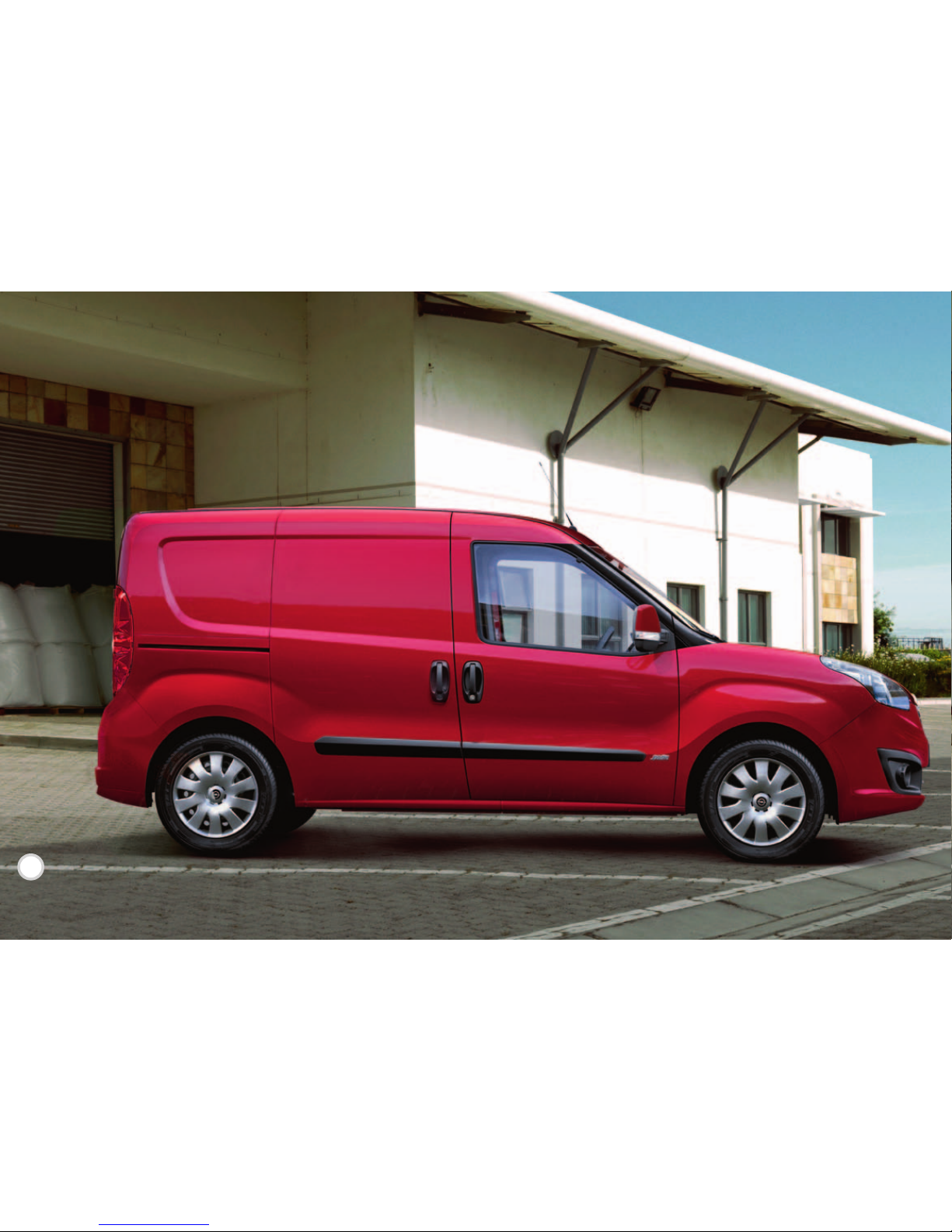

Combo. Solid capabilities.
Want to give your business a lift? Then get yourself a vehicle
that delivers a list of commercial rsts.
The Combo from Opel can haul up to a tonne. In addition,
not only does it have one of the longest and most spacious
load areas in its class but it has the highest rear axle weight
and the largest rear door opening; coupled with a useful, low
rear loading height.
The Combo also has ultra-low fuel consumption gures of up
to 5.0 litres/100km for the 1.3CDTi model. It’s also practical,
dependable and versatile, with long wheelbase and high
roof models now available. With capabilities such as these,
Combo can really help your business deliver.
17
Far left: L1 H1 Sportive model illustrated features offside sliding side-access door,
optional at extra cost.

18
L1 H1 Sportive model illustrated features offside sliding side-access door, optional at extra cost.

Loadspace and access
19
At a massive 3.4cu.m for the standard wheelbase version, there’s
no mistaking Combo’s cavernous load area. But you won’t notice
one of its most impressive features until you actually get in and
drive the vehicle. Combo’s bi-link independent rear suspension
gives you the best possible ride quality and handling – even when
you’re hauling heavy loads. Combo. Built to perform. Built to last.
Combo’s stylish yet functional facia has been carefully designed
around the driver, with all controls falling readily to hand. Extra-
durable materials give the cab a reassuring solidity. Outstanding
all-day driving comfort is guaranteed and there are storage
facilities abound, including plenty of space for odds and ends.
On the infotainment front all Combo models boast a CD player/
radio as standard. Upgrade to include Bluetooth®* connectivity for
compatible mobile phones.
Loadspace and access
Open the rear doors of the standard wheelbase Combo and
you’re looking at a record holder. Quite simply, it has the
biggest payload in its class. It also boasts one of the longest
and most spacious cargo areas in its class plus a low rear
loading height, so there’s less chance of straining your back
while working. A full-height bulkhead – with optional glazing
– provides valuable protection against shifting loads, while
glazed rear door options enhance rear visibility.
To help you choose the Combo that’s just right for your
business, we’ve adopted a customer-friendly naming
scheme. L stands for Length: there are two versions available,
L1 (short wheelbase) and L2 (long wheelbase). Height (H)
comes in two sizes, H1 (standard roof) and H2 (high roof).
For details of the complete model line-up, please ask your
Opel Commercial dealer for a copy of the Commercial
Vehicle Price Guide.
PANEL VAN
Loadspace dimensions mm inches
Maximum rear door aperture heights 1250-1455 49.2-57.2
Maximum rear door aperture width 1231 48.5
Maximum load area heights 1305-1550 51.4-61.0
Maximum load area width 1714 6 7. 5
Width between wheel arches 1230 48.4
Maximum load floor lengths 1820-2170 71.7-85.4
Sliding side-access door aperture height 117 5 46.2
Sliding side-access door aperture width 700 2 7. 5
Loading height (unladen) 545 21.4
Loadspace volume cu.m cu.ft
Maximum loadspace volumes (VDA method) 3.4-4.2 1 21-1 4 8
Payloads kg
Maximum payload 750-1000
Features include**:
> CD/MP3 CD player/stereo radio
> Driver’s airbag > ABS with EBD
> Full-height steel bulkhead
> Electrically operated front windows
> Remote control central deadlocking
> Electronic engine immobiliser
> Rake-adjustable steering column
>Steel wheels with centre covers
– standard models
> Steel wheels with  ush wheel covers
– Sportive models
Options include**:
> Bluetooth® plus aux-in socket, USB
connectivity and pre-installation for
TomTom satellite navigation system
> Nearside and offside sliding
side-access doors (std on L2 H1
models)
> Glazed rear doors and bulkhead
> Glazed rear tailgate
> Rear roof  ap
> Load area ladder storage bars
*Optional at extra cost.
**Not all options are available on every model. Please see the Commercial Vehicle Price Guide for details.

The engine range comprises a 90PS
1.3CDTi 16v, a 105PS 1.6CDTi 16v unit
and a powerful 135PS 2.0CDTi 16v.
In addition the 1.6 unit features Opel’s
Start/Stop system as standard. Start/
Stop switches the engine off when you
stop at the lights or in traf c, then
restarts it once the clutch is depressed,
cutting fuel bills and reducing
emissions.
A choice of Combo drivers can also
look forward to long service intervals
(up to 30,000km or one year) and
class-leading fuel consumption for
the 1.3CDTi 16v 90PS engine.
Combo doesn’t only ride and handle like a dream; it also performs
with remarkable verve for what is, to all intents and purposes, a
working vehicle. Drivers can select from three powerful yet efficient
Euro 5 compliant turbo-diesel engines, all designed for optimum
ease of serviceability and low running costs.
Efficiency
Choice of engines
> 1.3CDTi 16v (90PS)
> 1.6CDTi 16v (105PS) Start/Stop
> 2.0CDTi 16v (135PS)
More great features
>
Five-speed manual gearbox
>
Service intervals up to 30,000km/
one-year
>
Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty
20
L1 H1 Sportive model illustrated features roof rails
and 16-inch alloy wheels, optional at extra cost.
