Opel CORSA 2014 User manual

2014 Models Edition 1
OPEL CORSA

This brochure covers Corsa S, SC, Excite, SE and Limited Edition only. Some of the models shown include options and accessories available at extra cost. And not all of the features described
are available on every model. So please check in the separate Price and Specification Guide, available from your local Opel dealer or online at www.opel.ie, for further details. Note: some of
the vehicles illustrated may not be to final GM Ireland specification.
Corsa. Put the fun back into driving
Get yourself into a Corsa. And get a lot more fun out of life. With stunning styling, funky colours and
brilliant attention to detail, inside and out. A dynamic chassis and punchy petrol or diesel engines.
Plus, bags of clever features. It can only make life better. Wherever you go. Whatever’s in store for you.

Contents
Limited Edition 04
Linea Stripes Pack 06
Engines and transmissions 08
Safety and security 10
Comfort equipment 12
Model line-up 14
Colours 24
Packs 25
Trims 26
Wheels and tyres 28
OPC Styling 29
Accessories 30
Specification 32

Why blend in when you can stand out?
Corsa Limited Edition – you don’t look this sharp by chance. You need Corsa’s natural style
and a whole lot of attitude. Colour it all red, white, grey, black or yellow. Add black mirrors,
roof and dark style headlights. Match it with black 17-inch twin-spoke alloy wheels and you
can see the results for yourself.
Vehicles illustrated also include OPC
Styling Pack (consisting of front lower
spoiler, side sills, rear roof spoiler and
rear lower skirt), optional at extra cost.
4

Line Switch Pack. Fancy being that
extra bit different? Then why not go
for the Line Switch Pack, exclusive to
Limited Edition models. With black
stripes on the bonnet and tailgate and
body-colour stripes on the roof you’re
sure to attract attention. Check out
page 25 for all the colour ways.

Corsa. Get yourself noticed.
Want your Corsa SC to really stand out from the crowd? Then check
out the optional Line Pack. Unique to the SC model, it also includes
white 17-inch alloy wheels and white door mirrors. Now that should
get you noticed!

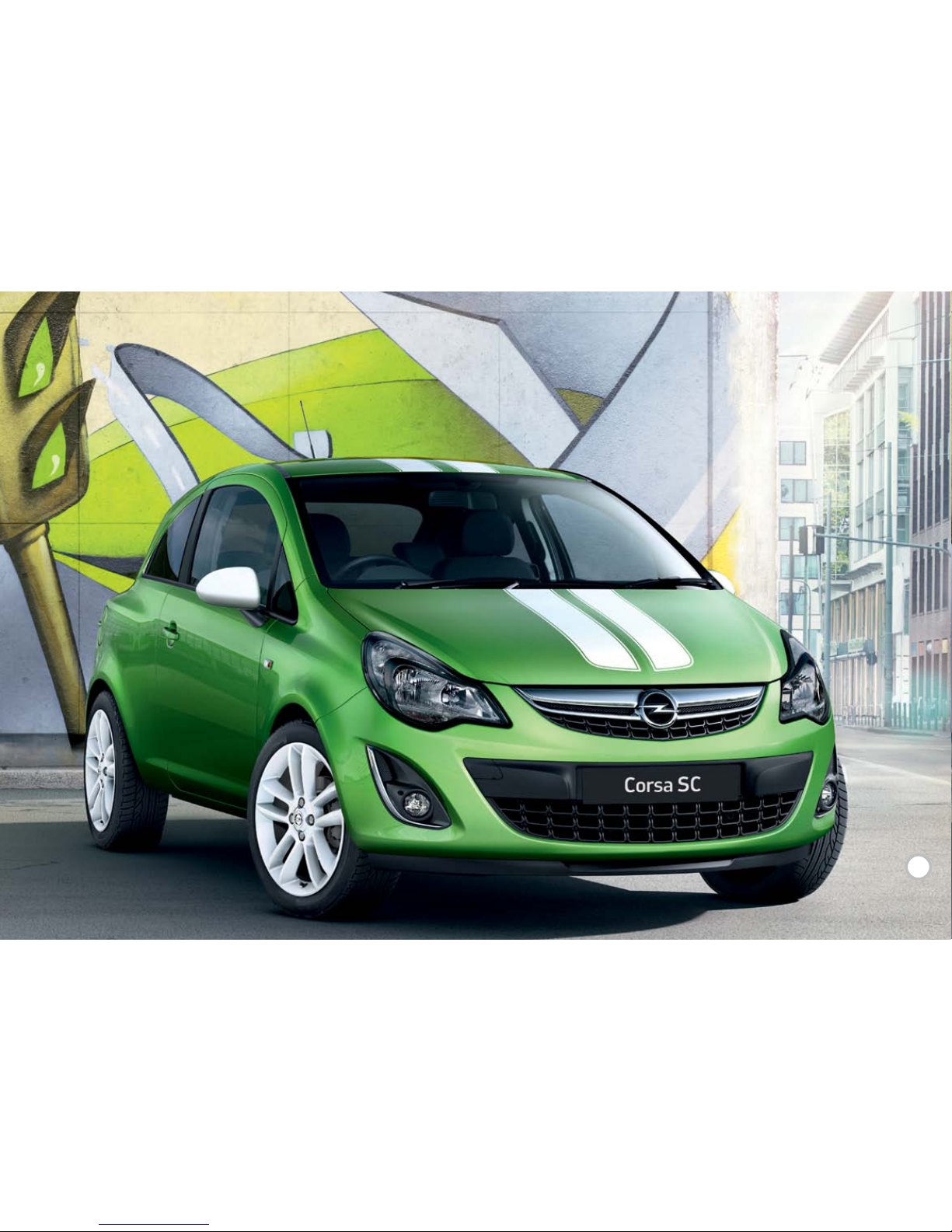

Corsa SC model illustrated. Line Pack and
Lime Green two-coat pearlescent paint are
optional at extra cost.
7

Corsa. Fun and frugality in equal measure
Corsa’s range of ecoFLEX engines have been designed to save you money. So
how do we do it without losing Corsa’s fun, lively power delivery and drive
ability? Well, the benefit of improved fuel economy speaks for itself but lower
CO2emissions mean you'll also benefit from significant tax savings. Corsa’s
3-door 1.3CDTi (75PS) S model is just €190 in annual road tax.
The Corsa’s engine range is big on flexibility and technology too. Choose from
multi-valve petrol or turbo diesel units and three different types of transmission;
manual, Easytronic or Automatic. Check out the various model pages for
individual availability.
Petrol engines. Corsa models are available with three, Euro 5 compliant
petrol engines – the 1.0i 12v ecoFLEX, the 1.2i 16v VVT and a 1.4i 16v VVT –
combining power and fuel efficiency with low CO2emissions.
ecoFLEX turbo diesels. Corsa’s Euro 5 diesel engine range features a choice
of two efficient 1.3CDTi 16v units (75PS and 95PS) that combine performance,
refinement and efficiency, offering superb environmental credentials. Both
Corsa diesel engines include diesel particulate filters.
Start/Stop technology.
In addition, some of our
engines benefit from
Start/Stop technology. This system switches the engine off when you stop at
the lights or in traffic, then restarts it automatically once the clutch is depressed,
saving fuel and reducing emissions even further. The AUTOSTOP symbol
housed within the rev counter indicates that the engine has stopped. The
system can be deactivated manually by simply pressing the ECO button on
the facia. Start/Stop drops the CO2emissions of the 1.2i 16v VVT from 129 to
119g/km (except if optional 17-inch alloy wheels are added).
Transmissions. The 1.3CDTi 16v (95PS) SE comes with a six-speed manual
gearbox. The rest of the range comes with a five-speed manual as standard,
with sophisticated four-speed automatic (1.4i 16v) and five-speed Easytronic
(1.2i 16v) transmissions also available.
#Official Government Test Environmental Data. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
*Figures apply to vehicles fitted with wheels up to 16 inches in diameter.
**Figures apply to vehicles fitted with 17-inch wheels.
Power Torque Fuel economy (litres/100km) CO2emissions
(g/km)#
Urban Extra Urban Combined
Petrol
1.0i 12v ecoFLEX 65PS 90Nm 6.4 4.3 5 .1 120
1.2i 16v VVT 85PS 115Nm 7. 2 4.5 5.5 129
1.2i 16v VVT Easytronic 85PS 115Nm 6.8 4.4 5.3 125
1.2i 16v VVT Start/Stop*85PS 115Nm 6.4 4.3 5.1 119
1.2i 16v VVT Start/Stop** 85PS 115Nm 6.5 4.3 5.1 121
1.4i 16v VVT 100PS 130Nm 7.1 4.6 5.5 129
1.4i 16v VVT automatic 3-door 100PS 130Nm 8.0 5.0 6 .1 143
1.4i 16v VVT automatic 5-door 100PS 130Nm 8.2 5.1 6.3 147
Diesel
1.3CDTi 16v ecoFLEX 3-door 75PS 190Nm 5.3 3.5 4.2 110
1.3CDTi 16v ecoFLEX 5-door 75PS 190Nm 5.3 3.6 4.2 11 2
1.3CDTi 16v ecoFLEX 95PS 210Nm 5.4 3.8 4.4 115

9
Engines and transmissions
Easytronic. Choose Corsa’s optional Easytronic
transmission and you’ll get a five-speed manual
gearbox with a fully automatic mode. In manual mode,
you push the lever forward or back to shift gears up or
down and by nudging the lever to the side you switch to
fully automatic mode. There’s no clutch pedal so you can drive it on an
automatic-only driving licence.
Shift-up indicator. Standard on every Corsa model, a
shift-up indicator on the rev counter alerts the driver
to the optimum time a gear change is required, further
enhancing fuel efficiency.
Chassis. We could just tell you that the Corsa chassis has been designed to
ensure pure driving pleasure without ever compromising ride comfort. But
wouldn’t it be better to discover how much fun it is to drive by trying one for
yourself? Then you’ll really be able to appreciate the benefits of a chassis that
features optimised spring, damper and anti-roll bar settings to combine serious
ride comfort with real agility. And an advanced Anti-lock Braking System
(ABS) that combines with other chassis safety features such as cornering brake
control and optional Electronic Stability Programme-plus to improve stability
and steering behaviour in a range of emergency situations.
Choose the Limited Edition model and you will also enjoy a lower ride height
and sportier spring and damper settings, plus progressive rate, variable ratio
power steering.
Details of engine availability and standard features can be found on the
individual model pages starting on page 15.

Model illustrated features Adaptive Forward Lighting and Glacier White paint optional at extra cost.

11
Safety and security
Intelligent safety. Our safety
features are almost taken for
granted nowadays, but it doesn’t
mean we’ve stopped adding new
ones. Double front seatbelt
pretensioners and adaptive brake
lights are just two examples of
how Corsa achieves such a high
safety rating.
Static cornering light. Halogen
Adaptive Forward Lighting throws
light 90 degrees left or right for
enhanced lateral vision. The system
operates up to 40 kilometres per
hour, also while reversing.
Double pretensioners. Front seatbelt
pretensioners act on the diagonal
shoulder restraint on all models.
And on most models the lap belt
too. So in the event of a collision,
they’re ready to interact with the
front airbags and compensate for
lateral seat movement.
Daytime running lights. As well as
providing a striking style accent on
the Corsa the daytime running lights
– standard across the range –
improve your visibility to other road
users whatever the conditions.
Dynamic curve light. Halogen
Adaptive Forward Lighting moves
the headlight beams outwards up
to 15 degrees left or right of the
straight ahead position when you
turn the steering wheel, helping
improve your vision of the
approaching bend.
Airbags. Most Corsa models feature double-action front seatbelt
pretensioners and up to six airbags, including front seat side-impact
and curtain airbags too. Press a button on the centre console to
deactivate the front passenger’s airbag and you can keep a rear-facing
child seat up front.
Security. Every Corsa features an
engine deadlock immobiliser as
standard as well as remote control
central locking. There’s also an
internal door locking switch for
added reassurance in the event
of unwanted attention from
outside the car.
Adaptive brake lights. ABS brakes
can shorten your stopping distance
in slippery road conditions, but
what about the driver behind you?
With Corsa, if the ABS is activated
at over 29 kilometres per hour, your
brake lights blink at five times a
second, warning the following driver
that you’re emergency braking.
Adaptive Forward Lighting (AFL). Night driving has always had the
potential to generate stress. Corsa’s advanced halogen AFL system
projects the headlight beams into curves and provides extra side
illumination when making extreme turns. The result: less stress, more
safety. Optional on SE and Black Edition models.

Easy life. Corsa is available with some pretty brilliant features so you never have
to compromise on what you really want. Like Electronic Climate Control (ECC).
Heated steering wheel. Or simply added peace of mind. So it’s easy to choose
a new Corsa that fits the way you live perfectly.
Sunroof with interior blind. Optional
at extra cost on SC, Excite and SE
models, the electrically operated glass
sunroof stretches wide across the car
for maximum fresh air and blue sky.
And if the sun’s too strong, you simply
pull out the roller blind to reduce glare.
Rain and light sensors. Standard on
SE models, automatic lighting control
can switch the car’s lights on when it
gets dark. Other sensors can switch
the wipers on and even dim the rear-
view mirror – all automatically.
Winter Pack. Standard on Excite
and SE models, optional on
Limited Edition models, the Winter
Pack provides both driver and front
passenger with heated seats, while
the heated steering wheel is a
first-in-class feature.
Air con and ECC. Air conditioning
provides chilled air on hot days,
faster demisting on damp days
and a more pleasant atmosphere
throughout the year. Move up to
ECC for a more consistent control
of the interior temperature.
Cruise control. As part of the
Technical Pack, standard on SE and
Limited Edition models and optional
on Excite, the easy to use twist up/
down cruise control allows you to
maintain a steady speed without
keeping your foot on the accelerator. So
it’s more comfortable on long journeys
and easier to keep to speed limits too.
Driving position. You’re going to be
spending some quality time in your
Corsa. So we’ve made it easy for you
to make sure it’s exactly how you
want it. The Corsa interior is big on
ergonomic efficiency. Which means
it’s designed around real people, with
space to relax and plenty of room for
long legs and broad shoulders – front
and rear. All the controls are within
easy reach so you don’t have to take
your eyes off the road for more than a
moment to adjust the heating or the
audio, for example.
Best of all, it’s easy to find the perfect
seating position with a driver’s seat
that moves six ways – including
height adjustment – standard on SC
models and above, optional on S as
part of the Comfort Pack.

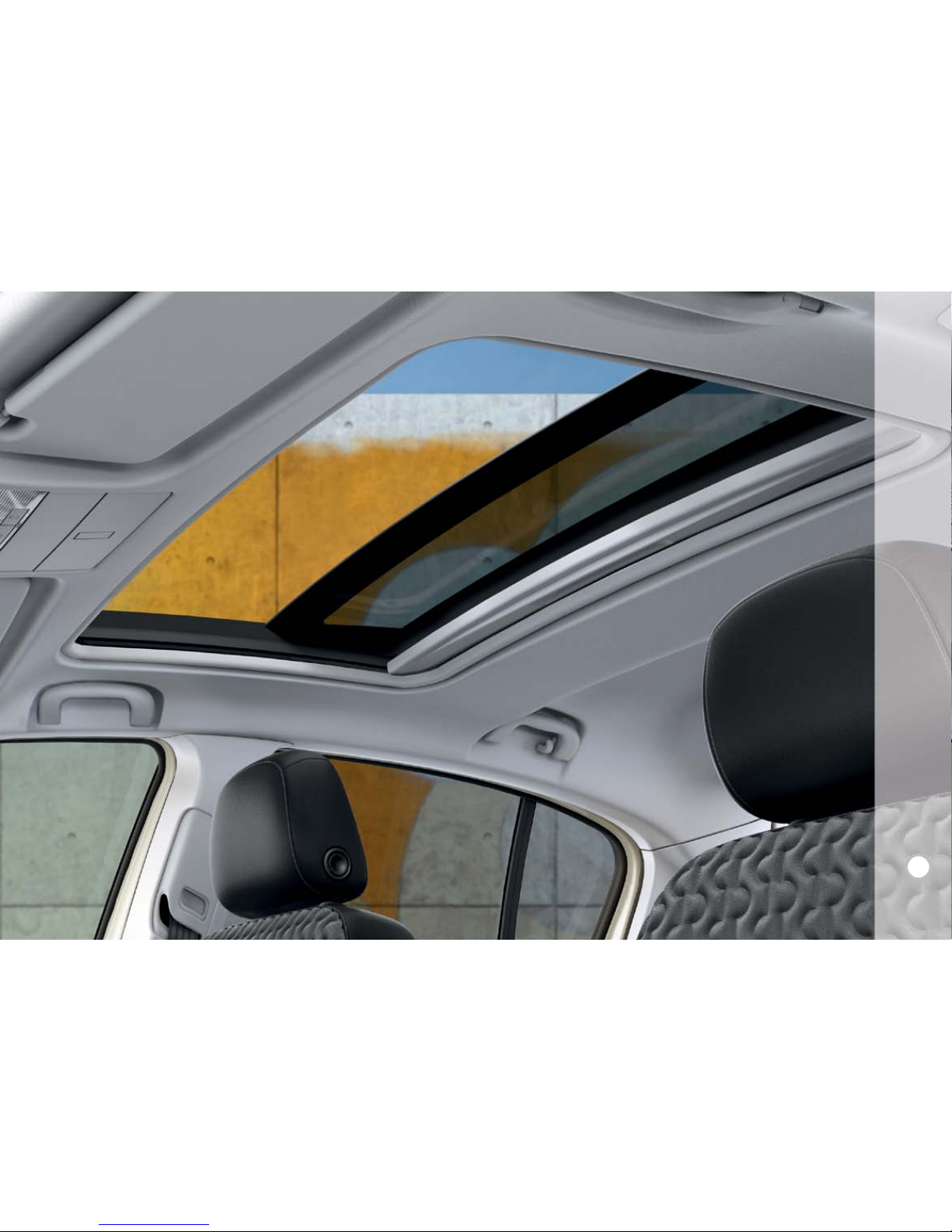

Electrically operated glass sunroof optional
at extra cost on SC, Excite and SE models.

13
Comfort equipment

Corsa. You choose.
So here’s the question. Do you get what you want? Well,
Corsa comes with an excellent choice of feature-packed
models, petrol and diesel engines, and drop-dead
gorgeous colour and trim choices.

15
S
Corsa S
3-door/5-door
Standard features include:
•
CD/MP3 player, four speakers, aux-in
socket and stereo radio
•
Dark-style headlights
•
Body-colour bumpers
•
Daytime running lights
•
Remote control central locking
•
Speed-sensitive power-assisted
steering
•
Matt chrome centre console
•
Electrically operated front windows
•
Electrically adjustable door mirrors
•
Driver’s and front passenger’s
dual-stage airbags
•
Driver’s seatbelt reminder
•
ISOFIX preparation on outer
rear seats
•
Anti-lock Braking System (ABS)
•
Emergency brake assist
•
Electronic engine deadlock
immobiliser
•
Door-to-door illumination
•
Welcome lighting
•
Map pockets on front seat backs
•
14-inch steel wheels
Engine availability
1.0i 12v (65PS) ecoFLEX
1.2i 16v VVT (85PS) Start/Stop
1.2i 16v VVT (85PS) Easytronic
1.3CDTi 16v (75PS) ecoFLEX
Model illustrated features air conditioning and
Plus Pack optional at extra cost.

Engine availability
1.2i 16v VVT (85PS) Start/Stop
1.2i 16v VVT (85PS) Easytronic
1.4i 16v VVT (100PS)
1.4i 16v VVT (100PS) automatic
1.3CDTi 16v (75PS) ecoFLEX
Model illustrated features air conditioning and
two-coat metallic paint, optional at extra cost.
Corsa SC
3-door
Additional features over and above
S models include:
•
15-inch five twin-spoke alloy wheels
•
Front fog lights
•
Steering wheel mounted audio
controls
•
Chrome-effect interior detailing
•
Body-colour door handles
•
Adjustable steering column
•
Driver’s seat height adjuster

17
SC

Engine availability
1.2i 16v VVT (85PS)
1.3CDTi 16v (75PS) ecoFLEX
Corsa Excite
5-door
Additional features over and above
SC models include:
•
16-inch alloy wheels
• Mobile phone system with Bluetooth®
(does not include phone or cradle)
• Air conditioning
• Electrically heated leather-covered
steering wheel
• Electrically heated front seats
• CD/MP3 player, four speakers, aux-in
socket, USB connection with iPod
control and stereo radio
• Multi-function trip computer
• New Wega seat trim
• Front fog lights
• Twin electrically adjustable/heated
door mirrors
• Storage drawer under passenger seat

19
Excite

Corsa SE
3-door/5-door
Additional features over and above
SC models include:
• 16-inch alloy wheels
• Air conditioning
• Cruise control
• Multi-function trip computer
•
Electrically heated leather-covered
steering wheel
•
Electrically heated front seats
•
Rain-sensitive windscreen wipers
•
Automatic lighting control
•
Sports instruments
•
Alloy-effect front door sill covers
•
Heated door mirrors
•
60/40 split-folding rear seat back
•
Front and rear seats with Morrocana
side bolsters
•
Translucent lighting and window
controls
Engine availability
1.2i 16v VVT (85PS) Start/Stop
1.3CDTi 16v (95PS) ecoFLEX
Model illustrated features electronic climate control
(including graphic info display), Bluetooth®mobile
phone system and metallic paint, optional at extra cost.
