Opticron HR ED Series User manual

HR ED Fieldscopes
User Instructions and 30 Year Guarantee
Models
HR 66 GA ED
HR 66 GA ED/45
HR 80 GA ED
HR 80 GA ED/45
HRED0217

Specifications 66 ED 66 ED/45 80 ED 80 ED/45
Product Code
OG Dia (mm)
Close Focus (m)
Length (mm)
Weight (g)
41002
66
5
290
1210
41003
66
5
330
1278
41006
80
8
370
1635
41007
80
8
405
1703
AInterchangeable eyepiece
(not included).
BRubber armoured focus wheel
with contoured ribs to maximise
comfort and handling with or
without gloves.
CTripod sleeve with +/- 90˚
rotation and large footprint
tripod adapter socket.
DRetractable lens hood - extend
when viewing in bright sunlight.
Fieldscope includes an integrated
rubber objective lens cap (not
illustrated).
Main Features & Specifications
A
B
C
D

Eyepieces
Eyepieces • SDLv2 • HDF • HR
Product Code
Magnification 66
Magnification 80
Eye Relief (mm)
40936
18-54x
24-72x
20-18
40810
20xWW
27xWW
22
40831
28xWW
38xWW
16
40861
88x
120x
16
40930
23xWA
31xWA
18
40931
30xWA
41xWA
17
41145
20-60x
27-80x
20-16
Your HR ED fieldscope will bring a new dimension to long range observation bringing far away subjects into clear
and sharp focus.
1. To minimise image shake caused by the high magnification, the instrument should be supported using a suitable
tripod or mount.
2. Connect the fieldscope to the tripod or mount using the tripod socket located on the underside of the tripod sleeve.
3. Make sure the eyepiece is attached securely. The retractable rubber eyecup should be used in the down position
when wearing glasses. This ensures the maximum available field of view is obtained. Be sure to return the
eyecup to the up position if you or anybody else wants to view without glasses.
4. To focus, locate the subject in the centre of the field of view and rotate the focus wheel until the subject comes
into sharp focus.
5. If you are using a variable magnification or zoom eyepiece set the magnification to minimum when trying
to locate your subject, only zooming once the subject is centred. With some eyepieces a small amount of
refocusing may be required as the zoom is adjusted.
6. The retractable lens hood should be extended when viewing in bright sunlight.
WARNING. Never under any circumstances use a fieldscope to view the sun. Doing so will cause serious damage
to your eyes.
Getting Started

Stay-on-the-scope waterproof in Green.
Water resistant multi-layer padded cases individually
designed to fit each model. Protects instrument while
fitted to a tripod and in use. Includes removable end
caps and adjustable neoprene carry strap for extra
comfort.
Waterproof Cases
To clean outer glass surface of the eyepiece and objective lens, gently remove excess dirt and dust using a
compressed air device or blower brush. Caution. Hard and persistent rubbing of dirty surfaces can cause abrasive
scratches on the surface of the glass which may distort viewing. Breathe on exposed glass surface and then wipe
with an optical cleaning cloth (code 30277) in a circular motion until the surface is clean again. Do not attempt to
dismantle the instrument as this will invalidate the guarantee.
Whenever possible store in a stable dry atmosphere away from moisture. For extra protection, use the gift box or
one of the optional cases available.
Care & Cleaning

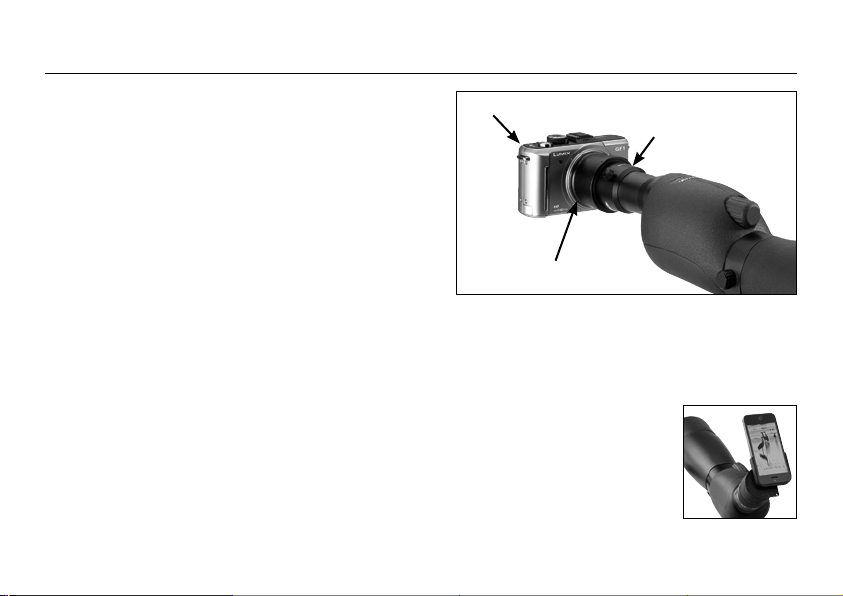

Telephotography using SLR cameras (digital or film) and
compact system cameras. In this system the camera lens
is substituted for the fieldscope + telephotoadapter or
fieldscope + eyepiece + photoadapter. To convert your HR
fieldscope into a telephoto lens (HR 66 800mm1/f.12, HR 80
900mm1/f.11.3), you will need a 40215 telephotoadapter.
Alternatively connect a suitable push fit photoadapter to
your viewing eyepiece.2A T-mount is required to connect
the assembly to the camera body.
Notes. Focusing is facilitated on the fieldscope. Camera may need to
be operated in manual mode with shutter locks disengaged where
necessary. The high magnification to aperture ratios result in slower
shutter speeds compared with conventional telephoto lenses so choose an IS0 setting of 400. For 35mm SLRs 400 ASA film is
recommended. If possible use a cable release or remote control to reduce camera shake when operating the shutter.
1This is an approximate figure based on 35mm SLR cameras. DSLR/compact system cameras use different sized image sensors
compared to 35mm so an equivalent telephoto conversion figure must be calculated separately.
2For information on push fit photoadapters visit our Digiscoping & Telephotography pages at www.opticron.co.uk
Digiscoping with digital compact cameras, camcorders and mobile phones
Shooting high magnification photos and video through your fieldscope is possible if you have
a suitable camera, camcorder or mobile phone. To find out how suitable or not your device
is for digiscoping, position it up to the viewing eyepiece and see if an image appears on the
screen. You may have to position the unit a few mm away from the eye lens of the eyepiece
and increase the zoom to get a full frame image.
To find out more about bespoke digiscoping kits and universal mounts and brackets visit the
Digiscoping & Telephotography pages at www.opticron.co.uk or contact Sales on [phone].
Telephotography
Camera body 1. Telephotoadapter or
2. Photoadapter +
eyepiece (inside)
T-mount

Guarantee
Please keep this Guarantee Card in a safe place
Model:........................................................................................................................................................................
Serial No: ................................................................. Purchase Date:...................................................................
Dealer: .......................................................................................................................................................................
Opticron HR ED fieldscopes are of a very high quality both in their performance and construction.
We guarantee some parts in these instruments for up to 30 years under the following conditions:
(i) In the case of defects attributable to faulty processing or materials, we will assume responsibility for the labour
and material costs during the first 10 years after purchase. We reserve the right to decide whether defective parts
should be repaired or replaced.
(ii) During the next 20 years we will assume responsibility for material costs only, charging corresponding labour
costs.
(iii) We will accept no liability for damage caused by incorrect use or for any repairs or actions which have been
carried out outside our firm.
(iv) Rubberised coverings are excluded from the guarantee.
This guarantee is in addition and does not affect your statutory rights.

Registration
If you would like to register your purchase with us please visit www.opticron.co.uk and complete the online
Product Registration Form.
Alternatively please telephone us during normal working hours on the numbers given. We will need the product
name and serial number (if applicable), purchase date and outlet, your name and postcode.
Registration is voluntary and failure to register will not diminish your rights under the guarantee.
Privacy
Opticron takes your privacy seriously and we do not share personal information with other companies.

Address: Opticron, Unit 21, Titan Court, Laporte Way, Luton, Bedfordshire, LU4 8EF, UK
Phone: [phone] Fax: [phone] Email: [email protected]
