50065 DCC adapter - compatibility with Opticron eyepieces
The following list shows which
insert (or set of inserts) are required
to fit a particular eyepiece.
Prices of recommended eyepieces;
HDF T 40810 nd HDF T 40937 are
listed in the table below.
Product Information & User Guide
including Retail Price List
October 2009
Accessories
Chosen specifically to complement the camera, camera lens mount and DCC adapter, the following
accessories are included in the kit or available to purchase separately.
OPTICRON PO Box 370, Unit 21, Titan Court, Laporte Way, Luton, Bedfordshire, LU4 8YR, U
Telephone: [phone] Facsimile: 01582 723559 E-mail: [email protected]
Digital Compact Camera Kits
for elephotography
featuring HYUNDAI L1033 camera with
50064 SDL DCC adapter or 50065 DCC adapter
SD memory 2GB Li-ion battery
MNP900 3.7V 820mAh.
Code: 50143
Code: 50072
Battery charger kit
Includes mains and 12v DC in-car charger
and carrier for battery. Code: 50109
Pricing
Storage 2GB:
Images
10M (4384x2464 pixels)
S.FINE 389 exp FINE 767 exp
8M (3624x2448 pixels)
S.FINE 450 exp FINE 886 exp
Movies
(640x480) 29mins approx.
50066 ø51 50067 ø45.5 500681ø41.5 500692ø33
HDF T 40862 HDF T 40810 HDF 408103dis HR 408123
HDF T 40937 HDF 408093dis HR 408133dis
HR2 40933 HR2 409303
HDF T 40872 dis HR2 409313
HDF T 40809 IS 409183
HDF 40862 dis
HR MM2 409093
150068 insert only fits in combination with 50067 insert
250069 insert only fits in combination with 50068 and 50067 inserts
3Remove rubber eyecup before connecting DCC adapter
dis - discontinued eyepieces
Code Model SRP £ inc VA
50145 L1033 DCC kit price includes;
L1033, 50072, 50141, 50065, 50066 & 50067 229.00
50146 L1033 SDL DCC kit price includes;
L1033, 50072, 50141, 50064 229.00
50141 Camera lens mount L1033 49.00
50143 Battery MNP900 3.7V 820mAh 16.00
50109 Digi charger + carrier (ENAP43) 34.99
50072 Lexar 2GB SD (or equivalent) 10.99
50073 Lexar 4GB SD (or equivalent) 17.99
50144 Cable Release Frame (including cable release) 24.99
50064 SDL DCC adapter (41113 + 41123 model) 50.00
50065 DCC adapter 39.00
50066 51mm insert for 50065 9.00
50067 45.5mm insert for 50065 9.00
50068 41.5mm insert for 50065 150068 insert only fits in combination with 50067 insert 9.00
50069 33mm insert for 50065 250069 insert only fits in combination with 50068 & 50067 inserts 9.00
Recommended Eyepieces
40810 HDF T 129.00
40937 HDF T 129.00

User instructions
1. Choosing an eyepiece (50065 DCC adapter only)
For best overall image quality and the widest choice of magnifications
at which a full frame image is obtained use any of the following
eyepieces: HDF T 40810, HDF T 40937 with 50067 insert or HR 40812
with 50069 in combination with 50068 and 50067 inserts. Depending
on the focal length and objective dia. of your telescope, other suitable
eyepieces may include; HDF T 40862, HDF T 40872, HDF T 40809,
HR2 40933 and HR2 40930.
2. Initial setup
Before connecting everything together, set up your telescope and
eyepiece on a tripod as you would for viewing, making sure your chosen
eyepiece is screwed firmly into position. Focus on an object in the
normal way until the image being viewed comes into sharp focus. Twist-
type eyecups should be in the ‘down’ position and fold down rubber
eyecups should be removed from the eyepiece.
3. Preparing the camera and lens mount
• Loosen the locking ring on the lens mount and slide the mount over
the lens housing on the camera until it fits flush against the front of
the camera body. [Fig. 1]
• Holding the camera and locking ring section of the lens mount in
one hand, turn the main tube of the lens mount clockwise until the
mount is securely tightened. [Fig. 2]
4. Preparing and fitting your chosen adapter
• Assemble the component parts of your chosen adapter as illustrated
on previous page. [Fig. 6]
• Screw the adapter onto the camera lens mount. [Fig. 3]
• The camera is now ready to attach to the viewing eyepiece. [Fig. 4]
5. Fitting the combined assembly to the telescope eyepiece [Fig. 5]
•
Place assembly over the eyepiece and push down until the internal wall
of the adapter comes into contact with the end of the eyepiece. [a]
• Hold the main section of the adapter secure and turn the locking
ring anti-clockwise until tight making sure the camera remains
horizontal. [b]
• Turn the camera ON, making sure the flash is switched off before
taking photographs. For additional guidance on how to operate the
L1033 please read the instructions supplied with the camera.
ips for taking pictures
• The L1033 has no conventional viewfinder so images are composed
using the LCD monitor. When the camera is turned on the LCD
monitor will show a single rounded picture of the image you
originally set your scope and eyepiece to. Once this single rounded
picture is obtained you can adjust the camera zoom to eliminate any
vignetting and make any fine focus adjustments using the telescope.
• After presetting Resolution & Quality to the desired values, set Spot
Metering to Centre, AWB to Auto, ISO to 400 and adjust EV
according to the image you see on the screen. The L1033 features
delay timer and burst shutter facility for flexibility in shot selection.
Opticron L1033 digital compact camera kits are a high quality, easy to use solution to the problem of
choosing a suitable compact camera for high magnification telephotography (digi-scoping). L1033 kits
contain a Hyundai L1033 camera with 2GB SD memory card and bespoke camera lens mount plus
the option of one of the following:
a. DCC adapter and 2 inserts for connection to selected HDF T, HDF, HR2 and HR eyepieces
b. SDL DCC adapter for connection to the 40935 SDL eyepiece
Additional acccessories include a 4GB SD card, universal cable release system, spare Li-ion
rechargeable battery and an AC mains / DC in-car charger.
Product information
Hyundai L1033 camera
• 10 megapixel CCD
• Zoom lens f.6.2~18.6mm
3x optical zoom
35mm equivalent; 29mm to 87mm
Magnification; 0.58x to 1.74x
• F2.8~F5.2
• TTL auto focus (multi, spot, face)
• Macro: 15~80cm (wide)
• Shutter 8~1/2000
• Exposure
- Metering: Centre weighted, Multi,
Spot
- Compensation: ±2EV 1/3 EV steps
- ISO: auto, 50, 100, 200, 400,
800, 1600
• Modes
- Program / Movie / Voice REC / Q.
Mode + 18 scene modes
• AVI MPEG4, Audio WAV
• Self-timer 2 sec. / 10 sec. / Double
• 3.0” LCD monitor
• WxHxD: 97.5x57x20mm
• Weight: 138g (w/o battery & card)
Supplied complete with 3.7V Li-ion rechargeable
battery, charger and software
50065 DCC adapter
The DCC adapter comprises an
aluminium tube & locking ring
that can be fitted with a
number of delrin inserts of
different diameters.
Camera side, the DCC adapter
features a 28mm thread
connection to the lens mount
supporting the camera.
Eyepiece side, the push-fit
connection over specific HDF
or HR eyepieces has
anti-clockwise lock down.
Inserts are available in a choice
of internal diameters to suit
different eyepieces;
• 50066 Ø51mm
• 50067 Ø45.5mm
• 50068 Ø41.5mm1
• 50069 Ø33mm2
150068 insert only fits in combination with
50067 insert.
250069 insert only fits in combination with
50068 and 50067 inserts.
Camera fitted with
lens mount
50064 SDL DCC adapter
(41113 + 41123 model)
This adapter comprises an
aluminium tube &
locking ring fitted with a
delrin insert
manufactured to the
diameter of the 40935
SDL eyepiece.
Camera side, the adapter
is fitted with a 28mm
thread for connection to
the lens mount supporting
the camera. Eyepiece
side, the push-fit
connection over the
40935 SDL eyepiece has
anti-clockwise lock down.
Important note: To get
the best image adjust
magnification setting on
the eyepiece to; HR 66
38x, HR 80 48x, GS 665
32x, GS 815, ES 80 40x

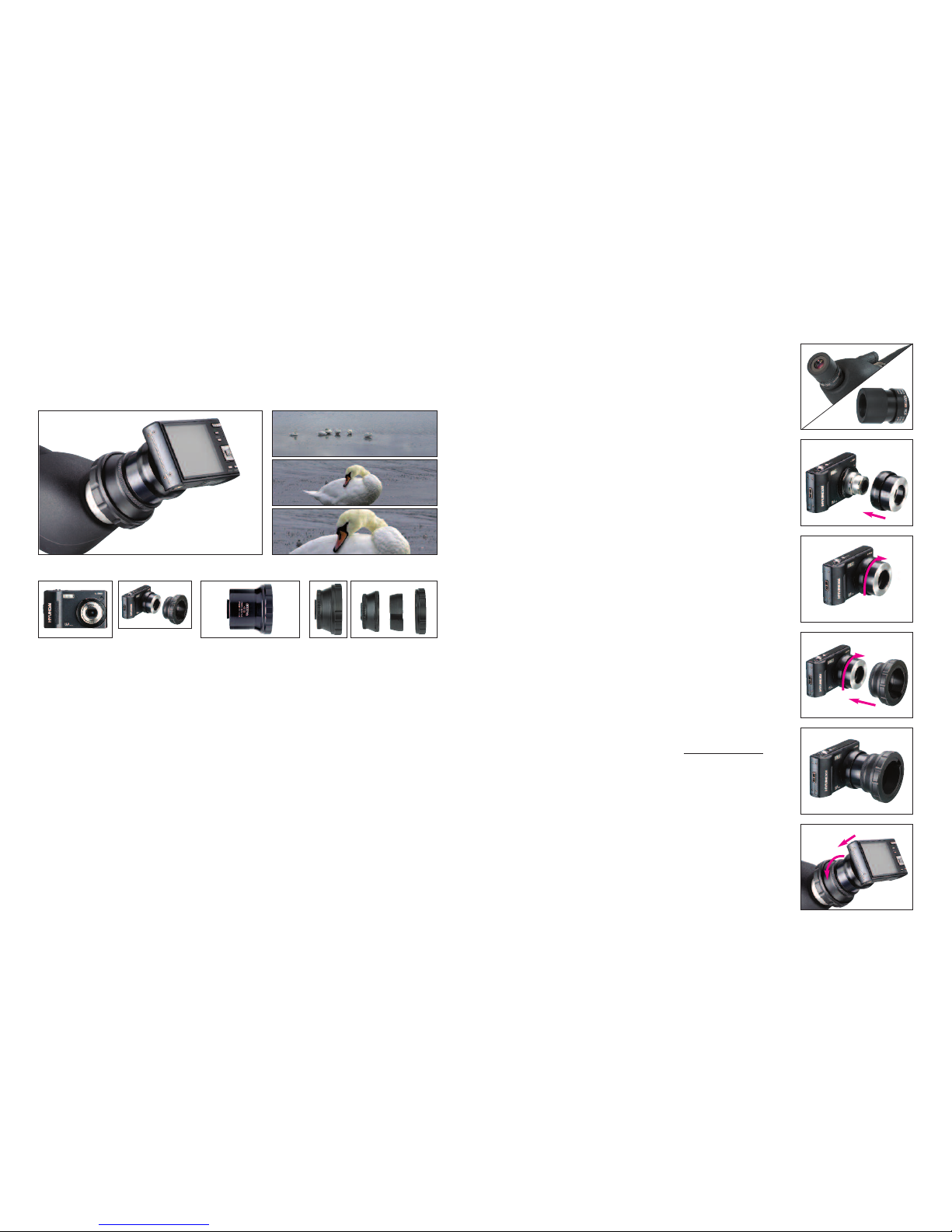

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
a
b
Fig. 6
