Optimus 40-115 User manual

Cat. No. 40-115
15-Inch 2-Way Speaker
Your Optimus 15-Inch 2-Way Speaker
is desi
g
ned todeliver uniform sound dis-
persion with excellent sound quality.
Your speaker’s protective corners and
carryin
g
handles make it portable, so
you can use it anywhere you need it. It
is ideal for clubs, schools, churches,
conference rooms, auditoriums, and
other locations that require controlled
sound covera
g
e.
The speaker’s 15-inch woofer and piezo
horn tweeter make it suitable for voice
or music. Its 1/4-inchphone jack and two
terminal posts make it easy to connect
to any amplifier. You can connect two
speakers to an amplifier for stereo
sound.

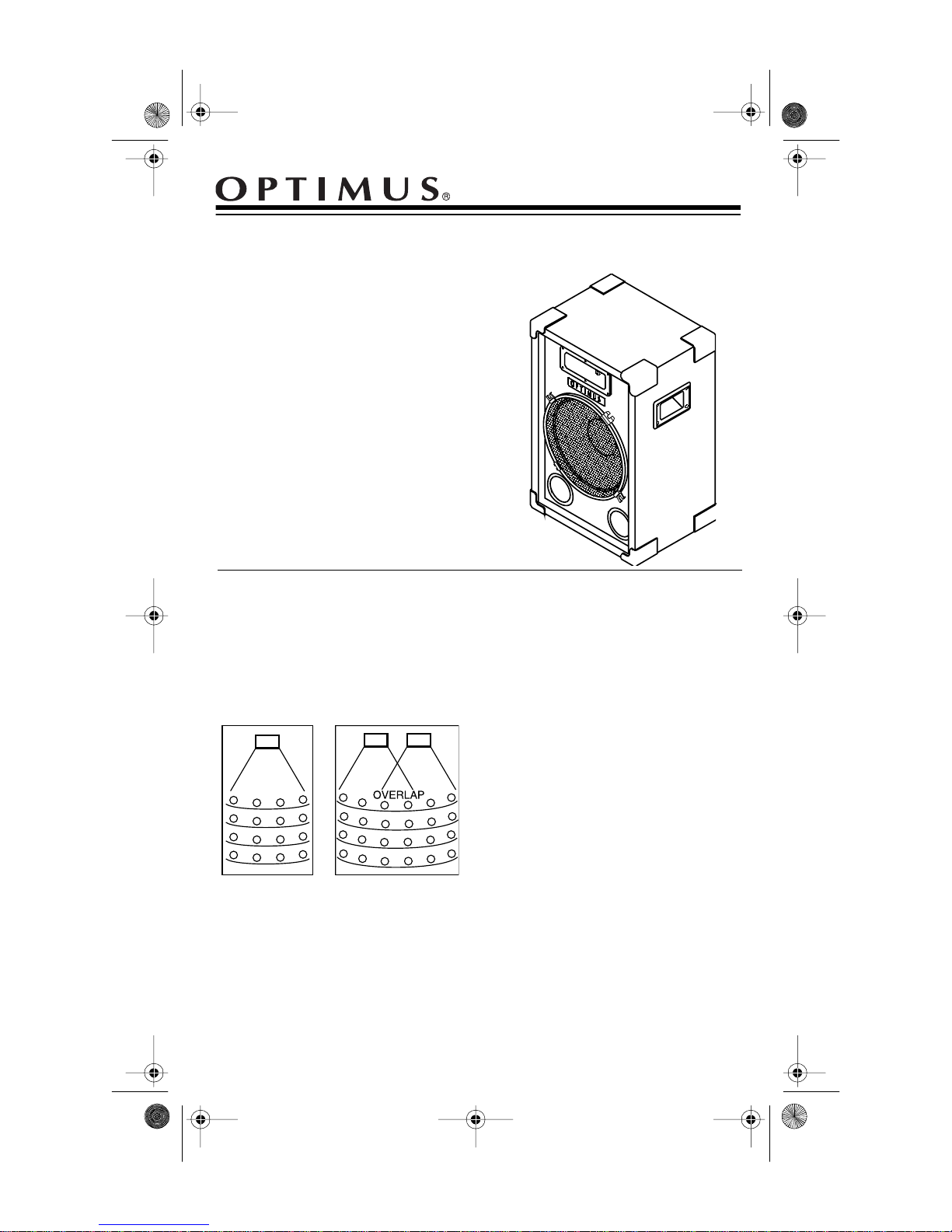

SPEAKER PLACEMENT
An ideal speaker system covers the lis-
tenin
g
area with a consistent volume
level without reverberation (echo) or
“dead” spots (areas without sound).
To cover a wide area, you mi
g
ht need
one or more additional speakers. If you
use more than one speaker, overlap the
One Speaker Two Speakers
speaker’s projection areas to prevent
dead spots.
CONNECTIONS
Note: Be sure your amplifier is turned
off before you make any wire connec-
tions.
Using the Speaker’s Terminal
Posts
Use color-coded, two-conductor, 18-
g
au
g
e or lar
g
er speaker wire to con-
nect the speaker to an amplifier usin
g
the speaker’s terminal posts.
Note: You can find the proper speaker
wire at your local RadioShack store.
1997 Tandy Corporation.
All Rights Reserved.
Optimus and RadioShack are registered trademarks used by Tandy Corporation.
40-115.fm Page 1 Tuesday, August 10, 1999 1:57 PM

.
2
Speakerwire hastwo individual conduc-
tors (wires) covered with insulation, and
is often marked to help you make the
proper connections. Insulation on one
side of the wire mi
g
ht have a rid
g
e or
colored stripe. Or, the two conductors
mi
g
ht be different colors (silver and cop-
per, for example).
For the best bass response, be sure to
connect + on the speaker to + on the
amp, and – on the speaker to – on the
amp.

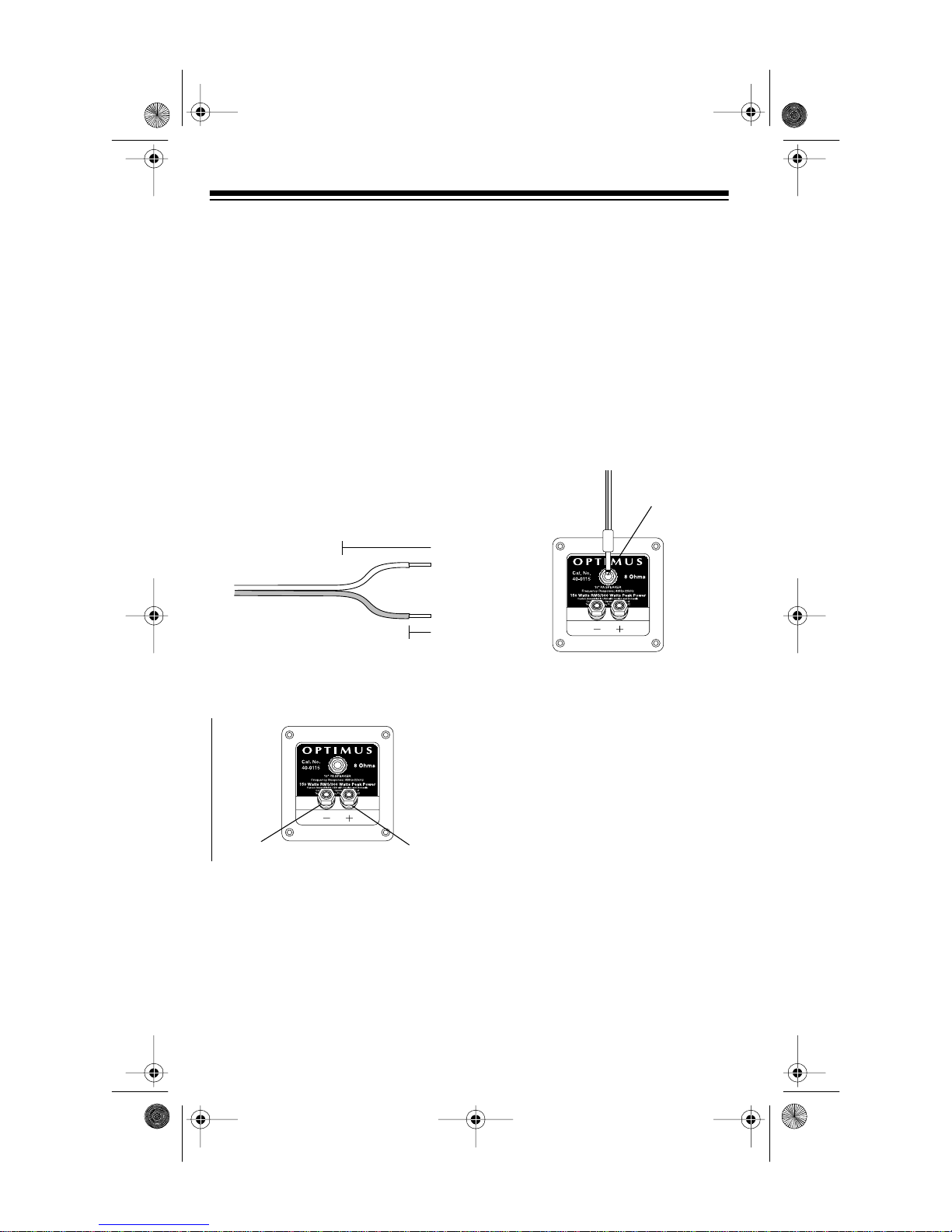

1. Separate the conductors at each
end for about two inches, then strip
1/2inch of insulation from the end
of each conductor.
2. Unscrew the speaker’s positive (+)
terminal and insert a conductor’s
stripped end into the hole on the
side of the terminal post.
3. Hand ti
g
hten the terminal to secure
the wire in place.
4. Connect the conductor’s other
stripped end to the amplifier’s posi-
tive (+) terminal.
5. Repeat Steps 2–5 to connect the
speaker to the amplifier’s ne
g
ative
(–) terminals.
Using the Speaker’s Phone
Jack
If your amplifier has an 8-ohm phone
jack, use a speaker cable that has a
phone plu
g
on each end (such as Ra-
dioShack Cat. No. 42-2470) to connect
the speaker’s 1/4-inch phone jack to the
amplifier’s phone jack. Or, if your ampli-
fier does not have an 8-ohm phone jack,
use speaker wire that has a phone plu
g
on one end to connect the speaker’s 1/4-
inch phone jack to the amplifier’s termi-
nals.
2 inches
1/2inch
– Terminal + Terminal
1/4-Inch
Phone Jack
40-115.fm Page 2 Tuesday, August 10, 1999 1:57 PM

3
Connecting Two Speakers to
a Monaural Amplifier
You can connect a second speaker to
cover a wider listening area.The speak-
er puts an 8-ohm load on the amplifier.
If you connect a second speaker in se-
ries, the load increases to 16 ohms. If
you connect a second speaker in paral-
lel, the load decreases to 4 ohms.
Check your amplifier’s specifications to
see which connection to use.

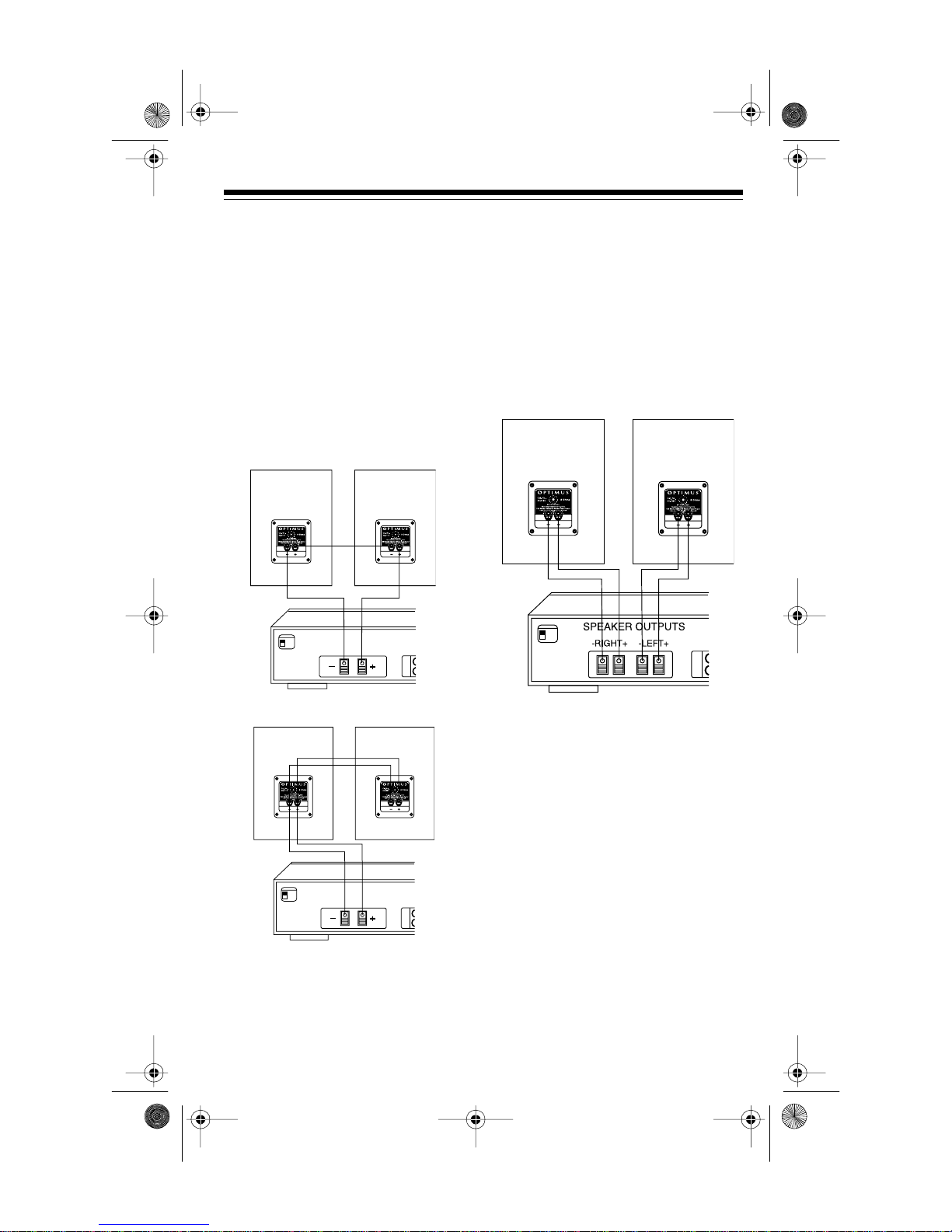

Connecting Two Speakers in Series
Connecting Two Speakers in Parallel
Connecting Two Speakers to
a Stereo Amplifier
You can connect two speakers to an
amplifier for stereo sound. Connect one
speaker’s positive (+) and negative (–)
terminals to the amplifier’s correspond-
ing positive and negative left speaker
terminals. Connect the other speaker’s
terminals to the amplifier’s correspond-
ing right speaker terminals.
CARE
To enjoy your Optimus 15-inch 2-Way
Speaker for a long time:
• Keep the speaker dry. If it gets wet,
wipe it dry immediately.
• Keep the speaker away from dust
and dirt.
Caution: Do not clean the grill or speak-
er elements with a vacuum cleaner. Do-
ing so might cause permanent damage.
Use a feather duster or soft cloth in-
stead.
Amplifier or Stereo Receiver
40-115.fm Page 3 Tuesday, August 10, 1999 1:57 PM

RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
7/97 Printed in the USA
SPECIFICATIONS
Type ............................................................. Two-Way System in Vented Enclosure
Speaker Drivers ......................... 15-Inch Woofer and 2-Inch ¥ 6-Inch Horn Tweeter
Power Handling ............................................................................... 150 Watts RMS
Maximum Power ....................................................................................... 300 Watts
Frequency Range ............................................................................... 48 Hz–22 kHz
Impedance .................................................................................................... 8 Ohms
Dimensions .................................................... 279/16 ¥ 201/2¥ 129/16 Inches (HWD)
Shipping Weight ........................................................................................... 51.0 lbs
Specifications are typical; individual units might vary. Specifications are subject to
change and improvement without notice.
