Optoelectronics HBB056 User manual

HBB056
Mobile Power Bank
User Guide

Contents
Safety Instructions 1
Specification 3
Overview 4
Connection 5
Charging the Battery 8

HBB056 User Guide
1
Safety Instructions
<Usage/Storage>
1. Please read the instructions below and the label on its surface before use. Do not use this battery to power other devices. We do
not guarantee and are not responsible for the safety of powering the devices other than our projector.
2. The battery has its protective component and circuit inside. Do not disassemble the battery by yourself.
3. When you use the battery, it should be kept out of high voltage and amplified current.
4. Do not use the battery or keep it near any equipment that will generate magnetic waves, such as a cell phone or magnet.
5. Do not drop the battery from high places.
6. Keep the battery out of children’s reach and prevent them from biting or swallowing the battery.
7. Keep the battery in dry places. Do not put the battery in the damp place or immerse the battery in the water.
8. Keep the battery in cool places. Do not use the battery near the fire, stove, or any heated equipments (eg., microwave oven). Nor
should you use the battery in a place with temperature over 80℃or place the battery under the sunlight. Over-heating will cause
the short circuit and make the battery out of function.
9. Do not wrap the battery with any conduct materials.
10. When the battery emits any abnormal smell, please stop using it and contact your dealer. Do not repair the battery by yourself.

HBB056 User Guide
2
11. When the battery emits any liquid, do not touch the liquid directly by your hands. Contact your dealer and do not repair the
battery by yourself. If the liquid happens to contact your eyes or skin, do not rob your eyes or skin but rinse them with clean
water immediately, and then go to the hospital for further treatments.
<Charging>
12. When you charge the battery, do not place it in the environment described above in the instruction no. 6. Otherwise, it will cause
the battery to be out of function.
13. Please charge the battery by following the steps in the section below. Please stop charging when you see the LED indicator turn
green. Do not overcharge the battery, or it will cause the battery to be out of function.
14. When the battery is not going to be used for a long period, keep the battery in 50% charged status. We recommend to charge
the battery up to 50% of the total capacity every 3 months and maintain the voltage 10.8~11.0V.

HBB056 User Guide
3
Specification
Model Name
HBB056/Battery Pack for HBP200 Series
Spec
Lithium Ion Battery Pack
Input
19V/2A
Output
DC: 9-12.6V/2.5A
USB: 5V/2A
Capacity
5200mAh/11.1V
Ambient
Conditions
Charge Temperature
0℃~45℃
Discharge Temperature
-20℃~60℃
Humidity
65℃±20%
Overcharged
Detection
Voltage
13.05±0.025 V
Overdischarged
Detection
Voltage
6.9±0.05 V

HBB056 User Guide
4
Overview

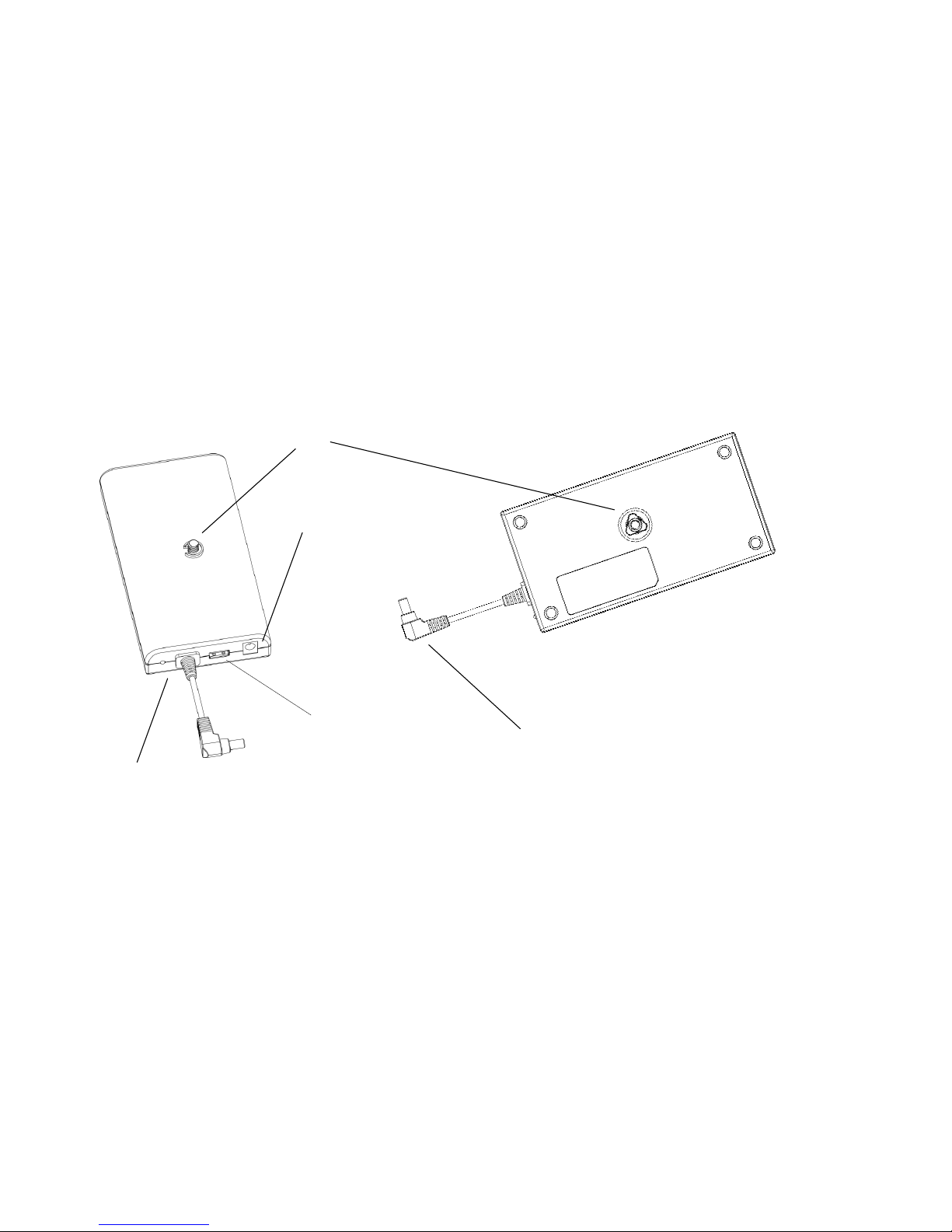

④
①Screw (for fastening the projector)
②DC in
③USB port 5V/2A
④DC Plug (for connecting the projector)
⑤Indicator
①
②
⑤
③

HBB056 User Guide
5
Connection
The battery is fully charged and ready to use when you receive the battery. (To extend the useful life of the Battery, before you
recharge it the first time, run the Pico Projector to a complete discharge of the battery, then recharge it completely.) Follow the steps
below to connect the battery to the projector.
1. Place the projector above the battery and make sure the screw on the battery is in line with the screw hole on the back of the
projector.
Note: To facilitate the positioning of the
screw, fit the extended area of the
screw hole into the gap on the ring
around the screw.

HBB056 User Guide
6

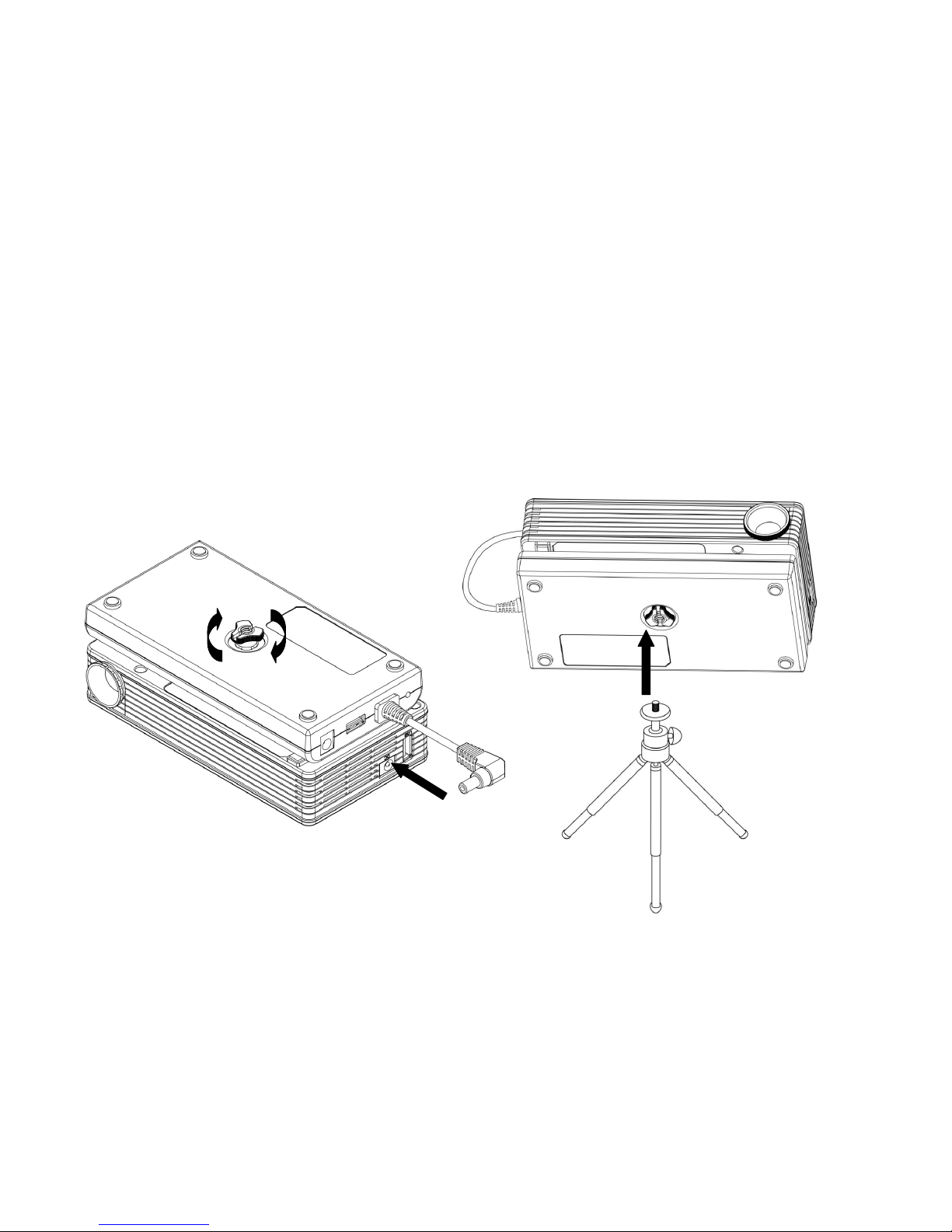

2. Hold the projector and battery together. Turn the screw clockwise and tighten it. Plug the DC plug into the DC jacket on the
projector, and then you can start using the projector.
3. You can still connect the tripod to the projector through the screw hole at the bottom of the battery.

HBB056 User Guide
7
4. When the projector is powered by the battery, a battery icon will appear at the bottom right corner of the main menu. The icon will
show the capacity of the battery. It will start blinking when the capacity is too low. Later, when you see the warning message
below, please power the projector with the power adapter, or start charging your battery. The projector will be off in three
minutes.
Battery - Full
Low Capacity Warning

HBB056 User Guide
8
Charging the Battery
＜Fast Charging＞

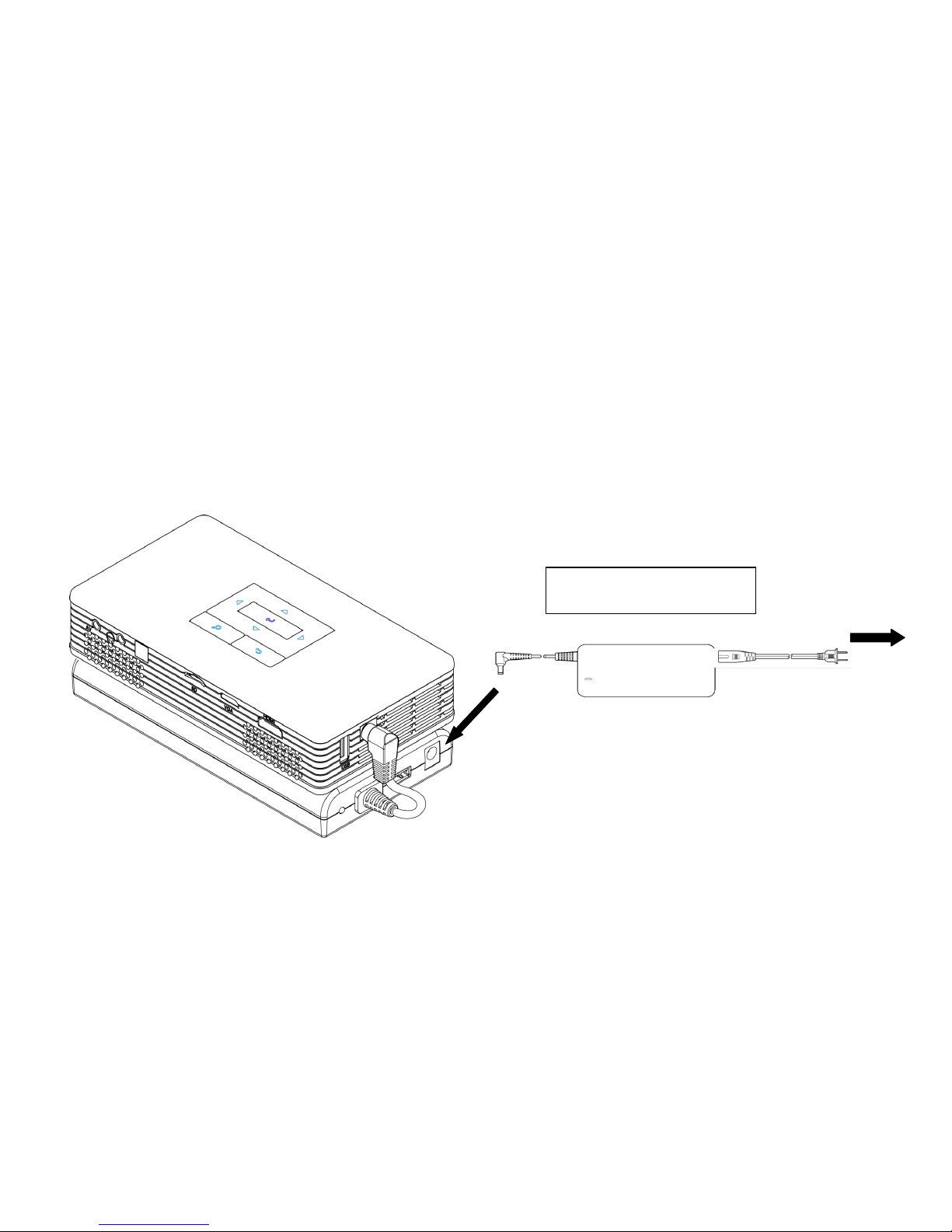

1. Connect the battery to the power adapter, and then plug it to the AC socket.
AC Socket
Accessory—Power Adapter
Note: Connecting the battery to any device
to the USB port may increase the
charging time for the battery.

HBB056 User Guide
9
2. The indicator will turn red when the battery is being charged.It takes about 4 hours for the battery to fully charge. The indicator will
turn green when the battery is fully charged.
Red: the battery is being charged.
Green: the battery is fully charged.

HBB056 User Guide
10
＜Slow Charging＞
You can also charge the battery when the battery is connected to the projector. You can use the projector while the battery is being
charged. The indicator will be green when the battery is fully charged.
AC Socket
Accessory—Power Adapter
