Optoma EzPro 600 User manual

English
Français
Manuel de l’utilisateur
Ezpro 600
User’s Manual
English

English
FCC Notice
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation.
Trademarks
Trademarks are the rights of their respective owners.
Part#:36.80702.001
English

English
1
Table of Contents
Usage Notice
Precautions .......................................................................................... 2
Introduction
About the Product................................................................................. 3
Package Overview ............................................................................... 4
Installation
Product Overview ................................................................................. 5
Connecting the Projection Display ....................................................... 8
Powering On/Off the Projection ............................................................ 11
Adjusting the Image Size ...................................................................... 12
User Controls
User Control Overview ......................................................................... 14
Function Descriptions........................................................................... 16
Appendices
Troubleshooting .................................................................................... 20
Maintenance......................................................................................... 22
CeilingInstallation................................................................................. 26
Accessories ......................................................................................... 29
Specifications ....................................................................................... 30
Compatibility Modes............................................................................. 31
1

English
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit.
Do:
Turnofftheproductbeforecleaning.
Use only a dry soft cloth or clean room wiper when cleaning lens and lamp set.
Use a soft cloth moistened with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not being used for a
longperiod of time.
Don’t:
Blockthe slots andopeningson the unitprovidedfor ventilation.
Useabrasive cleaners, waxesorsolventsforyour cleaning.
Useunderthe following conditions:
- Extremelyhot, cold orhumidenvironment.
- In areas susceptible to excessive dust and dirt.
- Nearany appliance generatingastrongmagneticfield.
- Place in direct sunlight.
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow
allchanging directions.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp, please reset the lamp life from OSD
menu.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
2

English
Introduction
AbouttheProduct
This product, designed with a high-powered metal halide lamp, is an SVGA
polysilicon LCD projection display. The outstanding features of it are listed
as follows:
12 lbs (5.4 kg) lightweight compact design
250-watt user replaceable metal-halide lamp
Triple 1.3” poly-silicon TFT LCDs projection system
800 x 600 addressable pixels
Compression / Panning for 1024 x 768 XGA computer image
16.7M (24-bit) displayable colors
SVGA/ VGA/ VESA/ Mac/ NEC PC-98 compatible
NTSC / PAL / SECAM composite video & S-Video
Remote control with mouse function
One minute protection device for warming up the lamp
Intelligentresizingfunction
Multilingual OSD menu adjustments
3

English
Package Overview
This projection display comes with all the items shown below. Check to make
sure your unit is complete. Contact your dealer immediately if anything is
missing.
4
LCD Projection Display Power Cord
S-Video Cable RCA Audio / Video Cable
Mac Monitor AdapterMac Multiform Adapter VGA Cable
Remote Mouse Package:
Remote Mouse Remote Receiver Cable
Mac / PC PS2 Remote
Adapter
Mac / PC PS2 Mouse
Adapter
x 2 x 2
Carrying Case
User’s Manual
Warranty CardQuick Start Cards
Audio-in Cable for
Computer

English
Installation

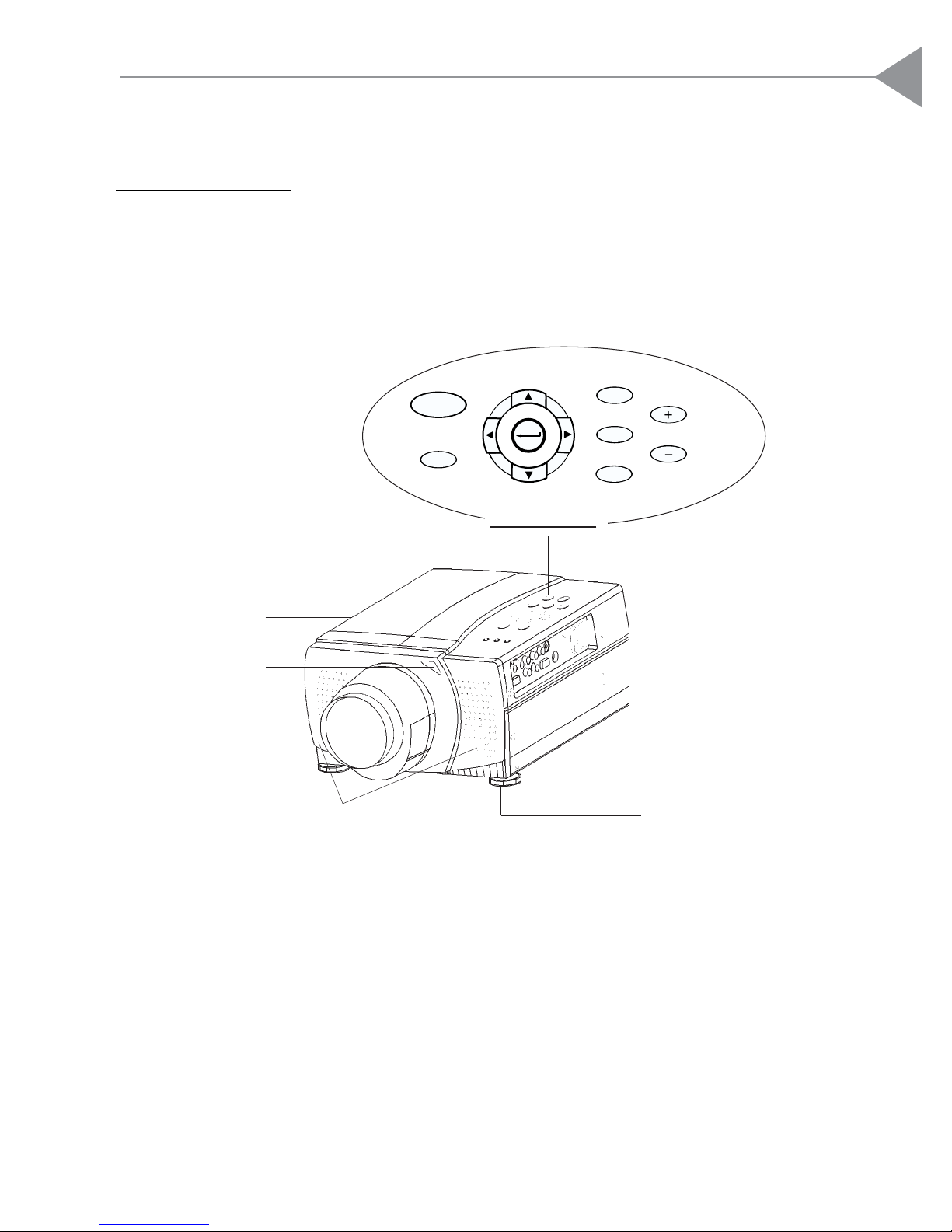

ProductOverview
MainUnit
RemoteControl
Receiver
VOL.
MENU
FOCUS/ZOOM
SOURCE
CarryingHandle
ProjectionLens

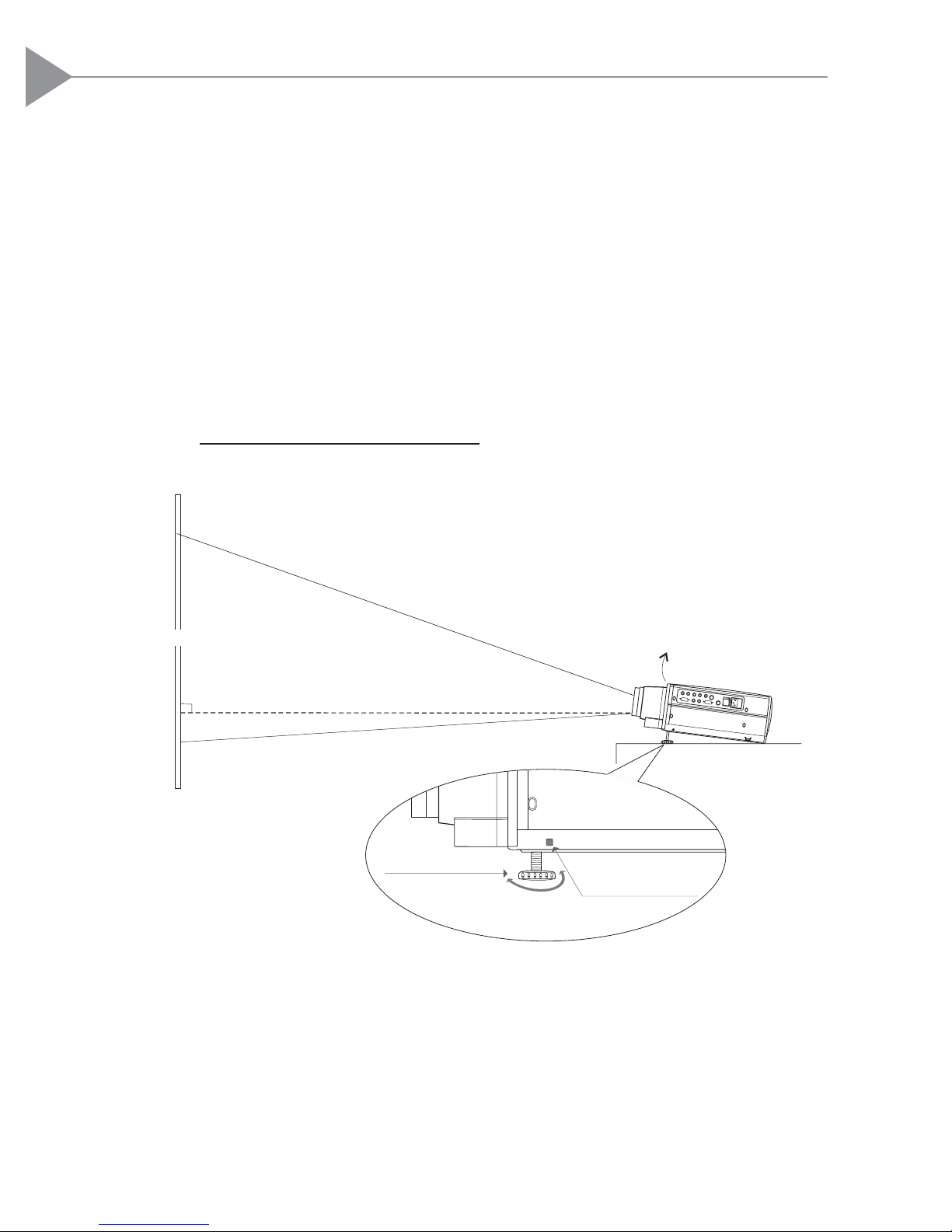

Elevator
POWER
RESET
Speakers

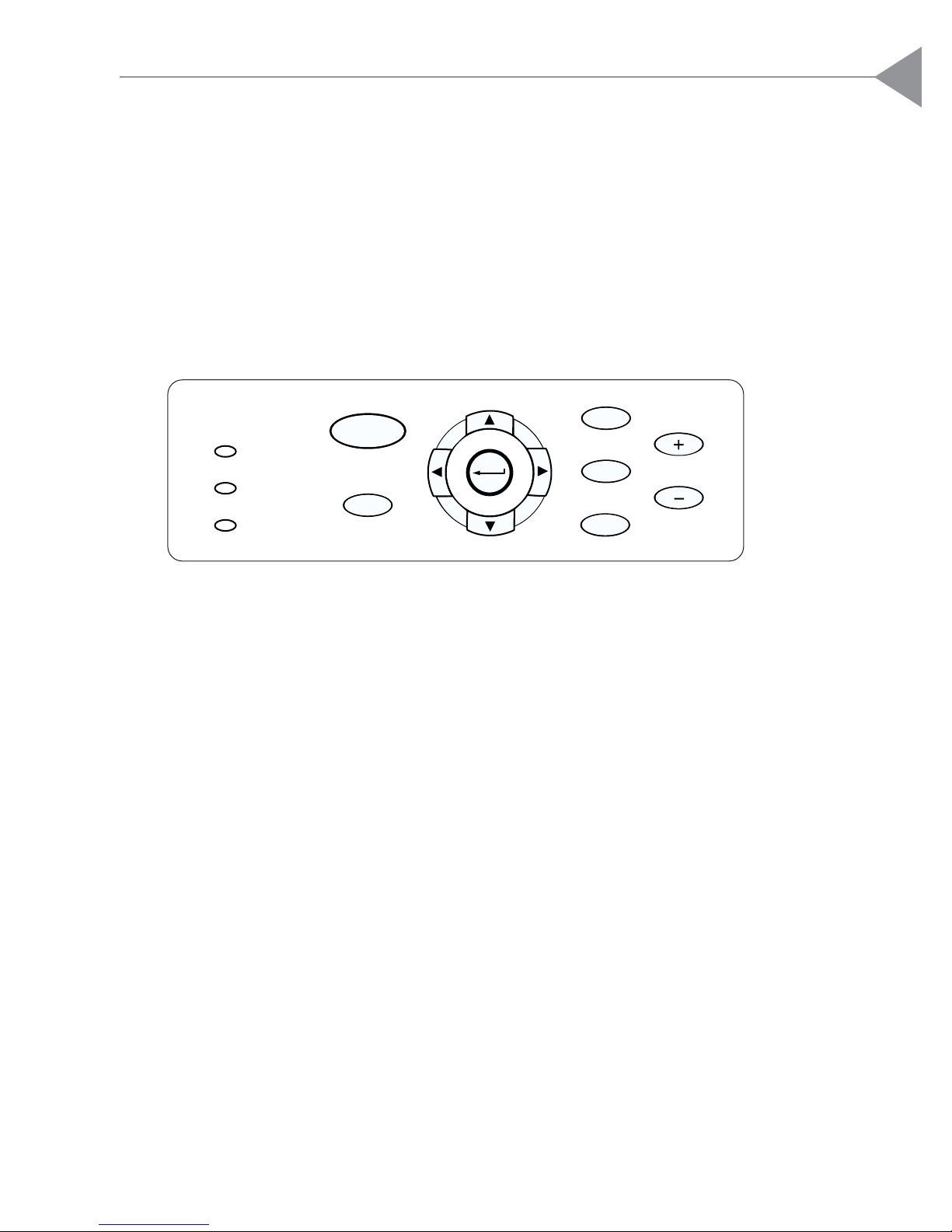

PanelControls
PowerSwitch
Elevator
ReleasingButton
5

English
ConnectionPorts
Remote Mouse Connector
Computer Input Connector
Audio Input for Computers
Monitor Loop-through Connector
S-Video Connector
Composite Video Connector
Audio Input Connectors
Audio Output Connectors
SignalConnection Ports
PowerInterface
Power
Connector
Power Switch
6

English

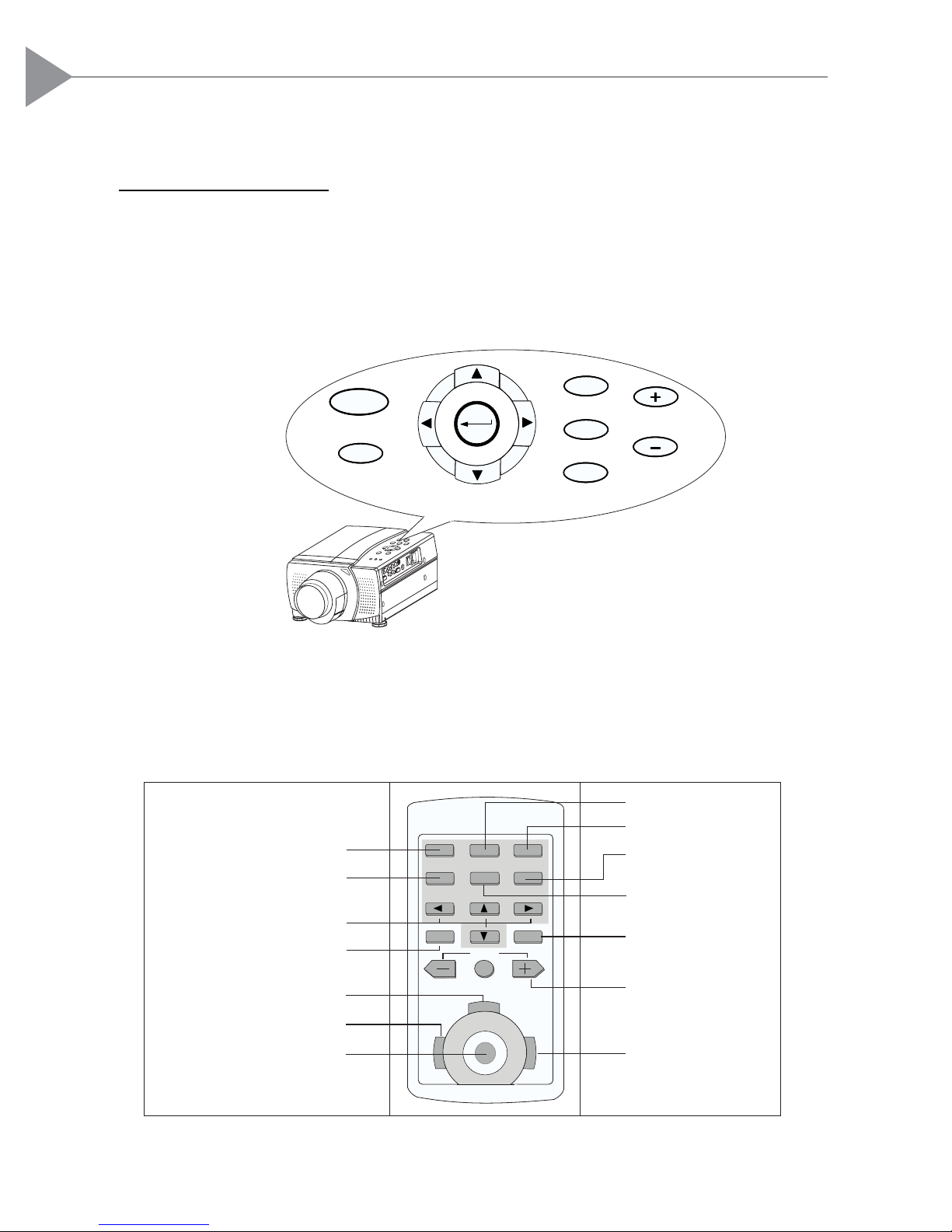

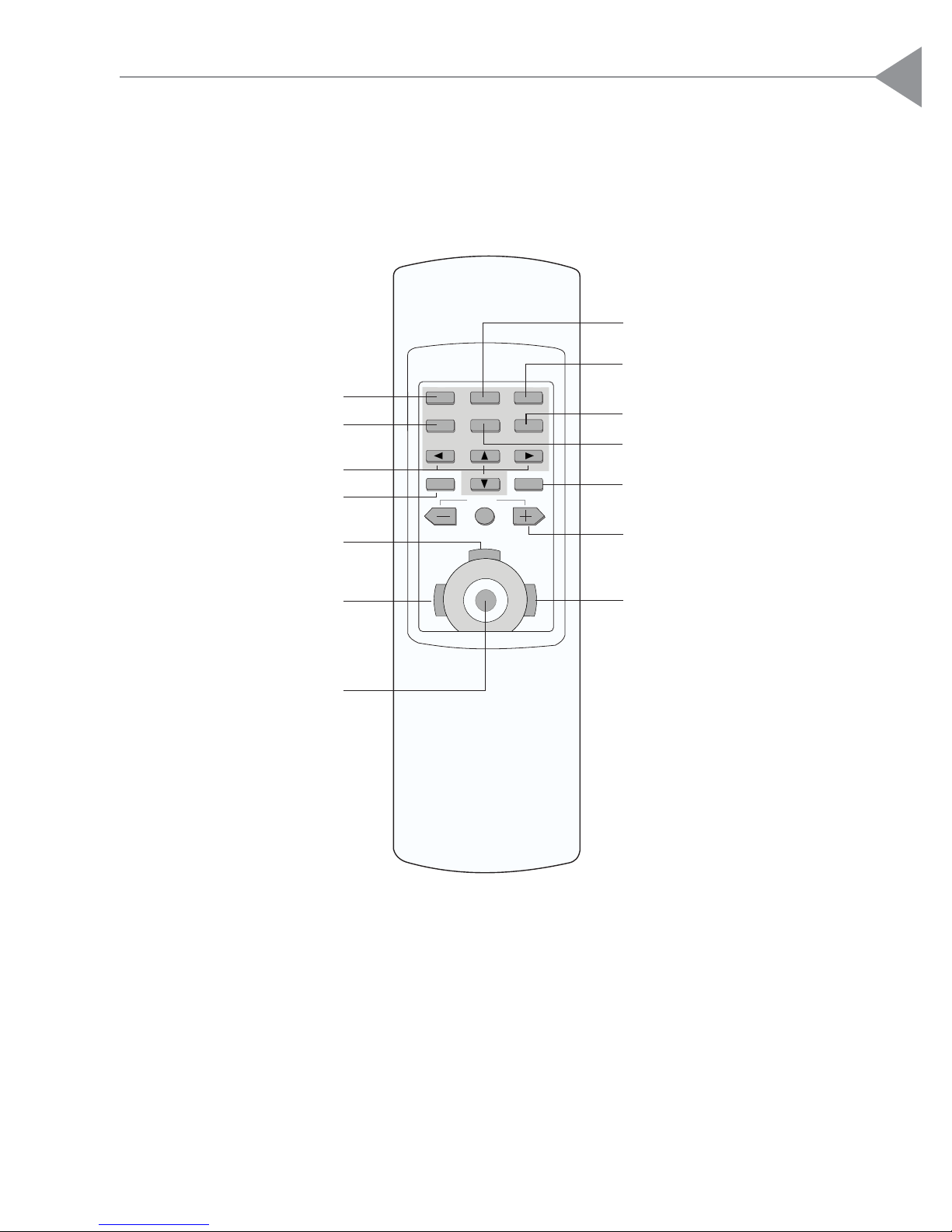

RemoteControl
Directional Select Keys
Focus & Zoom Lens
Adjustments
* For more detailed information, please refer to “Function Descriptions”.
Curtain
EnlargementFunction
SourceSelection
Volume
Enter/Pointer
Poweron/Standby
On-ScreenMenus
FREEZE
CURTAIN
ON
STANDBY
ENLARGEFOCUS/ZOOMSOURCE
ENTER
POINTER
MENU
MUTE
VOLUME
DRAG
R
L
Freeze
LIGHT
MouseLeftButton Down
RightMouse Button/
Backlight Function
LeftMouse Button
Joystick
(MouseCursorFunction)
7

English

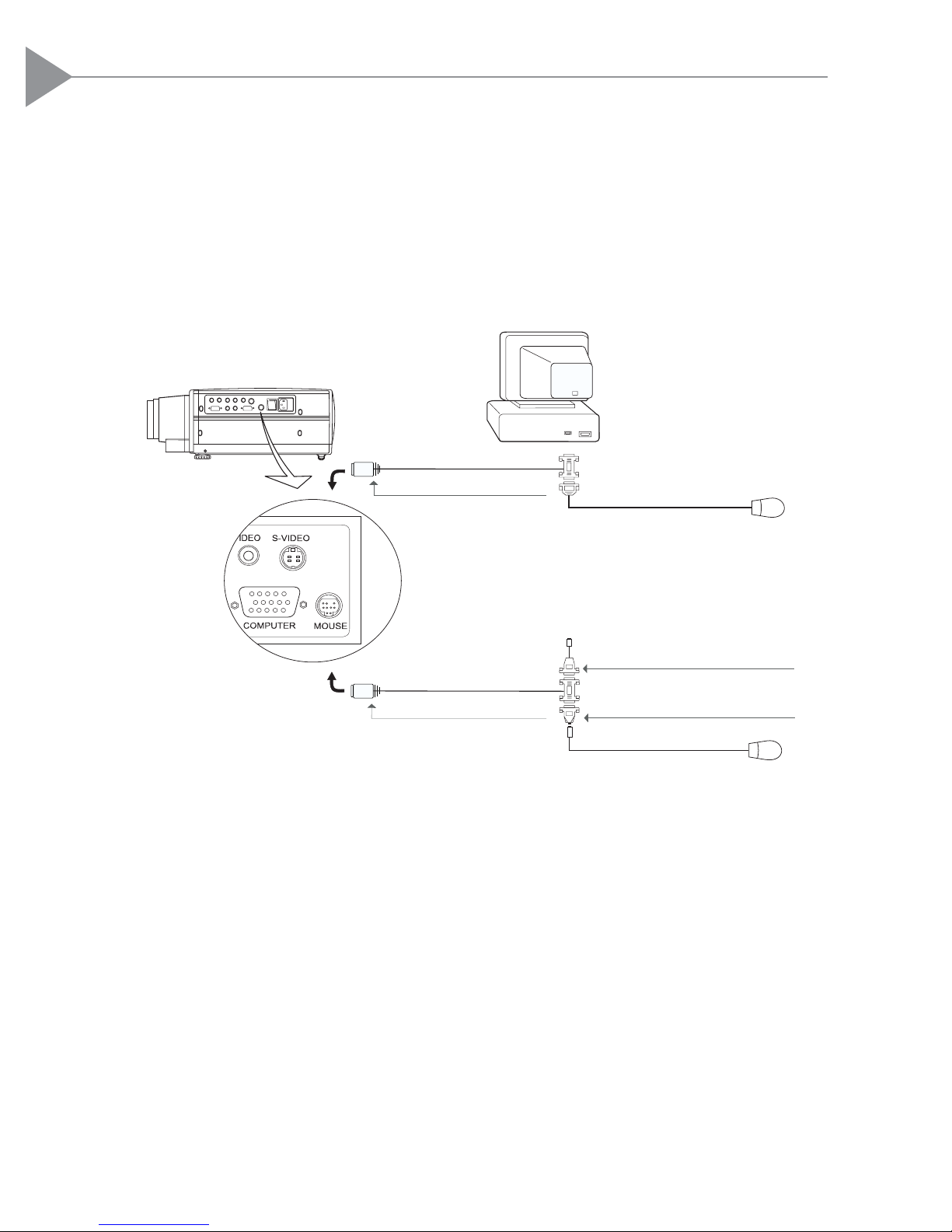

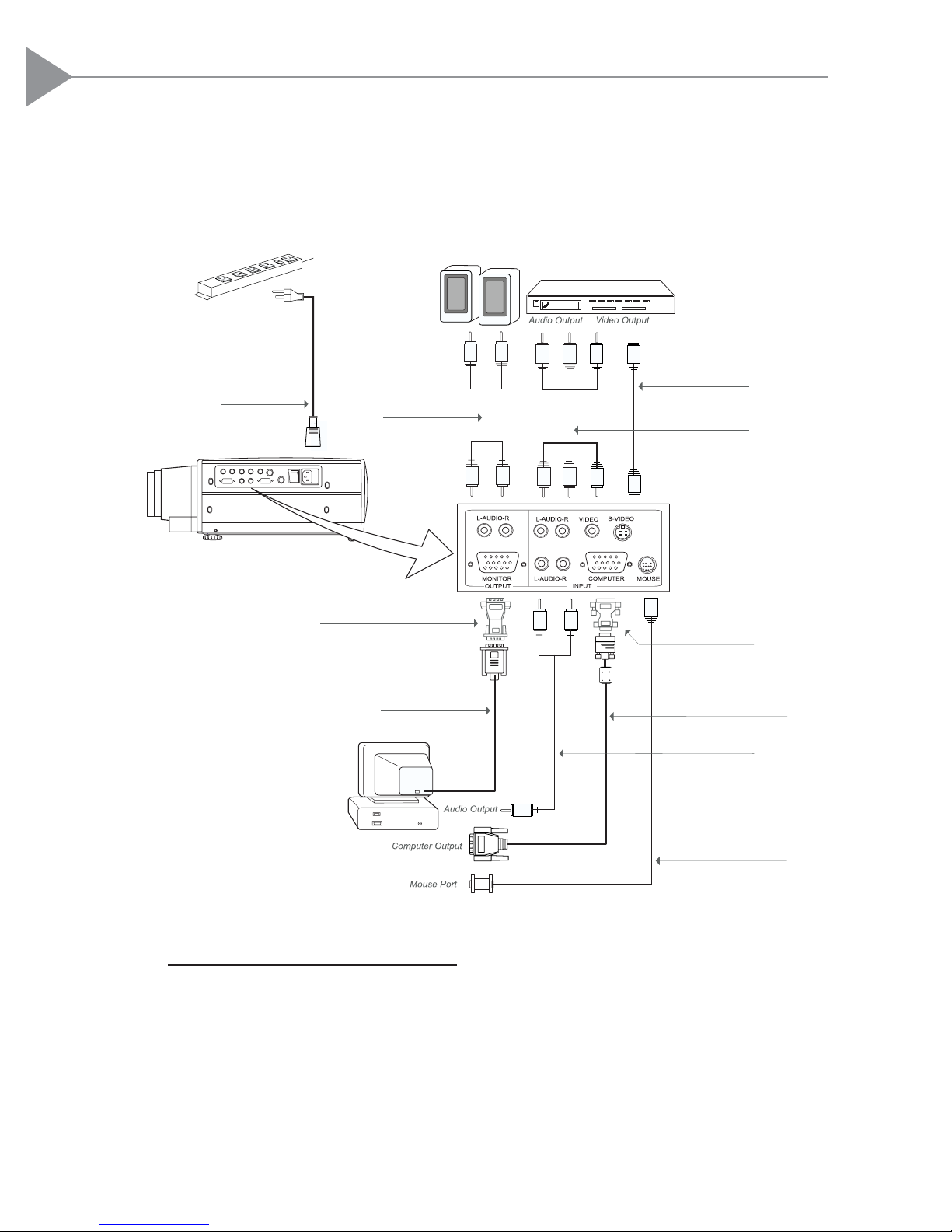

ConnectingtheProjectionDisplay
Power Cord Audio Cable
S-Video Cable
Remote Receiver
Cable
VGACable
Audio Cable
Monitor Cable
MacAdapter
Mac Monitor Adapter
RCA Audio
Video Cable
*For Macintosh, use the Mac adapter.
(Select the correct Mac type on your adapter, refer to the Macintosh spec. on page
9 or 31)
*To ensure the projection display works well with your computer, please
configure the display mode of your graphic card to make it less than or
equal to 1024 x 768 resolution. Make sure timing of the display mode is
compatible with the projection display. Refer to the “Compatibility Modes”
section on page 31.
