EH300 Bright 1080p Projection
High resolution for stunning images
Full HD 1080p - 3500 Lumens
16W Stereo audio with SRS WOW HD audio processing
Extensive High Definition digital connectivity - HDMI

EH300
Utilising the latest DLP® technology, the EH300 delivers exceptional crystal-clear Full HD native resolution and immersive 3D visuals.
Producing a stunningly bright image with perfectly balanced vivid colour, crystal clarity and exceptional light and shade detail only possible with a
high contrast projector. The EH300 is perfect for projecting a broad range of applications including technical, advertising media and medical uses
where detail matters.
Installed or on the move using the included carry bag, the versatile EH300 has a powerful on-board 16W stereo speaker, HDMI connectivity and
energy saving features including ECO mode and auto power off saving you both time and money for hassle-free, long-lasting projection.
Using the inherent speed of DLP technology,
The Optoma EH300 Full 3D projector can
display true 3D content form almost any 3D
display device, including 3D Blu-ray, PS3,
Xbox and Sky3D.
Lights on viewing
The EH300 produces fantastic images even when the lights are on
with 3500 Lumens. Designed to be used in ambient light the high
brightness EH300 can be used without even dimming the lights.
Full HD 1080p
Sharper more detailed projection with 1920 x 1080p pixels, perfect for
watching Blu-ray movies without downscaling or compression.
Full 3D
Dynamic Black
Dynamic black smoothly adjusts the lamp output automatically, based
on the brightness information of each frame; to create a stunning
15,000:1 contrast ratio. Bright scenes are crisp and clear, while dark
scenes remain detailed with deep blacks which gives exceptional light
and shade detail.
Amazing Colours
The EH300 incorporates BrilliantColor™ multi-colour processing
technology to bring stunning, vibrant colour to your screen. You can
even fine tune colours for ultimate precision.
Color Guarantee
We are so confident that the EH300 image colour quality will remain
as good as the day you bought it that Optoma will guarantee it for five
years.
Audio WOW - SRS WOW HD™ Surround Sound
Experience the WOW factor with SRS WOW HD surround sound
audio processing to create a more natural audio experience. With a
deep, rich bass response. Easy to set up without the need for costly
external speakers the EH300 offering exceptional sound quality with
powerful on-board 16W stereo audio.
SRS WOW HD Features
Stereo enhancement which improves dynamic audio
performance
Sculpted bass response for maximum thump from the on-
board speakers
More natural audio with a wider sound field

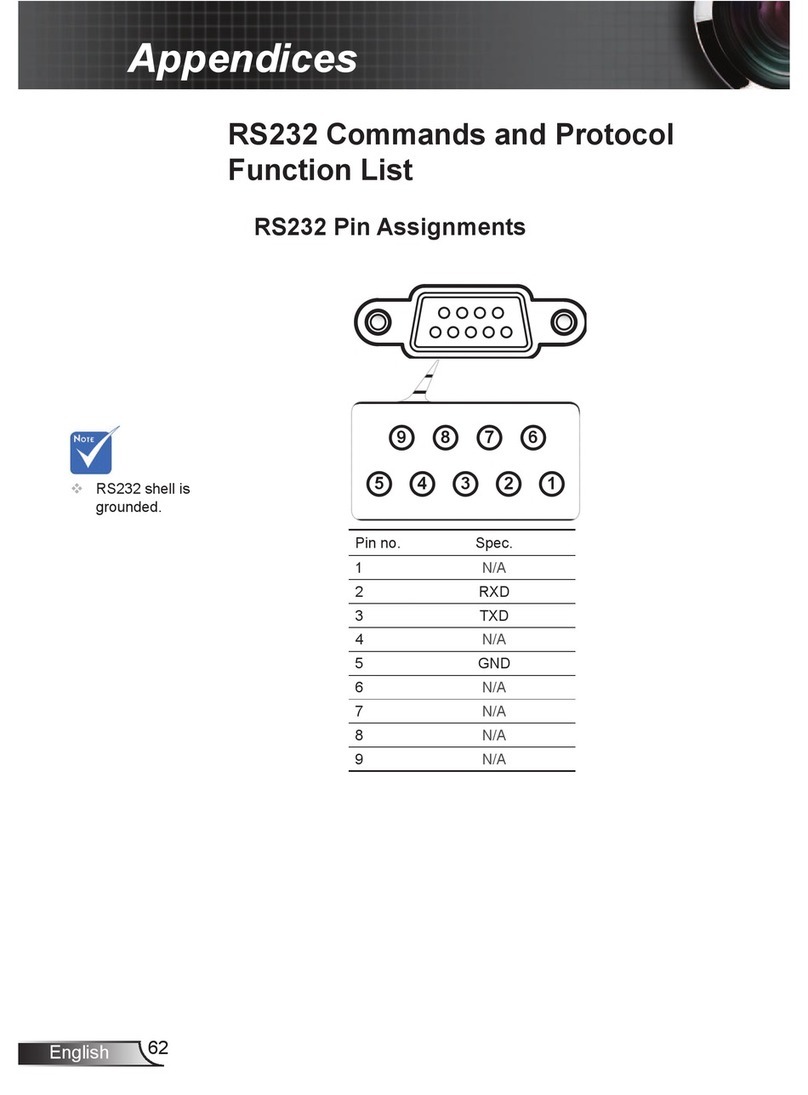

RS232 Control
RS232 Compatibility - The EH300 comes with an extensive RS232
command set making it simple and easy to control with any control
system.
High frequency
clarity
Bigger, wider sound field
Deep rich bass
response

AMX Compatibility - Dynamic Discovery
Protocol is incorporated into the EH300. This
feature allows for easy installation with AMX
control systems.
USB Remote Mouse and Laser
Control your presentation with dedicated left and right click mouse
buttons on the included remote control. You can also point to things
on the screen without having to stand in front of the projected image
with the built in laser pointer (USB cable required).
Auto Power Off
There may be instances when the projector is left running when not in
use. To help save energy if the projector is left running and no source
is detected, the "Auto Power Off" feature automatically turns off the
projector after a set period of time.
Laser
USB Mouse
Eco AV mute off
100% power consumption
Eco AV mute on
30% power consumption
We know that improving our products is
the best way to reduce our impact on the
environment. That's why at Optoma we
design our products to have a long usable
life, use fewer materials, ship with the
minimum packaging and be free of all
possible toxic substances. Naturally,
energy efficiency and being recyclable are
built in at the design stage. With each new
product, we strive towards minimising our
environmental impact.
Eco AV Mute
Stay in control of your presentation with the Eco AV mute feature.
Direct your audience's attention away from the screen by blanking the
image when no longer needed. This also instantly reduces the power
consumption to 30%, further prolonging the life of your lamp
Long Lamp Life
Reduce the total cost of ownership with a lamp life of up to 6000
hours. The EH300 uses Dynamic Black technology to significantly
lower the cost and number of lamp replacements.

EH300 Specification
Display Technology Single 0.65” 1080p DC2 DMD chip DLP® Technology by Texas Instruments
Native Resolution 1080p 1920 x 1080
Brightness1 (Bright Mode) 3500 ANSI Lumens
Contrast 15,000:1
Noise Level 26dB (min)
Weight 3.1 kg
I/O Connectors Inputs: 2x HDMI v1.4a 3D, 2x VGA (PC/YPb-Pr), Composite Video, 2x Audio In 3.5mm stereo socket
Outputs: VGA, Audio Out 3.5mm stereo socket, 3D-Sync Out (3-Pin VESA)
Control: RS232, USB (remote mouse)
Preset Mode PC: For computer or notebook (Brightest image)
Movie: Maximum contrast and Colour accuracy
Game: Bright vivid colour
sRGB: For Standard PC Colour (Best Colour Reproductiion)
User: Memorises user's settings
Maximum Resolution Full HD 1920 x 1080
Computer Compatibility UXGA, SXGA+, WXGA, HD, XGA, SVGA, VGA, Mac
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
Displayable Colours 1073.4 Million
Projection Lens F/2.55~2.87; f=22.41~26.82mm, 1.2x Manual Zoom
Throw Ratio 1.5 - 1.8:1, Offset - 116%
Projection Screen Size 0.77 – 9.19m (30.15” - 361.75”)
Projection Distance 1.2 - 10 metres
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 85Hz (120Hz for 3D)
Lamp Type/Lamp Life26000/4000 hours (ECO/BRIGHT mode)
Keystone Correction ± 40° Vertical
Audio 16W stereo (2x8W) SRS WOW HD audio processing
Dimensions (W x D x H) 324 x 234 x 97mm
Remote Control Full function remote with laser pointer, mouse control and direct source selecting
Power Supply 100-240V, 50-60Hz
Power Consumption 297W BRIGHT mode < 0.5W Standby mode, 241W ECO mode < 0.5W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 80%
Security Security Bar, Kensington Lock, Password Protection
Standard Accessories Carry Bag, Lens Cover, AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, CD User
Manual, Warranty Card
Optional Accessories Ceiling Mount Kit
RoHS Compliant
3D Support The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D
educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games
from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
3D Viewing Requires Optoma ZD301 DLP-Link shutter glasses or Optoma ZF2100 system & glasses - available separately.
3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
Offset 116%

3D control
1. Power
2. Mouse select
3. Source
4. Re-sync
5. Left mouse click
6. Right mouse click
7. Mouse control
8. Laser
9. Page up/down control
10. Vertical keystone
correction
11. Volume control
12. Brightness
13. Menu
14. Direct input source select
15. Eco AV mute
16. Dynamic Black
17. 3D control
EH300 Remote Control
EH300 Connections
18. USB Service
19. HDMI 1 (1.4a 3D)
20. HDMI 2 (1.4a 3D)
21. Composite Video
22. VGA 1 In
23. VGA 1 Out
24. Audio In (VGA 1/2)
25. Audio Out
26. 3D-Sync
27. VGA 2 In
28. RS232
29. Audio In (Video)
30. Kensington™ Lock
Projection Distance 1.2 - 12m (16.9 Aspect Ratio)
Projection
Distance (m)
Max. Horizontal Image
Size (m)
Min. Horizontal Image
Size (m)
Max. Vertical Image
Size (m)
Min. Vertical Image
Size (m)
Max Diagonal Image
Size (m)
Max Diagonal Image
Size (inch)
Max. Image
Offset (m)
1.20 0.80 0.67 0.45 0.38 0.92 36.18 0.07
2.00 1.33 1.11 0.75 0.63 1.53 60.29 0.12
2.50 1.67 1.39 0.94 0.78 1.91 75.36 0.15
3.00 2.00 1.67 1.13 0.94 2.30 90.44 0.18
4.00 2.67 2.22 1.51 1.26 3.06 120.58 0.24
5.00 3.33 2.78 1.88 1.57 3.83 150.73 0.30
6.00 4.00 3.33 2.26 1.88 4.59 180.88 0.36
7.00 4.67 3.89 2.64 2.20 5.36 211.02 0.42
8.00 5.33 4.44 3.01 2.51 6.13 241.17 0.48
9.00 6.00 5.00 3.39 2.82 6.89 271.31 0.54
10.00 6.67 5.56 3.77 3.14 7.66 301.46 0.60
11.00 7.33 6.11 4.14 3.45 8.42 331.61 0.66
12.00 8.00 6.67 4.52 3.77 9.19 361.75 0.72

Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
1Brightness will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based
projectors, brightness will decrease over the lamp lifetime. 2Typical lamp life achieved through testing. Will vary according to
operational use and environmental conditions. 3Optoma guarantees that in normal use, Optoma DLP® colour quality will be
indistinguishable from when new. Exclusions: (a) Guarantee is voided if the projector is subject to damage through misuse. (b)
Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is excessive (c) Guarantee will
not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn lamps
within all projector types will show a slight colour variance. Copyright © 2012, Optoma Europe Ltd. All other product names and
company names used herein are for identification purposes only and may be trademarks or registered trademarks of their respective
owners. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments. SRS is a trademark of SRS Labs,
Inc. WOW technology is incorporated under license from SRS Labs, Inc. Some images may be simulated. All images of products are
for representation purposes only. Whilst every care is taken to provide accurate images of our products, actual products may differ
slightly. Some product images may have been digitally altered by us to add an Optoma logo to the front panel. Optoma reserves the
right to amend or alter actual product or product images without notice. Some images may be simulated.
