EP1080
Digital DLP®Projector
A Truly Brilliant
Full HD 1080p Projector
Full HD 1080p for detail
and clarity
Exceptionally bright
3600 ANSI Lumens
RJ45 Networking capability
Vivid perfectly balanced
colour for outstanding images
and video
Pixelworks™ technology for
excellent video performance
28dB
28
28
28
28
28
28
8
8
8
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Quiet operation just 28dB
�
Filter Free
no maintenance design
5

EP1080
Powerful Full 1080p Projector

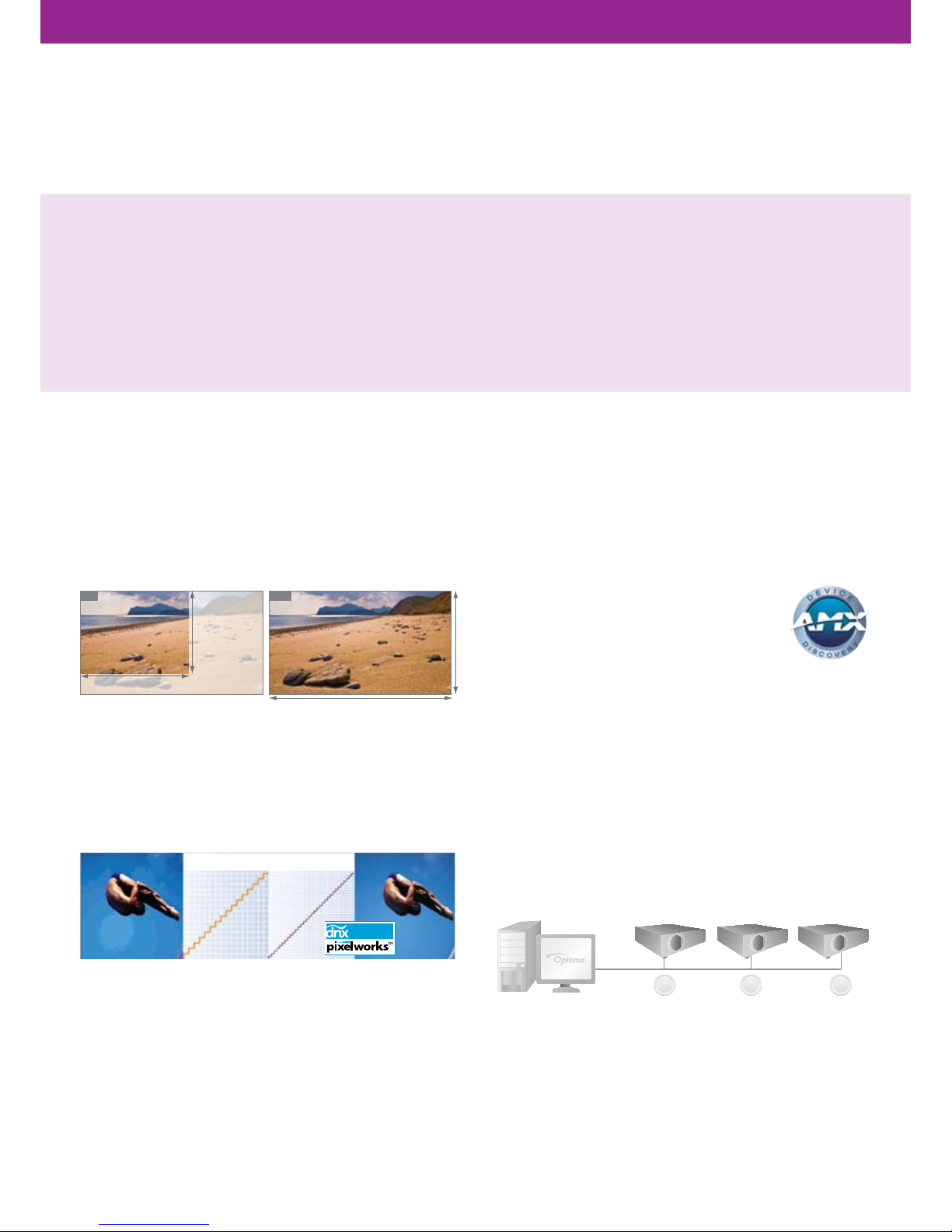

Full HD native resolution, astonishing imaging power, exceptional brightness and no-maintenance filter-free
features come together in one beautifully designed projector. With its ultra bright 3600 ANSI Lumens and full
HD 1080p resolution the EP1080 combines pin-sharp cinema class viewing that is ideal for large venues,
conference rooms or advertising media. Its stunning image quality and whisper-quiet operation ensures the
EP1080 meets your presentation needs. Dual image viewing for creative displays and networking control to
give you the flexibility to use the EP1080 in many different ways.
EXCEPTIONAL BRIGHTNESS
The EP1080 delivers a class leading 3600 ANSI Lumens making it
effective under virtually any lighting conditions.
FULL HD
Full HD (1920 x 1080) has twice the resolution of standard HD. EP1080
is compatible with HDTV broadcasts and high–definition DVDs to project
impressive full 1080p images and video in their original digital brilliance.
XGA (1024 x 768) 1080p (1920 x 1080)
PIXELWORKS™
The EP1080’s sleek, contemporary style is matched with the industry’s
latest video enhancement technology. Pixelworks™ technology
provides precise colour enhancement, as well as advanced scaling
and de-interlacing. The result is studio-grade resolution, excellent
performance in contrast, black level, sharpness and colour to ensure a
riveting viewing experience.
Full 10-bit image processing
The use of full 10-bit image processing provides richer looking colours.
Images appear with finer detail and greater dynamic colour range.
STUNNING IMAGE QUALITY
Full HD 1080p technology delivers impeccable image quality
associated with the best digital cinema performance around the
world. Digital HDMI or DVI signal creates a true digital projection
system that produces a spectacular High Definition display. This
unprecedented combination ensures natural, life-like images with
crystal clarity.
CONTROL
The extensive RS232 command set makes it
simple and easy to control the EP1080 with any
control system.
AMX Compatibility – Dynamic Discovery Protocol is
incorporated into the EP1080. This feature allows for
easy installation with AMX control systems.
NETWORK CONTROL
Projectors can be controlled and monitored over a LAN network using
a web browser.
lManage up to 99 projectors at the same time (via master PC)
lControl and alter the projector settings using a simple web
browser page
lSet up email alerts for warning messages
lIdeal for large installations both in the educational and business
environments
8 BIT 10 BIT
Straight edges at low
angles emphasise
the pixel matrix and
produce “jaggies”
Low angle edges are inherent in all
pixelated displays.
Primitive algorithms simply” paint”
images by crudly placing pixels
DNX LAI technology
looks at multiple video
lines before applying
a mix of anti-aliasing
algorithms to optimise
angles
4:3 16:9
1 2 3
1 3
2 4

EP1080

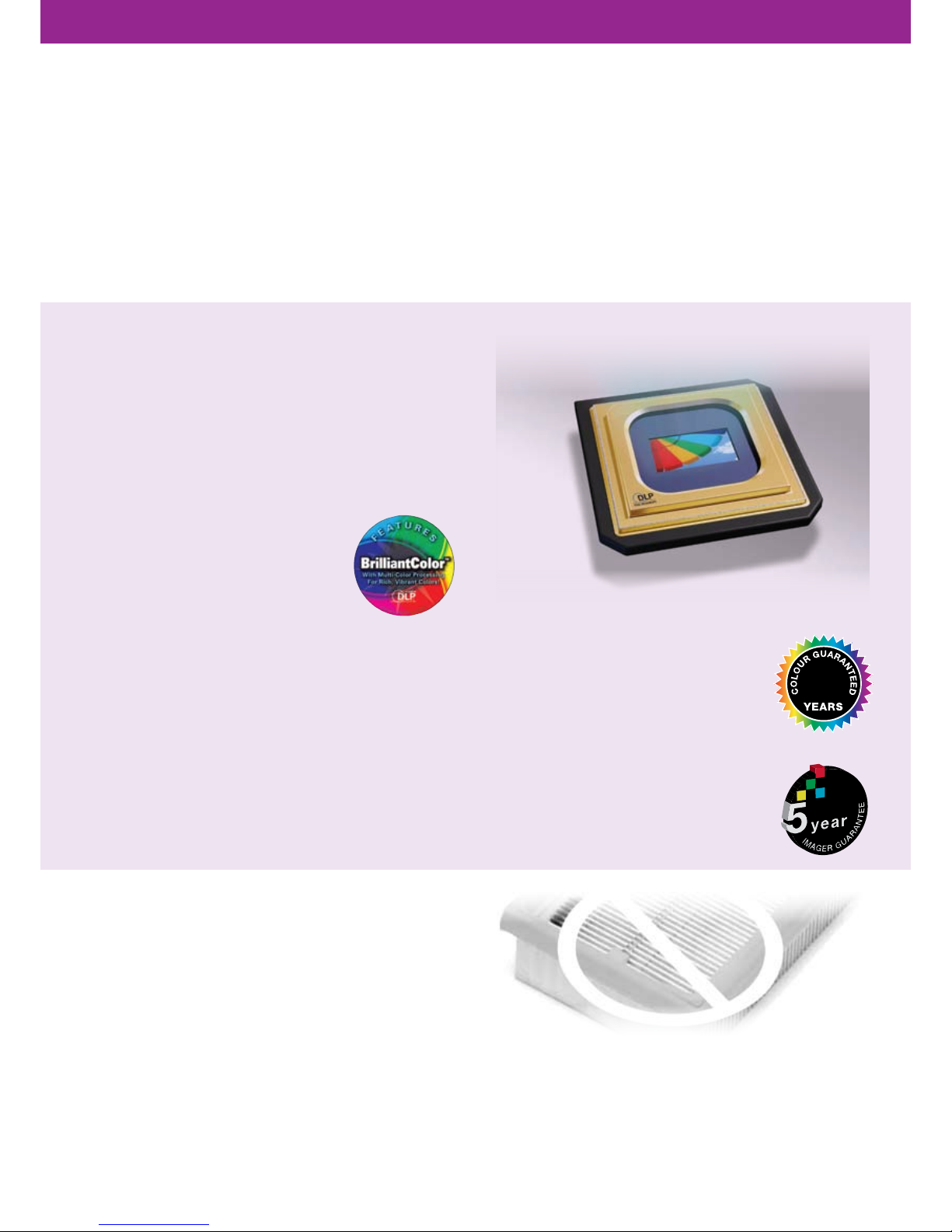

AMAZING COLOUR AND IMAGE PERFORMANCE
The EP1080 incorporates BrilliantColor™ Technology and Pixelworks’ 10-bit colour processing to ensure the images displayed are always smooth and natural.
Optoma is so confident of its colour and image performance that we guarantee our projector will retain its vibrancy and precise picture performance.
BRILLIANTCOLOR™
BrilliantColor™ is a Texas Instruments technology, which uses
innovations in image processing to improve the optical efficiency of
DLP® projection systems. BrilliantColor™ allows the usage of a more
advanced image processing algorithm and enables the use of more
colours on the colour wheel, than the standard Red, Green, Blue and
White segments.
BrilliantColor™ technology enables higher brightness levels by boosting
mid-tone colours, resulting in more vibrant, precisely accurate colours
projected on the screen.
Key Advantages
1. Brighter Images
2. Improved colour spectrum
3. Smoother images and more accurate colours
COLOUR PERFORMANCE
Optoma guarantees colour quality will remain as new for 5 years*
We are so confident that the EP1080 colours will not fade that we guarantee the colours will remain vibrant and vivid, even after
many years of use.
IMAGE PERFORMANCE
Optoma guarantees image quality will remain as new for 5 years***
The large screen experience demands sharp, flawless images with instant impact and lasting, crystal clear pictures. To retain
image clarity Optoma projectors are designed with DLP® technology, preventing degradation over time and consistent pixel
performance. The Imager Guarantee ensures a precise picture performance for a minimum of five years.
DLP® technology from Texas Instruments ensures image quality is delivered without compromises.
MAINTENANCE FREE - LOWER TOTAL COST OF
OWNERSHIP (TCO)
DLP® technology ensures lower cost of ownership, longer life and
improved reliability compared to other technologies such as LCD.
The filter free projector design means no more regular filter cleaning or
replacements, saving you time and money.
5
Optoma uses Texas Instruments DLP® chips

EP776/EP782EP1080

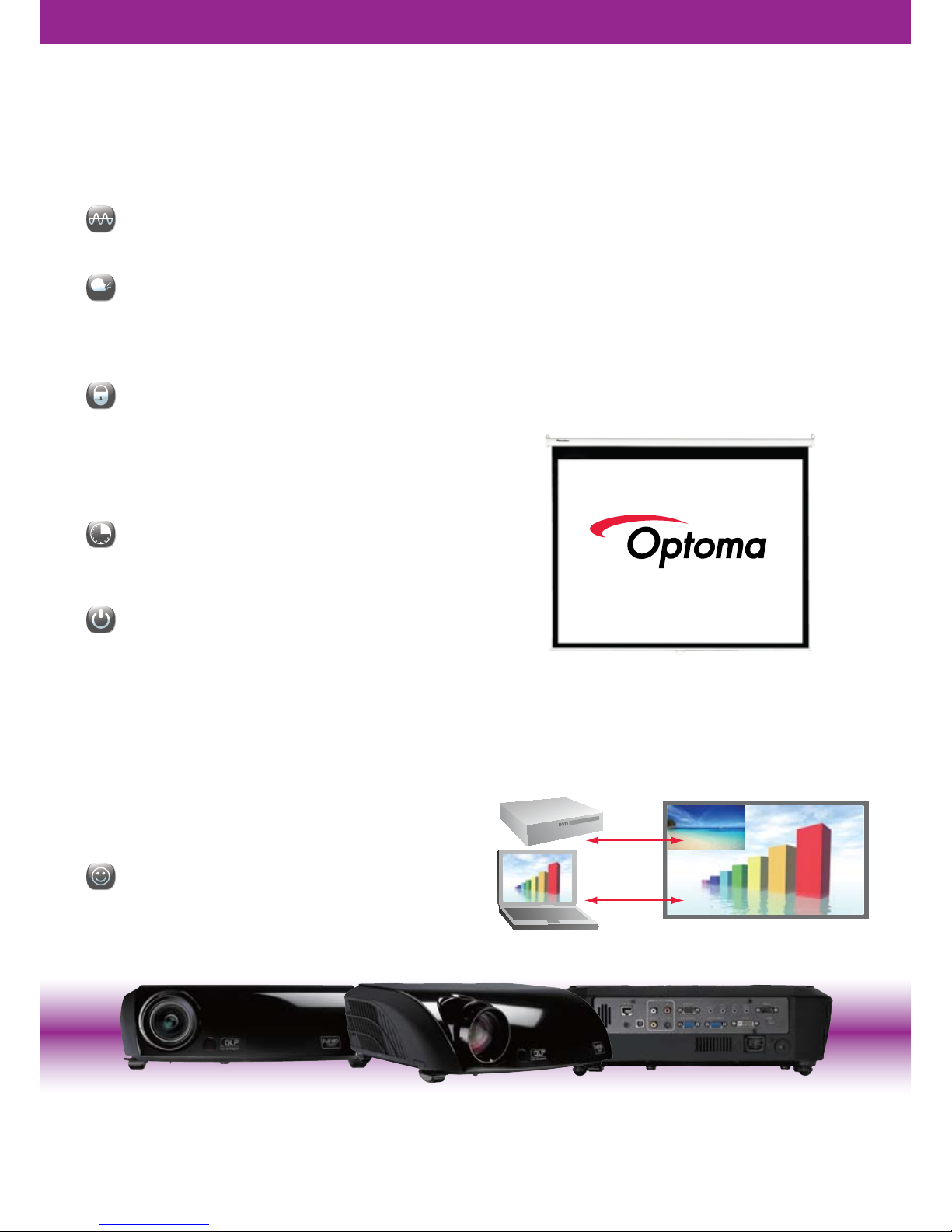

EASY TO USE
Quiet Operation
The EP1080 features Optoma’s whisper-quiet design, highly
effective in reducing audible noise levels to only 28dB.
�
Multi-Language Support
The on screen display (OSD) menu supports up to 17 European
languages including French, German, Polish, Dutch, Swedish
and Arabic.
SECURITY
Password Protected Operation
Acts as a theft deterrent and prevents unauthorised use.
Key Pad Lock
Enabled: unauthorised adjustments are prevented by ensuring
the projector can only be controlled via the remote control.
ENERGY SAVING
Auto Power Off
If after a pre-determined time the projector does not receive
a signal, it will turn itself off automatically, conserving
power and extending the life of the lamp.
Direct Power On
Start-up time is significantly reduced as standby mode is
passed over when the projector is turned on. The projector
will power on when the power cable is inserted into an active
power outlet. This eliminates the need to use the ‘Power’
button on the remote control or the projector keypad.
Signal Power On
The projector will power on when it receives a signal. This
eliminates the need to use the ‘Power’ button on the remote
control or the projector keypad.
Fast Switch On
Quickly displays an image after switching the projector on.
Low Power Standby Mode
Reduces energy consumption.
EXTENSIVE CONNECTIVITY
The EP1080 is designed for the HD world and accepts both HDMI and
DVI-D inputs in addition to a wide variety of standard computer and
video input signals.
Connectivity includes: HDMI, DVI-D, dual VGA–SCART and Component,
S-Video, Composite, RS232 and RJ45.
Optoma produce an extensive range of Panoview screens. Connect
easily to our electric screens using the +12v trigger providing smooth
release of the screen when the projector is turned on.
CUSTOMISED START UP SCREEN
First impressions are important, so set the company logo as the start up
screen to make that lasting impression.
PICTURE-IN-PICTURE
Project two different displays at the same time on one screen. The EP1080
creates innovative picture-in-picture on screen displays. Insert within a
presentation a live conferencing feed, static text or graphics, the possibilities
are endless. Present and interact with your audience with two different
sources of information (one must be digital and the other analogue).

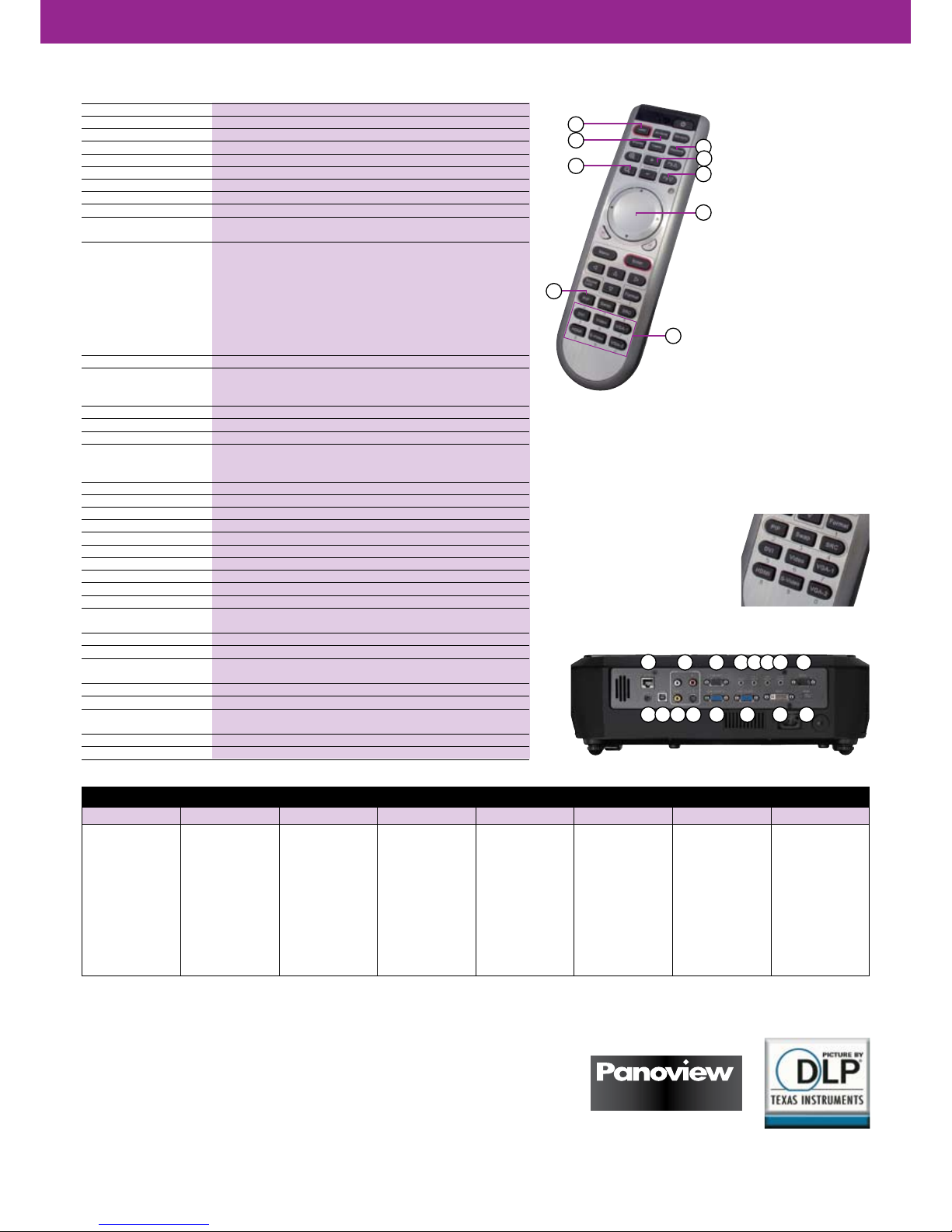

Specifications
EP1080
Native Resolution 1080p 1920 x 1080
Compatible Resolutions UXGA, SXGA+, SXGA, WXGA, XGA, SVGA
Brightness 3600 ANSI Lumens
Contrast 2200:1
Noise Level 28/30dB (STD/BRIGHT mode)
Display Technology 0.95” 1080p Double Data Rate (DDR) chip – DLP® Technology by Texas Instruments
Dimensions (W x D x H) 411 x 311 x 116mm
Weight 4.5 kg
Lamp Life** 3000/2000 (STD/BRIGHT mode)
Remote Control Full function remote with laser pointer, mouse control and direct source
selecting
INPUTS HDMI (HDCP) - audio supported
DVI-D (HDCP) HDMI via adaptor
2 x 15 Pin D-Sub VGA Component via adaptor
SCART via adaptor
S-Video 4 Pin Mini Din
Composite RCA Jack
3 x 3.5mm Audio Mini Jack - Audio computer inputs
2 x Stereo RCA - Audio video inputs
USB (for remote mouse)
CONTROL RS232 9 Pin D-Sub and RJ45 – Network
OUTPUTS PC 15 Pin D-Sub VGA (monitor loop-through)
3.5mm Audio Mini Jack
+12v Trigger
Audio 3W Speaker
Aspect Ratio 16:9 Native, 4:3 & 16:10 Compatible
Keystone Correction ± 10 Degrees Vertical
On Screen Display 17 Languages: English, German, French, Italian, Spanish, Portuguese, Polish,
Dutch, Russian, Finnish, Swedish, Greek, Norwegian, Danish, Hungarian, Czech
& Arabic
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
Uniformity 85%
Displayable Colours 134.2 Million
Projection Lens F/2.6 ~ 2.89; f=39.12 ~ 46.91mm, 1.2x Manual Zoom
Throw Ratio 1.85 – 2.22:11 (Projection Distance:Image Width)
Projection Distance 1.2 - 12m
Image Size 0.62 – 7.45m (24.44” – 293.31”) Diagonal 16:9
Horizontal Scan Rate 15 – 100kHz
Vertical Scan Rate 24 – 100Hz
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 400W BRIGHT mode < 14W Standby mode
340W STD mode < 14W Standby mode
Operating Conditions Operating: 5 - 35˚C, 85% Humidity (Max), 3000m Altitude (Max)
Security One Kensington Lock Port, Password Protection
Standard Accessories Lens Cover,AC Power Cord, VGA Cable, USB Cable, RS232 Cable, Full Function
Remote, Batteries x 2, Quick Start Guide, CD User Manual, Warranty Card,WEEE Card
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country. Please see www.optomaeurope.com or ask
your local supplier for details
Colour Guarantee* 5 Years
Imager Guarantee*** 5 Years
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.eu
* Optoma guarantees that in normal use, Optoma DLP® colour quality will be indistinguishable from when new. Please note that worn lamps will give slight variance. Exclusions: *(1) Guarantee is voided if the projector is subject to damage through
mis-use. (2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive (3) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due
to other fault. **Typical lamp life achieved through testing. Will vary according to operational use and environment conditions. Copyright © 2008, Optoma Europe Ltd. All other product names and company names used herein are for identifications
purposes only and may be trademarks or registered trademarks of their respective owners. *** Optoma guarantees that in normal use, the DLP® imager guarantee will retain quality for at least 5 years providing consistent pixel performance.
Exclusions: (1) Guarantee is voided if the projector is subject to damage through mis-use. (2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive.
Errors and omissions excepted, all specifications are subject to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.
Optoma recommended Screens
www.panoview.eu
EP1080 Projection Distance 1.2 - 12m (16:9 Aspect Ratio)
Projection Distance (m) Max. Horizontal Image Size (m) Min. Horizontal Image Size (m) Max. Vertical Image Size (m) Min. Vertical Image Size (m) Max Diagonal Image Size (m) Max Diagonal Image Size (inch) Max. Image Offset (m)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
0.65
1.08
1.35
1.62
2.16
2.70
3.24
3.78
4.32
4.86
5.41
5.95
6.49
0.54
0.90
1.13
1.35
1.80
2.25
2.70
3.15
3.60
4.05
4.50
4.95
5.41
0.37
0.61
0.76
0.92
1.22
1.53
1.83
2.14
2.44
2.75
3.05
3.36
3.6
0.31
0.51
0.64
0.76
1.02
1.27
1.53
1.78
2.04
2.29
2.54
2.80
3.05
0.75
1.24
1.55
1.86
2.48
3.10
3.73
4.35
4.97
5.59
6.21
6.83
7.45
29.33
48.89
61.11
73.33
97.77
122.21
146.66
171.10
195.54
219.98
244.43
268.87
293.31
0.13
0.22
0.27
0.33
0.44
0.55
0.66
0.77
0.88
0.99
1.10
1.21
1.32
For guide purposes only
EP1080 is capable of 4:3 and 16:10 aspect ratio projection. When projecting a 4:3/16:9 image the image sizes, screen height and offset information will differ from the above.
EP1080
Exceptional Connectivity/Multiple Terminals
10 11 12
18 19
EP1080 Remote Control
1Laser
2AV Mute
3Keystone
4Zoom Control
5Volume Control
6Page Up/Down
7Remote Mouse
8PIP
9Direct Input Source Selection
EP1080 Connections
10 RJ45
11 Audio In L&R
(S-Video & Composite)
12 VGA Loop-through
13 Audio Out
14 Audio In (VGA1)
15 Audio In (VGA2)
16 Audio In (DVI-D)
17 RS232 - 9 Pin
18 +12v Trigger
19 USB
20 Composite Video
21 S-Video
22 VGA 1 - SCART & Component
23 VGA 2 - SCART & Component
24 DVI-D
25 HDMI (audio supported)
Easy to use remote control
Easy to use remote
with buttons to change
the input sources
3
9
1
2
45
6
7
8
13 14 15 16 17
20 21 22 23 24 25
