Optoma TX765W User manual

Perfect for challenging installations, the Optoma
TX765W mixes performance and integration features
to create an outstanding choice for conference
rooms, auditoriums and classrooms. With 4000 ANSI
lumens and Optoma’s exclusive PureShift technology,
the TX765W provides bright, sharp images in any
installation. Cable-free projection with standard
wireless connectivity saves time and greatly simplies
usage and setup.
TX765W | Multimedia Projector
Unparalleled Combination
of Flexibility and Power
www.optoma.com
TX765W FEATURES
Easy-to-view images even from the back of the
room – high brightness at 4000 ANSIlumens
and contrast at 2500:1
Flexible projector placement–PureShift allows
for vertical and horizontal lens shift and a1.6x
zoom provides for a wide range of installations
Internal wireless connectivity provides a link for
both data and video from up to fourcomputers
simultaneously
Remote monitoring and control capabilities over
aLAN network viaintegratedRJ45 connection
Complete security features protectprojector
Power Consumption
350 Watts (Nornal), 285 Watts (ECO) and <1 Watt Standby
settings and lock out unauthorized users
through both wired and wireless network
connections
DVI-D
Menu
Volume
Right Mouse Button
Mouse Controller/
Multi-Directional
Selector
Wireless
Keystone Correction
Re-Sync
Power/Standby
Laser Pointer
S-Video
HDMI
Source
Page Up/Down
Left Mouse Button
VGA-1
Enter
Video
AV Mute
VGA-2
Select
Audio-In
USB DVI-D S-Video
VGA-In 1
RS-232
VGA-Out
AC Power
Kensington
Lock
VGA-In 2
Video RJ-45
Audio-Out
Audio-In
HDMI
+12V
Trigger
Wireless
Antenna
Jack

TX765W | Multimedia Projector
All Specifications are subject to change without notice. ©2010 Optoma Technology, Inc. DLP®and the DLP logo are
registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
Data-TX765W-002-0510
Optional Accessories
Lamp:
Remote:
VGA Cable (1.8m):
Power Cord (1.8m):
Power Cord (11m):
S-Video Cable (1.8m):
Composite Cable (1.8m):
VGA to Component Cable (1.8m):
Minijack to RCA Audio Adapter:
HDMI Cable (5m):
DVI Cable (2M):
Ceiling Mount:
100" Matte White 4:3 Manual Pull-Down Screen:
BL-FU280B
BR-5026L
BC-VGVGXX02
BC-PUPIXY01
BC-PUPIXY11
BC-SVSVXX02
BC-COCOXX02
BC-VGCRXX02
BC-MJADXY00
BC-HMHMXX05
BC-DIDIXX02
BM-5001U
DS-3100PM

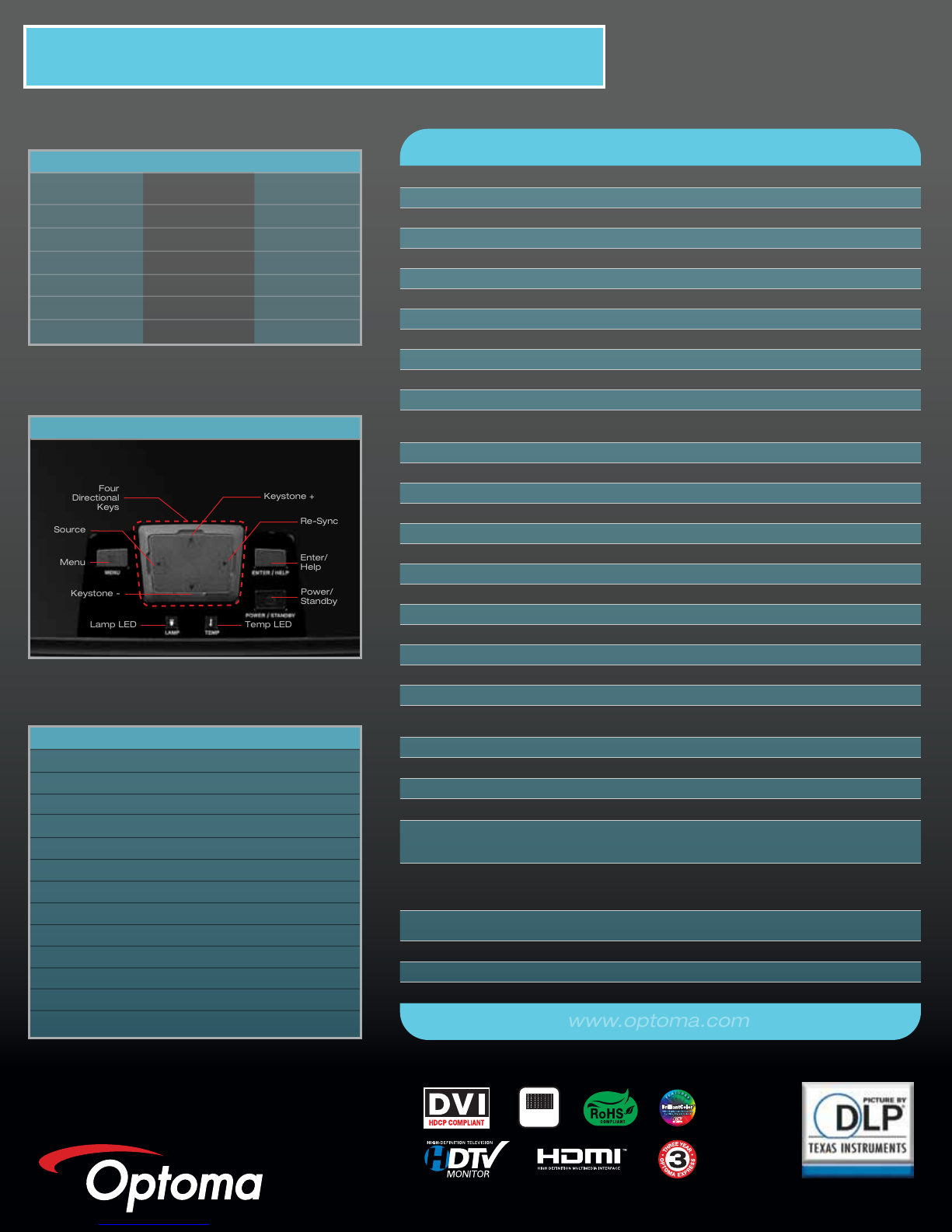

Control Panel
Menu
Lamp LED
Enter/
Help
Keystone +
Re-Sync
Temp LED
Source
Four
Directional
Keys
Power/
Standby
Keystone -
Projection Distance
(Feet)
3.9
11.2
18
25.3
30
32.8
Maximum Diagonal
(Inches)
36.1
103.7
166.7
234.3
277.8
303.9
Minimum Diagonal
(Inches)
22.4
63.6
102.3
143.7
170.5
186.4
Projection Distance/Image Size
www.optoma.com
Specifications
Display Technology:
Resolution:
Maximum Resolution:
Brightness (Typical):
Contrast Ratio:
Lamp Type:
Lamp Life (STD/Bright)*:
Throw Ratio:
Image Size (Diagonal):
Projection Distance:
Noise Level (STD/Bright):
Remote Control:
Computer Compatibility:
Video Compatibility:
Aspect Ratio:
Projection Lens:
Lens Shift:
Monitor Loop Through:
User Controls:
Audio:
Keystone Correction:
Vertical Refresh Rate:
Horizontal Scan Rate:
Power Supply:
Weight:
Dimensions (W x H x D):
Operating Temperature:
Displayable Colors:
Projection Method:
Uniformity:
Security:
I/O Connectors:
Standard Accessories:
Optional Accessories:
Warranty:
UPC:
Single 0.55” DarkChip2™ DMD DLP®Technology by Texas Instruments
Native XGA (1024 x 768)
WUXGA (1920 x 1200)
4000 ANSI Lumens
2500:1 (Full On/Full Off)
280W UHP
Estimated at 3000/2000 Hours
1.62 to 2.64:1 (Distance/Width)
22.4” to 303.9” (0.57 to 7.72 m)
3.9’ to 32.8’ (1.2 to 10 m)
30dB/32dB
Fully Featured Remote with Mouse and Laser Pointer
WUXGA, UXGA, SXGA+, XGA, SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
16:10 Native, 16:9 & 4:3 Compatible
F=2.41~3.2, f=18.39~29.42 mm, 1.6x Manual Zoom & Focus
Vertical 105-130% Offset, Horizontal ±30% Image Width at V=105%
D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)
Complete On-Screen Menu in 23 Languages
Two 2-Watt Speakers
± 30° Vertical
50 to 85 Hz
15 to 91 KHz
AC Input 100-240V, Auto-Switching
12 lbs (5.4 kg)
14.3” x 5” x 11.1” (364 x 127 x 283 mm)
41° to 95°F (5° to 35°C), 80% Max Humidity, Adjustable Fan Speed for High
Altitude Application
134.2 Million
Front, Rear, Ceiling Mount, Table Top
85%
One Kensington® Lock Port
HDMI (Audio Supported), DVI-D w/HDCP, Two VGA-In, VGA-Out, S-Video,
Composite Video, Two Mini-Jack Audio-In, RCA Audio-In, Mini-Jack
Audio-Out, USB, RS-232, RJ-45, +12V Trigger
AC Power Cord, VGA to VGA Cable, USB Cable, RS-232 Cable, Remote
Control, Batteries for Remote, Lens Cap, Quick Start Card, CD-ROM User’s
Manual and Warranty Card
Ceiling Mount, S-Video Cable, Audio-Out Adapter, HDMI Cable, Composite
Video Cable, DVI Cable, Panoview™ Series Screens
Up to 3 Years Optoma Express Replacement Service, Up to 1 Year on Lamp
796435 41 121 3
NO FILTER
REQUIRED
*Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
