Optoma Ep732 User manual

1... English

12345678901234567890123456789012123456789012345678901

Table of Contents

Table of Contents.......................................................................................1

Usage Notice.............................................................................................. 2

Precautions......................................................................................................... 2

Introduction................................................................................................4

Product Features ................................................................................................ 4

Package Overview ............................................................................................. 5

Product Overview................................................................................................ 6

Main Unit........................................................................................................................ 6

Control Panel ................................................................................................................ 7

Connection Ports .......................................................................................................... 7

Remote Control ............................................................................................................. 8

Installation ................................................................................................. 9

Connecting the Projector.................................................................................... 9

Powering On/Off the Projector .......................................................................... 10

Powering On the Projector ......................................................................................... 10

Powering Off the projector.......................................................................................... 11

Warning Indicator ....................................................................................................... 11

Adjusting the Projected Image......................................................................... 12

Adjusting the Projector Image Height ........................................................................ 12

Adjusting the Projector Zoom / Focus ....................................................................... 13

Adjusting Projected Image Size................................................................................. 13

UserControls............................................................................................ 14

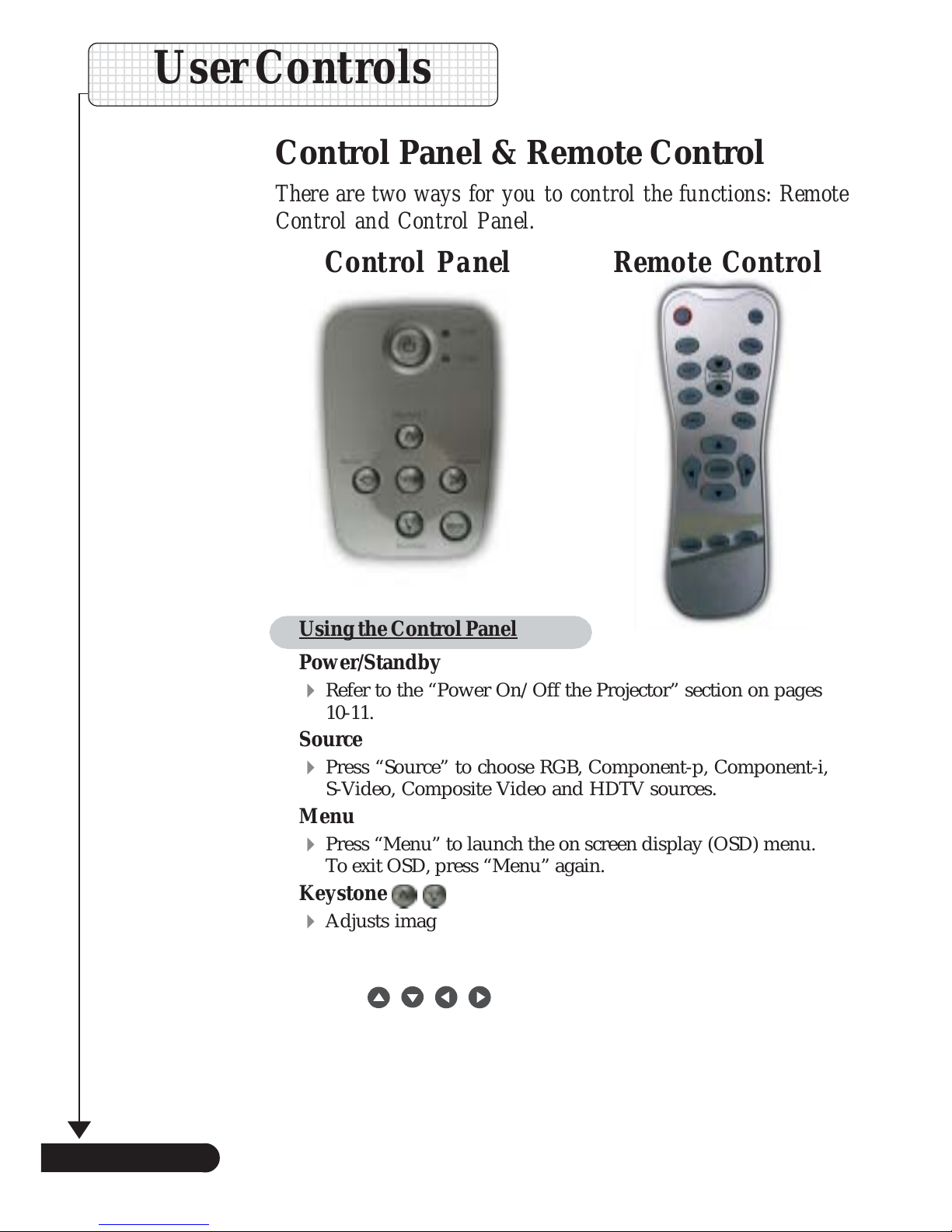

Control Panel & Remote Control ..................................................................... 14

On-Screen Display Menus ............................................................................... 16

How to operate ............................................................................................................ 16

Language ..................................................................................................................... 17

Image-I......................................................................................................................... 18

Image-II (Computer Mode) ......................................................................................... 19

Image-II (Video Mode) ................................................................................................ 21

Audio............................................................................................................................ 23

Management................................................................................................................ 24

Appendices .............................................................................................. 26

Troubleshooting ............................................................................................... 26

Replacing the lamp .......................................................................................... 29

Specifications ................................................................................................... 30

Compatibility Modes ........................................................................................ 31

Ceiling Mount Installation................................................................................. 32

Throw Angle...................................................................................................... 33

2

English ...

12345678901234567890123456789012123456789012345678901

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recom-

mended in this user’s guide to maximize the life of your unit.

Warning- Do not look into the projector’s lens when the lamp is

on. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Warning- When changing the lamp, please allow unit to cool

down, and follow all changing instructions.

Warning- This product will detect the life of the lamp itself.

Please be sure to change the lamp when it shows

warning messages.

Warning- Reset the “Lamp Reset” function from the On Screen

Display “Management” menu after replacing the lamp

module (refer to page 24).

Warning- When switching the projector off, please ensure the

projector completes its cooling cycle before

disconnecting power.

Warning- Turn on the projector first and then the signal sources.

Warning- Do not use lens cap when projector is in operation.

Warning- When the lamp reaches the end of its life, it will burn

out and may make a loud popping sound. If this

happens, the projector will not turn back on

until the lamp module has been replaced. To replace the

lamp, follow the procedures listed under “Replacing

the Lamp”.

3... English

12345678901234567890123456789012123456789012345678901

Do:

!Turn off the product before cleaning.

!Use a soft cloth moistened with mild detergent to clean the

display housing.

!Disconnect the power plug from AC outlet if the product is not

being used for a long period of time.

Don’t:

!Block the slots and openings on the unit provided for

ventilation.

!Use abrasive cleaners, waxes or solvents to clean the unit.

!Use under the following conditions:

- In extremely hot, cold or humid environments.

- In areas susceptible to excessive dust and dirt.

- Near any appliance that generates a strong magnetic field.

- Place in direct sunlight.

Usage Notice

4

English ...

12345678901234567890123456789012123456789012345678901

Product Features

This product is an SVGA single chip 0.55” DLPTM

projector. Outstanding features include:

"True SVGA, 800 x 600 addressable pixels

"Single chip DLPTM technology

"NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAMand

HDTVcompatible

"Fullfunction remote control

"User friendly multilingual on screen display menu

"Advanced electronic keystone correction and high

quality full screen image re-scaling

"User friendly control panel

"SXGA, XGA compression and VGA, SVGA re-sizing

"200 watt user replaceable lamp

"Mac compatible

Introduction

5... English

12345678901234567890123456789012123456789012345678901

Power Cord 1.8m VGA Cable 1.8m

Remote Control

2 x Battery

Introduction

Composite Video Cable

1.8m

Projector with lens cap

Package Overview

This projector comes with all the items shown below. Check

to make sure your unit is complete. Contact your dealer

immediately if anything is missing.

Carrying Case

Documents:

#User’s Guide

#Quick Start Card

#Warranty Card

6

English ...

12345678901234567890123456789012123456789012345678901

Main Unit

Product Overview

1. Focus Ring

2. Zoom Ring

3. Elevator Button

4. Zoom Lens

5. Remote Control Receiver

6. Connection Ports

7. Power Connector

8. Control Panel

2

51

3

8

6

7

4

Introduction

7... English

12345678901234567890123456789012123456789012345678901

ControlPanel

1. Temp Indicator LED

2. Lamp Indicator LED

3. Power/Standby

4. Source

5. Four Directional Select Keys

6. Enter

7

4

8

5

ConnectionPorts

1. Remote Control Receiver

2. PC Analog Signal/HDTV/

Component Video Input

Connector

3. Monitor Loop-through Output

Connector

4. Audio Input Connector

5. KensingtonTM Lock Port

6. Composite Video Input

Connector

7. S-Video Input Connector

8. USB Input Connector

2

1

45

6

1

32

9

7

3

78

Introduction

6

7. Keystone Correction

8. Menu (On/Off)

9. Re-sync

8

English ...

12345678901234567890123456789012123456789012345678901

RemoteControl

Introduction

1

6

9

11

2

3

1. Transmit Indicator Light

2. Power

3. Re-Sync

4. Volume ( + / - )

5. Reset

6. Mute

7. Freeze

8. Page Up / Page Down

9. Keystone Correction

10. Menu

11. Four Directional Select Keys

7

8

105

12

14

13

15

12. Enter

13. VGA Source

14. S-Video Source

15. Composite Video Source

4

9... English

12345678901234567890123456789012123456789012345678901

1. Power Cord

2. VGA Cable

3. Composite Video Cable

4. Audio Cable Jack/RCA

(Optional Accessory)

5. S-Video Cable (Optional

Accessory)

6. D-15 to RCA Adapter for

YPbPr (Optional Accessory)

Connecting the Projector

!To ensure the projector works well with your computer, please

set the display mode of your graphic card less than or equal to

800 X 600 resolution. Make sure the timing of the display mode is

compatible with the projector. Refer to the “Compatibility Modes”

section on page 31.

S-VideoOutput

VideoOutput

1

2

4

3

Installation

DigitalTuner Output

5

6

10

English ...

12345678901234567890123456789012123456789012345678901

Installation

Power/

Standby

1

2

PoweringOntheProjector

1. Remove the lens cap.$

2. Ensure that the power cord and signal cable are securely

connected. The “Power/Standby” button will flash green.

3. Turn on the lamp by pressing “Power/Standby” button on

the control panel. And the “Power/Standby” button will turn

green.%

The startup screen will display for 30 seconds.

4. Turnon yoursource (computer,notebook, videoplayer ,etc.).

The projector will detect your source automatically.

!If the screen displays “No Signal”, please make sure the signal

cablesare securely connected.

!If you connect multiple sources at the same time, use the “Source”

button on the remote control or control panel to switch.

Powering On/Off the Projector

!Turn on the

projector first and then

the signal sources.

Lens cap

11 ... English

12345678901234567890123456789012123456789012345678901

Powering Off the Projector

1. Press the “Power/Standby” button to turn off the projector

lamp, you will see a message “Power off the lamp?” on the

on-screen display.

2. Press the “Power/Standby” button again to confirm.

Otherwise the message will disappear after 5 seconds.

3. The cooling fans continue to operate for about 60 seconds for

cooling cycle and the “Power/standby” button will turn

orange. When the light begins flashing, the projector has

enteredstandby mode.

If you wish to turn the projector back on, you must wait until

the projector has completed the cooling cycle and has entered

standby mode. Once in standby mode, simply press “Power/

Standby”button to restartthe projector.

4. Disconnect the power cord from the electrical outlet and the

projector.

5. Do not turn on the projector immediately following a power

offprocedure.

WarningIndicator

!When the “LAMP” indicator lights solid orange for about 2

minutes, the projector will automatically shut itself down. Please

contact your local reseller or service center.

!When the “TEMP” indicator lights solid orange, it indicates the

projector has been overheated. You will see a message “Projector

Overheated.” on the on-screen display. The projector will automati-

cally shut itself down.

Under normal conditions, the projector can be switched on again

after it has cooled down. If the problem persists, you should contact

your local dealer or our service center.

!When the “TEMP” indicator flashs orange for about 10 seconds,

you will see a message “Fan fail. Lamp will automatically turn off

soon.” on the on-screen display. Please contact your local dealer or

ourservice center.

Installation

12

English ...

12345678901234567890123456789012123456789012345678901

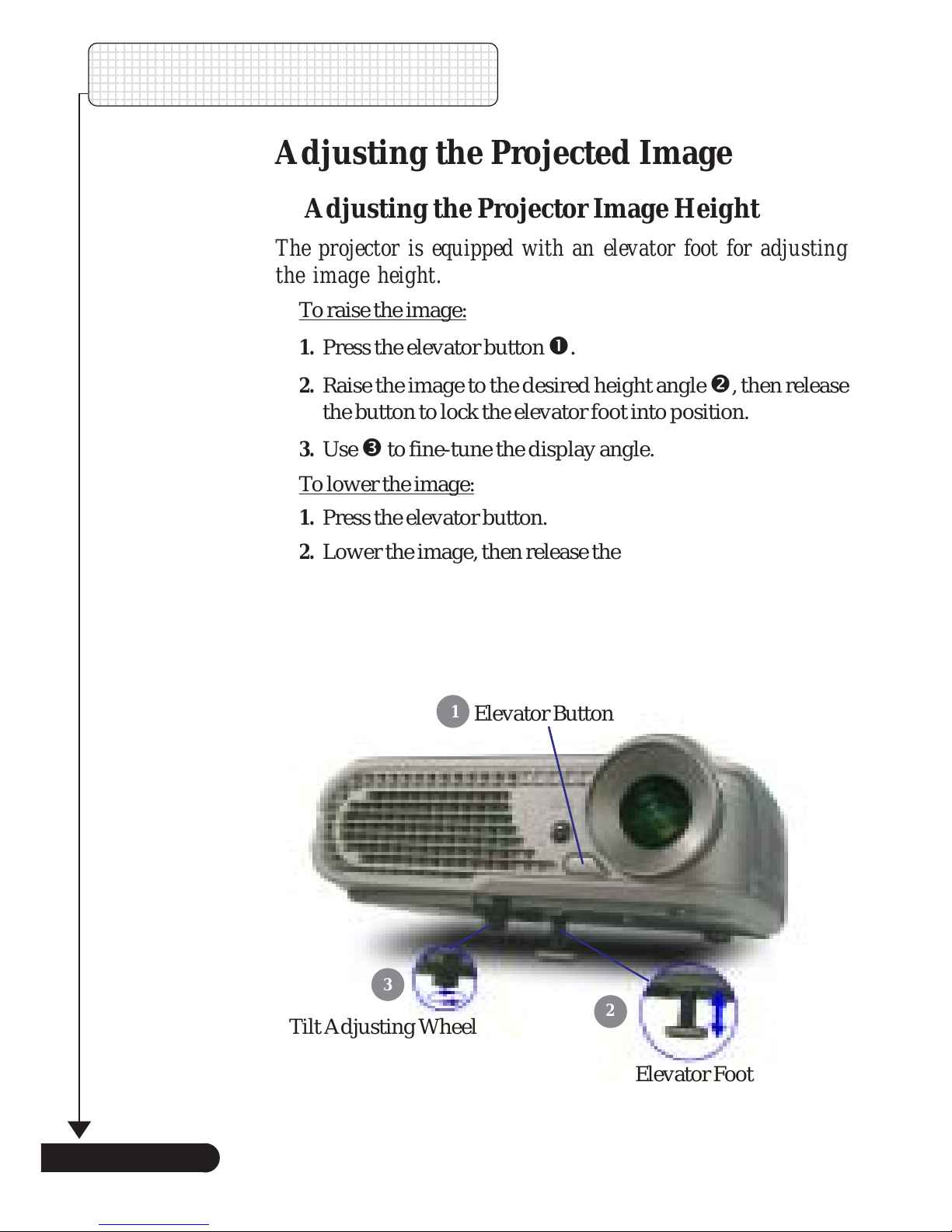

Adjusting the Projected Image

Adjusting the Projector Image Height

Tilt Adjusting Wheel

ElevatorFoot

1

2

3

ElevatorButton

The projector is equipped with an elevator foot for adjusting

the image height.

To raise the image:

1. Press the elevator button $.

2. Raise the image to the desired height angle %, then release

the button to lock the elevator foot into position.

3. Use &to fine-tune the display angle.

Tolower the image:

1. Pressthe elevator button.

2. Lower the image, then release the button to lock the elevator

foot into position.

3. Use &to fine-tune the display angle.

Installation

13 ... English

12345678901234567890123456789012123456789012345678901

Max. 39.4"(100.0cm) 84.4"(214.3cm) 140.6"(357.1cm) 225.0"(571.4cm) 281.2"(714.3cm) 337.5"(857.1cm)

Min. 32.5"(82.5cm) 69.6"(176.9cm) 116.1"(294.8cm) 185.7"(471.7cm) 232.1"(589.6cm) 278.6"(707.5cm)

Max.(WxH) 31.52" x 23.64"

(80.0 x 60.0cm) 67.52" x 50.64"

(171.4 x 128.6cm) 112.48" x 84.36"

(285.7 x 214.3cm) 180.00" x 135.00"

(457.1 x 342.8cm) 224.96" x 168.72"

(571.4 x 428.6cm) 270.00" x 202.50"

(685.7 x 514.3cm)

Min.(WxH) 26.00" x 19.50"

(66.0 x 49.5cm) 55.68" x 41.76"

(141.5 x 106.1cm) 92.88" x 69.66"

(235.8 x 176.9cm) 148.56" x 111.42"

(377.4 x 283.0cm) 185.68" x 139.26"

(471.7 x 353.8cm) 222.88" x 167.16"

(566.0 x 424.5cm)

4.59'(1.4m) 9.84'(3.0m) 16.4'(5.0m) 26.25'(8.0m) 32.81'(10.m) 39.37'(12.0m)

Focus Ring

Zoom Ring

AdjustingtheProjectorZoom/ Focus

Youmay turnthe zoomring to zoom in or out. To focusthe image,

rotate the focus ring until the image is clear. The projector will

focus at distances from 4.6 to 39.4 feet (1.4 to 12.0 meters).

Adjusting Projection Image Size

Screen

(Diagonal)

Screen

Size

Distance

!This graph is for user’s reference only.

Installation

14

English ...

12345678901234567890123456789012123456789012345678901

UserControls

Remote ControlControl Panel

Control Panel & Remote Control

There are two ways for you to control the functions: Remote

Control and Control Panel.

UsingtheControlPanel

Power/Standby

4Refer to the “Power On/Off the Projector” section on pages

10-11.

Source

4Press “Source” to choose RGB, Component-p, Component-i,

S-Video, Composite Video and HDTV sources.

Menu

4Press “Menu” to launch the on screen display (OSD) menu.

To exit OSD, press “Menu” again.

Keystone

4Adjusts image distortion caused by tilting the projector (±16

degrees).

FourDirectional SelectKeys

4Use to select items or make adjustments to

your selection.

Enter

4Confirm your selection of items.

Re-Sync

4Automatically synchronizes the projector to the input source.

15 ... English

12345678901234567890123456789012123456789012345678901

UsingtheRemoteControl

Power/Standby

4Refer to the “Power On/Off the Projector” section on pages

10-11.

Re-Sync

4Automatically synchronizes the projector to the input source.

Volume+/-

4Increases/decreases speaker volume.

Reset

4Changes the adjustments and settings to the factory default

value.

Mute

4Momentarily turns off the audio and video.

Keystone /

4Adjusts image distortion caused by tilting the projector (±16

degrees).

PageUp (Computermodeonly)

4Use this button to page up. This function is only available

when the projector is connected to a

computer via an USB cable.

PageDown (Computermode only)

4Use this button to page down. This function is only available

when the projector is connected to a computer via an USB cable.

Freeze

4Press “Freeze” to pause the screen image.

FourDirectional SelectKeys

4Use to select items or make adjustments to

your selection.

Menu

4Press “Menu” to launch the on screen display menu. To exit

OSD, press “Menu” again.

Enter

4Confirm your selection of items.

VGA

4Press “VGA” to choose Analog RGB, component and HDTV

source.

S-Video

4Press “S-Video” to choose S-Video source.

Composite

4Press “composite” to choose Composite video source.

UserControls

16

English ...

12345678901234567890123456789012123456789012345678901

The Projector has multilingual On Screen Display menus

that allow you to make image adjustments and change a

variety of settings. The projector will automatically detect

the source.

Howto operate

1. To open the OSD menu, press “Menu” on the Remote Control or

Control Panel.

2. When OSD is displayed, use keys to select any item in the

main menu. While making a selection on a particular page, press

“Enter ” key to enter sub menu.

3. Use keys to select the desired item and adjust the

settings by key.

4. Select the next item to be adjusted in the sub menu and adjust as

described above.

5. Press “Menu” to confirm, and the screen will return to the main

menu.

6. To exit, press “Menu”again. The OSD menu will close and the

projector will automatically save the new settings.

On Screen Display Menus

MainMenu

SubMenu Setting

UserControls

17 ... English

12345678901234567890123456789012123456789012345678901

Language

Choose the multilingual OSD menu . Use the or key to

select your prefered language.

Press “Enter” to finalize the selection.

Computer / Video Mode

UserControls

18

English ...

12345678901234567890123456789012123456789012345678901

Image-I

Brightness

Adjust the brightness of the image.

4Press the to darken image.

4Press the to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest

and darkest parts of the picture. Adjusting the contrast changes

the amount of black and white in the image.

4Press the to decrease the contrast.

4Press the to increase the contrast.

Color Temp.

Adjust the color temperature. At higher temperature, the screen

looks colder; at lower temperature, the screen looks warmer.

Color

Adjust the red, green and blue colors.

Keystone (Keystone Correction)

Adjust image distortion caused by tilting projection. (±16 degrees)

White Segment

Use the white segment control to set the white peaking level of

DMD chip. 0 stands for minimal peaking, and 10 stands for

maximum peaking. If you prefer a stronger image, adjust towards

the maximum setting. For a smooth and more natural image,

adjust towards the minimum setting.

Computer / Video Mode

UserControls

19 ... English

12345678901234567890123456789012123456789012345678901

Image-II

(ComputerMode)

Frequency

“Frequency”changes the display data frequency to match the

frequency of your computer’s graphic card. If you experience a

vertical flickering bar, use this function to make an adjustment.

Tracking

“Tracking” synchronizes the signal timing of the display with the

graphic card. If you experience an unstable or flickering image,

use this function to correct it.

Horizontal Position

4Press the to move the image left.

4Press the to move the image right.

Vertical Position

4Press the to move the image down.

4Press the to move the image up.

Degamma

This allows to you to choose a degamma table that has been fine-

tuned to bring out the best image quality for the input.

16 : 9 / 4 : 3

Use this function to choose your desired aspect ratio.

41:1 : Original image pixel.

44:3 : The input source will be scaled to fit the projection screen.

416:9 : The input source will be scaled to fit the width of the

screen.

Computer Mode

UserControls

20

English ...

12345678901234567890123456789012123456789012345678901

Reset

Choose “Yes” to return the display parameters (except for Lamp

Hour) on all menus to their factory default settings.

Image-II

(ComputerMode)

Computer Mode

UserControls

Optoma EP732 User manual

Popular Projector manuals by other brands
