Display  EzPro 757-Double Data RateDLP™ Technology by TexasInstruments

  EzPro 755/753/750 - DLP™ Technology by Texas Instruments

Resolution  EzPro 757/755/753- Native XGA(1,024 x 768),SXGA (1,280 x 1,024)

compressed

  EzPro 750 - Native SVGA (800 x 600), XGA (1,024 x 768) compressed

Computer   IBM PC and Compatibles, Apple Macintosh, iMac, NEC PC98 Series,

Compatibility  Fujitsu FM Towns, and VESA Standards

  EzPro 757/755/753 - SXGA, XGA, SVGA, VGA (resizing)

  EzPro 750 - XGA, SVGA, VGA (resizing)

Video   HDTV (480i/p, 576i/p, 720p, 1080i)

Compatibility  Full NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM

Aspect Ratio  4:3 Native, 5:4/16:9 Compatible

Contrast Ratio (Typical) EzPro 757- 2000:1, EzPro 755/753/750 - 600:1

Displayable Colors 16.7 Million Colors

Brightness (Typical) EzPro 757 - 2,300 ANSI Lumens

  EzPro 755 - 2,000 ANSI Lumens

  EzPro 753 - 1,600 ANSI Lumens

  EzPro 750 - 1,600 ANSI Lumens

Projection Lens  F/2.44 ~ 2.69, f = 28.8 ~ 34.5 mm, 1:1.2 Manual Zoom and Manual Focus

Projection Screen Size EzPro 757 - 23.4” (0.59m) ~ 246” (6.25m)

(Diagonal)  EzPro 755/753 - 23.4” (0.59m) ~ 295” (7.50m)

  EzPro 750 - 22.4” (0.57m) ~ 281.1” (7.14m)

Projection Distance EzPro 757 - 3.7’ (1.14m) ~ 32.8’ (10 m)

  EzPro 755/753/750 - 3.7’ (1.14m) ~ 39.4’ (12 m)

Horizontal Scan  15 ~ 100 kHz

Vertical Refresh Scan 43 ~ 120 Hz

Lamp Type  EzPro 757- 250 W, EzPro 755/753/750 - 200 W User Replaceable UHP Lamp

Lamp Life (Typical) 2,000 Hours

Keystone Correction + / - 16 Degrees

Audio  Two Internal Speakers, Each with 3 Watts Output

Weight  EzPro 755/753/750 - 6.4 lbs (2.9 kg)

  EzPro 757 - 6.6 lbs (3.0 kg)

Dimension (WxDxH) 10.9 x 8.9 x 3.3 inches (277 x 225 x 85 mm)

Remote Mouse Control Remote Control with Mouse Function and Laser Pointer

Power Supply  AC Input 100-240V, 50 - 60 Hz

Power Consumption EzPro 755/753/750 - 320 Watts

  EzPro 757 - 360 Watts

Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F

Noise Level (Typical) 32 dB in Normal Operation

Uniformity  90%

PC I/O Input: 1 15-Pin VGA (Component Video/HDTV input port)

  1 DVI Connector

  1 Audio Minijack (15-Pin VGA)

  1 Audio Minijack (DVI)

Output: 1 VGA 15-Pin (Monitor Loop Through)

  1 Audio Minijack (Audio Loop Through)

VIDEO I/O  1 Mini DIN (S-Video Input Connector)

  1 RCA Jack (Composite Video Input Connector)

  1 Audio "Minijack" (S-Video/Composite Video)

Remote Mouse I/O 1 Remote Mouse Port

Communication I/O 1 RS-232

Warranty  Three (3) years Limited Warranty, Parts and Labor; 90 Days on Lamps

Standard   Lens Cover, AC Power Cord, 15-Pin VGA Signal Cable (1.8M), S-Video Signal  

Accessories  Cable, Composite Video Cable (RCA to RCA), Mini Phone Jack to Stereo RCA 

  Audio Cable, Mini Phone Jack to Mini Phone Jack Audio, Y Cable for Remote 

  Mouse Cable (Suppor t USB/Com Port), RS-232 Cable, Wireless Remote  

  Control with Mouse Function and Laser Pointer, AA Type Batteries x 2, Soft  

  Handle Carry Bag, CD + Quick Start Card for User Manual, Warranty Card

Optional AccessoriesCeiling Mount Kit w/5M Cable, 15-Pin VGA to HDTV/Component Cable (1.8M),  

  30-pinDVI Signal DVI to DVI Cable (1.8M) Extended Warranty and Gold Ser vice

Specifications

DLP™ and the DLP™ medallion are trademarks of Texas Instruments. All other names

mentioned herein are property of their respective owners.

EzPro

757/755/753/750

EzPro

757/755/753/750 Digital Projectors

On-Screen Display

nDual Minijack Audio Inputs

nRS-232 for ext. control device

nAudio Input from TV/VCR/DVD

nComposite Video Input

nComputer DVI Input

nVGA 15-Pin Input for Analog  

Computer & Component Video Input

nMinijack Audio output

nMonitor Loop Through

nMouse Port (USB adaptor)

nMulti-language Operation Manual

nProjector Management

nProjection Image Control

nAudio Control

Remote Mouse

Onboard I/O Ports

Available From:

www.optomausa.com

Multi-directional Selector

Re-sync

Source

Page Up

Keystome Correction

Zoom In/Zoom Out

Laser Pointer

LED

Power/Standby

Page Down

Laser Pointer

Volume (+ / -)

Mute

Freeze

Four

Directional

Key Set

Digital

Zoom

Temperature

Warning

LED

Re-sync

Source

Lamp

Warning

LED

Volume

Control

Mute

Control Panel

Superior. Stylish. Silent. EzPro

757/755/753/750

EzPro 757

755

753

750 projectors

perform like much larger projectors, yet their small size and

light weight mean you can take them anywhere. The Optoma

EzPro750 Series projectors are the first portables to achieve

a combination of high brightness, high contrast ratio, and full

HDTV video display capabilities (480p, 480i, 720p, 1080i)

while weighing less than 6.7 pounds. DLP™technology by

Texas Instruments offers crystal clear images with superior

quality. The brightest projector in the series is the EzPro

757 with a full 2300 lumens, followed by the EzPro 755 with

2000 lumens, while the EzPro 753 and EzPro 750 both deliver

1600 lumens. The Optoma EzPro 757, 755 and Ez Pro 753

feature a native XGA (1024 x 768) resolution compressible to

SXGA (1280 x 1024). The EzPro 750 features a native SVGA

(800x600) resolution compressible to XGA (1024 x 768). All

display 16.7 million colors in either 4:3 (native) or 16:9

(compatible) aspect ratio and support HDTV function, more proof

of their versatility.

EzPro 757

Ultimate Fully Loaded Projector

© 2,300 ANSI lumens

© Native 1,024 x 768 XGA resolution

©Outstanding Contrast Ratio at 2000:1

© 6.6 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 753

Multitask High Performance Projector

© 1,600 ANSI lumens

© Native 1,024 x 768 XGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 750

Most Economical Power House

© 1,600 ANSI lumens

© Native 800 x 600 SVGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 755

Full Featured Projector

© 2,000 ANSI lumens

© Native 1,024 x 768 XGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

shown actual size

mSuperior Engineering

n Extremely High Contrast Ratio up to 2000:1

n Brightness up to 2300 ANSI Lumens

n Advanced Anti-reflective Lens Coating

n Full HDTV Compatibility

mNear Silent (32dB) Operation

n Aero-dynamic Design (Low Resistance/Extremely Efficient Air Flow Duct System)

n Anti-vibration Technology (Reduces Noise from Fans and Color Wheel)

n Advanced Fan Speed Control System (Maximizes Air Flow, Energy Efficiency, and Lamp Life)

mUncompromising Style

n Sophisticated Industrial Design

n Magnesium Alloy for:

 ▫ Enhanced Durability

 ▫ Better Heat Dissipation

 ▫ Ultra Light Weight

n Dual Remote Receiver (Front and Back)

mFull HDTV Compatibility

n Progressive Scan Component DVD – 480p

n VCR with Component Output – 480i

n Satellite with True HDTV Output -- 720p, 1080i

n Supports both 4:3 and 16:9 aspect ratios

n Integrated On-board I/O

n Dual Computer Inputs

n Monitor Loop Through

n RS-232 Communication Port

n Manual (1:1.2) and Digital Zoom Lens

n Compact Remote with Laser Pointer

n Stylish Touch Panel

n Ez-Navigate User’s Menu

n Ez-Elevation Button Varies Screen Heights

n Durable and Deluxe Carrying Case

“The Optoma EzPro 755… offers better on-board audio, higher contrast, and nearly silent fan noise.”

        – Evan Powell, ProjectorCentral.com

“Optoma is continuing to raise the bar of excellence in projector performance”

      – Paul Pirner, InfoComm News & Information Network

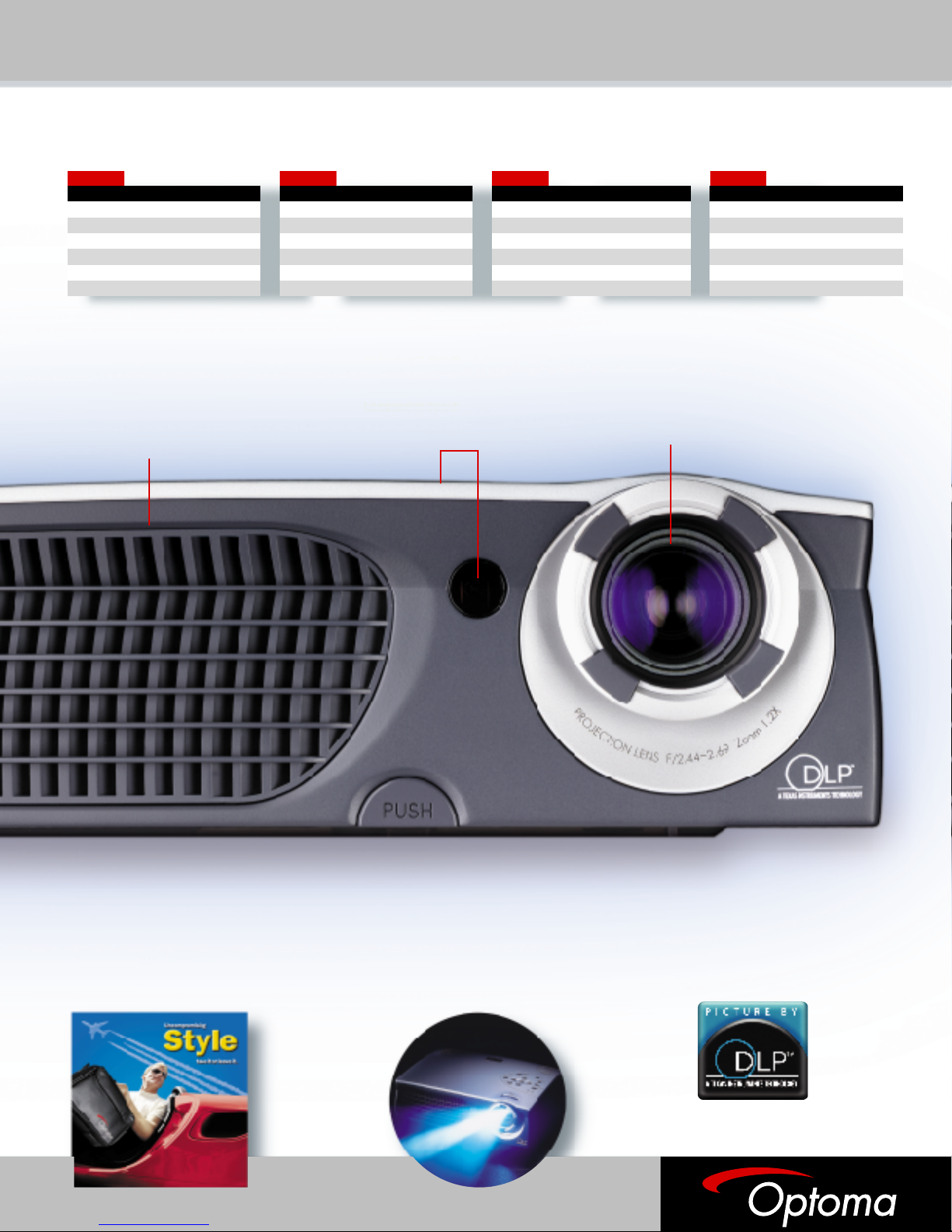

Aero-dynamic Flow Duct Design and Unique

Fan Control System Make it the Quietest

and Coolest Running Projector Available

Dual Remote Receiver

(Front and Back)

Advanced Anti-reflective Lens Coating

Manual (1:1.2) and Digital Zoom Lens

Superior. Stylish. Silent. EzPro

757/755/753/750

EzPro 757

755

753

750 projectors

perform like much larger projectors, yet their small size and

light weight mean you can take them anywhere. The Optoma

EzPro750 Series projectors are the first portables to achieve

a combination of high brightness, high contrast ratio, and full

HDTV video display capabilities (480p, 480i, 720p, 1080i)

while weighing less than 6.7 pounds. DLP™technology by

Texas Instruments offers crystal clear images with superior

quality. The brightest projector in the series is the EzPro

757 with a full 2300 lumens, followed by the EzPro 755 with

2000 lumens, while the EzPro 753 and EzPro 750 both deliver

1600 lumens. The Optoma EzPro 757, 755 and Ez Pro 753

feature a native XGA (1024 x 768) resolution compressible to

SXGA (1280 x 1024). The EzPro 750 features a native SVGA

(800x600) resolution compressible to XGA (1024 x 768). All

display 16.7 million colors in either 4:3 (native) or 16:9

(compatible) aspect ratio and support HDTV function, more proof

of their versatility.

EzPro 757

Ultimate Fully Loaded Projector

© 2,300 ANSI lumens

© Native 1,024 x 768 XGA resolution

©Outstanding Contrast Ratio at 2000:1

© 6.6 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 753

Multitask High Performance Projector

© 1,600 ANSI lumens

© Native 1,024 x 768 XGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 750

Most Economical Power House

© 1,600 ANSI lumens

© Native 800 x 600 SVGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

EzPro 755

Full Featured Projector

© 2,000 ANSI lumens

© Native 1,024 x 768 XGA resolution

© Superior Contrast Ratio at 600:1

© 6.4 pound Lightweight Flat Design

© 32 Decibels, near silent noise level

© HDTV Compatible

shown actual size

mSuperior Engineering

n Extremely High Contrast Ratio up to 2000:1

n Brightness up to 2300 ANSI Lumens

n Advanced Anti-reflective Lens Coating

n Full HDTV Compatibility

mNear Silent (32dB) Operation

n Aero-dynamic Design (Low Resistance/Extremely Efficient Air Flow Duct System)

n Anti-vibration Technology (Reduces Noise from Fans and Color Wheel)

n Advanced Fan Speed Control System (Maximizes Air Flow, Energy Efficiency, and Lamp Life)

mUncompromising Style

n Sophisticated Industrial Design

n Magnesium Alloy for:

 ▫ Enhanced Durability

 ▫ Better Heat Dissipation

 ▫ Ultra Light Weight

n Dual Remote Receiver (Front and Back)

mFull HDTV Compatibility

n Progressive Scan Component DVD – 480p

n VCR with Component Output – 480i

n Satellite with True HDTV Output -- 720p, 1080i

n Supports both 4:3 and 16:9 aspect ratios

n Integrated On-board I/O

n Dual Computer Inputs

n Monitor Loop Through

n RS-232 Communication Port

n Manual (1:1.2) and Digital Zoom Lens

n Compact Remote with Laser Pointer

n Stylish Touch Panel

n Ez-Navigate User’s Menu

n Ez-Elevation Button Varies Screen Heights

n Durable and Deluxe Carrying Case

“The Optoma EzPro 755… offers better on-board audio, higher contrast, and nearly silent fan noise.”

        – Evan Powell, ProjectorCentral.com

“Optoma is continuing to raise the bar of excellence in projector performance”

      – Paul Pirner, InfoComm News & Information Network

Aero-dynamic Flow Duct Design and Unique

Fan Control System Make it the Quietest

and Coolest Running Projector Available

Dual Remote Receiver

(Front and Back)

Advanced Anti-reflective Lens Coating

Manual (1:1.2) and Digital Zoom Lens
