Optoma DX621 User manual

The incomparable Optoma DX621, a versatile
multimedia digital projector, delivers value with
performance. From XGA resolution and brightness of
2600 lumens to connectivity options and portability,
the DX621 provides the quality, imagery and big
picture solution for superior performance.
DX621 | Multimedia Projector
Stand Out From the Crowd
www.optoma.com
DX621 FEATURES
❏Native XGA DLP® by Texas Instruments
with BrilliantColor™ Technology
❏Bright with 2600 ANSI lumens and 2500:1
contrast ratio
❏High-definition resolution supported
❏Portable at five pounds – Convenient
carrying case included
Contrast
Menu
Volume
Zoom
Keystone Correction
Re-Sync
Power/Standby
S-Video
AV Mute
Source
Freeze
Video
Brightness
VGA
Select
VGA-In
S-Video RS-232
VGA-Out
Composite
Video Stereo
Audio-Out
AC Power Kensington
Lock
Stereo
Audio-In
Security
Bar

DX621 | Multimedia Projector
All Specifications are subject to change without notice. ©2010 Optoma Technology, Inc. DLP®and the DLP logo are
registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
Data-DX621-1210
Optional Accessories
Lamp:
Remote:
VGA Cable (1.8m):
Power Cord (1m):
Power Cord (11m):
Composite Cable (1.8m):
VGA to Component Adapter:
Ceiling Mount:
Wireless Dongle:
Carrying Case:
84” 4:3 Manual Screen:
BL-FU185A
BR-3043N
BC-VGVGXX02
BC-PUPIXY01
BC-PUPIXY11
BC-COCOXX02
BC-VGCRXY00
BM-5001U
BI-EXTGB
BK-4006
DS-3084PMG+

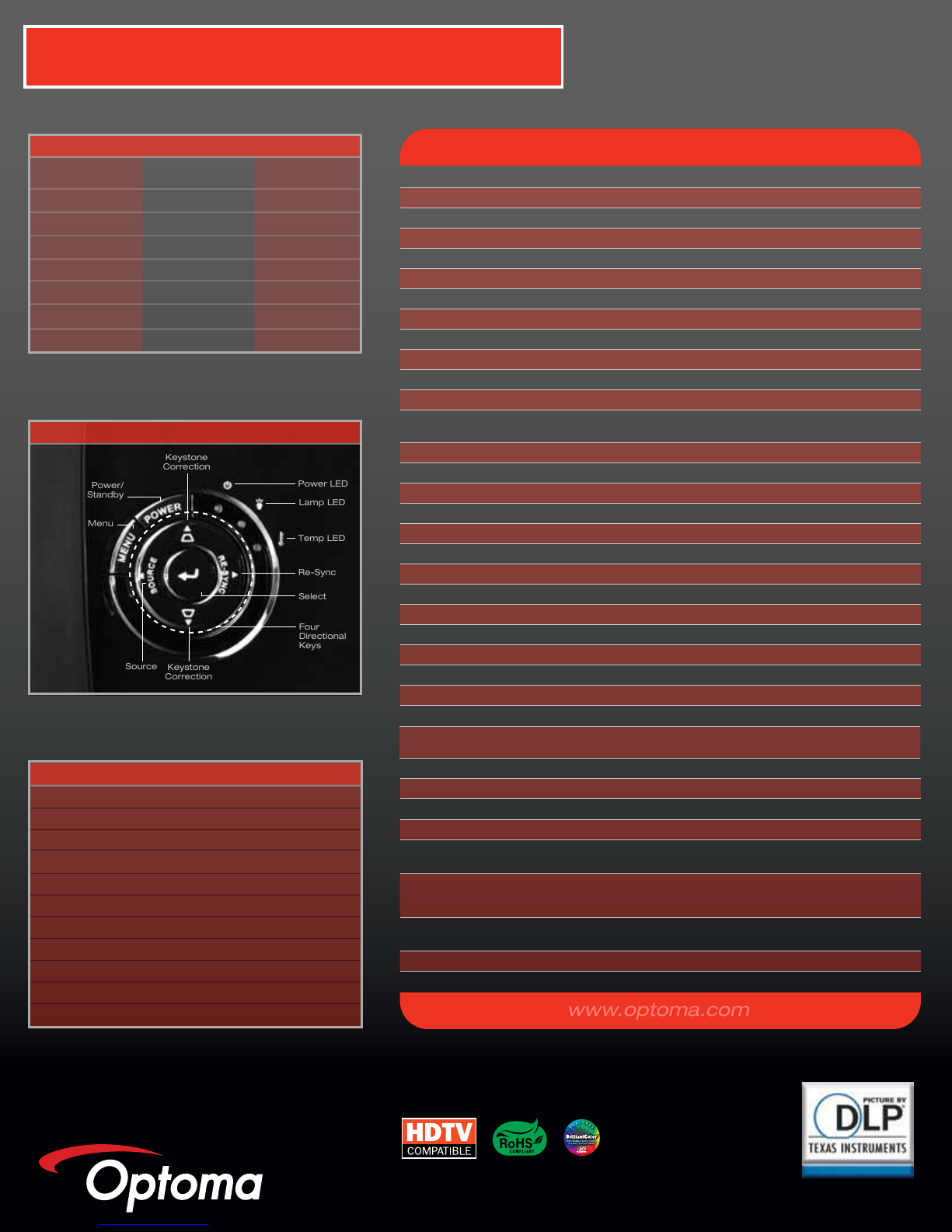

Menu
Power/
Standby
Lamp LED
Select
Re-Sync
Source
Temp LED
Four
Directional
Keys
Control Panel
Power LED
Keystone
Correction
Keystone
Correction
Projection Distance
(Feet)
6
8
10
12
14
16
18
Maximum Diagonal
(Inches)
42
56
71
85
99
113
127
Minimum Diagonal
(Inches)
38
51
64
77
90
102
115
Projection Distance/Image Size
www.optoma.com
Specifications
Display Technology:
Resolution:
Maximum Resolution:
Brightness (Typical):
Contrast Ratio:
Lamp Type:
Lamp Life (STD/Bright):
Throw Ratio:
Image Size (Diagonal):
Projection Distance:
Noise Level (STD/Bright):
Remote Control:
Computer Compatibility:
Video Compatibility:
Aspect Ratio:
Projection Lens:
Offset:
Monitor Loop Through:
User Controls:
Audio:
Keystone Correction:
Vertical Refresh Rate:
Horizontal Scan Rate:
Power Supply:
Power Consumption:
Weight:
Dimensions (W x H x D):
Operating Temperature:
Displayable Colors:
Projection Method:
Uniformity:
Security:
I/O Connectors:
Standard Accessories:
Optional Accessories:
Warranty:
UPC:
Single 0.55” DMD DLP®Technology by Texas Instruments
Native XGA (1024 x 768)
UXGA (1600 x 1200)
2500 ANSI Lumens
3000:1 (Full On/Full Off)
180W UHP
Estimated at 6000/5000 Hours
1.95 to 2.15:1 (Distance/Width)
22.9” to 300” (0.58 to 7.62 m)
3.28’ to 32.8’ (1.0 to 10 m)
28dB/30dB
IR Remote Control
UXGA, WXGA, SXGA+, SVGA, XGA, SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
4:3 Native, 16:9 & 16:10 Compatible
F=2.41~2.55, f=21.8~23.98 mm, 1.1x Manual Zoom and Focus
115%
D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)
Complete On-Screen Menu in 23 Languages
2-Watt Speaker
± 40° Vertical
24 to 85 Hz
15.3 to 91.1 KHz
AC Input 100-240V, 50-60Hz, Auto-Switching
255 Watts (Bright), 230 Watts (STD), <1 Watt (Standby)
5 lbs (2.27 kg)
11.28” x 3.98” x 7.6” (287 x 101 x 193 mm)
41° to 95°F (5° to 40°C), 85% Max Humidity, Adjustable Fan Speed for High
Altitude Application
1.07 Billion
Front, Rear, Ceiling Mount, Table Top
85%
Kensington® Lock, Keypad Lock, Security Bar
VGA-In, VGA-Out, S-Video, Composite Video, Stereo Audio-In, Stereo
Audio-Out and RS-232
AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for
Remote, Carrying Case, Lens Cap, Quick Start Card, CD-ROM User’s
Manual and Warranty Card
Ceiling Mount, S-Video Cable, Composite Video Cable, RS-232 Cable and
Panoview Series Screens
One Year Parts and Labor, 90 Days on Lamp
796435 41 684 3
