The Optoma TX615 delivers exceptional brightness to
overcome ambient light, making it the ideal choice for
nearly any installation. Featuring a built-in 10-watt
speaker system and wired network management, the
TX615 is equipped with the latest color and image
processing technologies from Texas Instruments.
TX615 | Multimedia Projector
Dazzle & Captivate
Your Audience
www.optoma.com
TX615 FEATURES
❏Easy-to-read text – bright at 3500 ANSI
lumens and high 3000:1 contrast ratio
❏VGA and audio pass-thru operational on
standby mode
❏Filter-free design means lower cost of
ownership
❏Remote management via RS-232 or RJ45
connectivity
❏Broad range of audio and video connectivity
❏Wireless connectivity with optional dongle
AC Power Kensington
Lock
RJ-45 HDMI
VGA1-In S-Video
Composite
Video
VGA-Out Stereo
Audio-Out
Stereo
Audio-In
RS232
VGA2-In
+12V
Trigger
USB
HDMI
Menu
Volume
Zoom
Keystone Correction
Re-Sync
Power/Standby
S-Video
AV Mute
Source
Page Up/Down
Freeze
Video
Brightness
VGA
Select/Help
Laser
Right Mouse
Left Mouse
Mouse Controller/
Multi-Directional
Selector

TX615 | Multimedia Projector
All Specifications are subject to change without notice. ©2010 Optoma Technology, Inc. DLP®and the DLP logo are
registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
Data-TX615-002-0210
Optional Accessories
Lamp:
Wireless Dongle:
Remote:
Power Cord (1m):
Power Cord (11m):
S-Video Cable (1.8m):
Composite Cable (1.8m):
VGA Cable (5m):
VGA to Component Cable (5m):
VGA to Component Adapter:
Ceiling Mount:
Carrying Case:
100” Manual Pull-Down Screen:
BL-FP230D
BI-EXTGB
BR-5030L
BC-PUPIXY01
BC-PUPIXY11
BC-SVSVXX02
BC-COCOXX02
BC-VGVGXX05
BC-VGCRXX05
BC-VGCRXY00
BM-5001U
BK-4028
DS-3100PMG+

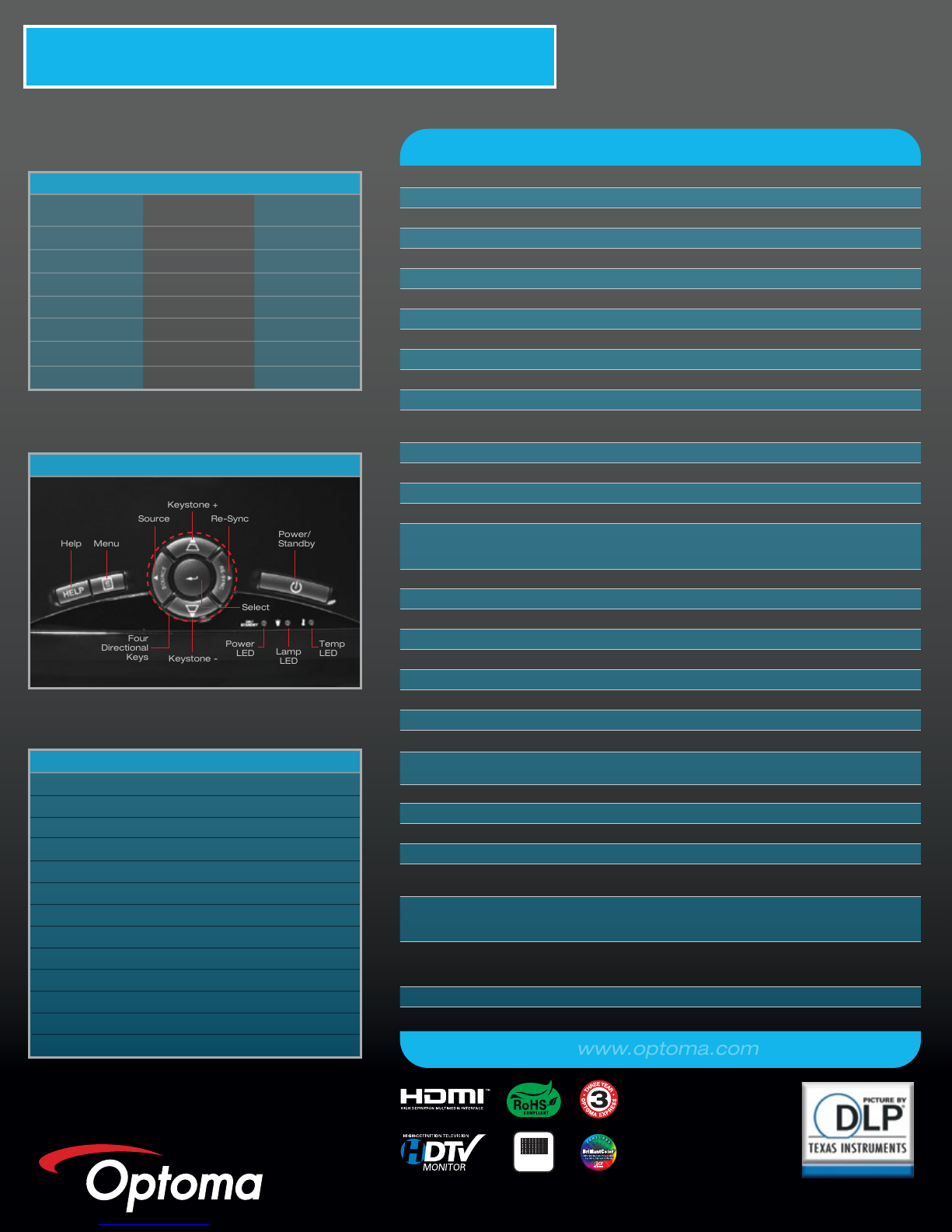

Menu
Power/
Standby
Lamp
LED
Select
Re-Sync
Source
Temp
LED
Four
Directional
Keys
Help
Power
LED
Keystone +
Keystone -
Control Panel
Projection Distance
(Feet)
6
8
10
12
14
16
18
Maximum Diagonal
(Inches)
46
62
77
92
108
123
138
Minimum Diagonal
(Inches)
42
56
70
84
98
112
126
Projection Distance/Image Size
www.optoma.com
Specifications
Display Technology:
Resolution:
Maximum Resolution:
Brightness (Typical):
Contrast Ratio:
Lamp Type:
Lamp Life (STD/Bright):
Throw Ratio:
Image Size (Diagonal):
Projection Distance:
Noise Level (STD/Bright):
Remote Control:
Computer Compatibility:
Video Compatibility:
Aspect Ratio:
Projection Lens:
Offset:
Loop Through:
User Controls:
Audio:
Keystone Correction:
Vertical Refresh Rate:
Horizontal Scan Rate:
Power Supply:
Power Consumption:
Weight:
Dimensions (W x H x D):
Operating Temperature:
Displayable Colors:
Projection Method:
Uniformity:
Security:
I/O Connectors:
Standard Accessories:
Optional Accessories:
Warranty:
UPC:
Single 0.55” DMD DLP®Technology by Texas Instruments
Native XGA (1024 x 768)
UXGA (1600 x 1200)
3500 ANSI Lumens
3000:1 (Full On/Full Off)
230W P-VIP
Estimated at 4000/3000 Hours
1.95 to 2.15:1 (Distance/Width)
27.5” to 303” (0.7 to 7.69 m)
3.93’ to 39.3’ (1.2 to 12 m)
29dB/31dB
Fully Featured Remote with Laser Pointer and Mouse Functions
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
4:3 Native, 16:9 & 16:10 Compatible
F=2.4~2.55, f=21.8~24 mm, 1.1x Zoom & Focus
115%
Monitor: D-Sub 15-Pin VGA Output
Audio: Stereo Mini-Jack Output
(Functional in Both Normal and Standby Modes)
Complete On-Screen Menu Adjustments in 23 Languages
Two 5-Watt Stereo Speakers
± 40° Vertical
25 to 85 Hz
15.3 to 91.1 KHz
AC Input 100-240V, 50-60 Hz, Auto-Switching
328 Watts (Bright), 272 Watts (STD) <1 Watt (Standby)
6.4 lbs (2.9 kg)
12.76” x 3.82” x 9.21” (324 x 97 x 234 mm)
41° to 104°F (5° to 40°C), 80% Max Humidity, Adjustable Fan Speed for
High Altitude Application
1.07 Billion
Front, Rear, Ceiling Mount, Table Top
85%
Kensington® Lock, Keypad Lock and Security Bar
HDMI, Two VGA-In, VGA-Out, S-Video, Composite Video, Three Stereo
Audio-In, Stereo Audio-Out, +12V Trigger, USB, RS-232 and RJ45
AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for
Remote, USB Cable, Carrying Case, Lens Cap, Quick Start Card, CD-ROM
User’s Manual and Warranty Card
Wireless Dongle, Ceiling Mount, HDMI Cable, VGA to Component Cable,
S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™
Series Screens
Three Years Optoma Express Replacement Service, One Year on Lamp
796435 41 130 5
