Optoma TW610STi User manual

The TW610STi delivers widescreen,
interactive content even in small
classrooms or meeting rooms. An
excellent combination of brightness,
resolution and contrast, along with
a short throw design, makes this
projector exible and powerful
for educators. With the included
Qwizdom WizTeach interactive
software, this projector delivers an
interactive presentation environment
without the expense of an interactive
whiteboard.
MULTIMEDIA PROJECTOR
TW610STi
CREATE AN IDEAL LEARNING ENVIRONMENT
CONNECTIVITY (May require optional accessories)
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES*
BLU-RAY/DVD PLAYERS*
*3D-XL needed for 3D content
1Based upon independent research by JTM Concepts
PointBlank Interactive pen
Interact with the projected image
while at the screen or from a distance
with the included PointBlank pen –
No wires or calibration required
Create big images in small rooms –
Short throw design is ideal for
classrooms and meeting rooms
Raise student engagement and test
scores with DLP 3D Ready projection1
Control the projector easily over the
network to streamline administration

MULTIMEDIA PROJECTOR — TW610STi
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.65” DC3 DMD DLP
Native Resolution WXGA (1280 x 800)
Maximum Resolution UXGA (1600 x 1200)
Brightness 3100 ANSI lumens
Contrast Ratio 3000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type*4000/3000 Hours (STD/Bright) 230W P-VIP
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ±40 Vertical
Uniformity 85%
Offset 112%
Aspect Ratio 16:10 Native, 4:3 and 16:9 compatible
Throw Ratio 0.52 (distance/width)
Projection Distance 1.64” to 8.2” (0.5 to 2.5m)
Image Size 44.6” to 222.8” (1.13 to 5.6m)
Projection Lens F=2.8, f=7.34mm, manual focus
Audio Two 5W stereo speakers
Noise Level 29dB/31dB
Remote Control IR remote mouse control
Operating Temperature 41 to 104°F (5 to 40°C), 85% max humidity
Power Supply AC Input 100-240V, 50-60Hz, auto-switching
Power Consumption 325 watts max (Bright), 250 watts
(STD), <1 watt (Standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA resized, VESA, PC and
Macintosh compatible
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility†120Hz Frame sequential 3D for
resolutions up to 720p, 60Hz eld
sequential 3D for resolutions up to 480i
Vertical Scan Rate 24 - 85, 120 Hz
Horizontal Scan Rate 15.3 - 91.1 KHz
Closed Captioning Enabled via on-screen menu
User Controls Complete on-screen menu
adjustment in 25 languages
I/O Connection Ports HDMI v1.3, two VGA-in, VGA-out,
S-Video, composite video, RCA audio-in,
stereo audio-in, stereo audio-out,
microphone-in, mini-USB for interactive pen
output to computer, mini-USB for display,
USB for wireless dongle, RJ45, RS-232,
and 12V trigger.
Loop Through (Audio, VGA) D-Sub 15-pin VGA output (functional in
both normal and standby modes) and
stereo audio out
PHYSICAL SPECIFICATIONS
Security Kensington® lock, security bar and
keypad lock
Weight 6.9 lbs (3.1kg)
Dimensions 12” x 4.5” x 9.6” (306 x 114 x 243 mm)
*3D content can be viewed with active LCD shutter glasses when the projector is
connected to a computer with a compatible 3D graphics card.
†Lamp life is dependent on many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
Warranty
3-year Optoma express replacement service, 1-year lamp
In the Box (Standard Accessories)
AC power cord, VGA to VGA cable, remote control, batteries for remote, lens
cap, multilingual CD-ROM user’s manual, quick start card and warranty card,
PointBlank interactive pen, Qwizdom WizTeach software
Optional Accessories
HDMI cable, microphone, wall mount, ceiling mount, component to VGA cable,
composite video cable, RS-232 cable and Panoview™ series screens, additional
PointBlank pens, pen nibs, mini USB cable (5m), 3D-XL, DLP Link 3D glasses
UPC: 796435 41 758 1
www.OptomaUSA.com
Copyright © 2012 Optoma Technology, Inc. All specications subject to change at any time.

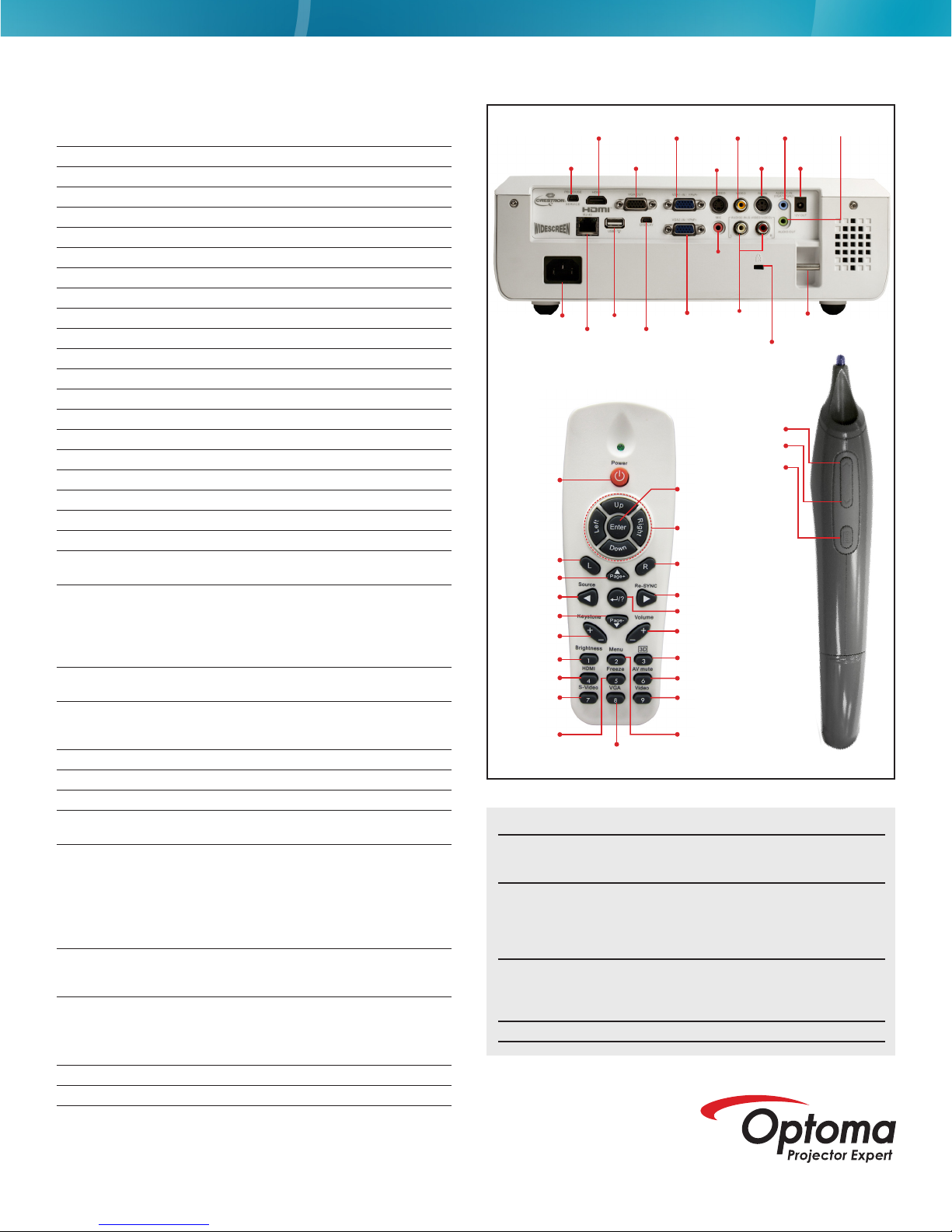

Power/
