Optoma TW610STi+ User manual

The Optoma TW610STi+delivers
widescreen, interactive content
in small to mid sized classrooms
or meeting rooms. An excellent
combination of brightness, resolution
and contrast, along with a short throw
design, makes this projector exible
and powerful for presenters. With the
new and improved PointBlank pen,
this projector delivers an interactive
presentation environment without the
expense of an interactive whiteboard.
The projector, which can be easily
transported, is also perfect for wall or
ceiling mount installations.
MULTIMEDIA PROJECTOR
TW610STi+
CREATE AN IDEAL LEARNING ENVIRONMENT
CONNECTIVITY (May require optional accessories)
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
3D BLU-RAY/DVD PLAYERS
Roku®Apple TV®
*3D-XL needed for 3D content
1Based upon independent research by JTM Concepts
PointBlank Interactive pen
Interact with the projected image while
at the screen or from a distance with
the included PointBlank pen –
No wires or calibration required
Create big images in small rooms –
Short throw design is ideal for
classrooms and meeting rooms
Raise student engagement and test
scores with DLP®3D Ready projection1
Control the projector easily over the
network to streamline administration
*
*

MULTIMEDIA PROJECTOR — TW610STi+
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.65” DC3 DMD
DLP®Technology by Texas Instruments™
Native Resolution WXGA (1280 x 800)
Maximum Resolution UXGA (1600 x 1200)
Brightness 3200 lumens
Contrast Ratio 3000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type*4000/3000 Hours (STD/Bright) 230W P-VIP
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ±40 Vertical
Uniformity >85%
Offset 112%
Aspect Ratio 16:10 Native, 4:3 and 16:9 compatible
Throw Ratio 0.52 (distance/width)
Projection Distance 1.64”– 8.2” (0.5– 2.5 m)
Image Size 44.6”– 222.8” (1.13–5.6 m)
Projection Lens F=2.8, f=7.34 mm, manual focus
Audio Two 5-Watt stereo speakers
Noise Level 29dB/31dB
Remote Control IR remote mouse control
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Supply AC Input 100–240V, 50–60Hz,
auto-switching
Power Consumption 325W max (Bright), 250W (STD),
<1W (Standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA resized, VESA, PC and Mac
compatible.
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility†120Hz Frame sequential 3D for resolutions
up to 720p, 60Hz eld sequential 3D for
resolutions up to 480i
Vertical Scan Rate 24– 85Hz, 120Hz
Horizontal Scan Rate 15.3–91.1KHz
Closed Captioning Enabled via on-screen menu
User Controls Complete on-screen menu adjustment in 25
languages
I/O Connection Ports HDMI v1.3, two VGA-in, VGA-out,
S-video, composite video, RCA audio-in,
stereo audio-in, stereo audio-out,
microphone-in, mini-USB for interactive pen
output to computer, mini-USB for display,
USB for wireless dongle, RJ45, RS-232,
and 12V trigger.
Loop Through (VGA) D-Sub 15-pin VGA output (functional in
both normal and standby modes)
Communications Ready to be integrated with AMX, Crestron,
Extron, etc control systems. Shares same
IP (RJ45) & RS-232 commands Hex or
Ascii, available for full control. Other
functions include presentation over network
1 computer to up-to 8 projectors
PHYSICAL SPECIFICATIONS
Security Kensington®lock, security bar and
keypad lock
Weight 6.9 lb (3.1 kg)
Dimensions (W x H x D) 12” x 4.5” x 9.6” (306 x 114 x 243 mm)
†3D content can be viewed with active LCD shutter glasses when the projector is connected to
a computer with a compatible 3D graphics card.
*Lamp life is dependent on many factors, including lamp mode, display mode, usage,
environmental conditions and more. Lamp brightness can decrease over time.
Warranty
3-Year Optoma Express Replacement Service, 1-Year lamp
In the Box (Standard Accessories)
TW610STi+ projector, AC power cord (3 m), VGA to VGA cable, remote control,
batteries for remote, lens cap, multilingual CD-ROM user’s manual, quick start
card, warranty card, PointBlank interactive pen, mini USB cable (5 m), pen nibs,
mini USB cable, rechargeable battery for pen.
Optional Accessories
HDMI cable, microphone, wall mount, ceiling mount, component to VGA cable,
composite video cable, RS-232 cable, Optoma screen, additional PointBlank
pens, pen nibs, mini USB cable (5 m), 3D-XL, DLP Link 3D glasses
UPC 796435 41 833 5
www.OptomaUSA.com

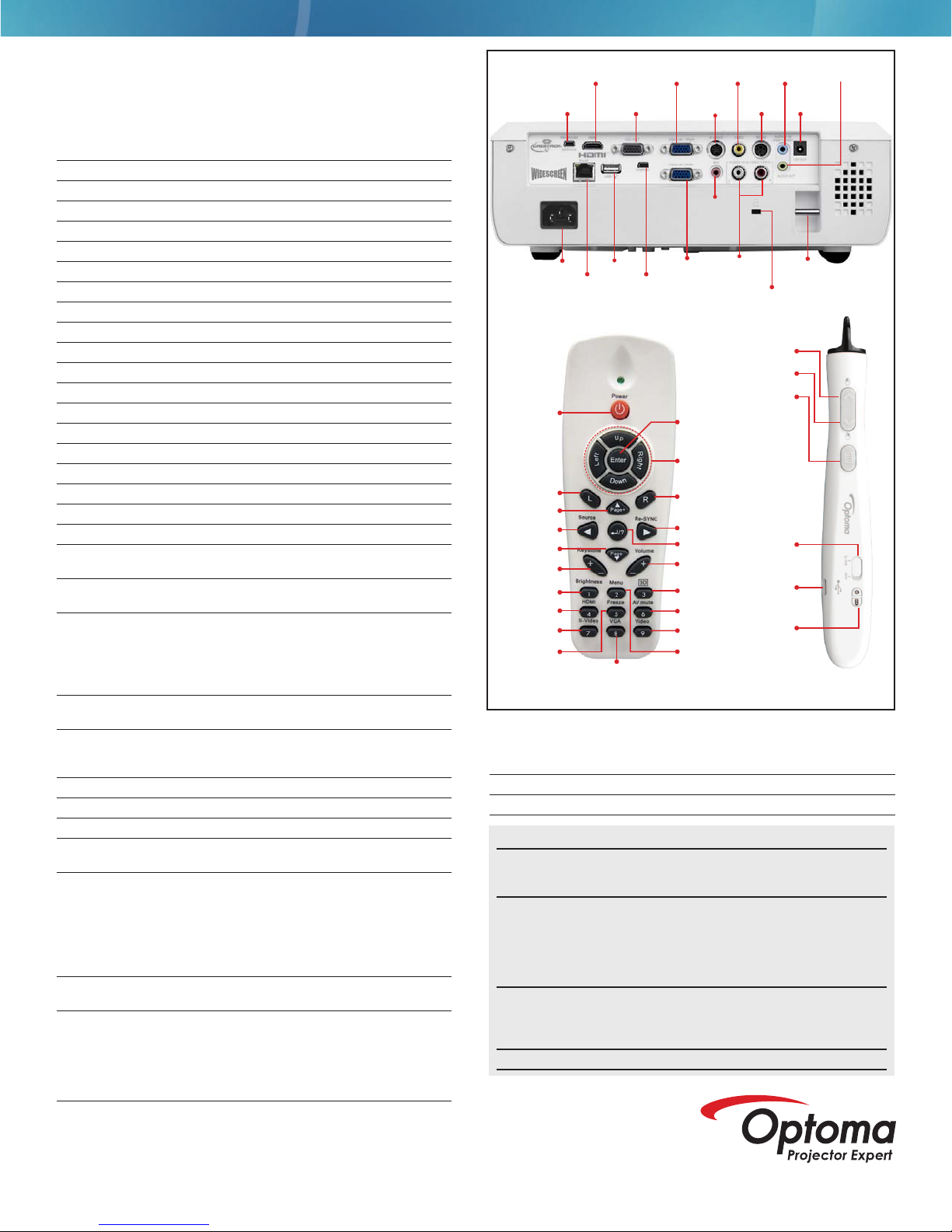

Power/
