Optoma TX780 User manual

English
i
Regulation & safety notices
Regulation & safety notices
This appendix lists the general notices of your Projector.
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the fol-
lowing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for
help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded
cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.

English ii
Regulation & safety notices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interfer-
ence that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Declaration of Conformity for EU countries
EMC Directive 89/336/EEC (including amendments)
Low Voltage Directive 73/23/EEC (amended by 93/68/EEC)
R & TTE Directive 1999/EC (if product has RF function)

English
1
Table of Contents
Table of Contents ......................................................................................... 1
Usage Notice................................................................................................ 2
Safety Information ................................................................................................2
Precautions...........................................................................................................3
Eye Safety Warnings............................................................................................5
Introduction................................................................................................... 6
Product Features..................................................................................................6
Package Overview................................................................................................7
Product Overview .................................................................................................8
Main Unit........................................................................................................................8

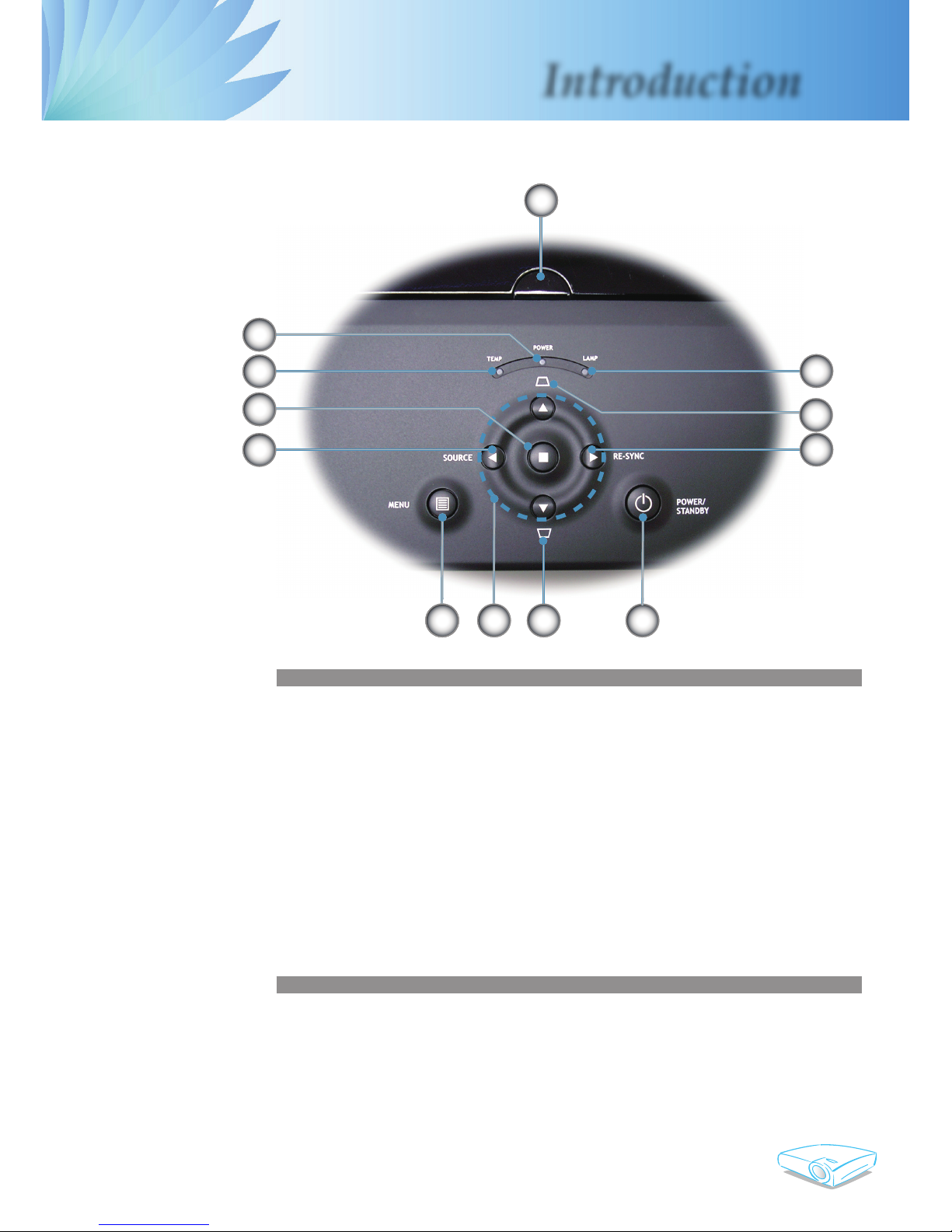

Control Panel .................................................................................................................9
Connection Ports .........................................................................................................10

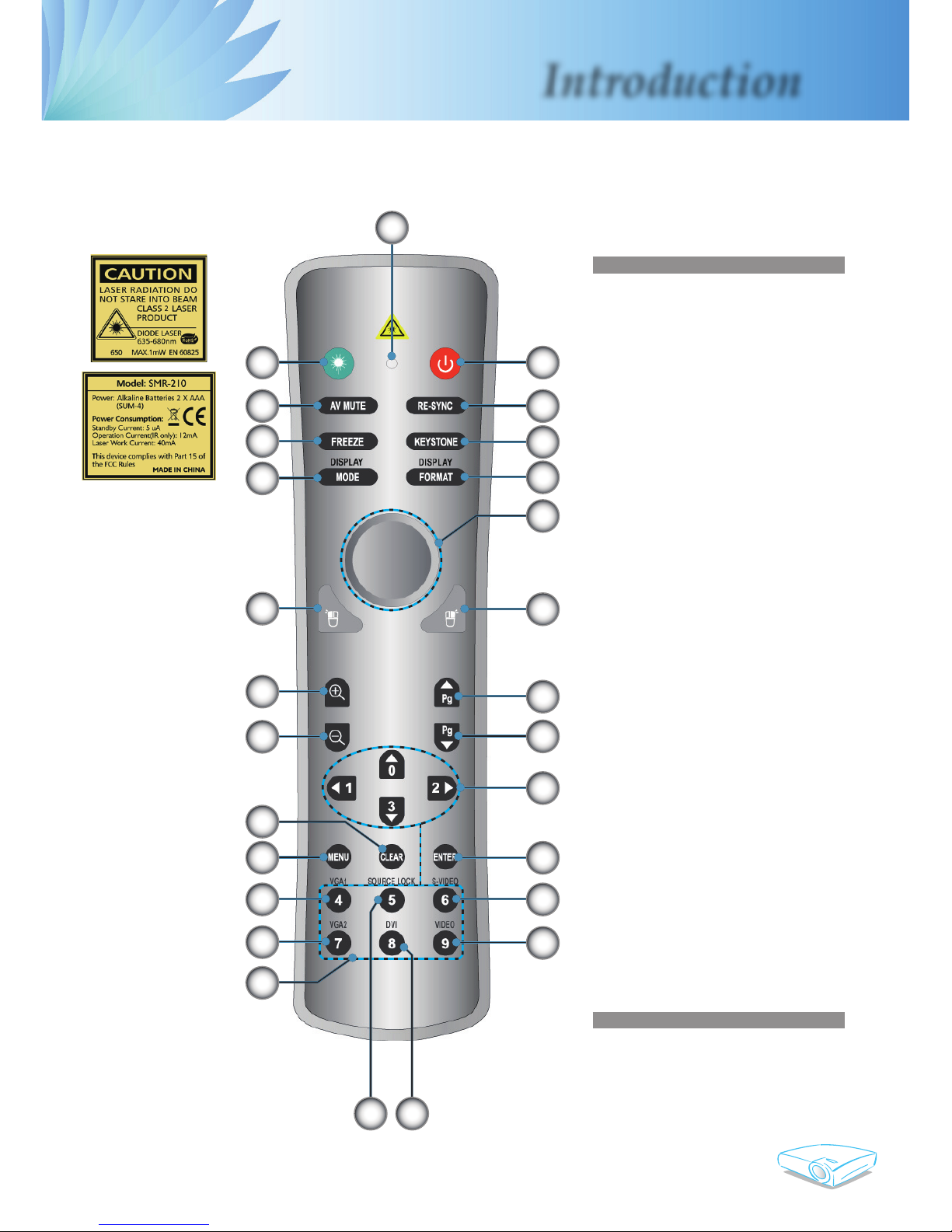

Remote Control with Mouse Function and Laser Pointer ............................................11
Installation .................................................................................................. 12
Connecting the Projector....................................................................................12
Connect the Computer/Notebook ................................................................................12
Connect the Video .......................................................................................................13
Powering On/Off the Projector............................................................................14
Powering On the Projector...........................................................................................14

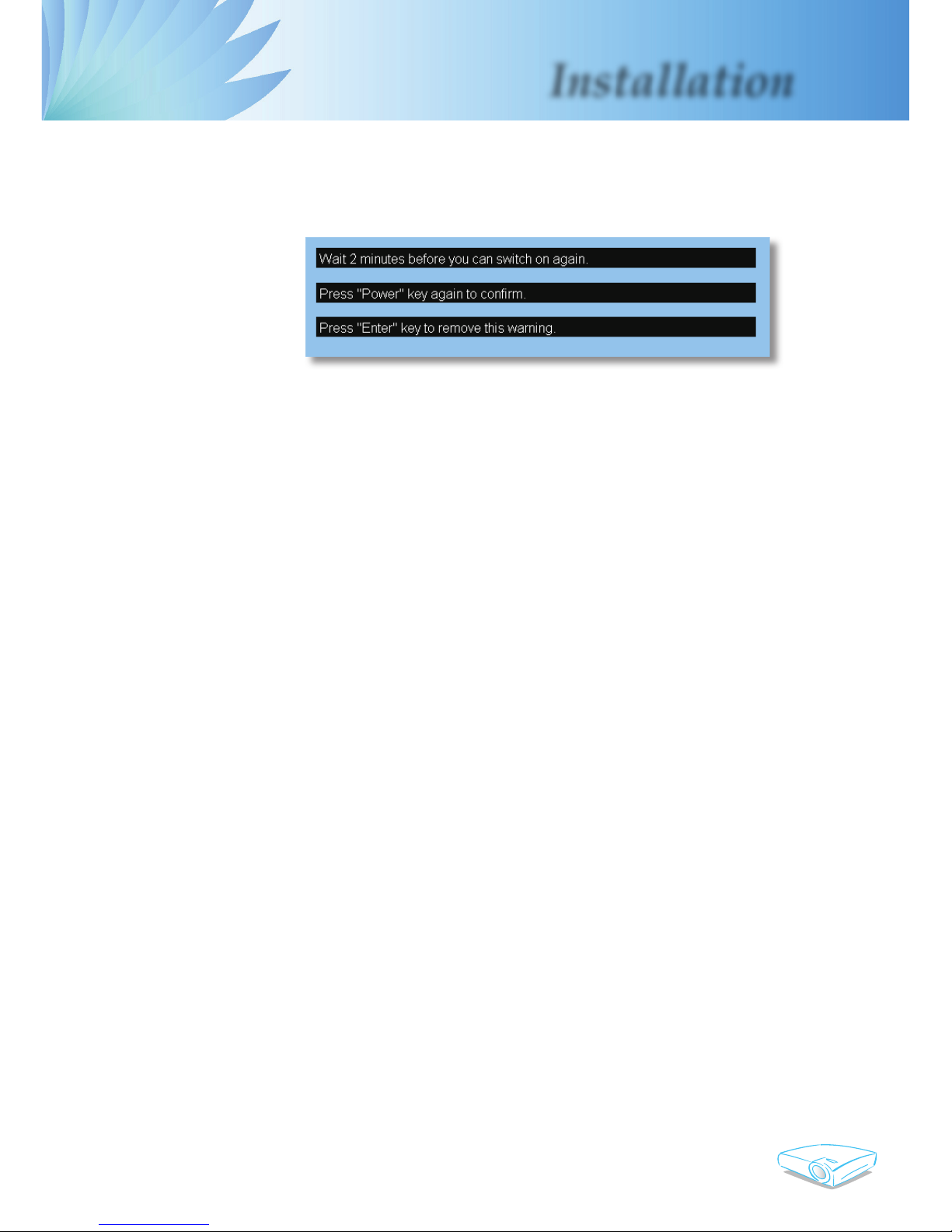

Powering Off the projector ...........................................................................................15
Warning Indicator.........................................................................................................15
Adjusting the Projected Image............................................................................16

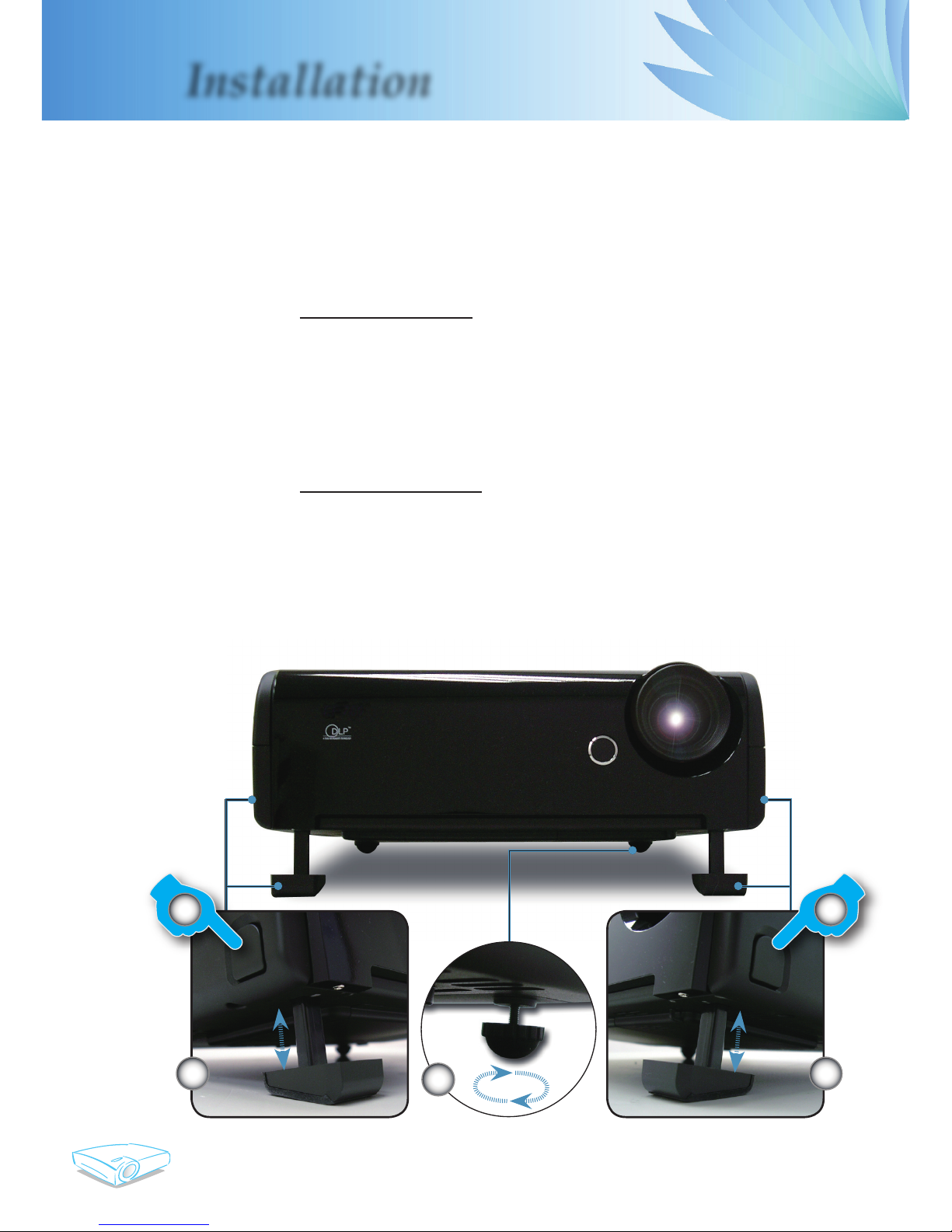

Adjusting the Projector Image Height ..........................................................................16

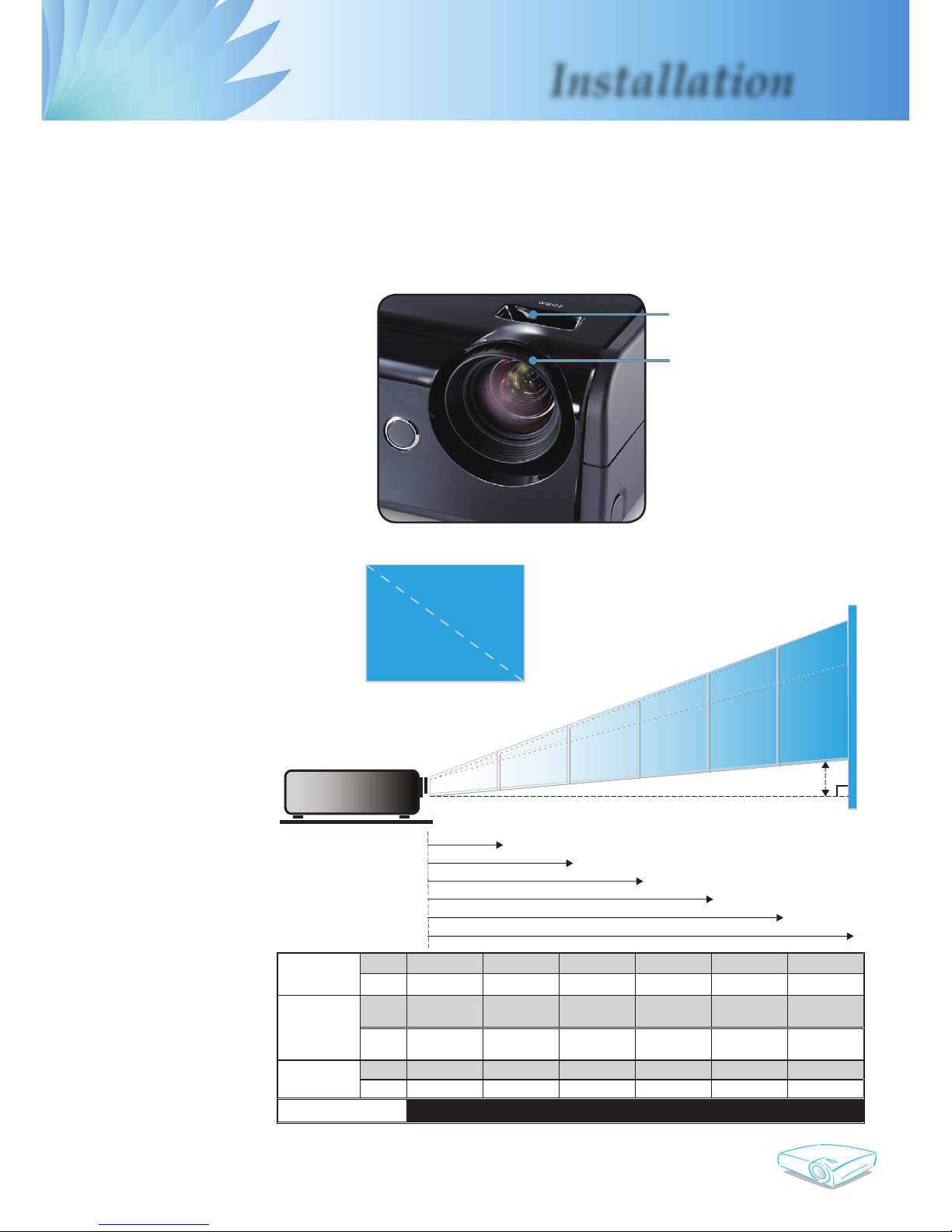

Adjusting the Projector Zoom / Focus..........................................................................17
Adjusting Projected Image Size ...................................................................................17
User Controls ............................................................................................. 18

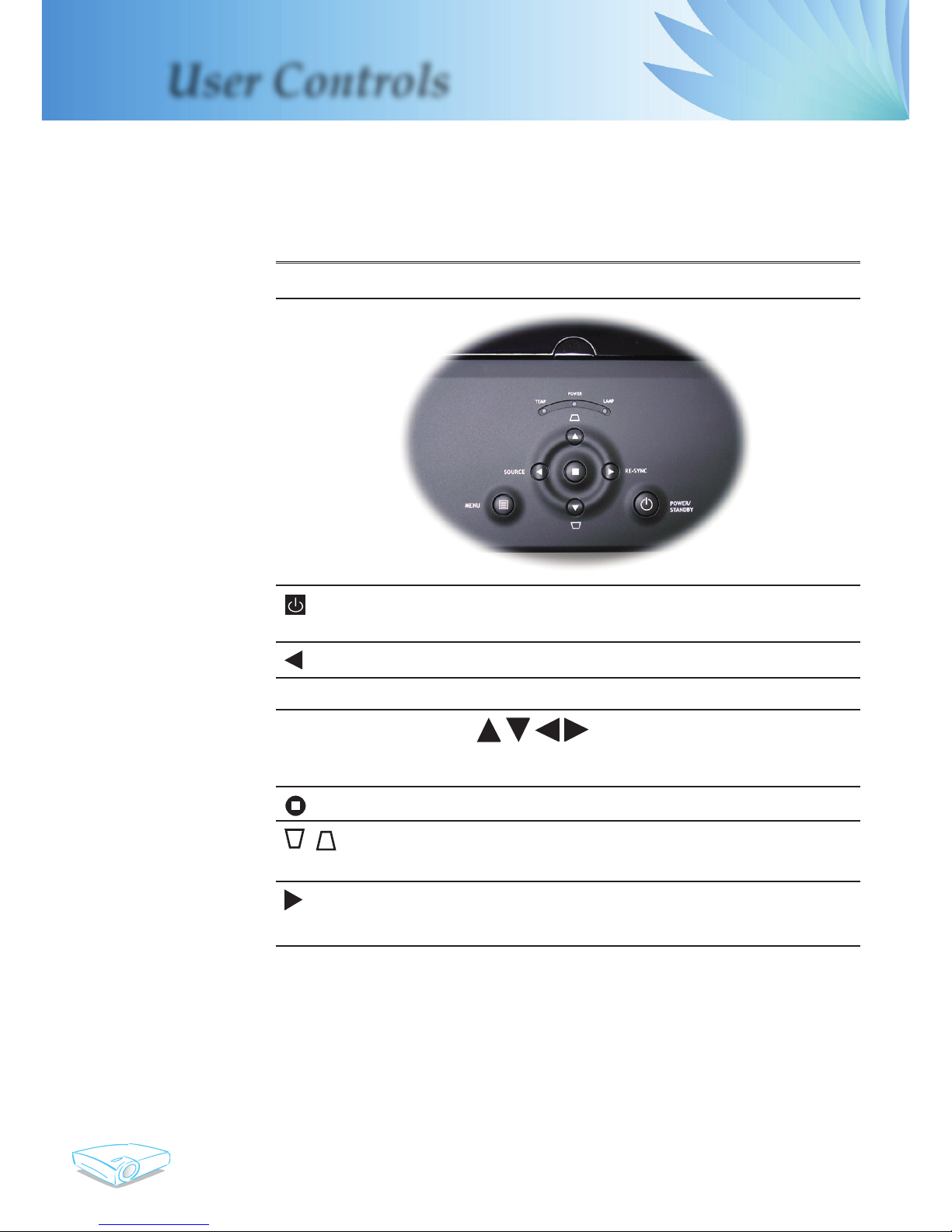

Control Panel & Remote Control ........................................................................18
On-Screen Display Menus..................................................................................21
How to Operate ...........................................................................................................21
Menu Tree....................................................................................................................22
Image-I ........................................................................................................................23
Image-II .......................................................................................................................25
Colour Setting ..............................................................................................................27
Language .....................................................................................................................29
Management ................................................................................................................30
Lamp & Power .............................................................................................................36
Appendices................................................................................................. 37
Troubleshooting ..................................................................................................37
Replacing the Lamp............................................................................................41
Compatibility Modes ...........................................................................................42
RS232 Commands .............................................................................................43
Ceiling Mount Installation ...................................................................................44
Optoma Global Ofces .......................................................................................45

English 2
Usage Notice
Safety Information
The lightning ash with arrowheard within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions
A. Do not block any ventilation openings
To ensure reliable operation of the projector and to protect it from over-
heating, put the projector in a position and location that will not inter-
fere with its proper ventilation. For example, do not place the projector
on a bed, sofa, carpet, or similar surface that may block the ventilation
openings. Do not put it in an enclosure, such as a bookcase or a cabinet
that may keep air from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce the
risk of re or electric shock, do not expose the projector to rain or mois-
ture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way:
▀■ Such as power supply cord or plug is damaged.
▀■ Liquid has been spilled or objects have fallen into the apparatus.
▀■ The projector has been exposed to rain or moisture, does not oper-
ate normally, or has been dropped.
Do not attempt to service this projector yourself. Opening or removing
covers may expose you to dangerous voltages or other hazards. Please
call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector –as they may touch
dangerous voltage points or short-out parts that could result in a re or
electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone except
properly qualied service personnel.

English
3
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom-
mended in this user’s guide to maximize the life of your unit.
Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
Warning- To reduce the risk of re or electric shock, do not expose
this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warn-
ing messages.
Warning- Reset the “Lamp Reset ” function from the On Screen
Display “Lamp Setting” menu after replacing the lamp
module (Refer to page 36).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before disconnect-
ing power.
Warning- Turn on the projector rst and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this hap-
pens, the projector will not turn back on until the lamp
module has been replaced. To replace the lamp, follow
the procedures listed under “Replacing the Lamp”. (See
page 41)

English 4
Usage Notice
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for ventila-
tion.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.

English
5
Usage Notice
Eye Safety Warnings
▀■Avoid staring directly into the projector beam at all times.
▀■Minimize standing facing into the beam. Keep your back to
the beam as much as possible.
▀■A stick or laser pointer is recommended to avoid the need for
the user to enter the beam.
▀■Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters
look at the audience, they do not also have to stare at the pro-
jector lamp. The best way to achieve this is by ceiling-mount-
ing rather than oor or table-mounting the projector.
▀■When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.

English 6
Introduction
Product Features
Congratulations and Thank You for choosing Optoma projec-
tor. This product is a XGA single chip 0.7” Darkchip3 DLP®
projector. Outstanding features include:
True XGA, 1024 x 768 addressable pixels
Texas Instruments Single chip DLP®Technology
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV compatible (480i/p, 576i/p, 720p, 1080i)
Multi-Auto functions: Auto detection, Automatic saving
of user adjustments
Full function IR remote control with laser pointer
User friendly multilingual on screen menu
Advanced digital keystone correction and high quality
full screen image re-scaling
User friendly control panel
Two built-in speakers with 2 Watt amplier
Multiple for Audio inputs
UXGA, SXGA+, SXGA compression and SVGA, VGA re-
sizing
Mac compatible
DVI support (HDCP compliant)
Support Network function (LAN/RS232)

English
7
Introduction
Power Cord 1.8m VGA Cable 1.8m
Wireless Remote
Controller
Composite Video Cable
1.8m
Projector with lens cap
Package Overview
This projector comes with all the items shown below. Check
to make sure your unit is complete. Contact your dealer
immediately if anything is missing.
Documents :

User’s Guide

Quick Start Card

Warranty Card

Quick Troubleshooting Guide

WEEE Card
SCART VGA/S-Video
Adaptor
(Optional Accessory)
Due to the
difference in
applications for
each country,
some regions may
have different
accessories. 2 x AA Batteries
RS232 Cable 1.8mUSB Cable 1.8m
S-Video Cable 1.8m

English 8
Introduction
1. Control Panel
2. Zoom Lever
3. Focus Ring
4. Elevator Button (one on each side)
5. Elevator Foot (one on each side)
6. Zoom Lens
7. IR Receivers
8. Power Socket
9. Connection Ports
Main Unit
Product Overview
1 2
8
2
7
4
3
565
4
9
1
7
