Optoma W304M User manual

English
1
Usage Notice...................................................................................................................... 2
Safety Information ........................................................................................................................2
Class B emissions limits................................................................................................................................................................2
Important Safety Instruction........................................................................................................................................................2
Precautions.....................................................................................................................................4
Eye Safety Warnings.....................................................................................................................6
Introduction ....................................................................................................................... 7
Product Features ...........................................................................................................................7
Package Overview ........................................................................................................................8
Product Overview.........................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel................................................................................................................................................................................10

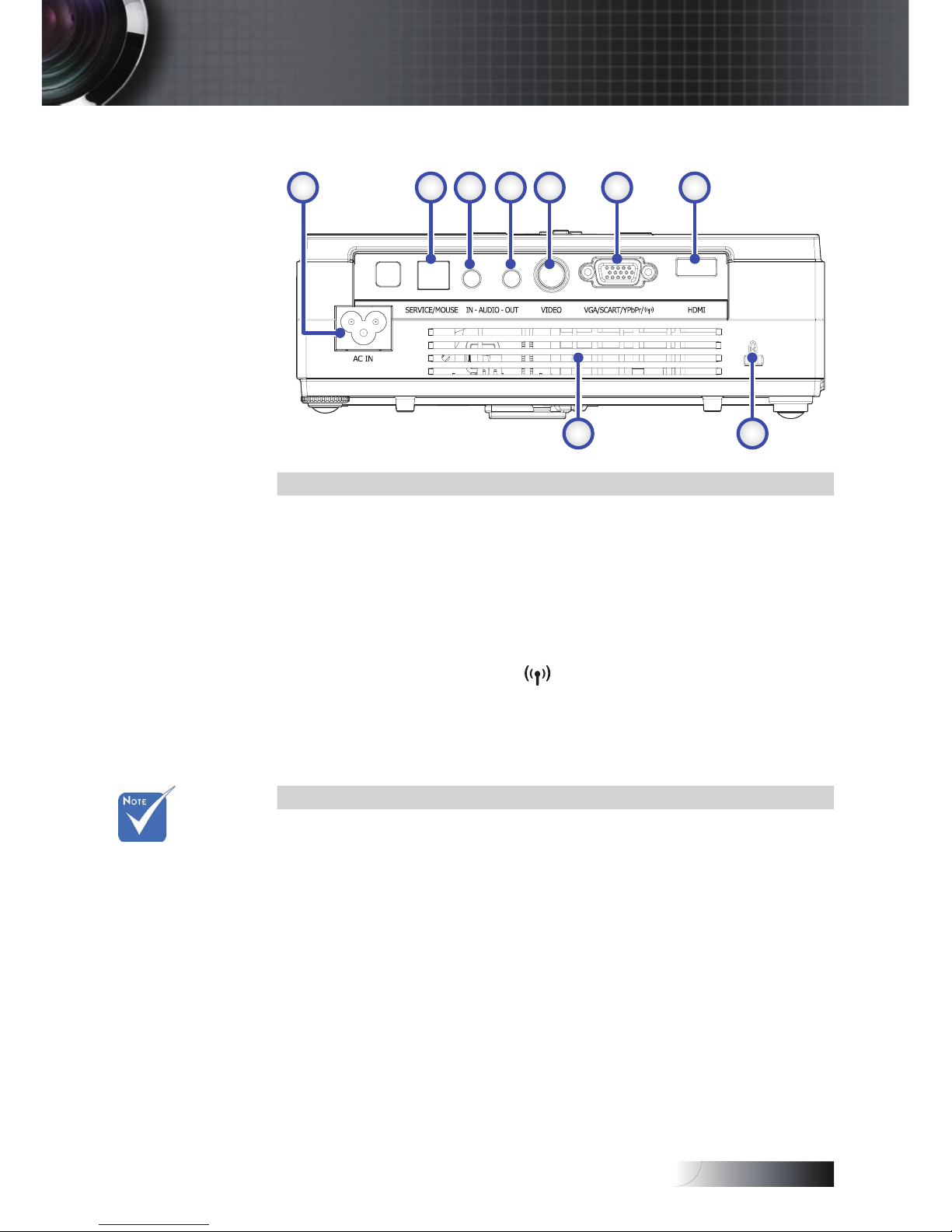

Rear View......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation........................................................................................................................ 13
Connecting the Projector............................................................................................................13

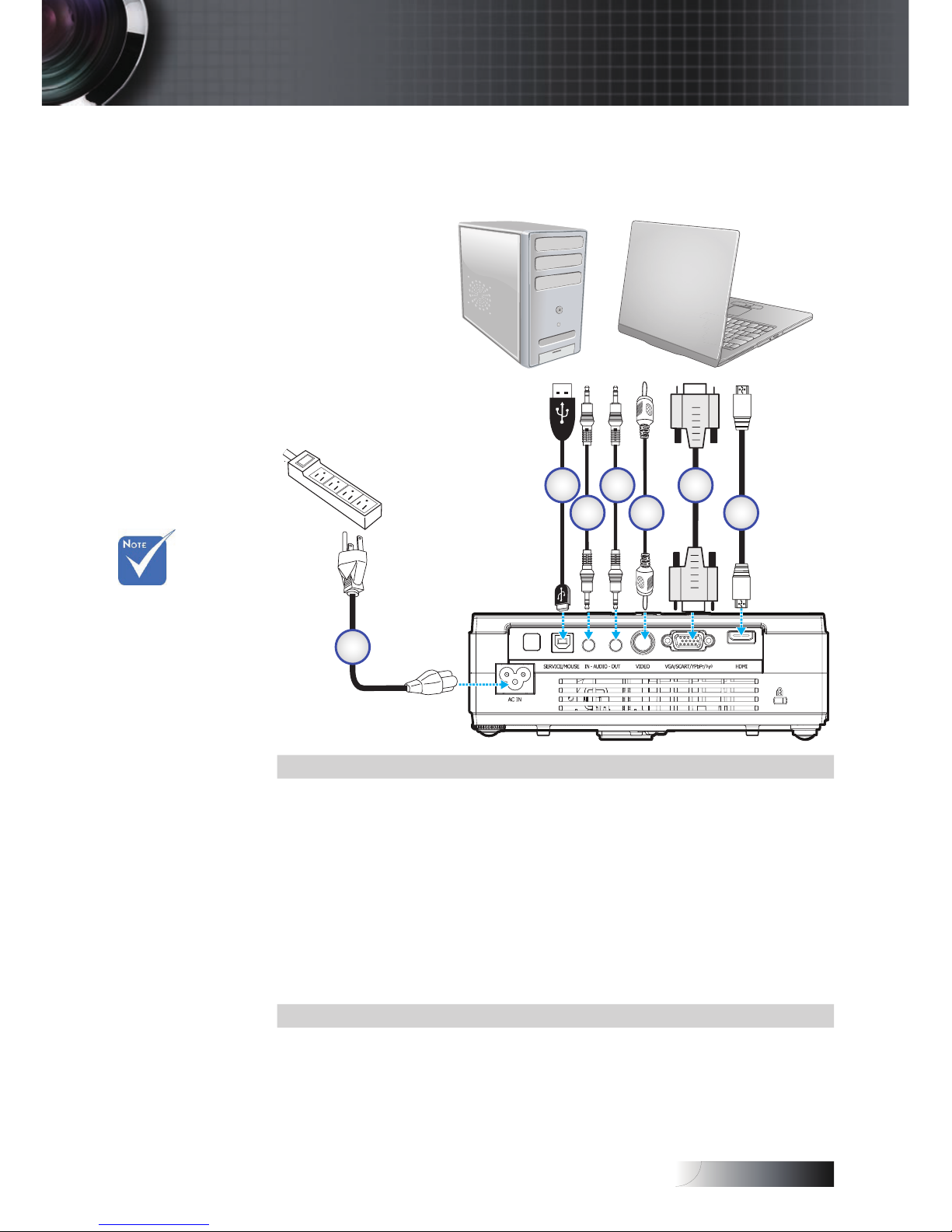

Connect to Computer / Notebook............................................................................................................................................13
Connect to Video Sources...........................................................................................................................................................14
Powering On / Off the Projector ..............................................................................................15
Powering On the Projector .........................................................................................................................................................15

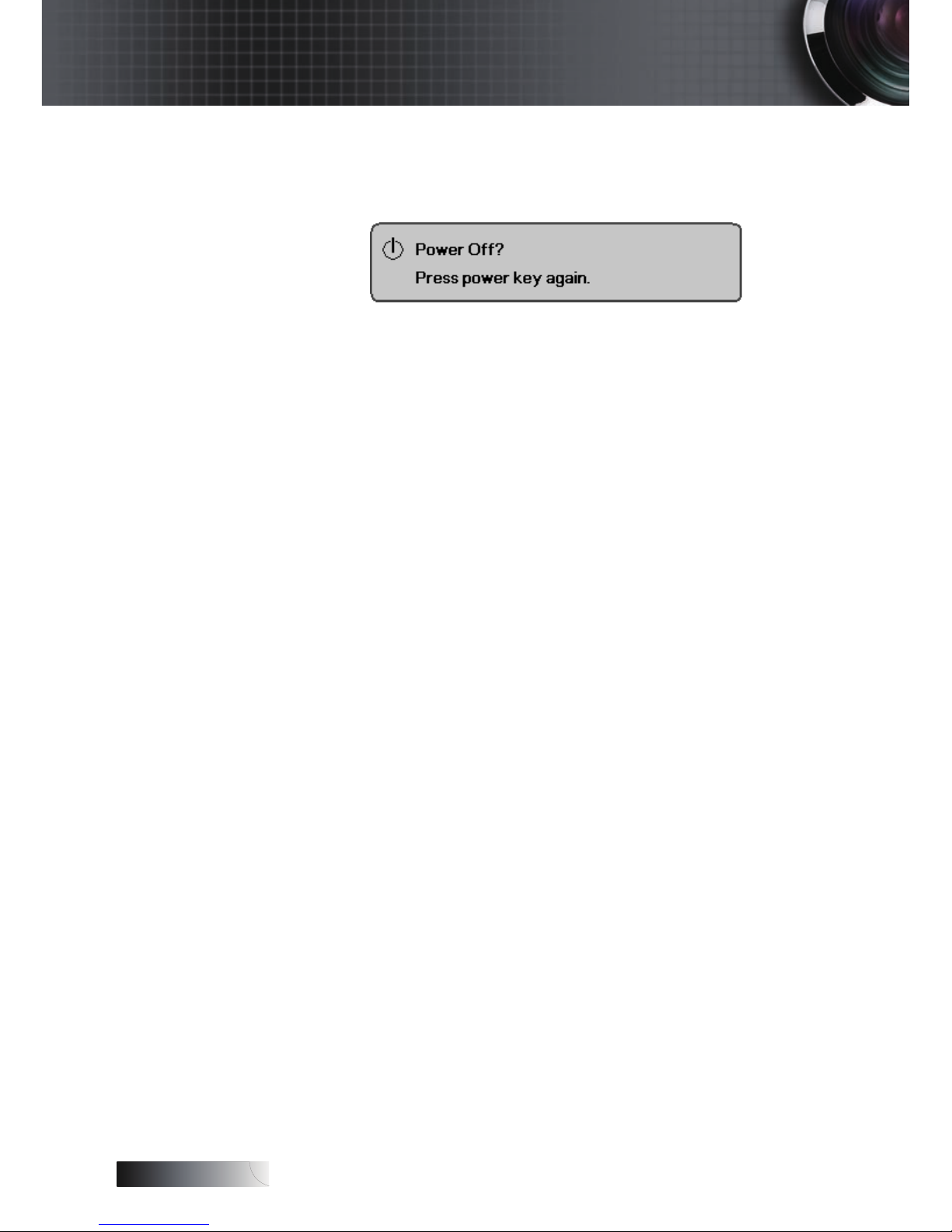

Powering Off the Projector.........................................................................................................................................................16
Warning Indicator........................................................................................................................................................................16
Adjusting the Projected Image..................................................................................................17

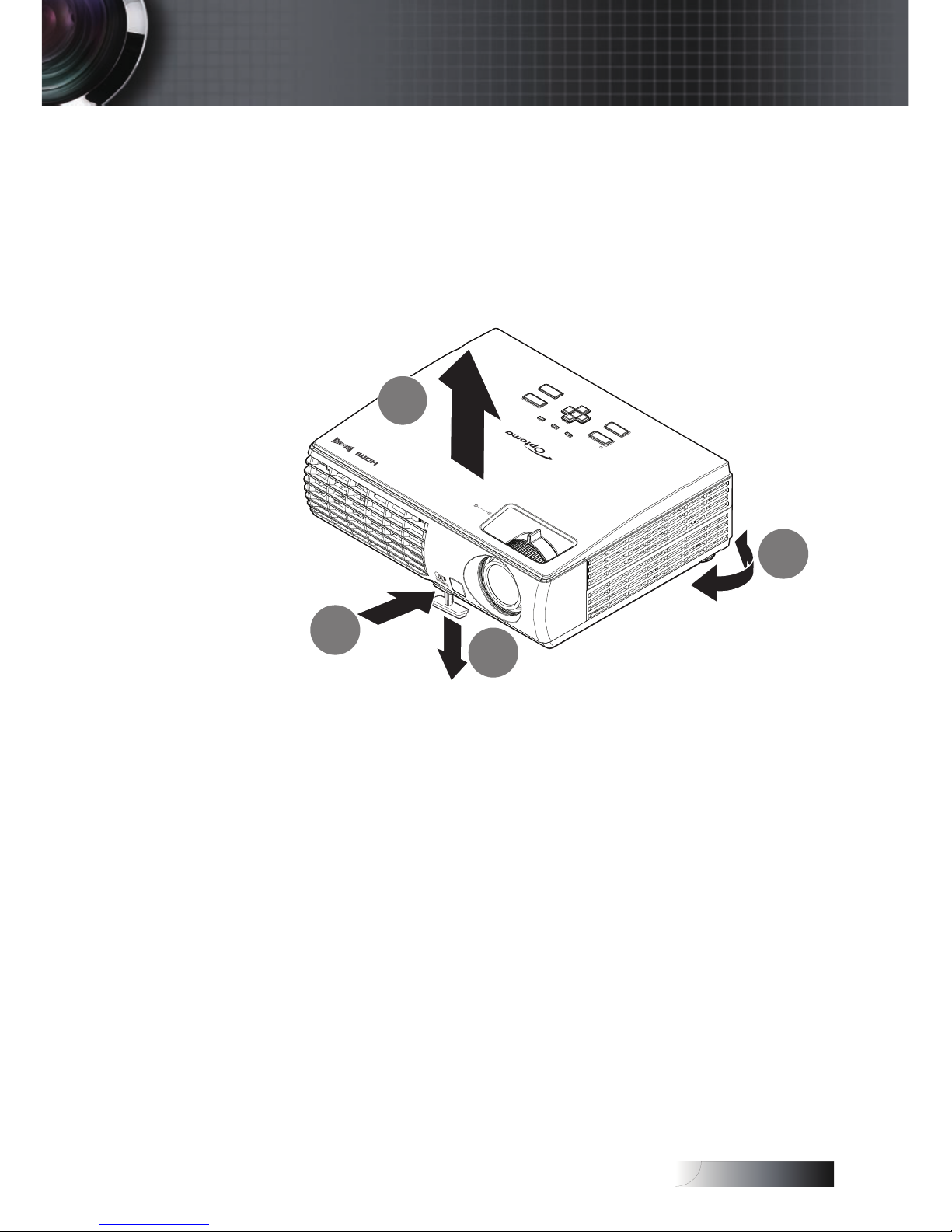

Adjusting the Projector’s Height ...............................................................................................................................................17
Adjusting the Zoom / Focus......................................................................................................................................................18
User Controls................................................................................................................... 19

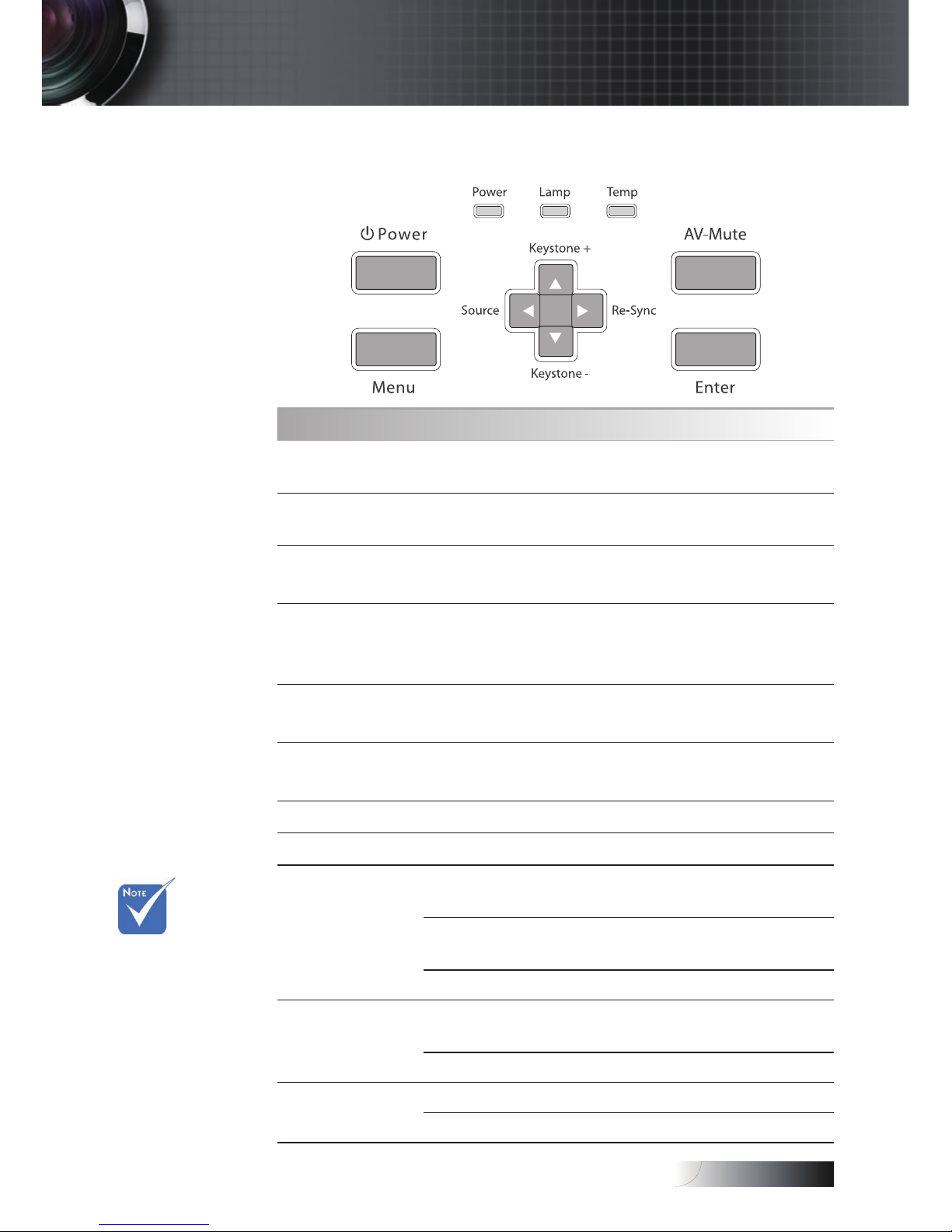

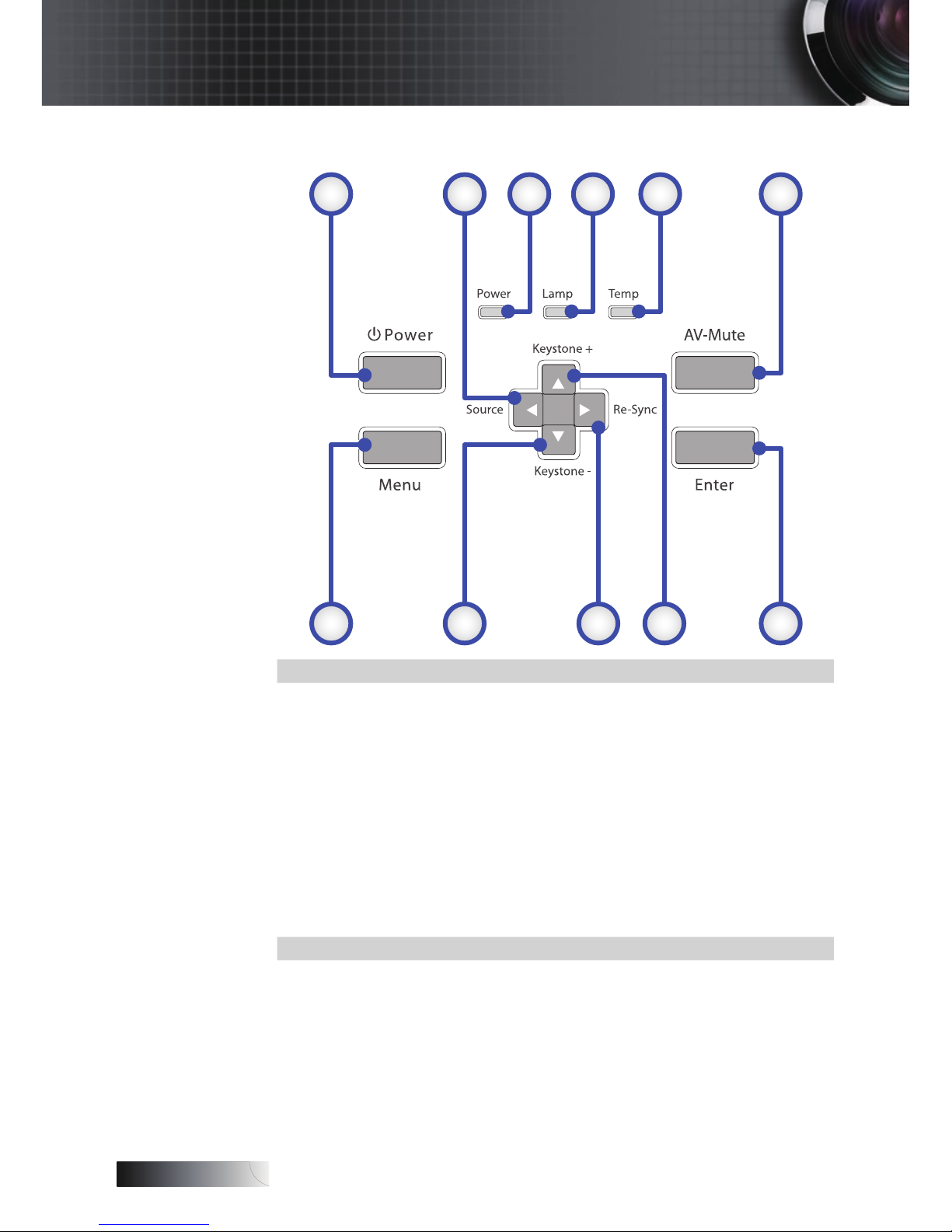

Control Panel ...............................................................................................................................19
Remote Control ...........................................................................................................................20
On-screen Display Menus..........................................................................................................22
How to operate.............................................................................................................................................................................22
Menu Tree.....................................................................................................................................................................................23
Image ............................................................................................................................................24
Display..........................................................................................................................................30
Setup .............................................................................................................................................34
Options .........................................................................................................................................42
Appendices ...................................................................................................................... 49
Troubleshooting ..........................................................................................................................49
Image Problems............................................................................................................................................................................49
Intermission Problems ................................................................................................................................................................51
Projector Status Indication..........................................................................................................................................................52
Remote Control Problems ..........................................................................................................................................................53
Audio Problems ...........................................................................................................................................................................53
Replacing the Lamp.....................................................................................................................................................................54
Cleaning the Projector ................................................................................................................55
Compatibility Modes..................................................................................................................56
Ceiling Installation......................................................................................................................59
Optoma Global Ofces...............................................................................................................60
Regulation & Safety notices.......................................................................................................62
Operation conditions..................................................................................................................63
Table of Contents

English
2
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions – before using this projector.
2. Keep these instructions – for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. Do not block any ventilation openings. To ensure reliable
operation of the projector and to protect it from overheating,
put the projector in a position and location that will not
interfere with its proper ventilation. For example, do not
place the projector on a bed, sofa, carpet, or similar surface
that may block the ventilation openings. Do not put it in an
enclosure, such as a bookcase or a cabinet that may keep air
from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector
to rain or moisture.
C. Do not install near any heat sources, such as radiators,
heaters, stoves or other apparatus (including ampliers) that
produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the
manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is
required when the projector has been damaged in any way, such as:
rPower supply cord or plug is damaged.
r Liquids have spilled or objects have fallen into the apparatus.
rThe projector has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Usage Notice

English
3
Do not attempt to service this projector yourself. Opening
or removing covers may expose you to dangerous voltages
or other hazards. Please call Optoma to be referred to an
authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a
re or electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone
except properly qualied service personnel.
Usage Notice

English
4
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■Warning - Do not look into the projector’s lens when the lamp is
on. The bright light may damage your eyes.
▀■ Warning - To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■Warning - Please do not open or disassemble the projector as this
may cause electric shock.
▀■Warning - When replacing the lamp, please allow unit to cool down,
and follow all replacement instructions. See page 54.
▀■Warning - This projector will detect the life of the lamp itself. Please
be sure to change the lamp when it shows warning
messages.
▀■Warning - Use the “Lamp Reset” function from the on-screen display
“Options|Lamp Settings” menu after replacing the lamp
module (see page 48).
▀■Warning - When switching the projector off, please ensure the
cooling cycle has been completed before disconnecting
the power. Allow 90 seconds for the projector to cool
down.
▀■Warning - Do not use the lens cap when projector is in operation.
▀■Warning - When the lamp is approaching the end of its life, the
message “Lamp is approaching the end of its useful
life” displays on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■Warning - To reduce the risk of injury to the eyes, do not look directly
into the laser beam on the remote control and do not point
the laser beam into anyone’s eyes. This remote control is
equipped with a Class II laser that emits radiation.
Usage Notice
 When the
lamp reaches
the end of
its life, the
projector will
not turn back
on until the
lamp module
has been
replaced. To
replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on page 54.

English
5
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with a mild detergent to clean the
display housing.
Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Don’t:
Do not block the ventilation slots and openings on the unit.
Do not use abrasive cleaners, waxes or solvents to clean the unit.
Do not use under the following conditions:
- In extremely hot, cold or humid environments. Ensure that
the ambient room temperature is within 5-40 °C and relative
humidity is 10-85% (max.), non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
Usage Notice

English
6
Usage Notice

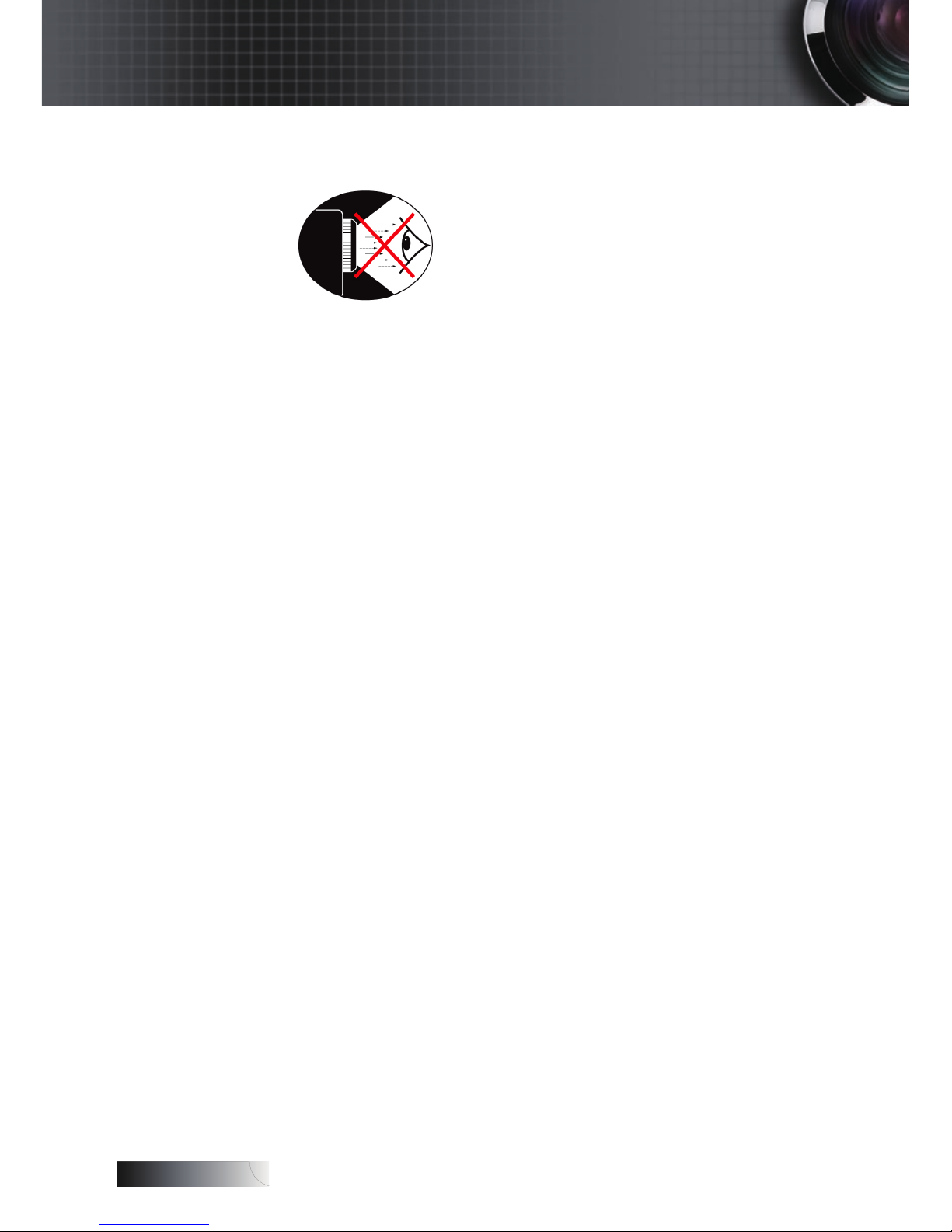

Eye Safety Warnings
▀■Avoid staring directly into the projector’s beam of light at all times.
▀■Minimize standing facing into the beam. Keep your back to the
beam as much as possible.
▀■Using a stick or laser pointer is recommended to avoid the need
for the presenter to enter the beam.
▀■Ensure that projectors are located out of the line of sight from the
screen to the audience; this ensures that, when presenters look at
the audience, they do not also have to stare at the projector lamp.
The best way to achieve this is by ceiling-mounting the projector
rather than placing it on oor or table top.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■In order to minimize the lamp power needed, use room blinds to
reduce ambient light levels.

English
7
Introduction
Product Features
This product is a single chip 0.55” XGA series and 0.65” WXGA
series DLP®projector. Outstanding features include:
uTexas Instruments Single chip DLP®Technology
uComputer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, WXGA, WUXGA, XGA, SVGA, VGA
uVideo Compatibility:
■NTSC, NTSC4.43
■PAL/PAL-M/PAL-N/SECAM
■SDTV and EDTV compatible
■HDTV compatible (720p, 1080i, 1080p)
u Auto source detection with user denable settings
u Fully featured IR remote control with laser pointer and
mouse control
uUser friendly multilingual On Screen Menu
uAdvanced digital keystone correction and high
quality full screen image re-scaling
uUser friendly control panel
u One built-in speaker with 1 Watt amplier
uMacintosh and PC compatible
uHDMI compatible
uFull 3D Support
uEco AV Mute
uWireless dongle support (via VGA port)

English
8
Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immediately
if anything is missing.
Focus
Zoom
AV-M ute
Keystone+
Re-Sync
Power
Power Lamp Temp
Enter
M enu
Keystone-
Source
Projector with lens cover IR Remote Control with Laser Pointer
& Batteries (AAA *2 PCS)
Power Cord VGA Cable Carrying Case
Introduction
 Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
Documentation:
þUser’s Manual
þWarranty Card
þQuick Start Card
þWEEE Card (EMEA only)
þStop Card (US only)

English
9
Product Overview
Main Unit
Focus
Zoom
AV-M ute
Keystone+
Re-Sync
Pow er
Pow er Lamp Temp
Enter
M enu
Keystone-
Source
1
234
5
7
6
8
9 10
11
1. Control Panel 7. Elevator foot
2. Zoom 8. Ventilation
3. Focus 9. Power Socket
4. Lens 10. Connection Ports
5. Front IR Receiver 11. Kensington™ Lock
6. Lens Cover
Introduction

English
10
Control Panel
1 2 3 4 5 6
789
1011
1. Power 7. Enter
2. ◄/Source
(Left arrow) 8. ▲/Keystone+ (Up arrow)
3. Power LED 9. ►/Re-Sync
(Right arrow)
4. Lamp LED 10. ▼/Keystone -
(Down arrow)
5. Temp LED 11. Menu
6. AV-Mute
Introduction
