Optoma X600 User manual

6000 lumens bright output makes it
ideal for large screen applications
DisplayPort and HDMI ports for full
digital connectivity
Full 3D compatibility. Studies show
information is more easily retained
when material is presented in 3D
Over the network management and
control capability makes it the perfect
projector for large installations
The Optoma X600 will make your
presentations shine with its powerful
6000 lumens bright output and stunning
10,000:1 contrast ratio. It delivers amaz-
ingly bright XGA resolution presentations
with vibrant colors and sharp, clear text,
graphics and video. Easily provides the
brightness level necessary for use in
medium / large rooms with ambient light
– including meeting rooms, classrooms,
and lecture halls.
The Optoma X600 features an impres-
sive array of connectivity options and
includes, Crestron RoomView for over
the network control and management
of up to 250 projectors. Perfect for large
scale enterprise installations in business
and educational environments.
CONNECTIVITY (May require optional accessories)
BRILLIANT CHOICE FOR LARGE SCREEN APPLICATIONS
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
3D BLU-RAY/DVD PLAYERS
Roku®Apple TV®
DATA SERIES PROJECTOR
X600

DATA SERIES PROJECTOR — X600
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.55” DC3 DMD
DLP®Technology by Texas Instruments™
Native Resolution XGA (1024 x 768)
Maximum Resolution WUXGA (1920 x 1200)
Brightness 6000 lumens
Contrast Ratio 10,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type* 3500/2500 Hours (STD/bright)
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ±15° Vertical
Uniformity 85%
Aspect Ratio 4:3 Native, 16:9 compatible
Throw Ratio 1.8–2.1:1 (distance/width)
Projection Distance 3.28’–39.4’ (1.0–12 m)
Image Size (Diagonal) 23.4”–300” (0.59–7.62 m)
Projection Lens F=2.6-2.81, f=26.9-29.84 mm, 1.2x manual zoom
and focus
Offset 112%
Audio 3-Watt speaker
Noise Level 28dB
Remote Control IR remote mouse control with laser
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Power Consumption 380W (bright), 300W (STD), <1W (standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA resized, VESA, PC and Mac compatible
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
3D Compatibility†Supports all HDMI 1.4a mandatory 3D format,
side-by-side format and top and bottom format. 3D
glasses are needed and sold separately.
Vertical Scan Rate 50–85Hz, 120Hz, 144Hz
Horizontal Scan Rate 15, 31–90KHz
User Controls Complete on-screen menu, adjustments in 26
languages
I/O Connection Ports Display port, Two HDMI, Two VGA-in, VGA-out,
S-video, composite video, stereo RCA, audio-in,
stereo audio-out, RS-232C, RJ45, 3D-sync, USB
and 12V trigger
Loop Through (Audio, VGA) Monitor: D-Sub 15 pin VGA output
Audio-out: Stereo 3.5 mm mini-jack (functional in
both normal and standby modes)
PHYSICAL SPECIFICATIONS
Security Kensington®Lock Port and keypad lock
Weight 8.2 lb (3.7 kg)
Dimensions (W x D x H) 12.8” x 4.3” x 10.2” (326 x 109 x 259 mm)
www.OptomaUSA.com
Copyright © 2013 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments™. All other trademarks are the property of their respective owners. All specica-
tions subject to change at any time. The Optoma Express Program is only valid in the U.S.
Warranty
3-Year Optoma Express Service, 1-Year on Lamp
In the Box
X600 projector, AC power cord, VGA to VGA cable, remote control, batteries
for remote, carrying case, lens cap, multilingual CD-ROM user’s manual, quick
start card and warranty card
Optional Accessories
Ceiling mount, RF 3D glasses, RF 3D emitter, DLP®Link™3D glasses, wireless
VGA dongle, and Optoma screens
Accessory Part Numbers
Lamp: BL-FU310B Mount: BM-5001U
Remote: BR-3070L Case: BK-4013
Wireless VGA dongle: BI-EXTBG03 DLP®Link™3D glasses: BG-ZD301
RF 3D glasses: BG-ZF2100GLS RF 3D emitter: BG-BC100B
UPC 796435 41 864 9
†3D content can be viewed with either RF or DLP Link active shutter glasses when projector is
used with a compatible 3D player. RF 3D glasses require the use of an RF 3D emitter and a
projector with a 3D VESA Sync port. Please visit www.OptomaUSA.com for more information.
*Lamp life is dependent on many factors, including lamp mode, display mode, usage,
environmental conditions and more. Lamp brightness can decrease over time.

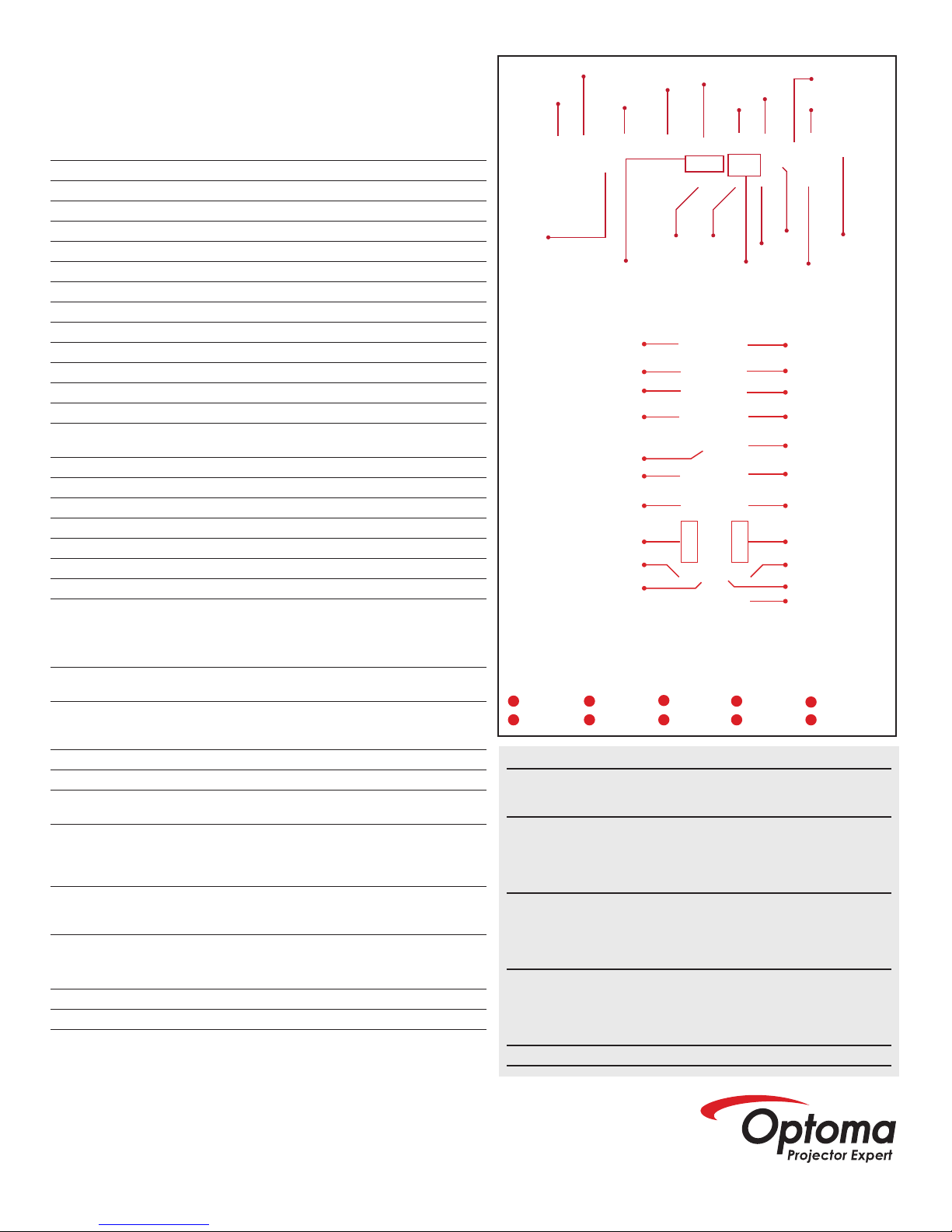

USB
VGA-Out
RJ45
RCA Audio-in L/R 3W speaker
Kensington
Lock Port
Audio-out/in
VGA-in 1
RS-232C S-Video IR
Video
VGA-in 2
Display Port
HDMI-1
HDMI-2 3D SYNC
12V Trigger
Power Off
Mouse Switch
Four Directional
Select Keys
Mode
F1
Test Pattern
Source
Power On
Enter
Format
Zoom
Volume
F2
AV Mute
Laser
Re-Sync
HDMI2
Remote All
Remote ID
Vertical Keystone
Page Up/Down
Info.
VGA1
S-Video
1
2
BNC
YPbPr
7
8
VGA2
HDMI
4
3Video
DVI
5
6
Display Port
3D
9
0
