Opus One A 2696 User manual

A 2696
Digital (DAB+) Internet FM Tuner
User Guide

Thank you for deciding to purchase this product. This instruction manual will give you a general idea of how this device
operates, as well as providing you with information on safety procedures and cleaning. In order to maintain this product in
good condition, and to ensure it's safe operation, please take a few minutes to read and carefully follow all the safety and
operating instructions found in this manual.
Dear Valued Customer
Please retain this instruction manual for future reference and pass it along with the device if handed over to a third party.
Should you have any additional questions regarding the operation or installation of this device, or should any problems arise
from its use, then please contact a specialized dealer or our service team for further information.
We assume no liability for any damage incurred as a result of improper use resulting from failure to comply with the safety
instructions found in this manual. Under such circumstances all claims under warranty will become null & void. We assume no
liability for any consequential damage!
This product is EMV-certified and complies with all European and National guideline requirements. A declaration of CE
conformity has been established for this product. Certification has been documented and entrusted to the manufacturer

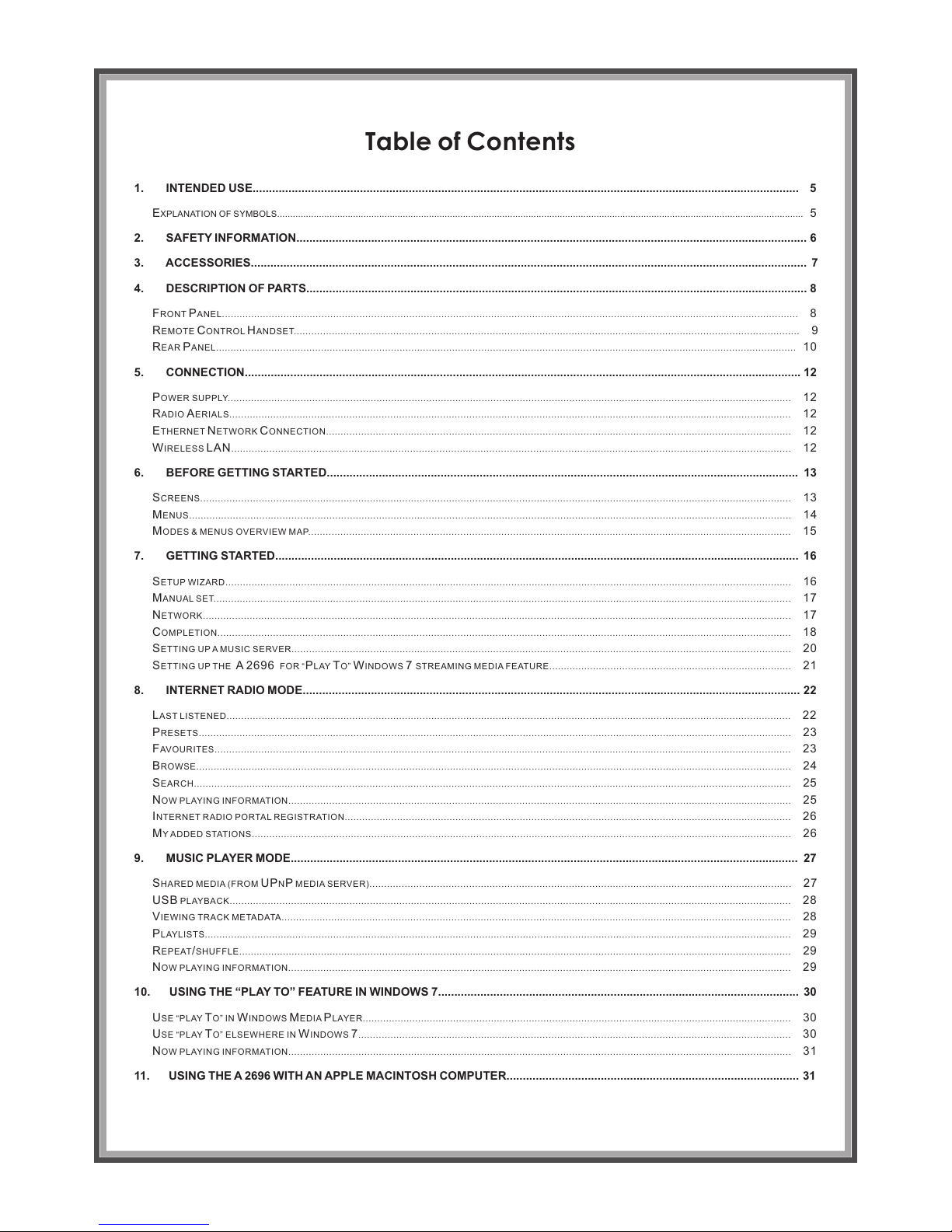

Table of Contents
1. INTENDED USE........................................................................................................................................................................ 5
EXPLANATION OF SYMBOLS......................................................................................................................................................................................................... 5
2. SAFETY INFORMATION............................................................................................................................................................. 6

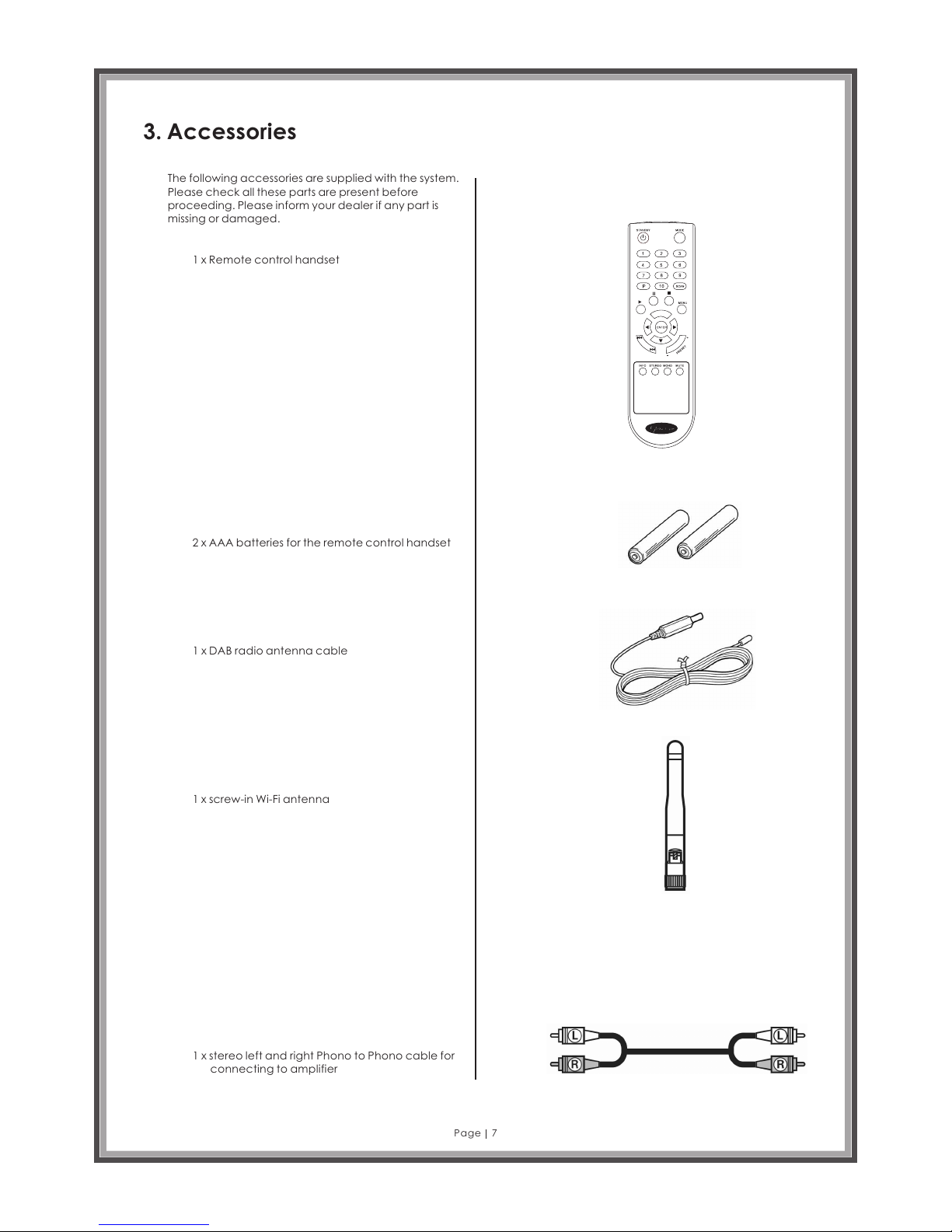

3. ACCESSORIES........................................................................................................................................................................... 7
4. DESCRIPTION OF PARTS.......................................................................................................................................................... 8

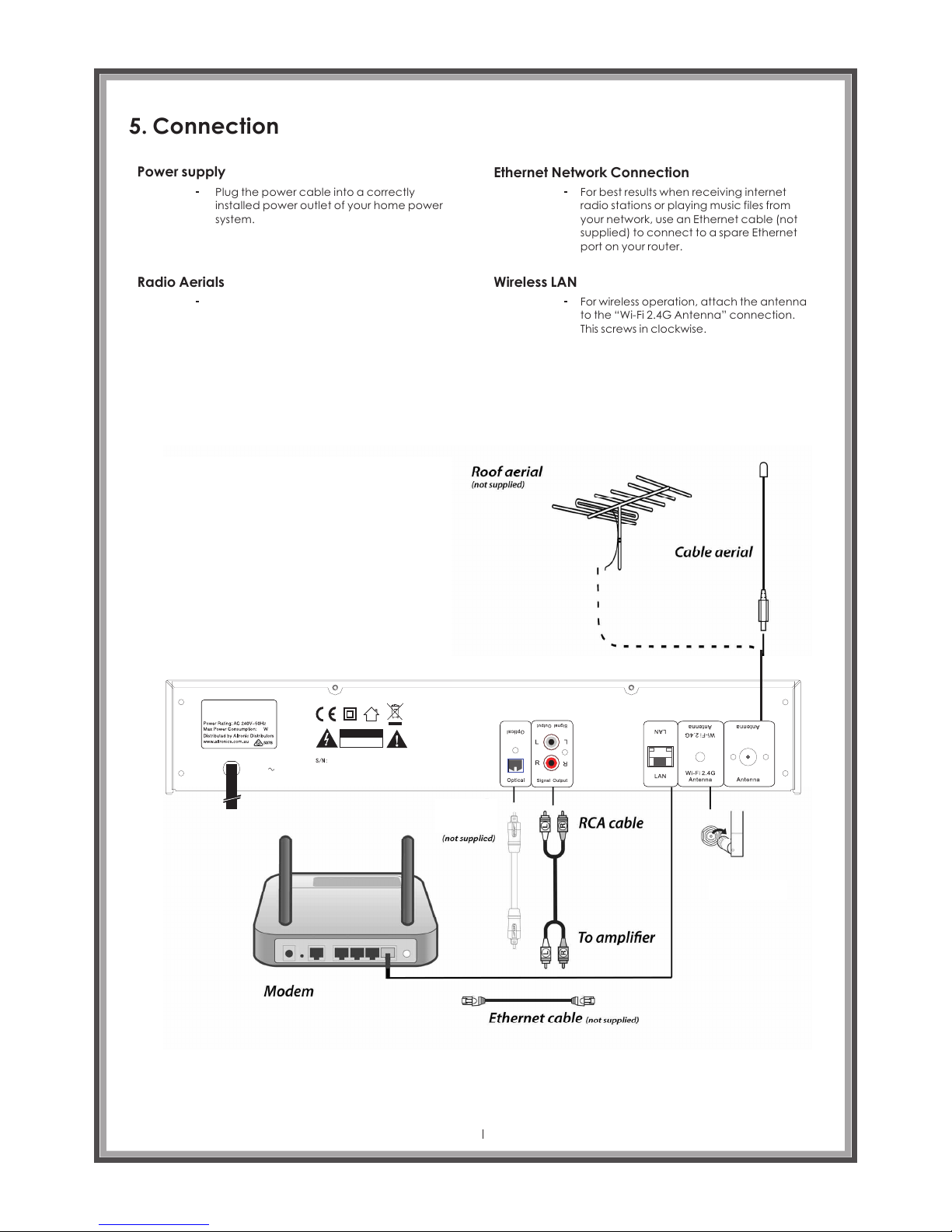

5. CONNECTION........................................................................................................................................................................... 12
6. BEFORE GETTING STARTED................................................................................................................................................. 13

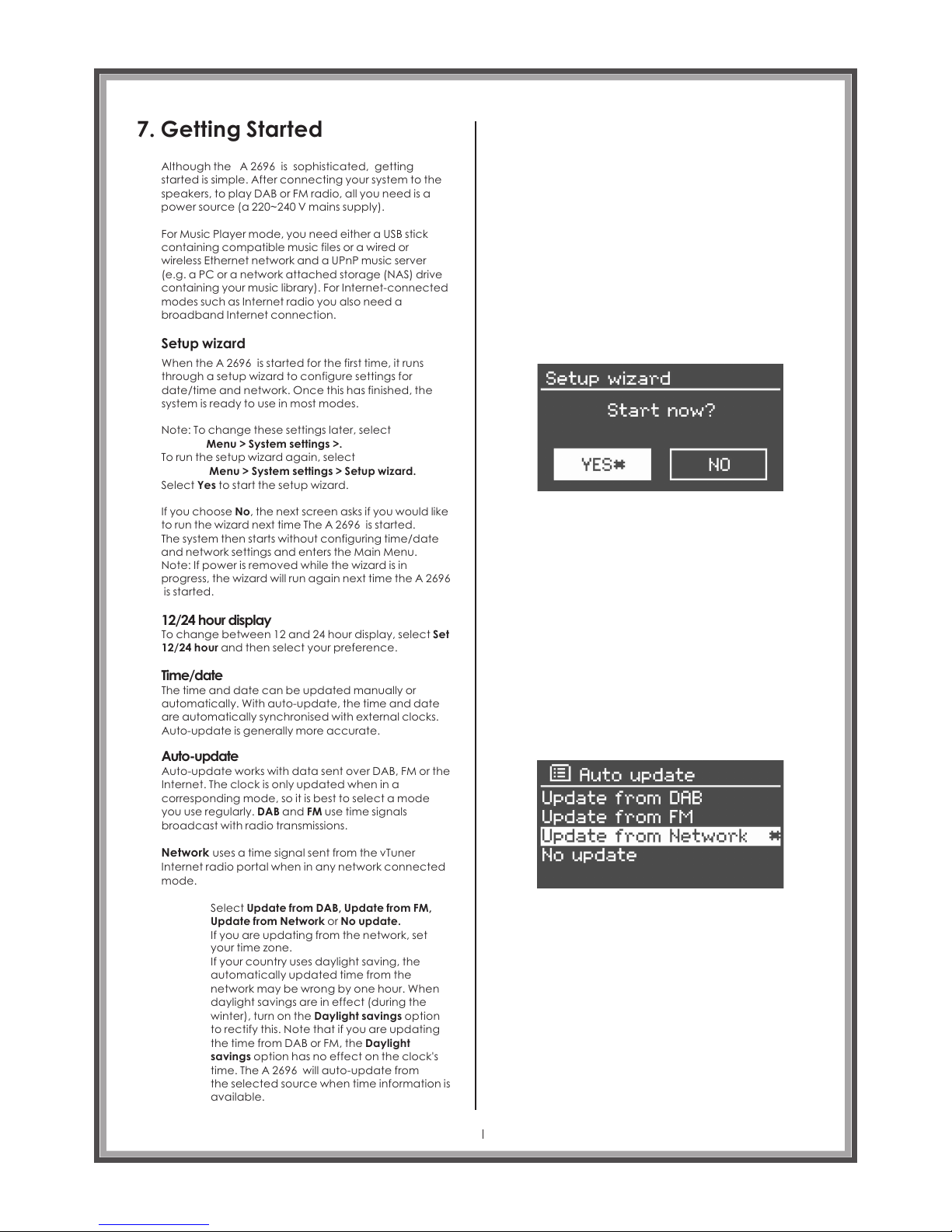

7. GETTING STARTED................................................................................................................................................................. 16
8. INTERNET RADIO MODE......................................................................................................................................................... 22
9. MUSIC PLAYER MODE............................................................................................................................................................ 27
10. USING THE “PLAY TO” FEATURE IN WINDOWS 7............................................................................................................... 30
11. USING THE A 2696 WITH AN APPLE MACINTOSH COMPUTER.......................................................................................... 31
FRONT PANEL..................................................................................................................................................................................................... 8
REMOTE CONTROL HANDSET............................................................................................................................................................................. 9
REAR PANEL....................................................................................................................................................................................................... 10
POWER SUPPLY................................................................................................................................................................................................. 12
RADIO AERIALS................................................................................................................................................................................................ 12
ETHERNET NETWORK CONNECTION............................................................................................................................................................... 12
WIRELESS LAN............................................................................................................................................................................................... 12
SCREENS.......................................................................................................................................................................................................... 13
MODES & MENUS OVERVIEW MAP..................................................................................................................................................................... 15
MENUS.............................................................................................................................................................................................................. 14
MANUAL SET...................................................................................................................................................................................................... 17
SETUP WIZARD.................................................................................................................................................................................................. 16
COMPLETION.................................................................................................................................................................................................... 18
NETWORK......................................................................................................................................................................................................... 17
SETTING UP A MUSIC SERVER........................................................................................................................................................................... 20
SETTING UP THE A 2696 FOR “PLAY TO” WINDOWS 7 STREAMING MEDIA FEATURE................................................................................... 21
LAST LISTENED................................................................................................................................................................................................. 22
PRESETS........................................................................................................................................................................................................... 23
FAVOURITES..................................................................................................................................................................................................... 23
BROWSE............................................................................................................................................................................................................ 24
SEARCH............................................................................................................................................................................................................ 25
NOW PLAYING INFORMATION............................................................................................................................................................................ 25
INTERNET RADIO PORTAL REGISTRATION......................................................................................................................................................... 26
MY ADDED STATIONS......................................................................................................................................................................................... 26
USB PLAYBACK................................................................................................................................................................................................ 28
SHARED MEDIA (FROM UPNP MEDIA SERVER)................................................................................................................................................ 27
VIEWING TRACK METADATA.............................................................................................................................................................................. 28
PLAYLISTS......................................................................................................................................................................................................... 29
REPEAT/SHUFFLE............................................................................................................................................................................................. 29
NOW PLAYING INFORMATION............................................................................................................................................................................ 29
USE “PLAY TO” IN WINDOWS MEDIA PLAYER................................................................................................................................................... 30
NOW PLAYING INFORMATION............................................................................................................................................................................ 31
USE “PLAY TO” ELSEWHERE IN WINDOWS 7.................................................................................................................................................... 30

12. DAB RADIO MODE.................................................................................................................................................................. 32
13. FM RADIO MODE..................................................................................................................................................................... 33
14. LIBRETTO WIRELESS DEVICE REMOTE CONTROL............................................................................................................ 35
15. SOFTWARE UPGRADE AND FACTORY RESET..................................................................................................................... 43
16. TROUBLESHOOTING AND ERROR MESSAGES................................................................................................................... 44
17. MAINTENANCE AND HANDLING............................................................................................................................................ 47
18. GLOSSARY................................................................................................................................................................................49
19. SPECIFICATIONS......................................................................................................................................................................49
SCANNING FOR STATIONS.......................................................................................................................................................................................................... 32
SELECTING STATIONS................................................................................................................................................................................................................ 32
PRESETS..................................................................................................................................................................................................................................... 32
NOW PLAYING INFORMATION.................................................................................................................................................................................................... 32
SETTINGS................................................................................................................................................................................................................................... 32
SELECTING STATIONS................................................................................................................................................................................................................ 33
NOW PLAYING INFORMATION..................................................................................................................................................................................................... 33
OBTAINING THE WIRELESS DEVICE REMOTE CONTROL APPLICATION............................................................................................................................... 35
SETTINGS.................................................................................................................................................................................................................................... 33
SETTING UP THE CONNECTION TO THE A 2696..................................................................................................................................................................... 35
STARTING THE WIRELESS DEVICE REMOTE CONTROL APPLICATION................................................................................................................................ 35
MENU STRUCTURE..................................................................................................................................................................................................................... 37
PLAYING FROM THE MUSIC PLAYER......................................................................................................................................................................................... 38
PLAYING INTERNET RADIO......................................................................................................................................................................................................... 37
PLAYING DAB RADIO................................................................................................................................................................................................................. 39
PLAYING FM RADIO................................................................................................................................................................................................................... 40
PLAYING PRESET RADIO STATIONS........................................................................................................................................................................................... 41
OTHER SETTINGS....................................................................................................................................................................................................................... 42
COMPARISON OF A 2696 UI AND WIRELESS DEVICE REMOTE CONTROL APPLICATION FUNCTIONALITY.................................................................. 42
SOFTWARE UPGRADE................................................................................................................................................................................................................ 43
FACTORY RESET......................................................................................................................................................................................................................... 43
ERROR MESSAGES...................................................................................................................................................................................................................... 46
TRANSPORTING THE DEVICE................................................................................................................................................................................................... 47
KEEPING THE EXTERNAL CASE CLEAN..................................................................................................................................................................................... 47
CLEANING THE DEVICE.............................................................................................................................................................................................................. 47
Before use
Please read this instruction manual thoroughly before operating this device and retain it for further reference. Following and
heeding all the information found in this instruction manual will maintain this product in good condition and ensure its safe
operation. This instruction manual contains information on how to operate and maintain this device. Should a component
require maintenance, servicing or repair, then please consult a qualified dealer or service technician.
20. WARRANTY INFORMATION.....................................................................................................................................................50

1. Intended Use
This device is an FM/DAB/DAB+ stereo tuner with internet radio. It can be used for internet radio station reception by
means of internet access either via a broadband high-speed Ethernet cable or wireless LAN (Wi-Fi). FM & DAB radio
reception are also possible with an antenna. Music files stored on a network can also be accessed.
Please adhere to all of the safety information and instructions found in this instruction manual.
This symbol is intended to alert you to the
presence of unprotected live parts or
components found within the product's
enclosure, or of dangerous connections that
upon contact may be of sufficient magnitude
to constitute a risk of electric shock. Cable
intended for such connections should only be
connected by qualified personnel or you
should only use ready to connect cables.
There are no user-serviceable parts found
inside the device, therefore the device need
never be opened.
An exclamation mark is intended to inform the
user of important information, operation or
maintenance instructions, or that special
attention is required.
Page 5

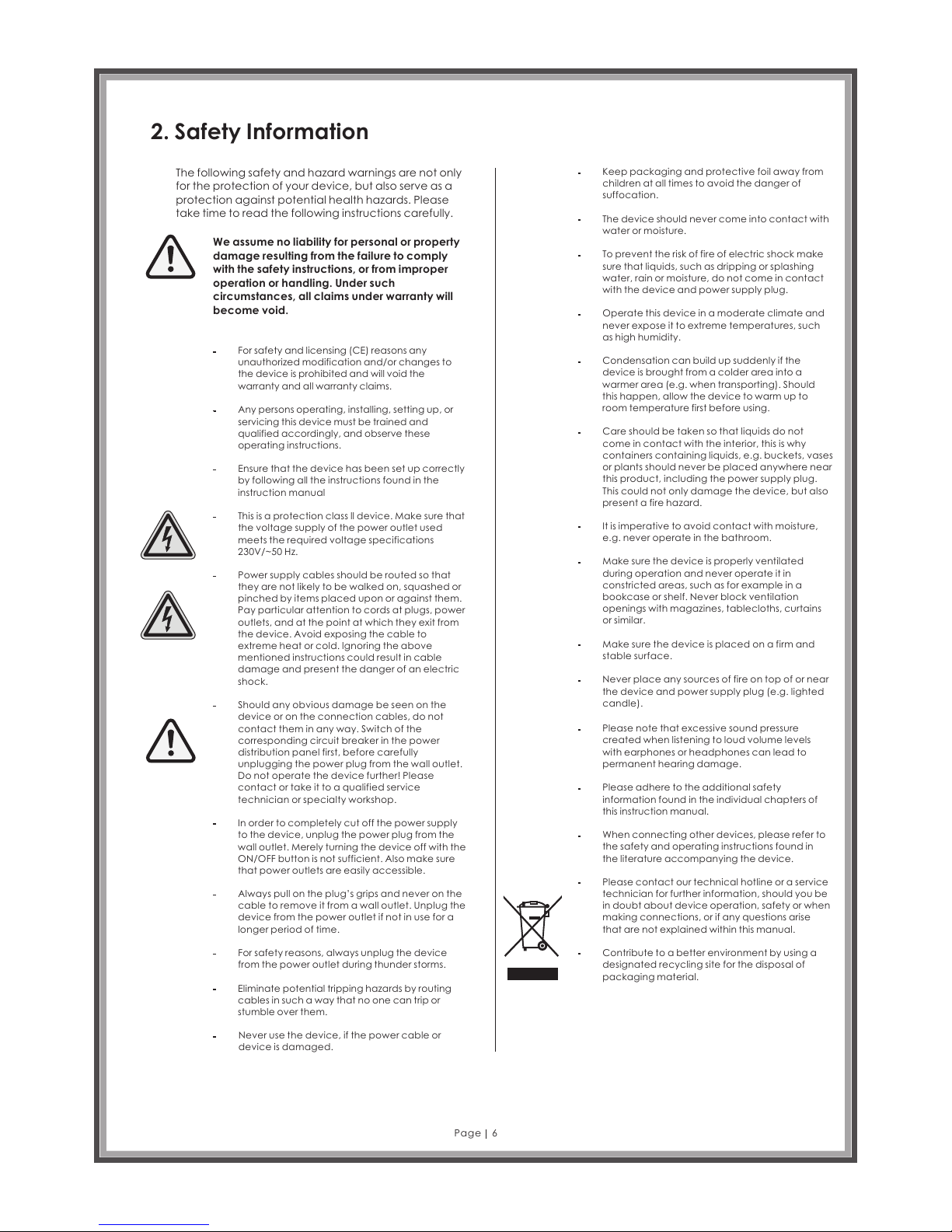

2. Safety Information
The following safety and hazard warnings are not only
for the protection of your device, but also serve as a
protection against potential health hazards. Please
take time to read the following instructions carefully.
We assume no liability for personal or property
damage resulting from the failure to comply
with the safety instructions, or from improper
operation or handling. Under such
circumstances, all claims under warranty will
become void.
For safety and licensing (CE) reasons any
unauthorized modification and/or changes to
the device is prohibited and will void the
warranty and all warranty claims.
Any persons operating, installing, setting up, or
servicing this device must be trained and
qualified accordingly, and observe these
operating instructions.
This is a protection class ll device. Make sure that
the voltage supply of the power outlet used
meets the required voltage specifications
230V/~50 Hz.
Ensure that the device has been set up correctly
by following all the instructions found in the
instruction manual
Power supply cables should be routed so that
they are not likely to be walked on, squashed or
pinched by items placed upon or against them.
Pay particular attention to cords at plugs, power
outlets, and at the point at which they exit from
the device. Avoid exposing the cable to
extreme heat or cold. lgnoring the above
mentioned instructions could result in cable
damage and present the danger of an electric
shock.
Should any obvious damage be seen on the
device or on the connection cables, do not
contact them in any way. Switch of the
corresponding circuit breaker in the power
distribution panel first, before carefully
unplugging the power plug from the wall outlet.
Do not operate the device further! Please
contact or take it to a qualified service
technician or specialty workshop.
In order to completely cut off the power supply
to the device, unplug the power plug from the
wall outlet. Merely turning the device off with the
ON/OFF button is not sufficient. Also make sure
that power outlets are easily accessible.
Always pull on the plug’s grips and never on the
cable to remove it from a wall outlet. Unplug the
device from the power outlet if not in use for a
longer period of time.
For safety reasons, always unplug the device
from the power outlet during thunder storms.
Eliminate potential tripping hazards by routing
cables in such a way that no one can trip or
stumble over them.
Never use the device, if the power cable or
device is damaged.
Keep packaging and protective foil away from
children at all times to avoid the danger of
suffocation.
The device should never come into contact with
water or moisture.
To prevent the risk of fire of electric shock make
sure that liquids, such as dripping or splashing
water, rain or moisture, do not come in contact
with the device and power supply plug.
Operate this device in a moderate climate and
never expose it to extreme temperatures, such
as high humidity.
Condensation can build up suddenly if the
device is brought from a colder area into a
warmer area (e.g. when transporting). Should
this happen, allow the device to warm up to
room temperature first before using.
Care should be taken so that liquids do not
come in contact with the interior, this is why
containers containing liquids, e.g. buckets, vases
or plants should never be placed anywhere near
this product, including the power supply plug.
This could not only damage the device, but also
present a fire hazard.
It is imperative to avoid contact with moisture,
e.g. never operate in the bathroom.
Make sure the device is properly ventilated
during operation and never operate it in
constricted areas, such as for example in a
bookcase or shelf. Never block ventilation
openings with magazines, tablecloths, curtains
or similar.
Make sure the device is placed on a firm and
stable surface.
Never place any sources of fire on top of or near
the device and power supply plug (e.g. lighted
candle).
Please note that excessive sound pressure
created when listening to loud volume levels
with earphones or headphones can lead to
permanent hearing damage.
Please adhere to the additional safety
information found in the individual chapters of
this instruction manual.
When connecting other devices, please refer to
the safety and operating instructions found in
the literature accompanying the device.
Please contact our technical hotline or a service
technician for further information, should you be
in doubt about device operation, safety or when
making connections, or if any questions arise
that are not explained within this manual.
Contribute to a better environment by using a
designated recycling site for the disposal of
packaging material.
Page 6

3. Accessories
The following accessories are supplied with the system.
Please check all these parts are present before
proceeding. Please inform your dealer if any part is
missing or damaged.
1 x Remote control handset
2 x AAA batteries for the remote control handset
1 x DAB radio antenna cable
1 x screw-in Wi-Fi antenna
1 x stereo left and right Phono to Phono cable for
connecting to amplifier
Page 7

4. Description of parts
Front Panel
Page 8
1 2 3 4 5 6 7 8 9 10
A 2696 Digi ta l (D AB +) I nt er ne t FM Tuner
1. USB Port - Connect mass storage media like flash drives or Hard Drives. Not suitable for keyboards, mouse, and
some MP3 players not supported.
2. TUNE - / : When operating mode is FM Radio press to auto scan for previous station.
When operating mode is Music Player, press to skip to previous track.
3. TUNE + / : When operating mode is FM Radio press to auto scan for next station.
When operating mode is Music Player press to skip to next track.
4. INFO / : When operating mode is FM Radio or DAB Radio press to see RDS / DLS information on the current
station.
When operating mode is Music Player press to play, press again to pause.
5. STR / MONO: When operating in FM Radio mode use this button to switch between mono and stereo reception.
NOTE: Some stations may be MONO only FM broadcasts.
6. MODE: Change operating mode. Press to select modes either DAB+ Radio, FM Radio, Internet Radio or Music
Player.
7. BACK: Press to go to Previous Menu screen. (This function is available from the Remote Control, but the BACK
button is not included)
8. MENU: Press to go to Menu screen.
9. Jogwheel: This acts as a volume control, station selector or Menu function selector. Turn left or right to scroll
through menu items. Press to confirm the selection.
10. POWER: Press to switch the unit on or off.

Remote Control Handset
Page 9
12
3
45
67
89
10 11
12 13
14
15
16
17
18
19
20
21
22
1. STANDBY: Press to turn unit on or off.
2. MODE: Press to select one mode within DAB, FM, Internet radio, Media player, USB.
3. Numbers (1-10): In FM or DAB modes, press and hold the number buttons to save station or frequency to a preset. Or press a
button to select a stored station.
4. P: Press to browse preset station list. Use up/down arrow keys to highlight a station in the list, and press ENTER to select your
preferred station.
5. SCAN: Press to auto search for stations in FM or DAB+ modes. In DAB mode, the scan function will capture all available
stations and keep them in memory to be selected at will, or chosen as favourites in the presets list.
6. : PAUSE – Press to pause playback of track in Media Player mode. Also acts as a menu control.
7. : STOP –End all playback
8. : PLAY - Press to start playback of track in Media Player mode. Also acts as a menu control.
9. MENU: Press to go to menu list. Allows a user to change a range of parameters and control each mode of operation for the
A2696.
10. : When play mode is FM, press up to change frequency by 0.05 MHz steps. When in MENU screen, press to go up the list of
settings to highlight and change. This cursor can also be used for character input.
11. ENTER – OK or confirm button.
12. : Left move – When in MENU screen, press to go back to PREVIOUS menu screen or cancel an action. This cursor can also
be used for character input.
13. : Right move - When in MENU screen, press to go forward to NEXT menu selection screen. This cursor can also be used for
character input.
14. : When play mode is media player, press to skip to PREVIOUS track. When operation mode is tuner, press to auto scan for
previous stations.
15. : When play mode is media player, press to skip to NEXT track. When play mode is tuner, press to auto scan for next
stations.
16. PRESET+: press to go to next preset station.
17. PRESET-: Press to go to previous preset station.
18. : When play mode is FM, press down to change frequency by 0.05 MHz steps. When in MENU screen, press to go down the
list of settings to change. This cursor can also be used for character input.
19. INFO: Information about current stations or tracks
20. STEREO: When in FM mode, press to change from mono to stereo reception (works only where station is broadcasting in
stereo. Some low-power FM station broadcast in mono only!)
21. MUTE – Press to turn audio volume off and on again.
22. MONO: When in FM mode, cancels STEREO command.

Rear Panel
Page 10
AC240V
A 2696
Digita l (D AB +)
Intern et F M Tuner
12
RISK OF ELECTRIC
SHOCK DO NOT OPEN
C A U T I O N
DAB/ FM
DAB/FM
1 2 3456
1. Power cord.
2. Optical: Connect an optical cable (not supplied) to connect to a digital input such as the optical input on
amplifiers.
3. Signal Output: RCA stereo ANALOGUE output connections. Connect RCA to RCA stereo pair cable
(supplied), ensuring the red connector on the cable is connected to the red connector on both the A 2696
and your amplifier.
4. LAN: Ethernet cable connection for connecting between the A 2696 and a router (UTP Cable not supplied).
5. Wi-Fi 2.4G Antenna: WLAN 2.4 GHz Wi-Fi antenna input jack for internet radio (supplied).
6. DAB/FM Antenna: 75 ohm Tuner antenna for both FM and DAB+ radio reception (supplied).
DESCRIPTIONS
Optical: Use this output to connect a digital amplifier using an optical cable (also known as an optical
waveguide or TOSlink). One of the advantages of digital transmission of the audio signal to the amplifier is that
interference cannot affect the signal and reduce the quality as can occur with analogue transmission. You can
also connect the optical input of a digital recorder to this output to save and then playback the audio.
This output uses the S/PDIF (Sony / Philips Digital Interface) protocol. This is a standard protocol for digital
transmission of audio signals, which is supported by just about any device with a digital interface. Before
making the audio connection to your amplifier, please make sure the volume is at a suitable level to prevent
damage to your hardware.
Signal Out: The line output on the back of the device is intended to be connected to the Line input of a Hi-Fi
amplifier or a pair of active speakers (speakers with built-in amplifiers). The output is designed for a voltage
level of 2 VRMS. Before making the audio connection to your amplifier, please make sure the volume is at a
suitable level to prevent damage to your hardware.
LAN: Use this port if you would like to integrate the A2696 into your network via a wired connection. To
distinguish it from the wireless or WLAN connection, it is frequently referred to as a LAN or Ethernet port. The port
supports data rates of 10 and 100 Mbps.
To connect the A2696 to your router in this manner, use a standard network cable (twisted pair with RJ45 plugs).
To connect the A2696 directly to your desktop PC or laptop, either use a network switch (also known as a
bridge) or a hub.
To connect the A2696 without any intermediate devices, use a crossover cable instead of a standard network
cable. Two LEDs near the port show the status of the link: orange indicates a live connection to the network
junction (node); network traffic is signalled by a green LED (usually flickering).
Wi-Fi 2.4 GHz WLAN Antenna: If you have access to a 2.4 GHz Wireless LAN (WLAN) router, screw the antenna
provided onto this connector. If possible, ensure that the antenna is set to a vertical position to ensure the best
possible reception.

Dear Customer!
Note:
Do not throw batteries and
rechargeable batteries into household waste!
Consumers are legally obligated to return used and
rechargeable batteries, whether they contain
harmful substances* or not, to designated recycling
areas, disposal sites, or stores where batteries/
rechargeable batteries can be bought. By doing so,
you are fulfilling all legal battery recycling and
disposal obligations and are contributing to a better
enviroment. Make sure batteries are completly
discharged before disposing!
*) marked with Cd=cadmium Hg=mercuric Pb=lead
Inserting/changing batteries
The remote control requires two “AAA” batteries to
operate. Remove the battery compartment lid carefully.
Remove the used batteries. Insert new batteries, observing
the correct polarity as displayed inside the remote.
Replace the battery lid carefully.
Information on handling batteries and rechargeable
batteries
Please adhere to the following information when handling
batteries and rechargeable batteries.
Keep batteries out of children’s reach.
Batteries are hazardous and do not
belong in household waste.
Ensure correct polarity when inserting
batteries.
Always remove batteries when the remote
control is not in use for long periods of
time.
Never leave batteries lying around
unsupervised. If swallowed these could
pose a choking hazard to children and
pets. Seek emergency medical care
immediately, should this happen.
Never expose batteries to extreme
temperatures, such as sunlight, fire, ovens,
etc. There is a risk of explosion!
Make sure that batteries are not
dismantled, short-circuited or are thrown
into fire. Never re-charge non-
rechargeable batteries. There is a risk of
explosion!
Always follow the manufacturer’s
instructions when recharging
rechargeable batteries.
Touching leaking or damaged batteries
could cause skin burns. Use protective
gloves suitable for handling such batteries.
Always ensure that the device has been
turned off after use.
Always change/replace all batteries at
the same time.
If required clean battery and device
contacts before inserting.
Page 11

5. Connection
Power supply
Plug the power cable into a correctly
installed power outlet of your home power
system.
Radio Aerials
Ethernet Network Connection
For best results when receiving internet
radio stations or playing music files from
your network, use an Ethernet cable (not
supplied) to connect to a spare Ethernet
port on your router.
Wireless LAN
For wireless operation, attach the antenna
to the “Wi-Fi 2.4G Antenna” connection.
This screws in clockwise.
Page 12
AC240V
A 269 6
Digital (DAB+)
Internet FM Tuner
12
RISK OF ELECTRIC
SHOCK DO NOT OPEN
C A U T I O N
DAB/FM
DAB/FM
Optical
cable
Wi-fi aerial
In order to receive DAB or FM radio
broadcasts it is necessary to connect
the supplied wire aerial to the screw
socket marked DAB/FM Antenna.
Alternatively, if you have an external aerial,
you can connect a suitable cable from the
socket marked DAB/FM Antenna to a wall
socket that connects to the roof aerial.

6. Before Getting Started
Screens
There are basically six types of screen:
Standby
Splash / temporary (e.g. changing modes)
Now playing
Dialogue
Error/Information
Menu
.
.
.
.
.
.
When text is too long to fit on the screen, it is first
shown truncated, then, after a few seconds, slowly
scrolls so that you can read it all. The Standby screen
shows the time, date and any active alarm times. As
you cycle through the play modes by pressing the
Mode button the A 2696 shows a
for each mode.
splash screen
After one second, the enters the selected
mode and tries to start playing the last station or track
that was playing in that mode. If this is not possible,
the A 2696 tries to connect to the selected source
by scanning for stations, networks, or prompting for
user input as appropriate.
A 2696
Now playing screens show information about the
audio source and track now playing, where available.
Dialogue screens are shown to allow the user to
change settings. They vary in complexity from simple
Yes/No options up to the scrollable network password
input screen. As with menus, the selected item is
shown with a white background.
Dialogue screens mark the current setting with an
asterisk (*).
Error/Information screens give specific messages
for a few seconds, then change automatically to
another screen.
Page 13
The screen shows various menus, dialogues and
displays, as described below.

Menus
The has basically three types of menu. Use
the Select control to step through and select options.
A scroll bar on the right of the screen shows if there
are further options above or below those visible.
A 2696
Each mode has a Mode menu, with options specific to
that mode. For example, the FM mode menu has just
two options: Scan setting and Audio setting.
In addition, each mode menu has two final options:
System settings > and Main menu >.
The '>' indicates options leading to further menus.
The System settings menu allows access to system
settings and information such as network, time,
language and software update. Menus with more
options than will fit on one screen have a scroll bar to
the right. The Main menu allows access to all modes
plus sleep and timer functions.
The Main menu allows access to all modes plus sleep
and timer functions.
Some menus, for example the System settings menu,
have several submenus. See the Modes and menu
overview map on page 15.
Page 14

Page 15

7. Getting Started
Although the is sophisticated, getting
started is simple. After connecting your system to the
speakers, to play DAB or FM radio, all you need is a
power source (a 220~240 V mains supply).
A 2696
For Music Player mode, you need either a USB stick
containing compatible music files or a wired or
wireless Ethernet network and a UPnP music server
(e.g. a PC or a network attached storage (NAS) drive
containing your music library). For Internet-connected
modes such as Internet radio you also need a
broadband Internet connection.
Setup wizard
When the is started for the first time, it runs
through a setup wizard to configure settings for
date/time and network. Once this has finished, the
system is ready to use in most modes.
A 2696
Note: To change these settings later, select
Menu > System settings >.
To run the setup wizard again, select
Menu > System settings > Setup wizard.
Select Yes to start the setup wizard.
If you choose No, the next screen asks if you would like
to run the wizard next time The A 2696 is started.
The system then starts without configuring time/date
and network settings and enters the Main Menu.
Note: If power is removed while the wizard is in
progress, the wizard will run again next time the A 2696
is started.
12/24 hour display
Time/date
Auto-update
To change between 12 and 24 hour display, select Set
12/24 hour and then select your preference.
The time and date can be updated manually or
automatically. With auto-update, the time and date
are automatically synchronised with external clocks.
Auto-update is generally more accurate.
Auto-update works with data sent over DAB, FM or the
Internet. The clock is only updated when in a
corresponding mode, so it is best to select a mode
you use regularly. DAB and FM use time signals
broadcast with radio transmissions.
Network uses a time signal sent from the vTuner
Internet radio portal when in any network connected
mode.
Select Update from DAB, Update from FM,
Update from Network or No update.
If you are updating from the network, set
your time zone.
If your country uses daylight saving, the
automatically updated time from the
network may be wrong by one hour. When
daylight savings are in effect (during the
winter), turn on the Daylight savings option
to rectify this. Note that if you are updating
the time from DAB or FM, the Daylight
savings option has no effect on the clock's
time. The A 2696 will auto-update from
the selected source when time information is
available.
Page 16

Manual set
If you set No update, the wizard now prompts you to
set the time and date manually. The date and time
are displayed as dd-mm-yyyy and hh:mm AM/PM with
the first value, dd, active (flashing).
Adjust each value with the Select control. As each
value is set, the next value becomes active and
flashes.
Network
The is compatible with all common network
protocols and encryption methods, including Wi-Fi
Protected Setup (WPS).
To connect the A 2696 to your network, you need
one of the following:
A 2696
A wired router and an Ethernet (RJ45
network) cable
A Wi-Fi wireless router, together with
password key if set
Select WLAN region/country (for the UK choose Most
of Europe) > Wi-Fi network (SSID), and then select a
network from the list. To connect to a wired network,
select [Wired], after ensuring that the Ethernet cable
from the wired router is connected to the Ethernet
socket of the A 2696. If the network is open (non-
encrypted), A 2696 connects immediately (see
Completion below).
Standard encrypted network
To enter the network's key (password), use the Select
control to move the cursor through the characters
and press Select. As each character is selected, the
key is built up near the top of the display. There are
three options accessible by turning Select back
before the first characters (0123…) – Backspace, OK
and Cancel.
WPS encrypted network
WPS encrypted networks are identified by '[WPS]' at
the start of the network name, and have three
methods of connection. Select one and follow the
prompts:
Push Button >
The prompts you to press the connect
button on the router. It then scans for a ready
Push Button Connect network and connects.
A 2696
Pin > (code number)
The generates an 8-digit code number
which you enter into the wireless router, access
point, or an external registrar (e.g. advanced
versions of Windows Vista).
A 2696
Skip WPS >
Enter key as for a standard encrypted network,
above.
For more information on setting up a WPS encrypted
network, see your WPS router's instructions.
Page 17

Completion
The attempts to connect to the selected
network.
A 2696
If connecting fails, the returns to a previous
screen to try again.
A 2696
If the network connection is lost, the will
automatically attempt to reconnect.
A 2696
If network connection is successful the Connected
screen will appear.
Upon completion of the process the Setup Wizard
confirms connection and setup up has been
successful
Page 18

Network
The A 2696 remembers the last four wireless networks
it has connected to, and automatically tries to
connect to whichever one of them it can find.
You can see the list of registered networks through
Menu > System settings > Network > Network profile >.
From here you can delete unwanted networks by
turning and pressing Select then confirming delete
Yes.
There are also other options for viewing and manually
altering network settings from
Menu > System settings > Network >
(for example setting up a wired network).
Users experienced with networking may find these
options useful for diagnosing and fixing network
problems.
Language
The default language is English. To change, select
Menu > System settings >Language >
then select your language.
Page 19

Setting up a music server
In order for the to play music files from a
computer, the computer must be set up to share files
or media.
A 2696
UPnP media sharing allows devices like the
A 2696 to play music from a shared media library,
navigating through tag menus such as Artist, Album or
Genre. If you are running a suitable server system such
as a PC with Windows Media Player 10 or later (WMP),
and your music library is well-tagged, then it is
recommended to use media sharing. Only the UPnP
server needs to be set up.
Sharing media with Windows Media Player
The most common UPnP server is Windows Media
Player (10 or later). Alternatively, other UPnP platforms
and servers may be used. To set up WMP for media
sharing, perform the following steps:
Ensure that the PC is connected to the network.
1.
2.
3.
4.
5.
Ensure that the is powered on and
connected to the same network.
A 2696
In WMP, add to the media library the audio files
and folders you want to share with The A 2696
(Library > Add to Library…).
In WMP, enable media sharing by right clicking
on the Library and then selecting Media
sharing…)
In the next dialogue box you'll see the
displayed. Click on the icon representing the
A 2696 and then click
A 2696
Allow
Your newly shared media library will now be listed
under Music Player > Shared Media on the A 2696
Note: The WMP UPnP service runs in the background; there is
no need to start WMP explicitly each time.
Note: iTunes does not currently work as a UPnP media server,
but there are add-ons available (such as Allegro Media
Server™ for Macintosh or PC) to work with an iTunes library.
Alternatively if you are a PC user simply install and run
Windows Media Player (10 or later) and add your iTunes library
to the media library in Windows Media Player. You will be able
to continue to use iTunes as your primary source of music
library management and Windows Media Player will update
automatically making your music always available on the
A 2696.
Page 20
Opus One
