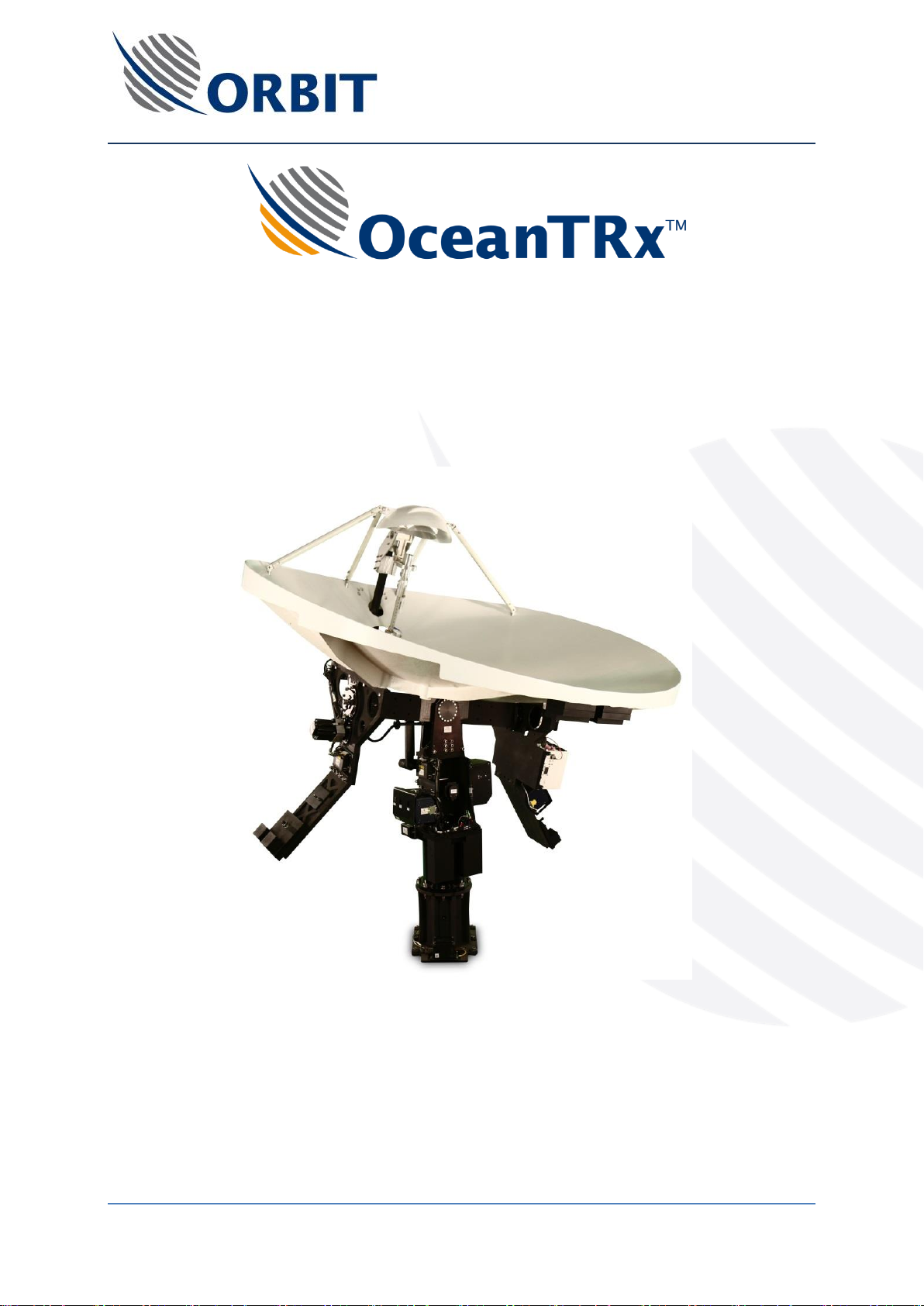

Orbit OceanTRx User manual

COMMUNICATION WITHOUT BOUNDARIES
Orbit Communication Systems Ltd. P.O.B. 42504, Israel, Tel: +(972) 9 892 2777, Fax: +(972) 9 885 5944 www.orbit-cs.com
OceanTRx7TM
Maritime Stabilized VSAT System
Technical Note
Slip Ring/Rotary Joint Assembly

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note ii
Document: TEC32-1664-018,
September 2013
Copyright
© 2013 Orbit Communication Systems Ltd. All rights reserved.
All product names are trademarks of Orbit Communication Systems Ltd.
Other names are the property of the respective owners.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in any form or
by any means, electronic or otherwise, without the prior written permission of Orbit
Communication Systems Ltd.
Disclaimer of Warranty
Orbit Communication Systems Ltd. has made every effort to ensure the accuracy and
relevancy of the material in this document. It is expected that all sections of this
document will be read thoroughly and that all information and procedures should be
fully understood.
However, Orbit Communication Systems Ltd. assumes no responsibility for any errors
that may appear in this document, and reserves the right to make changes to the
document without notice.
Orbit Communication Systems Ltd. makes no warranty of any kind in regard to this
document, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose.
Orbit Communication Systems Ltd. disclaims any responsibility for incidental or
consequential damages in connection with the furnishing, performance or use of this
document.
Parts of this document may be based on hardware or software developed by
third-party vendors. Orbit Communication Systems Ltd. disclaims any responsibility for
the accuracy of this document with respect to such hardware and software, and
assumes no responsibility for incidental or consequential damages arising due to
discrepancies between this document and such hardware or software.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note iii
Revision History and Control
Revision History
Rev #
Modified by
Date
Comments
.
Albert
September 24, 2013
New Release

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note iv
About this Manual
This manual is designed to guide you through the procedures required for maintaining the
SLIP RING/ROTARY JOINT ASSEMBLY for the OceanTRx7™Maritime Satellite
Communication System.
Text Conventions
Style
Indicates
Example
Text
Normal descriptive text
Contents
Text
Words or figures that appear on the
screen or that should be typed
The name of a file or directory
System Status
<Text>
A key to be pressed
<ESC>
TEXT
The name of a hardware
component
ANTENNA
Text
The name of a GUI element
Operation Screen

The description of a procedure
To configure…
Notations
Indicates important information that should be noted.
Indicates a potential hazard.
Indicates the safest method of installation or an operation that must be adhered
to.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note v
Effective Releases
This document is effective for both OrBand™ and OceanTRx7™ Maritime Satellite
Communication Systems.
For a description of the changes between OrBand™ and OceanTRx7™, refer to the
OceanTRx7™Maritime Satellite Communication System Release Notes .

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note vi
Table of Contents
1Introduction .....................................................................................................................1
1.1 Purpose....................................................................................................................1
1.2 Principles .................................................................................................................1
1.2.1 Torque Table....................................................................................................... 1
1.3 Slip Ring/Rotary Joint Assembly Description............................................................2
1.4 Spare Kit Contents ...................................................................................................3
1.5 Required Tools and Parts.........................................................................................3
2Preliminary Procedures ...................................................................................................4
3Replacing the Slip Ring/Rotary Joint ...............................................................................5
3.1 Removing the Slip Ring/Rotary Joint (OceanTRx7™) ..............................................5
3.2 Installing a Slip Ring/Rotary Joint (OceanTRx7™) ...................................................8
4Performing Verification Test ..........................................................................................13

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 1 of 13
1Introduction
1.1 Purpose
The purpose of this Technical Note is to provide detailed instructions on how to replace and
verify a SLIP RING/ROTARY JOINT ASSEMBLY.
1.2 Principles
The following principles must be followed when performing the procedures in this Technical
Note.
1.2.1 Torque Table
The following table provides the torque that should be used when tightening screws of the
listed types, as relevant.
Table 1-1: Torque
Screw Type
Torque
M5
6N/m
M4
2.5N/m
M3
1.35N/m

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 2 of 13

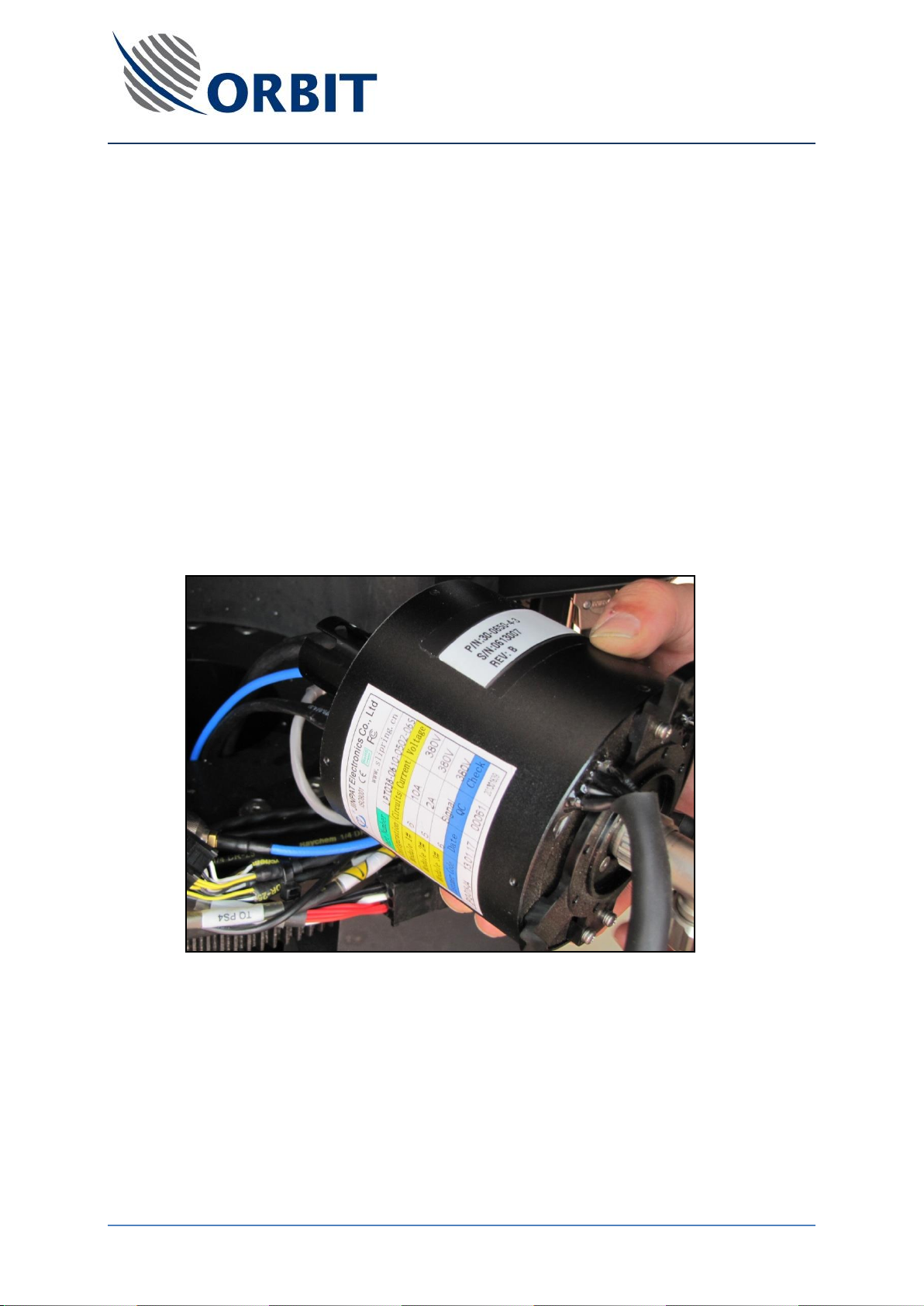

1.3 Slip Ring/Rotary Joint Assembly Description
The SLIP RING/ROTARY JOINT ASSEMBLY includes a Slip Ring and a Rotary Joint.
The Slip Ring is used to pass the following:
AC power from the ADE POWER BOX to the power supply modules
DC power from the ACU to the IMU.
Communication between the ACU to the IMU.
The Rotary Joint is used to pass the following, between the ADE POWER BOX and the ADMX:
Tx and Rx signals
10 MHz reference signal
LAN communication
Figure 1-1: Slip Ring/Rotary Joint Assembly
The SLIP RING/ROTARY JOINT ASSEMBLIES have the same mechanical interface and
different electrical interfaces.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 3 of 13

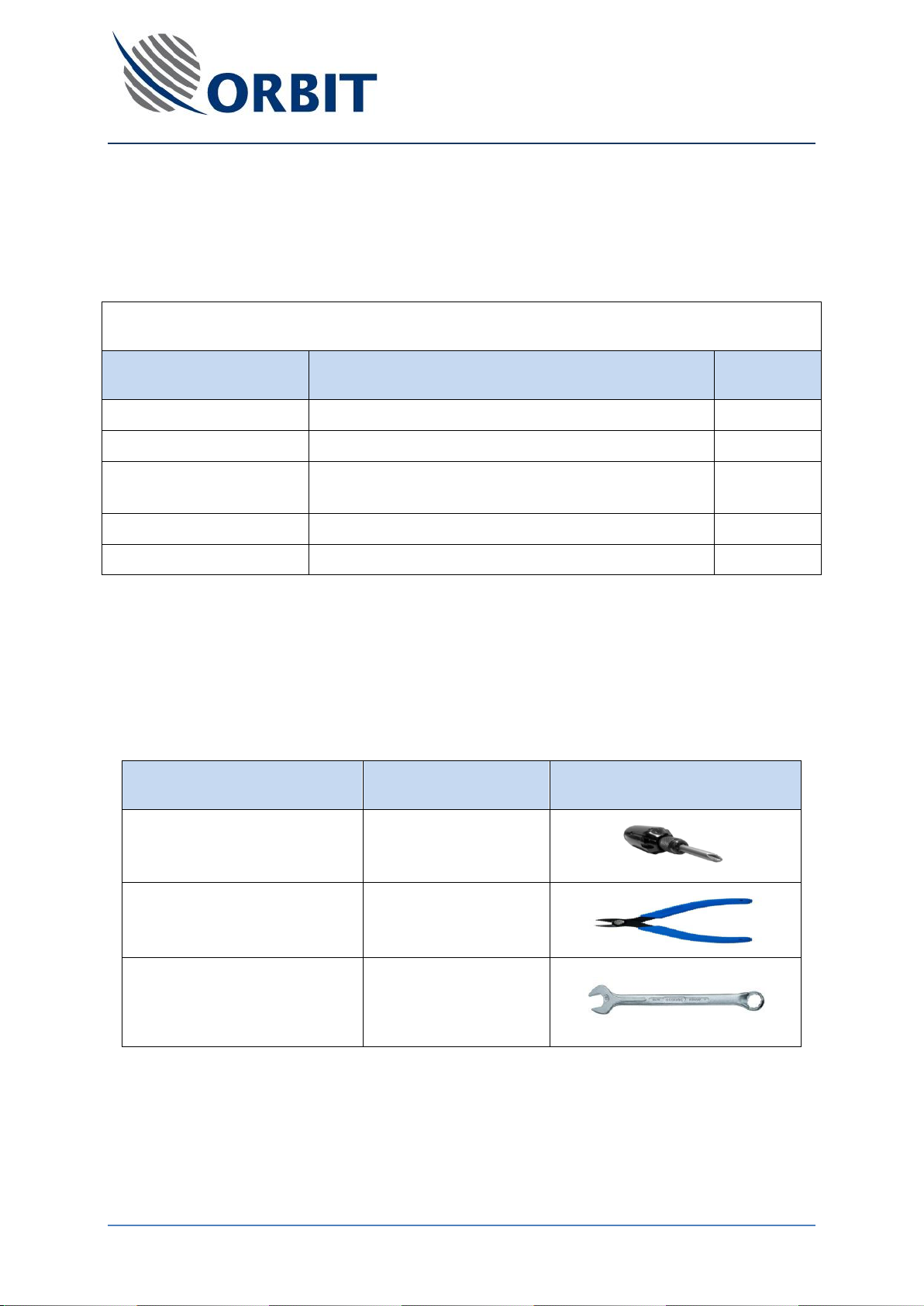

1.4 Spare Kit Contents
The following table provides a list of the parts in the SLIP RING/ROTARY JOINT
ASSEMBLY spare kit.
Table 1-2: Spare Part Kit Contents
KIT32-1664-001-SP
P/N
Description
Quantity
30-0650-4-3
SLIP RING/ROTARY JOINT ASSEMBLY VS
1
32-0431-4-1
SR/RJ ADAPTOR ASSY AL-7107
1
32-1173-9-1
CABLE ADAPTOR S.R/R.J OceanTRx7™ TO P.BOX
OrBand™ AL-7107SYS2
1
K01000055
PKG BOX 299X213X200
1
M12000077
PHIL PAN HD SCR M3X10 SS W/FLAT&SPR WASHERS SS
3
1.5 Required Tools and Parts
The following table provides a list of tools and customer-supplied parts that are needed to
perform the procedures in this Technical Note.
Table 1-3: Required Tools and Parts
Tool/Part Name
Notes
Figure
Medium Phillips screwdriver
Tie cutter
Open/ring wrench 11,19mm
And ¾”

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 4 of 13
2Preliminary Procedures
To Perform Preliminary Procedures:
The preliminary procedure described below must be performed before replacing the
SLIP RING/ROTARY JOINT ASSEMBLY:
1. Perform System Shut-Down of the vessel’s main power AC Voltage terminal outside the
RADOME.
2. Open the RADOME hatch.
3. Switch off the ADE POWER BOX at the ANTENNA PEDESTAL base (located inside the
RADOME).
4. Manually rotate the PEDESTAL AXES to gain convenient access to the serviced unit.
In the following procedures, be very careful when tightening and loosening the
screws with which the parts are assembled and attached to the system. Some
of these screws are delicate and can be damaged by excess force. When
using an Allen key make sure to insert the key all the way into the screw head
to avoid thread stripping.
WARNING!
The Utility Outlet is connected directly to the vessel’s AC voltage input
terminals (125 VAC / 250 VAC). Therefore, there still exists live voltage at the
Utility Outlet after disconnecting the power supply to the ADE using the Mains
Power On/Off Switch.
Only qualified and authorized personnel are allowed to carry out system
service/maintenance procedures.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 5 of 13
3Replacing the Slip Ring/Rotary Joint
3.1 Removing the Slip Ring/Rotary Joint (OceanTRx7™)
To Remove the Slip Ring/Rotary Joint:

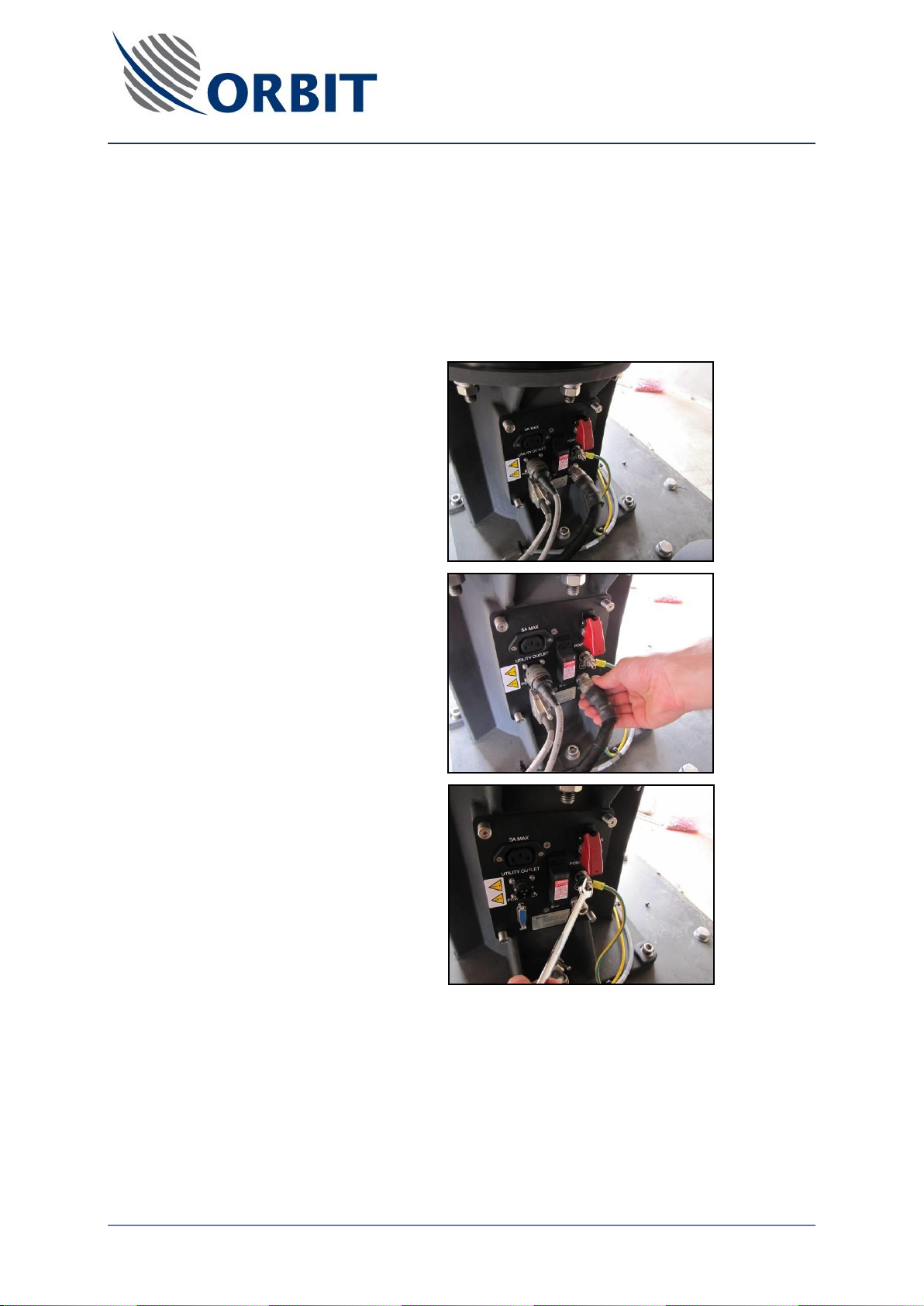

Step 1
Shut down the antenna and
ensure that the power is off
Step 2
Disconnect the TX/RX, IMU
and the POWER INLET
connectors.
Step 3
Disconnect the ground
cable using 11mm key.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 6 of 13

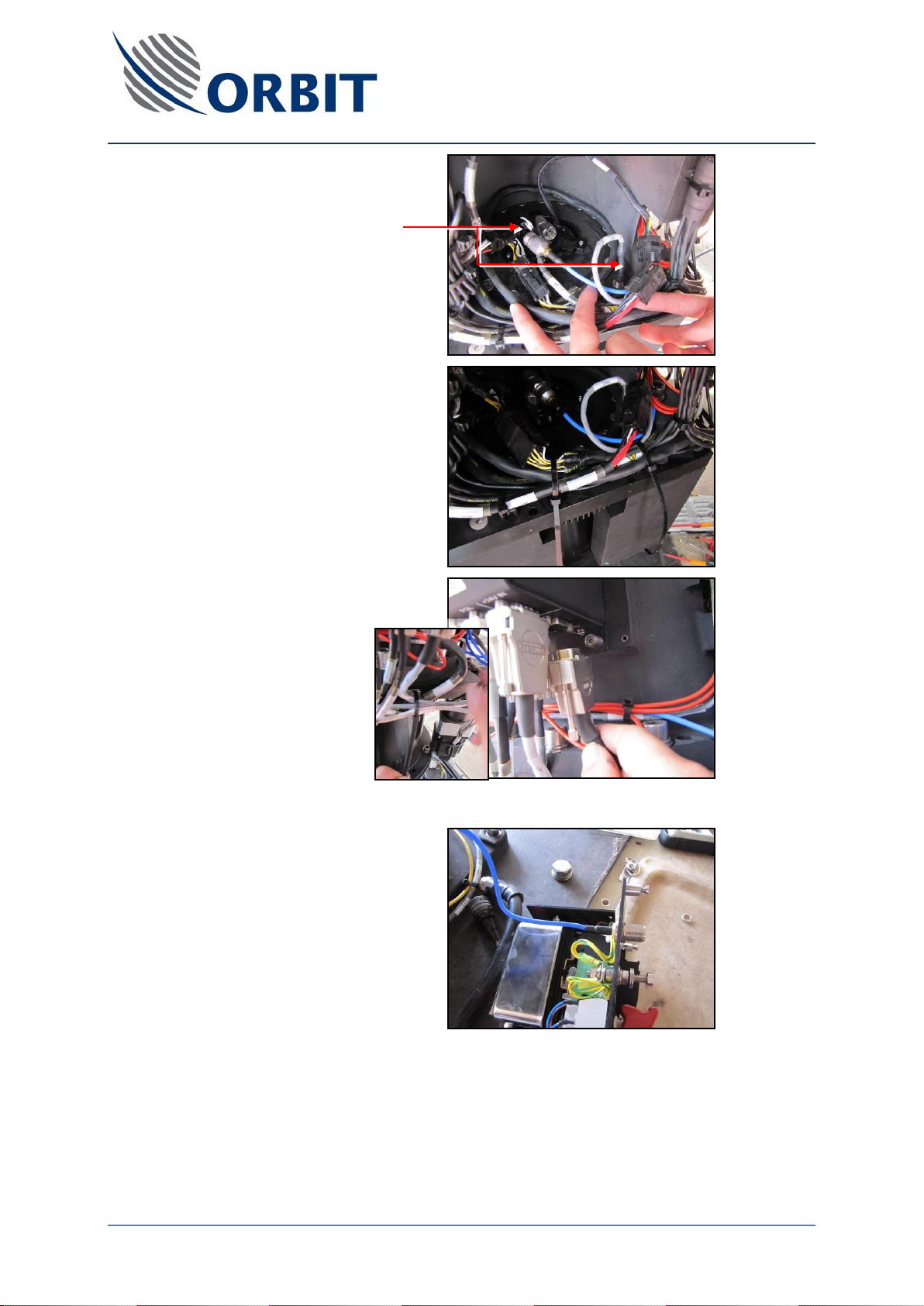

Step 4
Release 4 captive bolts
using Phillips key.
Step 5
Gently Pull out the power
box assembly.
Step 6
Using a flat screw driver,
disconnect the power wires
(N, G, L) and the IMU plug.
Step 7
Disconnect the TX/RX plug
using 3/4” key.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 7 of 13
Step 8
Disconnect the blue RF cable
from the RJ of the SR-RJ
assembly.
Step 9
Disconnect the Power
connector.
Step 10
Disconnect the IMU
connector from the ACU unit.
Remove the tie warp.
Step 11
Untie the IMU cable around
the Rotary Joint.
Step 12

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 8 of 13
Using a short Philips
screwdriver, remove the 3
Philips bolt securing SR-RJ.
Step 13
Pull out the Slip Ring RJ
assembly.
Note: the Slip Ring may
come out together with the
mechanical adaptor that
drives the SR-RJ motor.

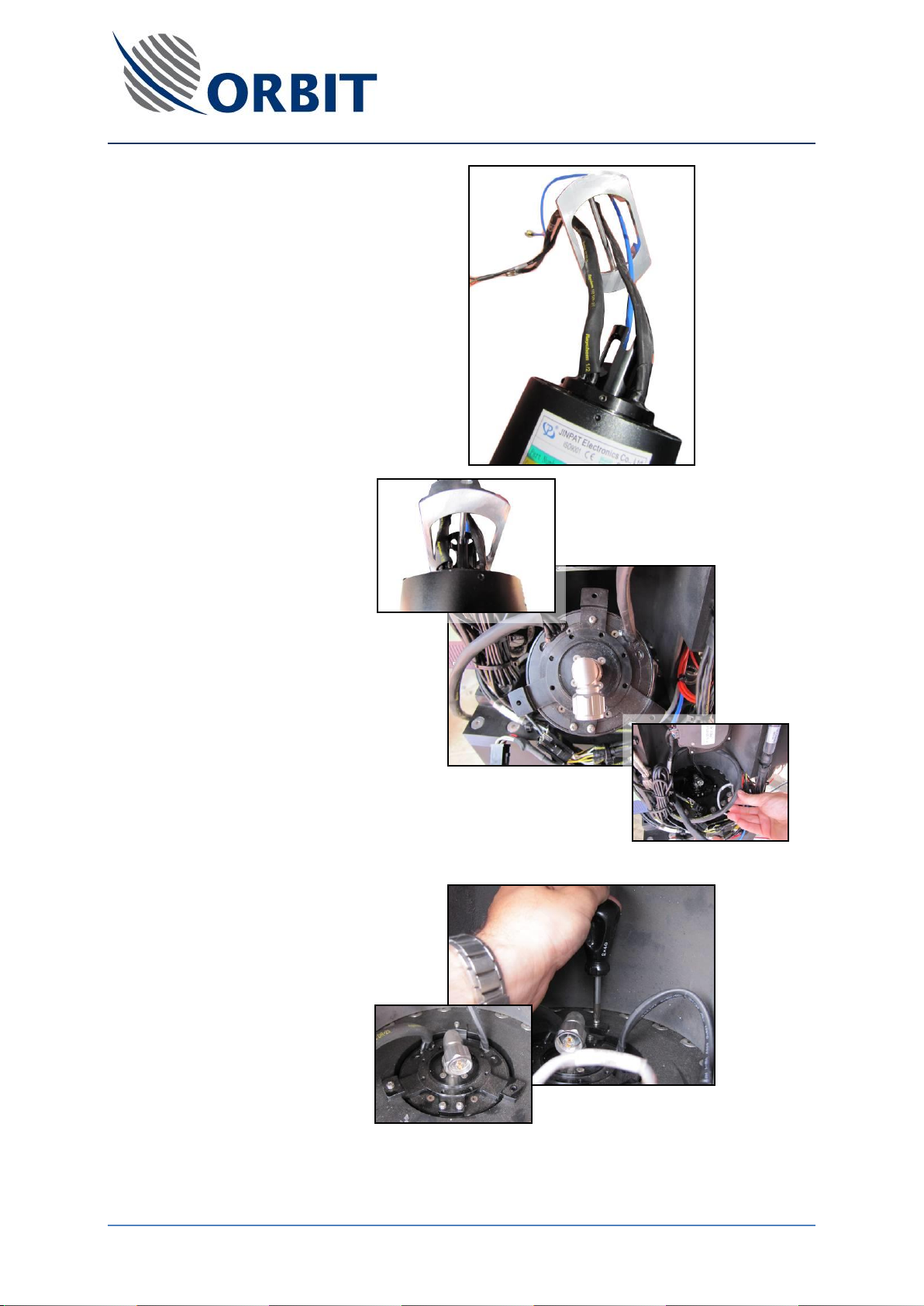

3.2 Installing a Slip Ring/Rotary Joint (OceanTRx7™)
To Install a Slip Ring/Rotary Joint:
Step 1
Locate the mechanical
adaptor and make sure the
part is located properly in
place.
Rotate the pedestal so the
Slip Ring will face you as
illustrated.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 9 of 13
Step 2
Route the cables as
illustrated:
The RX/TX cable and the
Power cable to the right side
and the IMU to the left.
Step 3
Locate the Rotary Joint.
Note: make sure the Rotary
Joint slot is located properly
onto the Slip Ring.
Arrange the IMU cable
around the Rotary Joint
Step 4
Secure the SR-RJ using its 3
Phillips bolts (use a short
Philips screwdriver).

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 10 of 13
Step 5
Connect the RF plug and
the Power connector
Step 6
Secure the cables using tie
warps.
Step 7
Connect the IMU connector
to the ACU unit.
Secure the cables using tie
warps.

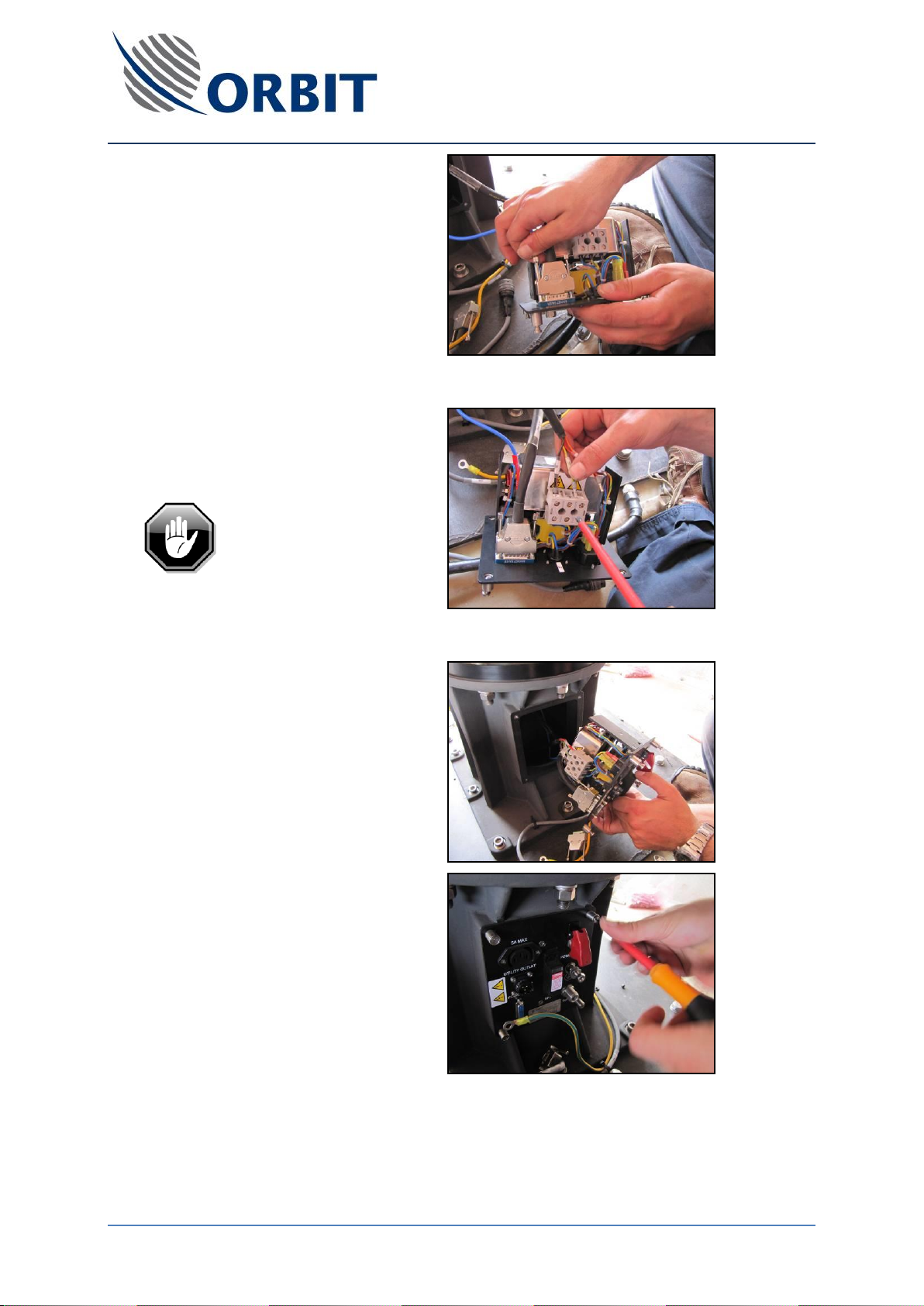

Step 8
Assemble the TX/RX plug
using 3/4”key.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 11 of 13
Step 9
Connect the IMU plug.
Step 10
Connect the power wires (N,
G, L) according to labels
using flat screwdriver.
Wrong wiring may cause
damage!!
Step 11
Locate the power box
assembly.
Step 12
Tighten 4 screw using
Phillips screwdriver.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 12 of 13

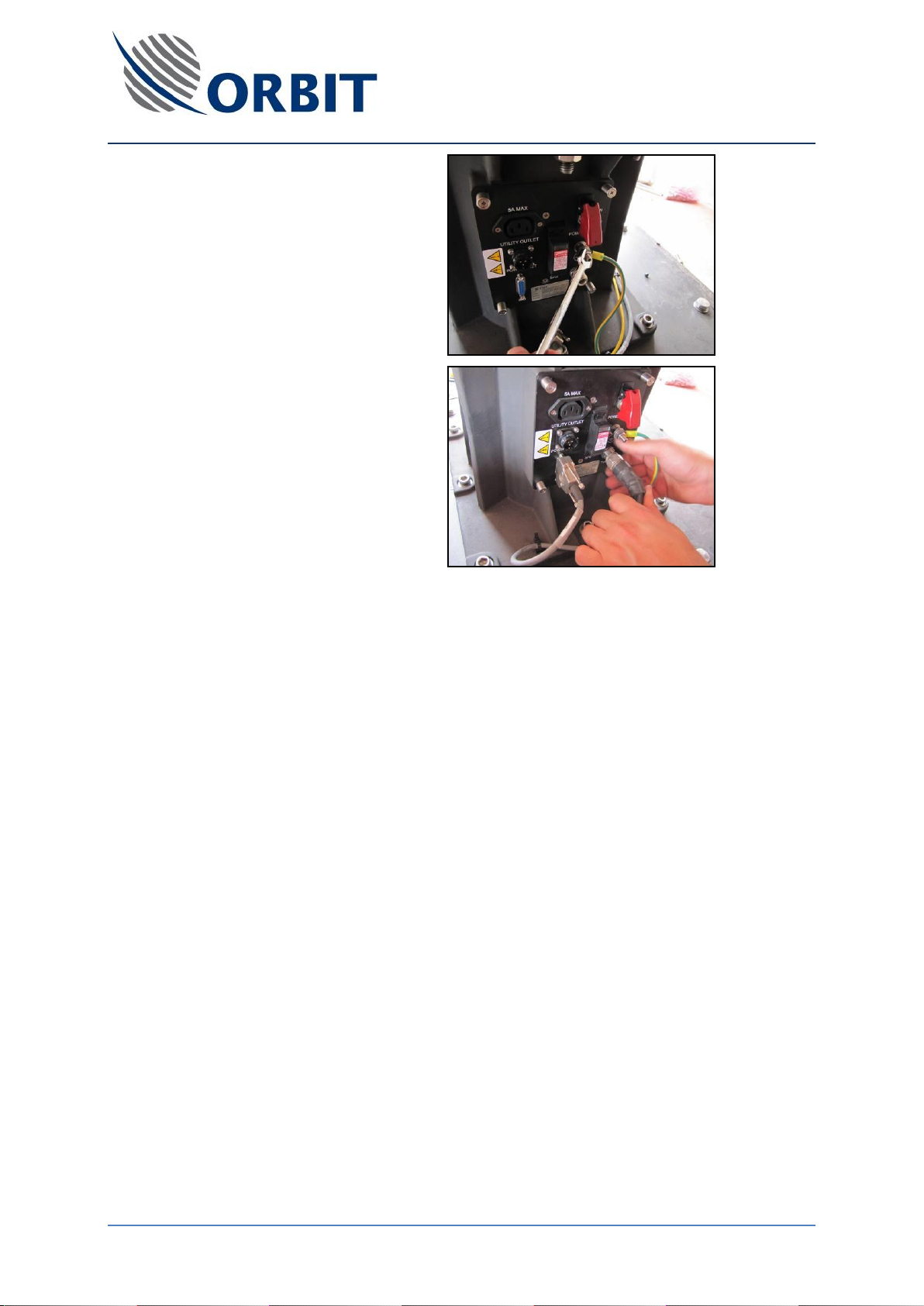

Step 13
Connect the ground cable
using 11mm key.
Step 14
Connect the TX/RX, IMU
and the POWER INLET
connectors.

TEC32-1664-018 OceanTRx7™ Slip-Ring/Rotary-Joint Assembly Technical Note Page 13 of 13

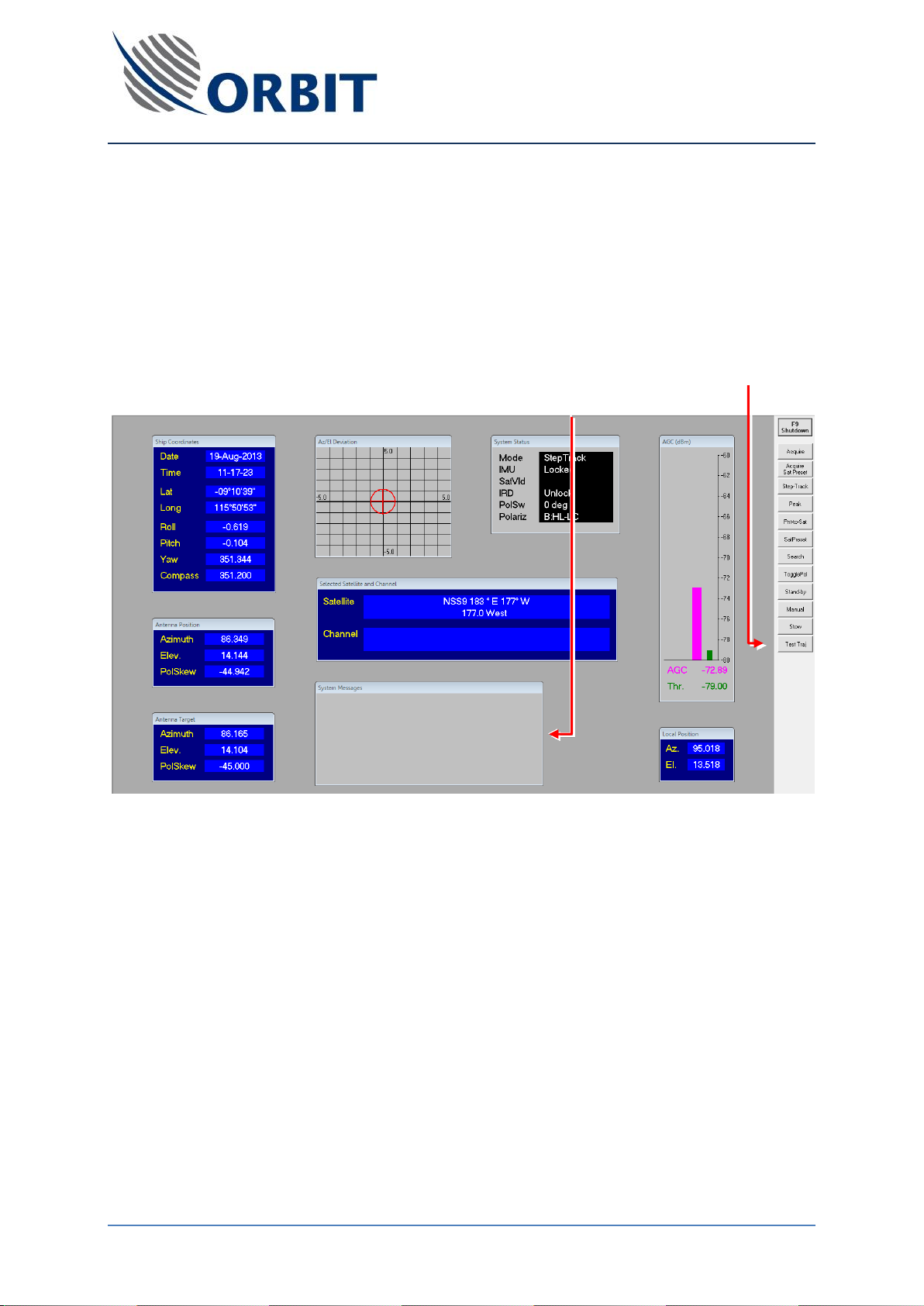

4Performing Verification Test
To Perform Verification Test:
1. Verify the cable routing is correct and properly secured.
2. Manually move all pedestal’s axis’s and confirm smooth movement.
3. Power up the system and confirm system initializes properly.
4. To make sure the technical process completed successfully click on Test Traj.
5. Make sure no error messages appear in the System messages.
6. Verify the Modem Rx EdNo and TX power with NOC.
