Oregon Scientific MSR939 User manual

Remote Motion Sensor
Model : MSR939
User Manual
MSR939 English Cover R0 7/19/04, 1:51 AM1

EN
1
CONTENTS
Contents ................................................................... 1
Introduction .............................................................. 2
Product Overview .................................................... 3
Front View .............................................................. 3
Back View .............................................................. 4
Safety and Care ........................................................ 5
Safety Precautions ................................................. 5
Caring for this Product ........................................... 5
Getting Started ......................................................... 5
Package Contents ................................................. 5
Batteries ................................................................. 6
AC Adaptor ............................................................ 6
Motion Sensor .......................................................... 6
Setup Sensor ......................................................... 7
Warnings ................................................................... 8
Troubleshooting ....................................................... 8
Technical Specifications ......................................... 9
Remote Motion Sensor Dimensions ...................... 9
Remote Unit ........................................................... 9
Power ..................................................................... 9
Notices ...................................................................... 9
Statement of Responsibility ................................... 9
About Oregon Scientific ........................................ 10
EC-Declaration Of Conformity .............................. 11
MSR939 English R0 7/19/04, 1:51 AM1

EN
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM Remote
Motion Sensor. This security / monitoring device is
designed as an accessory for the RF Projection Clock
(RMR939P). The remote motion sensor can be used to:
•Activate the following alarm or light when it detects
movement;
-the motion alarm clock for 5 minutes
- the motion sensor alarm for 20 seconds
-the clock backlight for 10 seconds
Other features include:
•LED indicator to show data transmission and low
battery
•Rotary motion sensor - to direct the sensor to the
position you want
•Transmission range - up to 30 metres (open area)
•Wall mount or table stand
•Uses 3 x UM-3 / AA 1.5V batteries or 4.5V AC
adaptor for continuous operations (adaptor not
included)
Keep this manual handy as you use your new product. It
contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
MSR939 English R0 7/19/04, 1:51 AM2

EN
3
PRODUCT OVERVIEW
FRONT VIEW
1. Rotary Motion Sensor
•Detects motion and activates both alarms on the
remote motion sensor and main clock units in
accordance with the settings used.
•Twist the knob to direct the sensor to the position
you want.
2. ALARM SOUND ON / OFF switch
•Slide switch to ON-the sensor will sound the
alarm if it detects movement.
•Slide switch to OFF-the alarm sound function will
be turned off.
3. POWER ON / OFF
•Slide to turn the motion sensor ON or OFF.
4. 4.5V Adaptor Socket (adaptor not included)
5. Motion Alarm Speaker
6. LED Indicator
1
2
3
5
6
4
MSR939 English R0 7/19/04, 1:51 AM3

EN
4
Channel Code
Reset
43
1
2
3
4
5
BACK VIEW
1. Wall Mount
2. Battery Compartment (cover on)
•Uses 3 x UM-3 / AA 1.5V batteries.
3. CHANNEL 1 / 2
•Slide to select either Channel 1 or Channel 2.
4. CODE switch
•Slide to change the Code.
5. RESET hole
•Insert a thin blunt instrument to return all values
to the default settings.
MSR939 English R0 7/19/04, 1:51 AM4

EN
5
•Every effort has been made to ensure the highest
standards of reliability for your remote motion
sensor. However, if something does go wrong,
please do not try to repair it yourself-consult your
supplier.
•Do not use your product outdoors in the rain, or
handle it with wet hands-water can damage
electrical equipment.
GETTING STARTED
PACKAGE CONTENTS
When you unpack your remote motion sensor, make sure
you keep all the packing materials in a safe place, in
case you need to later transport the device or return it
for servicing.
In the box, you will find:
•Remote Motion Sensor
•3x UM-3 / AA 1.5V batteries
SAFETY AND CARE
SAFETY PRECAUTIONS
Please observe the following safety precautions when
setting up and using this product.
•Heat sources-Keep the product away from heat
sources, such as radiators, stoves, heaters, and
other heat-generating products.
•Water and moisture-Do not use the product in or
near water or in high moisture areas, such as a
bathroom.
•Power source-The product may be susceptible
to power surges. It should be unplugged during
severe storms or whenever you will be away for
a long time. Only use the type of power source
specified in this manual. Do not overload power
strips and extension cords, as this can cause a
fire hazard.
CARING FOR THIS PRODUCT
To ensure you receive the maximum benefit from using
this product, please observe the following guidelines.
•Do not clean any part of the product with benzene,
thinner or other solvent chemicals - this may cause
permanent damage that is not covered by the
guarantee. When necessary, clean it with a damp
cloth.
•Keep your product away from hot, humid
conditions or strong sunlight.
MSR939 English R0 7/19/04, 1:51 AM5

EN
6

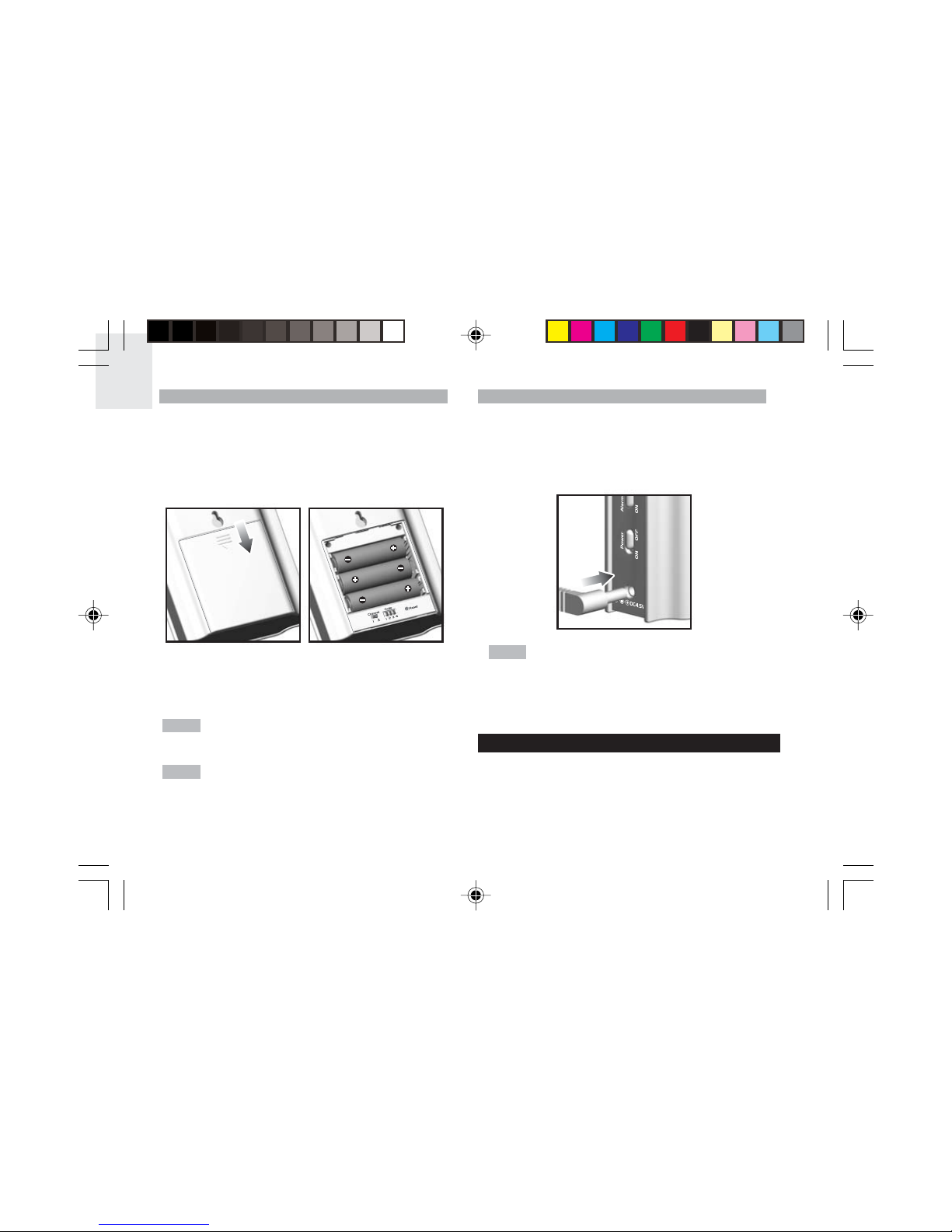

AC ADAPTOR
The motion sensor uses a 4.5V AC / DC adaptor (not
included).
The motion sensor jack can be inserted into the socket
as shown below:
The motion sensor has a Power ON / OFF
switch to help conserve energy. Use the AC adaptor
when using the motion sensor for long periods of time.
The batteries are a good power source for back-up use.
MOTION SENSOR
The motion sensor has a security / monitoring function.
It can set off your motion alarm on the clock for 5 minutes
and turn the backlight on for 10 seconds when it detects
movement.
NOTE
• Press RESET after each battery change.
•The LED indicator on the motion sensor will flash
in red when the batteries are low.
Do not use rechargeable batteries for the clock
or remote motion sensor.
It is recommended that you use alkaline
batteries with this product for longer performance.
NOTE
NOTE
BATTERIES
The motion sensor uses:
•3x UM-3 / AA 1.5V batteries.
To install the batteries, simply insert them making sure
they match the correct polarities (+ and -).
MSR939 English R0 7/19/04, 1:51 AM6

EN
7
SETUP SENSOR
1. Install the batteries.
2. Set the channel by sliding the CHANNEL switch to
1or 2. The switch is located in the battery
compartment.
3. Set the Code by sliding the CODE switches to the
same setting as the Code on the clock display. This
enables the clock and motion sensor to interact with
each other.
4. Press the RESET button. Close the motion sensor
battery compartment.
5. Secure the sensor in the desired location using the
wall mount or table stand.
6. Twist the rotary motion sensor knob to direct the
sensor to the position you want.
7. Slide the POWER ON / OFF switch to turn the motion
sensor ON or OFF.
8. Slide the ALARM SOUND ON / OFF switch to ON to
activate the alarm sound function. The motion sensor
alarm will now sound for 20 seconds if it detects
movement. Slide to OFF to deactivate this function.
SWITCH OPTION
Channel Channel 1-2. If you are using more than
one sensor, select a different channel
for each sensor.
Once it has power, the motion sensor takes
2 minutes to warm up.
For best results:
•Insert the batteries and select the channel before
you mount the sensor.
•Place the sensor out of direct sunlight and
moisture.
•Do not place the sensor more than 30 metres
(98 feet) from the main (indoor) unit.
•Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
•Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
You may need to experiment with various locations to
get the best results.
Please refer to the RF Projection Clock
(RMR939P) manual for information on the remote
sensor's clock controlled functions.
NOTE
NOTE
MSR939 English R0 7/19/04, 1:51 AM7

EN
8
WARNINGS
This product is designed to give you years of service if
handled properly. Oregon Scientific will not be
responsible for any deviations in the usage of the device
from those specified in the user instructions or any
unapproved alterations or repairs of the product.
Observe the following guidelines:
•Never immerse the product in water. This can
cause electrical shock and damage the product.
•Do not subject the product to extreme force,
shock, or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
•Do not mix new and old batteries or batteries of
different types.
•Do not use rechargeable batteries with this
product.
•Remove the batteries if storing this product for a
long period of time.
The technical specification of this product and
contents of this user manual are subject to change
without notice. Images not drawn to scale.
NOTE
TROUBLESHOOTING
PROBLEM SYMPTOM
Motion
Sensor.
Does not
give out
alarm
sound.
REMEDY
1. Adjust batteries /
AC adaptor.
2. Check POWER
ON / OFF switch is
set to ON.
3. Check ALARM
SOUND switch is
set to ON.
Motion
Sensor.
Does not
activate the
motion
alarm on
the clock.
1. Adjust batteries /
AC adaptor.
2. Check POWER
ON / OFF switch is
set to ON.
3. Check the CODE
switch on the
motion sensor
matches the clock
code display.
MSR939 English R0 7/19/04, 1:51 AM8

EN
9
TECHNICAL SPECIFICATIONS
TYPE DESCRIPTION
Remote Motion Sensor Dimensions
L x W x H 88 x 43 x 112 mm
(3.46 x 1.69 x 4.41 inches)
Weight (without battery) 140 g (0.31 lbs)
Remote Unit
Motion Sensor
Coverage Distance
Approx. 5 metres
Motion Sensor Warm-
Up Time
Approx. 2 minutes after
power-on
Power
Remote Motion
Sensor Unit
3 x UM-3 (AA) 1.5V
batteries or 4.5V AC
adaptor (adaptor not
included)
Adaptor output current
>=50mA
It is recommended that you use alkaline
batteries with this product for longer performance.
Design and specifications are subject to change
without notice.
NOTE
NOTE
NOTICES
STATEMENT OF RESPONSIBILITY
Oregon Scientific will not be held liable for any bodily
injury, death, property damages, or any other claims of
whatever nature resulting from the misuse or negligence
of the product, whether intentional or unintentional.
Oregon Scientific will not be responsible for any
deviations in the usage of the device from those specified
in the user instructions or any approved alternations or
repairs of the product.
MSR939 English R0 7/19/04, 1:51 AM9

EN
10
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digital
cameras, MP3 players, projection clocks, health and
fitness gear, weather stations, and digital and conference
phones. The website also includes contact information
for our customer care department in case you need to
reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on
our website, however if you'd like to contact the Oregon
Scientific Customer Care department directly, please visit
www2.oregonscientific.com/service/support
OR
Call 949-608-2848 in the US.
For international enquiries, please visit
www2.oregonscientific.com/about/international/
default.asp
MSR939 English R0 7/19/04, 1:51 AM10

EN
11
EC-DECLARATION OF CONFORMITY
This product contains the approved transmitter module
that complies with the essential requirements of
Article 3 of the R&TTE 1999 / 5 / EC Directive, if used
as intended and the following standards have been
applied:
Safety of information technology equipment
(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950 : 2000
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
Applied Standards
ETSI EN 300 220-3 (Ver1.1.1) : 2002-08
Efficient use of radio frequency spectrum
(Article 3.2 of the R&TTE Directive)
Applied Standards
ETSI EN 300 220-3 (Ver1.1.1) : 2000-09
Additional information:
The product herewith complies with the requirements of
the Low Voltage Directive 73 / 23 / EC, the EMC Directive
89 / 336 / EC and carries the CE marking accordingly.
Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
Manufacturer's EU R&TTE Representative
COUNTRIES RTTE APPROVAL COMPLIED
All EC countries, Switzerland CH
and Norway N
MSR939 English R0 7/19/04, 1:51 AM11

© 2004 Oregon Scientific. All rights Reserved.
P/N.:086-003530-016
MSR939 English Back R0 7/19/04, 1:51 AM1
