INTRODUCTION
TM
Weather@Home Bluetooth-enabled Weather Station.
In addition, it is also carried out the changeable display
between indoor and outdoor temperatures.
NOTE Please keep this manual handy as you use
your new product. It contains practical step-by-step

warnings you should know about.
OVERVIEW

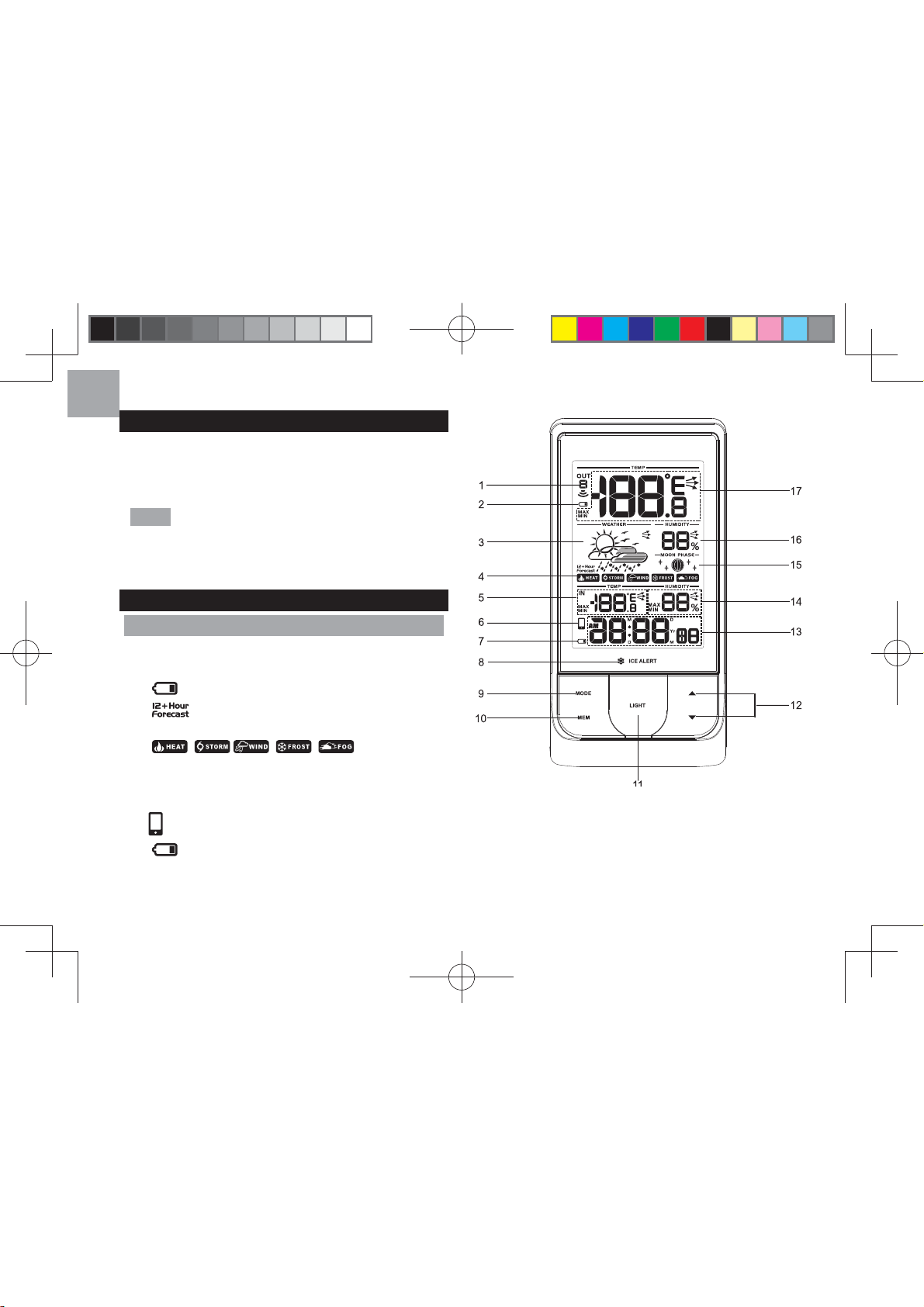

FRONT VIEW
1. Remote sensor reception indicator and outdoor
channel selected
2. : Outdoor remote sensor battery low
3. : Next 12 hour Weather forecast and
pressure trend
4. / / / / : weather
warning message
5. Indoor temperature reading (current/MAX/MIN)
with temperature trend
6. BLE connection indicator
7. : Main unit battery low
8. Ice alert LED indicator
9. MODE: Change settings / display
10. MEM: View current, maximum and minimum
temperature / humidity
11. LIGHT: Activate backlight
12. / : Increase / decrease value of the settings;
toggle only button to select outdoor channels
(1-5); activate / deactivate pairing mode.
13. AM/PM : Morning/afternoon
BAR218HGX-UM-EN-R10.indd 3

4
EN
MD/DM/Yr: Calendar / clock with weekday (hour :
minute with second display)
14. Indoor humidity reading (current / MAX / MIN) with
humidity trend
15. Moon phase display
16. Outdoor humidity (current /MAX/MIN) with
humidity trend
17. Outdoor temperature reading (current/MAX/MIN) with
temperature trend

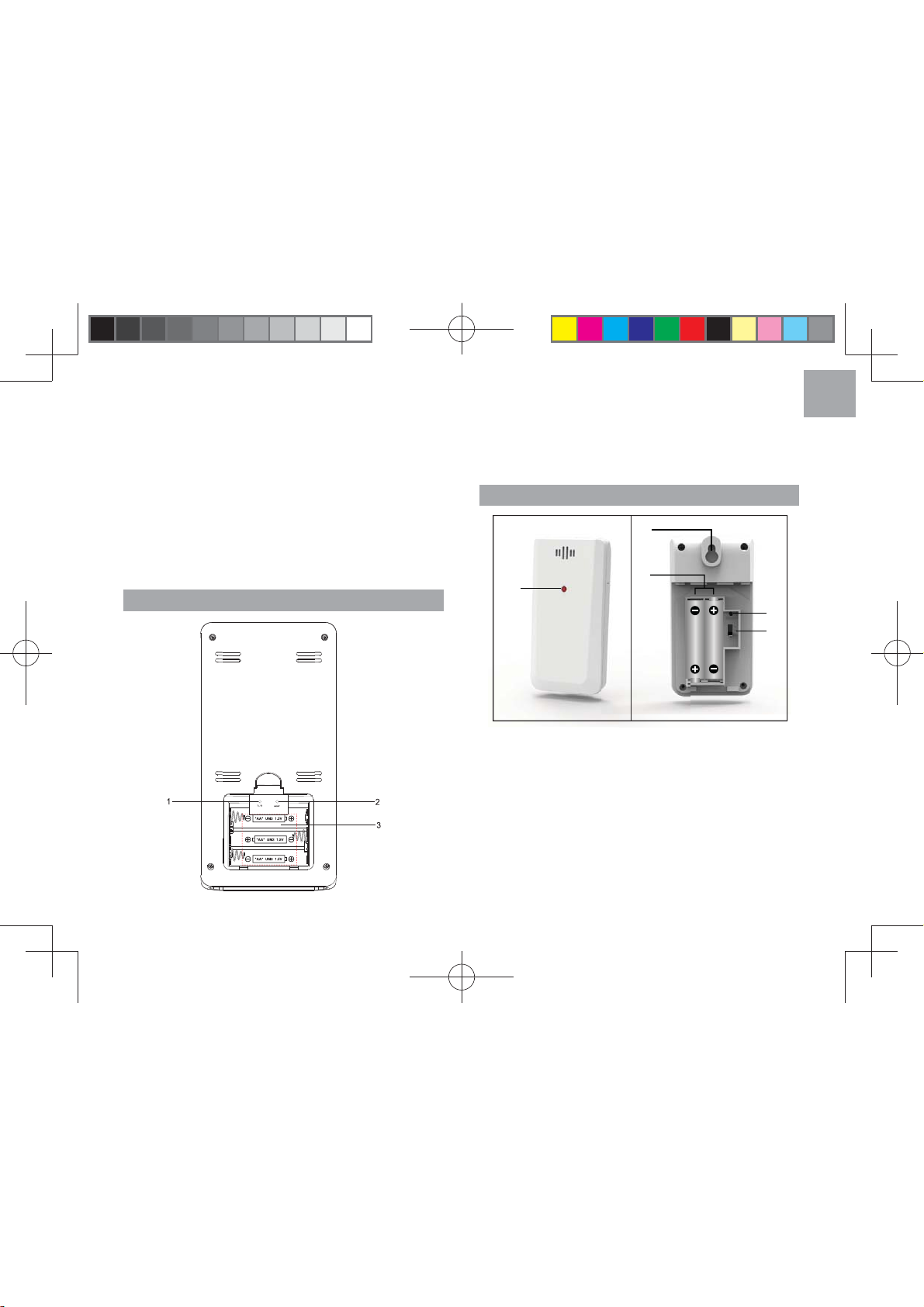

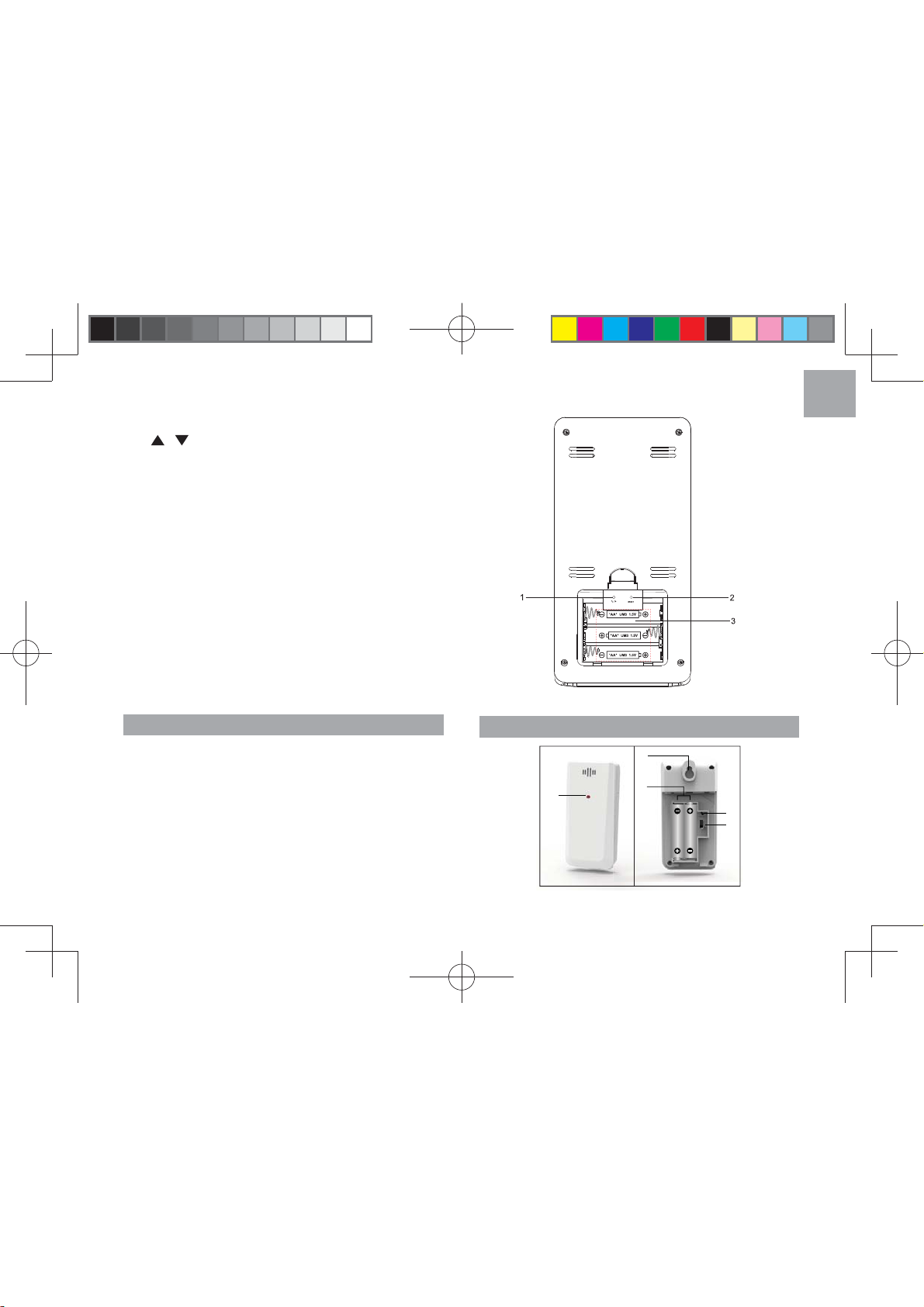

REAR VIEW
1. °C / °F: Select temperature unit
2. RESET: Reset the unit to default settings
3. Battery compartment
REMOTE SENSOR (THGR511)
1
3
4
5
2
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
BAR218HGX-UM-EN-R10.indd 4

EN
5
GETTING STARTED
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (+/-).
3. Press RESET after each battery change.
LOCATION MEANING
Clock / alarm area Main unit batteries low
Outdoor temperature
area Sensor batteries low
REMOTE SENSOR
The main unit can collect data from up to 5 sensors.
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the sensor within 98 ft (30 m) of the main unit
using the table stand or wall mount.
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 5 ft (1.5 m) and which can shield it from direct
sunlight or wet conditions for an accurate reading.
150cm(5ft)
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures
below freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
Press and hold and MODE at a time.
The sensor reception icon in the remote sensor
area shows the status:
ICON DESCRIPTION
Main unit is searching for sensor(s).
A channel has been found.
The sensor cannot be found.
BAR218HGX-UM-EN-R10.indd 5

6
EN
TIP
The transmission range may vary depending
on many factors. You may need to experiment with
various locations to get the best results.
CLOCK
MANUALLY SET CLOCK
1. Press and hold MODE.
2. Press or to change the settings.
3. Press MODE
4. The settings order is: 12/24 hour format, hour,
minute, year, calendar format (day-month / month-
day), month, day and language.
The language options are English (E), German (D),
French (F), Italian (I), and Spanish (S).
To select display mode:
Toggle MODE to choose among clock with seconds /
weekday / calendar / moon phase.

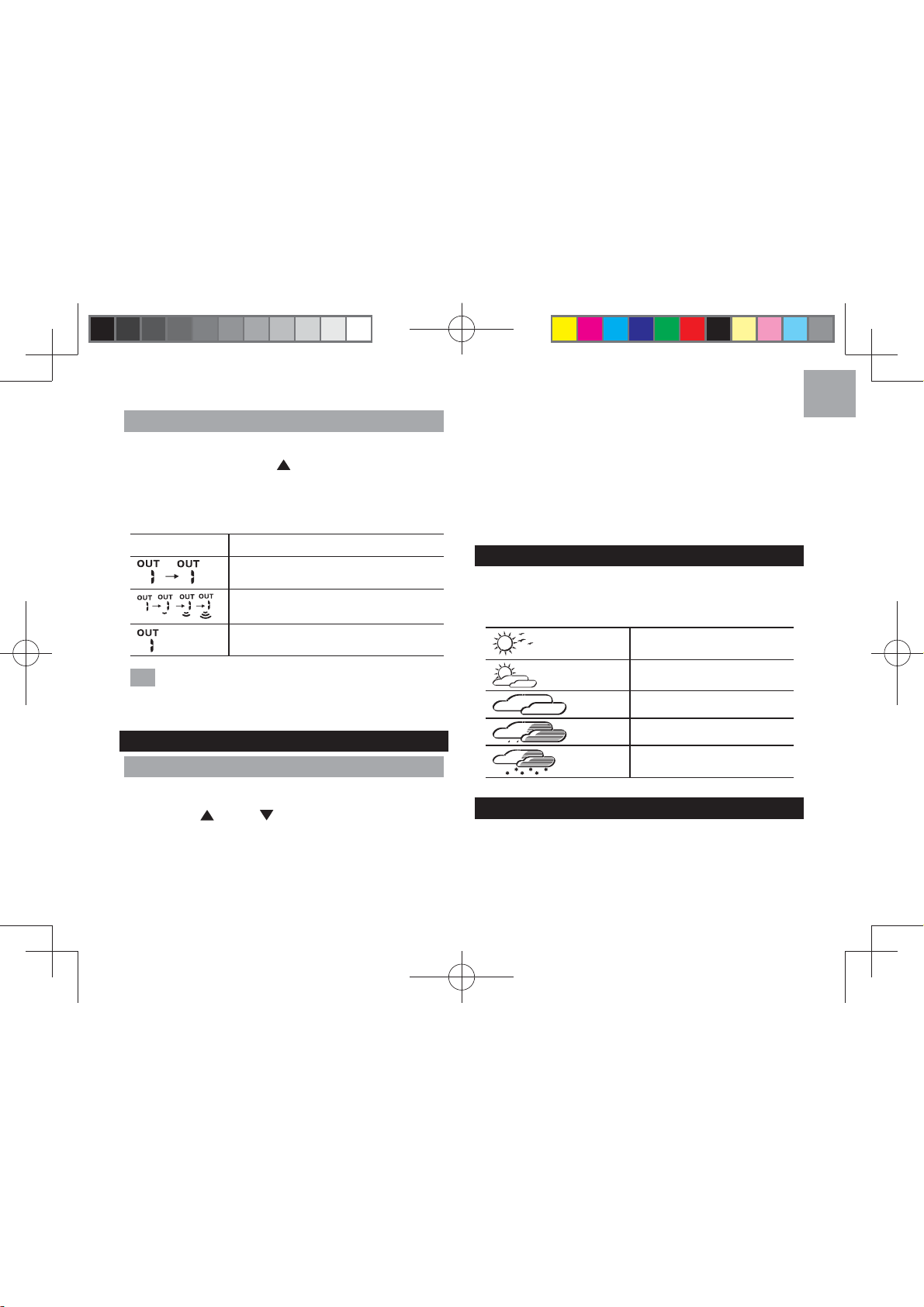

WEATHER FORECAST
This product forecasts the next 12 hours of weather
within a 19-31 mile (30-50 km) radius.
Sunny
Partially Cloudy
Cloudy
Rainy
Snowy
WEATHER WARNING MESSAGE
The weather warning messages provide indications of
probable circumstances that may arise based on the
weather station’s calculations. The meanings for the
warnings are illustrated below:
WARNING MESSAGE
Risk of high temperatures
Risk of fast wind speeds
Risk of a storm
Risk of foggy conditions
Risk of icy conditions
TEMPERATURE AND HUMIDITY
To select temperature unit:
 Select °C or °F for temperature readings by a pin
or the top of a pen.
BAR218HGX-UM-EN-R10.indd 6

EN
7
To select an outdoor sensor’s readings:
 Toggle to select your desired sensor reading.
To auto-scan among sensors:
Press and hold and MEM at a time to display
each sensor’s data for 3 seconds.
  .
To display current, minimum and maximum
records of the day from a selected sensor:
 Toggle MEM.
To clear the records:
 Press and hold MEM.
ICE WARNING
If the channel 1 sensor falls from 37°F to 28°F (3°C to

once the temperature is out of this range.
  and at the same time to disable the ice
alert warning.
NOTE As ice alert is only applicable to channel 1,

outdoor sensor.

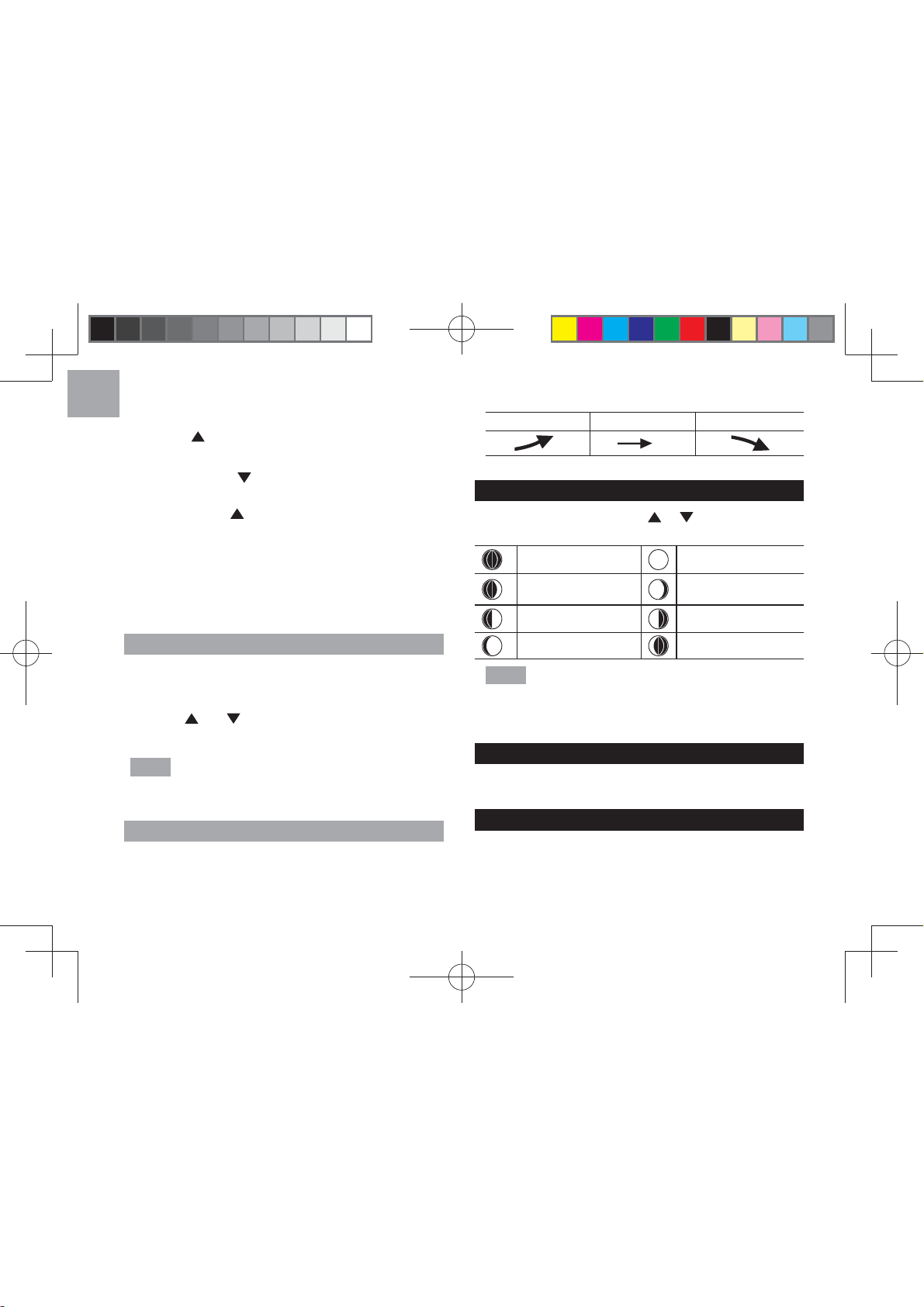

WEATHER TRENDS
The temperature, humidity and pressure trend icons
are based on recent sensor readings.
RISE STEADY FALL
MOON PHASE
In moon phase mode, press or to scan through
the years (2001 to 2099).
New moon Full moon
Waxing crescent Waning gibbous
First quarter Third quarter
Waxing gibbous Waning crescent
NOTE Star icons around the moon phase will be
displayed from 6 o’clock in the evening to 6 o’clock the
next morning.
BACKLIGHT
Press LIGHT to activate backlight for 5 seconds.
RESET
Press RESET to return to the default settings.
BAR218HGX-UM-EN-R10.indd 7

8
EN
CONNECT WITH YOUR MOBILE DEVICE
You can remotely set the
weather station and read the
weather information through
Bluetooth®4.0 using your mobile
device with the downloaded
application from the Apple Store
and the Google Play Store. To

‘Weather@Home’ as keyword in
the search engine.
Ensure your mobile device is
compatible with iOS 5 or Android 4.3 with Bluetooth®4.0.
PAIRING YOUR WEATHER STATION
First of all, you need to pair your weather station with
your mobile device. will

weather station while pairing
and be on after successful
pairing.
Press to enable a pair-up for
the main unit for 30 seconds.

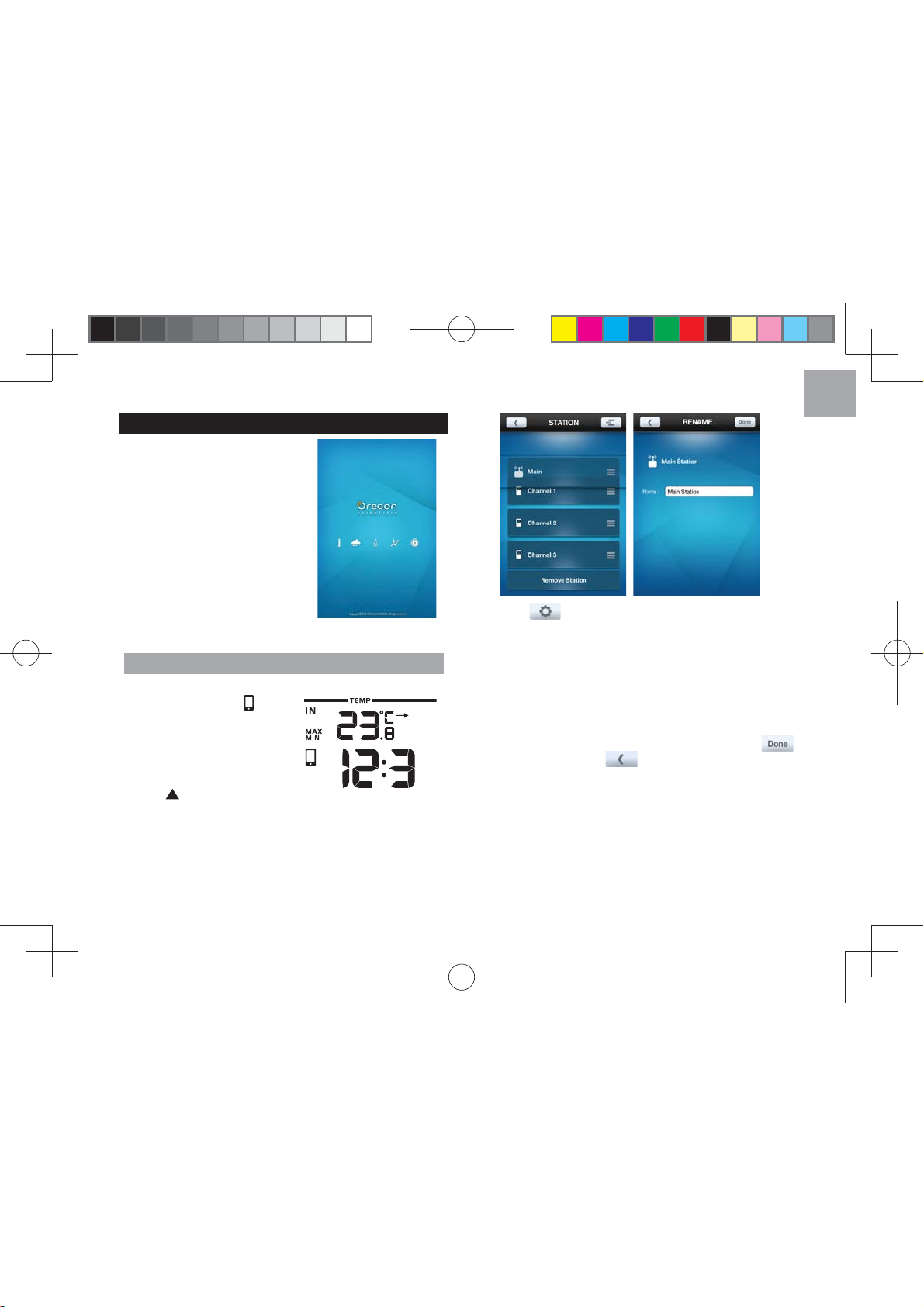

1. Tap to enter SETTINGS screen
2. Tap on STATION area.
3. Tap Pair Up. Searching… displays. If you want to
cancel the pairing, tap Cancel.
4. Once the pairing is successful, it will return to
STATION screen.
5. Tap on each channel to rename it. (Up to 20
characters including space are allowed). Tap
if completed. Tap to exit.
To remove sensor:
To remove any sensor from the weather station, Tap
Remove Station on STATION screen, all the sensors
will be removed at the same time.
BAR218HGX-UM-EN-R10.indd 8

EN
9
To reposition the sensors
on screen:
1. On STATION screen, tap
.
2. Press and hold at the
right side of a sensor. Drag
it to your desired position.
3. Tap 
SETTINGS
You can set your weather station through the
application, such as measurement units.
The settings are as follows:
 
 
 
 
 
 
 
 
To select the measurement unit:
1. Tap to view the measurement unit options.
2. Tap on your desired unit.
3. Tap to go back to the previous screen.

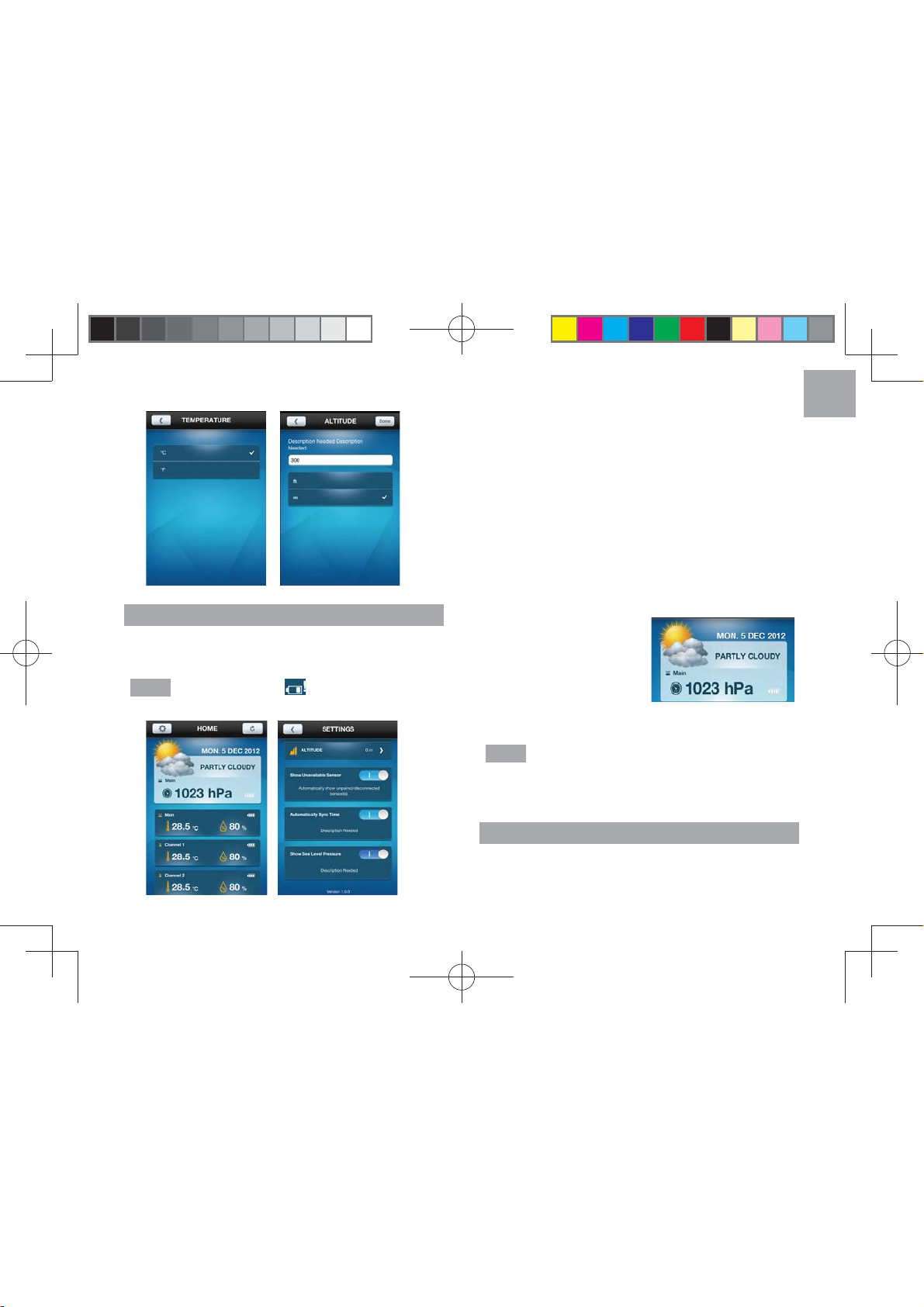

To set altitude:

your position.
1. Fill in the altitude of your main unit in the blank.
2. Tap Done.
BAR218HGX-UM-EN-R10.indd 9

10
EN
VIEW CURRENT READINGS
You can directly view all the weather readings from
different sensors through the application at a time. The
readings are in HOME screen.
NOTE If low battery icon displays on the screen,
please replace the batteries for the corresponding device.
To show unavailable sensor:
If the sensor is out of range, the readings are
interrupted and ￣(dash mode) displays on the screen.
If you do not want to show the unavailable sensor:
  SETTINGS screen, touch and slide the button to
right to turn on the function, or sliding to left to turn it off.
To automatically synchronize time:
Time and date on your weather station could be
automatically synchronized by your mobile device.
  SETTINGS screen, touch and slide the button to right
to turn on the function, or sliding to left to turn it off.
To show sea level pressure:
After the altitude is input,
you can view the sea level
pressure on the HOME
screen.
 SETTINGS screen,
touch and slide the
button to right to turn on the function, or sliding to
left to turn it off.
NOTE When altitude is set to 0 meter, the pressure
reading is the local pressure. If the altitude is set to
the current location, the new pressure reading will be
displayed as a sea level pressure.
VIEW HISTORY READINGS
You can view history through the application. The
history could also be presented in graphs (past 24
hours or past 7 days).
BAR218HGX-UM-EN-R10.indd 10

EN
11
To view the history:
1. Tap on your desired sensor area on the screen.
2. Tap to select your desired data or tap
to sort the data by date.
PRECAUTIONS
 
dust, temperature or humidity.
         
such as newspapers, curtains etc.
 
over it, dry it immediately with a soft, lint-free cloth.
         
materials.
 
This invalidates the warranty.
 
         
actual display.
        
collected separately for special treatment and not
as household waste.
 


manufacturer's care instructions for information.
 
without the permission of the manufacturer.
 
waste. Collection of such waste separately for
special treatment is necessary.
        
a battery safety strip. Remove the strip from the

NOTE 

without notice. To download an electronic version of the
user manual, please visit
.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
BAR218HGX-UM-EN-R10.indd 11

12
EN
ABOUT OREGON SCIENTIFIC
Visit our website  to learn

For any inquiry, please contact our Customer Services
at .

the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.
EU-DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientific Global
Distribution Limited, declares that the radio equipment
type thermometer
with 2014/53/EU Directive. The full
Declaration of Conformity is available
internet address:

COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 7.32 x3.7 x 2.13 in
186 x 94 x 54 mm
Weight 223 g without battery
Temperature range -5°C to 50°C (23°F to 122°F)
Signal frequency 433.904 MHz
Humidity range 25% - 95%
Power 3 x UM-3 (AA) 1.5V batteries
Temperature range
for ice alert 3°C to -2°C
REMOTE UNIT (THGR511)
L x W x H 96 x 50 x 22 mm
(3.78 x 1.97 x 0.87 in)
Weight 49 g (1.7 ounces)
Transmission
range
30 m (98 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 2 x UM-4 (AAA) 1.5 V batteries
BAR218HGX-UM-EN-R10.indd 12
compliance
text of the EU
at the following

EN
13
Abusive disposal of the product by the user involves
application of the administrative sanctions according
to the laws in force.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.

This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
DISPOSAL INFORMATION FOR USERS
Pursuant to and in accordance with
Article 14 of the Directive 2012/19/EU
of the European Parliament on waste
electrical and electronic equipment
(WEEE), and pursuant to and in
accordance with Article 20 of the Directive 2013/56/
EU of the European Parliament on batteries and
accumulators and waste batteries.
The barred symbol of the rubbish bin shown on the
equipment indicates that, at the end of its useful life, the
product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries
must be removed from the equipment before it is given
as waste. To remove the batteries/accumulators refer
to the specifications in the user manual. Therefore,
any products that have reached the end of their
useful life must be given to waste disposal centers
specializing in separate collection of waste electrical
and electronic equipment, or given back to the dealer
when purchasing a new WEEE, pursuant to and in
accordance with Article 14 as implemented in the
country.
The adequate separate collection for the subsequent
start-up of the equipment sent to be recycled, treated
and disposal of in an environmentally compatible way
contributes to preventing possible negative effects
on the environment and health and optimizes the
recycling and reuse of components making up the
apparatus.
BAR218HGX-UM-EN-R10.indd 13

14
EN
declare that the product
Product No.: 
Product Name:
 
Global Distribution Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
 
 
receiver.
        
circuit different from that to which the receiver is
connected.
         
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at ), or on
the warranty card for this product) for all inquiries instead.
We
  
Address: Brea Corporate Park
3020 Saturn St. Suite 200
Brea, CA 92821
Telephone No.: 1 [phone]
BAR218HGX-UM-EN-R10.indd 14
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment .
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.

thermometer

1
IT
Model: BAR218HGX
Manuale utente
INDICE
Introduzione ----------------------------------------------------------------2
Panoramica -----------------------------------------------------------------2
Vista anteriore ----------------------------------------------------------2
Vista posteriore---------------------------------------------------------3
Sensore remoto --------------------------------------------------------3
Come iniziare---------------------------------------------------------------4
Inserire le batterie -----------------------------------------------------4
Sensore remoto -----------------------------------------------------------4
Trasmissione dati del sensore--------------------------------------5
Orologio----------------------------------------------------------------------5
Impostazione manuale dell’orologio ------------------------------5
Previsioni del tempo-----------------------------------------------------5
Messaggio avviso meteo-----------------------------------------------5
Temperatura e umidità --------------------------------------------------6
Allarme gelo-------------------------------------------------------------6
Tendenze atmosferiche ----------------------------------------------6
Fase lunare -----------------------------------------------------------------6
Retroilluminazione -------------------------------------------------------7
Reset (Ripristino) ---------------------------------------------------------7
Collegamento al vostro Dispositivo mobile ---------------------7
Sincronizzazione della vostra Stazione meteo-----------------7
Impostazioni-------------------------------------------------------------8
Visualizzazione dei dati attuali -------------------------------------9
Visualizzazione dello storico dei dati -----------------------------10
Precauzioni -----------------------------------------------------------------11
 -------------------------------------------------------------------12
 ---------------------------------12
Dichiarazione di conformitá ue --------------------------------------12
Informazione Agli Utenti -----------------------------------------------13
BAR218HGX-UM-IT-R9.indd 1

IT
2
INTRODUZIONE

Weather@Home Stazione meteorologica con
connessione Bluetooth e indicazione della temperatura
interna ed esterna.
NOTA Si consiglia di tenere questo manuale a
portata di mano durante l’utilizzo del prodotto. Il
manuale contiene pratiche istruzioni dettagliate, dati
tecnici e avvertenze che è necessario conoscere.
PANORAMICA
VISTA ANTERIORE
1. Indicatore ricezione sensore remoto e canale
esterno selezionato
2. : batteria scarica del sensore remoto esterno
3. : Previsioni meteorologiche per le prossime
12 ore e tendenza pressione
4. / / / / : messaggio
avviso meteo
5. Visualizzazione temperatura interna (corrente/
MAX/MIN) con andamento temperature
6. Indicatore connessione Bluetooth
7. : batteria scarica unità principale
8. Indicatore LED per allarme ghiaccio
9. MODE
visualizzazione
10. MEM: visualizzazione valori attuali, massimi e minimi
di temperatura / umidità
BAR218HGX-UM-IT-R9.indd 2

3
IT
11. LIGHT (LUCE): attivazione retroilluminazione
12. / : aumento / diminuzione valore delle
impostazioni; selezionare canali esterni (1-5);
attivazione / disattivazione MODE (MODALITÀ) di
accoppiamento.
13. AM/PM: mattina/pomeriggio.
MM-GG / GG-MM / AA: calendario / orologio
con giorno della settimana (ora: minuti con
visualizzazione secondi)
14. Visualizzazione umidità interna (valori attuali/MAX/
MIN) con andamento umidità
15. Visualizzazione fase lunare
16. Visualizzazione umidità esterna (valori attuali/MAX/
MIN) con andamento umidità
17. Visualizzazione temperatura esterna (corrente/
MAX/MIN) con andamento temperatura
VISTA POSTERIORE
1. °C / °F: selezionare unità di misura temperatura
2. RESET (RIPRISTINO): ripristino dell’unità alle
impostazioni di default
3. Compartimento batterie
SENSORE REMOTO
1
3
4
5
2
BAR218HGX-UM-IT-R9.indd 3

IT
4
1. Indicatore LED di stato
 
3. Vano batterie
4. Foro RESET
5. Selettore CHANNEL
COME INIZIARE
INSERIRE LE BATTERIE
1. Rimuovere il compartimento batterie.
2. Inserire le batterie, rispettando le polarità (+/-).
3. Premere RESET (RIPRISTINO) dopo ogni
sostituzione di batterie
UBICAZIONE SIGNIFICAT
Area orologio / sveglia Batterie scariche unità
principale
Area temperatura
esterna
Batterie sensore
scariche
SENSORE REMOTO

Per impostare il sensore:
1. Aprire il compartimento batterie.
2. Selezionare un canale quindi premere RESET
(RIPRISTINO).
3. Chiudere il coperchio delle batterie.
4. Mettere il sensore entro 98 piedi (30 m) dall’unità
principale usando il supporto da tavolo oppure il
montaggio a parete.
TIP La posizione ideale per il sensore sarebbe
qualsiasi posizione all’esterno della casa ad un’altezza
non superiore a 5 piedi (1.5 m) ed al riparo dalla luce
solare diretta o dall’umidità per una lettura accurata.
150cm(5ft)
NOTA Usare batterie alcaline per un funzionamento più
lungo e batterie al litio d’uso comune per temperature al disotto
del punto di congelamento.
BAR218HGX-UM-IT-R9.indd 4

5
IT
TRASMISSIONE DATI DEL SENSORE
Come ricercare un sensore:
Premere e tener premuto e MODE (MODALITÀ)
contemporaneamente.
L’icona di ricezione del sensore nell’area del
sensore remoto mostra lo stato:
ICONA DESCRIZIONE
L’unità principale sta cercando i(l)
sensore(i).
È stato trovato un canale.
Non si trova il sensore.
TIP
La portata di trasmissione può variare in
dipendenza di molti fattori. Potreste dover provare con
diverse posizioni per ottenere i risultati migliori.
OROLOGIO
IMPOSTAZIONE MANUALE DELL’OROLOGIO
1. Premere e tener premuto MODE (MODALITÀ).
2. Premere oppure per cambiare le impostazioni.
3. Premere MODE (MODALITÀ) per confermare.
4. L’ordine delle impostazioni è: formato ora 12/24,
ora, minuti, anno, formato calendario (giorno-mese
/ mese-giorno), mese, giorno e lingua.
Le opzioni della lingua sono Inglese (E), Tedesco (D),
Francese (F), Italiano (I), e Spagnolo (S).
Per selezionare MODE (MODALITÀ) di
visualizzazione:
Azionare MODE (MODALITÀ) per scegliere tra
orologio con secondi / giorno della settimana /
calendario / fase lunare.
PREVISIONI DEL TEMPO
Questo prodotto fornisce le previsioni del tempo per
le successive 12 ore, entro un raggio di 19-31 miglia
(30-50 km).
Soleggiato
Parzialmente nuvoloso
Nuvoloso
Piovoso
Nevoso
MESSAGGIO AVVISO METEO
I messaggi di avviso meteo forniscono indicazioni di
probabili circostanze che possono sorgere sulla base

avvisi sono illustrati di seguito:
BAR218HGX-UM-IT-R9.indd 5

IT
6
AVVISO MESSAGGIO
Rischio di alte temperature
Rischio di venti ad alta velocità
Rischio di una tempesta
Rischio di nebbia
Rischio di ghiaccio
TEMPERATURA E UMIDITÀ
Selezionare unità di misura temperatura:
 °C oppure °F per lettura temperature
usando uno spillo o la punta di una penna.
Per selezionare le letture di un sensore esterno:
  per selezionare la lettura del sensore
desiderato.
Per fare una scansione automatica dei sensori:
  e MEM
contemporaneamente per visualizzare i dati di ogni
sensore per 3 secondi.
  .
Per visualizzare le registrazioni correnti, minime e
massime del giorno di un sensore selezionato:
 MEM.
Per cancellare le registrazioni:
 MEM.
ALLARME GELO
Se il sensore del canale 1 scende da 37°F a 28°F (da
3°C a -2°C), l’indicatore LED lampeggerà; l’indicatore
smetterà di lampeggiare una volta che la temperatura
esce da quell’intervallo.
  e per
disarmare l’avviso di allarme ghiaccio.
NOTA Poiché l’allarme ghiaccio si applica solo al
canale 1, per impedire il lampeggiamento del LED,
selezionare il canale 2 o 3 per un sensore esterno.
TENDENZE ATMOSFERICHE
Le icone delle tendenze della temperatura, umidità
e pressione sono basate sulle letture recenti del
sensore.
IN AUMENTO STABILE IN DIMINUZIONE
FASE LUNARE
Selezionare MODE
funzione FASE LUNARE; premere oppure per
scorrere velocemente gli anni (dal 2001 al 2099).
BAR218HGX-UM-IT-R9.indd 6
