Oregon Scientific BAR182HG User manual

1
EN
DIGITAL WEATHER FORECASTER
WITH REMOTE THERMO-HYGRO
SENSOR AND ALARM CLOCK
MODEL NO.: BAA182HG
USER’S MANUAL
INTRODUCTION
Congratulations on your purchase of the Weather forecaster with
cable free sensor and clock (BAR182HG).
This unit has a large four-line liquid crystal display (LCD) for
displaying weather forecast information, in/outdoor temperatures
and relative humidity, calendar clock, clock display of 2nd time-
zone and dual daily alarms. Also, the main unit can support up to
three remote sensors.
Other features include weekday display in four abbreviated
languages, crescendo alarm and interchangeable clock display
modes.
MAINFEATURES:MAINUNIT
CLOCK
ON
ON
/
/
OFF
OFF
ON
ON
/
/
OFF
OFF
HI
HI
/
/
LO
RESET
TEMP RH AL
A
H
A1
BC
D
E
F
G
I
J
Q
R
P
K
L
M
N
O

2
EN
A . FRONT DISPLAY
A four line easy-to-read LCD
A1. WEATHER FORECAST WINDOW
Graphically illustrates a weather forecast
B. [ ] BATTERY-LOW INDICATOR
Activates when the remote-sensor or main unit battery power
is low
C. [
1
] / [
2
] ALARM-ON ICONS
Appears when the alarm is activated
D. [((1))] / [((2))] ALARM ICONS
Appears when the respective alarm time is displayed
E. [MODE] BUTTON
Changes the display mode of the clock and alters time/date
setting
F. [ ALARM ] BUTTON
Displays the alarm time, or changes the alarm set time
G. [MEM] BUTTON
Displaysminimum and maximum temperature and
humidity readings, and erases memory data
H. [ CHANNEL ] BUTTON
Toggles among the remote sensor channels
CLOCK:
I. [ ON / OFF ] BUTTON
Enables or disables the daily alarms
J. [ ] BUTTON
Decreases the value of a setting
K. [ ] BUTTON
Advances the value of a setting
TEMP.% RHALARM :
L. [ ON / OFF ] BUTTON ( TEMP/% RH ALARM )
Enables / disables HI/LO temp alarm and HI/LO % RH alarm
M. [ HI/LO ] BUTTON ( TEMP/% RH ALARM )
- Set the upper or lower temperature and humidity alarm limits
- Confirms alarm settings
N. [ ] BUTTON ( TEMP/% RH ALARM )
Advances the value of the settings for the HI / LO temperature
and humidity alarm.
O. [ RESET ] BUTTON
Returns all settings to default values
P. WALL-MOUNTHOLE
For mounting the unit on a wall
Q. BATTERY COMPARTMENT
Accommodates four (4) UM-3 or “AA” size batteries
R. REMOVABLETABLESTAND
For standing the main unit on a flat surface

3
EN

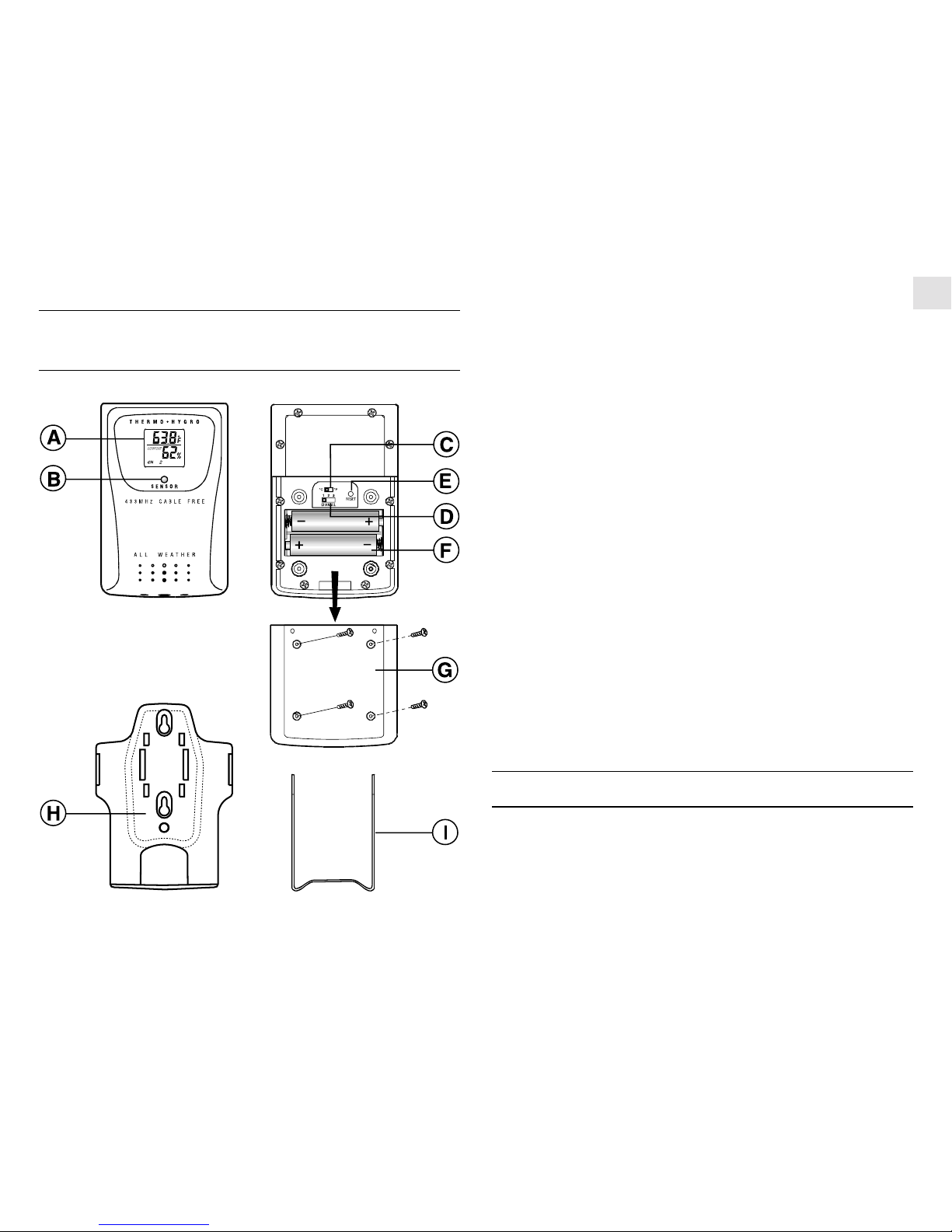

FEATURES:REMOTETHERMO-HYGRO
SENSOR
A. TWO-LINELCD
Displays the current temperature and humidity monitored by
the remote unit
B. LED INDICATOR
Flashes when the remote sensor transmits a reading
C. °C/°FSLIDESWITCH
Selects between Centigrade (°C) and Fahrenheit (°F)
D. CHANNELSLIDE SWITCH
Select the remote sensor Channel 1, Channel 2 or Channel 3
E. RESET
Returns all user programmed settings to original factory set
values
F. BATTERY COMPARTMENT
Accommodates two (2) UM-3 or AA-size batteries
G. BATTERYDOOR
H. WALL-MOUNTHOLDER
Supports the remote unit in wall-mounting
I. REMOVABLETABLESTAND
For standing the remote unit on a flat surface
BEFOREYOUBEGIN
For best operation,
1. Assign different channels to different remote units.
2. Insert batteries for remote units before doing so for the main unit.
3. Place the main unit as close as possible next to the remote unit,
reset the main unit after installing batteries. This will ensure

4
EN
easier synchronization between the transmission and reception
of signals.
4. Position the remote unit and main unit within effective
transmission range, which, in usual circumstances, is up to 30
meters.
Note that the effective range is vastly affected by the building
materials and where the main and remote units are positioned.
Try various set-ups for best result.
Though the remote units are weather proof, they should be placed
away from direct sunlight, rain or snow.
BATTERYINSTALLATION:MAINUNIT
1. Remove the Table-stand from the main unit as shown.
2. Gently slide down the battery compartment door.
3. Insert four UM-3 or “AA” size alkaline batteries.
4. Replace the battery compartment door and the table stand.
BATTERYANDCHANNELINSTALLATION:
REMOTEUNIT
The remote thermo-hygro sensor unit uses two (2) UM-3 or “AA”
size batteries.
Follow these steps to install / replace batteries:
1. Remove the screws on the battery compartment.
2. Select the channel number on the [CHANNEL] slide switch.
3. Select the temperature display unit on the °C/°F slide switch.
4. Insert the batteries strictly according to the polarities shown
therein.
5. Replace the battery compartment door and secure its screws.
Replacethe batteries when the low-battery indicator of the particular
channel lights up on the main unit. (Repeat the steps described in
section “BEFORE YOU BEGIN”)
Note that once a channel is assigned to a remote unit, you can only
change it by removing the batteries or resetting the unit.

5
EN
LOWBATTERYWARNING
When it is time to replace batteries, the respective low-battery
indicator will show up when the respective channel is selected.
HOWTOUSETHE TABLE STANDOR WALL
MOUNTING
The main unit has a removable table stand, which when connected,
can support the unit on a flat surface. Or you can remove the stand
and mount the unit on a wall using the recessed screw hole.
As for the remote unit, it comes with a wall-mount holder and a
removable stand. Use either to hold the unit in place.
Main unit
Wall-mount Table Stand
Remote unit
Wall-mount Table Stand
THERESET BUTTON
This button is only used when the unit is operating in an
unfavorable way or malfunctioning. Use a blunt stylus to hold down
the button. All settings will return to their default values.
GETTINGSTARTED
Once batteries are placed in a given remote sensor unit, it will start
transmitting information at 40-second intervals.
Also, for approximately a 3-minute duration, the main unit will
automatically search for signals once batteries are installed. Upon
successful reception, the individual channel temperature reading
will be displayed on the top line and the respective humidity
reading on the bottom line. The main unit will automatically update
its readings at about 40-second intervals.
If no signals are received, blanks “---” will be displayed and the
kinetic wave icon will not show.

6
EN
To force a signal search:
Press and hold [CHANNEL] &[MEM] for 2-seconds to
enforce a 3-minute search.
This is useful in synchronizing the transmission and reception of
the remote and main units.
Repeat this step whenever you find discrepancies between the
reading shown on the main unit and that on the respective remote
unit.
HOW TO CHECK REMOTE AND INDOOR
TEMPERATURE&HUMIDITY
Display of readings from a remote sensor or the main unit is a one-
step procedure. The remote sensor channel or the main unit display
is indicated in a box under the kinetic-wave icon.
Todisplay temperature/ humidity readings fromthemain unit:
Press [CHANNEL] until a dot is displayed in the box under the
kinetic-wave.
To display temperature / humidity readings from a remote
sensor:
Press [CHANNEL] until the appropriate remote sensor channel
is displayed in the box under the kinetic-wave.
DISCONNECTED SIGNALS
If without obvious reasons the display for a particular channel goes
blank,press[CHANNEL]&[MEM]to enforceanimmediate search.
If that fails, check:
1. The remote unit of that channel is still in place.
2. The batteries of both the remote unit and main unit. Replace as
necessary.
Note that when the temperature falls below freezing point, the
batteries of outdoor units will freeze, lowering their voltage supply
and the effective range.
3. The transmission is within range and path is clear of obstacles
and interference. Shorten the distance when necessary.
TRANSMISSION COLLISION
Signals from other household devices, such as door bells, home
security systems and entry controls, may interfere with those of this
product and cause temporarily reception failure. This is normal and
does not affect the general performance of the product. The
transmission and reception of temperature and humidity readings
will resume once the interference recedes.

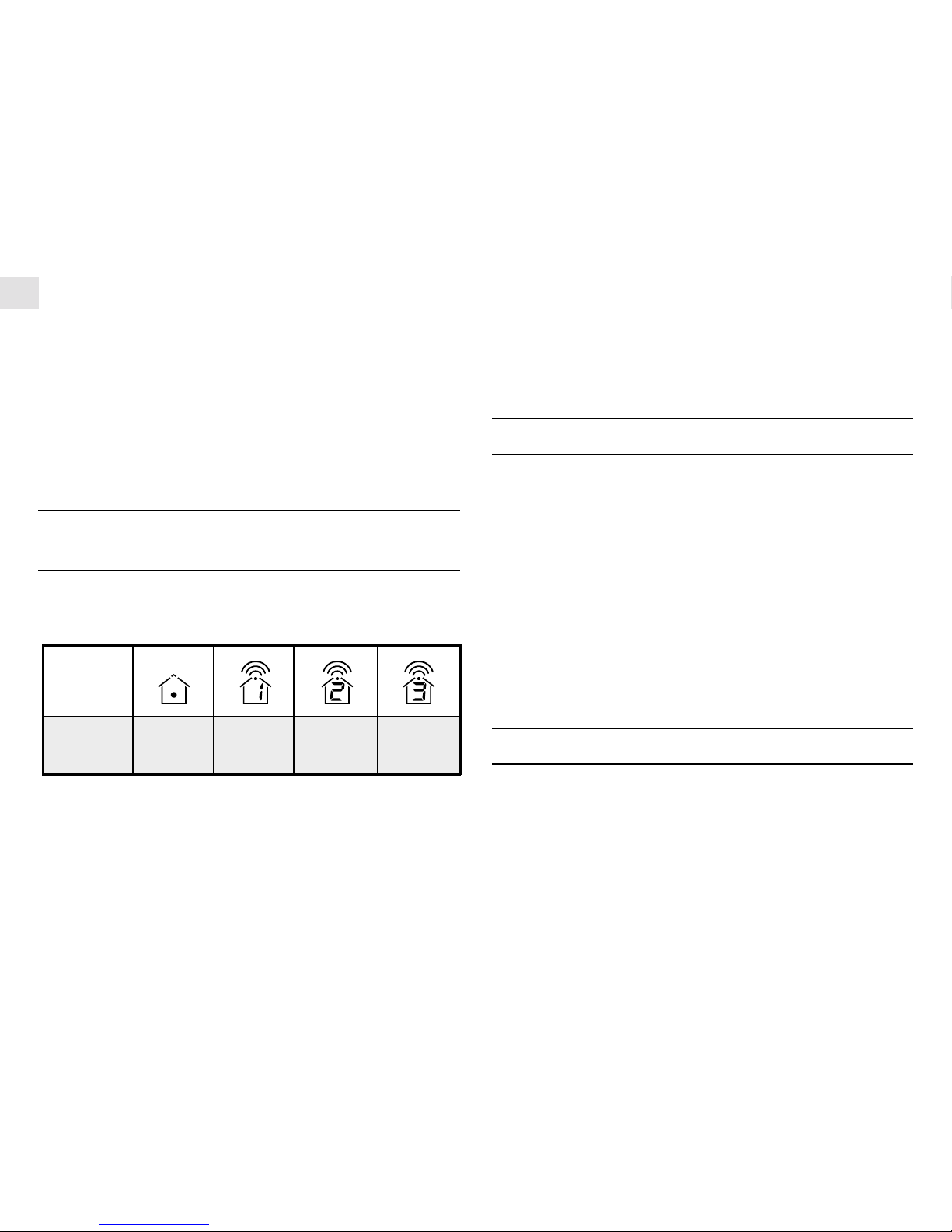

Indoor
Display
Designated
Display
Remote
Display
Channel 1
Kinetic-wave
Icon
Remote
Display
Channel 2
Remote
Display
Channel 3

7
EN

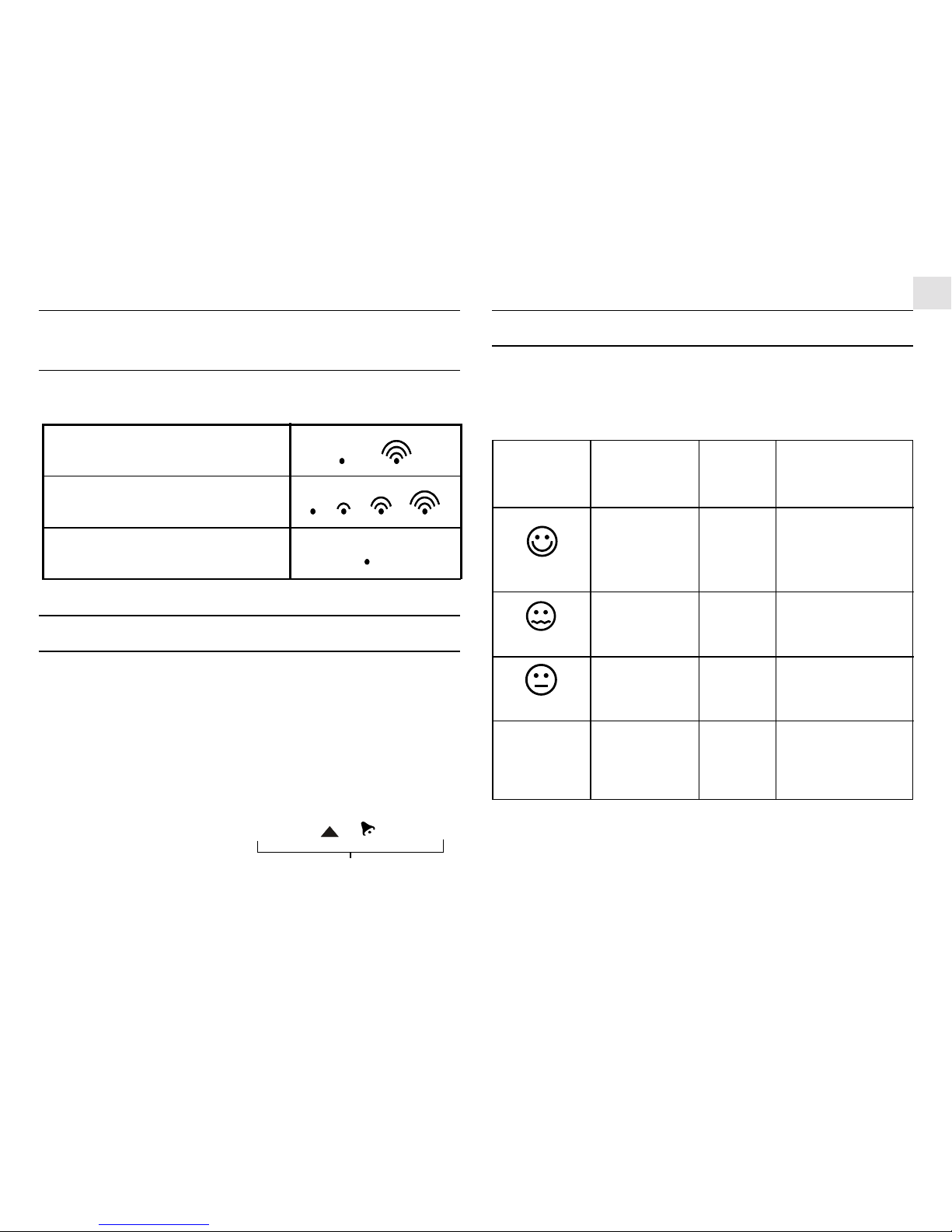

HOWTOREADTHEKINETICWAVE
DISPLAY
The kinetic wave display shows the signal receiving status of the
main unit. There are three possible forms:
The unit is in searching mode.
Transmission data are securely
registered.
No signal received in search mode.
REMOTE SENSOR SCANNING
The unit can be set to automatically scan and display readings from
the remote sensors and indoor readings. When the remote-sensor
mode is active, the display will show the readings from one channel
for about 4-second and then proceed to the next channel display.
To activate the remote-sensor scanning mode:
Press and hold [CHANNEL] for 2-seconds.
To deactivate the remote-sensor scanning mode:
Presseither[CHANNEL],[MEM],[HI/LO],[ ],[ ON / OFF]
(TEMP % RH AL)
THECOMFORT-LEVELICONS
The comfort level indicators COM, WET or DRY will tell you if the
current environment is comfortable, too wet or too dry.
The comfort indicator will appear on the display when the follow-
ing conditions are satisfied:
Indicator
displays
on the unit
COM
WET
Temperature
Range
20°C to 25°C
(68°F to 77°F)
-5°C -+ 50°C
(23°F - 122°F)
-5°C -+ 50°C
(23°F - 122°F)
Humidity
Range
40%RH-
70%RH
OVER-
70%RH
Below
70%RH
Shows that the
Current
Environment
Ideal range for
both relative
humidity and
temperature
Contains excess
moisture.
Contains
inadequate
moisture
No
Indicator
Less than
20°C( 68°F)
or More than
25°C (77°F)
40%RH
to
70%RH Nocomment
DRY

8
EN
TEMPERATURE,HUMIDITY&PRESSURE
TREND INDICATORS
The temperature-trend, humidity-trend and pressure trend indicators
show the trends of collected readings. Arrows indicate a rising,
steady or falling trend.
Note: If the readings goes above or below the measuring range of
the main unit or the remote unit ( stated in specification), the display
will show “HHH” or “LLL”.
MAXIMUMANDMINIMUMTEMPERATURE
ANDHUMIDITY
The maximum and minimum recorded temperature and humidity
readings will automatically be stored in the memory.
To display the maximum and minimum display memory:
1. Select the channel to be checked.
2. Press [MEM] once to display the maximum temperature
and humidity and again the minimum temperature and humidity.
The respective indicators, MAX or MIN will be displayed.
To clear the memory:
Press and hold [MEM] for 2-seconds.
Ifyou press [MEM]now, themaximumand minimumrecordingswill
have the same values as the current ones until different readings are
recorded.
HOWTOUSECHANNEL-1TEMPERATURE/
HUMIDITYALARM
Upper and lower temperature and humidity limits for channel-1 can
be set so that an alarm activates when the limits are exceeded.
The high and low temperature and humidity displays are selected
by sequentially pressing [ HI/LO ].
Rising
Arrow indicator
Humidity Trend Steady Falling
Rising
Arrow indicator
Temperature
Trend Steady Falling
Rising
Arrow indicator
Pressure Trend Steady Falling

9
EN
The high-low displays are as follows:
To set a high or low temperature or humidity alarm:
1. Press [HI/LO], channel-1 will be displayed.
2. Press []to set the temperature or humidity limit. Each press
will increase increments by one degree or percentage. Press and
hold the button for a rapid-scrolling sequence by increments of
five.
Note: The temperaturealarmsetting range is from -50°C (-58°F)
to +70°C(158°F).
If this is the first time you set the limits, the lower limit will start
from -50°C (-58°F) and the upper limit +70°C (158°F). Other
wise, the reading will start from the temperature last selected.
The humidityalarm setting range is from 2% to 98%.
If this is the first time you set the limits, the lower limit will start
from 2% and the upper limit 98% Otherwise, the reading will start
from the humidity last selected.
3. Repeat the steps to set the upper humidity setting and the lower
temperature and humidity settings.
4. Whenfinished,press[HI/LO]toset another limit or wait 16-seconds.
The unit will automatically return to the normal display.
The respective HI, LO or both indicators will light up to signify
the status of the alarm.
If in another channel other than channel one is selected, when the
alarm activates the display will switch to channel-1 and the display
will flash. If left untouched, the alarm will activate for a 1-minute.
Press [CHANNEL],[MEM],[HI/LO],[ ],[ ON/OFF] to
(TEMP % RH AL)
momentarilystop the alarm. The alarm will activate again if the limit
continues to exceed the set limit.
Note: If a second limit is passed while an alarm is active, the first
alarm will complete its 1-minute cycle and the alarm will continue
to activate for a second minute to indicate that a second limit has
been surpassed.
To disable an alarm:
1. Enter the setting mode by pressing [HI/LO].
2. Then, press [ON/OFF].
The alarm has been disabled and will not sound at the previously
set limit.
To disable a sounding alarm:
Presseither[CHANNEL],[MEM],[HI/LO],[ ],[ ON / OFF]
(TEMP % RH AL)
WEATHERFORECASTFUNCTION
Theunitiscapableofdetectingatmosphericpressure changes. Based
on collected data, it can predict the weather for the forthcoming 12
to 24 hours. The effective range covers an area of 30 to 50 km.
Sequence RespectiveDisplay
Pressing HI/LO once Enters HI temperature display
Pressing HI/LO twice Enters HI humidity display
Pressing HI/LO third time Enters LO temperature display
Pressing HI/LO fourth time Enters LO humidity display

10
EN

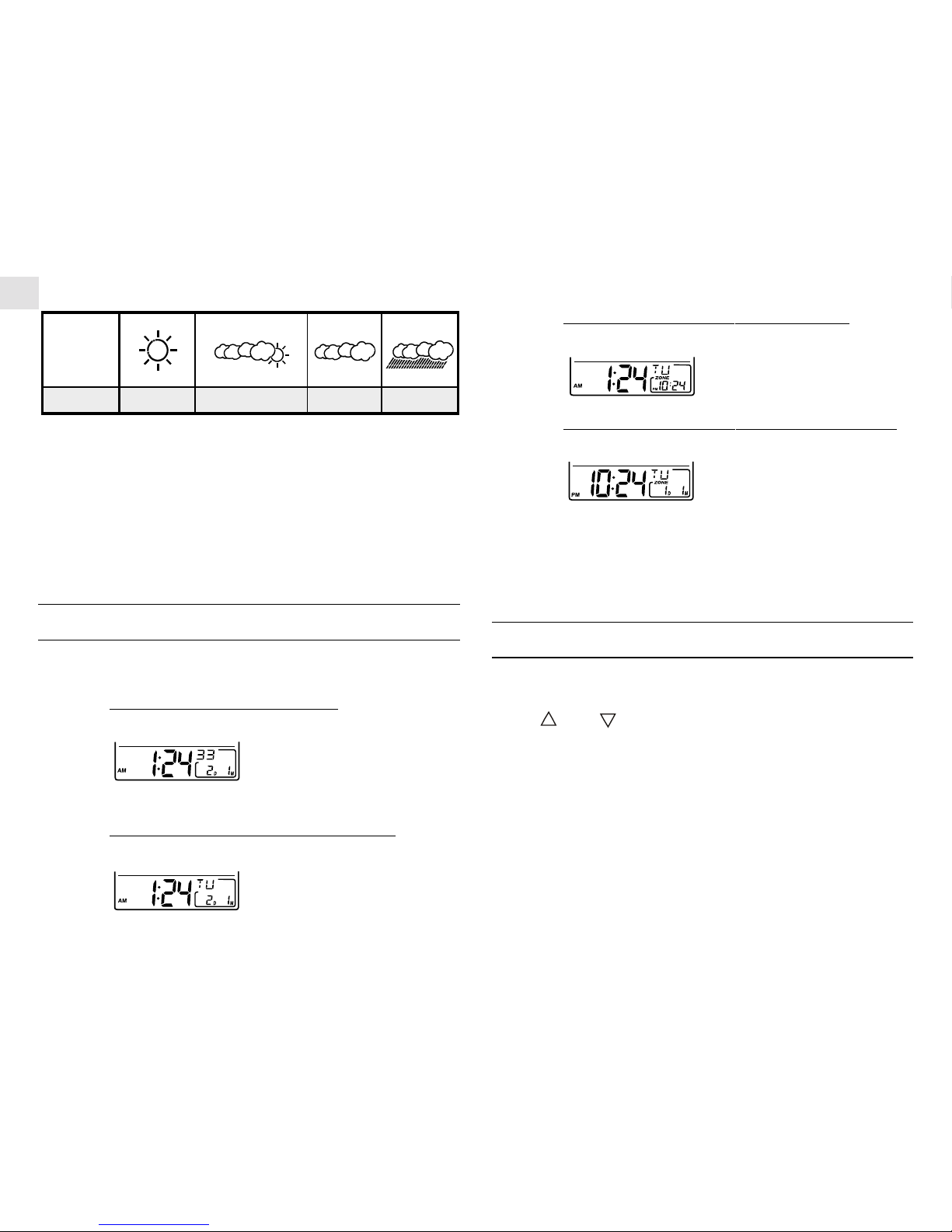

Cloudy
SunnyForecast Rainy
Slightly Cloudy
Indicator
displays
on the unit
NOTE:
1. The accuracy of a general pressure-based weather forecast is
about 70% to 75%.
2. The weather forecasts from this unit are predictions that cover
the next 12 to 24 hours. It may not necessarily reflect the current
situation.
3. The “Sunny” icon, as applies to nighttime, implies clear weather.
CALENDARCLOCK DISPLAY MODES
The BAA182HG supports four time display modes in the sequence
of:
MODE 1. Hour-Minute-Second (of local time)
Day-Month (of local time)
MODE 2. Hour-Minute-Day of the Week (of local time)
Day-Month (of local time)
MODE 3. Hour-Minute-Day of the Week (of local time)
Hour-Minute (of alternate time zone)
MODE 4. Hour-Minute-Day of the Week (of second time zone)
Day-Month (of alternate time zone)
Each press on the [MODE] button will toggle the display in the
above order.
Note: The bottom line of the display will be replaced by the alarm
time if the [ ALARM ] button is pressed.
HOWTOSETTHE CLOCK MANUALLY
To set the clockmanually,hold [MODE]forthreeseconds. The hour
digits will blink.
Press [ ] or [ ] (CLOCK) select the hour. Keep pressing the
button to increase or decrease the value rapidly.
Press [ MODE ] to confirm. The minute digits will blink.
Repeat the same procedure to set the minutes, hour, current day,
month, display language, weekday and hour offset for the 2nd time
zone.
Note: The time and date are displayed in 24-HOUR clock format.
For the language display, you can choose among English (E),
German (D), French (F) and Italian (I). Weekday is in the usual
sequence of Monday through Sunday.

11
EN
For the 2nd time zone, which is indicated by the ZONE icon, enter
the hour offset using the [ ] and [ ] (CLOCK) buttons and
the BAA182HG will calculate the second zone-time accordingly.
If there is an item you do not wish to change, simply press [MODE]
to bypass the item.
When you are done, press [MODE ] to exit. The display will return
to the mode last chosen.
HOWTO SET AND ARM THE ALARMS
The BAA182HG has two alarms, ALARM 1 and ALARM 2. They
can be invoked together or independently.
To set an alarm:
1. Press [ ALARM ] once to select ALARM 1 or again to select
ALARM 2. The last selected time of the alarm will be displayed.
If you have never set the alarm before, the time will be displayed
as 0:00.
2. Press [ ALARM ]for three seconds. The hour digits will
blink.
3. Enter the hour using [ ] and [ ] (CLOCK).
4. Press [ ALARM ]. The minute digits will blink.
5. Enter the minutes using [ ] and [ ](CLOCK).
6. Press [ ALARM ] to exit. The [ ]icon for the alarm
chosen will be displayed indicating the alarm set above is now
armed.
You can also arm or disarm an alarm by pressing the [ ON /OFF ]
(CLOCK) button.
When an alarm is armed, it will go off at the set time.
The four-step crescendo function allows the alarm to start off gently
and step up its intensity every 20 seconds for four times. Without
interruption,thealarmwillgooffforatotalof two minutes. If no key
is pressed to turn off the alarm within these 2 minutes, the alarm will
go off once more after 8 minutes.
If a second alarm goes off when the first alarm is sounding off, the
first alarm will be disabled automatically.
HOW TO STOP AN ALARM
To stop an alarm, you can use either press [ALARM ]button or
[ ON /OFF ] (CLOCK) button.
Pressing [ ALARM ]will stop the alarm, which is still armed and
will activate at the set time the following day.
If [ ON / OFF] (CLOCK) button is pressed instead, the alarm
will be stopped and deactivated all together.
NOTE ON °C AND °F
The temperature display designation of °C or °F on the main dis-
play unit will override the display selection made on the remote
sensor. Whatever the display unit of the remote sensor is, it will
only apply to the remote sensor itself and the temperature unit will
automatically be converted to the one of the main unit. (i.e. °C)

12
EN
MAINTENANCE
When handled properly, this unit is engineered to give you years
of satisfactory service. Here are a few product care instructions:
1. Do not immerse the unit in water. If the unit comes in contact
with water, dry it immediately with a soft lint-free cloth.
2. Do not clean the unit with abrasive or corrosive materials.
Abrasive cleaning agents may scratch the plastic parts and
corrode the electronic circuit.
3. Do not subject the unit to excessive: force, shock, dust,
temperature, or humidity. Such treatment may result in
malfunction, a shorter electronic life span, damaged batteries, or
distorted parts.
4. Do not tamper with the unit’s internal components. Doing so
will terminate the unit’s warranty and may cause damage. The
unit contains no user-serviceable parts.
5. Only use new batteries as specified in this instruction manual.
Do not mix new and old batteries as the old batteries may leak.
6. Read this instruction manual thoroughly before operating the
unit.
SPECIFICATIONS
TemperatureMeasurement
Mainunit
Indoor Temperature measurement
Proposed operating range : 23.0°F to 122.0°F
(-5.0°C to +50.0°C)
Temperature resolution : 0.2°F (0.1°C)
Relative Humidity Operating : 25% RH to 90% RH
range
Remote thermo-hygro unit
Proposed operating range : -4.0°F to 140.0°F
(-20.0°C to +60.0°C)
Temperature resolution : 0.2°F (0.1°C)
Relative Humidity Operating : 25% RH to 90% RH
range
Power
Main unit : Four (4) UM-3 or “AA”
1.5V alkaline batteries
Remote sensing unit : Two (2) UM-3or “AA”
1.5V alkaline batteries
Weight
Main unit : 6.8 ounces (without battery)
Remote sensing unit : 2.6 ounces (without battery)
Dimension
Main unit : 6.6" x 3.3" x 1.9" (L x Wx D)
Remote sensing unit : 4.2" x 2.8" x0.84" (L xWxD)

13
EN
NOTE ON COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operations.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC :
NOTE: This equipment has been tested and found to comply with
thelimits for a Class B digital device, pursuant to Part 15of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interferencetoradioor television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
oReorient or relocate the receiving antenna.
oIncrease the separation between the equipment and receiver.
oConnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
oConsult the dealer of an experienced radio/TV technician for
help.
Company Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Place, Tualatin, Oregon 97062, USA
Telephone Number: 1-800-853-8883
Name and model number of the product: Weather Station
BAA182HG
CAUTION
— The content of this manual is subject to change without
further notice.
— Due to printing limitation, the displays shown in this
manual may differ from the actual display.
— Thecontents ofthismanual may notbereproduced without
the permission of the manufacturer.
CUSTOMER ASSISTANCE
Should you require assistance regarding this product and its
operation, please contact our customer care department at
800-853-8883 or via email at [email protected].

14
EN
WARRANTY
This product is warranted to be free of manufacturing defects for a
period of 1 year from date of retail purchase. Defective product
should be directed to the place of retail purchase for exchange.
Should this not be possible, contact our customer care
department for assistance and a return material authorization. No
returns may be made without a return authorization. Please retain
your retail receipt as you may be asked to provide a copy of it for
proof of date purchased.
This warranty does not cover product subjected to abuse,
misuse, accidental damage or tampering.
©2003.Oregon Scientific.All rights reserved.
