Oregon Scientific BAR808HG User manual

1
EN
CONTENTS
Overview .................................................................... 2
Front view .............................................................. 2
Back view .............................................................. 3
Remote sensor ...................................................... 3
Getting started .......................................................... 4
Solar panel ............................................................ 4
Insert batteries ...................................................... 4
Remote sensor .......................................................... 4
Sensor data transmission ...................................... 4
Clock .......................................................................... 5
Clock reception ..................................................... 5
Manually set clock ................................................. 5
Weather forecast ...................................................... 6
Weather warning message ...................................... 6
Temperature and humidity ...................................... 6
Ice warning ............................................................ 7
Weather trends ....................................................... 7
Solar Weather Station
Advance
Model: BAR808HG / BAR808HGA
USER MANUAL
Moon phase ............................................................... 7
Backlight ................................................................... 7
Reset .......................................................................... 7
Precautions ............................................................... 7
Specifications ........................................................... 8
About Oregon Scientific .......................................... 9
EU-Declaration of conformity .................................. 9
FCC statement .......................................................... 9
BAR808HG_M_EN_REV6.indd 1 4/21/09 16:06:43

2
EN
OVERVIEW
FRONT VIEW
1
2
12
13
14
15
16
20
17
21
18
19
3
4
5
6
7
8
9
10
11
1. Solar panel
2. : Remote sensor reception indicator and outdoor
channel selected
3. : Outdoor remote sensor battery low
4. Moon phase display
5. Weather forecast
6. Indoor temperature (Current / Max / Min) with
temperature trend
7. AM /PM
8. : Clock signal reception indicator
9. : Main unit batteries low / no battery
10. MODE: Change settings / display
11. : Increase value of the setting; activate clock
reception signal; toggle between outdoor channels
(1-3)
12. Outdoor temperature (Current / Max / Min) with
temperature trend
13. Outdoor humidity (Current / Max / Min) with humidity
trend
14. Weather warning message
15. Indoor humidity (Current / Max / Min) with humidity
trend
16. : Time zone offset
17. Calendar / Clock with weekday / second
18. : Ice alert LED indicator
19. LIGHT: Activate backlight
20. MEM: View current, maximum and minimum
temperature / humidity
BAR808HG_M_EN_REV6.indd 2 4/21/09 16:06:50

3
EN
21. : Decrease value of the setting; deactivate clock
reception signal

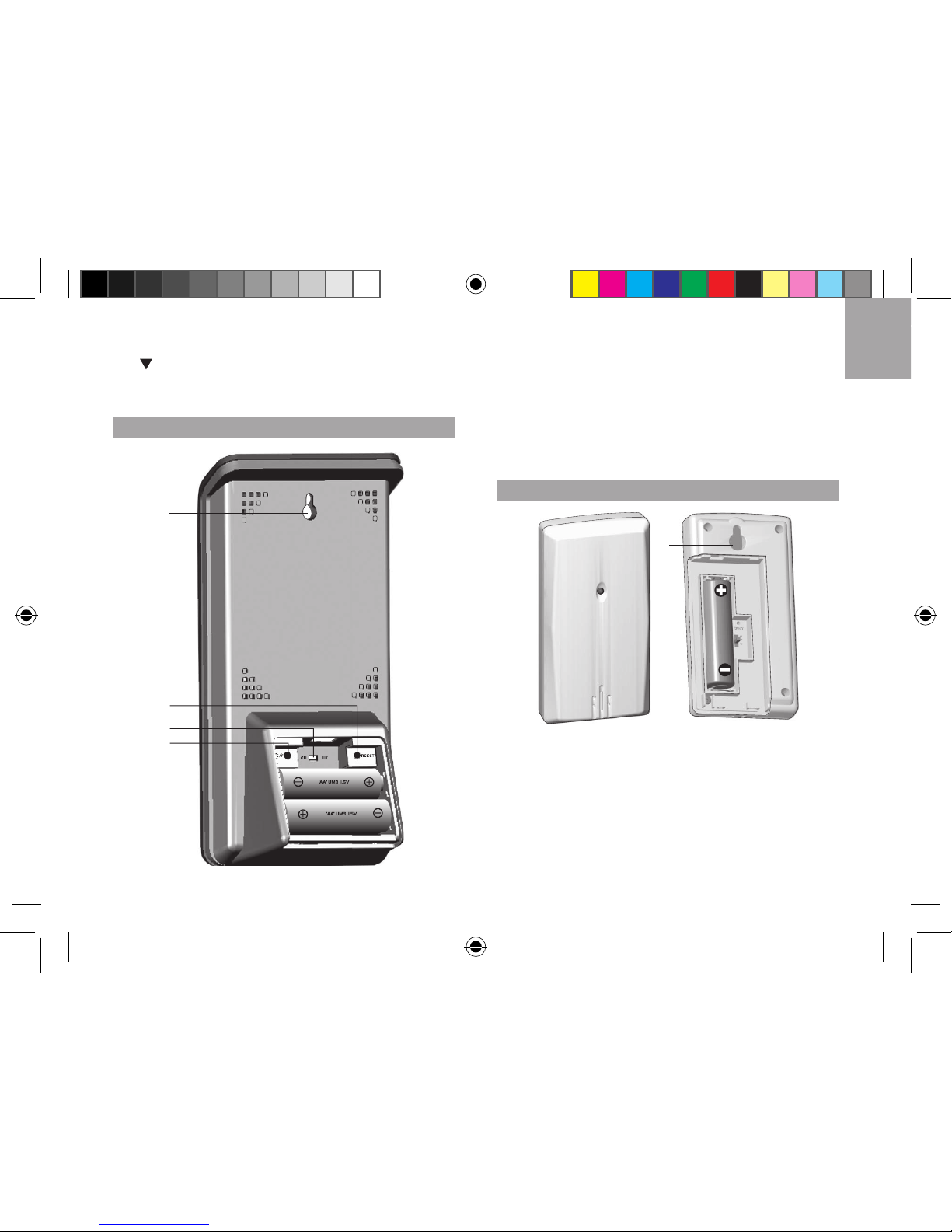

BACK VIEW
1
2
3
4
1. Wall mount hole
2. RESET: Reset unit to default settings
3. EU / UK: Select the nearest radio signal (BAR808HG
only)
4. °C / °F: Select temperature unit
REMOTE SENSOR
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
1
2
3
4
5
BAR808HG_M_EN_REV6.indd 3 4/21/09 16:06:54

4
EN
GETTING STARTED
SOLAR PANEL
The solar panel is an energy saving feature, which is an
environmentally friendly way to provide additional power
to the main unit and prolongs battery life. However, it
cannot replace battery power entirely.
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
REMOTE SENSOR
The main unit can collect data from up to 3 sensors.
To set up the sensor:
1. Open the battery compartment.
2. Insert the battery, matching the polarities.
3. Select a channel. Press RESET after each battery
change.
4. Close the battery door.
5. Place the sensor within 30 m (98 ft) of the main unit
using the table stand or wall mount.
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 5 ft and which can shield it from direct sunlight
or wet conditions for an accurate reading.
150cm(5ft)
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures below
freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
Press and hold + MODE.
The sensor reception icon in the remote sensor area
shows the status:
BAR808HG_M_EN_REV6.indd 4 4/21/09 16:06:56

5
EN

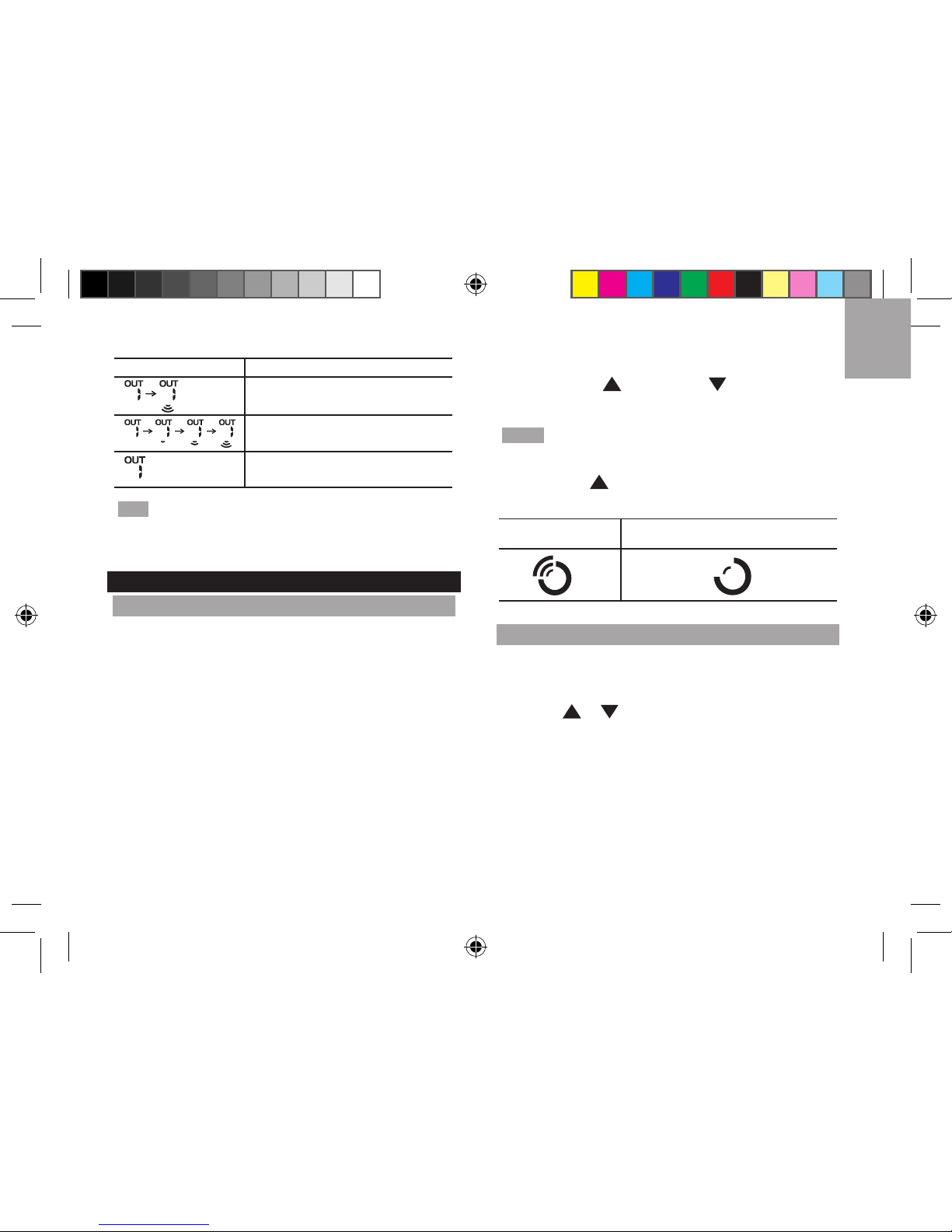

ICON DESCRIPTION
Main unit is searching for
sensor(s).
A channel has been found.
The sensor cannot be found.
TIP The transmission range may vary depending on
many factors. You may need to experiment with various
locations to get the best results.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
BAR808HG:Slide EU / UK to select the signal
received.
• EU: DCF-77 signal: within 1500 km (932 miles) of
Frankfurt, Germany.
• UK: MSF-60 signal: within 1500 km (932 miles) of
Anthorn, England.
BAR808HGA: WWVB-60 signal: within 3200km (2000
miles) of Fort Collins Colorado.
To enable / disable signal reception:
Press and hold to enable or to disable signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal. If signal
reception is unsuccessful, place your unit next to a window,
press and hold to force another signal search.
Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the signal reception
first.
1. Press and hold MODE.
2. Press or to change the settings.
3. Press MODE to confirm.
The settings order is: time zone, 12/24 hr format, hour,
minute, year, calendar mode (day – month / month
– day), month, day and language.
BAR808HG: Time zone offset sets the clock +/- 23
hours from the received clock signal time.If you have
deactivated the clock signal reception, do not set a value
for time zone.
BAR808HG_M_EN_REV6.indd 5 4/21/09 16:06:58

6
EN
BAR808HGA: Select the time zone: (P) Pacific, (E)
Eastern, (C) Central or (M) Mountain.
NOTE The language options are English (E), German (D),
French (F), Italian (I), and Spanish (S), and Russian (R).
To select display mode:
Press MODE to choose between clock with seconds /
weekday / calendar / moon phase.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 30-50 km (19-31 mile) radius.
Sunny
Partially Cloudy
Cloudy
Rainy
Snowy
WEATHER WARNING MESSAGE
The weather warning messages provide indications of
probable circumstances that may arise based on the
weather station’s calculations. The meanings for the
warnings are illustrated below:
Warning Meaning
Risk of high temperatures
Risk of fast wind speeds
Risk of a storm
Risk of foggy conditions
Risk of icy conditions
TEMPERATURE AND HUMIDITY
To toggle temperature unit:
Press °C / °F.
To toggle between each outdoor sensor’s readings:
Press repeatedly
OR
Press and hold + MEM for 2 seconds to initiate auto
toggle of outdoor channels.
To end, press
To toggle between current, minimum and maximum
records:
Press MEM repeatedly.
To clear the records:
Press and hold MEM.
BAR808HG_M_EN_REV6.indd 6 4/21/09 16:07:02

7
EN
ICE WARNING
If the channel 1 sensor falls between 3°C to -2 °C (37°F
to 28°F), LED indicator will flash, and will stop flashing
once the temperature is out of this range.
NOTE As ice alert is only applicable to channel 1,
to prevent flashing of LED, select channel 2 or 3 on
outdoor sensor.
WEATHER TRENDS
The temperature, humidity and pressure trend icons are
based on recent sensor readings.
RISE STEADY FALL
MOON PHASE
In moon phase mode, press or to scan through
the years (2001 to 2099).
New Moon Full Moon
Waxing Crescent Waning Gibbous
First quarter Last quarter
Waxing Gibbous Waning Crescent
NOTE Star icons around the moon phase will be displayed
from 6 o’clock in the evening to 6 o’clock the next morning.
BACKLIGHT
Press LIGHT to activate backlight for 5 seconds.
RESET
Press RESET to return to the default settings.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items such
as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
BAR808HG_M_EN_REV6.indd 7 4/21/09 16:07:06

8
EN
• Placement of this product on certain types of wood
may result in damage to its finish for which Oregon
Scientific will not be responsible. Consult the furniture
manufacturer’s care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before first use.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 94 x 46 x 175 mm
(3.7 x 1.8 x 6.9 in)
Weight 242 g (8.5 oz) without battery
Temperature range -5°C to 50°C (23°F to 122°F)
Signal frequency 433 MHz
Humidity range 25% - 95%
Power 3 x UM-3 (AA) 1.5 V batteries
REMOTE UNIT (THGN132N)
L x W x H 50 x 22 x 96 mm
(1.97 x 0.87 x 3.78 in)
Weight 62 g (2.22 ounces)
without battery
Transmission range 30 m (98 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Humidity range 25% - 95%
Power 1 x UM-3 (AA) 1.5 V battery
BAR808HG_M_EN_REV6.indd 8 4/21/09 16:07:06

9
EN
N
CH
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products. If you’re in
the US and would like to contact our Customer Care
department directly, please visit: www2.oregonscientific.
com/service/support.asp
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Solar
Weather Station Advance (Model: BAR808HG /
BAR808HGA) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the signed and dated Declaration
of Conformity is available on request via our Oregon
Scientific Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland
and Norway
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This devi ce must accept any interference received,
including interference that may cause undesired
operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
BAR808HG_M_EN_REV6.indd 9 4/21/09 16:07:07

10
EN
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientific.com/service for all enquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: BAR808HG / BAR808HGA
Product Name: Solar Weather Station Advance
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: 1) This device
may not cause harmful interference. 2) This device must
accept any interference received, including interference
that may cause undesired operation.
BAR808HG_M_EN_REV6.indd 10 4/21/09 16:07:07
