INTRODUCTION
Thank you for selecting the Oregon ScientificTM Wireless
Weather Station (BAR608HA). This device bundles
precise time keeping, weather forecast, barometric trend
with altitude adjustment, and indoor and outdoor
temperature and humidity monitoring features into a
single tool you can use from the convenience of your
home.
In this box, you will find:
• Main unit
• Remote sensor (THGR268)
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.
2
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM3

EN
PRODUCT OVERVIEW

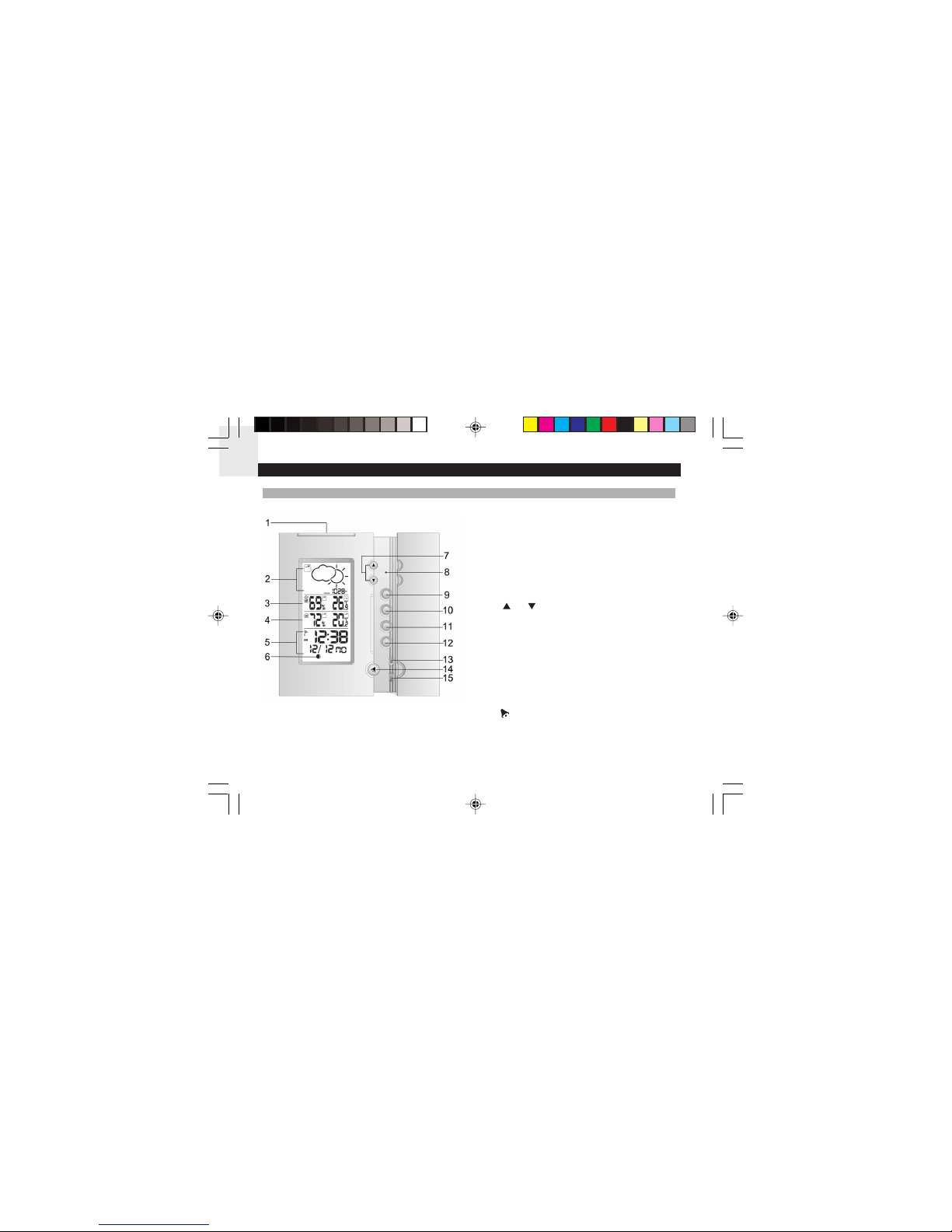

FRONT VIEW
1. SNOOZE / LIGHT button
2. Weather forecast & barometric trend area
3. Outdoor temperature & humidity area
4. Indoor temperature & humidity area
5. Clock / alarm area
6 Moon phase
7. and : increase or decrease setting / activate
or deactivate Atomic Clock.
8. RESET hole
9. ((.)): view alarm status; set alarm
10. MEMORY button:view current, maximum and
minimum temperature / humidity readings
11. CHANNEL button:switch remote sensor
12. MODE button:change display / settings
13. °C / °F switch
14. : turn alarm off for 24 hours
15. Altitude pressure: change measurement unit
(mb/hPa or inHg) and value
3
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM4

EN

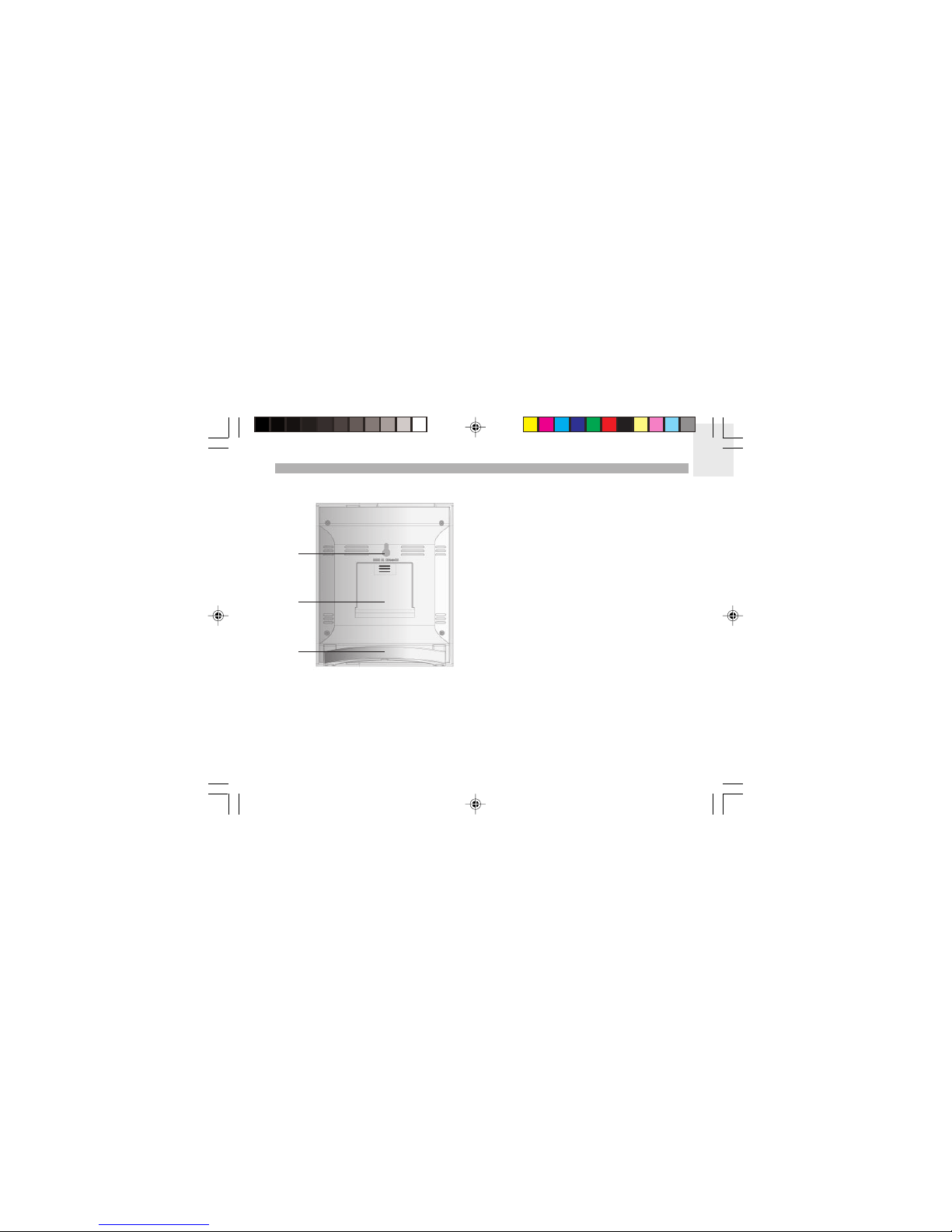

BACK VIEW
1. Wall mount
2. Battery compartment
3. Table stand
REMOTE SENSOR (THGR122N)
GETTING STARTED
1
2
3
4
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM5

EN

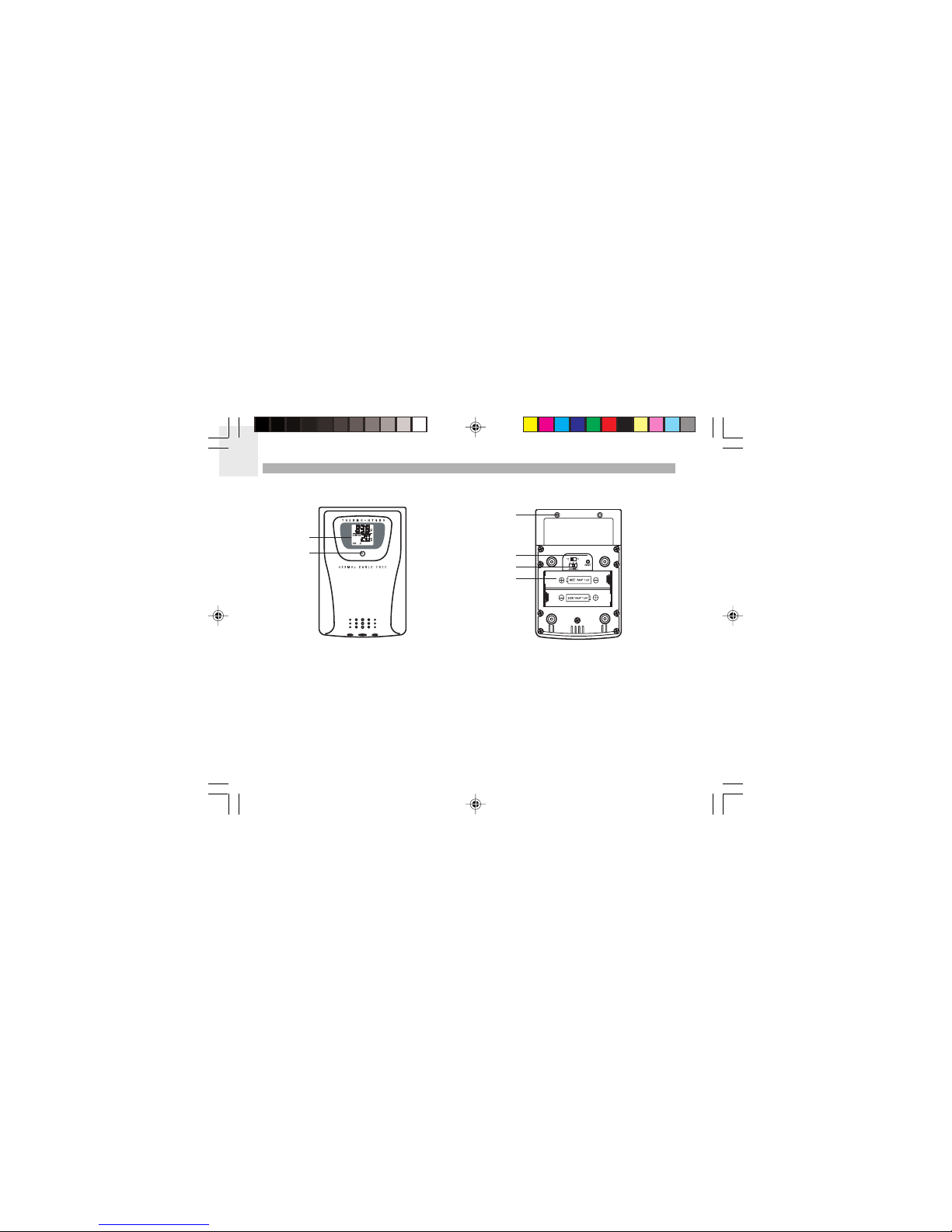

REMOTE SENSOR (THGR268)
1. LCD display
2. LED Status indicator
1. Wall mount hole
2. RESET
3. Channel number (1 - 3)
4. Battery compartment
(Battery compartment cover not shown)
1
2
1
2
4
5
3
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM6

EN
CHANGE SETTINGS
1. Press and hold MODE for 2 seconds to enter setting
mode.
2. Press or to change settings.
3. Press MODE to confirm.
TABLE STAND OR WALL MOUNT
Use the stand on the back of the product, or mount it on
a wall with a nail.
GETTING STARTED
BATTERIES
Batteries are not supplied with this product. You will need
to purchase 3 x UM-3 (AA) 1.5V alkaline batteries for
the main unit, and 2 x UM-4 (AAA) 1.5V alkaline batteries
for the remote sensor.
Insert batteries before first use, matching the polarity as
shown in the battery compartment. For best results,
install batteries in the remote sensor before the main
unit. Press RESET after each battery change.
Do not use rechargeable batteries.
NOTE
shows when batteries are low.
UNIT LOCATION
Main Indo or Temperature /
Humidity Area
Remote Outdoor Temperature /
Humidity Area
ACCESS FRONT BUTTON PANEL
The front button panel is located inside the right portion
of the main unit. Slide it right to access the buttons.
REMOTE SENSOR (THGR268)
This product is shipped with a THGR268 Thermo-Hygro
Sensor that collects temperature and humidity data. Data
can be collected from up to 3 sensors. Additional sensors
sold separately.
6
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM7

EN
3. Set the channel. The switch is located in the battery
compartment.
4. Place the sensor near the main unit. Press RESET
on the sensor. Then, press and hold MEM and
CHANNEL on the main unit to initiate signal sending
between the sensor and the main unit. The reception
icon on the main unit will blink for approximately
3 minutes while it is searching for the sensor. (Refer
to the Sensor Data Transmission section for more
information.)
5. Close the remote sensor battery compartment.
6. Secure the sensor in the desired location using the
wall mount or table stand.
The sensor's comfort level reading is based on
the recorded relative humidity. An indicator will be
displayed to show if the level is comfortable, wet or dry.
SETUP SENSOR
1. Open the remote sensor battery compartment with
a small Phillips screwdriver.
2. Insert 2 alkaline batteries (UM-3 or "AA" size 1.5V),
matching the polarity as shown in the battery
compartment.
For best results:
• Insert the batteries and select the channel before
you mount the sensor.
• Place the sensor out of direct sunlight and
moisture.
• Do not place the sensor more than 30 meters
(98 feet) from the main (indoor) unit.
• Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
• Place the sensor in a location with a clear view
to the sky, away from metallic or electronic
objects.
• Position the sensor close to the main unit during
cold winter months as below-freezing
temperatures may affect battery performance and
signal transmission.
You may need to experiment with various locations to
get the best results.
SWITCH OPTION
Channel Channel 1 - 3. If you are using
more than one sensor, select a
different channel for each sensor.
NOTE
7
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM8

EN

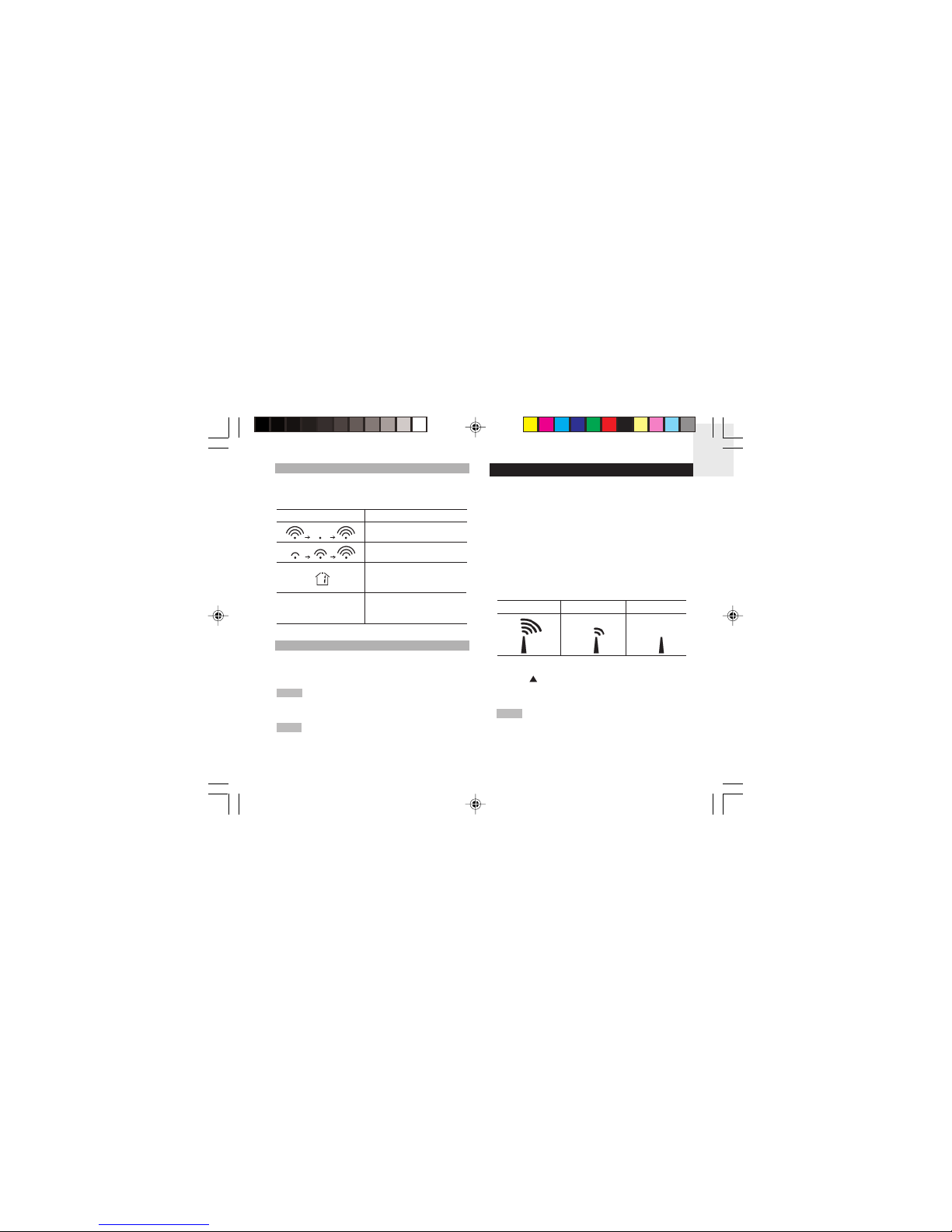

SEARCH FOR SENSOR
To search for a sensor, press and hold MEM and
CHANNEL for 2 seconds.
If the sensor is still not found, check the
batteries, obstructions, and remote unit location.
Signals from household devices such as
doorbells, electronic garage doors, and home security
systems may cause temporary reception failure. This is
normal and does not affect general product performance.
The reception will resume once the interference ends.
--- shows in outdoor
temp / humidity area
ICON DESCRIPTION
Main unit is searching for
sensors.
At least 1 channel has
been found.
Channel 1 is selected (number
will change depending on the
sensor you select)
The selected sensor cannot
be found. Search for the
sensor or check batteries.
CLOCK
This product shows the current time, and day of week in
English, French, German, Italian, or Spanish. The US
Atomic Clock in Boulder, Colorado automatically updates
this information unless you disable the feature. The
signals are collected by the main unit when it is within
1500 km (932 miles) of a signal.
Initial reception takes 2 - 10 minutes, and is initiated
when you first setup the unit, and whenever you press
RESET. Once complete, the reception icon will stop
blinking. The icon is shown in the Clock Area.
To force a manual search for Atomic Clock signals, press
and hold for 2 seconds. If no signal is found, check
the batteries.
If the Atomic Clock signal is received and the
hour is incorrect, use the "timezone offset" feature to
adjust it to the appropriate timezone. Please see "SET
CLOCK" on pg. 9 for instructions.
NOTE
NOTE
DATA TRANSMISSION
Data is sent from the sensor(s) every 40 seconds.
The reception icon shown in the Temperature and
Humidity Areas show the status.
NOTE
STRONG SIGNAL NO SIGNALWEAK SIGNAL
8
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM9

EN
TURN ATOMIC CLOCK ON/OFF
Perform this step if you cannot receive Atomic Clock
signals. Press and hold for 2 seconds. Then, manually
set the clock following the "Set Clock" instructions
(below).
SET CLOCK
You only need to do this if you have disabled the Atomic
Clock feature (for example, if you are too far from or
cannot receive a signal).
1. Press and hold MODE for 2 seconds. The clock
area will blink.
2. Select the time zone, hour, minute, year, month,
day, and language. Press or to change
the setting. Press MODE to confirm.
The language options are (E) English,
(F) French, (D) German, (I) Italian, and (S) Spanish.
The time zone options are (PA) Pacific,
(CE) Central, (MO) Mountain, and (EA) Eastern.
SWITCH CLOCK DISPLAY
Press MODE to toggle between Clock with Seconds and
Clock with Weekday display.
The signal icon indicates that the Atomic Clock
feature is ON. No icon means that it is OFF
ALARMS
This product is equipped with a 2-minute crescendo
alarm.
VIEW ALARM SETTINGS
Press ((.)). The alarm time and ((.)) status will show in
the clock area.
SET ALARM
1. Press ((.)) to switch to alarm display.
2. Press and hold ((.)) again for 2 seconds. The
alarm settings will blink.
3. Select the hour and minute. Press or to
change settings. Press ((.)) to confirm.
ACTIVATE ALARM
Press to activate or deactivate the alarm.
shows in the clock / alarm area when the alarm
is activated.
SILENCE ALARM
When the alarm time is reached, the crescendo alarm
will sound for 2 minutes. Press SNOOZE / LIGHT to
silence it for 8 minutes. Or, press to turn it off until
the next day.
NOTE
NOTE
9
BAR608HA_EN_R0C.p65 6/29/04, 4:52 PM10

EN
If no button is pressed, the alarm will automatically
silence after 2 minutes. It will then sound again after
8 minutes.
BAROMETER
This product tracks barometric pressure changes over
the past 24 hours to provide the weather forecast
(P.13) and a trend line showing the direction of
barometric change. Barometric changes are measured
by the main (indoor) unit.
BAROMETRIC TREND
SET UNIT AND ALTITUDE
You can set the unit of measurement (mb/hPa or inHg)
and altitude. Doing this allows the product to take more
accurate barometric measurements.
1. Press PRESSURE to select the unit of
measurement: mb / hPa or inHg.
2. Press and hold PRESSURE for 2 seconds.
3. Select the altitude (-100 m to 2,500 m or -328 ft to
8,203 ft in increments of approximately 33 ft or 10
m). Press or to change the setting. Press
PRESSURE to confirm.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 30 to 50 km (19 - 31 mile) radius with 70 to
75 percent accuracy. The weather forecast is always
displayed.
CLEAR PARTLY
CLOUDY CLOUDY RAINY
TREND DESCRIPTION
Rising
Steady
Falling
10
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM11

EN
NOTE
TEMPERATURE AND HUMIDITY
This product can display current, minimum, and
maximum temperatures and humidity percentage
information collected by the remote sensors and main
(indoor) unit.
Outdoor data is collected and displayed every 40
seconds. Indoor data is collected and displayed every
10 seconds.
SELECT TEMPERATURE UNIT
Slide the °C / °F switch into the desired location. The
switch is located on the front button panel. The setting
for the main unit overrides the remote sensor setting.
SELECT CHANNEL NUMBER
Press CHANNEL to switch between sensors 1 - 3.
The icon shows the selected sensor.
To auto-scan between sensors, press and hold
CHANNEL for 2 seconds. Each sensor's data will be
displayed for 3 seconds. To end auto-scan, press
CHANNEL or MEM.
If you use a sensor that collects only
temperature data, humidity will not be shown.
MINIMUM / MAXIMUM RECORDS
Press MEM to toggle between current, maximum (MAX)
and minimum (MIN) records. To clear the records, press
and hold MEM for 2 seconds. A beep will sound to
confirm that the memory has been cleared.
MOON PHASE
The Calendar must be set for this feature to work.
(P.9). Press or to view the moon phase for the
next or previous day. Press and hold or to scan
quickly through the years (2001 to 2099).
BACKLIGHT
Press SNOOZE / LIGHT to activate the backlight for
8 seconds.
RESET SYSTEM
The RESET button is located behind the front button
panel for the main unit. Press RESET when you change
the batteries and whenever performance is not behaving
as expected (for example, unable to establish radio
frequency link with remote sensor or Atomic clock).
Indoor
Display
DESIGNAT-
ED
DISPLAY
Remote
Display
Channel 1
KINETIC-
WAVE
ICON
Remote
Display
Channel 2
Remote
Display
Channel 3
11
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM12

EN
When you press RESET, all settings will return
to default value, and you will lose all stored information.
SAFETY AND CARE
Clean the product with a slightly damp cloth and alcohol-
free, mild detergent. Avoid dropping the product or
placing it in a high-traffic location.
WARNINGS
This product is designed to give you years of service if
handled properly. Observe the following guidelines:
• Never immerse the product in water. This can cause
electrical shock and damage the product.
• Do not subject the main unit to extreme force, shock,
or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this product.
• Remove the batteries if storing this product for a
long period of time.
• Do not scratch the LCD display.
NOTE Do not make any changes or modifications to this
product. Unauthorized changes may void your right to
use the product. The technical specification of this
product and contents of this user guide are subject to
change without notice. Images not drawn to scale.
TROUBLESHOOTING
Check here before contacting our customer service
department.
Cannot auto-
synch
1. Adjust batteries.
(P.6)
2. Press RESET
(P. 11 )
3. Manually activate
Atomic Clock
feature ( P.9)
Temp Shows "LLL"
or "HHH"
Temperature is out-of-
range
Check batteries ( P.6)
Check location ( P.7)
Remote
sensor
Cannot locate
remote
sensor
PROBLEM SYMPTOM Remedy
Calendar Strange date /
month
Change language
(P.9)
Clock Cannot adjust
clock
Disable Atomic Clock
(P.9)
12
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM13

EN
SPECIFICATIONS
MAIN UNIT DIMENSIONS
H x W x D 158 x 63 x 142 mm
(6.2 x 2.5 x 5.5 inches)
Weight 366 g (12.96 ounces)
with battery
REMOTE SENSOR DIMENSIONS
H x W x D 105 x 70 x 21 mm
(4 x 2.7 x 0.8 inches)
Weight 80.5 g (2.84 ounces)
without battery
TEMPERATURE
Unit °C or °F
Indoor Range -5 °C to 50 °C
(23 °F to 122 °F)
Outdoor Range -20 °C to 60 °C
(-4 °F to 140 °F)
Resolution 0.1 °C (0.2°F)
Data does
not match
main unit
Initiate a manual sensor
search ( P.8)
Cannot
change
channel
Check sensors. Only
one sensor is working
(P.7)
Remote
sensor
PROBLEM SYMPTOM REMEDY
13
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM14

EN
RELATIVE HUMIDITY
Range 25% to 95%
Resolution 1%
Memory Minimum / maximum
BAROMETER
Unit mb/hPa or inHg
Range 700 to 1050 mb
(20.67 to 30.01 inHg)
Resolution 1 mb (0.03 inHg)
Altitude -100 m to 2,500 m
(-328 ft to 8203 ft)
Display Rainy, cloudy, partly
cloudy, sunny
REMOTE SENSOR (THGR268)
RF frequency 433 MHz
Range 30 m (98 ft)
with no obstructions
Transmission every 40 seconds
Temp. Sensing Cycle: around 40 seconds
Channel No. 1 - 3
CLOCK
Atomic Clock Auto or manual (disabled)
Clock display HH:MM:SS
Hour format 12hr AM/PM
Time zone PA (Pacific), MO
(Mountain), CE (Central)
or EA (Eastern)
Calendar MM/DD; weekday in
5 languages (E, D, F, I, S)
Alarm Single alarm with
2- minute crescendo and
8-minute snooze
POWER
Main unit batteries 3 x UM-3 (AA) 1.5V alkaline
Sensor batteries 2 x UM-4 (AAA) 1.5V alkaline
14
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM15

EN
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about other Oregon Scientific products such as
digital cameras, hand-held organizers, health and fitness
gear, and projection clocks. The website also includes
contact information for our customer service department,
in case you need to reach us.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
15
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM16

EN
DECLARATION OF CONFORMITY
The information below is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientific.com, or
on the warranty card for this product) for all inquiries
instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Place,
Tualatin, Oregon 97062 USA
Telephone No.: 1-800-853-8883
Fax No.: 1-503-684-8883
declare that the product
Product No.: BAR608HA
Product Name: Wireless Weather Station
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any
interference
received, including interference that
may cause undesired operation.
16
IC: 3277A - BAR608HA
WIRELESS WEATHER STATION
IC: 3277A - THGR238N
REMOTE THERMO-HYGRO SENSOR
BAR608HA_EN_R0C.p65 6/29/04, 5:25 PM17

EN
© 2004 Oregon Scientific. All rights reserved.
P/N.: 086-003312-012
17
BAR608HA_EN_R0C.p65 6/29/04, 4:53 PM18
