Oregon Scientific RGR126NX User manual

RGR126NX
USER MANUAL
Wireless Rain Gauge
with Outdoor Thermometer

EN
1
Wireless Rain Gauge
with Outdoor Thermometer
Model: RGR126NX
USER MANUAL
CONTENTS
Packaging contents ................................................. 2
Introduction .............................................................. 2
Overview ................................................................... 2
Front View............................................................ 2
Rear View ............................................................ 3
LCD display ......................................................... 3
Wireless sensor (THN388) ................................. 4
Rain gague (PCR388) ......................................... 5
Getting started ......................................................... 5
Main unit - batteries installation .......................... 5
Wireless sensor - Insert batteries ....................... 6
Wireless sensor ........................................................ 6
Sensor data transmission ................................... 6
Rain gauge ............................................................... 7
Signals................................................................. 8
Clock ........................................................................ 8
Manually set clock ............................................... 8
Rainfall ..................................................................... 8
Rainfall history .................................................... 8
Total rainfall ..........................................................9
Rainfall alert ..........................................................9
Temperature ............................................................. 9
Reset ....................................................................... 9
Precautions ............................................................ 10
Specifications ........................................................ 10
About Oregon Scientific .........................................11
EU - Declaration of Conformity ............................. 11
FCC Statement .........................................................12
Declaration of Conformity ......................................12
Disposal Information For Users............................13
RGR126NX_UM_EN_R1.indd 1 18/9/2018 ��11:48

EN
2
PACKAGING CONTENTS
Main Unit Rain Gauge
Thermo Sensor Thermo Sensor Table Stand
INTRODUCTION
Thanks for purchasing the Oregon ScientificTM Wireless
Rain Gauge with Outdoor Thermometer (RGR126NX).
NOTE Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know about.
OVERVIEW
FRONT VIEW
1
2
3
5
6
7
8
4
1. Four-line LCD display: for displaying the total
rainfall, current rainfall or rainfall history, indoor/
outdoor temperature and clock/calendar.
2. UP: increase setting values; press and hold for
rapid increase;
3. HIST: toggle between rainfall history and daily rainfall
4. SINCE: press to review the date when the
measurement started. Press and hold to clear the
previous rainfall start time and reset the rainfall
counter to start again.
RGR126NX_UM_EN_R1.indd 2 18/9/2018 ��11:49

EN
3
5. DOWN: decrease setting values: press and hold
for rapid decrease
6. SEARCH: press and hold to enforce a search for
the rain gauge and wireless thermo sensor
7. MODE: change setting/clock display
8. Removable table stand: for securing the main unit
on a at surface

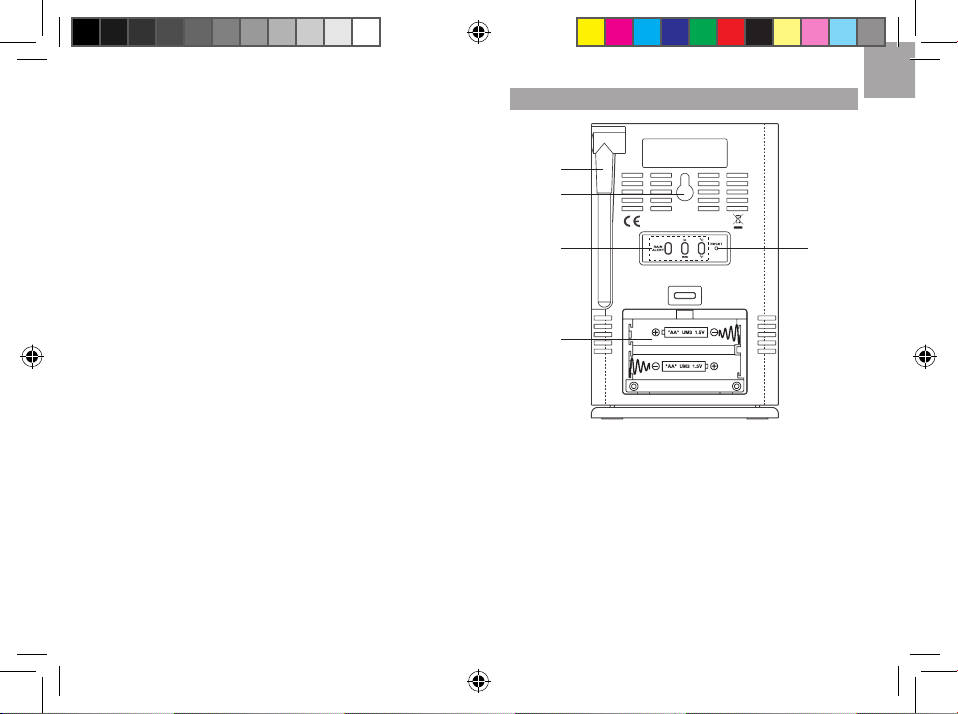

REAR VIEW
1
2
35
4
1. Antenna: receives radio signal from rain gauge
and wireless thermo sensor
2. Wall mount hole
3. RAIN ALERT: an alert for excessive rain
In/mm: inch/millimeter (rain rate unit)
˚C/˚F: temperature unit
4. Battery compartment
5. RESET: reset the unit to default settings

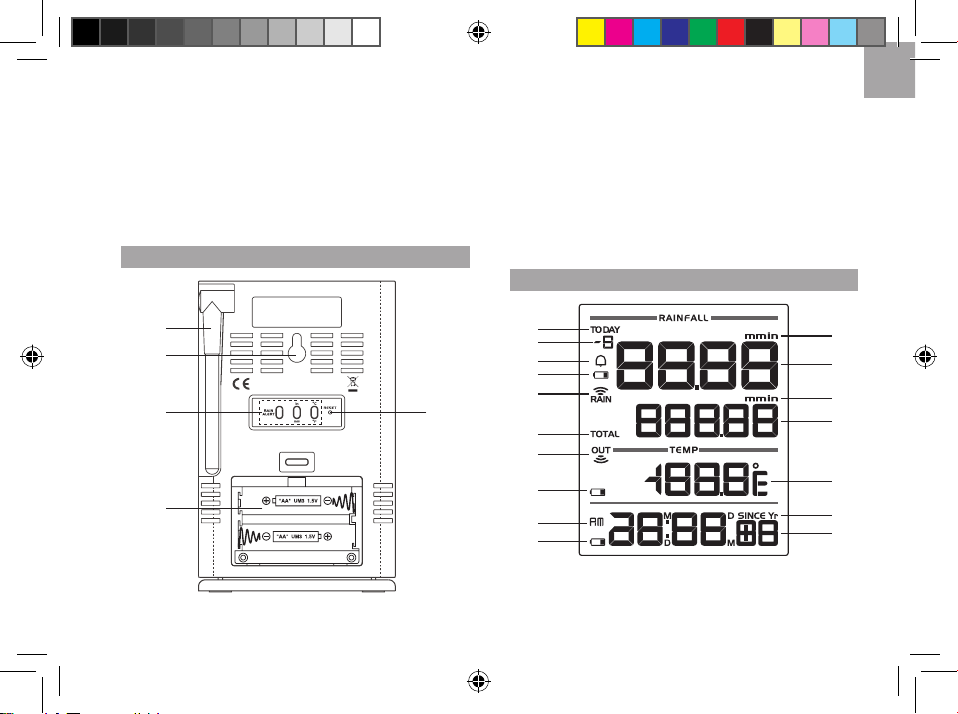

LCD DISPLAY
111
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
1. TODAY: today’s rainfall indicator
2. Indicates on which previous day (1-9) is the displayed
data recorded
RGR126NX_UM_EN_R1.indd 3 18/9/2018 ��11:49

EN
4
3. Rainfall alert indicator
4. : wireless rain gauge sensor battery low
5. : rain gauge RF reception status
6. TOTAL: rainfall indicator
7. : outdoor thermo RF reception status
8. : outdoor wireless sensor battery low
9. AM/PM
10. : main unit battery low
11. mm/in: millimeter/inch (rain rate unit)
12. Today’s rainfall
13. mm/in: millimeter/inch (rain rate unit)
14. Total rainfall
15. Outdoor temperature
16. SINCE: start date of the accumulated rainfall Yr: year
17. Time display; M:D(month: day); D:M(day: month);
calendar
WIRELESS SENSOR (THN388)
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. RESET hole
4. CHANNEL switch (1,2,3)
5. Battery compartment
RGR126NX_UM_EN_R1.indd 4 18/9/2018 ��11:49

EN
5
RAIN GAGUE (PCR388)
12
3
1. Rain gauge
2. Battery compartment
3. RESET button
1
2
1. Funnel
2. Indicator
GETTING STARTED
Position the main unit, rain gauge, and thermo sensor
within effective range:
• Rain gauge – 100 meters/329 feet
• Thermo sensor – 100 meters/329 feet
IMPORTANT It is recommended that you follow the
sequence below while setting up the units:
1. Set up the main unit.
2. Set up the rain gauge, then press and hold SEARCH
on the main unit and wait until you receive a signal.
3. Set up the thermo sensor, then press and hold
SEARCH on the main unit and wait until you receive
a signal.
4. In the event that you do not obtain a signal from a
wireless unit please repeat the process above.
MAIN UNIT - BATTERIES INSTALLATION
1
23
RGR126NX_UM_EN_R1.indd 5 18/9/2018 ��11:49

EN
6
1. Insert the batteries, matching the polarity (+/-) as
shown in the battery compartment.
2. Press RESET, or press and hold SEARCH on the
main unit to initiate operation. The reception icons
(and ) on the main unit will blink while it is
searching for the sensor or rain gauge.
NOTE The main unit returns to default settings in each
battery replacement.

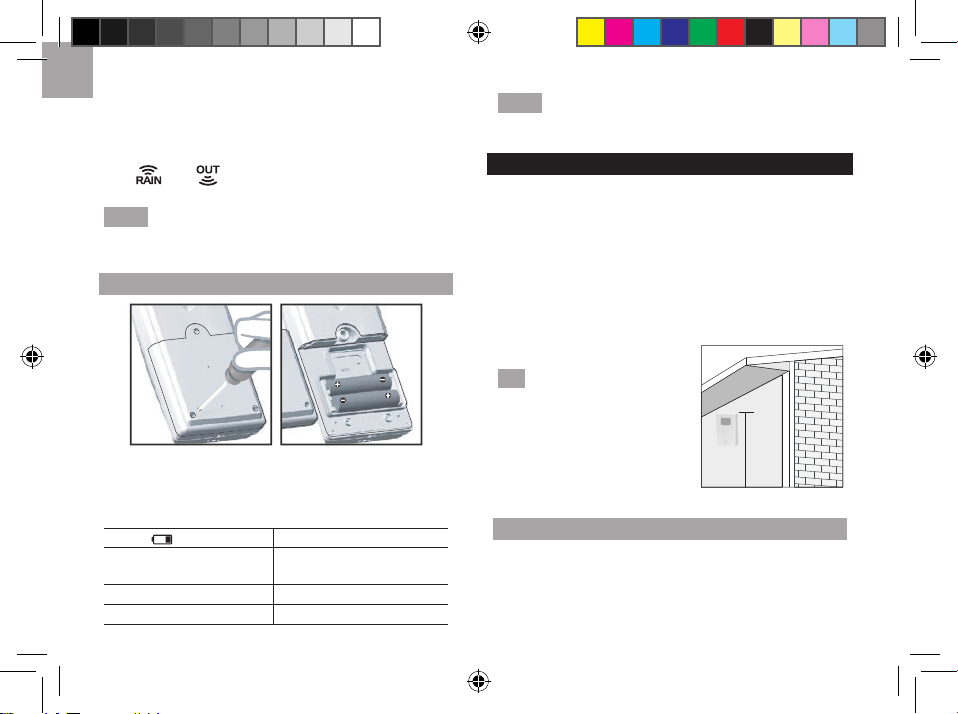

WIRELESS SENSOR - INSERT BATTERIES
1. Remove the battery compartment cover by screw driver.
2. Insert the batteries, matching the polarities (+/-).
3. Press RESET after each battery change.
LOCATION MEANING
Rainfall area Rain collector sensor
batteries low
Outdoor temperature area Outdoor sensor batteries low
Clock area Main unit batteries low
NOTE Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
WIRELESS SENSOR
The main unit can collect data from up to two (2) sensors,
including one rain gauge and one outdoor thermo sensor.
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery compartment cover.
4. Place the sensor within 100 m (329 ft) of the main
unit using the table stand or wall mount.
TIP For accurate readings, ideal
placements for the sensor would
be in any location on the exterior
of the home at a height of no
more than 1.5 m (5 ft); and can
shielded it from direct sunlight or
wet conditions.
SENSOR DATA TRANSMISSION
To search for a sensor:
• Press and hold SEARCH.
• The sensor reception icon in the wireless sensor
area shows the status (see below).
150cm(5ft)
RGR126NX_UM_EN_R1.indd 6 18/9/2018 ��11:49

EN
7
ICON DESCRIPTION
Main unit is searching for
sensor(s).
A channel has been found.
The sensor cannot be found.
TIP The transmission range may vary depending on
many factors. You may need to place the sensor(s) in
different locations to get the best result.
RAIN GAUGE
The rain gauge collects rain and takes readings of rainfall
rate and the total rainfall over a period of time. The sensor
can remotely transmit data to the main unit.
The main unit and rain gauge should be positioned
within an effective range: about 100 m (329 ft) in an
open area.
The rain gauge should be mounted horizontally about
one meter (three feet) from the ground in an open area
away from tress or other obstructions to allow rain to fall
naturally for an accurate reading.
To set up a rain gauge:
1. Remove screws and slide the cover off in an
upwards motion,
2. Insert the batteries (2 x UM-3/AA), matching
the polarities (+/-). Press RESET after each
battery change.
3. Remove the ber tape.
To ensure a level plane:
Put a few drops of water on the cross at the base of the
funnel to check the horizontal level.
Water will pool to the center of the cross when the rain
gauge is level.
If water remains on 1-4, the gauge is not horizontal.
If necessary, adjust the level using the screw.
1
23
4
3
2
1
RGR126NX_UM_EN_R1.indd 7 18/9/2018 ��11:49

EN
8
NOTE For best results, ensure the base is horizontal to
allow maximum drainage of any collected rain.
SIGNALS
To search for the rain collector:
• Press and hold SEARCH.
The remote rain collector reception indicator in the rainfall
area shows the status:
ICON DESCRIPTION
No signal.
Searching for
signal.
Signal connected.
TIP The transmission range may vary depending on
many factors. You may need to place the sensor(s) in
different locations to get the best result.
CLOCK
MANUALLY SET CLOCK
1. Press and hold MODE.
2. Press UP or DOWN to change the settings.
3. Press MODE to conrm.
4. The settings order is: 12/24 hr format, hour, minute,
year, calendar mode (day-month/month-day),
month, day and language.
NOTE The language options are English (E),
German (D), French (F), Italian (I), and Spanish (S).
To select display mode:
• Press MODE to choose between clock with
seconds/weekday/calendar.
RAINFALL
Today’s rainfall appears on the first line of the display.
Press in/mm to toggle between inches and millimeters.
RAINFALL HISTORY
The rainfall history is displayed on the first row of the
display. The main unit can record and store up to nine
days of rainfall.
RGR126NX_UM_EN_R1.indd 8 18/9/2018 ��11:49

EN
9

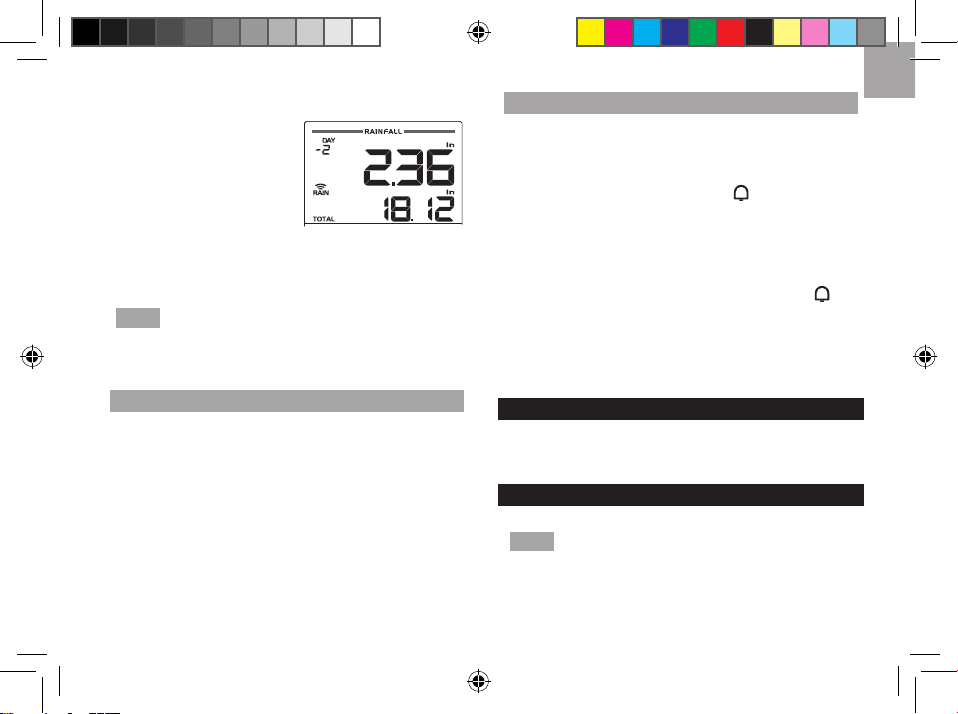

To display the record for a particular day:
• Press HIST to toggle
between daily rainfall
and rainfall history over
the past nine days. The
day of the record will be
displayed with a minus
(-) sign at the top left
hand corner. TODAY
means the record is for
the current day.
NOTE Other sensors using the 433 MHz transmission
frequency may influence the rainfall reading. Please avoid
placing those sensors too close to the unit.
TOTAL RAINFALL
The total rainfall is displayed on the second line of
the display.
To display the commencing date of the total
rainfall record:
• Press SINCE. The date when the measurement
started will appear on the bottom line of the display.
To clear the existing commencing date and reset it
to start again:
• Press and hold SINCE. The total rainfall will be
reset to zero and then collect the rainfall data
starting from today.
RAINFALL ALERT
To set the rainfall alert value:
1. Press and hold RAIN ALERT to enter setting mode.
2. Press UP or DOWN to toggle values.
3. Press RAIN ALERT to conrm. indicates rainfall
alert function is enabled.
To deactivate rainfall alert:
• The rainfall alert will be activated when the rainfall is
equal to or more than the rainfall alert value; will
ash continuously.
• To deactivate the rainfall alert, press RAIN ALERT
twice and wait for 8 seconds, or increase the
rainfall alert value.
TEMPERATURE
To toggle temperature unit:
• Press between ˚C / ˚F.
RESET
Press RESET to return to the default settings.
NOTE The main unit returns to default settings in each
battery replacement.
RGR126NX_UM_EN_R1.indd 9 18/9/2018 ��11:49

EN
10
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains, etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• mages shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment and not
as household waste.
• Placement of this product on certain types of
wood may result in damage to its nish for which
Oregon Scientic will not be responsible. Consult
the furniture manufacturer's care instructions for
information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before rst use.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
Dimensions
(L x W x H)
90 x 26 x 136 mm
(3.54 x 1.02 x 5.35 in)
Weight 167g (5.89 ounces)
including battery
Temperature range -5°C to 50°C
(23°F to 122°F)
Temperature resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Power 2 x UM-3(AA) 1.5V
batteries
RGR126NX_UM_EN_R1.indd 10 18/9/2018 ��11:49

EN
11
WIRELESS THERMO SENSOR (THN388)
Dimensions
(L x W x H)
93 x 60 x 23 mm
(3.66 x 2.36 x 0.91 in)
Weight 51g (1.8 ounces)
RF transmission range 100 meters (329 feet)
Temperature range -30°C to 60°C
Temperature resolution 0.1°C (0.2°F)
Number of channel 3
Power 2 x UM-4 (AAA) 1.5V
batteries
WIRELESS RAIN GAUGE (PCR388)
Dimensions
L x W x H
114 x 114 x 145 mm
(4.5 x 4.5 x 5.7 inches)
Weight 254 g (8.96 oz)
without battery
Transmission range 100m (329 ft) unobstructed
Power 2 x UM-3 (AA) 1.5V
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn more
about Oregon Scientic products.
For any inquiry, please contact our Customer Services
at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.
EU - DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientic Global
Distribution Limited, declares that Wireless Rain Gauge
with Outdoor Thermometer (model: RGR126NX) is in
compliance with 2014/53/EU Directive. The full text of
the EU Declaration of Conformity is available at the
following internet address:
http://global.oregonscientic.com/customerSupport.php.
COUNTRIES RED APPROVAL COMPLIED
All EU countries, Switzerland CH
und Norwegen N
RGR126NX_UM_EN_R1.indd 11 18/9/2018 ��11:49

EN
12
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientific.com), or on
the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientic Inc.
Address: Brea Corporate Park 3020
Saturn St. Suite 200 Brea,
CA 92821
Telephone No.: 1 [phone]
declare that the product
Product No.: RGR126NX
Product Name: Wireless Rain Gauge with
Outdoor Thermometer
Manufacturer: Oregon Scientic Global
Distribution Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
RGR126NX_UM_EN_R1.indd 12 18/9/2018 ��11:49

EN
13
DISPOSAL INFORMATION FOR USERS
Pursuant to and in accordance with Article 14
of the Directive 2012/19/EU of the European
Parliament on waste electrical and electronic
equipment (WEEE), and pursuant to and in
accordance with Article 20 of the Directive
2013/56/EU of the European Parliament on batteries
and accumulators and waste batteries.
The barred symbol of the rubbish bin shown on the
equipment indicates that, at the end of its useful life, the
product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries
must be removed from the equipment before it is given
as waste. To remove the batteries/accumulators refer
to the specifications in the user manual. Therefore, any
products that have reached the end of their useful life
must be given to waste disposal centers specializing
in separate collection of waste electrical and electronic
equipment, or given back to the dealer when purchasing
a new WEEE, pursuant to and in accordance with Article
14 as implemented in the country.
The adequate separate collection for the subsequent
start-up of the equipment sent to be recycled, treated
and disposal of in an environmentally compatible way
contributes to preventing possible negative effects on the
environment and health and optimizes the recycling and
reuse of components making up the apparatus.Abusive
disposal of the product by the user involves application
of the administrative sanctions according to the laws in
force.
RGR126NX_UM_EN_R1.indd 13 18/9/2018 ��11:49

IT
1
Orologio con pluviometro
Modello: RGR126NX
Manuale utente
INDICE
Contenuto della confezione .................................... 2
Introduzione ............................................................. 2
Panoramica .............................................................. 2
Vista Frontale ...................................................... 2
Vista Posterioree................................................. 3
Dislay LCD........................................................... 4
Sensore Remoto (THN388) ................................ 4
Pluviometro (PCR388) ........................................ 5
Come Iniziare ........................................................... 5
Unita’ Principale – Installazione batterie ............. 6
Sensore Remoto– Inserimento ........................... 6
Sensore Remoto ...................................................... 7
Trssmissione dati sensore ................................... 7
Pluviometro.............................................................. 7
Segnali sensori .................................................. 8
Orologio .................................................................... 9
Impostazione Manuale Orologio ......................... 9
Livello delle precipitazioni....................................... 9
Storico precipitazioni ........................................... 9
Totale precipitazioni ........................................... 10
Allerta precipitazioni .......................................... 10
Temperatura ........................................................... 10
Reset ....................................................................... 10
Precauzioni ............................................................. 10
Speciche ............................................................... 11
Informazioni Su Oregon Scientic ....................... 12
Dichiarazione Di conformità ................................. 12
Informazione Agli Utenti ....................................... 13
RGR126NX_UM_IT_R1.indd 1 18/9/2018 ��11:54

IT
2
CONTENUTO DELLA CONFEZIONE
Unità principale Pluviometro
Sensore remoto Supporto per
sensore remoto
INTRODUZIONE
Grazie per aver acquistato l’orologio con pluviometro di
Oregon ScientificTM (RGR126NX).
NOTA Si prega di tenere questo manuale a portata di
mano, per sapere come utilizzare il prodotto. Il manuale
contiene istruzioni pratiche, specifiche tecniche e
avvertenze che è necessario conoscere.
PANORAMICA
VISTA FRONTALE
1
2
3
5
6
7
8
4
1. Schermo a cristalli liquidi su quattro righe: per
visualizzare le precipitazioni totali, precipitazioni
correnti, lo storico, la temperatura interna/esterna,
l’orologi e il calendario.
2. UP (SU): aumenta i valori di impostazione; tenere
premuto per un aumento rapido;
3. HIST (STOR): alternanza tra storico precipitazioni e
precipitazioni del giorno.
RGR126NX_UM_IT_R1.indd 2 18/9/2018 ��11:54

IT
3
4. SINCE (DA): alternanza tra: premere per rivedere
la data in cui la misurazione avviato e la pioggia
annuale totale. Tenere premuto il tasto per
cancellare l’orario precedente di precipitazioni e
reimpostare a zero il contatore precipitazioni.
5. DOWN (GIÙ): diminuisce i valori di impostazione:
tenere premuto per un diminuzione rapida.
6. SEARCH (RICERCA): tenere premuto per forzare
una ricerca del pluviometro e del sensore remoto.
7. MODE (MODALITÀ): cambia visualizzazione tra
impostazioni/orologio.
8. Supporto rimovibile da tavolo: per posare l’unità
principale su una supercie piana.
VISTA POSTERIORE
1
2
35
4
1. Antenna: riceve il segnale radio dal pluviometro e
dal sensore remoto.
2. Foro per il montaggio a muro.
3. RAIN ALERT (ALLERTA PIOGGIA): l’allerta per
pioggia eccessiva In/mm: pollici/millimetri (unità
di misura della pioggia) ˚C / ˚F: unità di misura
della temperatura.
4. Comparto batteria.
5. RESET (REIMPOSTAZIONE): reimposta l’unità
alle impostazioni di default.
RGR126NX_UM_IT_R1.indd 3 18/9/2018 ��11:54

IT
4
DISPLAY LCD
111
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
1. TODAY (OGGI): indicatore della pioggia odierna
2. Indica in quale giorno precedente (1-9) sono stati
registrati dati visualizzati
3. Indicatore allerta pioggia
4. : batteria bassa del pluviometro
5. : stato ricezione in RF pluviometro
6. TOTAL (TOTALE): indicatore di pioggia
7. : stato ricezione in RF termo sensore esterno
8. : batteria bassa sensore remoto esterno
9. AM/PM (indicatore orario meridiano/pomeridiano)
10. : batteria bassa sensore remoto interno
11. mm/in: millimetri/pollici (unità di misura pioggia)
12. Pioggia odierna
13. mm/in: millimetri/pollici (unità di misura pioggia)
14. Pioggia totale
15. Temperatura esterna
16. SINCE (DA):data di inizio di rilevazione delle
precipitazioni Yr: Anno
17. Visualizzazione ora; M:D(mese : giorno); D:M
(giorno : mese); calendario
SENSORE REMOTO (THN388)
1
2
3
4
5
1. Indicatore LED
2. Foro montaggio a muro
3. RESET foro per reimpostazione
RGR126NX_UM_IT_R1.indd 4 18/9/2018 ��11:54

IT
5
4. CHANNEL selezione canale (1,2,3)
5. Comparto batteria
PLUVIOMETRO (PCR388)
12
3
1. Pluviometro per rilevare il livello delle precipitazioni
2. Comparto batteria
3. Tasto RESET (REIMPOSTAZIONE)
1
2
1. Imbuto
2. Indicatore
COME INIZIARE
Posizionare l’unità principale, ed il sensore termico
entro :
• Misuratore di pioggia – 100 metri / 329 piedi
• Sensore termico – 100 metri / 329 piedi
IMPORTANTE Si raccomanda di seguire la sequenza
sottostante mentre impostate le unità:
1. Impostate l’unità principale.
2. Impostate il pluviometro, quindi tenete premuto il
tasto SEARCH (RICERCA) sull’unità principale ed
attendete no a che ricevete il segnale.
3. Impostate il sensore remoto, quindi tenete premuto
il tasto SEARCH (RICERCA) sull’unità principale
ed attendete no a che ricevete il segnale.
4. Se non ricevete un segnale da un’unità remota,
ripetere il processo precedente.
RGR126NX_UM_IT_R1.indd 5 18/9/2018 ��11:54

IT
6
UNITA’ PRINCIPALE – INSTALLAZIONE
BATERIE
1
23
1. Inserite le batterie, abbinando correttamente la
polarità (+/-) come indicato nel comparto batteria.
2. Premete RESET (REIMPOSTAZIONE), o tenete
premuto SEARCH (RICERCA) sull’unità principale
per avviare il funzionamento. Le icone di ricezione
(e ) sull’unità principale lampeggeranno
mentre sta cercando il sensore o il pluviometro.
NOTA L’unità principale torna alle impostazioni
predefinite a ogni sostituzione della batteria.
SENSORE REMOTO– INSERIMENTO
BATTERIE
1. Rimuovete il coperchio del comparto batteria con
un cacciavite.
2. Inserire le batterie rispettando le polarità.
3. Premete RESET dopo ogni sostituzione di batteria.
POSIZIONE SIGNIFICATO
Area pioggia Batterie basse pluviometro
Area temperatura
esterna
Batterie basse sensore
esterno
Area orologio Batterie basse unità
principale
NOTA Usate batterie alcaline per un funzionamento più
lungo e batterie al litio in condizioni temperature rigide.
RGR126NX_UM_IT_R1.indd 6 18/9/2018 ��11:54
