Important Safety Information
Important Safety Information
Safety Signal Definitions
SYMBOL SIGNAL MEANING
DANGER Indicates that if the danger is not avoided, it will cause serious
property damage, injury or death.
WARNING Indicates that if the warning is not heeded, it can cause property
damage, serious injury or death.
CAUTION Indicates that if precautions are not taken, it may cause minor or
moderate injury, or property damage.
IMPORTANT Following this instruction will increase satisfaction with the tool.
General Power Tool Safety Warnings
WARNING: Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
The term "power tool" in the warnings refers
to your mains-operated (corded) power tool or
battery operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet.
Never modify the plug in any way.
Unmodified plugs and matching outlets will
reduce the risk of electric shock.
• Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
• Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock. **
• Do not abuse the cord. Never use the
cord for carrying, pulling, or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
• When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• If operating a power tool in a damp
location is unavoidable, use a ground
fault circuit interrupter (GFCI) protected
supply. Use of a GFCI reduces the risk of
electric shock. *
** Item above: “Do not expose power tools
to rain or wet conditions.” is applicable to
power tools in general; however, Oregon
battery operated V Professional Series
tools have been specifically designed for
operation during exposure to rain or wet
conditions.

6Backpack Blower Model BL120VX-NA
Important Safety Information
* Item above: “If operating a power tool in a
damp location is unavoidable, use a ground
fault circuit interrupter (GFCI) protected supply.”
is applicable to corded power tools in general;
however, use of a GFCI with Oregon battery
operated V Professional Series tools is
not applicable.
PERSONAL SAFETY
•Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
•Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
•Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energizing power tools that
have the switch on invites accidents.
•Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
•Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can
be caught in moving parts.
•If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
•Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was designed.
•Do not use the power tool if the trigger
does not turn it on and off. Any power tool
that cannot be controlled with the trigger is
dangerous and must be repaired.
•Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
•Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
•Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts, and any other
condition that may affect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power tools.
•Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
•Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.

7
Backpack Blower Model BL120VX-NA
Important Safety Information
7
•Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do
not allow for safe handling and control of the
tool in unexpected situations.
BATTERY TOOL USE AND CARE
•Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack may
create a risk of fire when used with another
battery pack.
•Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
•When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
•Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush
with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
•Do not use a pack or tool that is damaged
or modified. Damaged or modified batteries
may exhibit unpredictable behavior resulting
in fire, explosion or risk of injury.
•Do not expose a battery pack or tool to
fire or excessive temperature. Exposure
to fire or temperature above  °C (
°F) may cause explosion.
•Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specified
in the instructions. Charging improperly or
at temperatures outside the specified range
may damage the battery and increase the risk
of fire.
SERVICE
•Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
•Never service damaged battery packs.
Service of battery packs should only
be performed by the manufacturer or
authorized service providers.
BLOWER SAFETY WARNINGS
•Oregon Professional Series V tools
have been specifically designed for safe
operation during exposure to rain or in
wet conditions, but should be stored in a
dry location.
•Read and follow the instructions in this
manual and the battery manual before
assembling, operating or servicing this
product.
•Never point the nozzle at yourself or
another person. Do not use to clean off
people or animals.
•Use extra care when cleaning on stairs.

8Backpack Blower Model BL120VX-NA
Important Safety Information
Safety Symbols
These symbols appear on the BLVX-NA.

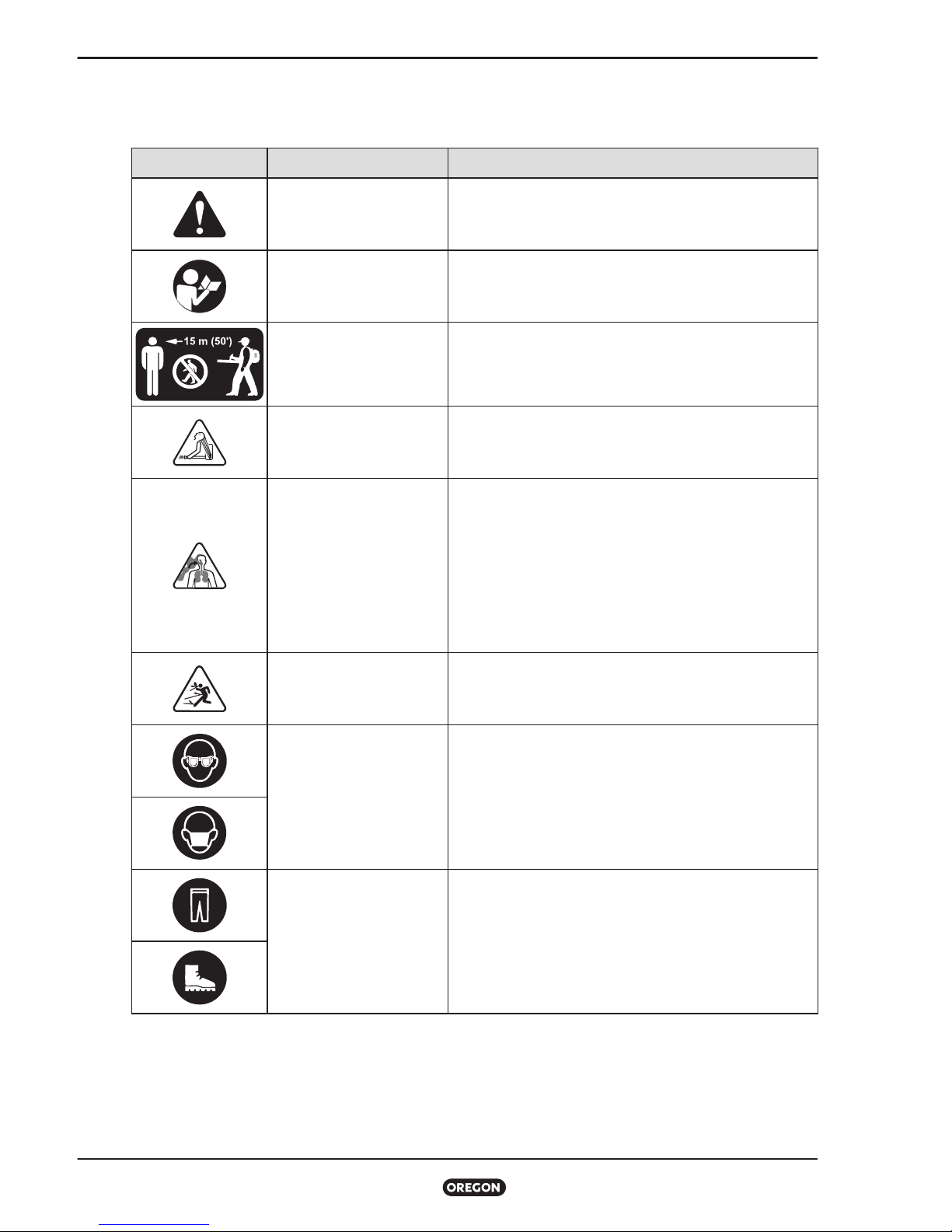

SYMBOL MEANING EXPLANATION
Safety alert A danger, warning or caution.
Follow instructions Read and follow instructions in this manual carefully
before assembling, operating or servicing the product.
Protect bystanders
Clear the area of bystanders, children and pets within a
minimum 50 ft (15 m) radius.
Encourage bystanders to wear eye protection and
avoid directing air blasts toward them.
Entanglement hazard Keep hair, loose clothing, fingers, and all parts of body
away from openings.
Inhalation hazard
The product can stir up dust and debris, which can
irritate and injure eyes, trigger allergies and asthma,
and with repeated inhalation, cause other illnesses.
Reduce the risk of serious or fatal injury and illness
by never running the product indoors or in poorly
ventilated locations. Take frequent breaks to allow
fumes to dissipate. Control dust at the source if
possible. Position yourself so that dust raised by the
tool moves away from you.
Beware of flying debris This product may throw debris, which can cause personal injury or property damage, either directly or
by ricocheting 50 ft (15 m) or farther.
Risk of eye injury
Protect your eyes and
face
Wear protective safety glasses or goggles, hearing
protection and a face mask. Guard against dust and
debris-related injuries and illnesses by controlling dust
at the source if possible.
Protect your body Wear the appropriate approved personal protective
equipment, including substantial footwear.

9
Backpack Blower Model BL120VX-NA

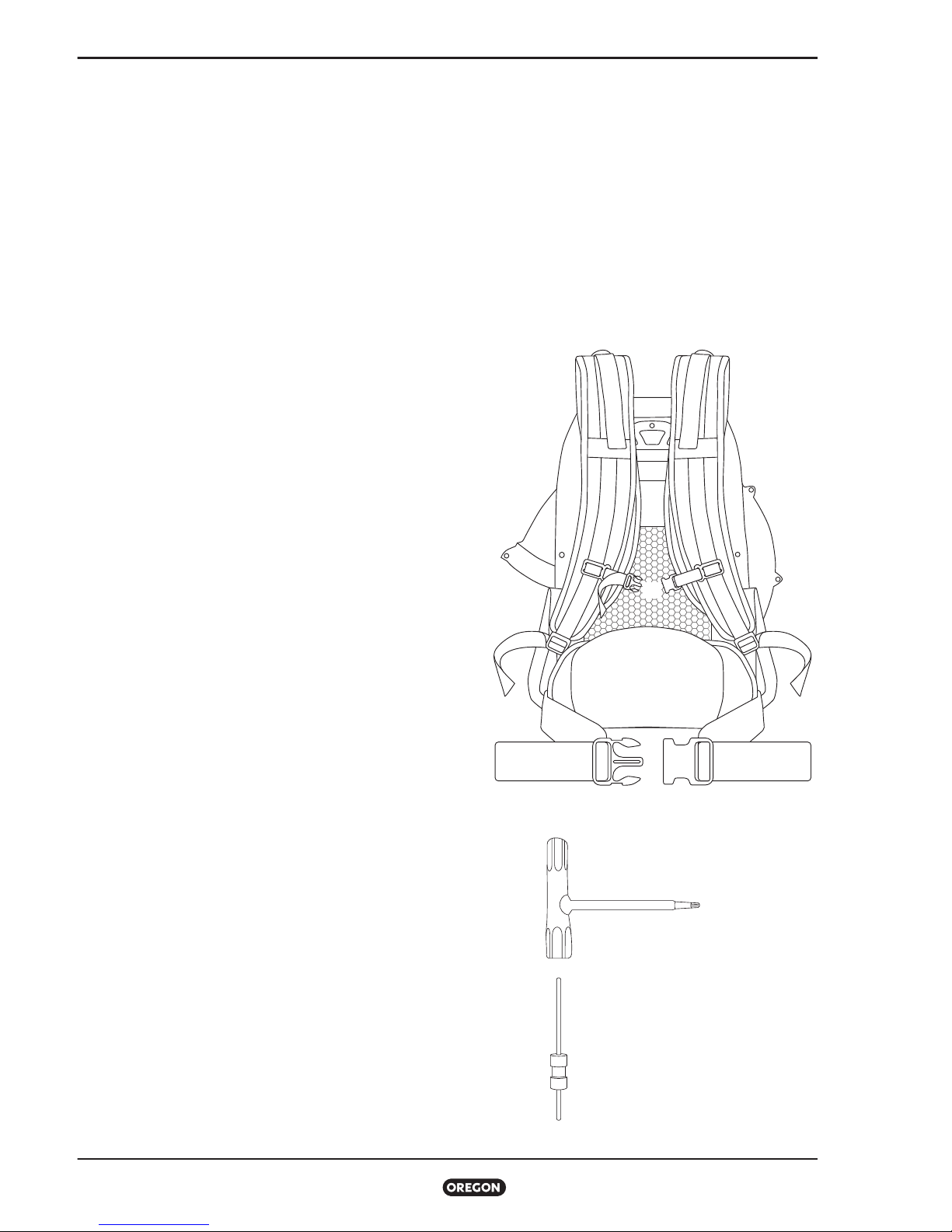

At a Glance
At a Glance
120v
1 1.11.2
2
4 45
7
6
8
9
10
10.1
10.2
10.3
10.4
10.5
10.6
10.7
2.1 2.2
1.3
1.8
1.4
1.6
1.7
1.5
3
3.1

10 Backpack Blower Model BL120VX-NA
At a Glance
Blower
 Fan Housing
. Carry Handle
. Hang Hook
. Battery Eject Springs
. Battery Locating Springs
. Battery Release Lever
. Battery Plug
. Battery Plug Cradle
. Battery Cable
 Frame
. Intake Screen
. Wire Connection Cover
 Elbow
. Noise Dampener
Blower Tube Subassembly
 Hose Clamp (x)
 Pleated Hose
 Slip Ring
 Noise Dampening Tube
 Extension Tube
 Nozzle Tip
 Control Handle
. Trigger-Lock Lever
. Variable Speed Trigger
. Dashboard
. Stealth Mode Button
. Stealth Mode Indicator
. Clamp
. Throttle Cable
Harness
 Shoulder Straps
 Chest Strap
 Lumbar Pad
 Waist Belt
 Combination Tool
 Blocking Pin
(stored inside of Combination Tool)
11
13
12
14
16
15

11
Backpack Blower Model BL120VX-NA
Unpacking and Assembly
Unpacking and Assembly
Unpacking
What’s in the box?
The blower requires assembly before use.
These items ship with the blower:
• Blower
• Clamp rings (X)
• Pleated hose
• Noise dampening tube with slip ring
• Extension tube with nozzle tip
• Combination tool with blocking pin
Remove the blower components from the
box and inspect them carefully to ensure no
damage has occurred during shipping and
that no parts are missing. If any parts are
damaged or missing, do not use the blower.
Contact Oregon®Customer Service to obtain
replacement parts at --.
Assembly
Place all the assemblies of the tool on a well-lit
workbench.

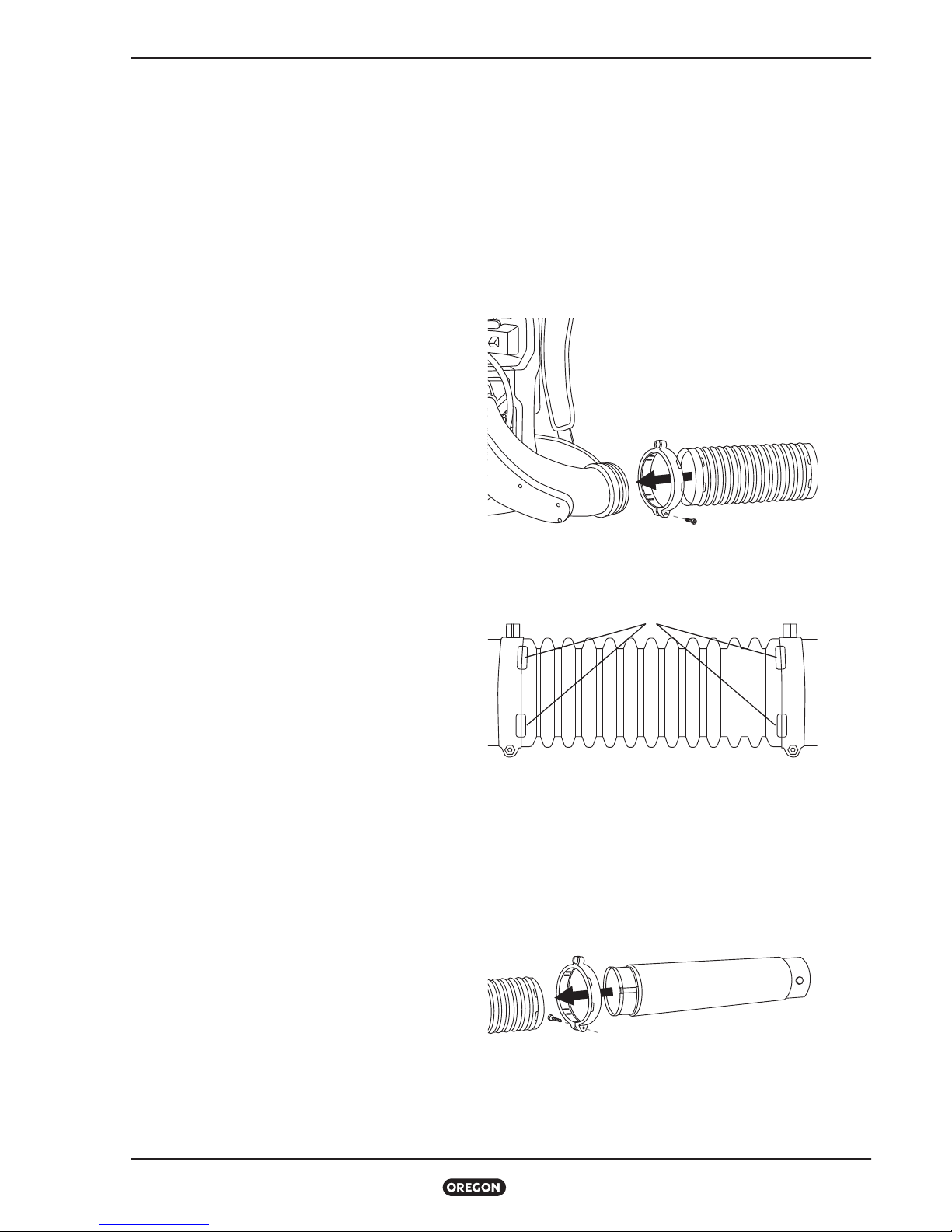

. Remove the screws from the hose clamps.
Mount the pleated hose to the elbow
assembly with a hose clamp ().
. Orient the alignment markers to face each
other (). Insert and tighten the hose clamp
screw.
. Insert the noise dampening tube with the
slip ring into the pleated hose (). Secure
with the second hose clamp, orienting the
alignment markers and tightening the
clamp screw. Adjust the tension of the hose
clamp screw to ensure the nozzle can
rotate freely.
1
2
3

12 Backpack Blower Model BL120VX-NA
Unpacking and Assembly
. Push the extension tube onto the noise
dampening tube engaging the lock tabs ().
. Remove the screw from the control handle
clamp (). Fit the control handle onto the
noise dampening tube and adjust the
distance and angle for a comfortable
working position. Insert and tighten the
clamp screw.
. Secure the throttle cable onto the clips on
the two hose clamps ().
4
5
6

13
Backpack Blower Model BL120VX-NA
Operation
Operation
Intended Use
Use your blower only for clearing yards,
gardens, grounds, and facility areas of loose
debris, such as leaves, grass, paper, and dust.
Do not use it for other purposes, as misuse
may result in personal injury or property
damage, including damage to the machine.
Before Starting Work
Read the Original Instruction
Manual for the battery carefully
before assembling, operating or
servicing the product.
• Check the battery is in good condition free
from any broken, missing or cracked parts.
• Check the blower for misalignment or
bending of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation.
• Check that the elbow and nozzle are properly
installed.
• Check the condition of the shoulder straps
and waist harness.
• Make sure the battery cable, plug and power
socket are not frayed or damaged.
To repair or replace any damage or worn
part, contact Oregon or an authorized Oregon
servicing dealer.
Batteries and Battery Charging
• Batteries must be used, stored and charged
within battery use, storage, charging temperature
ranges outlined in the Specifications section of
this manual.
• Oregon V Professional Series tools are
intended for use only with Oregon V
Professional Batteries. Read and follow all
instructions provided in the Oregon V
Professional Battery Operators Manual.
• Oregon V Professional Batteries must be
charged only by Oregon V Professional
Charger. Read and follow all instructions provided
in the Oregon V Professional Charger
Operators Manual.
Starting the Backpack Blower
• Insert the Oregon Professional Battery fully
into the battery pocket of the blower until it
presses down on the battery eject springs and
the battery release lever engages securely.
• Ensure the trigger-lock lever is in the "OFF"
position. The blower will not function if the
lever is in the "ON" position when the battery
is initially plugged in. If necessary, unplug
the battery, place the trigger-lock lever in the
"OFF" position and plug in the battery.
• Insert the plug of the battery cable into
the DC battery socket—make certain the
battery plug is completely seated into the
battery socket. When fully inserted the LED
lights on the dashboard will activate and be
accompanied by an audible beep.
WARNING: Adjust carrying harness
straps and belt to suit your size before starting
work
• The blower is designed for single-handed
operation with the right hand on the control
handle. It should be carried as a backpack
with the straps over both shoulders, the waist
belt affixed just above the hips and the chest
strap latching the two shoulder straps.

14 Backpack Blower Model BL120VX-NA
Operation
• Fasten the waist belt around your hips and
make certain the buckles are connected.
Tighten the belt.
• Fasten the sternum strap and make certain
the buckles are connected. Tighten the strap.
WARNING: To reduce the risk of loss of
control, never carry the unit without the straps
over both shoulders and the waist belt fastened.
• Pull the variable speed trigger to activate
the fan. Continue to press the variable speed
trigger for extended operation.
Trigger-lock Lever
• The Oregon BLVX-NA is equipped with a
trigger-lock lever. The trigger-lock is located
to the left of the dashboard on the control
handle.
• Pull down on the trigger-lock lever with your
thumb to lock the blower at the desired power
level. Push up on the trigger-lock lever to
slow or stop the fan.
Stealth Mode
The Oregon BLVX-NA has a Stealth Mode
available which reduces maximum fan speed
by . Running the blower in stealth mode
reduces noise by up to  and increases
runtime up to .
• Press the Stealth Mode button beneath the
dashboard. A blue light above the button
indicates the tool is in Stealth Mode.
• Press the button again to return to full power.
Stopping the Backpack Blower
• If the trigger-lock lever is not engaged,
release the variable speed trigger to stop the
unit
• If the trigger-lock lever is engaged, push it
forward with your right thumb to stop the unit
WARNING: Disconnect the battery from
the tool before transporting or performing any
maintenance on the blower.
Disconnecting the Battery
Release the variable speed trigger and push
the trigger-lock lever to its upright position if
engaged. Place the blower on the ground and
pull the battery plug from the battery socket.
Stow the plug on the battery plug cradle.
Pull the battery release lever toward the battery
to release the latch. The battery can now be
lifted out of the battery pocket.
120v

15
Backpack Blower Model BL120VX-NA
Operation

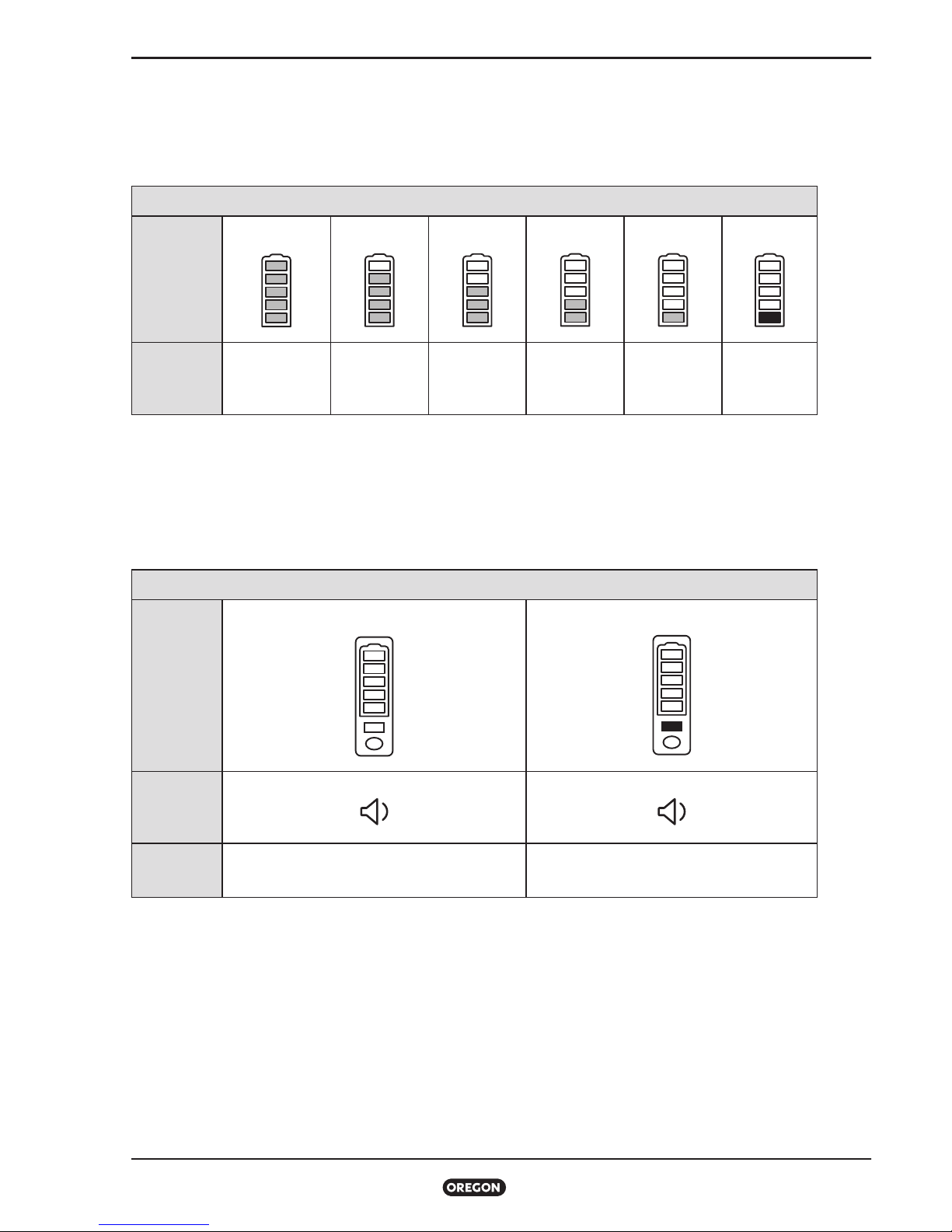

Dashboard
The dashboard is located on the control handle of the Oregon STVX-NA and displays the current
charge state of the battery connected to the tool and any faults from the tool or battery.
INDICATORS
LEDs
5 green LEDs 4 green LEDs 3 green LEDs 2 green LEDs 1 green LED 1 red LED
MEANING Full charge
100% to 81% 80% to 61% 60% to 41% 40% to 21% 20% to 10% Low power <10%
To determine the approximate number of hours the tool has been operated, insert the battery
and press the Stealth Mode button for  seconds. The tool will provide an audible beep for each
 hours of operation.
To determine the approximate number of hours the tool has been operated, insert the battery plug
and press the Stealth Mode button for  seconds.
INDICATORS
LEDs
none blue LED flash
SOUND
1 beep beep
MEANING <49 hours 1 blue LED flash and beep
for every 50 hours

16 Backpack Blower Model BL120VX-NA
Troubleshooting
Troubleshooting
All of the tools in the Oregon V Professional Series have the ability to self-diagnose issues.
Below is a table of fault codes the tool can display through the dashboard.
INDICATORS POSSIBLE
CAUSE RECOMMENDED ACTION
LEDs SOUND
none none Trigger not pulled. Pull trigger.
No power. Make certain the plug
is fully seated in socket.
1 continuous red light
red
steady on
Fan is jammed.
Disconnect the battery
plug from the tool.
Service tool. Contact
authorized repair center.
1 slow blinking red light
red
slow beep
(repeating) Battery is fully
discharged. Charge battery.
alternating green and red lights
green red
rapid beep
(repeating) Battery fault.
Service battery.
Contact authorized
repair center.
4 green, 1 red, 1 blue quick blinking lights
green green green green red blue
very rapid
short beep
(repeating) Hardware fault.
Unplug, wait 30
seconds, plug back in.
Service tool.
Contact authorized
repair center.
1 short, 1 long blinking red light
red
1 short,
1 long beep Battery too hot. Allow battery to cool.
2 short, 1 long blinking red light
red
2 short,
1 long beep Tool over temp. Allow tool to cool.
4 green and 1 red continuous lights
green green green green red
none
Failed dashboard. Replace dashboard.
5 blinking green lights
green green green green green
none
Trigger pulled
or trigger lock
engaged in "ON"
position while
battery plug is
inserted.
Release trigger or
position trigger lock to
"OFF" position.
Unplug tool.
Check for stuck trigger.
Plug in tool.

17
Backpack Blower Model BL120VX-NA
Specifications
Specifications
For a full list of replacement parts, please visit OregonProducts com
BACKPACK BLOWER BL120VX-NA
Weight (without battery) 20.5 lbs (9.3kg)
HIGH STEALTH MODE
Maximum air speed (MPH) 200 175
Average air speed (MPH) 164 144
Air volume (CFM) 526 462
Bystander decibel rating
(per ANSI B172.3) 59 57
Blow force (N) 22 17
Vibration 0.126 m/s2(K, 1.5 m/s2) N/A
TEMPERATURE RANGES
Operating Temperature Range 14°F to 113°F (-10°C to 45°C)
Charging Temperature Range 32°F to 86°F (0°C to 30°C)
Storage Temperature Range -4°F to 140°F (-20°C to 60°C)
California Emission Control Air Index Information
California Emission Control Air Index Information
The Air Index of this engine is 0
0 2 4 6 8 10
Most Clean Least Clean
Note: The lower the Air Index, the less pollution.
This engine is certified to be emissions
compliant for the following use: 300 hours
Emissions Durability Period
The stated Durability Period listed on Oregon 120V Professional Series equipment refers
only to the minimum emissions period tools must meet or exceed to qualify as Zero
Emission Equipment in the State of California.

18 Backpack Blower Model BL120VX-NA
Commercial Warranty and Service
Commercial Warranty and Service
Limited Warranty Coverage
Oregon offers the original purchaser as the
end-user a two () year limited warranty, and
a ninety () day limited warranty on products
purchased for rent to other end-users. Visit
www.oregonproducts.com for complete
Oregon® V Professional Series™ product
warranty and service information.
The Oregon V Professional Series limited
warranty covers the following products:
BLV-NA Backpack Blower, STV-NA
String Trimmer, HTV-NA Hedge Trimmer,
EGV-NA Edger, BX-UV Battery, BX-
UV Battery, C-NA Charger, CDVX-
NA Battery-to-Tool Cable, BPBXOR-UV
Backpack and, BPBXSY-UV Backpack.
Purchaser is responsible for maintaining
original proof of purchase.
Servicing Equipment
Oregon V Professional Series tools
and equipment (tools, batteries, chargers,
backpacks, accessories and components) are
designed to be serviceable by a qualified repair
person using only original Oregon replacement
parts. Only use Oregon Authorized Service
Centers. Visit www.OregonProducts.com for
a list of Authorized Oregon V Professional
Series Service Center locations, access product
manuals, review authorized replacement and
service parts and view how-to videos.
Contact Us
You can call Oregon’s customer service
department at ---, ext. . We’re
here to take your calls between : a.m. and
: p.m. (Pacific Time) Monday through Friday.
You can also email us at TechnicalServices@
oregonproducts.com for warranty and service
information. You can find an authorized service
center listed at www.oregonproducts.com.
Address:
Attn: Oregon Technical Services
RE: OPE – V Series
 SE International Way
Portland OR  USA

19
Backpack Blower Model BL120VX-NA
California Emission Control Warranty Statement
The following California Emission Control Warranty is valid in the state of California only:
California Emission Control Warranty Statement
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Blount International, Inc. are pleased to explain the emission
control system warranty on your  Zero Emission Equipment. In California, new small off-road
engines must be designed, built and equipped to meet the State's stringent anti-smog standards. Blount
International, Inc. must warrant the emission control system on your Zero Emission Equipment engine for
the periods of time listed below provided there has been no abuse, neglect or improper maintenance of
your small off-road engine.
Your emission control system includes the motor, controller, battery, charger and other emission-related
assemblies.
Where a warrantable condition exists, Blount International, Inc. will repair your Zero Emission Equipment at
no cost to you including diagnosis, parts and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The Zero Emission Equipment is warranted for two years. If any emission-related part on your engine is
defective, the part will be repaired or replaced by Blount International, Inc.
OWNER'S WARRANTY RESPONSIBILITIES:
- As the Zero Emission Equipment owner, you are responsible for the performance of the required
maintenance listed in your owner's manual. Blount International, Inc. recommends that you retain all
receipts covering maintenance on your Zero Emission Equipment, but Blount International, Inc. cannot
deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled
maintenance.
- As the Zero Emission Equipment owner, you should however be aware that Blount International, Inc. may
deny you warranty coverage if your Zero Emission Equipment or a part has failed due to abuse, neglect,
improper maintenance or unapproved modifications.
- You are responsible for presenting your Zero Emission Equipment engine to a Blount International, Inc.
Authorized Oregon Outdoor Power Equipment Dealer as soon as a problem exists. The warranty repairs
should be completed in a reasonable amount of time, not to exceed  days.
If you have any questions regarding your warranty rights and responsibilities, you should contact Blount
International, Inc. Technical Services at ---.
DEFECT MATERIAL COVERAGE:
Blount International, Inc. further warrants that the Zero Emission Equipment is designed, built, and
equipped so as to conform with all applicable regulations adopted by the Air Resources Board and is free
from defects in materials and workmanship that cause the failure of a warranted part to be identical in all
material respects to the part as described in the manufacturer of zero-emission small off-road equipment's
application for certification for two years.
EMISSION CONTROL SYSTEM WARRANTY PARTS LIST:
- Battery
- Charger
- Motor
- Controller

20 Backpack Blower Model BL120VX-NA
Table des matières
Table des matières
Consignes de sécurité importantes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Définitions des signaux de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Avertissements généraux de sécurité de l’outil électrique. . . . . . . . . . . . . . .21
Symboles de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Résumé . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Déballage et assemblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Déballage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Assemblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Fonctionnement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Utilisation prévue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Avant de démarrer le travail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Batteries et charge de la batterie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Démarrer le souffleur dorsal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Levier de verrouillage de gâchette . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Mode furtif. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Arrêter le souffleur dorsal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Débrancher la batterie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Dépannage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Renseignements sur l'indice californien de contrôle des émissions . . . . . . . . . . . . .33
Garantie et service commerciaux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Garantie limitée . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Matériel d’entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Communiquer avec nous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
California emission control déclaration de garantie vos droits
et obligations de garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
©  Blount, Inc. Les prix et caractéristiques peuvent être modifiés sans préavis. Tous droits réservés. Oregon® est une marque déposée de
Blount, Inc. aux États-Unis et/ou dans d’autres pays.
