This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232,
bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters be-
tween transmitter and receiver via a single CAT6a/7 cable and support resolution up
to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. In
addition, the extender is equipped with bi-directional IR pass-through which allows for
source and display control. It also supports USB KVM and POC function.
The extender offers the most convenient solution for HDMI extension via a single CAT
cable with long distance capability, and is the perfect solution for any application.
Introduction
page 04

1. HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
2. Support 18Gbps video bandwidth
3. Video resolution is up to 4k2k@60Hz YUV 4:4:4
4. The maximum transmission distance is 328ft / 100 meters via a single CAT6a/7
cable
5. Support ARC (Audio Return Channel) function
6. With bi-directional IR, RS-232 and CEC pass-through
7. Support USB KVM function
8. HDR, HDR10+, Dolby Vision and HLG function supported
9. Support POC (Power over Cable) function
10. Compact design for easy and flexible installation
Package Contents
1. 18Gbps HDMI over HDBaseT Extender (Transmitter) 1pcs
2. 18Gbps HDMI over HDBaseT Extender (Receiver) 1pcs
3. IR Blaster cable (1.5 meters) 1 pcs
4. 20~60KHz IR Receiver cable (1.5 meters) 1 pcs
5. Mounting Ear 4 pcs
6. 3-pin Phoenix connector 2pcs
7. 24V/1A Locking Power adapter 1pcs
8. User Manual 1pcs
Features
page 05

6SHFLǓFDWLRQ
Technical
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution 4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4)
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD
Master, DTS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
SPDIF Audio Formats LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
ESD Protection Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
page 06

page 07
Connection
Transmitter Inputs:
1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin
female]
1x SPDIF OUT [S/PDIF]
1×L/R OUT [3.5mm Stereo Mini-jack] 1×LAN [RG45]
Control:
1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-
jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port] 1×USB HOST [USB Type B]
Receiver Inputs: 1x HDBT IN [RJ45, 8-pin female] 1x SPDIF IN [S/PDIF]
Outputs: 1x HDMI Type A [19-pin female] 1x LAN [RG45]
Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo
Mini-jack] 1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port] 2×USB 2.0 [USB Type A]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver:
165mm [W] x 88mm [D] x 18mm [H]
Weight Transmitter: 170g, Receiver: 165g
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption 13W
Operating Temperature 32 - 104°F / 0 - 40°C
6SHFLǓFDWLRQ

page 08
Mechnaical
Storage Temperature I-4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution Distance
4K2K 296ft /90M
1080P 328ft /100M
Resolution / Cable
Length
4K60 -
Feet / Meters
4K30 -
Feet / Meters
1080P60 -
Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High-Speed HDMI” cable is highly recommended.
6SHFLǓFDWLRQ

page 09
Operation controls
and functions

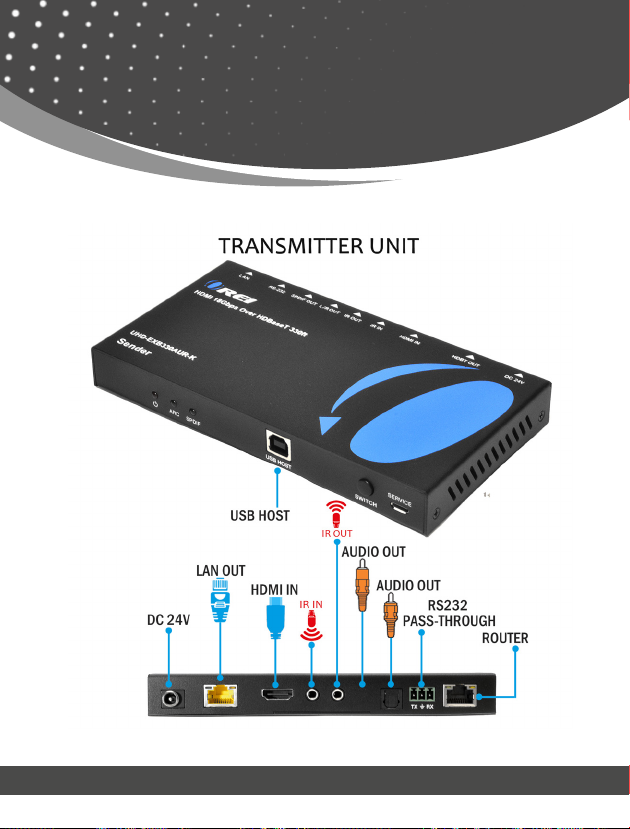

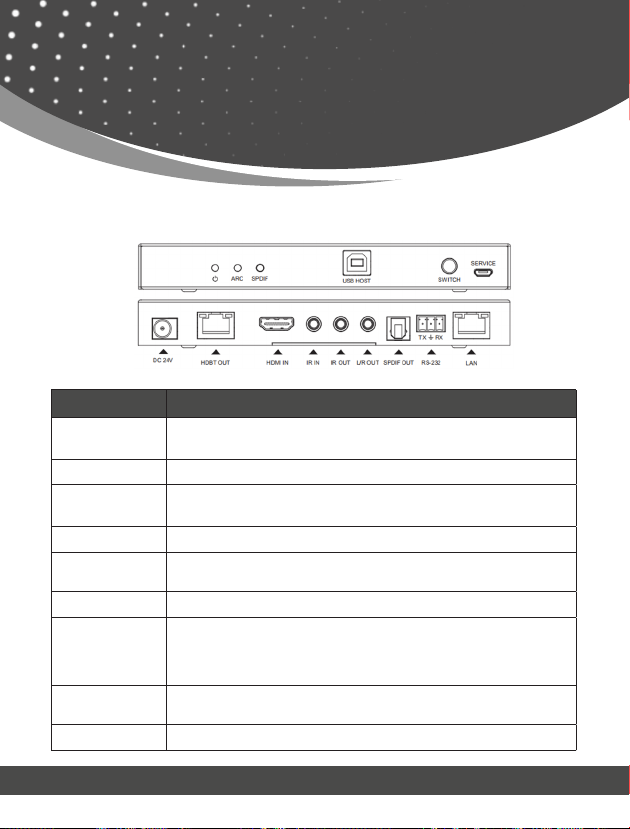

5.1 Transmitter Panel
Name Function/Description
Power LED Red LED is on when the transmitter is working.
LED is off when the transmitter is on standby.
ARC LED Connect to HDMI display device such as TV or Projector.
SPIDIF LED Green LED is on when SPDIF OUT port outputs the audio signal returned from
SPDIF IN on receiver.
USB HOST Connect to PC for transmitting receiver’s USB data to transmitter.
SWITCH Press the button to switch the output audio signal source for SPDIF OUT and
L/R OUT port.
SERVICE port Firmware update port.
DC 24V DC 24V input for 24V 1A power adapter.
Note that the extender supports POC function, it means that either transmitter
or receiver is connected to 24V/1A power supply, the other doesn’t need power
supply.
HDBT OUT RJ45 connector for connecting the HDBT IN port of receiver with CAT 5e/6
cable.

Operation controls
and functions
page 10
Name Function/Description
Connection Signal Indicator
lamp (on the left side of the
HDBT OUT port)
Illuminate: Transmitter and Receiver are in good connection status.
Flash: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
Data Signal Indicator lamp
(on the right side of
the HDBT OUT port)
Illuminate: HDMI signal with HDCP.
Flash: HDMI signal without HDCP.
Dark: No HDMI signal.
HDMI IN HDMI source input.
IR IN IR input port for receiving the signal of IR remote.
IR OUT IR output port for control of source device. This IR output signal is from IR
IN port of receiver.
L/R OUT 3.5mm stereo connector for analog audio output.
SPDIF OUT SPDIF connector for optical audio output.
RS-232 3-pin Phoenix connector for RS-232 command transmission. The RS-232
command will pass-through from transmitter to receiver or receiver to
transmitter.
LAN RJ45 connector for connecting Hub or router.

page 11
5.2 Receiver Panel
Name Function/Description
Power LED Red LED is on when the receiver is working.
LED is off when the receiver is on standby.
ARC LED Green LED is on when ARC function is turned on.
SPIDIF LED Green LED is on when SPDIF OUT port outputs the audio signal returned from
SPDIF IN on receiver.
Two USB 2.0 ports Connect to USB device.
SWITCH Press the button to switch the output audio signal source for SPDIF OUT and
L/R OUT port.
SERVICE port Firmware update port.
DC 24V DC 24V input for 24V 1A power adapter.
Note that the extender supports POC function, it means that either transmitter
or receiver is connected to 24V/1A power supply, the other doesn’t need power
supply.
HDBT IN RJ45 connector for connecting the HDBT OUT port of transmitter with CAT
5e/6 cable.
Operation controls
and functions

page 12
Name Function/Description
Connection Signal Indicator
lamp (on the left side of the
HDBT IN port)
Illuminate: Transmitter and Receiver are in good connection status.
Flash: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
Data Signal Indicator lamp
(on the right side of the
HDBT IN port)
Illuminate: HDMI signal with HDCP.
Flash: HDMI signal without HDCP.
Dark: No HDMI signal.
HDMI OUT HDMI output for display.
IR IN IR input port for receiving the signal of IR remote.
IR OUT IR output port for control of display device. This IR output signal is from IR
IN port of transmitter.
SPDIF IN SPDIF connector for optical audio input.
RS-232 3-pin Phoenix connector for RS-232 command transmission.
The RS-232 command will pass-through from transmitter to receiver or
receiver to transmitter.
LAN Connect to Internet device such as PC or laptop.
Operation controls
and functions

ARC LED
State SPDIF LED State Audio Output Logic
On Off
The SPDIF OUT, L/R OUT and HDMI IN ports of the Transmitter
simultaneously output the audio signal returned from
HDMI (display device) on Receiver.
Off On The SPDIF OUT and L/R OUT ports output the audio signal returned
from SPDIF IN on Receiver.
Off Off The SPDIF OUT and L/R OUT ports output the audio signal
extracted from the Transmitter.
page 13
5.4 IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
and functions
Note that IR remote sends signal at the distance of 0~5 meters / 0~8 meters with the angle of
± 45° in vertical direction.
Operation controls
5.3 Audio Signal Output Switching
Switch the output audio signal source for SPDIF OUT and L/R OUT port via the “SWITCH”
button on the panel (the corresponding LED will illuminate). The states of ARC LED and
SPDIF LED indicate the audio output logic, as shown in the table below:
On On The SPDIF OUT and L/R OUT ports output the audio signal returned
from HDMI (display device) on Receiver.

page 14
Application
Example

page 15
Application
Example

page 16
Application
Example

page 17
