orfit SAGITTILT 32070/900 User manual

Page 1 of 8
INSTRUCTIONS FOR USE
SAGITTILTTM PRONE
BREAST SOLUTION
STORAGE CART
Article No. : 32070/900
A. GENERAL PRODUCT INFORMATION
The product referred to in this document is a
storage system for medical devices, used for
patient positioning and immobilisation in radiation
therapy.
This product may only be used in combination with
Orfit immobilisation products. Orfit prohibits the
use of unauthorised third-party products in
conjunction with its own products.
B. PRODUCT DESCRIPTION
This storage cart is used to store the SagittiltTM
Prone Breast Solution in an upright position.
Information on these other parts (and instructions
on how to make the masks) can be found in the
respective ‘instructions for use’ and on
www.orfit.com.
C. PARTS LIST
The storage cart contains the following parts:
ART. NO.
DESCRIPTION
PART(see
picture below)
32070/900
containing:
4 wheels
2 vertical frames
1 bottom frame
1pivoting
mechanism
1 centre axis
2 side pockets
1 storage tray
1 bag of screws
1 set of tools
1
2
3
4
5
6
7
8
9
Figure 1
D. INSTALLATION
STEP 1: Packaging
Unpack all the items and verify if you have all the
necessary products described in the parts list in the
previous paragraph.
STEP 2: Mounting of vertical frames
Attach the 2 vertical frames to the bottom frame.
Make sure the black buttons are facing inwards,
towards each other.
Figure 2

Page 2 of 8
Figure 3
STEP 3: Mounting of the wheels
Turn the structure upside down so the device is
resting on the vertical frames and the bottom frame
is facing upwards.
Figure 4
Now attach the 4 wheels to the bottom frame and
tighten the screw with the wrench.
Figure 5
Once the wheels are attached, turn the whole
structure again so it is resting on the 4 wheels.
Switch on the brakes of the wheels.
Figure 6
STEP 4: Mounting of the pivoting mechanism
Take both screws out of the center axis of the
pivoting mechanism with the use of an Allen wrench.
Figure 7
Figure 8
Insert the pivoting mechanism between the two
vertical frames. The large frame should be facing
upwards and the small one downwards. Be aware
to mount it in the correct direction by matching the
numbers on the pivoting mechanism and the
vertical frames (number 1 and 2). This should be
done by 2 persons.

Page 3 of 8
Figure 9
Attach the screw again to the center axis by
screwing it into the top hole of the vertical frames
on both sides.
Figure 10
The washer is used on the outside of the vertical
frame.
Figure 11
STEP 5: Mounting of hydraulic hinge
Place the large and small frame horizontally.
Figure 12
Push the black hydraulic hinges of the short frame
onto the black buttons on the vertical frames.
Match the numbers on the hinges with the ones on
the frame (number 3 and 4).
Figure 13

Page 4 of 8

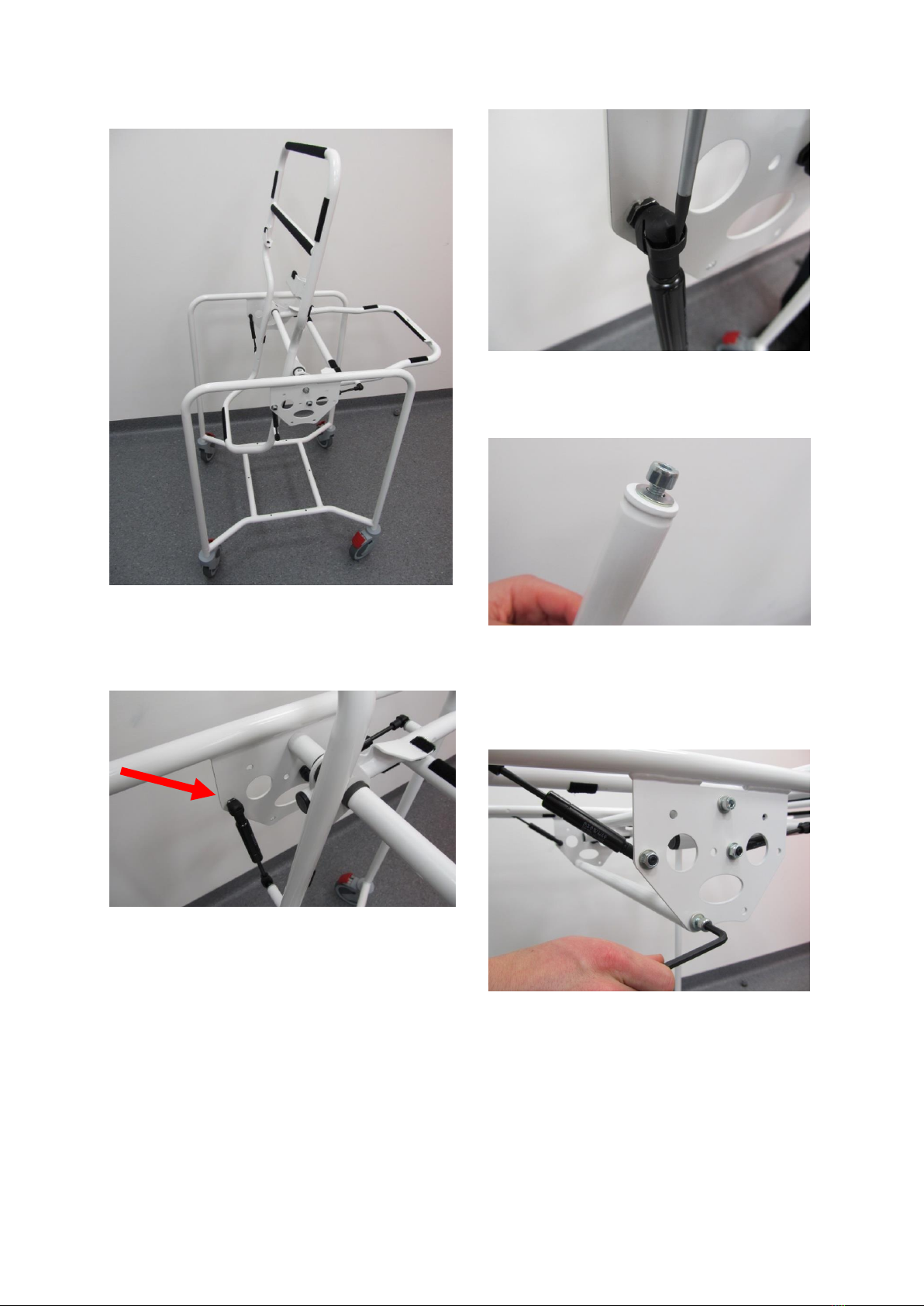

Now place the large frame vertically.
Figure 14
Push the black hydraulic hinges of the long frame
onto the black buttons on the vertical frames.
Match the numbers on the hinges with the ones on
the frame (number 5 and 6).
Figure 15
Note: If it is necessary to unlock this hydraulic hinge,
use a screwdriver to open the small clamp.
Figure 16
STEP 6: Mounting of the center axis
Unscrew the screws on both sides of the center
axis.
Figure 17
Attach the center axis to the vertical frames and
fasten the screw into the bottom hole of the
vertical frames. Make sure to use the right hole.
Match the numbers on the center axis with the
ones on the vertical frames (number 7).
Figure 18
STEP 7: Mounting of the 2 side pockets
The attachment of the side pockets to the frame
should be done by 2 persons.
First take out the screws that are already attached
to the side pockets. These need to be used to fasten
the side pocket to vertical frame.

Page 5 of 8

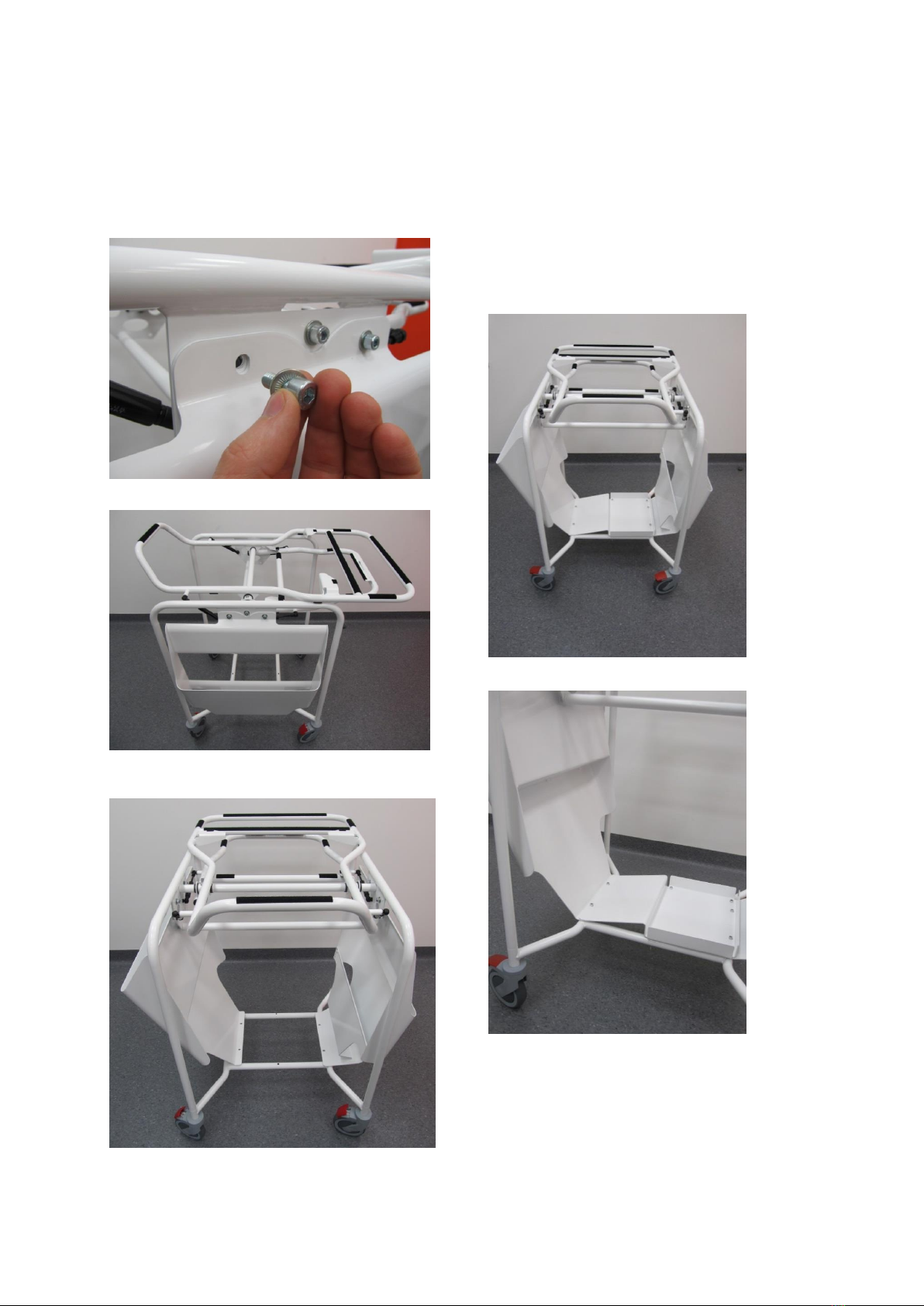

Position the first side pocket on one side of the
vertical frame and insert the 2 screws. Use one
washer on the inside and one washer on the outside
of the frame. Attach the nut on the inside of the
vertical frame. Do not tighten the screws yet until
the storage tray is positioned.
Figure 19
Figure 20
Figure 22
Now attach the second side pocket on the other
side of the storage cart. It doesn’t matter on which
side of the storage cart you position the deep or
the shallow side pocket.
STEP 8: Mounting of the storage tray
The last piece is the storage tray that is attached on
the bottom frame and the 2 side pockets. The
direction of the storage tray is important in
combination with the side pockets. The transition of
the shallow side pocket to the storage tray should
be smooth so that later on you can easily position
the feet support.
Figure 21
Figure 22

Page 6 of 8
Use the 4 long screws provided to attach the
storage tray. Each screw should be combined with
1 nut, 1 washer on the inside of the tray and 1
washer on the outside.
Now also tighten the screws of the side pockets.
STEP 9: Storage of the SagittiltTM Prone Breast
Solution

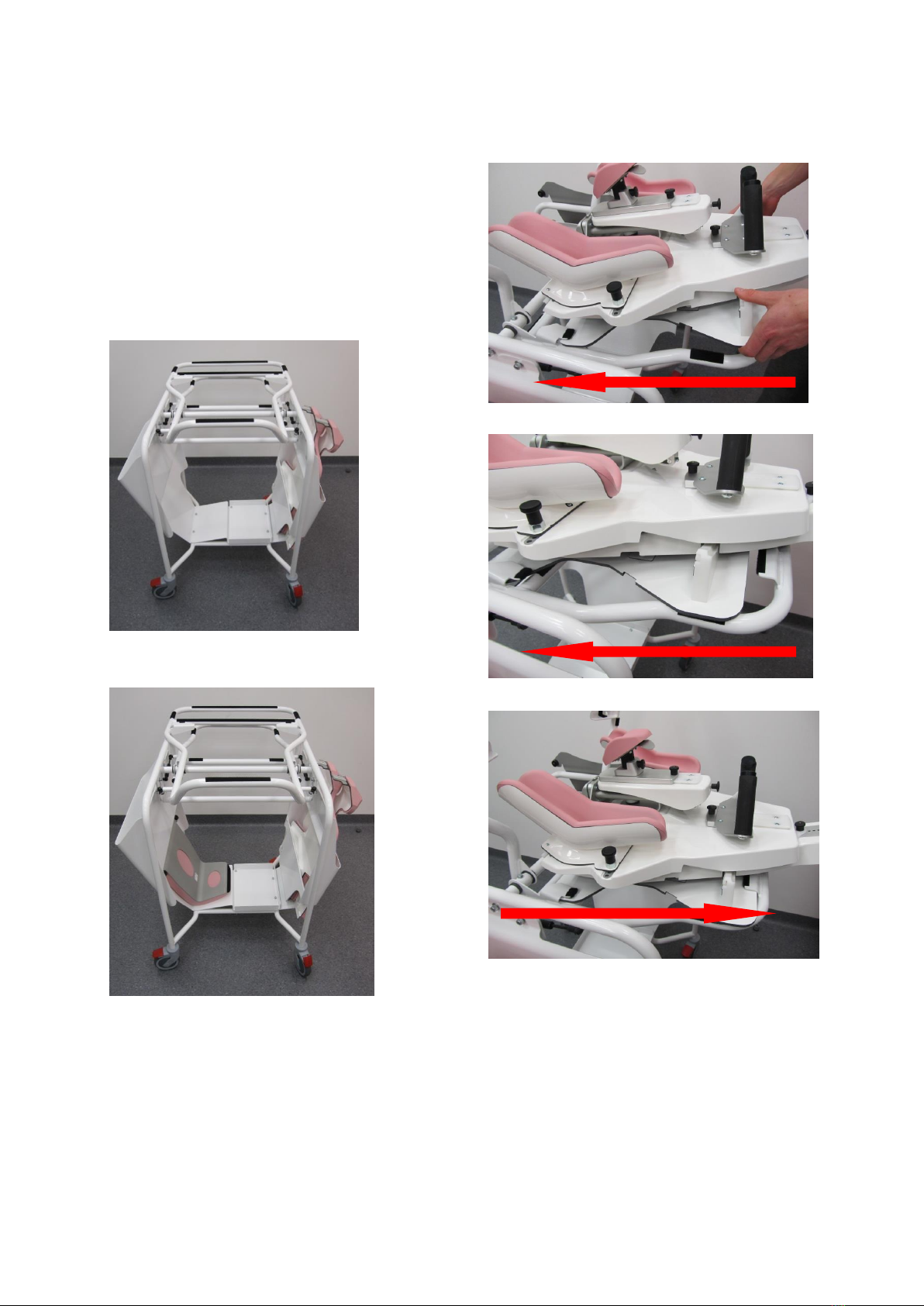

The breast bridges should be stored in the deep
side pocket.
Figure 23
Then position the leg support in the storage tray.
Figure 24
Make sure that the short frame of the pivoting
mechanism is placed horizontally and the long
frame vertically. Slide the cranial piece of the
SagittiltTM in the short frame and pull it back to you
so it is locked underneath the 3 clamps.
Don’t hold the frame by the hand grips, instead
hold it on the bottom frame as shown in the
picture below or on the widest part of the top
frame.
Figure 25
Figure 26
Figure 27

Page 7 of 8
Push the short frame downwards.
Figure 28
Now place the long frame horizontally so you can
slide the caudal piece of the SagittiltTM on top of it.
Make sure the treatment table is at the same
height as the storage cart.
Push the caudal piece backwards so it slides into
the 2 clamps of the frame.
Figure 29
Figure 30
Push the frame into a vertical position again.
Figure 31
Figure 32
Other smaller items such as EVA blocks can be
stored in the storage tray and the shallow side
pocket.
E. PRECAUTIONS FOR USE
Gently slide the components of the SagittiltTM
Prone Breast Solution onto the storage cart and be
careful not to damage or scratch them.
Always verify that the components are locked onto
the storage cart so they cannot fall off.
Verify that the brake of the wheel is on when the
cart doesn’t need to be displaced.
F. STORAGE
Always store the product in a safe place to prevent
it from getting damaged.

Note:
The instructions were written in accordance with the European Directive 93/42/EEC for Medical Devices. It is prohibited to make alterations to this text without prior approval from Orfit Industries.
SAGITTILT™is a trademark of Orfit Industries
Page 8 of 8
www.orfit.com
Ref. No. 50067
VERSION 4
LAST UPDATE: 11/03/2019
REVISION DATE: 11/03/2021
G. PROPERTIES
Physical Properties
The following physical properties apply to these
units:
Dimensions: 145cm x 62cm x 67cm
Weight: 26kg
H. MAINTENANCE AND WASTE MANAGEMENT
This product can be cleaned and disinfected by
means of soapy water or an isopropanol based
disinfectant, applied with a soft cloth. If unsure
about the cleaning fluid, do not use. Never use
aerosol sprays, corrosive cleaning agents, solvents
or abrasive detergents.
Periodic checks of the product should be done to
insure the parts are not worn and require repair or
replacement. Do not attempt to make repairs
yourself. Contact your distributor if there are any
questions or concerns.
The product can be disposed of with household
waste.
I. ADDITIONAL INFORMATION
For additional information such as distributor
contact information, product brochures, Safety
Data Sheets and regulatory information, please
visit our website www.orfit.com.
