Origin Acoustics D65EX User manual

Installation Manual
D65EX, D83EX, D83DT/SUR EX, D83AEX, D85EX
EXPLORER COLLECTION
D65EX
D83EX D83DT/SUR EX D83AEX D85EX

Explorer Collection™ Manual
Table of Contents
Introduction 1
Specifications 2
Dual Tweeter 4
What’s Included 5
Tools & Items 5
Wire Recommendation 5
Speaker Placement 6
About Speaker Wire 7
Installing the Wire 7
Wire Routing 8
Painting the Grille 9
Cutting the Hole 9
Installing the Bayonet Ring 10
Connecting the Wire 10
Installing the Speaker 11
Testing & Adjustments 12
Installing the Grille 12
Troubleshooting 13
Technical Assistance 14
Warranty 15
Return Process 16

Explorer Collection™ Manual
Thank you for purchasing the Explorer Collection. The Explorer Collection of
loudspeakers from Origin Acoustics were developed to withstand the harsh
conditions found in marine environments. This includes exposure to saltwater,
extreme temperature changes and airborne humidity. They will produce amazing
musical fidelity while spending family time on the lake or a trip on the open sea
and they have the build quality to last for years in these situations.
Thisinstructionbookletcoversthenecessaryinformationforasmoothinstallation,
including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at [phone]. Hours of operation are 8:00am to 5:00pm (Pacific
Time), Monday through Friday.
1
Introduction

Explorer Collection™ Manual
Model: D83EX
Part: DSC83000EX
• Woofer: 8” IMG • Diameter: 9 ” (244mm)
• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)
• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)
• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)
• Woofer: 8” IMG • Diameter: 9 ” (244mm)
• Tweeter: Dual 1” Aluminum • Grille Diameter: 10” (254mm)
• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)
• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (109mm)
• Woofer: 8” IMG - Fixed Angle • Diameter: 9 ” (244mm)
• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)
• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)
• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)
• Woofer: 8” IMG • Diameter: 9 ” (244mm)
• Mid-Range: 4” IMG Multi-motion Pivoting • Grille Diameter: 10” (254mm)
• Tweeter: 1” Aluminum Multi-Motion Pivoting • Cutout Diameter: 8 ” (222mm)
• Frequency Response: 36Hz-20kHz • Mounting Depth: 5 ” (142mm)
• Power Handling: 50-150Watts
EXPLORER SPECIFICATIONS
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
2
Model: D83DT/SUR EX
Part: SCDT83000EX
Model: D83AEX
Part: SCD08030AEX
Model: D85EX
Part: SCD85000EX

Explorer Collection™ Manual
• Woofer: 8” IMG - Fixed Angle • Diameter: 9 ” (244mm)
• Tweeter: 1” Aluminum Multi-Motion Pivoting • Grille Diameter: 10” (254mm)
• Frequency Response: 38Hz-20kHz • Cutout Diameter: 8 ” (222mm)
• Power Handling: 50-125 Watts • Mounting Depth: 4 ” (105mm)
• Woofer: 8” IMG • Diameter: 9 ” (244mm)
• Mid-Range: 4” IMG Multi-motion Pivoting • Grille Diameter: 10” (254mm)
• Tweeter: 1” Aluminum Multi-Motion Pivoting • Cutout Diameter: 8 ” (222mm)
• Frequency Response: 36Hz-20kHz • Mounting Depth: 5 ” (142mm)
• Power Handling: 50-150Watts
• Woofer: 6 ” IMG Pivoting • Diameter: 9 ”(244mm)
• Tweeter: 1” Aluminum • Grille Diameter: 10” (254mm)
• Frequency Response: 45Hz-20kHz • Cutout Diameter: 8 ”(222mm)
• Power Handling: 25-140 Watts • Mounting Depth: 5 ” (140mm) - At 0oTilt
• Mounting Depth: 5 ” (155mm) - At Maximum Tilt
EXPLORER SPECIFICATIONS
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
3
Model: D65EX
Part: SCD65000EX

Explorer Collection™ Manual
In this mode, one channel is fed into both tweeters to be distributed throughout
the area. This way in a multiple-speaker setup, one speaker can be a dedicated
le speaker and another a dedicated right.
Surround (Dipole)
The Dual Tweeter models can be used for either one channel (surround) or two
channels (stereo). A switch is located on the back of the speaker to select which
mode to use. One of the inputs is labeled for surround. This is the input that
should be used if you’re only using one channel.
Dual Tweeters
In this mode, two channels are fed into the speaker: one channel for each tweeter.
This setup is ideal for small rooms such as walk-in closets and bathrooms, as well
as oddly-shaped areas such as hallways. With both le and right channels in one
speaker, only one speaker is needed in smaller rooms. In areas like hallways, both
channels can be evenly distributed throughout the area with multiple speakers.
Stereo (Dipole)
If you are using a dual tweeter speaker in stereo mode (i.e. there are two wires
connected to the speaker: one for the le channel and one for the right), do not
set the switch to surround mode. This could damage the amplifier.
Warning
4

Explorer Collection™ Manual
Speaker Bayonet Ring Grille Template
What’s Included
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• Drill Bit ⅛” (3mm)
• Stiff Wire
• Stud Finder
• Fish Tape
• Spray Paint
• Compressed Air
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections. Which
gauge to select depends on the length of wire to be used on any particular speak-
er. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
5
Installation Manual

Explorer Collection™ Manual

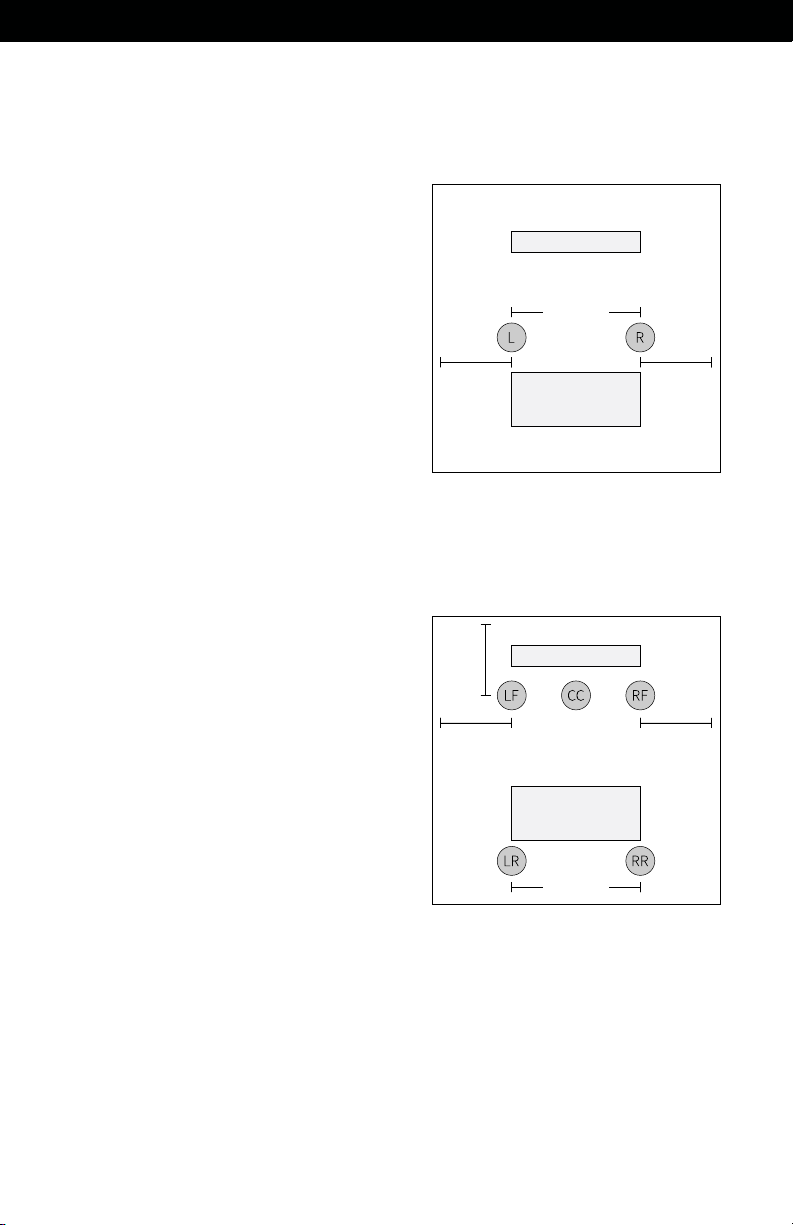

Ideally, the two speakers should be
placed an equal distance from the lis-
tener. If the room has a lower ceiling,
the speakers can be closer together.
Also, if the speaker placement is in-
tended for standing (as opposed to
sitting) listeners, the speakers can be
closer together.
Auxiliary Room (2 Speaker Placement)
The Le Rear (LR) and Right Rear (RR)
speakers should be installed just be-
hind the listener, one on either side.
The Center Channel (CC) speaker
should be placed above and slightly
in front of the television, with the Le
Front (LF) and Right Front (RF) speak-
ers placed equidistant to either side.
Home Theater (5 Speaker Placement)
Listening Area
TV
6’ (2m)
3’ (1m)3’ (1m)
Listening Area
TV
6’ (2m)
3’ (1m)3’ (1m)
3’
(1m)
6

Explorer Collection™ Manual
Strip ¼ to ½ inches (6 to 12 mm) of the
insulation o both ends of the wire. To
avoid stray strands, twist them at the
end. Connect the wire to the amplifier,
and make sure the wire connected to
the le speaker output will be routed
to the le speaker, right output to right
speaker, etc.
1. Installing the Wire
Use a two conductor wire that allows you to identify one conductor from the oth-
er. This designation may be obvious or as subtle as a ridge on one conductor.
It’s crucial that you keep track of which wire you use for positive (+) and negative
(-). Typically if the wires are colored red and black, the red wire is used for positive
and the black wire is used for negative, but sometimes other colors or patterns
are used. You can choose whichever color of wire you want to be positive and
negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.
About Speaker Wire
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire
7

Explorer Collection™ Manual
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
Wire Routing
One option is to li up the carpet and
route “tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the
baseboard by cutting a groove out
of the back of the baseboard, or by
buying special baseboard designed for
concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the
installation process will be a bit dierent (although much simpler). For these
situations, it’s recommended you purchase a bracket. Instructions on how
to install the speakers are provided with the bracket, or can be found on our
website. Visit www.originacoustics.com for more information.
For New Construction
8

Explorer Collection™ Manual
When you’ve decided on the locations for all of the speakers, use the template
to trace a circle lightly in pencil where the hole should be. (If you don’t have a
template, check the Specifications section for cutout sizes.) If you’re unsure
on whether there may be obstacles (such as pipes or wires) where you plan on
installing the speaker, drill a ⅛ inch hole in the center of the circle, then put a bent
3. Cutting the Hole
In some situations the speakers may look better if the color matched the walls,
ceiling, or trim in the room. This can be accomplished by painting the grille. The
grille must be painted with spray paint, and most hardware stores will mix a can
of paint to match whatever color you need. Before painting, carefully remove the
thin cloth on the underside of the grille. Lightly spray the front of the grille with the
paint from a distance, being careful not to plug any of the holes. Diluting the paint
with paint thinner will lessen the risk of filling any holes. If a hole gets plugged use
a can of compressed air to open it. Once the paint is dry, put the cloth back on
the grille.
2. Painting the Grille
Grille
Paint
Grille
Cloth
Grille
9

Explorer Collection™ Manual
(Unlocked)
Bayonet Ring
Push Tabs
Against Rail

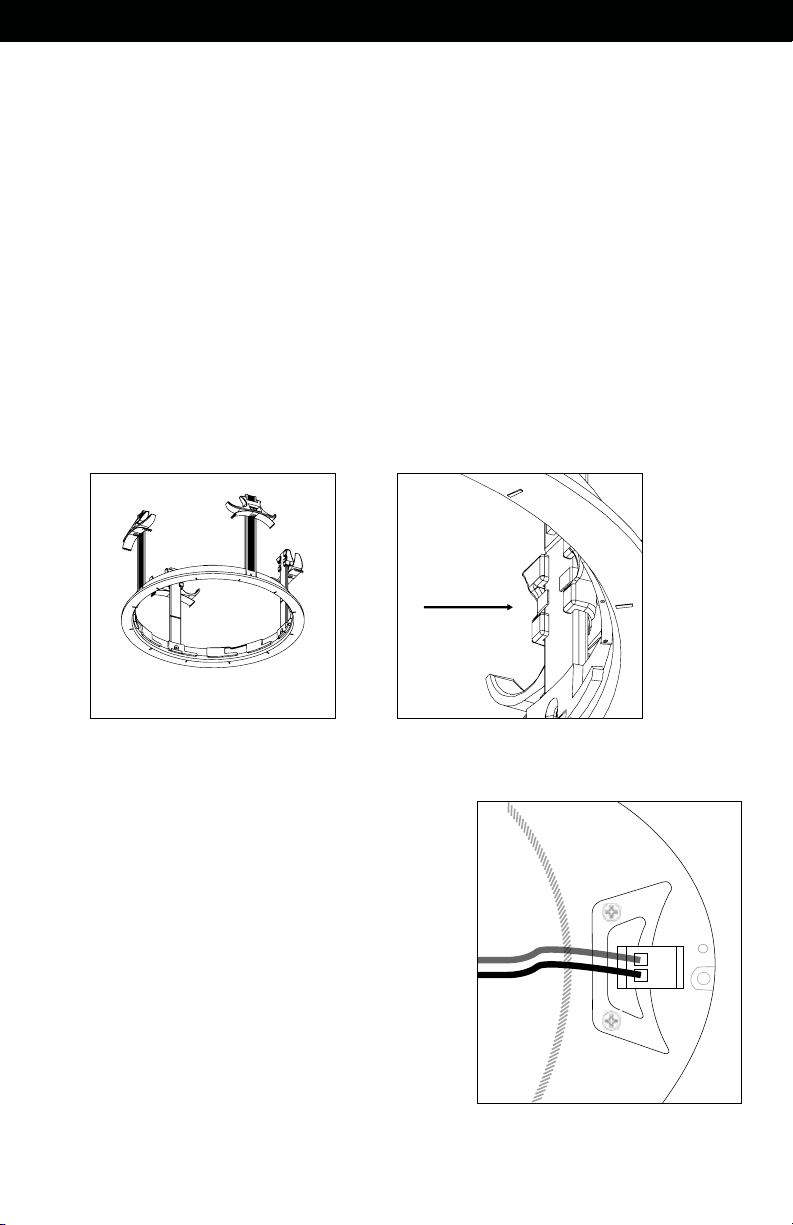

Adjust the clips so that they’re positioned at the top of the rail. If they’re not al-
ready there you can do this by pushing the release tabs (or metal “buttons”) on
the inside of the rail and pulling the clips to the top of the rails. Insert the bayonet
ring into the hole in the ceiling by gently bending the clips inward. Reach inside
the bayonet ring and push the clips down so that the bayonet ring is firmly in
place, but not too tight. If for some reason the bayonet ring needs to be removed,
reach inside and push the release tabs to fully remove the clips. Aer the clips
have been removed, the bayonet ring can be taken out.
4. Installing the Bayonet Ring
coat hanger through the hole to feel around. Use a keyhole or drywall saw to cut the hole.
5. Connecting the Wire
10
To further maintain installation integrity, the
Explorer collection uses screw-down Phoenix
connector. Note the positive (+) and negative
(-) indicators on the connector and make wire
connections appropriate Ensure that the positive
wire is being attached to the positive connection
and the negative wire is being attached to the
negative connection. If the negative and positive
wires are switched, speaker performance will be
drastically impacted.
+
-
RED
BLACK

Explorer Collection™ Manual

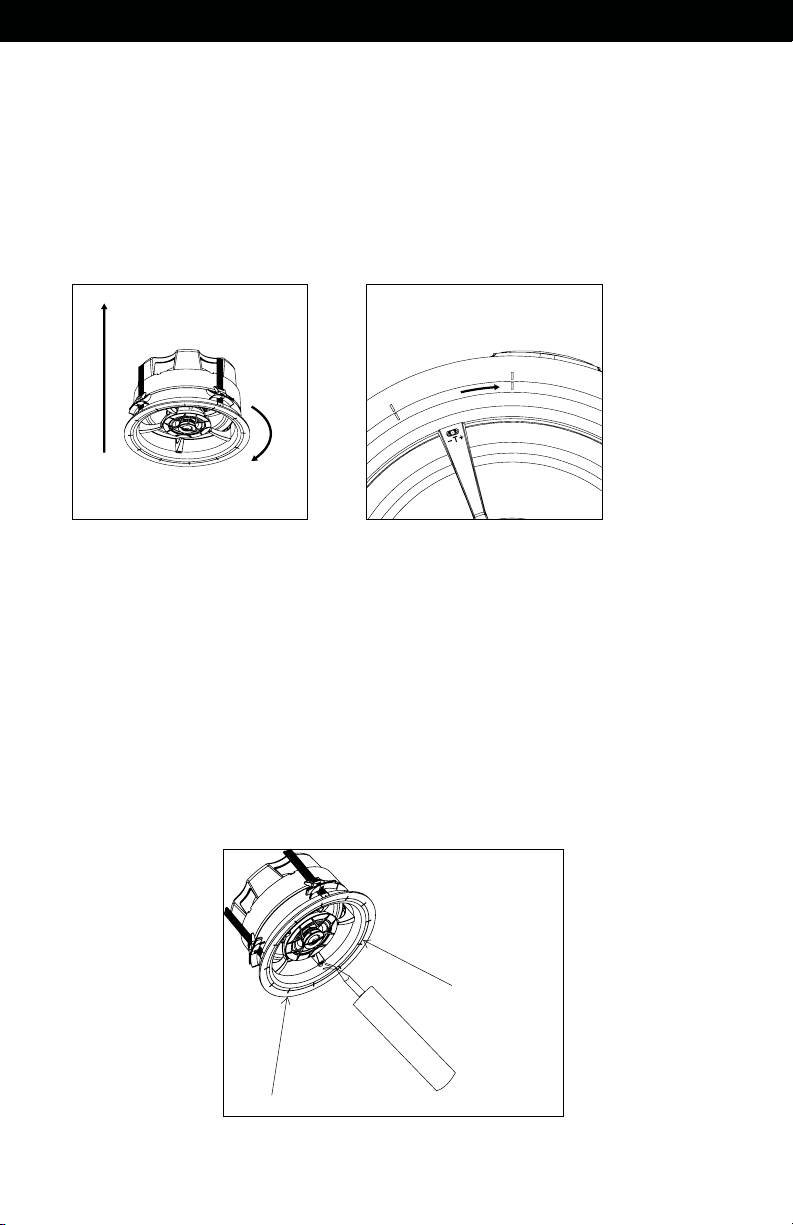

Twist Clockwise
to Lock
1. Fit into Ring
2. Twist into Ring

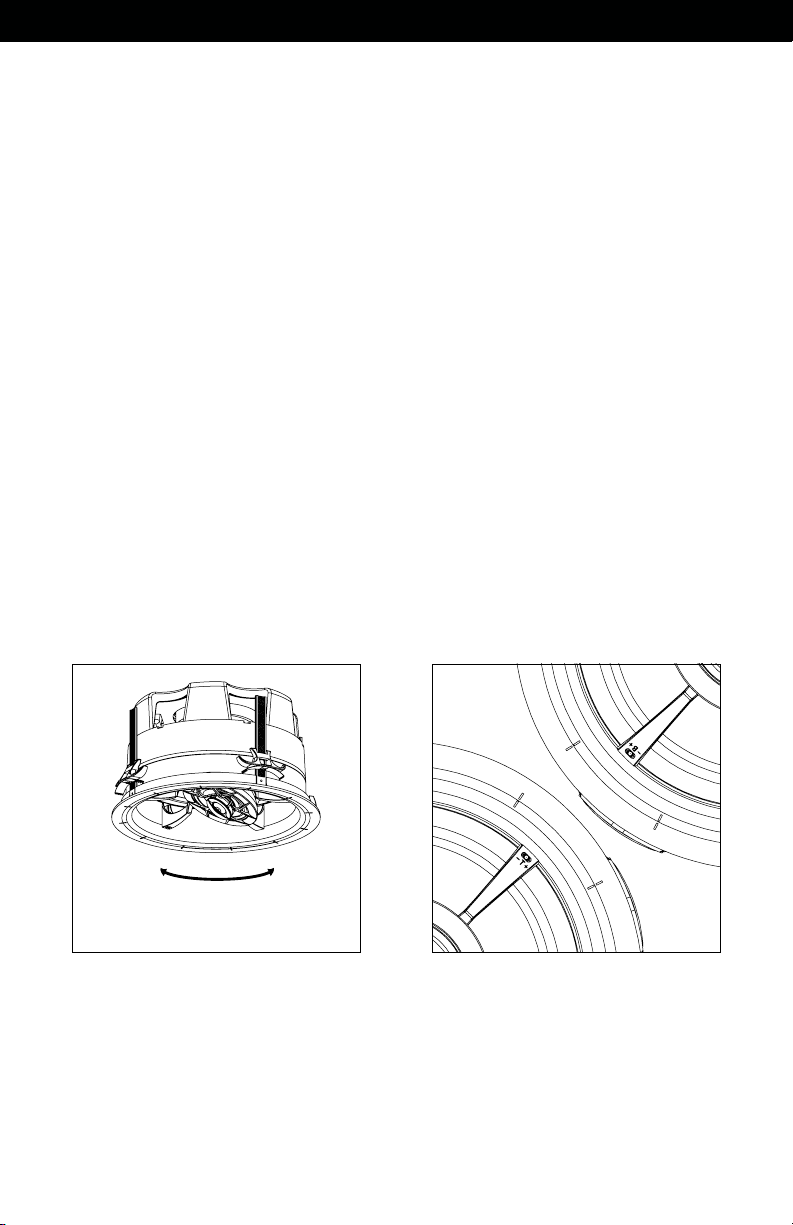

Fit the speaker into the bayonet ring, and twist it clockwise into place. When the
lines on the speaker lines up with the lines on the bayonet ring, that means the
speaker is tightly in place. Be sure that the lines line up, otherwise there’s a risk
that the speaker will fall out of the ceiling.
6. Installing the Speaker
11
MARINE GRADE SILICONE
Inner Border “A”
Outer Border “B”
Silicone Sealant: In all applications where moisture is a concern, care should be
taken to completely seal the speaker to the bayonet ring (Inner Border ‘A’) and also
seal the bayonet ring to the installation surface (Outer Border ‘B’). It is strongly
recommended that a liberal bead of marine grade silicone be applied in these
two areas. This will improve weather resistance and also assure that mechanical
vibrations, like those common in watercra, will not dislodge the loudspeaker.

Explorer Collection™ Manual
Aimable
The midrange and tweeter can be pivoted to direct the sound towards the listen-
ing area. Or for a more diused surround sound experience, the rear speakers can
be aimed towards the wall. To aim the tweeter, gently apply pressure to the rim
with your thumbs to pivot the tweeter. To aim the midrange, gently apply pressure
to the rim and pivot it in the desired direction. The D82A has a fixed angle. You
should install the speaker with the bale pointing toward the desired listening
location. Subject to which speaker is being used, there are two switches: one to
adjust the treble, and one to adjust the bass. When the room has a lot of hard
surfaces bass & treble are bounced and reflected through the room. If the room
has soer surfaces the bass & treble are absorbed. Adjust for the desired acoustic
balance for each room.
7. Testing & Adjustments
Fit the grille over the speaker. The grille uses magnets to be held in place.
8. Installing the Grille
12

Explorer Collection™ Manual
If you have a problem, try isolating it first. For example, if you’re playing a DVD
and there is no sound, try replacing the DVD with an MP3 player to see if you get
sound. If it does work, then the problem is with the television, DVD player, or the
cables connecting them. If it doesn’t work, the problem will be with the amplifier,
speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
settings on both the amplifier and the television/computer/CD
player/etc.
No Sound Make sure the proper source is selected on the amplifier or re-
ceiver.
No Sound Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or out-
put.
No Sound Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume con-
trol, and your amplifier may also have one. Check to be certain
that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.
13

Explorer Collection™ Manual
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and briefly
explain what steps you took to resolve the problem in your email, or be prepared
to answer these questions over the phone. If you are considering returning the
product, it’s required that you contact Origin Acoustics prior to any return at-
tempts. This way we can determine if the issue can be resolved without returning
the product, or if needed we can provide instructions and support for the return
process.
Technical Assistance
14

Explorer Collection™ Manual
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship, pro-
vided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at Ori-
gin Acoustics’ discretion. If the product must be replaced yet it is no longer man-
ufactured, it will be replaced with a model of equal to or greater value that is the
most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
Limited Lifetime Warranty
This warranty may not be valid if the product was purchased through an unautho-
rized dealer. This warranty only applies to the individual that made the original
purchase, and it cannot be applied to other purchases. The purchaser must be
prepared to provide proof of purchase (receipt). This warranty will not be valid if
the identifying number or serial number has been removed, defaced, or altered.
Requirements & Warranty Coverage
*All warranties and warranty conditions are subject to change. Please refer to
www.originacoustics.com for the latest information.
15

Explorer Collection™ Manual
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process
16

Explorer Collection™ Manual

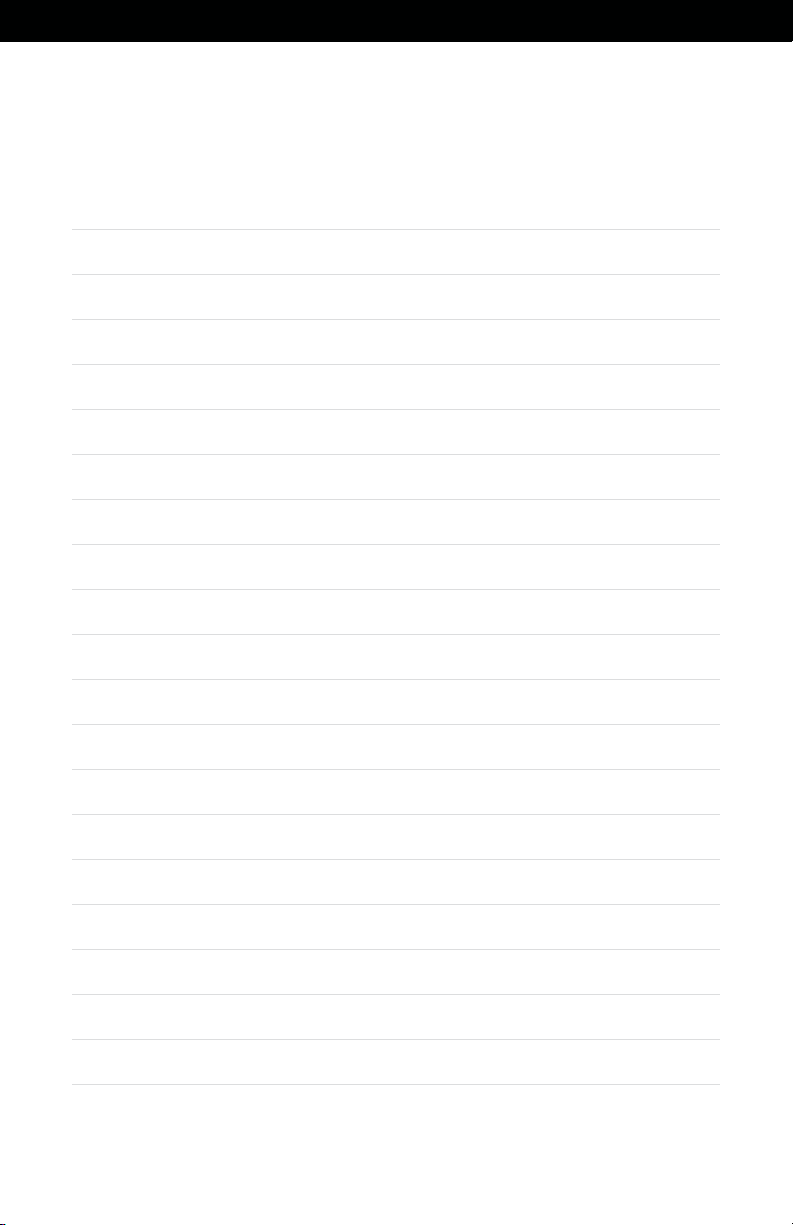

NOTES
17

6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole
property of Origin Acoustics.
