Installation Manual
BOC80 Series
Celestial™Collection
BOC86, BOC82DT, BOC82

Table of Contents
Introduction 1
 2
Dual Tweeter 3
What’s Included 4
Tools & Items 4
Wire Recommendation 4
Speaker Placement 5
About Speaker Wire 6
Installing the Wire 6
Wire Routing 7
Cutting the Hole 8
Installing the Bayonet Ring 8
Connecting the Wire 9
Installing the Speaker 9
Testing & Adjustments 11
Installing the Grille 11
Troubleshooting 12
Technical Assistance 13
Warranty 14
Return Process 15

1
Thank you for purchasing the Celestial™ 8 In-Ceiling Speaker. Origin Acoustics and
Bang & Olufsen take pride in providing you with high quality products. All of our
speakers are designed to have excellent sound quality, longevity, and a simple
installation process.
This instruction booklet covers the necessary information for a smooth installa-
tion, including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions

Time), Monday through Friday.
Introduction

2
Model BOC86 BOC82DT/SUR BOC82
Part Number SCBOC80600 SCBOC2T802 SCBOC80200
Woofer Cone Glass Fiber IMG IMG
Woofer
Diameter 8” (203mm) 8” (203mm) 8” (203mm)
Mid-Range
Dome Glass Fiber - -
Mid-Range
Diameter 4” (102mm) - -
Tweeter Dome Silk DPSD Silk DPSD Silk DPSD
Tweeter
Diameter 1” (25mm) 1” (25mm) 1” (25mm)
Frequency
Response 34 Hz - 20 kHz 38 Hz - 20 kHz 38 Hz - 20 kHz
Impedance 6 ohm Minimum 6 ohm Minimum 6 ohm Minimum
Power RMS 50 Watts 50 Watts 50 Watts
Power Peak 150 Watts 150 Watts 150 Watts
Diameter   
Grille Diameter 10” (254mm) 10” (254mm) 10” (254mm)
Cutout
Diameter   
Mounting
Depth   


3
In this mode, one channel is fed into both tweeters to be distributed throughout
the area. This way in a multiple-speaker setup, one speaker can be a dedicated

Surround (Dipole)
The Dual Tweeter models can be used for either one channel (surround) or two
channels (stereo). A switch is located on the back of the speaker to select which
mode to use. One of the inputs is labeled for surround. This is the input that
should be used if you’re only using one channel.
Dual Tweeters
In this mode, two channels are fed into the speaker: one channel for each tweeter.
This setup is ideal for small rooms such as walk-in closets and bathrooms, as well

speaker, only one speaker is needed in smaller rooms. In areas like hallways, both
channels can be evenly distributed throughout the area with multiple speakers.
Stereo (Dipole)
If you are using a dual tweeter speaker in stereo mode (i.e. there are two wires


Warning

4
Speaker Bayonet Ring Grille Template
What’s Included
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• 
• Stiff Wire
• Stud Finder
• Fish Tape
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.

gauge to select depends on the length of wire to be used on any particular speak-
er. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16 (1.5mm²)
50 - 150’ (15 - 45m) 14 (2.5mm²)
Over 100’ (30m) 12 (4mm²)

5
Ideally, the two speakers should be
placed an equal distance from the lis-
tener. If the room has a lower ceiling,
the speakers can be closer together.
Also, if the speaker placement is in-
tended for standing (as opposed to
sitting) listeners, the speakers can be
closer together.
Auxiliary Room (2 Speaker Placement)

speakers should be installed just be-
hind the listener, one on either side.
The Center Channel (CC) speaker
should be placed above and slightly

Front (LF) and Right Front (RF) speak-
ers placed equidistant to either side.
Home Theater (7 Speaker Placement)

6

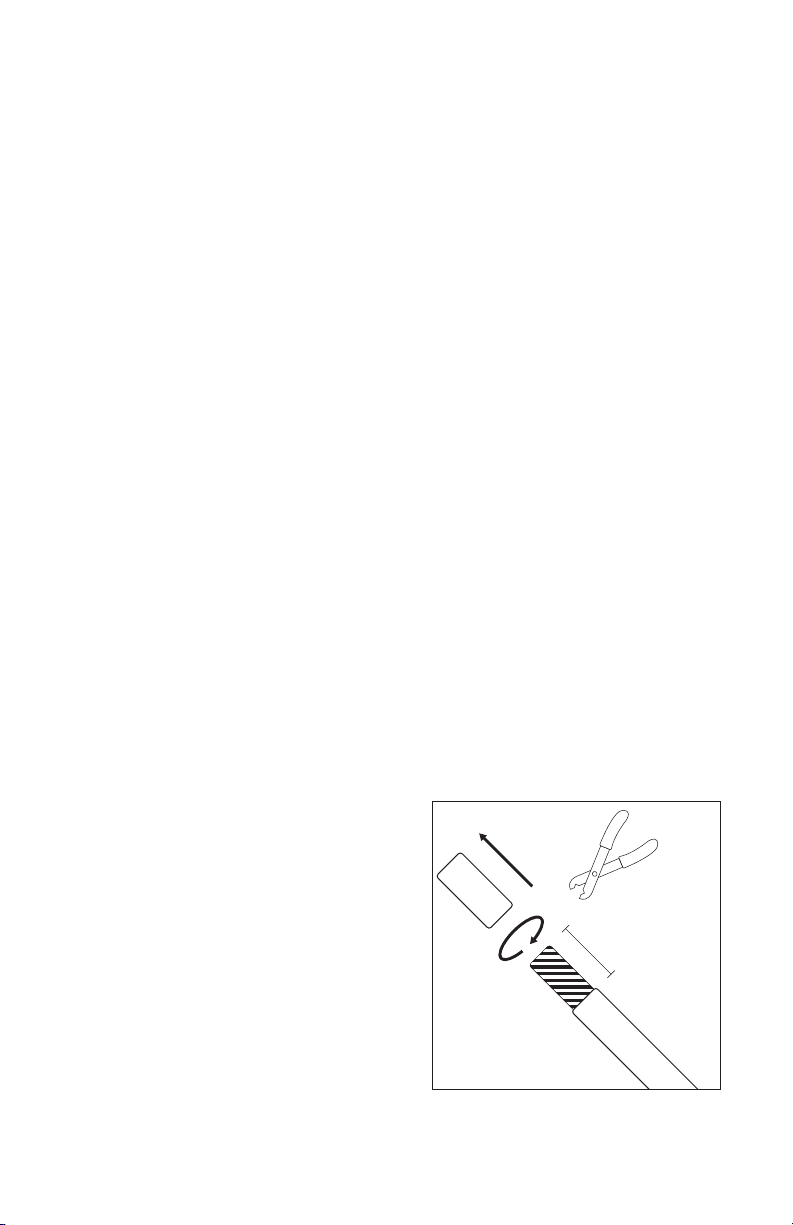

Strip ¼ to ½ inches (6 to 12 mm) of the

avoid stray strands, twist them at the

and make sure the wire connected to


speaker, etc.
1. Installing the Wire
Use a two conductor wire that allows you to identify one conductor from the oth-
er. This designation may be obvious or as subtle as a ridge on one conductor.
It’s crucial that you keep track of which wire you use for positive (+) and negative
(-). Typically if the wires are colored red and black, the red wire is used for positive
and the black wire is used for negative, but sometimes other colors or patterns
are used. You can choose whichever color of wire you want to be positive and
negative as long as you remain consistent throughout the install.

for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive

About Speaker Wire
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire

7
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
Wire Routing

route “tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the
baseboard by cutting a groove out of
the back of the baseboard, or by buy-
ing special baseboard designed for
concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the

situations, it’s recommended you purchase a bracket. Instructions on how to
install the speakers are provided with the bracket, or can be found on our web-
site. Visit www.originacoustics.com for more information.
For New Construction

8
When you’ve decided on the locations for all of the speakers, use the template to

section for cutout sizes.) If you’re unsure on whether there may be obstacles (such
 
in the center of the circle, then put a bent coat hanger through the hole to feel
around. Use a keyhole or drywall saw to cut the hole.
2. Cutting the Hole
3. Installing the Bayonet Ring
Adjust the clips so that they’re positioned at the top of the rail. If they’re not
already there you can do this by pushing the metal release tabs on the inside of
the rail and pulling the clips to the top of the rails. Insert the bayonet ring into the
hole in the ceiling by gently bending the rails inward. Reach inside the bayonet

tight. If the bayonet ring needs to be removed, reach inside and push the release
tabs to reset the clips The bayonet ring can now be taken out.
Push Tabs
Against Rail
BZ10 2019
SCALE:1:2
Origin Acoustics
6975 S Decatur Blvd
Suite 140
Las Vegas, NV 89118
844-ORIGIN1 (674-4461)
www.originacoustics.com
A C O U S T I C S
O R I G I N
®
(Unlocked)
Bayonet Ring

9
Push down to open the connector.
Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connec-
tion and the negative wire is being
attached to the black connection. If
the wires are switched, speaker perfor-
mance will be drastically impacted.
4. Connecting the Wire
Speaker
Wire
Connector
5. Installing the Speaker
STEP 1:
Fit the loudspeaker into the bayonet ring. Then twist the speaker about 15 degrees
clockwise into place. When the loudspeaker is properly seated, the indicators on
the ring and the speaker will line up.
*Important* The indicators must line up to ensure the speaker is properly seated.
Twist Clockwise
to Lock
1. Fit into Ring
2. Twist into Ring
D109 install
SCALE:1:2
Origin Acoustics
6975 S Decatur Blvd
Suite 140
Las Vegas, NV 89118
844-ORIGIN1 (674-4461)
www.originacoustics.com
A C O U S T I C S
O R I G I N
®

10
STEP 2:

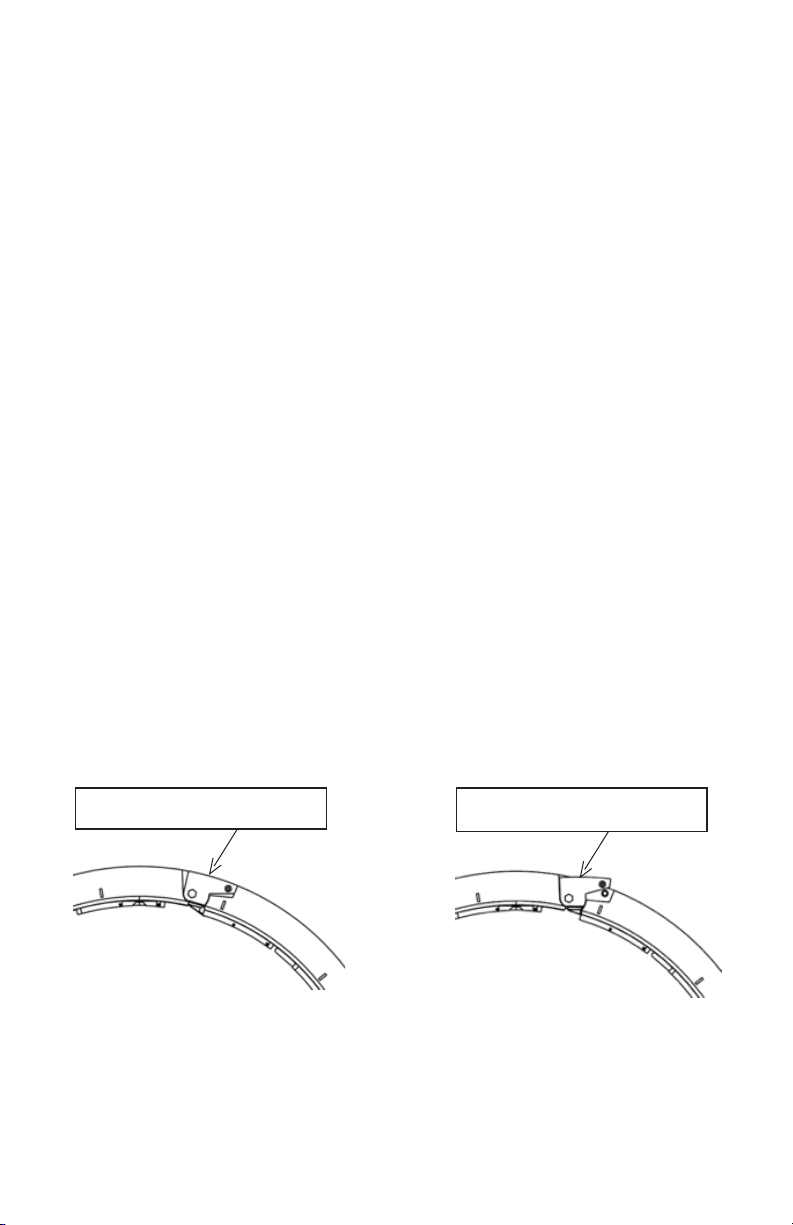

The bayonet ring also features a metal lock to ensure the correct installation of the
loudspeaker. Out of the box, the lock will be in its closed position. Open the lock
tab to its unlocked position to remove the speaker from the ring. Once the speaker
-
ter of the bayonet ring.
*Important* Push the metal lock tab into its “LOCK” (closed) position aer speaker is
installed per step 1. This will secure the installation. (See Figure A)
The loudspeaker must be properly seated, else the metal lock tab will not lock.
To uninstall the speaker, push the metal lock tab to its “UNLOCK” (open) position
and twist the loudspeaker counterclockwise. (See Figure B)
Metal Lock Tab in “LOCK” (closed) Position Metal Lock Tab in “UNLOCK” (open) Position
Figure A Figure B

11
Aimable

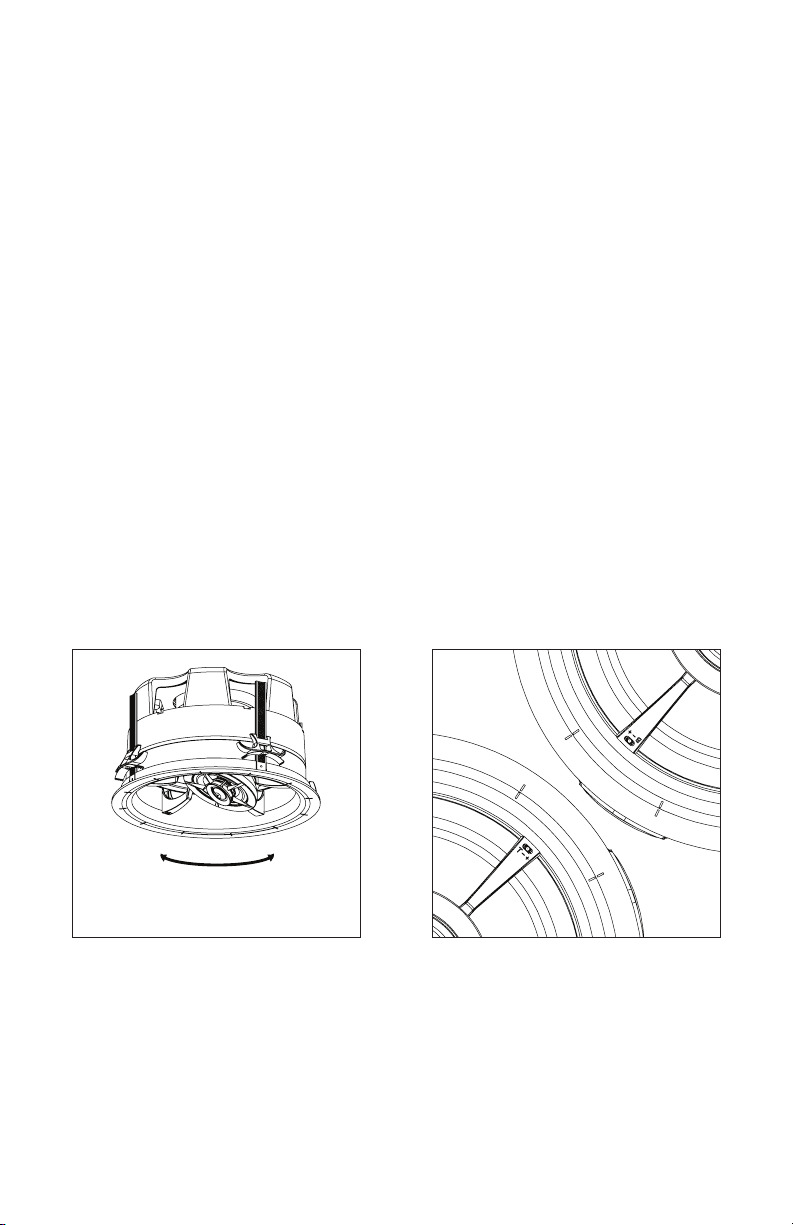

The midrange (BOC86 only) and tweeter can be pivoted to direct the sound to-

rear speakers can be aimed towards the wall. To aim the tweeter, gently apply
pressure to the rim with your thumbs to pivot the tweeter. To aim the midranges
(BOC86 only), gently apply pressure to the rim and pivot it in the desired direction.
Subject to which speaker is being used, there are two switches: one to adjust the
treble, and one to adjust the bass. Depending on the area the speaker will be



acoustic balance for each room.
6. Testing & Adjustments
Fit the grille over the speaker. The grille uses magnets to be held in place.
7. Installing the Grille

12

and there is no sound, try replacing the DVD with an MP3 player to see if you get
sound. If it does work, then the problem is with the television, DVD player, or the

speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
-
puter/CD player/etc.)
No Sound -
ceiver.
No Sound 
cord may be damaged or plugged into the wrong input or out-
put.
No Sound         
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume con-

that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.

13
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]

Email: [e-mail]

explain what steps you took to resolve the problem in your email, or be prepared
to answer these questions over the phone. If you are considering returning the
product, it’s required that you contact Origin Acoustics prior to any return at-
tempts. This way we can determine if the issue can be resolved without returning
the product, or if needed we can provide instructions and support for the return
process.
Technical Assistance

14
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship, pro-
vided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at Ori-
gin Acoustics’ discretion. If the product must be replaced yet it is no longer man-
ufactured, it will be replaced with a model of equal to or greater value that is the
most similar to the original. If this is the case, installing the replacement model

any such related costs.
Limited Lifetime Warranty
This warranty may not be valid if the product was purchased through an unautho-
rized dealer. This warranty only applies to the individual that made the original
purchase, and it cannot be applied to other purchases. The purchaser must be
prepared to provide proof of purchase (receipt). This warranty will not be valid if
the identifying number or serial number has been removed, defaced, or altered.
Requirements & Warranty Coverage

15
• Accidental damage
• Damage caused by abuse or misuse
•  
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• 
Not Covered by Warranty
            
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process

www.originacoustics.com • 844-674-4461 • www.bang-olufsen.com
Revision B 3.28.2022
©2022 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
©2022 Bang & Olufsen. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Bang & Olufsen.
