Origin Acoustics PROFESSIONAL PP50 PROFESSIONAL PP60 User manual

PP50
PPSUB8
PP80
PP60
Installation Manual
PROFESSIONAL COLLECTION
Pendant Speakers
PP50B, PP60B, PP80, PPSUB8B, PBR68B
PP50W, PP60W, PP80W, PPSUB8W, PBR68W
PBR68
MPP01, REV0

Professional Collection Manual
Table of Contents
Introduction 1
Certifications & Safety Agency 1
What’s Included 2
Specifications 2
Product Features 3
70v/100v System 4
Speaker Placement 5
Speaker Wire 6
Wire Routing 6
Installation 7
Troubleshooting 12
Technical Assistance 12
Warranty 13
Return Process 13

Professional Collection Manual
Thank you for purchasing the Professional Collection speaker. All of Origin Acoustics’ speakers
are designed to have excellent sound quality, longevity, and a simple installation process.
This instruction booklet covers the necessary information for a smooth installation, including:
the tools you will need, step-by-step instructions for installation, troubleshooting tips for any
errors that may occur, and all warranty information. If for any reason you experience problems
or if you have installation questions please call us at [phone]. Hours of operation are
8:00am to 5:00pm (Pacific Time), Monday through Friday.
1
Introduction
Certifications
SAFETY AGENCY COMPLIANCE
Origin Acoustics Professional Collection Pendant speakers models PP50, PP60, PP80,
PPSUB8 meet the following standards:
UL 1480A: Standard for Speakers for Commercial and Professional Use
NFPA 70: The installation methods should be in accordance with the applicable section of
the National Electrical Code, ANSI/NFPA 70. The wiring method and compartment should
not interfere with the operation of the speaker.
Gripple® Suspension Kit included meets the following standard:
UL 2239: Standard for Safety Hardware for the Support of Conduit, Tubing, and Cable

Professional Collection Manual
What’s Included
SPECIFICATIONS
2
MODEL* PP80B, PP80W PP60B, PP60W PP50B, PP50W
PART SPP80000B, SPP80000W SPP60000B, SPP60000B SPP50000B, SPP50000W
Woofer 8” (203mm) Polypropylene 6” (165mm) Polypropylene 5 ” (133mm) Polypropylene
Tweeter 1” (25mm) Silk DSPD™ MMP™ 1” (25mm) Silk DSPD™ MMP™ 1” (25mm) Silk DSPD™ MMP™
Power Handling
(Continuous Program Power) 200 Watts 130 Watts 100 Watts
Power Handling
(Continuous Pink Noise) 100 Watts 65 Watts 50 Watts
Frequency Response (+/- 10dB) 42Hz-20kHz 50Hz-20kHz 57Hz-20kHz
Frequency Response (+/- 3dB) 57Hz-20kHz 62Hz-20kHz 75Hz-20kHz
Nominal Coverage Angle 110 Degree Conical Coverage 120 Degree Conical Coverage 120 Degree Conical Coverage
Rated Maximum SPL @1m 110dB 108dB 105dB
Rated Impedance 8 Ohm nominal 8 Ohm nominal 8 Ohm nominal
Transformer Taps 70V - 60W, 30W, 15W, 7.5W
100V - 60W, 30W, 15W
70V - 60W, 30W, 15W, 7.5W
100V - 60W, 30W, 15W
70V - 30W, 15W, 7.5W, 3.75W
100V - 30W, 15W, 7.5W
Diameter 10” (254mm) 8 ” (210mm) 6 ” (170mm)
Length 16 ” (412mm) 12 ” (313mm) 10 ” (267mm)
Feature 1 8” Passive Radiator 6 ” Passive Radiator 5” Passive Radiator
MODEL PBR68B, PBR68W
PART PBR68000B, PBR68000W
Rated Impedance 8 ohm nominal
Transformer Taps 70V - 60W, 30W, 15W,7.5W
100V - 60W, 30W, 15W
Diameter 10” (254mm)
Length 13 ” (342mm)
MODEL* PPSUB8B, PPSUB8W
PART SPPSUB80B, SPPSUB80W
Woofer 8” (203mm) Polypropylene
Power Handling
(Continuous Program Power) 200 Watts
Power Handling
(Continuous Pink Noise) 125 Watts
Frequency Response (+/- 10dB) 40Hz-250Hz
Frequency Response (+/- 3dB) 55Hz-250Hz
Nominal Coverage Angle 180 Degree Conical Coverage
Rated Maximum SPL @1m 110dB
Rated Impedance 8 Ohm nominal
Transformer Taps 70V -120W, 60W, 30W, 15W
100V - 120W, 60W, 30W
Diameter 10” (254mm)
Length 16 ” (412mm)
Feature 1 8” Passive Radiator
• Speaker
• Grille Removal Key
• Gripple® Suspension Kit Containing:
• Gripple Rope Grip (2)
• Gripple Release Key
• Hanging Cable (stainless steel)
• Safety Cable (stainless steel)
• Cable Ties (3)
• Installation Manual
* All models:
• Available in black and white colors.
• Gripple® Suspension Kit safe working load
= 100lbs/45Kg Max
*All product information is subject to change. Please refer to the dealer portal for the latest information.

Professional Collection Manual
Product Features
High Excursion
Woofer
Transformer Tap and
Bypass Switch
Enclosure
4-Pin Terminal
Connector Suspension Bracket
Press-Fit Grille
Multi-Motion
Pivoting™ Tweeter
3
PP80 views
SCALE:1:2
Origin Acoustics
6975 S Decatur Blvd
Suite 140
Las Vegas, NV 89118
844-ORIGIN1 (674-4461)
www.originacoustics.com
A C O U S T I C S
O R I G I N
®

Professional Collection Manual
4
70V/100V System
70/100-Volt systems are advantageous when the design calls for multiple speakers from the same
amplifier and/or long-distance wire runs. The Origin Acoustics 70V/100V loudspeakers feature
multiple taps o the transformer adjusted by a rotary switch at the front side of the speaker.. The
higher the wattage selected the more output will be generated by the speaker. Please note, 70V
is common in the U.S. while 100V is the common voltage internationally, especially in Europe. A
simple calculation is used to determine how many speakers can be driven on a single amplifier
channel. First, for safety purposes, it is recommended to make the calculations based on 80%
of the amplifiers rated power. For example, a 500-watt amplifier would safely deliver 400 watts
of usable power (500 x 0.8 = 400). Now it is simply a matter of dividing 400 by the tap setting of
the speakers. For example, if the speakers are set at a 15W tap, the amplifier would be capable of
driving 26 speakers per channel. At a 30W tap that would be 13 speakers. At a 60W tap that would
be 6 speakers and so on.
As you can see, if you need coverage over a wide area and it requires numerous speakers, a
70V/100V system presents a tremendous advantage. However, it should be noted that the higher
the wattage tap the higher the fidelity and the greater SPL that can be delivered from each
speaker. Therefore, it is best to determine the total number of speakers needed and set the taps
as high as possible within the amplifier’s power output rating. As mentioned, the rotary switch
used to adjust the tap setting is located at the front side of the speaker. It is best to leave the grilles
o until all of the tap settings have been properly adjusted.
The table below lists the power tap settings for each model. These same settings are reflected on
the rotary switch on the front side of speaker. Note that there is an 8Ω setting for both voltages
that bypasses the transformer entirely. Use caution to avoid this setting when connected to a
70V/100V amplifier as this can destroy the loudspeaker.
The tap setting determines how much wattage each speaker will draw from the amplifier. When
daisy-chaining multiple speakers, add the combined wattages of all tap settings to determine
the wattage draw on the amplifier. The combined total wattage should never exceed the wattage
rating of the amplifier.
WARNING: The 8 Ω position cannot be used with a 70/100V connection as it will damage or
destroy the transformer.
Should you be uncomfortable designing or installing a 70/100V system, or should you have any
questions please contact Origin Acoustics Technical Support.
Model
PP80
PP60
PP50
PPSUB8
PBR68
Position 1 2 3 4 5
70V - 60W 30W 15W 7.5W
100V - - 60W 30W 15W
8ohm 8 Ω - - - -
70V - 30W 15W 7.5W 3.75W
100V - - 30W 15W 7.5W
8ohm 8 Ω - - - -
70V - 120W 60W 30W 15W
100V - - 120W 60W 30W
8ohm 8 Ω - - - -
70V - 60W 30W 15W 7.5W
100V - - 60W 30W 15W
8ohm 8 Ω - - - -
Tap Switch for PP60 & PP80

Professional Collection Manual
5
Speaker Placement
Speaker placement is determined by several factors like desired SPL, coverage
requirements, variance in SPL by location, etc. When the object is to fill a large area with
very little variance (+/- 2dB), then a larger number of speakers is required. Typically, once
the number of speakers has been determined, placing them equidistant from the walls
and from each other will deliver the best result. However, due to other factors this may not
be possible. Also realize that the higher the ceiling the greater the conical dispersion and
therefore the larger coverage area per speaker. The further the speaker is from the listener,
the lower the SPL. As the speaker is placed closer to the wall, bass frequencies will be
enhanced. This may or may not be the desired eect but certainly needs to be considered.
Wiring Diagram
COVERAGE AREA COVERAGE AREA
SPEAKER SPACING
Standing Listener Seated Listener
8’ Hanging Height 6’ (1.8m) Apart 10’ (3m) Apart
10’ Hanging Height 10’ (3m) Apart 14’ (4.3m) Apart
12’ Hanging Height 44’ (4.3m) Apart 18’ (5.5m) Apart
14’ Hanging Height 18’ (5.5m) Apart 22’ (6.7m) Apart
Speaker Spacing for a Distributed Audio System

Professional Collection Manual
6
Speaker Wire
Plan how you’ll route the wire to the desired speaker location. There are several methods
for routing the wire, and you may need to combine several of them.
Wire Routing
One option is to li up the carpet and route
“tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the baseboard
by cutting a groove out of the back of the
baseboard, or by buying special baseboard
designed for concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be sure
to avoid all obstacles such as AC wiring,
pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the installation
process will be a bit dierent (although much simpler). For these situations, it’s recommended
you purchase a bracket. Instructions on how to install the speakers are provided with the
bracket, or can be found on our website. Visit www.originacoustics.com for more information.
For New Construction
The gauge of wire used can have an impact on the performance of your speakers.
Generally, speaker wire is determined by the length of the run and wattage utilized. The
longer your run is, the smaller the wire gauge must be.
On commercial 70 volt systems, 18 gauge, 2 conductor, stranded and jacketed without
shield wire is commonly used.
In residential systems, for relatively short runs (less than 50 feet) to 8 ohm speakers, 16
gauge wire will be usually suitable.
Wire Length Wire Gauge System
0 -200’ (0 - 60m) 18 70V / 100V
200-500’ (60 -150m) 16 70V / 100V
Over 500’ (150m) 14 70V / 100V
Wire Length Wire Gauge System
0 - 50’ (0 - 15m) 16 8 Ohm
50 - 100’ (15 - 45m) 14 8 Ohm
Over 100’ (30m) 12 8 Ohm

Professional Collection Manual
7
1. Insert hanging cable into the Gripple Rope Grip.
Pass cable over ceiling anchor point (as shown) or
through other secure anchor point of the building
structure. Installer is responsible for secured
anchoring. (See Figure A)
2. Pass the returning cable through other hole
in the Gripple.
3. Latch the suspension hook onto the center hole
in the top bracket of the speaker. Adjust to proper
height by pulling cable through either end of Gripple.
(See Figure C)
Installation
4. Latch secondary safety cable hook onto one of
the side holes in the top bracket of the speaker, and
loop the cable around a different ceiling support
point of the building structure, per Steps 1 & 2. (See
Figure D)
Figure A
Figure B
(See Figure B)
Figure C
Figure D
CAUTION: INSTALLATION MUST BE DONE BY QUALIFIED PERSONNEL.
Failure to comply with these usage recommendations may result in product malfunction
and possible damage to property or bodily injury.

Professional Collection Manual
8
5. After height adjustment is final, trim any
unneeded extra cable tail wires with trimmer.
(See Figure E)
Figure E
How To Use Release Key To Adjust Height Of Speaker
6. Make sure the weight of the load is supported.
(See Figure F)
7. Insert Release key into small hole at bottom
of Gripple. Push in ” to release the cable.
(See Figure G)
8. Adjust height. (See Figure H)
9. Remove key and re-secure the load. (See Figure I)
Figure F
Figure G
Figure H
Figure I

Professional Collection Manual

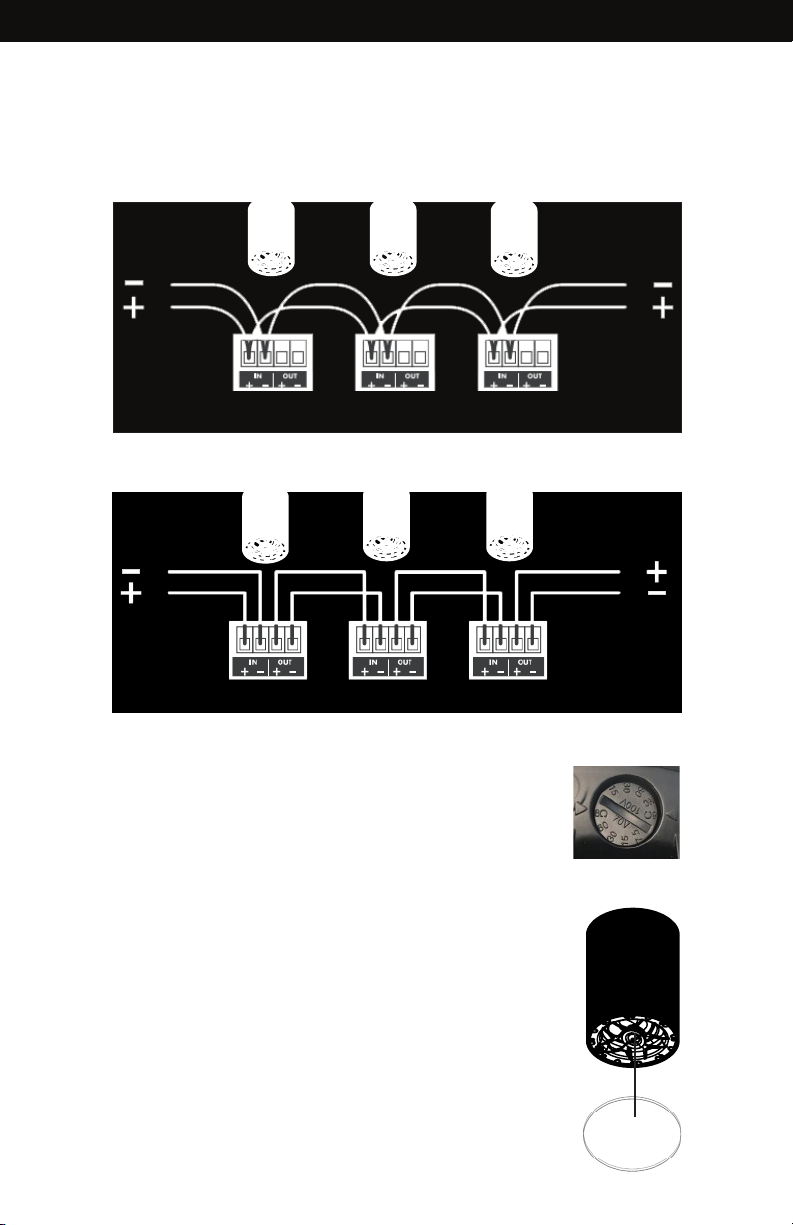

10. Connect the wires from your amplifier to the Euroblock terminal connector.
11. Plug the male connector into the terminal
connector at the rear speaker.
(See Figure K)
Strip approximately 3/16” (5mm) of the insulation off each wire. Insert the wire into the
correct square opening on the connector. Use a small flat head screwdriver to tighten the
corresponding screw to secure the wire. (See Figure J).
Figure K
Figure J
9

Professional Collection Manual
12. When using multiple speakers you can connect the speakers either in parallel or in the
loop through method as shown below (See Figure L & M).
Loop Through Connection
From Power Amplifier To Next Speaker
From Power Amplifier To Next Speaker
Parallel Connection
Figure L
Figure M
13. Determine the proper wattage setting for
each speaker in the installation and set each
speaker’s transformer tap selector on the front
of the speaker accordingly (See Figure N).
14. Fit the grille onto the speaker.
(See Figure O)
Figure N
Figure O
10

Professional Collection Manual
NOTES

Professional Collection Manual
If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no
sound, try replacing the DVD with another audio source to see if you get sound. If it does work,
then the problem is with the television, DVD player, or the cables connecting them. If it doesn’t
work, the problem will be with the amplifier, speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume settings
on both the amplifier and the television/computer/CD player/etc.
No Sound Make sure the proper source is selected on the amplifier or receiver.
No Sound Check the cord connecting the amplifier with the source. The cord may
be damaged or plugged into the wrong input or output.
No Sound Check the wires connecting the amplifier with the speakers. Make sure
they’re connected properly and not damaged in any way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and out,
check the audio cables. If the problem increases when a cable is being
moved, then the cable is most likely faulty or not connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the volume,
for example your MP3 player may have a volume control, and your
amplifier may also have one. Check to be certain that the volume isn’t
turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve chosen is
a good quality recording.
If you have any questions or concerns about installing or using this product, you can reach us
through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and briefly explain what steps
you took to resolve the problem in your email, or be prepared to answer these questions over the
phone. If you are considering returning the product, it’s required that you contact Origin Acoustics
prior to any return attempts. This way we can determine if the issue can be resolved without returning
the product, or if needed we can provide instructions and support for the return process.
Technical Assistance
12

Professional Collection Manual
Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product
will be free from defects in materials and workmanship, provided the speaker was purchased
from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’
discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced
with a model of equal to or greater value that is the most similar to the original. If this is the case,
installing the replacement model may require mounting modifications; Origin Acoustics will not
be responsible for any such related costs.
Limited 5-Year Warranty
This warranty may not be valid if the product was purchased through an unauthorized dealer.
This warranty only applies to the individual that made the original purchase, and it cannot
be applied to other purchases. The purchaser must be prepared to provide proof of purchase
(receipt). This warranty will not be valid if the identifying number or serial number has been
removed, defaced, or altered.
Requirements & Warranty Coverage
All warranties and warranty conditions are subject to change. Please refer to
the dealer portal for the latest information.
13
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than Origin
Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin Acoustics. Return
product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is
returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the
shipment for the full value of the product. This warranty is in lieu of all other expressed or implied
warranties. Some states do not allow limitations on implied warranties, so this may not apply
depending on the customer’s location. (For more information, see Magnuson-Moss Warranty Act.)
Return Process

6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
