Origin Effects BASSRIG 64 Black Panel User manual

OWNER’S MANUAL
Version 1.0

Origin Effects BASSRIG ‘64 BLACK PANEL
2
www.origineffects.com
ORIGIN EFFECTS®is a registered trademark of Origin Effects Limited.
BASSRIG™ is a trademark of Origin Effects Limited.
All other product names and trademarks are the property
of their respective owners and are hereby acknowledged.
FENDER®is a registered trademark of Fender Musical Instruments Corporation.
Origin Effects has no afliation with Fender Musical Instruments Corporation.
BASSMAN®is a registered trademark of Fender Musical Instruments Corporation.
Origin Effects has no afliation with Fender Musical Instruments Corporation.
SHOWMAN®is a registered trademark of Fender Musical Instruments Corporation.
Origin Effects has no afliation with Fender Musical Instruments Corporation.
No part of this publication may be reproduced in any form or by any means, whether
mechanical or electronic, without the written permission of Origin Effects Limited.
Origin Effects Limited reserves the right to change the features and specications described
herein without notice or obligation. Origin Effects Limited cannot be held responsible for any
loss or damage arising directly or indirectly from any error or omission in this manual.
PLEASE READ ALL INSTRUCTIONS, PAY ATTENTION TO SAFETY WARNINGS.
Document version 1.0
© Origin Effects Limited 2022
IMPORTANT:
This product is designed to be powered from a 9VDC, >150mA
power supply with 2.1mm centre-negative barrel connector.

Origin Effects BASSRIG ‘64 BLACK PANEL
3
Contents
Introducing the BASSRIG ‘64 BLACK PANEL..............................................................................4
Connecting the BASSRIG ‘64 BLACK PANEL .............................................................................5
Main Controls ...............................................................................................................................5
Main Controls (continued) ............................................................................................................6
Using the DI OUT .........................................................................................................................7
Setting your AMP OUT EQ: ..........................................................................................................8
Sample Settings ...........................................................................................................................9
Appendix A: Physical Specication.............................................................................................10
Appendix B: Performance Specication .....................................................................................10
Appendix C: Connector Pin Out .................................................................................................10
Appendix D: Safety Notices........................................................................................................ 11
Appendix E: Warranty.................................................................................................................12

4
Origin Effects BASSRIG ‘64 BLACK PANEL

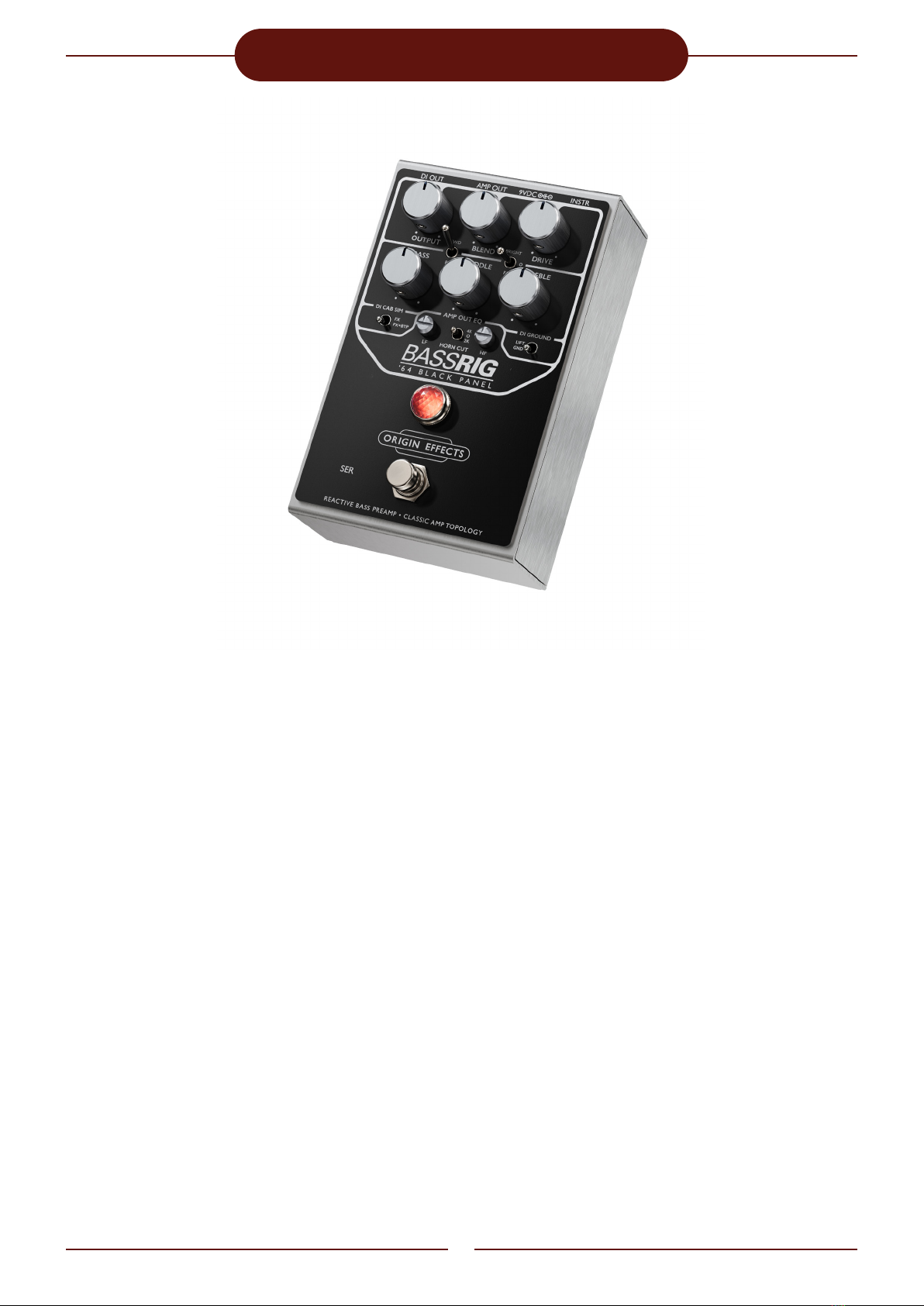

Introducing the BASSRIG ‘64 BLACK PANEL
The BASSRIG ’64 Black Panel is an all-analogue amp recreation and overdrive pedal, based on the Fender®
Showman®and Bassman®amps of the 1960s. Before the modern, high powered bass amps we know today,
these big Fenders – along with their 2x15 cabs – were the go-to amps for live and studio musicians. Their
warm, scooped clean tones and crisp overdrive epitomise soul, blues and rock ‘n’ roll – and we think those
are some of the best bass tones in history! The BASSRIG ’64 Black Panel recreates the sound, feel and
character of these unsung heroes of bass.
Familiar, responsive controls let you dial in instantly recognisable vintage and modern tones, from deep soul
and funk to growling heavy rock, while the BLEND control adds in clean signal for low-end clarity and extra
articulation.
Our powerful AMP OUT EQ tailors the voicing of the pedal to suit any amp and cab, never compromising your
clean tone, and the cabinet-simulated DI OUT means you don’t need to use an amp at all – the perfect bass
tone, direct to your PA or studio console.
The BASSRIG ’64 Black Panel gives you pure vintage bass amp tone in a compact pedal for the modern
player.
Key Features
All-Analogue Amp Recreation
Including:
• Full valve amp-style signal path recreated
using discrete, transistor-based circuitry
• Push-pull output section with reactive load, sim-
ulating interaction between amp and speaker
• Analogue 2x15 cabinet simulator
Flexible, intuitive controls:
• Wide gain range, from clean to full-on saturation
• BLEND knob to mix in your dry signal
• Powerful tone-shaping AMP OUT EQ
Peerless Build Quality:
• High-current, low-noise electronics
• Ultra-high input impedance
• High-quality buffered bypass
• Advanced power supply ltering and
protection
• Premium components throughout
• Designed and built in England

5
Origin Effects BASSRIG ‘64 BLACK PANEL

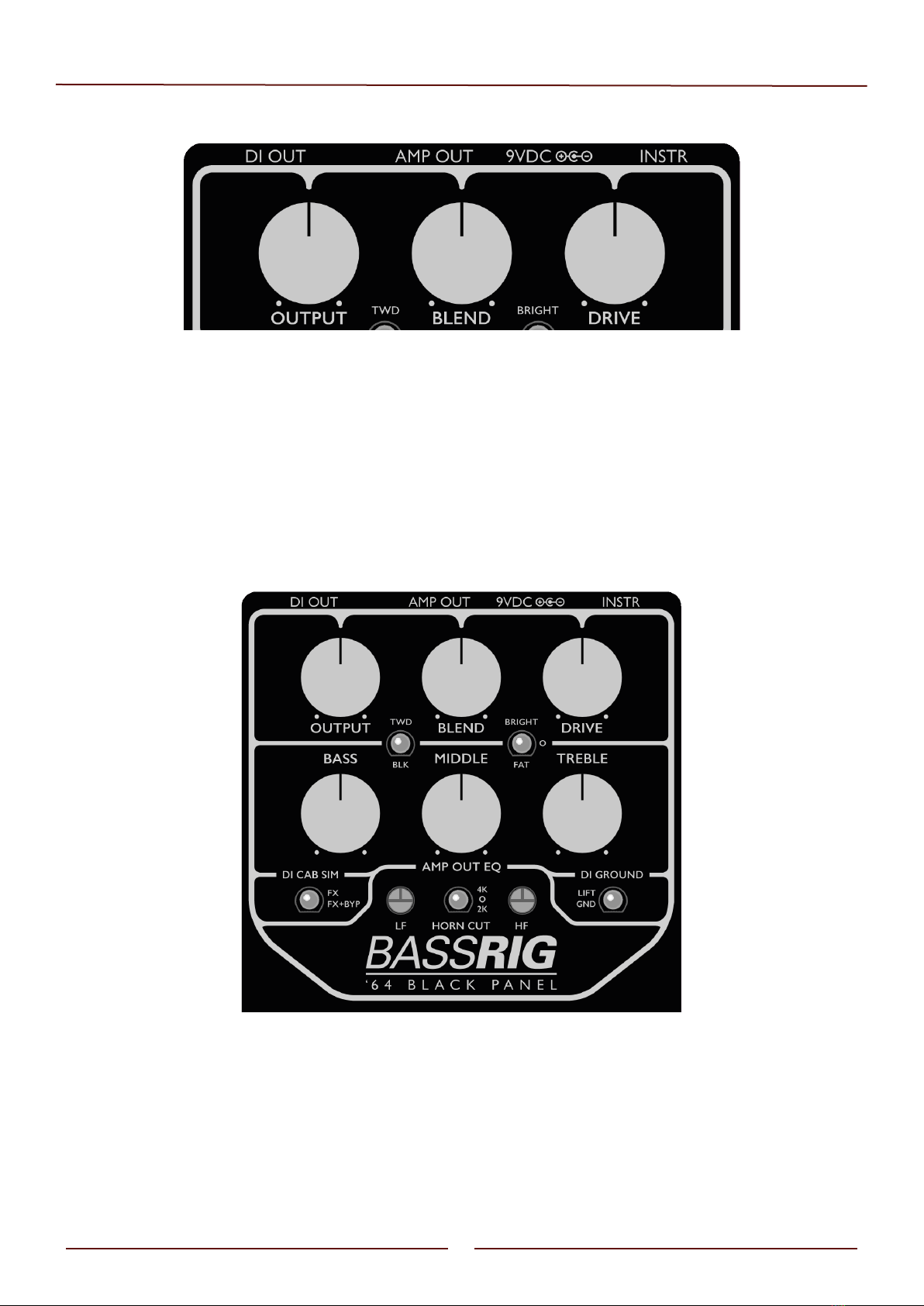

Connecting the BASSRIG ‘64 BLACK PANEL
9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 150mA).
INSTR: Connect to your bass, guitar or other instrument.
AMP OUT: Connect to your amp or power amp.
DI OUT: Connect to your mixer, audio interface or PA system.
Main Controls
DRIVE: The gain control functions exactly like the volume knob on a non-master-volume valve amp. Turn it
clockwise for more gain, drive and distortion. Turn counterclockwise to clean things up.
BLEND: This control blends in your clean signal in parallel with the recreated amp tone. Set the control fully
clockwise then turn it counterclockwise to progressively mix in your original clean signal. This can help add
denition to your tone, especially in the low end when using overdriven sounds.

6
Origin Effects BASSRIG ‘64 BLACK PANEL
OUTPUT: The output control sets the pedal’s overall output level. As it isn’t part of the BASSRIG’s
recreated amp circuitry, the OUTPUT control will not alter the pedal’s overdrive character. It simply lets you
make it louder or quieter.
TREBLE: Just like on the original Fender®amps, the tone controls are placed before the overdrive. Turning
the TREBLE control up will not only increase top end but also change the character of the overdrive,
making it grittier and more aggressive. Turning this control down will result in a warmer tone and softer
overdrive.
MIDDLE: This control alters the mid frequency content. Turning this control up will result in a richer, denser
tone, while turning it down will produce a scooped, hollow sound.
BASS: This control adjusts the amount of low frequencies as well as how “tight” or “thick” overdriven tones
are. In general, higher BASS settings work better with cleaner sounds, with some really deep tones
available. Heavily overdriven sounds can benet from having the BASS turned down, preventing the
distortion from becoming too “wooly”. But there are no rules – use a clean sound with the BASS set low for
a percussive ‘60s tone, or turn the DRIVE and BASS up and unleash some fuzzy mayhem!
BRIGHT/FAT switch: The BRIGHT position behaves like a standard bright switch, adding extra high
frequencies in the preamp. Its effect is reduced as the DRIVE is increased. In both the BRIGHT and centre
positions, the pedal’s emulated output stage is congured like a Fender®Showman®– as this stage begins
to distort, bass frequencies are increasingly removed, keeping the low end tighter and more stable. The
FAT position changes the output stage to emulate the Bassman®circuit, retaining low frequencies as this
stage distorts. At cleaner settings, this can add warmth and depth to the sound. As the DRIVE increases,
FAT mode will begin to sound out-of-control – and this can be a lot of fun!
BLK/TWD switch: Switching to the TWD setting changes the pedal’s tone stack to a Fender®“Tweed”
circuit. The BLK setting selects a standard Fender®“Black Panel” tone stack. Switching from BLK to TWD
will add mids and gain for a more throaty, aggressive voice.
Main Controls (continued)

7
Origin Effects BASSRIG ‘64 BLACK PANEL
AMP OUT EQ Controls
The post-drive AMP OUT EQ ensures compatibility with a wide range of amps and cabs. Instead of com-
promising your amp’s tone controls to suit the BASSRIG, set your amp for your preferred clean sound then
use the EQ controls to adjust the pedal’s output accordingly (see tables on page 8).
HORN CUT EQ switch: This switch engages a choice of low-pass lters for use with tweeter-equipped
cabs. Even with the most modern, hi- cabs, this will allow the BASSRIG to produce a natural, smooth
overdrive tone, without any harshness.
Choose between 2kHz or 4kHz depending on the response of your cab, or disable it altogether (centre
position) when using a cab without a tweeter.
HF: This post-drive high frequency control cuts or boosts upper-mid and treble frequencies. This is perfect
for adjusting the BASSRIG’s high-end response to match your clean tone, adding some vintage speaker
character to a modern cab or ne-tuning the effect of the HORN CUT lter.
LF: This post-drive low frequency control cuts or boosts bass frequencies. This is perfect for adjusting
the BASSRIG’s low-end response to match your clean tone, fattening up a small cab or taming excessive
boominess in a big cab.
Using the DI OUT
This balanced XLR output is equipped with a meticulously engineered analogue cabinet simulator, accu-
rately capturing the response of the Fender®Showman®2x15 bass speaker cabinet. Using this output gives
you the complete sound of a vintage bass amp direct to your recording console or PA system. No amp
required. The DI output is designed for compatibility with a wide range of microphone and line level inputs.
Its output level is congured to prevent unwanted clipping at the mixer or interface to which the pedal is
connected.
DI CAB SIM switch: Lets you select whether the cabinet simulator is always on or only active when the
pedal is engaged. Select FX if you want a completely clean DI signal when the pedal is bypassed. Select
FX+BYP if you want to keep the cab sim on, even when the pedal is bypassed – for example: if you want to
use the BASSRIG cab sim with other drive pedals.
DI GROUND switch: Lifts the ground of the DI Output. This is necessary to avoid unwanted ground loop
hum when connecting the BASSRIG to multiple pieces of equipment (e.g. a bass amp and a PA system). If
you hear a hum when connecting the BASSRIG to two pieces of equipment, set this switch to LIFT.
If you are only connecting the BASSRIG’s DI OUT, this should be set to GND. This switch does not affect
the AMP OUT.

8
Origin Effects BASSRIG ‘64 BLACK PANEL
Setting your AMP OUT EQ:
Use the tables below to help you set up the BASSRIG ‘64 Black Panel for the rst time with a new bass
amplier or at-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the AMP
OUT EQ controls and move on to having fun dialling in your ideal tone with the main controls.
AMPLIFIER OR CONNECTED DEVICE HORN CUT SWITCH POSITION
Amplier and horn-loaded cab 2k or 4k, depending on cab crossover
frequency
Amplier and non-horn-loaded cab Off
Direct to mixer, PA or interface from DI OUT The Amp Out EQ does not affect this
output.
HOW IS THE BASSRIG’s TONE? ADJ CONTROL POSITION
I used the HORN CUT switch and my tone is still
zzy Try turning the HF control counterclockwise
I used the HORN CUT and now my tone is too dull Try turning the HF control clockwise
It sounds too boomy through my big cab Try turning the LF control counterclockwise
It sounds too thin through my small cab Try turning the LF control clockwise
It’s perfect! Great. Stop tweaking and start playing!
Step 1: Set HORN CUT for the connected amp or device
Step 2: Fine-tune the AMP OUT EQ with the HF and LF controls
*Please note: the AMP OUT EQ is only applied to the AMP OUT jack. The DI OUT is not affected.

9
Origin Effects BASSRIG ‘64 BLACK PANEL

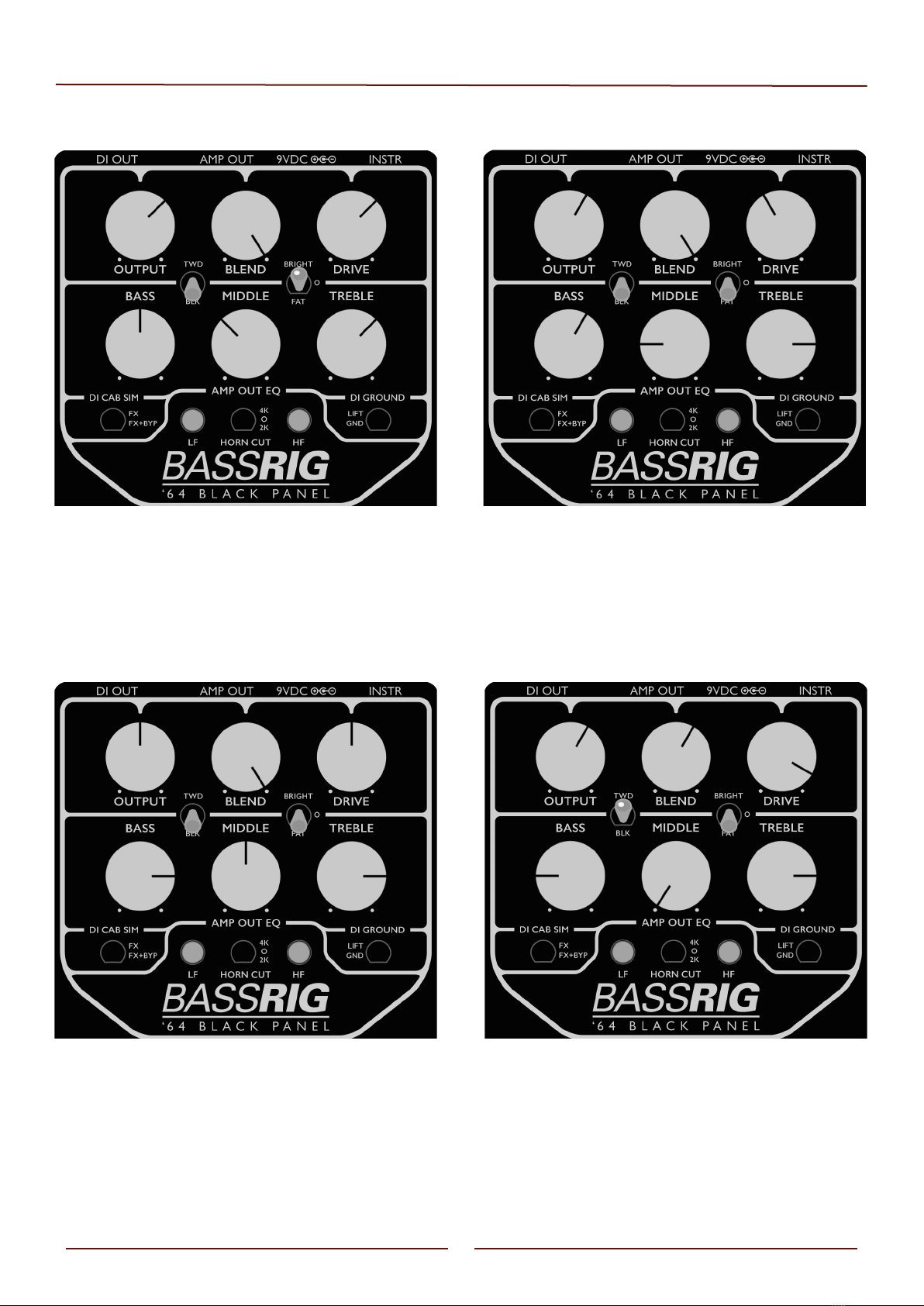

Sample Settings
SOUTHERN JAM
Inspired by the bluesy bass of Origin Effects’
favourite Southern jam band, this is the denitive
Showman®tone. Tight and punchy low end, a
touch of gritty overdrive and the perfect balance of
warmth and clarity in the mids.
MOTOR CITY
When you think of Fender®amps for bass, you
think of ‘60s soul records. Engaging the FAT
switch adds a little warmth and weight to this
clean, clear and inspiring tone. This is the sound
that made great songs better.
‘60s BEAT GROUP
Although the Fab Four were often seen with Brit-
ish amps, many of their greater (and later) bass
tones were recorded using a Fender®Bassman®.
Fat, percussive and full of character, this tone is
pure ‘60s pop.
CRANKED OLD AMP
There’s something special about the raw aggres-
sion of an old amp circuit pushed way beyond its
limits. The unhinged character of high DRIVE set-
tings, FAT switch and TWD tone stack are kept in
check by backing off the BASS and adding some
clean BLEND.

10
Origin Effects BASSRIG ‘64 BLACK PANEL
Measurement Unboxed Boxed
Weight 846g (30oz) 930g (33oz)
Length 146mm (5.7”) 160mm (6.2”)
Depth 92mm (3.6”) 116mm (4.5”)
Height 64mm (2.5”) 93mm (3.7”)
Measurement Value
Input impedance 1M Ω
Output impedance 500 Ω
Current draw 150mA
Power supply requirements 9VDC 2.1mm centre negative connector
Pin Description
Tip Signal
Sleeve Ground
Appendix A: Physical Specication
Appendix B: Performance Specication
DI OUT male XLR:
Instrument & Amplier 1/4” TS Sockets:
Pin Description
Pin 1 Ground
Pin 2 Positive
Pin 3 Negative
Appendix C: Connector Pin Out

11
Origin Effects BASSRIG ‘64 BLACK PANEL
Appendix D: Safety Notices
General Safety
Keep these instructions and heed all warnings. Do not use this apparatus near water. Clean only with
a dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat. Refer all servicing to qualied service personnel.
When using an external power supply, use only attachments/accessories specied by Origin Effects.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus. Do not defeat the safety purpose of the polarised or
grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet. Unplug this apparatus during lightning storms or when unused for long periods of time.
CAUTION! No user-servicable parts inside. In the event of damage to the unit, service or
repair must be done by qualied service personnel only.
This Product is CE compliant.
This product is UKCA compliant.
FCC Certication
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

12
Origin Effects BASSRIG ‘64 BLACK PANEL
Appendix D: Safety Notices (continued)
The crossed out wheely bin symbol indicates this product is classied as Waste Electrical
and Electronic Equipment (WEEE) in the European Union and should not be discarded
with household waste. Other territories may vary. Contact your local authority or Origin
Effects for more information.
This product conforms to the European Union’s directive 2011/EU on Restrictions of
Hazardous Substances (RoHS).
WARNING: This product can expose you to chemicals including nickel, which is known to
the State of California to cause cancer. For more information, go to
www.P65Warnings.ca.gov
Evaluation of apparatus based on altitude not exceeding 2000m. There may be some
potential safety hazard if the apparatus is operated at altitude exceeding 2000m.
Evaluation of apparatus based on temperate climate conditions only. There may be some
potential safety hazard if the apparatus is operated in tropical climate conditions.
Appendix E: Warranty
This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to
original purchasers who have bought their product from an authorised Origin Effects dealer or directly from
Origin Effects.
All returns or servicing should be arranged through the original dealer. Proof of original ownership may be
required in the form of a purchase receipt.
For full warranty details visit www.origineffects.com/warranty.
<2000m
RoHS
