Original BTC Davey Lighting 7636/TB User manual

Quad Table and Floor Light 7636/TB - 7636/FL
Instruction Manual
Quad Table Light
7636/TB
Quad Floor Light
7636/FL
1
2
3
4
5
6
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
MADE IN BRITAIN
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
MADE IN BRITAIN
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.

The shade must be secured to the
cross bar bracket using the fixing
screws provided.
7636/TB Quad Table Light 7636/FL Quad Floor Light
With roots dating back to the shipyards of nineteenth century London, Davey Lighting combines industrial
design, traditional craftsmanship and the finest raw materials. Authentic and unique, lights are manufac-
tured in England with the same attention to detail required for their original industrial purpose.
Simplicity of design and choice of finish, including weathered brass and copper, polished aluminium and
galvanised cast iron, make Davey lights equally suited to traditional or contemporary schemes.
Safety Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury.
Please retain for future reference. When fitting is in operation, some parts will become hot; take care when
using/handling.
- Ensure the lamp type and max wattage is followed- do not exceed. Take care not to overtighten lamp.
- Do not touch the lamp (bulb) or lamp holder while in operation, as both become very hot.
- Turn off and unplug fitting, leaving lamp to cool before changing lamp. Dispose of old lamps carefully.
- Adjust light fitting only when power to the fitting is off and has been left to cool.
- Never leave a fitting without a lamp in position.
- Keep light fitting away from combustible materials such as soft furnishings.
- Ensure children do not play with the light fitting.
- Ensure the light is positioned on a solid, level and non-slip surface and make sure the position of the cable
does not pose a trip hazard.
- If the electrical flex or electrical components become damaged at any point, the fitting must be unplugged
from the power supply immediately and not operated until the damaged parts are fixed/replaced.
- For use in a dry, indoor environment only. Ensure the fitting does not come into contact with any liquids.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Glass can be
cleaned by hand using a soft dry cloth, or diluted mild detergent (non-abrasive) or suitble glass cleaner. Avoid
contact with metal finishes. Disconnect power pefore cleaning. Spare parts are available; please see reverse
contact details.
230V ac 50Hz IP20

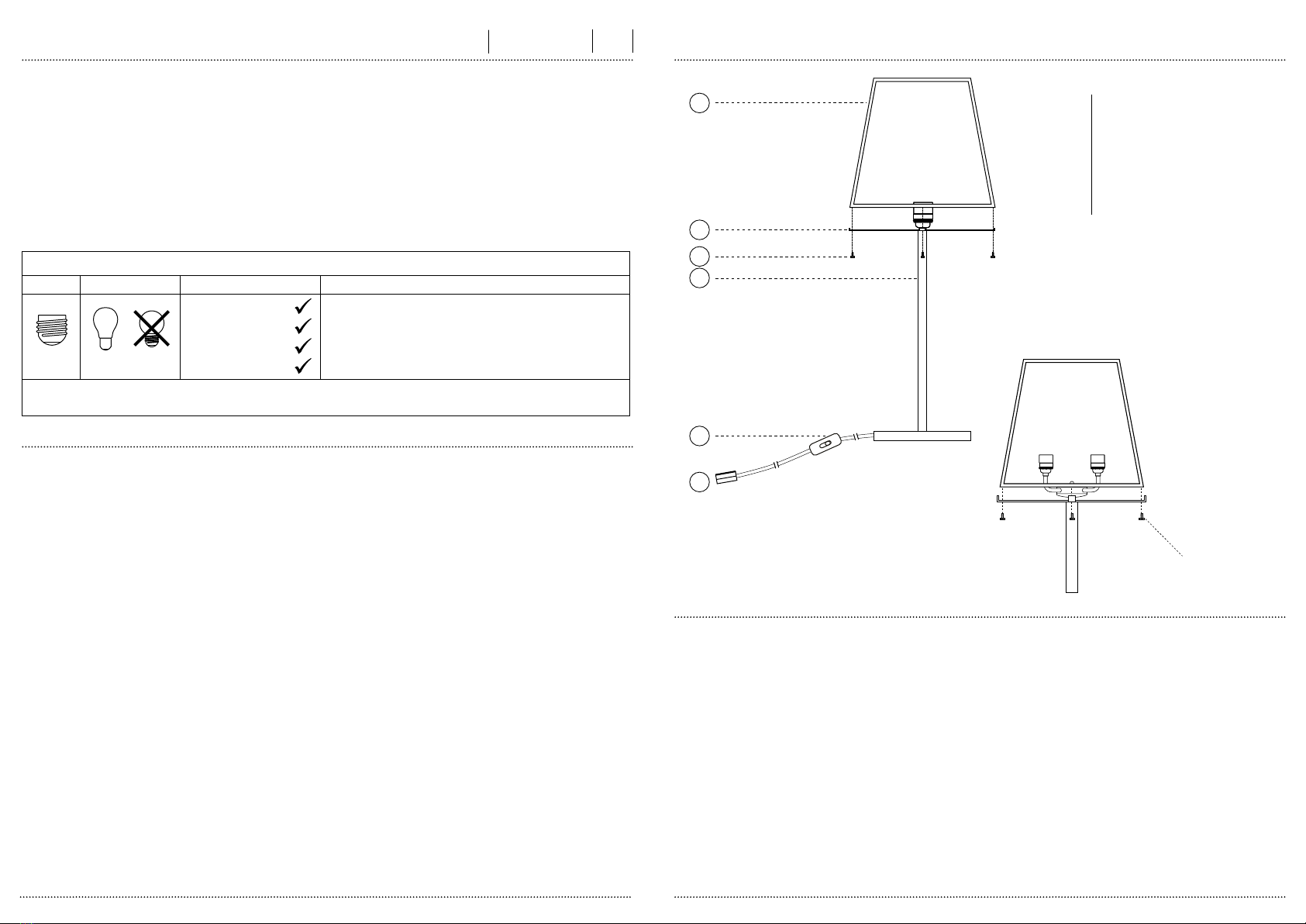

Quad Table and Floor Light
1 - 7636 ‘shade’
2 - Cross bar bracket
3 - 4 x Fixing screws
4 - Stem/base
5 - In-line or foot switch
6 - UK 3-pin plug
1
2
3
4
5
6
cross bar bracket using the fixing
screws provided.
1
2
3
4
The shade must be secured to the
cross bar bracket using the fixing
screws provided.
Assembly
Your light will arrive in two parts. To secure the shade to the cross bar bracket:
- Position the shade on the cross bar bracket so the fixing holes line up.
- Support the shade- get a colleague to help if neccessary, while screwing the fixing srews into the
shade, through the bottom of the cross bar bracket. Tighten securely using fingers.
Your light is now ready for use- insert light bulb (observing type and wattage) and then plug into socket
Important Information
Switch off at mains before changing the light bulbs. Never fit a bulb of greater wattage than recommended.
Children should be discouraged from playing with light fittings. Dispose of old bulbs carefully. Never leave a
fitting without a bulb in position (or someone can accidentally touch the contacts).
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
MADE IN BRITAIN
E27 GLS BALL
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE
INCANDESCENT
CFL
ECO-HALOGEN
LED
60W MAX
15W
28W
12W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
