Original BTC Hatton 4 User manual

Hatton 4
Instruction Manual
Wall Light
Safety & Installation Instructions
If you are in any doubt consult a qualified electrician as to the installation of the fitting.
1. Position the light where desired ensuring that there is a plug socket within easy access of the fitting and the wall is
suitable for supporting the weight of the fitting (5kg). Before making any holes, confirm that there are no hidden electrical
wires or pipes in the chosen location, that could be damaged.
2. Mark position of fixing holes, before drilling appropriate holes as below.
a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Safety Instructions
Cleaning and Maintenance
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or
Injury. Please retain for future reference. When fitting is in operation, some parts will become hot;
take care when using/handling.
- Ensure the lamp type and max wattage is followed- do not exceed. Take care not to overtighten
lamp.
- Do not touch the lamp (bulb) or lamp holder while in operation, as both become very hot.
- Turn off and unplug fitting, leaving lamp to cool before changing lamp. Dispose of old lamps
carefully.
- Adjust light fitting only when power to the fitting is off and has been left to cool.
- Never leave a fitting without a lamp in position.
- Keep light fitting away from combustible materials such as soft furnishings.
- Ensure children do not play with the light fitting.
- If the electrical flex or electrical components become damaged at any point, the fitting must be
unplugged from the power supply immediately and not operated until the damaged parts are
fixed/replaced.
- For use in a dry, indoor environment only. Ensure the fitting does not come into contact with any
liquids.
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Bone
china can be cleaned by hand, using a soft damp cloth with a diluted mild detergent (nonabrasive) if
necessary. Switch off power to the fitting before cleaning.

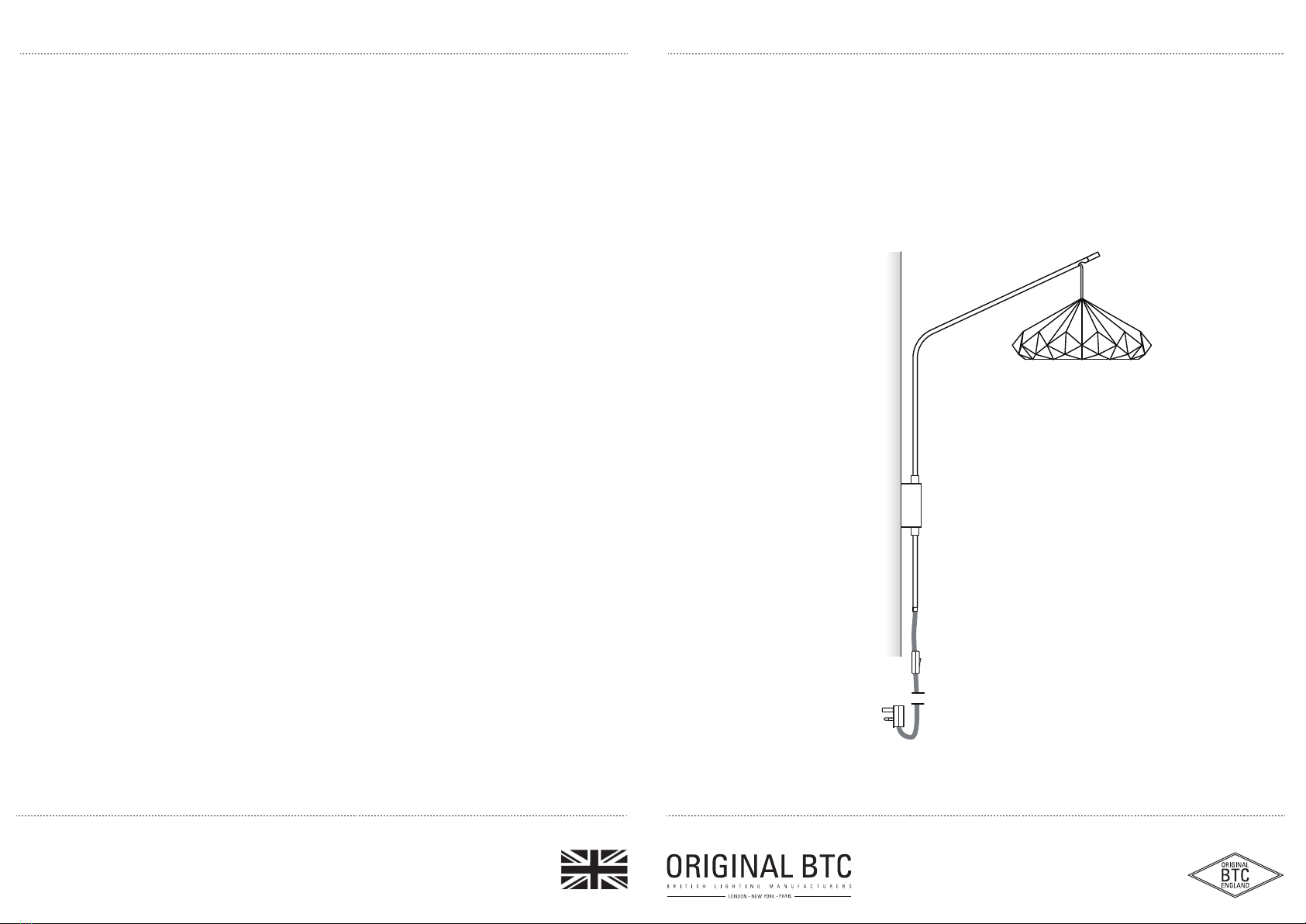

Hatton 4 Wall Light
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
230V ac 50Hz
Fixing Pack
Installation DiagramIP20
The Hatton 4 Wall Light has an intricately made, multifaceted bone china shade. When lit the
translucent shade provides an exquisite, warm light.
FW565
E27 GLS
LAMP GUIDANCE
TYPE* WATTAGE** BASE SHAPE
ü
ü
ü
ü
INCANDESCENT
CFL
ECO-HALOGEN
LED
100W MAX
18W
70W
12W
* Warm white (2700k) low energy lamps recommended.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
8 9
Contents
1 - Shade
2 - Arm
3 - Fixing screw
4 - Wall bracket
5 - Back box
6 - Plug
7 - Wall screws
8 - Rawl Plugs
Required for Installation
-Screwdriver, flat-head
- Hex Key size 3
- Small screwdriver, flat-head
- Drill (if holes are required)
1
Refer to diagrams on opposite page.
STEP 1
Remove the wall bracket from the back box by undoing the two dome head screws using a hex key
Mark fixing holes through fixing bracket before drilling holes, see point 1 & 2 on reverse. Ensure holes will result in
the backplate being straight, then screw fixing bracket to the wall, ensuring fitting is securely fixed to the wall.
STEP 2
Slide the backbox over the wall bracket, aligning the two holes top and bottom. Secure in place using the two
dome head hex screws
STEP 1 STEP 2
2
5
6
43
Installation and Assembly Instructions
Adjusting the fitting
BALL
a
b
c
To change the position of the arm or rotate it, loosen both
the knurled grips on the wall box by rotating them anti
clockwise, whilst supporting the arm.
Move the arm to the desired postion and retighten both of
the grips so that the arm is held securely in place.
Setting the Cable Length
2. Set this distance at 25cm
Ensure rubber sleeves appears as shown:
1. Loosen grub screw
to adjust cable position
