ORIGO VC6505 User manual
Robotic Vacuum Cleaner
使用說明書
Instruction Manual
VC6505
機械人吸塵機
*使用本產品前，請先細閱使用說明，並請妥善保存以便將來翻閱。
*Read all instructions carefully before using this appliance, and keep this instruction for
furture reference when necessary.

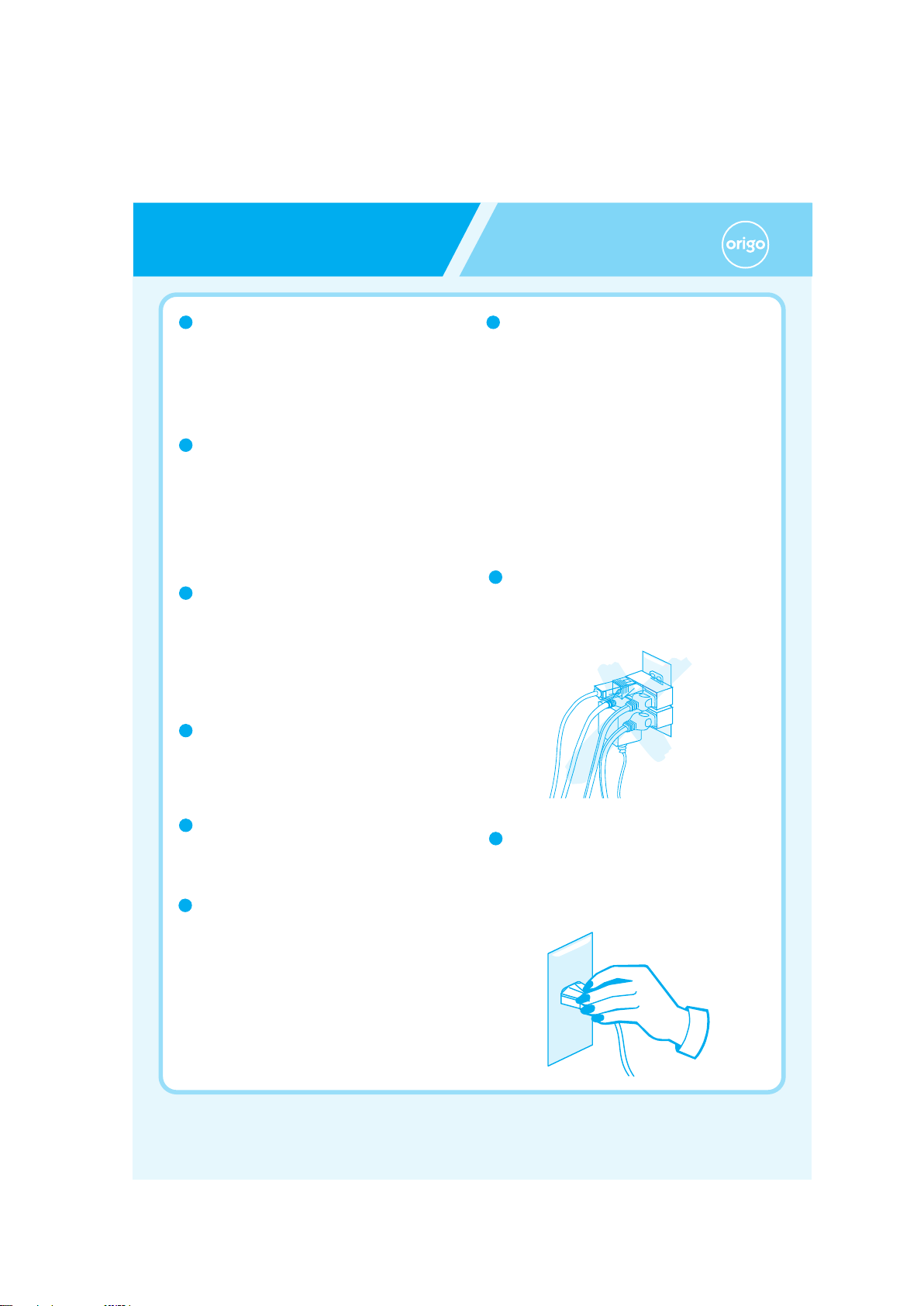

重要安全提示
1
拔除插頭時不可拉扯電源線，必須緊握插頭
，把插頭拔出。
Do not pull the power cord to disconnect
from power source. Always grasp the plug
to pull out.
請使用獨立插座充電。使用萬能插頭或拖板
，容易發生危險。
Avoid using extension cord to charging as it
may overheat and casue fire.
請勿將任何重物放在機械人吸塵機上。
Do not put any heavy objects on the
Robotic Vacuum Cleaner.
本產品只可以用附設的電源線充電。
This appliance can only charge with
the attached power cord.
打開包裝，檢查產品。如發現產品有損壞
，請勿使用及即時聯絡服務中心。
Open the package and ensure that the
appliance is undamaged. In case of
doubt, do not use and contact your
service centre.
為防止損害電源線，請勿把電源線掛放在
檯邊上或接觸發熱的物體。
Do not hang the power cord on the
edge of table or touch the surface
with high temperature in order to
avoid damage to the power cord.
使用本產品前，請先細閱使用此說明書，
並請妥善保存，以便日後翻閱。
Read all instructions carefully before
using the appliance. Appropriately
keep it for future reference when
necessary.
本機不是為體質、感覺或智力有障礙人士(包
括小孩)或缺乏經驗及知識者使用，除非他們
曾經接受負責安全人士的監督或指示，大人應
指導小孩不可把玩電器。
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
機械人吸塵機
Robotic Vacuum Cleaner
Important Safety Information
請勿在未完成，未密封，打蠟或粗糙的地板
上使用本產品。 可能會損壞地板和本產品。
僅在堅硬的地面或低毛絨地毯上使用。
Do not use this appliance on an
unfinished, unsealed, waxed or rough
floor. It may result in damage to the
floor and this appliance. Use only on
hard floor surfaces or lowpile carpet.
重要安全提示
2
使用時，切勿把本產品放置於火爐或發熱的物
體附近。
This product cannot be used beside the
stove and other high temperature objects.
請勿把本產品浸在水或任何液體中，以免引起
火災或漏電，導致受傷。
Do not dip the product into water or other
liquid as to avoid accident.
請勿在本產品上自行加上產品不包括之組件，
以免發生意外。
Do not use parts that are not provided by
recommended manufacturer as to avoid
happen accident.
Important Safety Information
本產品不可在室外或有水漬的地面上使用。
Do not use the appliance outdoor or
wet surfaces.
清洗或不使用本產品時，請先關機。
To avoid danger of electric shock, turn
off the applicance when not in use and
before cleaning.
請勿將別針等金屬利器或其他異物放入進風口、
出風口，否則會損壞產品。
Do not insert the pin or any objects into air
outlet or inlet as it may cause an electric
shock or damage to the appliance.
請勿使用本產品吸入玻璃、尖銳金屬或液體，
否則會損壞產品。
Do not use the appliance to vacuum glass
and aculeated metal otherwise it might be
damaged.
如電源適配器的電源線有損壞痕跡，為保障
安全，請立即停止使用並聯絡供應商或代理
商或合資格人員作更換。
If the power cord of power adaptor is
damaged, it must be replaced and
repaired by service centre.
請勿用濕手觸摸產品及其插頭。
Do not handle plug or appliance with
wet hand.
使用時，請保持頭髮，鬆身衣物，手或身體
其他部份吸口，以免被吸著纏住。
Keep hair, loose clothing, fingers and all
parts of body away fromopenings and
moving parts.
請確保機械人吸塵機不會絆到電線、窗簾、
流蘇或類似物品。
Make sure that the Robotic Vacuum
Cleaner does not get caught on wires,
curtains, tassels or similar objects.
在未裝好集塵箱前，請勿使用本產品。
Do not use the Robotic Vacuum Cleaner
without dust tank in place.
除本說明書內標明，本產品不可作其他用途。
Do not use for any purpose other than
described in this instruction manual.
請勿使用機械人吸塵機吸附碳粉。打印機和
影印機所用的炭粉等導電體物料。
Do not use Robotic Vacuum Cleaner to
absorb toner. The carbon powder used
in printers and photocopiers is an
electrical conductor.
機械人吸塵機
Robotic Vacuum Cleaner
應使寵物及小孩遠離機械人吸塵機。請勿允許
寵物及小孩站在或坐在機械人吸塵機上。
Keep pets and children away from Robot
Vacuum Cleaner. Do not allow pets and
children to stand or sit on the Robotic
Vacuum Cleaner.
請勿覆蓋機械人吸塵機的按鈕或信號接收器。
Do not cover the buttons and the signal
receiver of the Robotic Vacuum Cleaner.
MainParts
各部名稱
3
Dust Tank
開/關按鈕
On/Off Button
集塵箱
機械人吸塵機
Robotic Vacuum Cleaner
信號接收器
Signal Receiver
頂蓋
Cover
Power Socket
電源插座
Main Power Switch
總電源開/關
Power Adapter
電源適配器 Side Brushes x2
側刷 x2
Floor Mop Assenmbly
拖把組件
撞擊保護
Brumper
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
頂蓋開關鍵
Cover Switch Key
MainParts
各部名稱
4
感應器
Sensor
機械人吸塵機
Robotic Vacuum Cleaner
前輪
Omnidirectional
Wheel
感應器
Sensor
感應器
Sensor
側刷
(
左
)
Brush(Left)
側刷
(
右
)
Brush(Right)
電池蓋
Battery
Cover
驅動輪
Wheel
驅動輪
Wheel
進氣口
Air Inlet
底殼
Bottom
Casing
拖把組件
安裝插座
Floor Mop Assenmbly
Install Socket
集塵箱頂蓋
Dustbin Cover
濾網格柵
Preliminary
Filter
HEPA
濾網
HEPA
Filter
HEPA
濾網支架
HEPA
Filter
Support
清潔刷
Dust Brush
圖片只供參考
，
一切以實物為準
The picture is for reference only,
everything in kind shall prevail.
MainParts
各部名稱
5
機械人吸塵機
Robotic Vacuum Cleaner
遙控器
Remote Control
WARNING
1. Keep batteries out of reach of children. Should a child swallow a battery,
consult a doctor immediately.
2. Do not recharge or dispose in fire.
3. Keep in a dry and cool place.
4. Insert battery in rigdt direction.
Battery disposal - Please dispose the used battery per municipal or provincial law.
1. 遙控器操作方式與機身按鍵操作方式不同。
2. 安裝電池：2枚AAA乾電池(不包括)。
(注意：不可混合新舊、碳性/鹼性及不同品牌的電池同時使用。)
1. All functions performed by the Remote Control work are different
to the Manual Control.
2. Install battery: Install two ‘AAA’ batteries(Not Included).
(Caution: Do not mix new and used, carbon/alkaline or different brands of batteries.)
警告
1)
2)
3)
4)
請把電池放在兒童碰不到的地方，如果孩子吞下電池，需立即致電咨詢醫生。
不要對電池進行充電或隨意棄置在有火源的地方。
應保持電池存放於乾燥，陰涼的地方。
以正確的方向插入電池。
電池的處理 - 請按相關地區的法律規定處理曾經使用的電池。
尋找機械人按鈕
Find The Robot Button
開始/暫停按鈕
Start/Pause Button
角落吸塵模式按鈕
Edge Cleaning Button
定點吸塵模式按鈕
Focus Cleaning Button
自動吸塵模式按鈕
Auto Cleaning Button
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
VC6505
Operations
使用方法
6
機械人吸塵機
Robotic Vacuum Cleaner
機械人吸塵機可使用開/關按鈕或遙控器操控。
The Robotic Vacuum Cleaner may be operated by the On/Off button or remote control.
1. 取出所有包裝物料。
1. Remove all packaging material.
2. 將機械人吸塵機翻過來放在水平及清潔的表面上。
2. Turn the Robotic Vacuum Cleaner over and place it on a stable and clean surface.

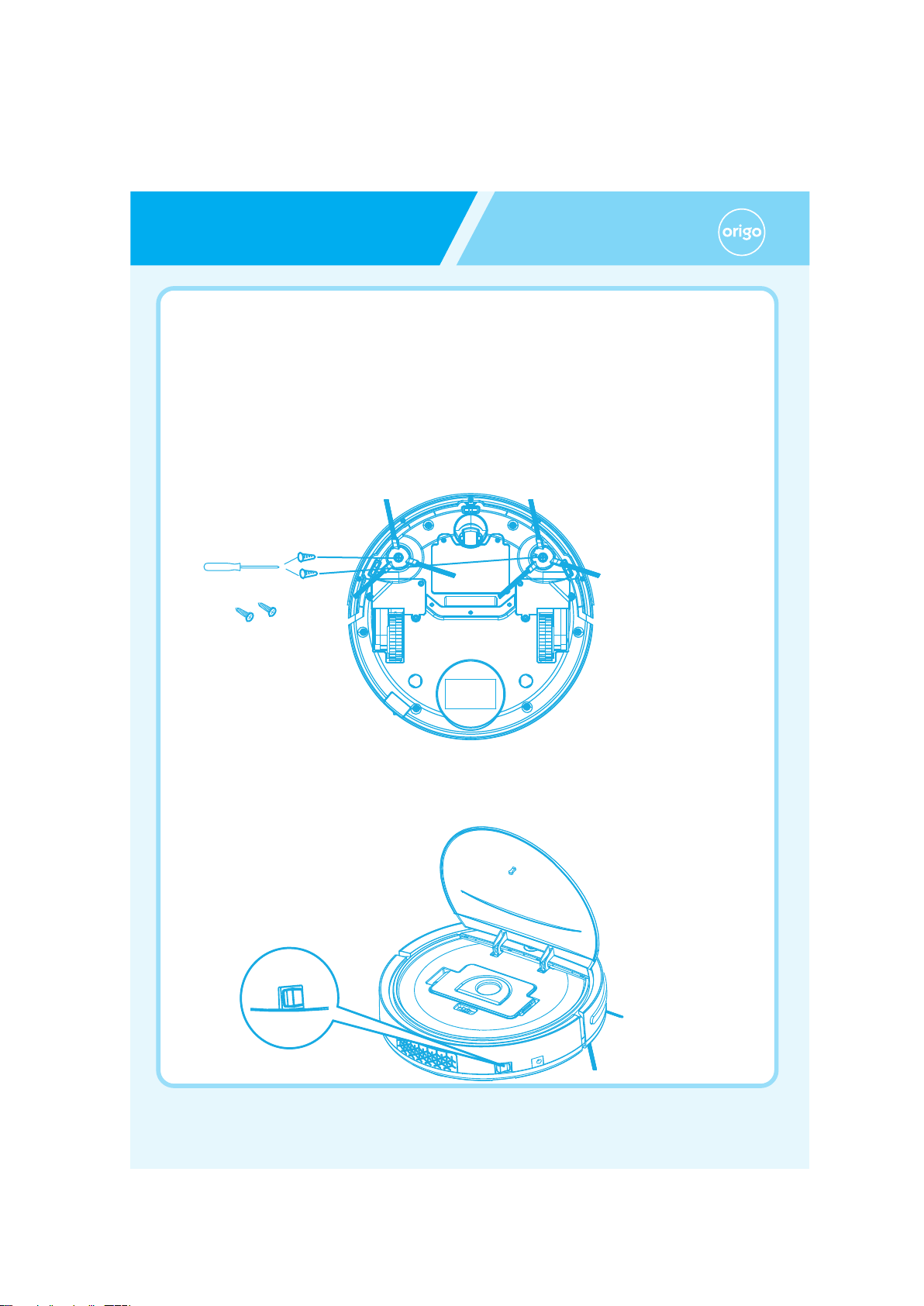

3. 將隨附的兩個側刷插入插腳上並用螺絲批將其鎖緊。請確保兩者與 "L" 和"R"
標記對齊。
3. Insert the two supplied side brushes into the pins and lock them with a screwdriver.
Make sure that they are aligned with the L and R marks.
4. 按下機械人吸塵機側面的總電源開/關至"I"啟動機械人吸塵機。機械人吸塵機會發出
語音提示:" Welcome to use the Robotic Vacuum Cleaner" 。
4. Press the main power switch to "I" position to turn on the Robotic Vacuum Cleaner.
The Robotic Vacuum Cleaner will issue a voice prompt:" Welcome to use the Robotic
Vacuum Cleaner".
螺絲×02
Screw×02
RL
L
圖片只供參考
，
一切以
實物為準
The picture is for
reference only, everything
in kind shall prevail.
圖片只供參考
，
一切以
實物為準
The picture is for
reference only, everything
in kind shall prevail.
Operations
使用方法
7
機械人吸塵機
Robotic Vacuum Cleaner
1. 將機械人吸塵機擺放於穩固的平面上。
1. Place the Robotic Vacuum Cleaner on a stable and flat surface.

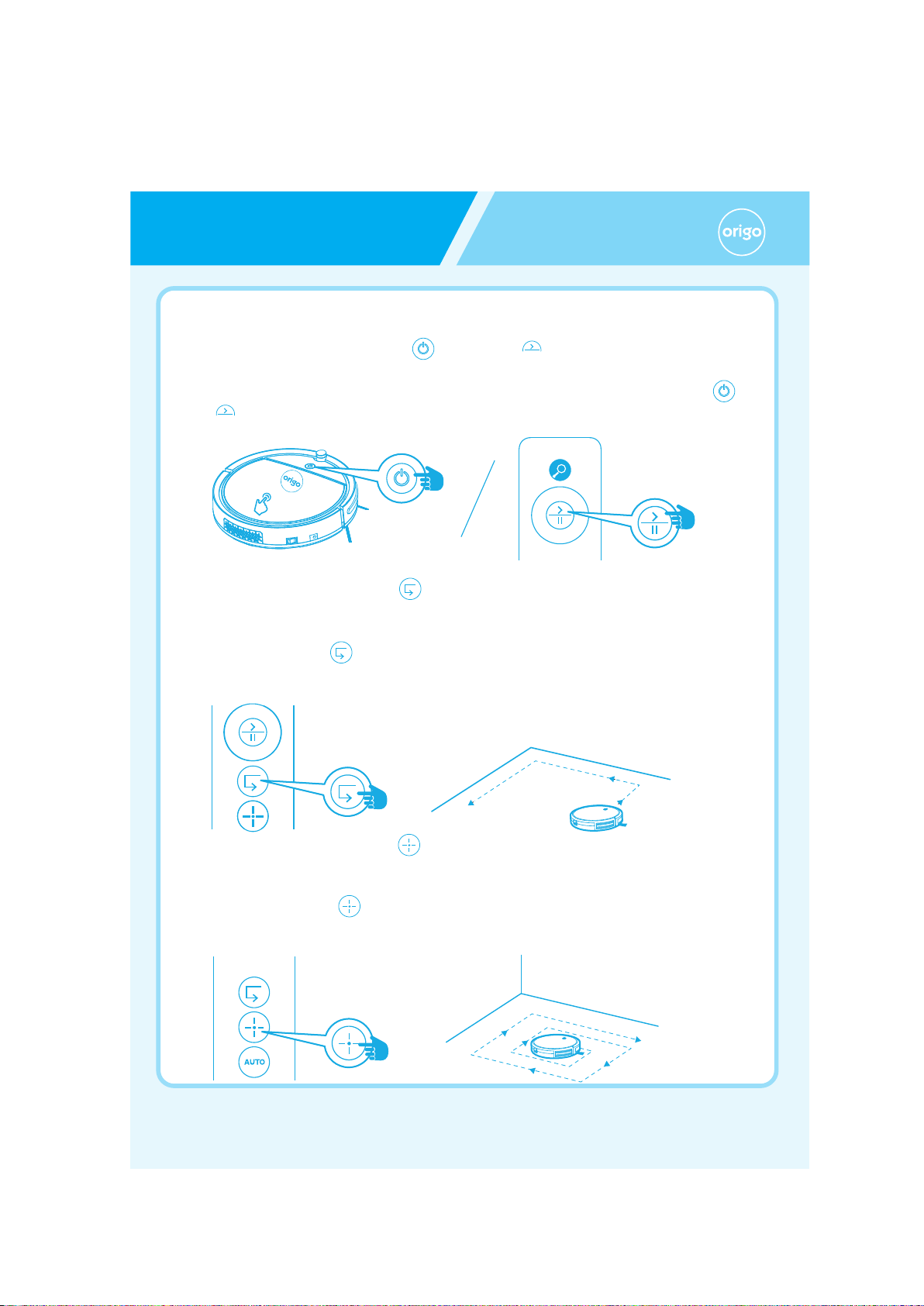

2. 開機(POWER) : 按下開/關按鈕" "或遙控器上" " 按鈕，機械人吸塵機以"Auto"
自動吸塵模式啟動。機械人吸塵機會發出語音提示:" Start Clean"。
2. POWER: Turn the Robotic Vacuum Cleaner ON by pressing the On/Off button" " or
" " button on the remote control, the Robotic Vacuum Cleaner will start at
"Auto" cleaning mode. It will issue a voice prompt:"Start Clean".
3. 角落吸塵模式:按遙控器上的" "按鈕以角落吸塵模式開始清潔。機械人吸塵機檢測
到牆壁，然後跟隨牆壁以確保徹底清潔邊緣。清潔後，機械人吸塵機將變為"Auto"
自動吸塵模式。
3. EDGE MODE:Press" "button on the remote control to start cleaning in "Edge" mode.
It detects a wall and then follows the wall to ensure the edge is cleaned thoroughly.
After Cleaning, it will turn to "Auto" cleaning mode.
4. 定點吸塵模式:按遙控器上的" "按鈕以定點吸塵模式開始清潔。它將設置機械人吸
塵機進入區域並以方形模式清潔。當有物件碰撞時，機械人吸塵機將變為"Auto"
自動吸塵模式。
4. FOCUS MODE:Press" "button on the remote control to start cleaning in "Focus"
mode. It will set the Robotic Vacuum Cleaner to enter an area and clean by square
mode. It will turn to "Auto" cleaning mode when objects collided.
圖片只供參考
，
一切以
實物為準
The picture is for
reference only, everything
in kind shall prevail.
圖片只供參考
，
一切以
實物為準
The picture is for
reference only, everything
in kind shall prevail.
圖片只供參考
，
一切以
實物為準
The picture is for
reference only, everything
in kind shall prevail.
Operations
使用方法
8
機械人吸塵機
Robotic Vacuum Cleaner
注意：選擇吸塵模式後，機器會根據實際環境自動切換到另一種吸塵模式，以達到最佳
清潔效果。
Note: After cleaning mode is selected, the machine will switch to another
cleaning mode automatically according to the actural environment, so
as to achieve the best cleaning effect.
5. 自動吸塵模式:按遙控器上的" "按鈕以自動吸塵模式開始清
潔。
5. AUTO MODE:Press" "button on the remote control to
start cleaning in "Auto" mode.
6. 拖把模式 : 將拖把貼在拖把支架上，然後將拖把支架插入拖把組件安裝插座。
再按下開/關按鈕" "或遙控器上" " 按鈕，啟動機械人吸塵機。
6. FLOOR MOP MODE: Stick the floor mop on the floor mop holder , and then insert the
floor mop holder into the floor mop assembly installation socket. Then turn the
Robotic Vacuum Cleaner ON by pressing the On/Off button" " or " " button
on the remote control to start.
7. 關機(OFF) : 按下開/關按鈕" "或遙控器上" " 按鈕，機械人吸塵機停止運作。
7. OFF: Turn the Robotic Vacuum Cleaner OFF by pressing the On/Off button" " or
" " button on the remote control, the Robotic Vacuum Cleaner will stop working.
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
圖片只供參考
，
一切以實物為準
The picture is for reference only,
everything in kind shall prevail.
Floor Mop
拖把
Floor Mop
拖把
Floor Mop
Holder
拖把支架
Floor Mop Holder
拖把支架
Operations
使用方法
9
機械人吸塵機
Robotic Vacuum Cleaner

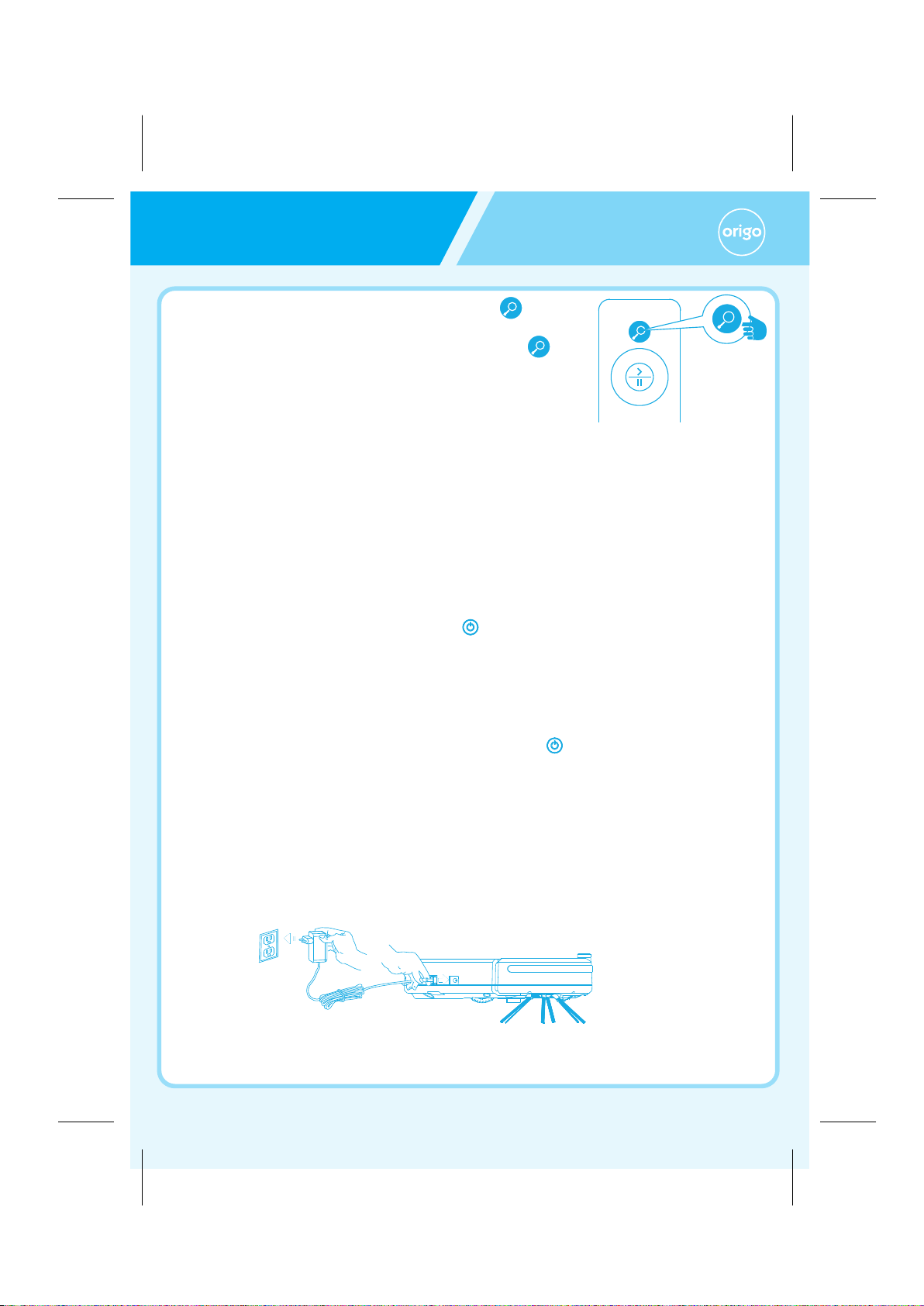

8. 尋找機械人:當要尋找機械人，按遙控器上的" " 按鈕，
機械人吸塵機會發出聲響提示。。
8. FIND THE ROBOT :When looking for robots,press" "
button on the remote control, the Robotic Vacuum Cleaner
will issue an audible reminder.
9. 充電 : 當低電量時，開/關按鈕指示燈" "將持續閃爍:
- 關閉機械人吸塵機的電源開關後，將電源適配器連接至電源插座，並將
另一端插入機器的充電接口。
- 首次充電時間: 最少充電4小時。
- 充電時開/關按鈕指示燈會不斷閃爍，充電完成時會長亮。
(提示:只可使用提供的DC24V,0.6A電源適配器充電，否則會使充電池的壽命縮短。)
9. CHARGING: On low power, the On/Off button light" " will keep blinking:
- After turn off the power switch of the Robotic Vacuum Cleaner, connect
the power adaptor to power supply and insert the other end into charging
interface of the Robotic Vacuum Cleaner.
- First charging time: At least 4 hours.
- The On/Off button light will be flash on when charging and light on
continuously when fully charged.
(Reminder : Use the provided power adaptor only with DC24V, 0.6A to
charge, otherwise, the life of rechgeable battery inside will be shortened.)
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
注意
- 確保擺放位置正確，盡量避免陽光直射，不要靠近火爐或其他發熱器等，
還要避免電器元件受潮；
- 嚴禁吸入未熄滅的煙蒂，以免燒壞過濾器組件進而損壞電機。
Notice
- Please make sure the product isproperly placed. Don't put it
undersunlight or near stove;
- Stumps with fire is forbidden;

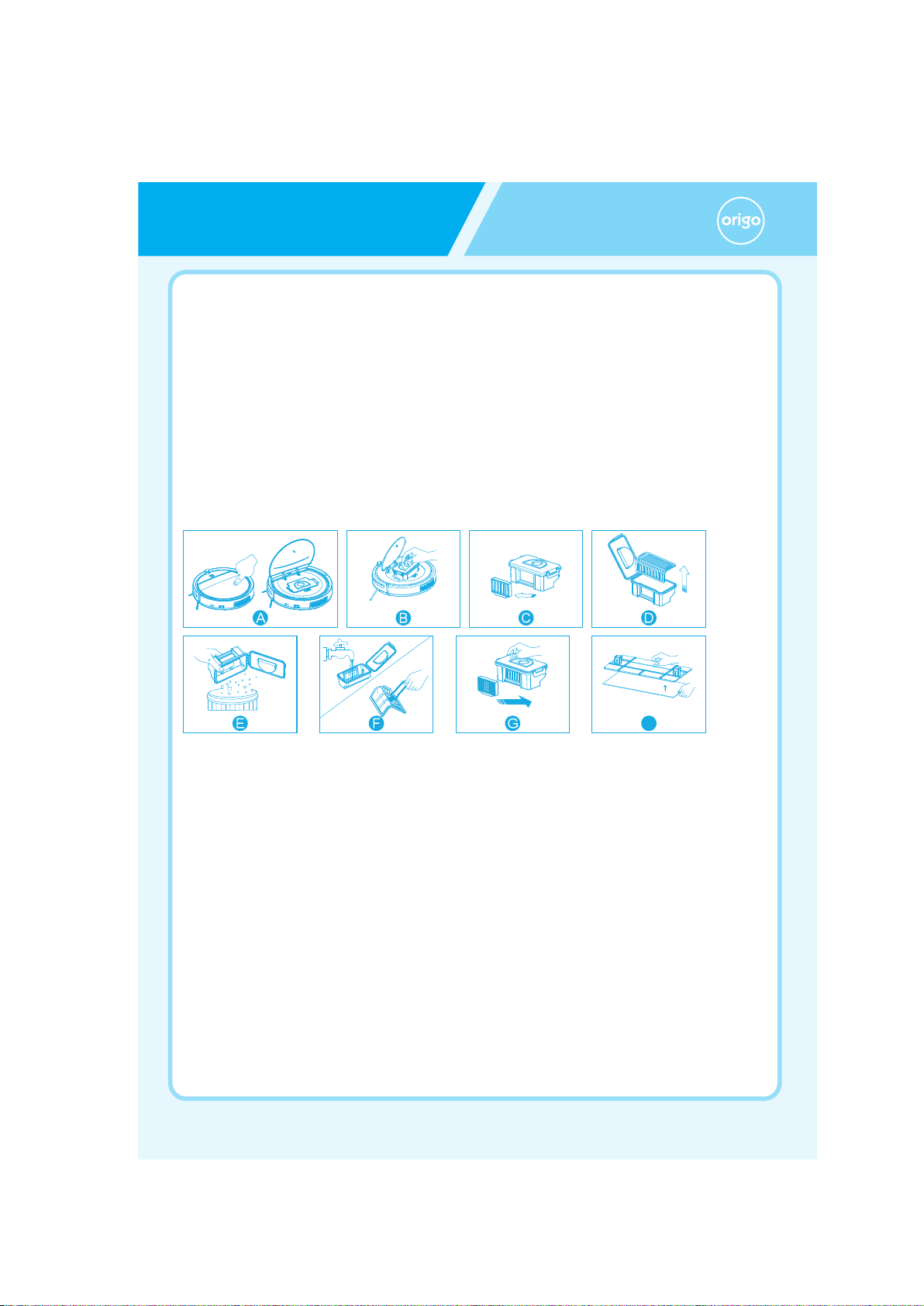

Maintenance
清理及維護
10
清潔集麈箱及拖把/Clean dust tank and mop:
警告: 在清潔本機械人吸塵機前，先將機械人吸塵機關掉。
CAUTION: ALWAYS TURN OFF THE ROBOTIC VACUUM CLEANER BEFORE MOVING OR
SERVICING.
Housing: Clean the outside and grille of the Robotic Vacuum Cleaner with a soft cloth. To
remove presistent dirt, wipe down with a cloth that has been dampened with warm soapy water.
外殼: 清理時切勿將機械人吸塵機浸於水或其他液體中。使用濕潤軟布抹擦清潔，頑固
污垢可用軟布沾上含肥皂的溫水抹擦。
切勿使用研磨性、腐蝕性或易燃性清潔劑(例如漂白劑或酒精)清潔機械人吸塵機的任何部位。
Do NOT use abrasive, corrosive or flammable cleansers (such as bleach or alcohol)
to clean any part of the Robotic Vacuum Cleaner.
請勿使用吸塵機清潔HEPA濾網或直接用水沖洗HEPA濾網。
Do not use a vacuum cleaner to clean the HEPA filter or wash it directly.
STORAGE: Store the Robotic Vacuum Cleaner with these instructions in the original
box in a cool and dry place.
儲存: 連同使用說明，把機械人吸塵機存放於清涼及乾爽的地方。
機械人吸塵機
Robotic Vacuum Cleaner
H
A. 按下頂蓋開關鍵打開頂蓋。/ Press the cover switch Key to open the cover.
B. 拿起集麈箱手柄取出集麈箱。/ Pick up the handle of the dust tank and take
out the dust tank.
C. 向左方拉出HEPA濾網。/ Take out the HEPA filter to the left side.
D. 打開集麈箱頂蓋，向上取出濾網格柵。/ Open the cover of the dust tank and take
out the preliminary filter upwards.
E. 倒出灰塵及垃圾雜物。/ Pour out the garbage.
F. 將HEPA濾網及濾網格柵用軟毛刷子清理(集麈箱可放在溫水中清洗)。/ Clean the
HEPA filter and preliminary filter with a soft brush.(The dust tank can be cleaned in
warm water.)
G. 清潔後，請確保HEPA濾網、濾網格柵、集塵箱切底乾燥後才可裝回主機。/ Ensure
the HEPA filter and preliminary filter and dust tank are completely dry before installing.
H. 從拖把支架上卸下拖把，用清水沖洗。/ Remove the floor mop from the floor mop
holder and wash the floor mop with water.
圖片只供參考
，
一切以實物為準
The picture is for reference only, everything in kind shall prevail.
11
Specification
技術規格
型號 Model Number
輸入 Input
額定功率 Rated Power
產品尺寸 Product Dimension
VC6505
DC24V 0.6A
18W
285 x 285 x 70 mm (約/Approx.)
Origin Map
源澤地圖
上午10:30 - 下午12:30(星期一至五)
下午02:30 - 下午05:30(星期一至五)
上午10:30 - 下午12:30(星期六)
(星期日及公眾假期休息)
10:30am - 12:30pm (Mon to Fri)
02:30pm - 05:30pm (Mon to Fri)
10:30am - 12:30 pm (Saturday)
(Closed on Sunday and Hoilday)
機械人吸塵機
Robotic Vacuum Cleaner
額定功率 Battery Li-ion 800mAh 14.8V
充電時間 Charging Time 4 小時/hours (約/Approx.)
使用時間 Operating Time 50 分鐘/mins (約/Approx.)
機械人吸塵機
Robotic Vacuum Cleaner
產品保用証(一年自攜服務)
產品: 機械人吸塵機
型號: VC6505
此產品由購買日期起計算，本公司將根據下列條款及細則，提供一年保養服務(商業用享為3個月):
1. 於購買後一年內，經本公司技術員判斷為正常運作下損壞之產品，
可獲免費維修和/或零件更換。
2. 以下情況不被包括在保養範圍內：
-若產品是因為濫用、錯誤使用、疏忽及/或意外而遭致損壞；
-未經授權之自行處理、維修及/或改裝；
-任何搖控、機殼、面蓋、側刷、HEPA濾網、濾網格柵、集塵箱，以及配件。
3. 需要檢查或維修時，請將產品送往本公司服務中心，並於修理妥當後自行取回。
4. 更換後之任何損壞零件，均屬本公司所有。
5. 本保養服務只適用於香港特別行政區。
6. 顧客必須同時出示零售商之正式發票，方可得到免費維修服務。
*** 額外3個月保用: 凡於購買產品後10天內完成網上登記，即可免費延長保用期3個月，即15個月免費保用(商業用途
除外)。請即登入網站: www.origo.hk
服務中心
源澤市務有限公司
香港新界葵涌青山公路403號(近華星街12號)匯城集團大廈21樓H室
電話: 2156 8238
www.origo.hk
Warranty Card(1 year carry-in)
Item : Robotic Vacuum Cleaner
Model : VC6505
Service Centre
ORIGIN MARKETING LIMITED
Unit H, 21/F., Reason Group Tower (nearby 12 Wah Sing Street), 403 Castle Peak Road,
Kwai Chung, N.T., Hong Kong.
Tel: 2156 8238
www.origo.hk
This product is warranted for 1year (commercial use for 3 months) from the date of purchase under the
following conditions:
1. For any defect, in the judgment of our technician, if it is caused under normal use, we are responsible for
repairing the product, and/or replacing parts at free of charge.
2. This warranty DOES NOT apply to:
- If the product has been damaged through abuse, misuse, negligence or accidents;
- Unauthorized repair, alteration/modification;
- The remote control, housing, cover, side brush, HEPA filter and preliminary filter and dust tank or accessories.
3. The customer is requested to bring the unit to and from our Service Centre whenever
service is needed.
4. Any defective parts, which had been replaced, shall be of our property.
5. This warranty is valid in H.K.S.A.R. only.
6. Please show the Invoice to get free service.
***Extra 3 months warranty: just complete Online Warranty Registration within 10 days from the date of
receipt, free warranty will be extended to 15 months (not applicable to commercial use). Please enter our
website: www.origo.hk
www.origo.hk
www.origo.hk
Table of contents
Other ORIGO Vacuum Cleaner manuals
