Orion AVM-56270BT User manual

DVD/VCD/CD/MP3/MP4/USB/SD/MMC/BT PLAYER WITH FM/AM TUNER
BUILDING TV INTO
Operating Instructions

1
Safety Precautions
To ensure safe driving, please adjust the
volume to a safe & comfort level in case of
emergency situations.
Never expose this unit, amplifier, and
speakers to moisture or water for preventing
electric sparks or res.
Please don't change the fuse on the power
cord without professional guidance, using
improper fuse may cause damage to this unit
or even cause re.
Please power off this unit at once and send it
back to the after-sales service center or the
dealer /distributor you purchased from if one
of the following symptoms is found:
(a). Water or other obstacle enters the unit;
(b). Smoking;
(c). Peculiar smell.
Only connect the unit to a 12-volt power
supply with negative grounding.
MUTE
OK
MUTE
OK
Never install this unit where the operation &
condition for safety driving is restrained.
MUTE
OK
MUTE
OK
Never use the video display function in the
front when driving to prevent the violation of
laws & regulations and also to reduce the
risk of traffic accident except using for rear
view video camera.
MUTE
OK
MUTE
OK
MUTE
OK
MUTE
OK
Thank you for purchasing this product.
Please read through these operating
instructions so you will know how to operate
your model properly. After you have nished
reading the instructions, keep this manual in
a safe place for future reference.
To provide a clear demonstration and an
alternative for easy understanding of the
operation of this unit, graphic illustration
was used. However, this illustration is not
necessary printed as the actual image found
on the unit.

2
Safety Precautions (continued)
Warning
Operate the unit correctly according to the
manual instruction to prevent unnecessary
problem.
Caution
This product is a CLASS 1 LASER PRODUCT.
Use of controls or adjustments or performance
of procedures other than those specified
herein may result in hazardous radiation
exposure. Do not open covers and do not
repair yourself. Refer servicing to qualified
personnel.
Two laser products
Wave length: CD: 780nm DVD: 650nm
Laser power: No hazardous radiation is
emitted with safety protection.
To reduce the risk of fire electric shock, and
annoying interference, use only the included
components.
Caution of disc using
1. DO NOT use irregular shaped disc.
2. Disc Cleaning. Use a dry, soft cloth to
wipe the disc from center to edge, only neutral
detergent can be used.
3. When playing a new disc. New disc may
have some rough spots around the inner and
outer edges. If such a disc is used, remove
these rough spots with a pencil or ball-point
pen, etc.
Contents
Safety Precautions ....................................... 1
Features ....................................................... 3
Panel Controls.............................................. 4
Remote Controls........................................... 5
Basic Operations .......................................... 7
USB/SD/MMC Card Operation..................... 8
Disc Operations............................................ 9
Tuner Operation ......................................... 13
Bluetooth Operation.................................... 14
TV Operation .............................................. 16
Other Mode................................................. 16
System Setup ............................................. 17
Device Connections.................................... 20
Installation ................................................. 23
Troubleshooting.......................................... 24
Specications ............................................. 25

3
DVD-R/RW compatibility
It is possible to playback DVD-R/RW discs
recorded with the video format and Video
Recording format.
WMA and MP3 compatibility
It is possible to playback WMA and MP3 les.
About WMA
The Windows Media™ logo printed on the
box indicates that this unit can playback
WMAdata.
!Windows Media and the Windows logo are
trade marks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
!This unit maynot operate correctly depending
on the application used to encode WMA les.
About MP3
Supply of this product only conveys a license
for private, non-commercial use and does
not convey a license or imply any right to use
this product in any commercial (i.e.revenue-
generating) realtime broadcasting (terrestrial,
satellite, cable and/or any other media), broad-
casting/streaming via internet, intranets and/or
other networks or in other electronic content
distribution systems, such as pay-audio or
audio-on-demand applications. An indepen-
dent license for such use is required. For de-
tails, please visit http://www.mp3licensing.
com.
Features
Button Operation Explanations
Touch panel key operation
It is possible to operate this unit by using
touch panel key.
Some frequent operations
1) Move cursor
2) Conrm
Open the SOURCE MENU
Touch the top left corner of TFT screen under
playing mode.
Touch screen
Due to the touch screen, you can fulll most
functions not only by pressing buttons but also
by touching the options you desired.

4
Panel Controls
Press PWR button to turn on the unit.
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a
safety feature to prevent driver distraction. In-dash DVD video functions will only operate when
vehicle is in Park and the parking brake is engaged. It is illegal in most countries for the driver to
view video while the vehicle is in motion.
1. - Microphone
2. - Power on
- Mute
- When on, long press to power off.
3. - Adjust brightness of screen.
4. - Select the following sources:
>Radio
>Disc (when disc inserted)
>Card (when SD/MMC card inserted)
>USB (when USB connected)
>AV1 (rear AV in)
>AV2 (front AV in)
>Blue-tooth
>TV
5. - Rotate to adjust volume level.
- Press and hold it to enter setting
mode.
6. - SD/MMC card slot
7. - USB connector
8. - Reset
9. - AV-in jack
10. - Touch panel
11. - Remote sensor
12. - Eject disc (when disc inserted)
- Reset the mechanism (long press)
13. - Disc slot
DIM

5
Remote Controls
Press to turn on/off the unit.
Remote control operating range
The remote control can operate within a
distance of 3~5m.
30˚ 30˚
Remote sensor
15
1
2
3
16
4
5
6
7
8
9
10
12
11
13
14
17
18
19
20
21
22
23
24
25
26
27
28
OSDRDM
PROG
AMS
1. - Select the following sources:
>Radio
>Disc (when disc inserted)
>Card (when SD/MMC card inserted)
>USB (when USB connected)
>AV1 (rear AV in)
>AV2 (front AV in)
>Blue-tooth
>TV
2. - Radio preset scan
- Radio auto preset
3. - Menu (DVD)
4. - Title (DVD)
5. - Goto search
6. - Radio band
- Video system PAL/NTSC/AUTO
7. - Sound/display setting
- Setting menu (press 2 sec.)
8. - System setup
9. - Fast reverse/forward playback
10. - Zoom (DVD/VCD)
- Dial/Receive call
11. - Enter
12. - Menu cursor
13. - Stop/Return
14. - Digit area
15. - Enter source menu
16. - Power on/off
17. - Angle (DVD)
18. - DVD subtitle
19. - A-B repeat
20. - Repeat
21. - On screen display
22. - Track random play
23. - Radio tune
- Track skip/seek
24. - Call off/cancel
- Program
25. - Volume
26. - Play/Pause
27. - Mute
28. - DVD audio
- VCD audio L/R/ST

6
Remote Controls (continued)
Replacing the lithium battery of remote control unit
When the range of the operation of the card remote control becomes short or no functions
while operating, replace the battery with a new lithium battery. Make sure the battery polarity
replacement is correct.
1. Open the back cover of the remote control unit.
2. Insert the button-type battery with the stamped (+) mark facing upward. Close the back cover.
Warning
• Store the battery where children cannot reach. If a child accidentally swallowed the battery,
consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose it in a re.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may
cause the battery to give off heat, crack or start a re.
•
When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery
may give off heat, crack or start a re.

7
Basic Operations
Turn on/off the power
1. Press [PWR] button to turn on the unit.
The unit goes back to the last status after
power on.
2. When on, press [PWR] button more than 2
seconds to turn off the unit.
Mute
When on, press [PWR] button briey to cut the
sound.
Note:
• Pressing [PWR] button briefly again or
adjusting volume will release muting.
• MUTE appears on the TFT during muting.
Adjust the volume
Rotate the [VOL] knob to increase or decrease
the volume level.
The adjustable range of volume is 0 to 39.
Playing source selection
Method 1:
Press [SRC] button on the panel or remote
control to cycle through all the available
sources.
Method 2:
Open the 'SOURCE MENU' by touch the top
left corner of the TFT or press MODE button
on remote control, and then touch the option
you desired or select the option by moving the
cursor and then conrm.
Note:
• When some devices are not ready, they
cannot be selected.
• You should stop switching when the playing
source you desired has been selected and
wait for some seconds, the unit will auto
enter the playing source mode you have
selected.
When parking brake applied
1. If 'PRK SW' cable is connected to hand
brake switch, the video display of the TFT
monitor will be controlled by driving status,
system setup and input video sources.
2. When the car is moving ahead, if the video
disc is played, and the “Parking on“ is
selected on the setting menu, the screen
appears "WARNING!! Engage Parking
Brake to View Video", and blank screen.
The above warning screen will prevent the
driver watching images. The passengers at
the rear seats can watch normally.
When reverse driving
If the rear view video camera is connected,
the unit automatically switches to CAMERA
source during reverse driving. The unit returns
to the original work mode after the reverse
driving is done.
Steering Wheel Control
Touch the top left of the screen to enter
source menu, touch [ ] button to enter the
unit system setup menu, select [Other].
1. At SWC option, use / button to select a
function, then press and hold a button on
the steering wheel (if your steering wheel
support the function) until the item on the
screen lighted. Now the function is saved in
the button.
2. Repeat step 1 to set functions of other
steering wheel buttons.
3. Exit the setting menu and you can operate
the player by the buttons on the steering
wheel.
4. If you want to change the setting, enter the
SWC setting menu, select a function on
the screen, press and hold a button on the
steering wheel more than 2 seconds, then
the function is saved into the button on
steering wheel. At the same time, all other
steering wheel settings are clear, you must
reset them.

8
USB/SD/MMC Card Operation
Using SD/MMC Card
1. Loading SD/MMC card
Insert the SD/MMC card into the slot. Close
the panel, the unit will read the file of the
card automatically.
2. Take out SD/MMC card
Push SRC button to other mode, press the
SD/MMC card to pop it out. Take out the
card.
USB Notes
USB functions (ash memory type) MP3 music
play
1. USB ash memory 2 in 1 support
2. Fat 12/fat 16/fat 32 is possible
3. File name: 32 byte/dir name: 32 byte /tag
name: 32 byte
4. Tag (ID3 tag ver 2.0)
- Title/artist/album: 32 byte support
5. USB 1.1 support
USB 2.0 support
(It can not support USB 2.0 speed. Just,
get the same speed with USB 1.1)
Not all kinds of USB devices are compatible
with the unit.
Using USB device
1. Insert a USB device into the USB
connector.
When connecting a USB device, the unit
will read the les automatically.
2. To remove the USB device, you should
rst select another source, in order to avoid
damaging the USB device. Then take off
the USB device.

9
Disc Operation
Insert a disc
Insert a disc into the slot, and the unit will
change to disc mode automatically.
Note:
• Please conrm whether there is a disc in
the unit before you insert another one.
• The unit will exit current playing source and
enter DVD mode when one disc is inserted.
• Some recorded discs, such as CD-R,
CD-RW, DVD-R, DVD+R, DVD-RW,
DVD+RW cannot be played back because
of different recording status. Otherwise,
the discs without being closed could not be
played back.
Eject the disc
Press [ ] button to eject the disc.
Notes:
• After ejecting the disc, the unit reverts to
other mode automatically.
• You can eject a disc when the unit powered
off. The unit remains off after the disc
ejected.
• If the disc is not removed from the unit
within 10 seconds, the disc will be reloaded
to prevent accidental damage.
Using the touch screen controls
The touch key areas for CD/VCD/DVD
playback are outlined below:
A - Turn to main source menu
B - Display on screen control menu
Disc Playback
1. When disc inserted, display shows “READ”.
For MP3 or disc with mixed files, reading
time may exceed 1 minute.
2. “ERROR” will be displayed if error found in
disc operation.
3. While CD/MP3/WMA files playback, CD/
MP3/WMA playback menu will appear on
the display.
4. For DVD, DVD icon will appear on the
display and TITLE appears. Press [ ] to
play.
5. For VCD, VCD icon will appear on the
display.
6. When video disc is playing, touch the
screen, some touch keys will appear.
File type supported
Audio le: MP3(*.mp3), WMA(*.wma)
Video le:
MP4 (*.avi)
MPEG 2 (*.vob)
MPEG 1 (*.dat)
Picture le: JPEG (*.jpg)
MP3 le:
ISO 9660 or ISO 9660 + Joliet format - Max.
30 characters.
Max. nested directory is 8 levels.
The max. album number is 99.
The max. length of each track is 99 minutes
59 seconds.
Supported sampling frequency for MP3 disc:
8KHz to 48KHz (44.1KHz preferably).
Supported bit-rates of MP3 disc are: 32 - 320
kbps (128 kbps preferably).
Disc and le NOT supported
*.AAC, *.DLF, *.M3U, *.PLS, MP3 PRO files
and les with DRM.
Open session discs.
Stop playback temporarily
- During playback, press [ ] to pause
playback.

10
- The sound will be muted.
- Display “PAUSE” in the TV screen.
Press [ ] again to continue playback.
To resume normal play, repeat the
operation.
Stop playback entirely
During DVD, VCD, CD, MP3 playback:
1. Press [ ] key on remote control once
stopping the playback and the relevant
location on the disc is saved, press [ ] to
resume the playback from the saved disc
location.
2. Press [ ] twice to cease the playback.
Press [ ] to start the playback from the
very beginning the Title page of the DVD or
the first track of VCD / CD.
Select desired track
- Press [ / ] to skip to the next track.
- Use 1-9 and 0, 10+ buttons on the remote
control to select desired track number.
Fast forward/backward during
playback
Press [ / ] for more than 2 seconds
repeatedly to select X2, X4, X8, X20 to fast
backward or forward track during playback.
- During the fast forward or backward
operation, press [ ] briefly to playback
again.
- During the fast forward or backward
operation, the volume will be muted.
Random track playback (for CD/
VCD/MP3 Only)
You can play all the tracks in random order.
1. During playback, press [ ].
- “SHUFFLE“ appears on the display.
2. Pr es s [ ] again to select normal
playback.
Repeat
During playback, press [ REPT ] or [ ]
repeatedly.
- RPT icon will appear on the display.
- For VCD/CD: Display appears REP 1
REP ALL OFF
- For DVD: Display appears CHAPTER
TITLE REP ALL OFF
- For File disc: Display appears REP 1 REP
DIR REP ALL OFF
Note:
If you do not select REP on, when the entire
disc or TITLE playback has finished, the
system will stop. If no other control, after 5
minutes the unit will turn into standby mode.
Repeat A - B
Select desired passage to repeat playback.
- Press A - B once to select starting point
Display shows “REPEAT A”.
- Press A - B again to select ending point.
Display shows “REPEAT A - B”, and selected
passage start to replay.
- Press A - B once again to exit. Display shows
“A - B CANCEL”.
GOTO
Goto desired track/chapter or time point
directly.
Press [ GOTO ] button on the remote control,
track or DVD Title/Chapter and time display on
top of the screen. Current item is highlighted.
Use [ / ] to select desired item. Use
digit button to select number. Press [OK] to
conrm.
Program
- Press [ PROG ] to enter program list. Use
[ / ] or [ / ] cursor and digit button to
enter number.
Disc Operation (continued)

11
Disc Operation (continued)

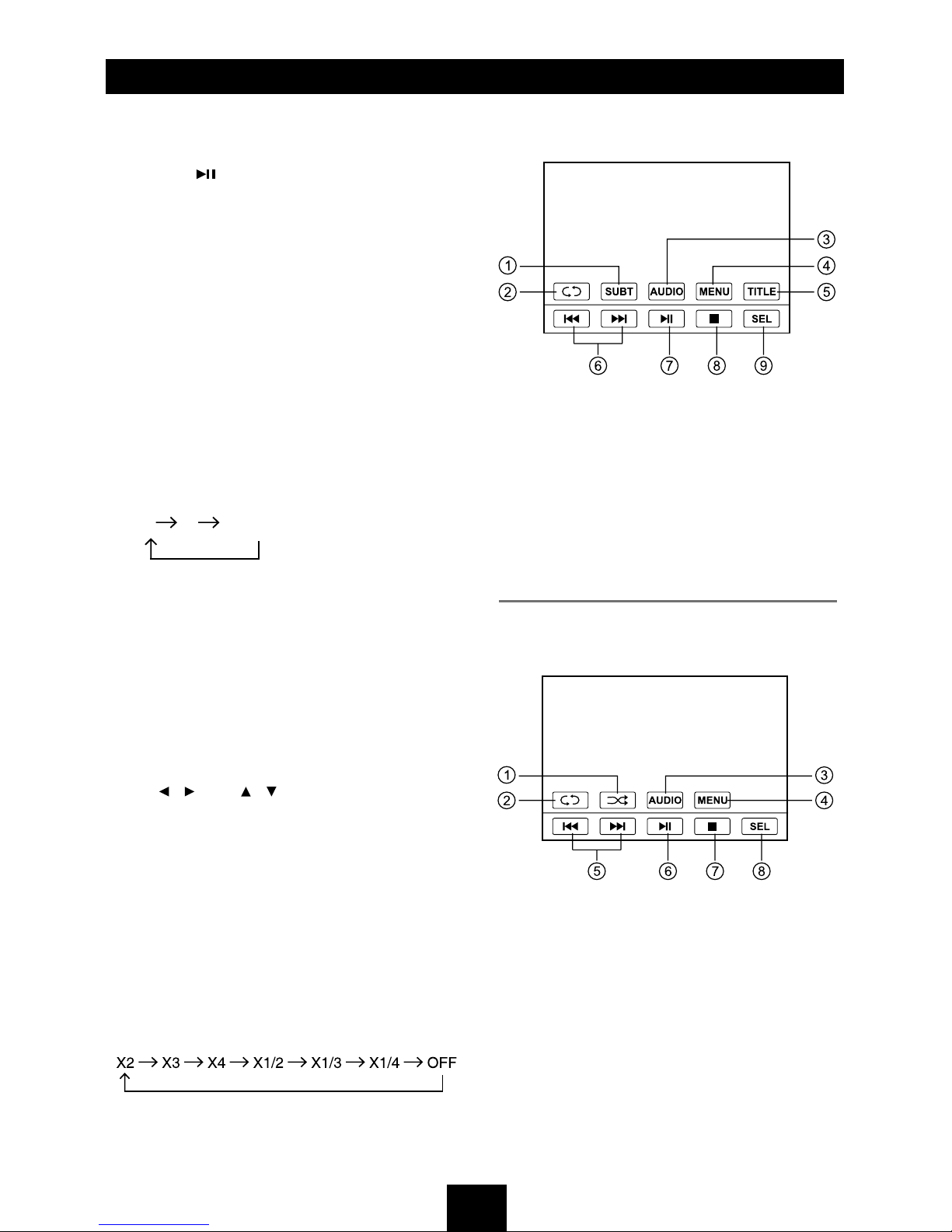

DVD Playback Menu
While playback touch the center of the screen:
Touch the icon to access desired function.
1. Subtitle select
2. Repeat playback
3. Audio select
4. Menu play
5. Select title
6. Track skip/seek
7. Play/Pause
8. Stop
9. Display audio/video setting menu
Video VCD Playback Menu
While playback touch the center of the screen:
Touch the icon to access desired function.
1. Random play
2. Repeat play
3. Audio select
4. Menu play
5. Track skip/seek
6. Play/Pause
7. Stop
8. Display audio/video setting menu
For DVD and File disc, select title and
chapter number.
For VCD and CD, select track number.
- Press [ ] to play, or move the cursor to
select “PLAY” and press [ OK ] to play.
- If you want to delete the list, move the
cursor to “CLEAR”, press [ OK ] to delete
all the list set before.
- Press [ PROG ] again to exit program play.
DVD Audio Select
Press [ AUDIO ] to select audio language to
listen if the DVD has multiple audio languages.
VCD Audio Select
Press [ AUDIO ] to select audio channel to
listen.
L R Stereo
DVD Subtitle Select
Press [ SUBTITLE ] to select the subtitle
language to show if the DVD has multiple
language subtitles.
DVD Title Select
Press [ TITLE ] to display title or chapter list,
use [ / ] or [ / ] cursor or digit number
to select, press [ OK ] to play.
DVD Angle Select
Press [ ANGLE ] to select different angle to
view if the DVD has multiple-angle views.
ZOOM
Press ZOOM button, the picture will be
zoomed accordingly.

12
MP3/MP4/PHOTO Menu
DISC
Mariah Carey
No fatman scoop
It’s Like That
3:02 13:04
CD/MP3/MP4/PHOTO Menu
While playback touch the center of the screen:
MP3
Hero.mp3
Long night.mp3
All
Leave me alone
When I’m gone
1. Display source menu
2. Display audio/video setting menu
3. Current time
4. Folder/le list
5. Repeat playback
6. Previous/next page
7. Random play
8. Play/Pause
9. Stop
10. Show audio le
11. Show video le
12. Show photo le
13. back to up folder
14. Show next menu
Disc Operation (continued)
15. Current track number/total track number
16. Playback information
17. Track skip/seek
18. Play/Pause
19. Stop
20. Show previous menu
PHOTO Intro Menu
While intro photos, touch the center of the
screen:
Touch to access desired function.
1. Rotate the picture anticlockwise/clockwise.
2. Mirror the picture vertically/horizontally
3. Zoom
4. Previous/next picture
5. Play/Pause
6. Stop
7. Display audio/video setting menu

13
Tuner Operation
Radio Menu
Touch to access desired function:
1. Display source menu
2. Display audio/video setting menu
3. Current time
4. Tuner information
5. Touch to tune automatically.
Press mo re t ha n 2 se conds to tune
manually.
6. Select previous/next preset station.
7. Show next menu
RADIO
RADIO
8. Tuner information
9. Preset stations
10. Touch to tune automatically.
Press more than 2 seconds to tune
manually.
11. Band switch
12. Auto search and store stations
13. Show previous menu
RDS Basics
RDS service availability varies with areas.
Please understand if RDS service is not
available in you area, the following service is
not available.
AF Mode
AF (Alternative Frequency): When the radio
signal strength is poor, enabling the AF
function will allow the unit to automatically
search another station with the same PI
(program identication) as the current station
but with stronger signal strength.
Touch [ ] button on the source menu to
enter the unit system setup menu, touch
[Radio] to enter radio setting menu, then
select AF on or off.
AF ON: AF function is activated.
AF OFF: AF function is disabled.
Remark: AF indicator on LCD will ash until
RDS information is received. If RDS service
is not available in your area, turn off the AF
mode.
TA Mode
Some RDS FM stations periodically provide
trafc information.
TP (Trafc Program Identication)
Broadcasting of trafc information
TA (Trafc Announcements Identication)
Radio announcements on trafc conditions
Touch [ ] button on the source menu to
enter the unit system setup menu, touch
[Radio] to enter radio setting menu, then
select TA on or off.
When TA mode is turned on, the TA indicator
will blink.
When trafc announcement is received, the TA
indicator will display. The unit will temporarily
switch to the tuner mode (regardless of the
current mode) and begin broadcasting the
announcement at TA volume level. After the
traffic announcement is over, it will return to
the previous mode and volume level. When
TA is turned on, SEEK, SCAN, AMS function
can only be received or saved when traffic
program identication (TP) code is received.

14
TA SEEK/TA ALARM
Touch [ ] button on the source menu to
enter the unit system setup menu, touch
[Radio] to enter radio setting menu, then
select TA Seek or TA Alarm.
If the TA (Trafc Announcements) is turned on
and there is no traffic program identification
code received in the specied time, no TA/TP
will display and either TA ALARM or TA SEEK
will be activated.
TA ALARM mode: Alarm is turned on.
TA SEEK mode: TA SEEK is automatically
activated.
TA VOL
Touch [ ] button on the source menu to
enter the unit system setup menu, touch
[Radio] to enter radio setting menu, then touch
/ to adjust TA volume.
REG Mode
Touch [ ] button on the source menu to
enter the unit system setup menu, touch
[Radio] to enter radio setting menu, then
select REG on or off.
REG ON: AF function will implement the
regional code (of the PI) and only stations in
the current region can be tuned automatically.
REG OFF: AF function will ignore the regional
code (of the PI) and stations in the other
regions can also be tuned automatically.
EON (Enhanced Other Networks)
When EON data is received, the EON
indicator lights and the TA and AF functions
are enhanced.
TA: Traffic information can be received from
the current station or stations in other network.
AF: The frequency list of preset RDS stations
is updated by EON data. EON enables the
radio to make fuller use of RDS information.
It constantly updates the AF list of preset
stations, including the one that currently tuned
into. If you preset a station around the area at
your home, you will later be able to receive the
same station at an alternative frequency, or
any other station serving the same program,
EON also keeps track of locally available TP
stations for quick reception.
Tuner Operation (continued) Bluetooth Operation
Note:
For your safety, avoid talking on the phone as
much as possible while driving.
Bluetooth is a wireless transmission way
for short distance. The built-in Bluetooth
can connect with the mobile phones having
Bluetooth function.
After connecting, you can control your mobile
phone through the unit.
Pairing
Use this function to establish a connection
between the unit and your mobile phone.
Press the SRC button repeatedly on the panel
or touch BT on the source menu to enter
Bluetooth mode.
BT
10
11
1. Display source menu
2. Display audio/video setting menu
3. Current time
4. BT information
5. Display LOG menu
6. Previous track
7. Play/Pause
8. Next track
9. Keypad
10. Terminate call
11. Dial
Turn on Bluetooth function of your mobile
phone, keep phone within 3 meters to the unit
and start to search for Bluetooth devices.
After the name of the Bluetooth module “AVM-
56270BT” appears on the pairing list of your
mobile phone, select it. At this time, a pairing
code is required. Enter the pairing code
(“1234” by default) and the Bluetooth pairing
will process automatically. Some mobile

15
Bluetooth Operation (continued)
phones may instruct you to select connect or
disconnect, please select connecting.
After pairing successfully, the Bluetooth icon
lights up. Touch and hold button to
disconnect.
Dial
KEY PAD
13800138000
123
456
789
*
0#
1. Touch to open keypad, input dial
number by the number buttons, touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to erase previous number. Touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to conrm and dial out.
2. Touch or press key on the
remote control to cancel.
3. At BT main menu, touch to dial out
the last dialled number.
Receive
1. After pair successfully, if there is a call
incoming, the unit switch to BT mode
automatically.
2. Touch or press key on the
remote control to receive.
3. Touch or press key on the
remote control to hang up.
History
After pair successfully, touch
BT
10
11
to open
LOG menu.
LOG
Phone book
SIM Phonebook
10. Dial
11. Page up
12. Page down
13. Phone book
14. Received calls
15. Dialled numbers
16. Missed calls
17. Show previous menu
BT MENU General Operation
Press the [SRC] button on the panel or touch
top left of the screen to enter source menu,
touch [ ] button to enter the unit system
setup menu, then touch BT to enter BT setting
menu.
1. Pair On/Off
Set the automatically pair on or off. If select
On, the unit will pair automatically.
2. Auto Connect On/Off
Set the automatic connection on or off.
When Auto Connect On and Paired OK, if the
distance is over 10 metres, the connection
will exit. The Bluetooth technology will
automatically establish a connection between
the unit and the registered mobile phone when
the transmission distance is 10 metres or
shorter.
When Auto Connect Off and Paired OK, if the
distance is over 10 metres, the connection
will exit. The Bluetooth technology will not
automatically establish a connection between
the unit and the registered mobile phone when
the transmission distance is 10 metres or
shorter.
Whether the automatic connections is set ON
or OFF, when power is off then on again, the
unit Bluetooth will connect the mobile phone
(if the Bluetooth function turning on) which is
paired OK last time.
3. Auto Answer On/Off
Set the automatic answering a call ON/OFF.
When Auto Answer On and Paired OK, if there
is an incoming call, in 15 seconds, the unit
will answer automatically, and voice will be
transferred to the unit too.
When Auto Answer Off and Paired OK, if there
is an incoming call, the unit will not answer
automatically until you choose receiving or
rejecting.

16
AV mode
External peripheral devices with RCA audio
and video outputs can be connected with the
unit.
For more details, please refer to < Electrical
Connections Overall Diagram >.
Other ModeTV Operation
Select TV mode
Press SRC button repeatedly or select TV at
source menu to switch to TV mode.
Touch the center of the screen to display the
control button.
Automatic tuning
Touch [ ] or [ ] on the screen, the
automatic tuning will start.
Manual tuning
Press [ ] or [ ] button on the remote
control to tune upward or downward step by
step.
Adjust the Preset at TV Setting
menu
Touch [AMS] on the screen to search
available TV channels and store 18 channels
with the strongest TV signal automatically.
Change TV channel
Touch / on the screen to select the
previous/next stored TV channel.
Change TV video format
Press the [SRC] button on the panel or touch
top left of the screen to enter Source menu,
touch [ ] button to enter the unit system
setup menu, then touch TV to enter TV setting
menu.
Touch / to choose TV Video format.

17
System Setup
Audio/Video Setting
You have 2 methods to enter audio/video
setting menu.
Method 1: Touch SEL on the TFT.
Method 2: Press the SEL button on the
remote control.
1. Touch [ / ] button on the TFT to adjust
Bass/Middle/Treble.
2. Touch [ / ] on the TFT to select preset
EQ.
3. Touch to access EQ setting menu.
4. Touch to access Fader/Balance menu, then
touch [ / / / ] on the TFT to adjust.
5. Touch to access Video setting menu, then
touch [ / ] button on the TFT to adjust
brightness, Contrast/Colour/Dimmer of the
TFT.
6. Touch to exit audio/video setting menu and
return to previous mode.
SETUP Menu
You have 3 methods to enter setup menu.
Method 1: Select on the source menu
Method 2: Press the VOL knob more than 2
seconds.
Method 3: Press the SETUP button on the
remote control.
12H 24H
R
22
BT TV OTHER
BT
Pair
AutoConnect
Auto Answer
Reset
12
1. Display source menu
2. Current time
3. Adjustable options
4. Page up/down
5. Touch to access general setting options
6. Touch to access language setting options
7. Touch to access DVD setting options
8. Touch to access radio setting options
9. Touch to show next page of setting menu
10. Touch to access BT setting options
11. Touch to access other setting options
12. Touch to show previous page of setting
menu
General Setting
Beep: On, Off
Touch [On] or [Off] to select beep sound on or
off.
Loudness: On, Off
Touch [On] or [Off] to select loudness on or
off.
Time Mode: 12H, 24H
Touch [12H] or [24H] to select 12 or 24 hour
time format.
Time Adjust:
12H 24H
R
22
02:20
Touch left side of
12H 24H
R
22
02:20 to active hour setting,
touch
12H 24H
R
22
/
12H 24H
R
22
to adjust. Touch right side of
12H 24H
R
22
02:20 to active minute setting, touch
12H 24H
R
22
/
12H 24H
R
22
to adjust.
Subwoofer: Off, 80Hz, 120Hz, 160Hz
Touch [Off] to turn off the subwoofer, touch
[80Hz], [120Hz] or [160Hz] to set subwoofer
frequency.

18
System Setup (continued)
Subw Volume: ,
When the subwoofer on, touch [ ] / [ ] to
adjust subwoofer volume.
Mirror: On, Off
Touch [On] or [Off] to select mirror or normal
display.While enter MIRROR IMAGE ON
mode, the video of camera is mirror image.
Parking: On, Off
Touch [On] or [Off] to turn on or off the parking
mode. At PARKING ON mode, play video
disc, the screen appears blank screen.
Language Setting
OSD Language
Audio Language
Subtitle Language
Menu Language
Touch the language to the right of the option
to show all the optional languages, touch to
select. Touch
BT TV OTHER
BT
Pair
AutoConnect
Auto Answer
Reset
12
to return to previous menu
without any modication.
If the DVD disc has the audio file in the
selected language, the dialogues you listened
to will be in the selected language.
If the DVD disc does not contain the audio le
in the selected language, the dialogues you
listened to will be in the default language.
You can change the language by pressing
[AUDIO] key of the remote controller.
DVD Setting
TV System: NTSC, PAL, Auto
Touch [NTSC], [PAL] or [Auto] to select TV
system.
TV Type: 4:3PS, 4:3LB, 16:9
Touch [4:3PS], [4:3LB] or [16:9] to select TV
type to watch wide screen movies.
4:3 Pan Scan: For 4:3 TV, left and right edges
will be cut.
4:3 Letter Box: For 4:3 TV, black bars will
appear on top and bottom.
16:9: For 16:9 wide screen TV.
Password: Set
Touch [Set] to open keypad, enter rating
password by the number buttons. Touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to erase previous number. Touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to confirm. The original password is
“0000“.
After you enter the password, [UNLOCK]
appears on the screen, now you can adjust
the rating level. If you want to [LOCK] it, enter
a 4-digit password in the keypad.
Rating: ,
Touch [ ] / [ ] to select a rating level.
The rating of the disc is from 1 to 8:
(1) with the most limits when playing.
(8) with the least limits when playing.
Original setting: 8
Brightness: ,
Touch [ ] / [ ] to set brightness of the video
output.
Contrast: ,
Touch [ ] / [ ] to set contrast of the video
output.
Hue: ,
Touch [ ] / [ ] to set hue of the video output.
Saturation: ,
Touch [ ] / [ ] to set saturation of the video
output.
Default: Restore (only DVD)
Touch [Restore] to load original setting.
Radio Setting
LOC_DX: LOC, DX
Touch [LOC] or [DX] to select radio local or
distant.
LOC: Only stations with strong signal can
be broadcast.
DX: Stations with strong and weak signals
can be broadcast.
Stereo_Mono: Mono, Stereo
Touch to select FM stereo or mono.

19
System Setup (continued)
AF: On, Off
Touch [On] or [Off] to select alternative
frequency on or off.
TA: On, Off
Touch [On] or [Off] to select traffic
announcement on or off.
TA mode: Seek, Alarm
Touch [Seek] or [Alarm] to select traffic
announcement’s active mode.
REG: On, Off
Touch [On] or [Off] to select whether identify
the regional code when tuning.
RDS CT: On, Off
Touch [On] or [Off] to select whether
synchronize clock time with the signal source.
BT Setting
Pair: On, Off
T o u c h [ O n ] o r [ O f f ] t o c h o o s e p a i r
automatically on or off.
Auto Connect: On, Off
Touch [On] or [Off] to choose connect
automatically on or off.
Auto Answer: On, Off
Touch [On] or [Off] to choose answer
automatically on or off.
PIN Code: Set
Touch [Set] button to open keypad, then
set the bluetooth password by the number
buttons. Touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
the erase previous
number. Touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to conrm .The original
password is “1234”.
To reset the password, you should enter
the original password first, then input a new
password, touch
KEY PAD
13800138000
12 3
4 56
7 89
*
0 #
to conrm, input the
password again to conrm.
Other Setting
SWC (Steering Wheel Control)
refer to <Basic Operations>.
TS: Adjust
Touch [Adjust] to calibrate the screen.
When the touch operation is not sensitive or
valid, you should calibrate the touch screen
through “TS Calibrate” function.
