SERVICE MANUAL
TV-32082 A
Design and specifications are subject to change without notice.
32" LCD COLOUR TELEVISION
ORIGINAL
MFR’S VERSION A

SERVICING NOTICES ON CHECKING
1. KEEP THE NOTICES
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
3. USE THE DESIGNATED PARTS
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
5. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
PERFORM A SAFETY CHECK AFTER
SERVICING
6.
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal:
A1-1
4. BE CAREFUL WITH THE
LCD PANEL
Avoid a shock to the panel while servicing.
Take enough care to deal with it.
When you exchange IC and Transistor with a heat sink, apply silicon grease (YG6260M) on the contact
section of the heat sink. Before applying new silicon grease, remove all the old silicon grease.
(Old grease may cause damage to the IC and Transistor).
IMPORTANT
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODER NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOW TO ORDER PARTS
Antenna terminal
Headphone jack

PCBs (manufactured) using lead free solder will have a PbF printing on the PCB.
(Please refer to figures.)
Caution:
Pb free solder has a higher melting point than standard solder;
Typically the melting point is 86°F~104°F(30°C~40°C) higher.
Please use a soldering iron with temperature control and adjust it to 650°F ±20°F (350°C ±10°C).
In case of using high temperature soldering iron, please be careful not to heat too long.
Pb free solder will tend to splash when heated too high (about 1100°F/ 600°C).
All products with the printed circuit board with PbF printing must be serviced with lead free solder.
When soldering or unsoldering, completely remove all of the solder from the pins or solder area,
and be sure to heat the soldering points with the lead free solder until it melts sufficiently.

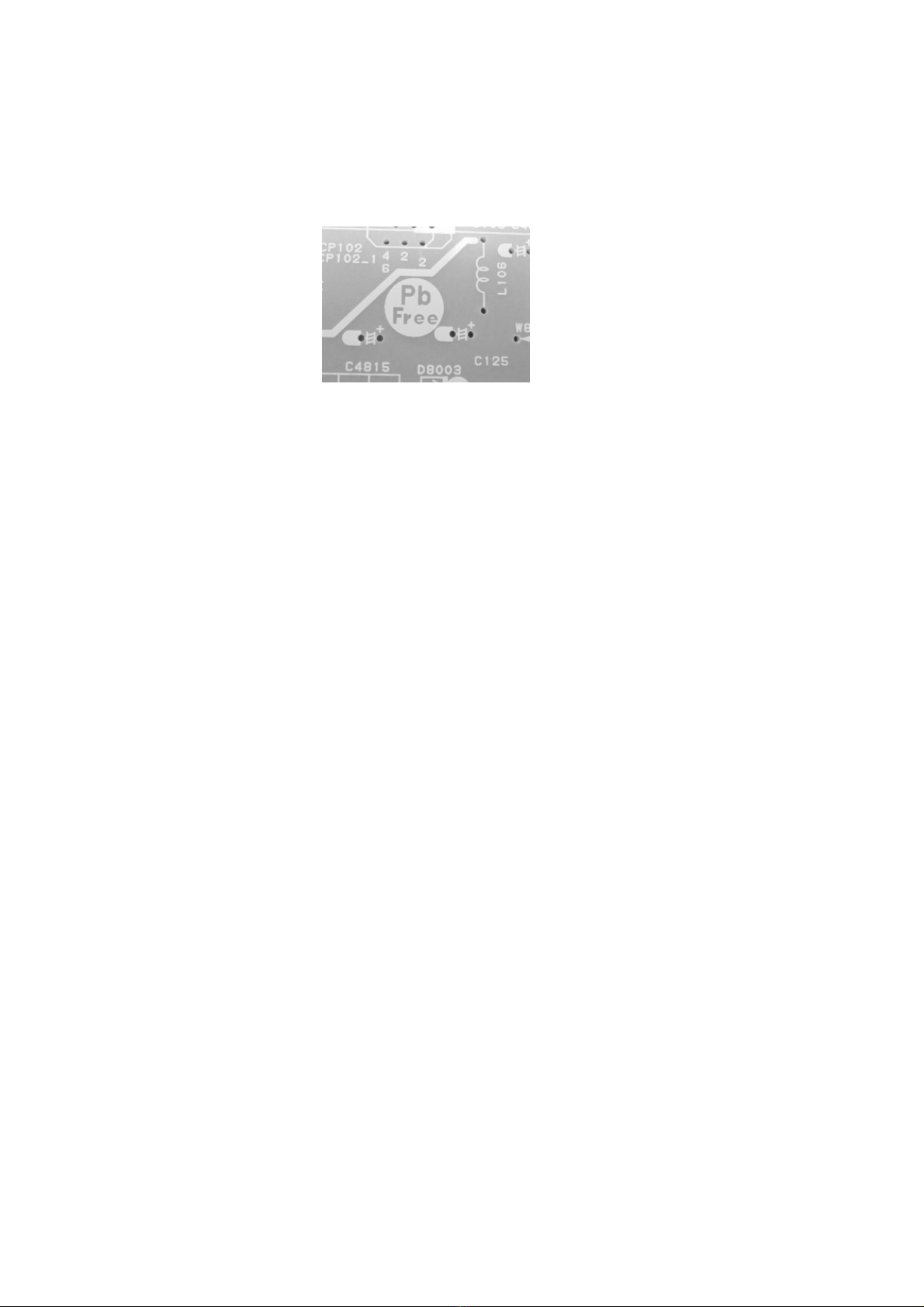

Distinction of PbF PCB:
Recommendations
Recommended lead free solder composition is Sn-3.0Ag-0.5Cu.
ABOUT LEAD FREE SOLDER (PbF)
•
•
•
A1-2

CONTENTS
A2-1
SERVICING NOTICES ON CHECKING .......................................................................................................
HOW TO ORDER PARTS .............................................................................................................................
IMPORTANT .................................................................................................................................................
ABOUT LEAD FREE SOLDER (PbF) ..........................................................................................................
CONTENTS ...................................................................................................................................................
GENERAL SPECIFICATIONS ....................................................................................................................
DISASSEMBLY INSTRUCTIONS ...............................................................................................................
SERVICE MODE LIST ..................................................................................................................................
WHEN REPLACING EEPROM (MEMORY) IC ............................................................................................
ELECTRICAL ADJUSTMENTS ....................................................................................................................

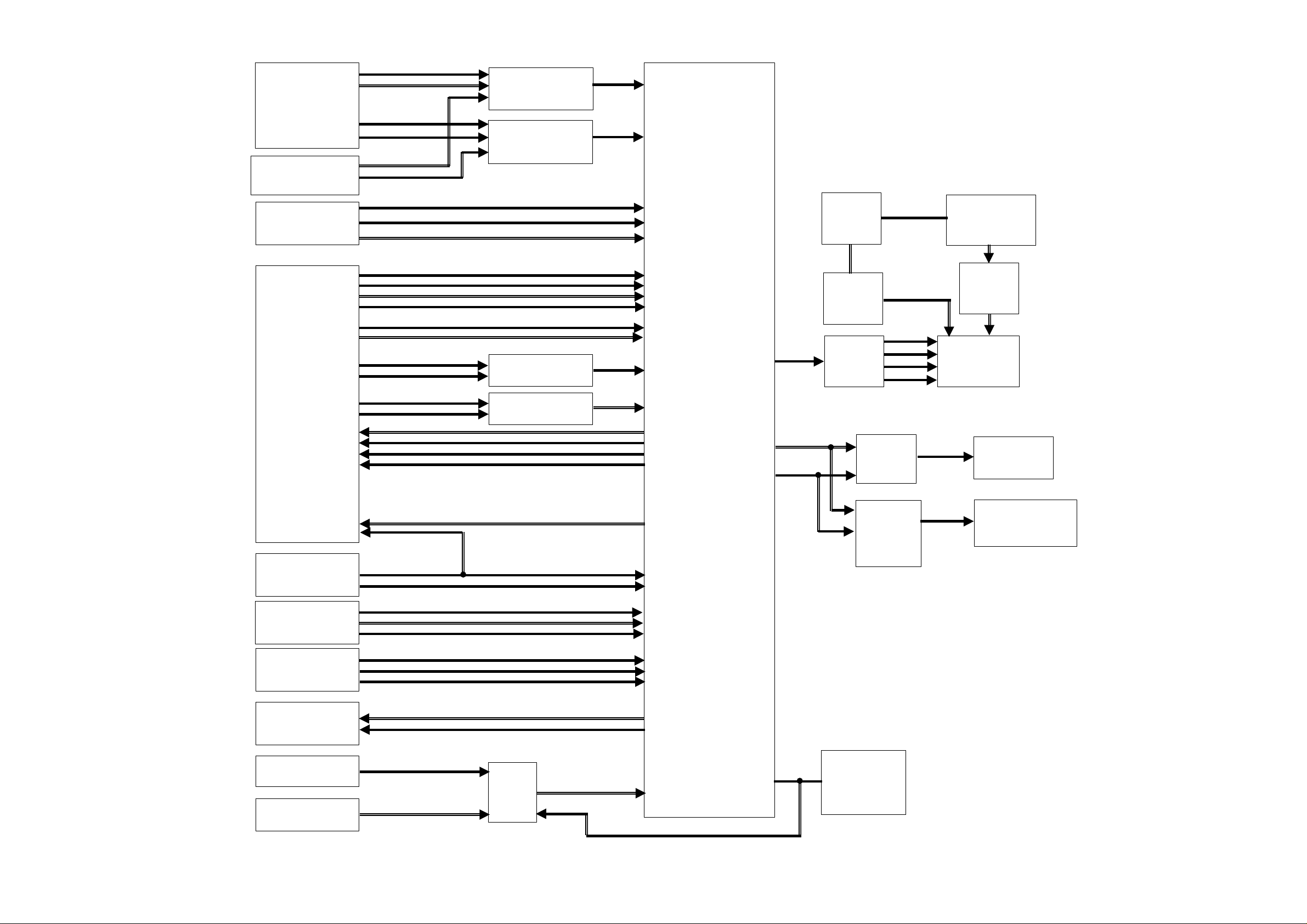

BLOCK DIAGRAM
MAIN .........................................................................................................................................................

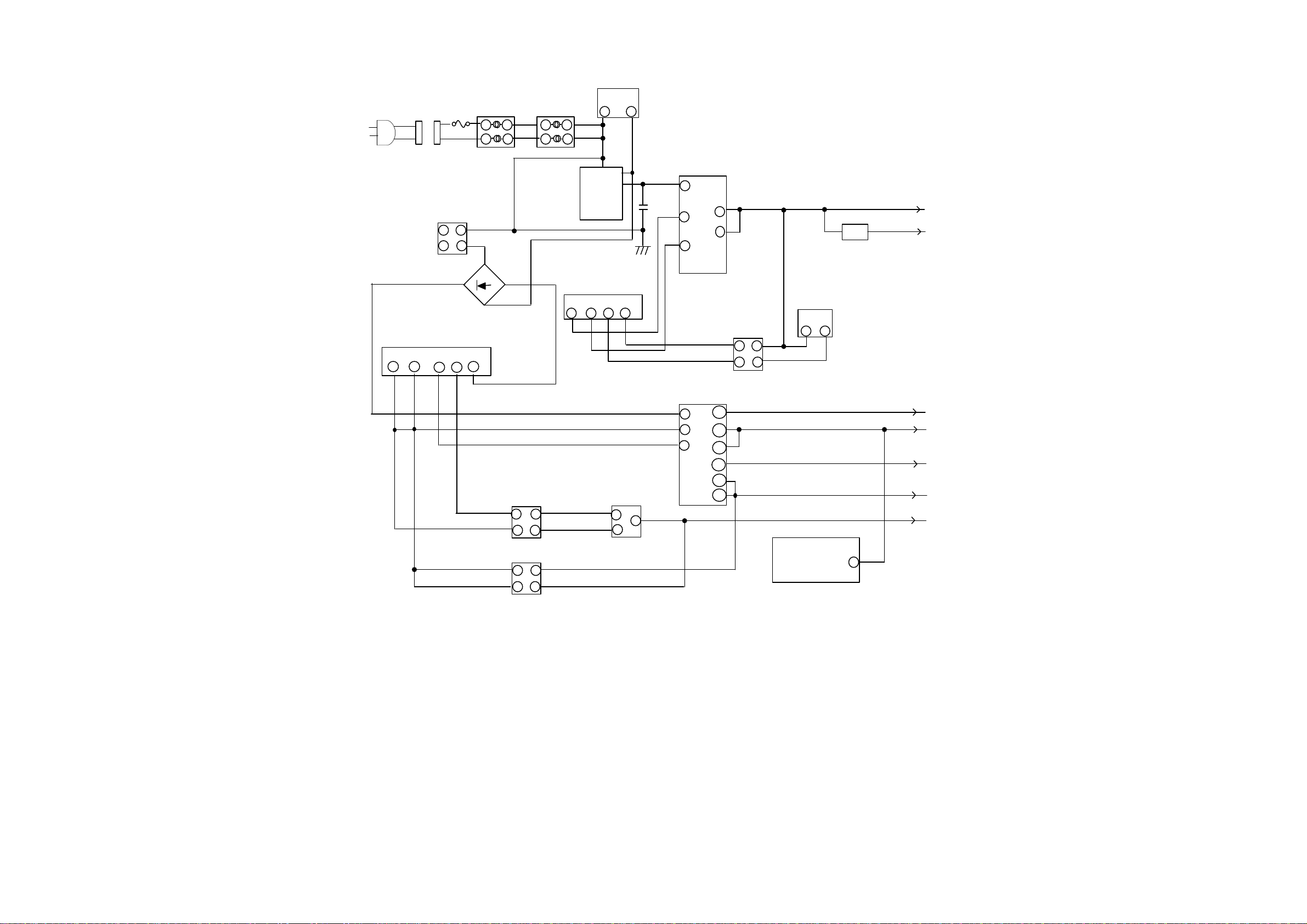

POWER ....................................................................................................................................................
PRINTED CIRCUIT BOARDS
MAIN .........................................................................................................................................................
POWER/OPERATION/REMOCON ..........................................................................................................
SCHEMATIC DIAGRAMS
21PIN ........................................................................................................................................................
POWER3 ..................................................................................................................................................
REGULATOR ...........................................................................................................................................
AV JACK/SWITCH ...................................................................................................................................
SOUND AMP/HEADPHONE AMP ...........................................................................................................
TUNER .....................................................................................................................................................
SCALER ...................................................................................................................................................
SUB MICON/RS-232C .............................................................................................................................
INTERFACE_HDMI IC .............................................................................................................................
JACK .........................................................................................................................................................
PANEL INTERFACE ................................................................................................................................
TIMING CONTROLLER ..........................................................................................................................
TIMING CONTROLLER2 .........................................................................................................................
TIMING CONTROLLER3 ........................................................................................................................
POWER ....................................................................................................................................................
POWER2 ..................................................................................................................................................
BACK LIGHT INVERTER ........................................................................................................................
BACK LIGHT INVERTER2 .......................................................................................................................
OPERATION/REMOCON .........................................................................................................................

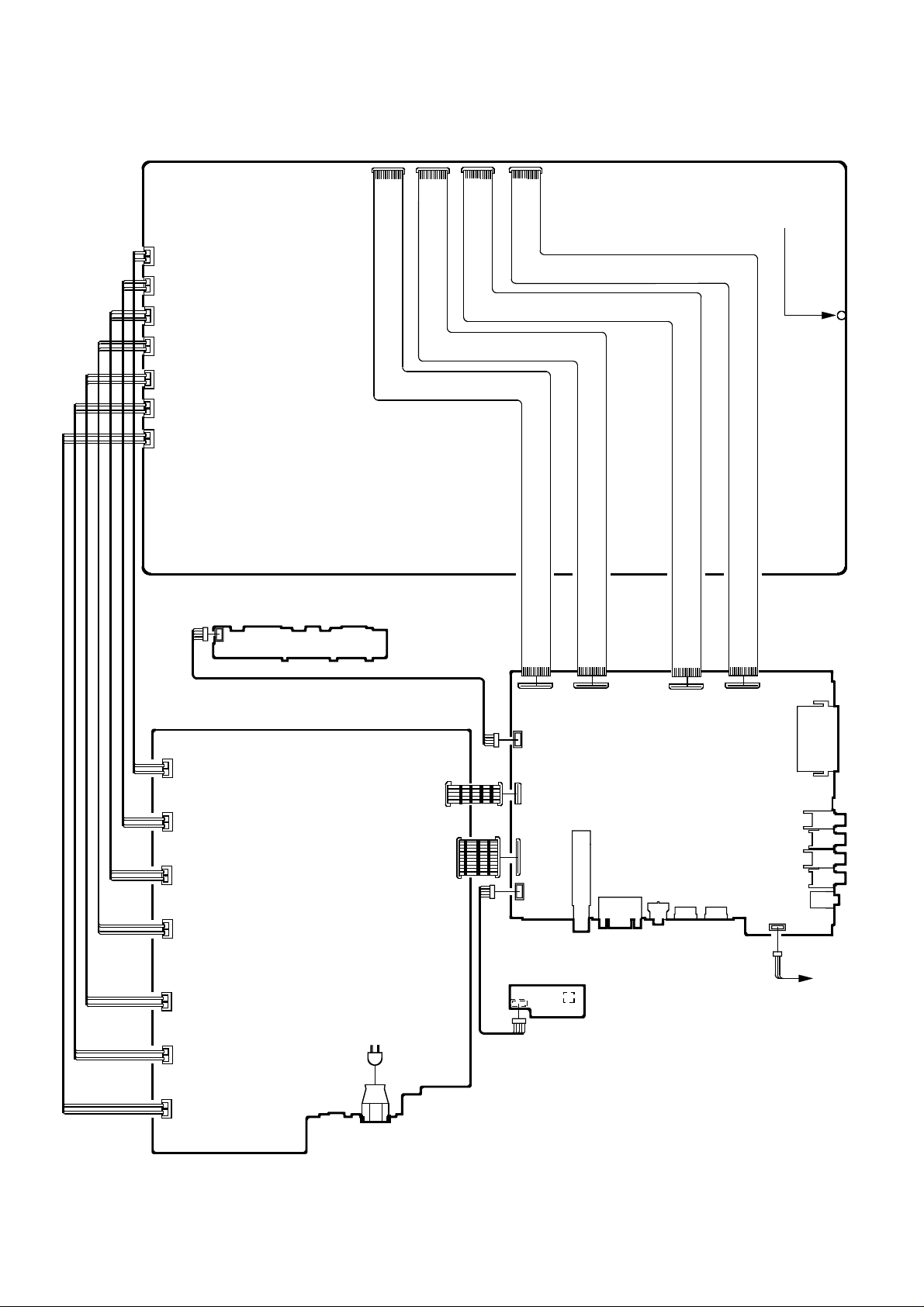

INTERCONNECTION ....................................................................................................................................
WAVEFORMS ...............................................................................................................................................
MECHANICAL EXPLODED VIEW ...............................................................................................................
MECHANICAL REPLACEMENT PARTS LIST ............................................................................................
ELECTRICAL REPLACEMENT PARTS LIST .............................................................................................
A1-1
A1-1
A1-1
A1-2
A2-1
A3-1~A3-5
B-1, B-2
C-1
C-2
D-1~D-7
E-1, E-2
E-3, E-4
F-1~F-4
F-5~ F-8
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
G-11, G-12
G-13, G-14
G-15, G-16
G-17, G-18
G-19, G-20
G-21, G-22
G-23, G-24
G-25, G-26
G-27, G-28
G-29, G-30
G-31, G-32
G-33, G-34
G-35, G-36
G-37, G-38
G-39, G-40
H-1, H-2
I-1, I-2
J1-1
J2-1~J2-6

GENERAL SPECIFICATIONS
G-1 TV LCD LCD Size / Visual Size 31.5 inch / 800.4mmV
System LCD Type Color TFT LCD
Number of Pixels 1366(H) x 768(V)
View Range Left/Right 88/88 degree
Up/Down 88/88 degree
Bright Dot
n=2(not allowed in Central Area)
Zero Bright Dot Ratio 70% above
Color System PAL / SECAM
Speaker 2 Speaker
Position Front
Size 2.2 x 5.0 inch
Impedance 4 ohm
Sound Output MAX 10W + 10W
10%(Typical) ---
NTSC3.58+4.43 /PAL60Hz Yes
G-2 Tuning Broadcasting System U.K., I.R., CCIR, FRENCH
System
B/G, D/K, I/I, L
System Tuner and System 1Tuner
Receive CH Destination UK, I.R., CCIR Hyper+France CATV
CH Coverage IreE2~E4, X~Z+2, S1~S10, E5~E12,S11~S41,E21~E69
Intermediate BG / II / DK, L / L' (SECAM
VL)
Frequency Picture(FP) 38.9 / 38.9 / 38.9 / 33.9MHz
Sound(FS) 33.4 / 32.9 / 32.4 / 40.4MHz
FP-FS 5.5 / 6.0 / 6.5 / 6.5MHz
Auto Tuning Method ALL Band (Not C.C.I.R. CH Plan)
Preset CH 99
Stereo/Dual TV Sound Nicam/A2 Dual
Tuner Sound Muting Yes
G-3 Power Power Source AC 220-240V AC 50Hz/60Hz
DC ---
Power Consumption at AC 170 W at AC 230 V 50 Hz
at DC --
Stand by (at AC) 1 W at 230V 50Hz
Per Year -- kWh/Year
Protector Power Fuse Yes
G-4 Regulation Safety CE(EN60065:2002)
Radiation CE
X-Radiation ---
G-5 Temperature Operation
+5
o
C ~ +40
o
C
Storage
-20
o
C ~ +60
o
C
G-6 Operating Humidity Less than 80% RH
G-7 OSD Language English, Spanish, German, French, Italian,
Swedish, Dutch, Russian, Portuguese,
Turkish, Greek, Finnish, Polish
G-8 Clock and Sleep Timer Max Time 120 Min
Timer Step 10 Min
On/Off Timer Program(On Timer / Off Timer) -- Program
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec
<
A3-1

GENERAL SPECIFICATIONS
G-9 Remote Unit RC-NW
Control Glow in Dark Remocon Yes
Remocon Format ORION
Format NEC
Custom Code 80-63 h
Power Source Voltage(D.C) 3V
UM size x pcs UM-3 x 2 pcs
Total Keys 33 Keys
Keys Power (Stand By) Yes
Display / (Status) Yes
Input Select Yes
Picture Size Yes
1Yes
2Yes
3Yes
4Yes
5Yes
6Yes
7Yes
8Yes
9Yes
0 Yes
Sleep Yes
Mute Yes
Volume Up /RIGHT Yes
Volume Down / LEFT Yes
CH Down No
CH Up No
Menu Yes
UP No
DOWN No
LEFT No
RIGHT No
Enter / CH List Yes
Exit Yes
Freeze frame No
T'TEXT Keys TEXT / TAP / TV Yes
Reveal / Skip No
Reveal Yes
Display Cancel No
HOLD / Freeze Yes
Red Yes
Green Yes
Yellow Yes
Cyan Yes
Normal No
F/T/B(Expand) Yes
F/T/B(Expand) / Normal No
Quick View No
Sub Page / Quick View Yes
Up/CH Up No
UP / CH Up / Page Up Yes
Down / CH Down No
DOWN / CH Down / Page Down Yes
Reset No
Audio 1/2 Yes
Reset / Audio 1/2 No
A3-2

GENERAL SPECIFICATIONS
G-10 Features Power On Memory No
Auto Shut Off Yes
Auto Search Yes
Just Clock Function No
Game Position No
DNR Yes
3D
Comb Filter Yes
3D
Auto Set Up (Fast installation) Auto tuning (Analog tuner) Yes
CH sort Yes
ATS Yes
Auto clock (Analog tuner) No
Plug in start (Analog tuner) Yes
Picture Setting(TV) Picture Preference Yes
Brightness , Contrast , Color Yes
Tint Yes
Sharpness Yes
DNR Yes
Color Temperature Yes
Blue Back Yes
Backlight Yes
Film Mode No
Picture Setting(PC) BRIGHTNESS , CONTRAST Yes
HOR POSITION , VER POSITION Yes
PHASE , CLOCK Yes
AUTO ADJUST No
RED , GREEN , BLUE Yes
Backlight Yes
WXGA INPUT Yes
WVGA INPUT No
Audio Nicam Yes
Tone Control (Bass/Treble/Balance) Yes
Surround Yes
BBE No
SRS WOW (SRS 3D/Focus/Tru Bass) No
Variable Audio Out Yes
Tuning Auto Tuning Yes
Manual Tuning Yes
CH Allocation Yes
Lock Panel Lock No
Channel Lock No
Hotel Lock No
Screen Saver Inversion No
Full White No
Screen Saver No
Static Image No
Black Side Panel No
CH Label Yes
T'Text Yes
Text type Fastext / Toptext
Text Language English , French, Swedish, Hungarian
Turkish, German, Portuguese, Spanish,
Italian, Greek, Slovakian, Russian, Polish,
Czech, Rumanian, Estonian, Lettish,
Lithuanian, Ukrainian, Croatian, Slovenian,
Latvian
Wide Mode (AUTO/4:3/FULL SCREEN/16:9/CINEMA/14:9) Yes
HD Zoom Yes
Picture Scroll (Vertical Position) Yes
PFC(Power Factor circuit) Yes
Freeze frame Yes (w/o 720p, 1080i)
HD-Ready Yes
Scart Spec Scart1 AV in Yes
AV out Yes (Tuner)
S-Video in No
RGB in Yes
Scart2 AV in Yes
AV out Yes (Tuner/Monitor)
S-Video in Yes
RGB in No
A3-3

GENERAL SPECIFICATIONS
PC Monitor Input Yes
VGA (640x480) Yes (60Hz)
VGA (720x400) Yes (70Hz)
WVGA (848x480) No
SVGA (800x600) Yes (60Hz)
XGA (1024x768) Yes (60Hz)
WXGA (1280x768) Yes (60Hz)
WXGA (1280x720) Yes (60Hz)
WXGA (1360x768) Yes (60Hz)
SXGA (1280x1024) No
HDMI Input Yes
VGA (640×480) Yes (60Hz)
720×480i (4:3) Yes (60Hz)
720×480i (16:9) Yes (60Hz)
720×480p (4:3) Yes (60Hz)
720×480p (16:9) Yes (60Hz)
720×576i (4:3) Yes (50Hz)
720×576i (16:9) Yes (50Hz)
720×576p (4:3) Yes (50Hz)
720×576p (16:9) Yes (50Hz)
1280×720p Yes (50/60Hz)
1920×1080i Yes (50/60Hz)
Component Input Yes
720×480i (4:3) Yes (60Hz)
720×480i (16:9) Yes (60Hz)
720×480p (4:3) Yes (60Hz)
720×480p (16:9) Yes (60Hz)
720×576i (4:3) Yes (50Hz)
720×576i (16:9) Yes (50Hz)
720×576p (4:3) Yes (50Hz)
720×576p (16:9) Yes (50Hz)
1280×720p Yes (50/60Hz)
1920×1080i Yes (50/60Hz)
G-11 Accessories Owner's Manual Language English
w/Guarantee Card Yes
Remote Control Unit Yes
Rod Antenna
No
Poles -
Terminal -
Loop Antenna (W/ Antenna Change Plug)
No
Terminal -
U/V Mixer
No
DC Car Cord (Center+)
No
Guarantee Card
No
Warning Sheet
No
Circuit Diagram
No
Antenna Change Plug
No
Service Facility List
No
Important Safeguard
No
Dew/AHC Caution Sheet
No
Quick Set-up Sheet Yes
Battery Yes
UM size x pcs UM-3 x 2 pcs
OEM Brand No
AC Adapter
No
AC Cord (for AC Adapter)
No
AC Cord Yes
AV Cord (2Pin-1Pin)
No
HDMI-DVI Cable
No
Registration Card
No
300 ohm to 75 ohm Antenna Adapter
No
Cable Clamp Yes
A3-4

GENERAL SPECIFICATIONS
G-12 Interface Switch Power (Tact) Yes
System Select No
Main Power SW No
Channel Up/Menu Up Yes
Channel Down/Menu Down Yes
Volume Up/Menu > Yes
Volume Down/Menu < Yes
Input Select/Enter Yes
Menu Yes
Indicator Power/Stand-by Yes(GREEN / RED)
On Timer No
Terminals Side Video Input 1 RCA x 1
Audio Input 1 RCA x 2(L/MONO, R)
S- Input 1 No
Video Input 2 No
Audio Input 2 No
S- Input 2 No
Video Output No
Audio Output RCA x 2(Variable) (L, R)
Other Terminal No
Euro Scart (21Pin) 2Scart
Component In Yes
Audio Input (Component In use) RCA x 2(L/MONO, R)
PC Monitor Input (D-Sub) No
Audio Input No
HDMI Input 1 No
Audio Input (HDMI/DVI In use) No
HDMI Input 2 No
Audio Input (HDMI/DVI In use) No
Sub Woofer Output No
Diversity No
Ext Speaker No
DC Jack 12V(Center +) No
VHF/UHF Antenna Input No
AC Inlet No
Other Terminal Headphone
Rear PC Monitor Input (D-Sub) Yes
Audio Input
Mini Pin Jack(
φ
3.5), STEREO
HDMI Input 1 Yes
Audio Input (HDMI/DVI In use) PC Monitor Audio Input Alternative
HDMI Input 2 Yes
Audio Input (HDMI/DVI In use)
Mini Pin Jack(
φ
3.5), STEREO
VHF/UHF Antenna Input DIN Type
AC Inlet Yes
G-13 Set Size Approx. W x D x H (mm) 822 x 282.5 x 604
w/o Stand,Handle Approx. W x D x H (mm) 822 x 116 x 556.5
G-14 Weight Net Approx. 14.1kg (31.1 lbs)
Net w/o Stand,Handle Approx. 12.8kg (28.2 lbs)
Gross Approx. 17.3kg (38.1lbs)
G-15 Carton Master Carton
No
Content ----
Sets
Material --
/--
Dimensions W x D x H(mm) -- x -- x --
Description of Origin
No
Gift Box Yes
Material Double/Brown
Dimensions W x D x H(mm) 917 x 340 x 720
Design As per Buyer's
Description of Origin
No
Drop Test Natural Dropping At 1 Corner / 3 Edges / 6 Surfaces
Height (cm) 62
Container Stuffing 261
Sets/40' container
w/Pallet No
w/Wrapping No
G-16 Material Cabinet Cabinet Front PS 94HB
Cabinet Rear PS 94HB
PCB Non-Halogen
No
Eyelet Yes
G-17 Environment Environmental standard requirement Green procurement of ORION
Pb- Free Phase3(PHASE3A)
Measures for Whisker Yes
WEEE
Yes
A3-5

B-1
Masking Tape
(Cotton Tape)
DISASSEMBLY INSTRUCTIONS
1.
REMOVAL
IC
Put Masking Tape (cotton tape) around the Flat Package
IC to protect other parts from any damage.
(Refer to Fig. 1-1.)
1.
Fig. 1-1
NOTE
REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.
NOTE
Masking is carried out on all the parts located within
10 mm distance from IC leads.
Blower type IC
desoldering machine
IC
Heat the IC leads using a blower type IC desoldering
machine. (Refer to Fig. 1-2.)
2.
Fig. 1-2
NOTE
Do not rotate or move the IC back and forth unit IC
can move back and forth easily after desoldering the
leads completely.
When IC starts moving back and forth easily after
desoldering completely, pickup the corner of the IC
using a tweezers and remove the IC by moving with the
IC desoldering machine. (Refer to Fig. 1-3.)
3.
Blower type IC
desoldering
machine
IC Fig. 1-3
Tweezers
Peel off the Masking Tape.4. Absorb the solder left on the pattern using the Braided
Shield Wire. (Refer to Fig. 1-4.)
5.
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Braided Shield Wire
Soldering Iron
Fig. 1-4
IC pattern

B-2

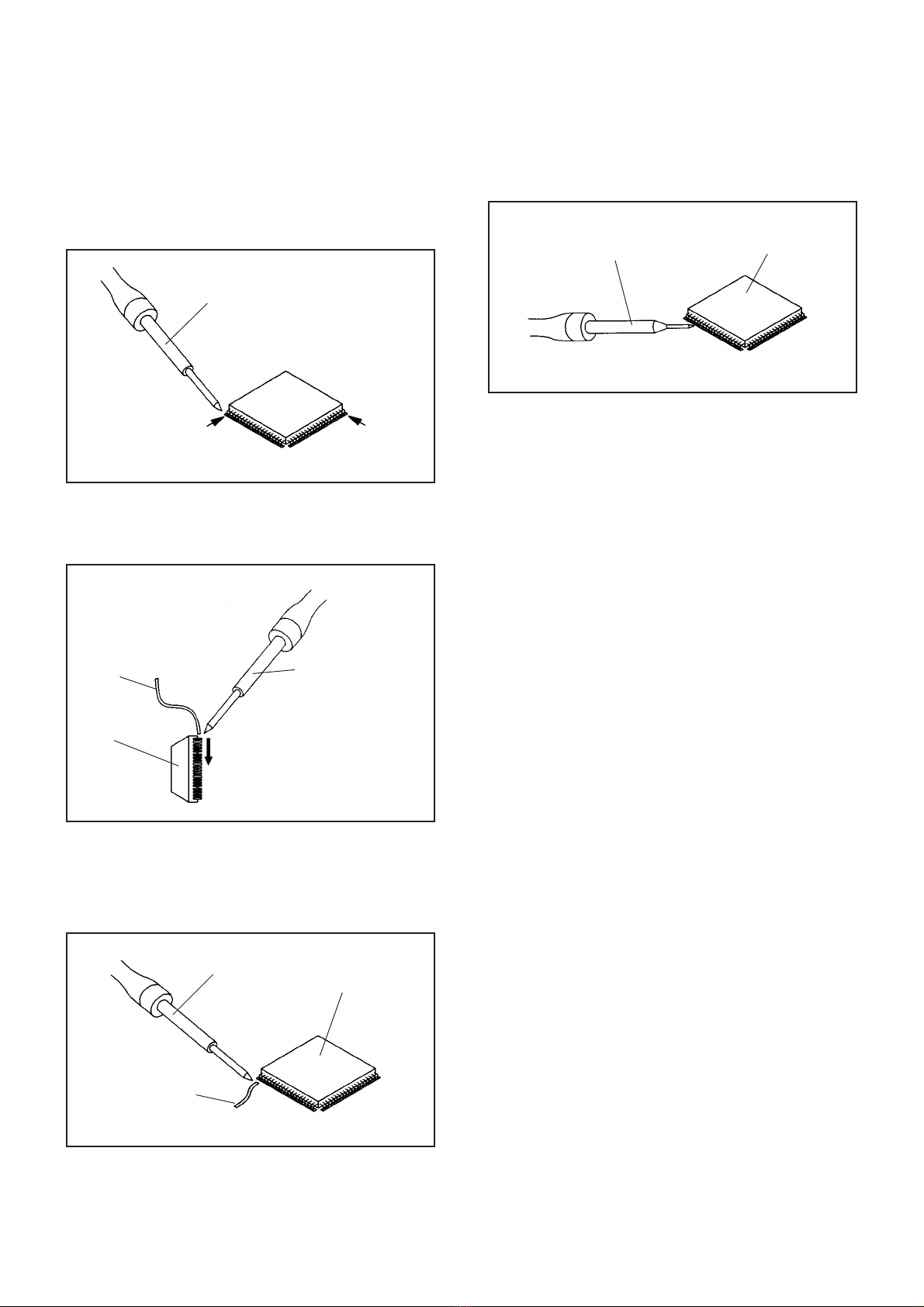

DISASSEMBLY INSTRUCTIONS
Supply soldering
from upper position
to lower position
IC
Supply the solder from the upper position of IC leads
sliding to the lower position of the IC leads.
(Refer to Fig. 1-6.)
2.
Fig. 1-6
Soldering IronSolder
IC
Absorb the solder left on the lead using the Braided
Shield Wire. (Refer to Fig. 1-7.)
3.
Fig. 1-7
Soldering Iron
Braided Shield Wire
NOTE
Do not absorb the solder to excess.
IC
When bridge-soldering between terminals and/or the
soldering amount are not enough, resolder using a Thin-
tip Soldering Iron. (Refer to Fig. 1-8.)
4.
Fig. 1-8
Thin-tip Soldering Iron
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.
Finally, confirm the soldering status on four sides of the
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.
5.
Solder temporarily
Soldering Iron
INSTALLATION
Take care of the polarity of new IC and then install the
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.
(Refer to Fig. 1-5.)
1.
Fig. 1-5
Solder temporarily

C-1
SERVICE MODE LIST
This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit and on the remote
control for more than the standard time in the appropriate condition. (See below chart.)
Set Key Operations
Remocon
Key
Standard
Time
Set
Condition
VOL. DOWN
(Minimum) 9 2 sec.
POWER ON
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT"
(On-Screen Display Adjustment).
Initialization of factory TV data.
NOTE: If you set factory initialization, the memories are reset
such as the channel setting, and the POWER ON total
hours.
VOL. DOWN
(Minimum) 1 2 sec.
POWER ON
Check of the SUM DATA and MICON VERSION on the screen.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
VOL. DOWN
(Minimum) 2 sec.
POWER ON 2
POWER ON total hours are displayed on the screen.
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
VOL. DOWN
(Minimum) 6 2 sec.POWER ON

C-2
CONFIRMATION OF CHECK SUM, POWER ON TOTAL HOURS AND MICON VERSION.
Initial total of MEMORY IC, POWER ON total hours and MICON VERSION can be checked on the screen. Total hours are
displayed in 16 system of notation.
NOTE:
1.
2.
3.
4.
Turn on the POWER, and set to the TV mode.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (2) on the remote control for more than 2 seconds.
After the confirmation of each check sum, POWER ON total hours and MICON VERSION , turn off the power.
WHEN REPLACING EEPROM (MEMORY) IC
If you set a factory initialization, the total hours is reset to "0".
Please refer to "CONFIRMATION OF INITIAL DATA" when SUM DATA is not corresponding.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
The unit will now have the correct DATA for the new MEMORY IC.
ADDRESS is now selected and should "blink". Using the UP/DOWN buton on the remote, step through the ADDRESS
until required ADDRESS to be changed is reached.
Press LEFT/RIGHT button to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using UP/DOWN button until required DATA value has been selected.
Pressing LEFT/RIGHT button will take you back to ADDRESS for further selection if necessary.
Repeat steps 4 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
After the data input, set to the initializing of shipping.
Turn on the POWER.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (1) on the remote control for more than 2 seconds.
After the finishing of the initializing of shipping, the unit will turn off automatically.
FIG. 2
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to INITIAL SETTING TABLE (Attached "INITIAL DATA").
1.
2.
3.
Turn on the POWER, and set to the TV mode.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.
ADDRESS and DATA should appear as FIG 2.
CONFIRMATION OF INITIAL DATA
INIT : 3F42
VCT-P: B4A3
ANALOG M: DB040_70321A
Initial setting data check sum.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
MAIN MICON Version
SCALER data check sum.
ADDRESS DATA
FIG. 1
NOTE:The each item value might be different according to each set.
LCD ON: 0000
INIT 0000 00
ANALOG M: DB040_70321A
NOTE : No need to set data other position than 0D00~0E3F and 1900~7FFF.

ELECTRICAL ADJUSTMENTS
D-1
1. ADJUSTMENT PROCEDURE
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
On-Screen Display Adjustment
1.
2.
Set the VOLUME to minimum.
Press the VOL. DOWN button on the set and the
channel button (9) on the remote control for more than
2 seconds to display adjustment mode on the screen as
shown in Fig. 2-1.
3.
4.
5.
Use the UP/DOWN button or Channel button (0-9) on
the remote control to select the options shown in
Fig. 2-2.
Press the INPUT SELECT button on the remote control
to end the adjustments.
To display the adjustment screen for TUNER, AV,
HDMI and PC mode,
press the INPUT SELECT button on the remote control
to set to the TUNER, AV, HDMI and PC mode. Press
the VOL.DOWN button on the set and the channel (9)
on the remote control for more than 2 seconds.
FUNCTION
OSD H POSI
OSD V POSI
R DRIVE(N)
R CUT OFF(N)
G DRIVE(N)
G CUT OFF(N)
B DRIVE(N)
B CUT OFF(N)
R DRIVE(C)
R CUT OFF(C)
G DRIVE(C)
G CUT OFF(C)
B DRIVE(C)
B CUT OFF(C)
R DRIVE(W)
R CUT OFF(W)
G DRIVE(W)
G CUT OFF(W)
B DRIVE(W)
B CUT OFF(W)
H POSI
H POSI MAX
NO.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
FUNCTION
H POSI MIN
V POSI
BACKLIGHT CENTER
BACKLIGHT MAX
BACKLIGHT MIN
BRIGHT CENTER
BRIGHT MAX
BRIGHT MIN
TINT CENTER
CONTRAST CENTER
CONTRAST MAX
CONTRAST MIN
CONTRAST 50
COLOR CENTER
COLOR MAX
COLOR MIN
TEXT H POSI
TEXT V POSI
FLICKER
Fig. 2-2
Function Step No.
Fig. 2-1
01 OSD H POSI 182
TUNER
16:9
NO.
23
24
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
CAUTION
Use an isolation transformer when performing any
service on this chassis.
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
When you exchange IC and Transistor with a heat sink,
apply silicon grease (YG6260M) on the contact section of
the heat sink. Before applying new silicon grease,
remove all the old silicon grease. (Old grease may cause
damages to the IC and Transistor).
Prepare the following measurement tools for electrical
adjustments.
1. Patterm Generator
2. BASIC ADJUSTMENTS
•
•
•
PAL
2-1: FLICKER
1.
2.
3.
Activate the adjustment mode display of Fig. 2-1 and
perss the Channel UP/DOWN button to select "43
Flicker test". (Refer to Fig. 2-3)
Check if the screen is flashing.
Turn Variable Resister, and adjust it not appear
FLICKER (FLASHING). (Refer to Fig. 2-4)
Fig. 2-3
Fig. 2-4
Variable Resister
1234567890123456789012345678901212345678901
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1
23456789012345678901234567890121234567890
1
1234567890123456789012345678901212345678901
43 Flicker test
NOTE: The following adjustment is necessary for
changing the MAIN PCB and Panel module.

ELECTRICAL ADJUSTMENTS
D-2
2-3: CONTRAST MAX
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Place the set in Aging Test for more than 15 minutes.
Receive the color bar pattern. (RF Input)
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 2-1 and
press the channel button (35) on the remote control to
select "CONTRAST MAX".
Press the LEFT/RIGTH button on the remote control
until the contrast step No. becomes "47".
Check if the picture is normal.
Receive the color bar pattern. (VIDEO Input)
Using the remote control, set the brightness and
contrast to normal position.
Press the INPUT SELECT button on the remote
control to set to the AV1 mode.
Activate the adjustment mode display of Fig. 2-1 and
press the channel button (35) on the remote control to
select "CONTRAST MAX".
Press the LEFT/RIGTH button on the remote control
until the contrast step No. becomes "47".
Check if the picture is normal.
Receive the color bar pattern. (AV RGB Input)
Using the remote control, set the brightness and
contrast to normal position.
Press the INPUT SELECT button on the remote
control to set to the AV2(RGB) mode. Then perform
the above adjustments 4~6.
Receive the color bar pattern. (S-VIDEO Input)
Using the remote control, set the brightness and
contrast to normal position.
Press the INPUT SELECT button on the remote
control to set to the AV3(Y/C) mode. Then perform the
above adjustments 4~6.
Receive the color bar pattern. (COMPONENT Input)
Using the remote control, set the brightness and
contrast to normal position.
Press the INPUT SELECT button on the remote
control to set to the AV4 mode. Then perform the
above adjustments 4~6.
2-2: WHITE BALANCE
1.
2.
3.
4.
5.
6.
7.
8.
Place the set in Aging Test for more than 15 minutes.
Receive the gray scale pattern from the Pattern
Generator.
Press the INPUT SELECT button on the remote control
to set to the AV mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 2-1 and
press the channel button (05) on the remote control to
select "G DRIVE(N)".
Press the CH. UP/DOWN button on the remote control to
select the "G CUT OFF(N)", "G DRIVE(N)", "B CUT
OFF(N)", "G DRIVE(C)", "G CUT OFF(C)", "B DRIVE(C)",
"B CUT OFF(C)", "G DRIVE(W)", "G CUT OFF(W)", "B
DRIVE(W)" or "B CUT OFF(W)".
Adjust the LEFT/RIGTH button on the remote control to
whiten the G CUT OFF(N), B DRIVE(N), B CUT OFF(N),
G DRIVE(C), G CUT OFF(C)", B DRIVE(C), B CUT
OFF(C), G DRIVE(W), G CUT OFF(W), B DRIVE(W) and
B CUT OFF(W) at each step tone sections equally.
Perform the above adjustments 6 and 7 until the white
achieved.

2-4: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of each the adjustment item is set correctly referring below. (TUNER/AV/HDMI/PC)
CVBS S(Y/C) RGB 480i 480p 720p 1080i 576i 576p 720p 1080i 480i 480p VGA 720p 1080i 576i 576p 720p 1080i 640x480 720x400 800x600 1024x768 1280x720 1280x768 1360x768
NO. FUNCTION Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No.
1OSD H POSI 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182 182
2OSD V POSI 7777777777777777777777777777
3R DRIVE (N) 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850
4R CUTOFF(N) 000000000000000000000-------
5G DRIVE(N) 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 799 850 850 850 850 850 850 850
6G CUTOFF (N) 555555555555555555555-------
7B DRIVE (N) 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 838 850 850 850 850 850 850 850
8B CUTOFF (N) -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -------
9R.DRIVE (C) 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 -------
10 R CUTOFF (C) 000000000000000000000-------
11 G DRIVE (C) 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 806 -------
12 G CUTOFF (C) 555555555555555555555-------
13 B DRIVE (C) 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 862 -------
14 B CUTOFF (C) -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -------
15 R.DRIVE (W) 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 850 -------
16 R CUTOFF (W) 000000000000000000000-------
17 G DRIVE (W) 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 767 -------
18 G CUTOFF (W) 555555555555555555555-------
19 B DRIVE (W) 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 781 -------
20 B CUTOFF (W) -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -------
21 H POSI 50 Hz (4:3) 240 240 240 243 - - - - 446 212 - - - - - - - 50 1 - - -------
H POSI 50 Hz (16:9) etc 240 240 240 243 - - - - 446 212 304 253 - - - - - 50 1 138 36 -------
H POSI 50 Hz CINEMA - - - - - - - - - - 233 247 - - - - - - - 148 138 -------
H POSI 50 Hz (4:3) SECAM 240 240 240 243 - - - - - - - - - - - - - - - - - - - - - - - -
H POSI 50 Hz (4:3) (16:9) etc SECAM
240 240 240 243 - - - - - - - - - - - - - - - - - - - - - - - -
H POSI 60 (4:3) 213 213 213 217 408 198 - - - - - - 35 1 1 - - - - - - - - - - - - -
H POSI 60Hz (16:9) etc 213 213 213 217 408 198 305 249 35 1 1 92 36 - - - - 127 145 191 279 - - -
H POSI 60 Hz CINEMA - - - - - - 233 247 - - - - - - - 124 136 - - - - - - - - - - -
H POSI CENTER (PC) - - - - - - - - - - - - - - - - - - - - - 127 145 191 279 202 302 237
22 H POSI MAX (PC) - - - - - - - - - - - - - - - - - - - - - 152 170 216 304 327 427 362
23 H POSI MIN (PC) - - - - - - - - - - - - - - - - - - - - - 102 120 166 254 77 177 112
24 V POSI 50Hz PAL (50Hz)16:9 etc 27 27 27 27 - - - - 28 54 22 19 - - - - - 16 43 24 19 - - - - - - -
PAL (50Hz) FULL 36 36 36 36 - - - - 36 72 - - - - - - - 25 59 - - - - - - - - -
PAL (50Hz)Cinema 61 61 61 62 - - - - 62 124 122 93 - - - - - 50 110 108 69 - - - - - - -
NTSC (60Hz) 16:9 etc 20 20 20 22 20 44 258 63 - - - - 11 31 33 21 18 - - - - - - - - - - -
NTSC (60Hz) FULL 28 28 28 28 28 59 - - - - - - 18 46 46 - - - - - - - - - - - - -
NTSC (60Hz) Cinema 49 49 49 47 49 102 118 84 - - - - 39 88 91 92 72 - - - - - - - - - - -
V POSI CENTER (PC) - - - - - - - - - - - - - - - - - - - - - 26 26 26 26 26 26 23
27 BACKLIGHT CENTER 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80
28 BACKLIGHT MAX 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150
29 BACKLIGHT MIN 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
30 BRIGHT CENTER + + + + -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 0000000
31 BRIGHT MAX + + + + 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
32 BRIGHT MIN + + + + -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80
33 TINT CENTER + + + + 000000000000000000000000
34 CONTRAST CENTER + + + + 39 40 39 39 39 40 39 39 39 39 39 39 39 39 39 38 38 40 40 40 40 40 40 40
35 CONTRAST MAX + + + + 50 51 50 50 50 51 50 50 50 50 50 50 50 50 51 50 50 46 46 46 46 46 46 46
36 CONTRAST MIN + + + + 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 18 18 18 18 18 18 18
37 CONTRAST 50 + + + + 47 47 46 46 47 47 46 46 46 46 46 46 46 47 47 46 46 43 43 43 43 43 43 43
38 COLOR CENTER + + + + 41 41 41 41 41 41 41 41 34 34 34 34 34 34 34 34 34 41 41 41 41 41 41 41
39 COLOR MAX + + + + 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63
40 COLOR MIN + + + + 000000000000000000000000
41 TEXT H POSI 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43
42 TEXT V POSI 9999999999999999999999999999
NOTE: For the step no. with + mark, please adjust it according to the 2-5.
ELECTRICAL ADJUSTMENTS
TUNER AV
AV1 (NTSC)
PC
AV2 (PAL)
HDMI1 (NTSC)
HDMI2 (PAL)
D-3 D-4

2-5: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of each the adjustment item is set correctly referring below. (TUNER/AV1, AV2(CVBS)/AV3(CVBS)/AV2(S Y/C)/AV1(RGB)
PAL50 PAL60 SECAM PAL50 PAL60 SECAM NTSC3.58 NTSC4.43 PAL50 PAL60 SECAM NTSC3.58 NTSC4.43 PAL50 PAL60 SECAM NTSC3.58 NTSC4.43 PAL50 PAL60 SECAM NTSC3.58 NTSC4.43
NO. FUNCTION Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No. Step No.
30 BRIGHT CENTER -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4
31 BRIGHT MAX 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
32 BRIGHT MIN -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80 -80
33 TINT CENTER 00000000000000000000000
34 CONTRAST CENTER 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37 37
35 CONTRAST MAX 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47
36 CONTRAST MIN 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21
37 CONTRAST 40 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44
38 COLOR CENTER 38 38 38 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
39 COLOR MAX 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63
40
COLOR MIN
00000000000000000000000
ELECTRICAL ADJUSTMENTS
RGB
576i
480i
AV1(SCART1)
480i
576i
480i
TUNER
CVBS
AV1(SCART1), AV2(SCART2)
576i
480i
AV2(SCART2)
S(Y/C)
576i
CVBS
AV3(RCA)
D-5 D-6

ELECTRICAL ADJUSTMENTS
3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
D-7
LCD PANEL
CP2203
CP2201
OS2201
J401
CP7001
CP7002
CP7003
CP7004
CP7005
CP7006
CP7007
CP1301 CP1201 CP1302
POWER PCB
OPERATION PCB
REMOCON PCB
MAIN PCB
CP411
CD2201
SPEAKER
HALF FIXED RESISTER
(FLICKER ADJUSTMENT)
CP3801
CP4301
TU001
CP4302
CP4200
CP3601
CP3603
CP300
J4205
J4201
J4203
J4202
J4204
J4206
CP1202
CP4305
CP412 CP3802
AC IN
CD401

MAIN BLOCK DIAGRAM
PC/HDMI AUDIO IN
J4200
MSJ-035-39D_B_
PC_LF(087)
PC/DVI 1_A_IN_L
PC/DVI 1_A_IN_R
DVI2 _A_IN_L
DVI2 A_IN_R
COMPONENT AUDIO IN
J4202
AV2-57A03-01
YUV AUDIO L
YUV AUDIO R
YUV/DVI/PC Lch SW
IC4303
NJM2534V (TE2)
YUV/DVI/PC Rch SW
IC4304
NJM2534V (TE2)
D-SUB
CP4302
D229FD015G107BY
SW_A1_L
SW_A1_R
VGA_R
VGA_G
VGA_B
DECORDER/PERITEL
J4206
MRC-021V-27_PC
SCART1_V_IN
SCART2_V_IN
SCART1_R/C1_IN
SCART1_G_IN
SCART1_B_IN
SCART2_R/C2_IN
AUDIO_SCART1/2_LCH_SW
IC4203
MM1501XNRE
AUDIO_SCART1/2_RCH_SW
IC4202
MM1501XNRE
SC1_A_IN_L
SC2_A_IN_L
SC1_A_IN_R
SC2_A_IN_R
SW_A_L
SW_A_R
TUNER_VIDEO_OUT
SC1_A_OUT_L
SC1_A_OUT_R
SC2_A_OUT_L
SC2_A_OUT_R
SC2_CVBS_OUT
SIF
TUNER
TU001
TAFV-W623D
AV3
J4204
RCA-349-00C-02
AUDIO_OUT_JACK
J4201
AV2-57A03-01
AUDIO JACK OUT L
AUDIO JACK OUT R
CVBS IN
VIDEO A L
VIDEO A R
SCALER
IC803
VCT7993P-FA-A1-G-100
HDMI CONNECTOR
CP3601
HDMI CONNECTOR
CP3603
HDMI1 IN
HDMI2 IN
HDMI I/F IC
IC3605
SII9025CTU
DPB0~7, DPR0~7, DPG0~7,
DDCK, DDEN
TCON
ROSA-0D
IC1201
R8J66731FT
PANEL
V2301
CLAA320WB02CO
RGB
SPEAKER
AUDIO OUT L
SPEAKER
AUDIO OUT R
AUDIO AMP
IC304
TDA8932T
HEADPHONE
AMP
IC300
NJM2151AV
(TE1)
HEADPHONE
J4205
MSJ-035-08D_PC(O87)
AMP L/R
HEADPHONE
L/R
SPEAKER
SP301,SP302
FB136N4-A1
TUNER OUT
Y_IN
Pb_IN
Pr_IN
COMPONENT IN
J4203
RCA-349-00D-01
EEP ROM IC 256K
IC801
M24256-BWMN6TP
BUFFER
IC1302
EC5579-HG
REGURATOR
IC1301_1
KIA431BF
LCD POWER SUPRY
IC3501
TPS65161PWPR
1.5V REG.
IC3502
EC50117ABG
SDA,SCL
SW+CVBS (TU/D_TU)
E-1 E-2

z
POWER BLOCK DIAGRAM
4
3
2
1
SW+12V[UNREG]
SOUND+B[SW]
Q416
CP411__14,15. AT+5V
CP411__16. POWER FAIL
F401
L401
SW REGULATOR
CONTROL
IC402 MIP2F4
D
Vcc
FB
TRANSFORMER
T402
FEED BACK
IC410
PS2561AL1-1-V(W)
REGULATOR
IC404 KIA431A-AT
C424
5
4
2
1
3
5
8
7
1
3
1
4
3
2
J401
4
3
2
1
L402
D425
D427
D430
D431
1
Vdd
RERAY
RY401
ALKS329_A6
3
2
1
4
+
POWER CONTROL
IC401 MP2A5060
Vcc
Q1
8
P.GND
TRANSFORMER
T401
2
3
10
7
13
14
18
17
15 INV_GND
INV SW+24V
1
6
L403
4
1
2
3
13
3
2
1
4
IC408
PS2561AL1-1-V(W)
3
2
1
KIA431A-AT
IC403
P.CON+5V A
15
VW
FB
3
2
1
4
IC409 PS2561AL1-1-V(W)
CD401
AC IN
FEED BACK
FEED BACK
REGURATOR
HDD/RW5V DC/DC CTL
IC501
AL1015
1
18
10
E-3 E-4
