OriPower H1207 User manual

- 1 -
TABLE OF CONTENTS
Patio Heater Safety Warnings -------------------------------------------
Part List -----------------------------------------------------------------------
Patio Heater Assembly ----------------------------------------------------
Operating Instructions -----------------------------------------------------
Leak Testing ------------------------------------------------------------------
Gas Requirement -----------------------------------------------------------
Connecting To a Gas Cylinder -------------------------------------------
Important Safety Rules ----------------------------------------------------
Maintenance ------ ----------------------------------------------------------
Storage ------------------------------------------------------------------------
Troubleshooting -------------------------------------------------------------
Technical Data ---------------------------------------------------------------
2
3
4
5
5
6
6
6
7
7
8
9

- 2 -
PATIO HEATER SAFETY WARNINGS
PLEASE READ THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. THE APPLIANCE MUST BE
INSTALLED IN ACCORDANCE WITH THE INSTRUCTIONS AND LOCAL REGULATIONS.
zDo not use this appliance indoors, as it may cause personal injury or property damage.
zDo not store gas cylinder indoors.
zDo not obstruct the ventilation holes of the cylinder housing.
zDo not move this appliance when in operation.
zDo not move this appliance after it has been turned off until the temperature has cooled down.
zDo not attempt to alter the appliance in any manner.
zDo not use this appliance until all connections have been leak tested.
zDo not paint the radiant screen, control panel or top canopy reflector.
zThis appliance must be installed and the gas cylinder stored in accordance with the regulation in force.
zShut off the valve at the gas cylinder or the regulator before moving the appliance.
zUse only the type of gas and the type of cylinder specified by the manufacturer.
zInstallation and repair should be done by a qualified service person.
zIn case of violent wind particular attention must be taken against tilting of the appliance.
zTo change the gas cylinder in a well ventilated area, away from any inflammation sources.
zTo check that the regulator seal is correctly fitted and able to fulfil its function.
zTo close the gas supply at the valve of the gas cylinder or the regulator after use.
zIn the event of gas leakage, the appliance should not be used or if alight, the gas supply shall be shut off and the
appliance should be investigated and rectified before it is used again.
zThe hose used for this appliance must be changed within two years.
zCheck the tubing or the flexible hose once per month and each time the cylinder is changed, if it shows of
cracking, splitting or other deterioration, it should be replaced with new gas hose.
zThe heater should be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air
passageways of the appliance be kept clean.
zShut off and check heater immediately if any of the following conditions exist:
The smell of gas in conjunction with extreme yellow tipping of the burner flames.
Heater does not reach a proper temperature. A temperature less than 5℃will cause restricted heat flow
and the appliance will not work properly.
The appliance starts making popping noises during use (a slight popping noise is normal when the
appliance is extinguished).
zTo store this appliance indoors is permissible, only if gas cylinder is disconnected and removed from the
appliance.
zAny guard or other protective device removed for servicing the heater must be replaced before operating the
heater.
zAttention: Some parts of this appliance become very hot, keep young children away.
zChildren and adults should be warned of the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
zYoung children and pets should be carefully supervised when they are in the area of the heater.
zClothing or other flammable materials should not be hung from the heater, or placed near the heater.
zAlways maintain at least 915mm clearance from combustible materials.
zAlways position the appliance on a firm level surface.

- 4 -
PATIO HEATER ASSEMBLY
ASSEMBLY INSTRUCTIONS
zScrewdriver / Adjustable Spanners / Wrenches
zLeak Detection Solution one part detergent and three parts
water
zBefore assembly, make sure all protection packing material
must be moved.
zAssembling all nuts and bolts loosely at first. Tighten all
connections after completion of assembly. This eases your
work and increase the stability of your appliance.
zSmall deviations in equipment may occur. This is no lack of
quality but subject to improvements.
SETP 1: Screw rear panel of housing to the base with 5pcs bolts
M5 x 12 and 5pcs washer. (Detail Abb. A)
SETP 2: Push the housing lid over rear panel of housing and place
onto rear panel of housing. Screw together the housing lid
and rear panel of housing with 5pcs bolts M5 x 12 and
5pcs washers. (Detail Abb. B)
SETP 3: Fixing the post upwards onto the housing lid with 4pcs
bolts M5 x 12 and 4pcs washers, then put plastic cover
through the post. (Detail Abb. C)
SETP 4: Place the reflector to main burner using 3pcs wing nuts
and 3pcs washers. (Detail Abb. D)
SETP 5: Tighten inner gas pipe to main burner (See Figure 1),
Then fix main burner to the post with 3 bolts M5 x 12 and
3pcs washers. (Detail Abb. E)
NOTE: DO NOT OVER TIGHTEN! REFER TO LEAK
TESTING ON PAGE 5.
SETP 6: Fix the door to housing. (See Figure 2 and DetailAbb. F)

- 6 -
OPERATING INSTRUCTIONS
LIGHTING
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE
PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL KNOB ANTICLOCKWISE TO THE
PILOT SETTING. PRESS KNOB IN AND HOLD FOR 3 MINUTES BEFORE ATTEMPTING IGNITION.
zCheck all gas connections prior to use.
zTurn on gas supply at source.
zPress to turn control knob anticlockwise to 'IGNITE (PILOT)'.
zHold knob depressed, press 'IGNITE(PILOT)' button repeatedly until pilot flame is lit, then continue to hold the
knob depressed for 20 seconds until the pilot remains lit after releasing knob.
zIf pilot fails to ignite or remain alight, press to turn knob clockwise to 'OFF' and repeat.
zThe pilot should be lit & the knob set to 'PILOT'.
zHold knob depressed gently & turn anticlockwise to 'HIGH'.
zWhen mesh glows red, turn knob clockwise from 'HIGH' to 'LOW' as needed.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn
the control knob to the low position. Then, turn the knob to the level of heat desired. If you experience any
ignition problem consult the following “Troubleshooting”.
RE-LIGHTING
zTurn Control Knob to OFF.
zWait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.
zRepeat the “Lighting” steps.
TO EXTINGUISH
zHold knob depressed & turn the knob clockwise to 'OFF'
zClose the valve of the gas cylinder or the regulator after use.
zClose the gas bottle and allow this appliance to cool before moving the appliance.
Note: After use, some discoloration of the emitter screen is normal.
LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak tested at the factory
prior to shipment.
This appliance needs to be periodically checked for leaks and an
immediate check is required if the smell of gas is detected.
zMake a soap solution using 1 part of liquid dish-washing soap to 3
parts water. The soap solution can be applied with a soap bottle,
brush, or rag to the leak tested points shown in the figure above.
zThe valve of the gas cylinder should be in the OFF position at this
point of the leak test. Once the soapy solution is applied to the
gas connections, the valve of the gas cylinder needs to be turned
to the ON position.
zSoap bubbles will begin to form in the soapy solution if a leak is
present.
zIn case of a leak, turn off the gas supply. Tighten any leaking
fittings, then turn the gas supply on and recheck.
Leak Test Point ①②③④

- 7 -
GAS REQUIREMENTS
zThe appliance must use an EN12864 approved gas regulator and CE approved gas hose with a length of 1.3
meter (BS3212 and EN1763-1).
You will need to purchase suitable gas hose and regulator from your local gas dealer if the appliance does not
include gas hose and regulator.
zRefer to your gas supplier for instructions on the use of your gas cylinder.
zNever use a gas cylinder with a damaged body, valve, collar, or foot ring.
zA dented or rusty gas bottle may be hazardous and should be checked out by a gas supplier.
zNever connect this appliance to an unregulated gas source.
zWhen the appliance is not in use, turn the gas cylinder OFF.
zAlways perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test
solution, do not use. Never use a flame to test for leaks.
CONNECTING TO A GAS CYLINDER
zMaximum gas bottle size is D33 x H65cm, You will need to purchase a gas bottle size 13Kg or smaller to operate
the appliance, which can be obtained from your local gas dealer.
zRefer to your gas supplier for instructions on the use of your gas cylinder.
zOnly change gas cylinders outdoors or in a well ventilated area away from naked flames and any other source of
ignition.
zThe gas cylinder must always be used in an upright position.
zClose the heater control knob by turning fully clockwise.
zClose the gas cylinder tap and then attach the regulator onto the gas cylinder.
zTighten all connections firmly and with a spanner where appropriate. The cylinder should be located on the
cylinder base.
zCheck for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.
IMPORTANT SAFETY RULES
For use outdoors or in amply ventilated areas.
A
n amply ventilated area must have a minimum of 25% of the
surface area open.
The surface area is the sum of the walls surface.
The use of this appliance in enclosed areas can be dangerous and
is PROHIBITED.
Children and adults should be aware of the high operating
temperatures of areas above the post when operating this heater.
Children should be carefully supervised when in the vicinity of the
heater.
NEVER hang anything, including clothes or any other flammable
items, on this heater.
DO NOT operate this heater unless it is fully assembled with its
reflector in place.
Respect the minimum clearances from combustible materials.
Ceiling/Overhang
Wall
915mm
915mm

- 8 -
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
zKeep exterior surfaces clean.
zUse warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
zWhile washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the
gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
zAirflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
zSpiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render
it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away
smaller particles.
zCarbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm
soapy water.
Note: in a salt-air environment (such as near the sea), corrosion occurs more quickly than normal.
Frequently check the corroded areas and repair them promptly.
STORAGE
Between uses:
Turn control knob OFF
Turn gas cylinder OFF
Store Heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn control knob OFF.
Disconnect gas cylinder and move to a secure, well ventilated location outdoors. DO NOT store in a location that will
exceed 50°C.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover heater to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering
CAUTION: DO NOT USE UNAUTHORISED PARTS OR COMPONENT FOR THIS APPLIANCE.
ONLY USE ORIGINAL EQUIPMENT REPLACEMENT PARTS AND COMPONENTS.

- 9 -
TROUBLESHOOTING
IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS:
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube Clean or replace orifice or pilot tube
Air in the gas line Open gas line and bleed it (pressing control knob in) for not more than
1-2 minutes or until you smell gas
Low gas pressure Gas cylinder low or empty
Pilot won’t light
Igniter fails Use match to light pilot, and obtain new
igniter and replace. ( See below pictures)
Dirt build up around pilot Clean dirt from around pilot
Connection between gas valve and pilot
assembly is loose Tighten connection and perform leak test
Pilot won’t stay lit
Thermocouple is not operating correctly Replace thermocouple
Gas pressure is low Replace gas cylinder
Blockage in orifice Clear blockage
Burner won’t light Control knob is not in "ON" position Turn control knob to "ON" position
Gas pressure is low Replace gas cylinder
Outdoor temperature is greater than 5℃
and tank is less than 25% full Replace gas cylinder
Supply hose is bent or kinked Straighten hose and perform leak test on
hose
Burner flame is low
Note: Do not operate
heater below 5
℃
Control knob is fully " ON" Turn control knob to "OFF", let it cool to room temperature and check burner and
orifices for blockage
Gas pressure is low Replace gas cylinder
Base is not on a level surface Place heater on a level surface
Emitter glows uneven
Note: Bottom 2.5cm of
emitter normally does
not normally glow Heater is level Clean burner
Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter
Thick black smoke Blockage in burner
Turn control knob to "OFF", let it cool to
room temperature and remove
blockage and clean burner inside and
outside.
If for some reasons your ignitor fails to deliver a spark, the heater
can be started by inserting a lit match using supplied match holder
through the burner hole as photo showed while pushing the control
knob in the “PILOT” position.

- 10 -

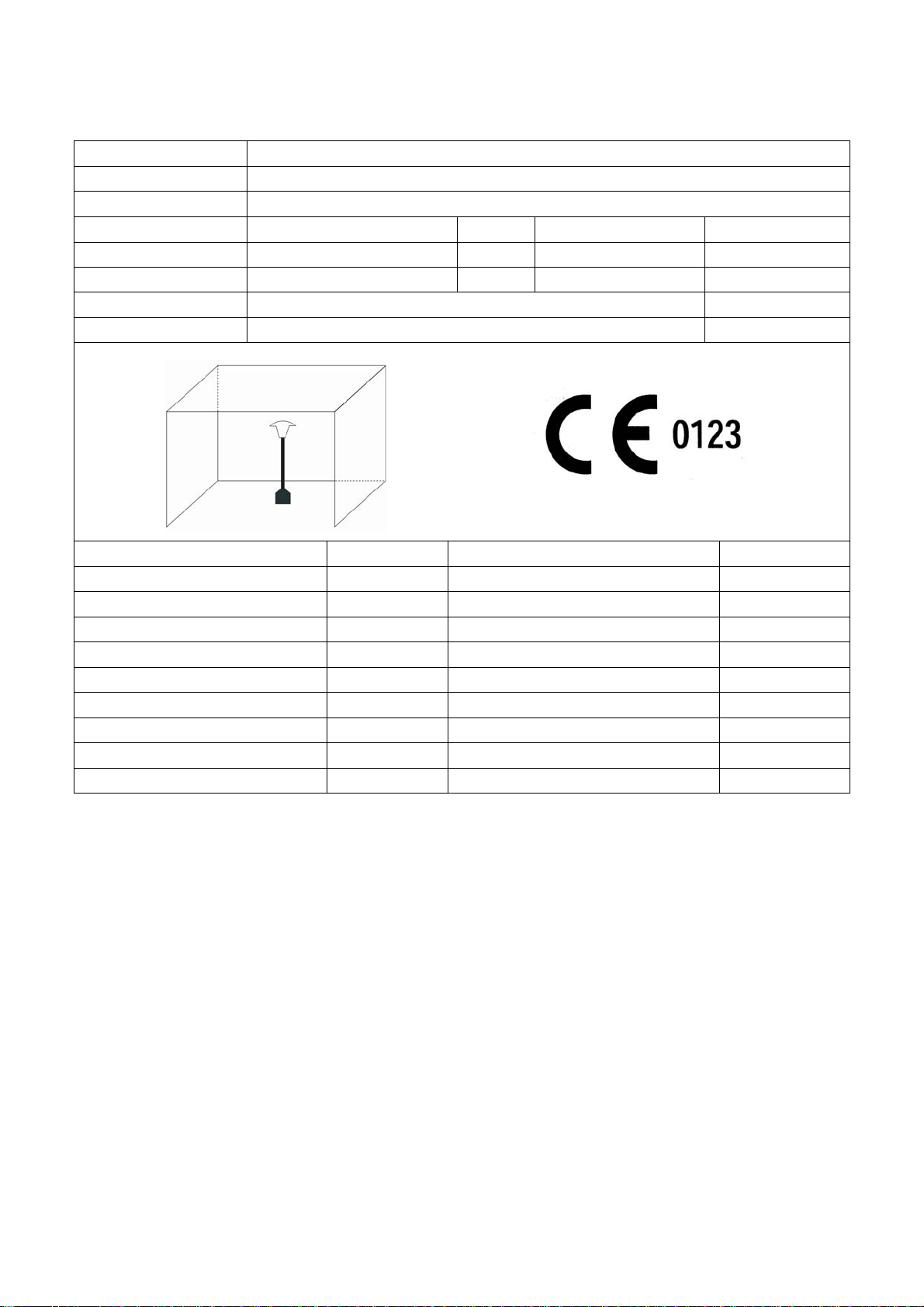

TECHNICAL DATA
Europe:
Product Name Patio Heater
Model H1207 & H1107
Gas Type Propane, Butane or mixtures
Country Code CH-ES-FR-GB-GR-IE-IT-PT PL BE-CZ-DK-FI-NL-NO AT-DE
Category I3+ I
3P I 3B/P I 3B/P
P(mbar) 28-30/37 37 30 50
Heat input 11kW (786g/h) 13.5kW (960g/h)
Injector size(Diameter) 1.8mm 1.6mm
Country Code Cat Gas type Pressure(mbar)
CZ- FR-GB-GR- IE- PT-PL I3P(37) Propane 37mbar
AT-CH-DE-NL I3P(50) Propane 50mbar
FR-GB-IE I3B(28) Butane 28mbar
PT I3B(30) Butane 30mbar
CH-ES-FR-GB-GR-IE I3+(28) Butane 28mbar
IT-PT I3+(30) Butane 30mbar
CH-ES-FR-GB-GR-IE-IT-PT I3+(37) Propane 37mbar
AT-CH-DE I3B/P(50) Butane, Propane or mixtures 50mbar
BE-CZ-DK-FI-GR-IT-NL-NO I3B/P(30) Butane, Propane or mixtures 30mbar
Manufacturer reserves the right to change this product’s specifications or design without notice.
