INNOPOWER OUTDOOR PATIO HEATER MODEL NO. H1107 & H1207
PROPANE PATIO HEATER
INSTRUCTION MANUAL
WARNING: FOR OUTDOOR USE ONLY
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE!

- 1 -
TABLE OF CONTENTS
Patio Heater Safety Warnings --------------------------------------------
Part List ------------------------------------------------------------------------
Patio Heater Assembly -----------------------------------------------------
Diagrammatical Representations ----------------------------------------
Operating Instructions ------------------------------------------------------
Leak Testing -------------------------------------------------------------------
Gas Requirement ------------------------------------------------------------
Connecting To a Gas Cylinder --------------------------------------------
Securing a Gas Cylinder---------------------------------------------------
Important Safety Rules -----------------------------------------------------
Maintenance ------------------------------------------------------------------
Servicing -----------------------------------------------------------------------
Storage -------------------------------------------------------------------------
Trouble Shooting---------------------------------------------------------------
Technical Data ----------------------------------------------------------------
PATIO HEATER SAFETY WARNINGS
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND USE.
zThis appliance must be used outdoors or in a well ventilated area.
zThis appliance should not be installed or used indoors.
zThis appliance should only be used in an above ground open-air situation with natural ventilation, without stagnant
areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.
zThe appliance should be used only in an outdoor area and should not be used in a building, garage or any other
enclosed area.
zTo change the gas cylinder in a well ventilated area, away from any inflammation sources.
zThe cylinder must be stored outdoors or in a well ventilated area.
zStorage this appliance indoors is permissible only if gas cylinder is disconnected and removed from the appliance.
zDo not move this appliance when in operation, or after it has been turned off before the temperature has cooled
down.
zDo not attempt to alter the appliance in any manner.
zDo not paint the radiant screen, control panel or reflector.
zDo not obstruct the ventilation holes of the cylinder housing.
zThe appliance must be installed and gas cylinder stored in accordance with local gas fitting regulations, municipal
building codes, electrical wiring regulations, and any other relevant statutory regulations.
zShut off the valve at the gas cylinder or the regulator before moving the appliance.
1-2
3
4-5
6-7
8
8
9
9
9
10
10
11
11
12
13

- 2 -
zUse only the type of gas specified by the manufacturer.
zRepairs should be done by a qualified person.
zIn case of violent wind, particular attention must be taken against tilting of the appliance.
zTo check that the regulator seal is correctly fitted and able to fulfil its function.
zTo close the gas supply at the valve of the gas cylinder or the regulator after use.
zDo not use this appliance until all connections have been leak tested.
zIn the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off immediately
and the appliance shall be investigated and rectified before it is used again.
zChecking the tubing or the flexible hose per month and each time the cylinder is changed.
zThe tubing or the flexible hose must be changed within one year.
zThe hose assembly must be replaced prior to the appliance being put into operation if there is evidence of
excessive abrasion or wear, or if the hose is damaged, and that the replacement hose assembly shall be that
specified by the manufacturer.
zThe heater should be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air
passageways of the appliance be kept clean.
zShut off and check heater immediately if any of the following conditions exist:
The smell of gas in conjunction with extreme yellow tipping of the burner flames.
Heater does not reach a proper temperature. A temperature less than 5 will cause restricted heat flow and℃
the appliance will not work properly.
The appliance starts making popping noises during use (a slight popping noise is normal when the appliance
is extinguished).
zThe regulator & hose assembly must be located out of pathways where people may trip over it or in area where the
hose will not be subject to accidental damage.
zAny guard or other protective device removed for servicing the heater must be replaced before operating the
heater.
zChildren and adults should be warned of the hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition.
zYoung children and pets should be carefully supervised when they are in the area of the heater.
zClothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
zCertain material or items when stored under or near this appliance will be subjected to radiant heat and could be
seriously damaged.
zDo not place articles on or against this appliance.
zDo not use or store flammable materials near this appliance.
zDo not spray aerosols in the vicinity of this appliance while it is in operation.
zAlways maintain at least 915mm clearance from combustible materials.
zAlways position the appliance on a firm level surface.

- 3 -
PART LIST
ASSEMBLY PARTS SUPPLIED:
z5pcs bolts M5 x 12 and 5pcs M5 washers for rear panel of housing and base.
z5pcs bolts M5 x 12 and 5pcs M5 washers for rear panel of housing and housing lid.
z4pcs bolts M5 x 12 and 4pcs M5 washers for the post and housing lid.
z3pcs round cap nuts M6 and 3pcs M5 washers for reflector.
z3pcs bolts M5 x 12 and 3pcs M5 big washers for main burner and the post.
z4pcs bolts M5*10,4pcs M5 nuts and 4pcs washer for securing a gas cylinder.
PATIO HEATER PART:
Item No Description Qty
1 Reflector 1
2 Burner screen 1
3 Lower tray of burner 1
4 Lower screen cone Assembly 1
5 Main post 1
6 Housing lid 1
7 Rear panel of housing 1
8 Wheels 1
9 Base 1
10 Door 1
11 Hinge 2
12 Assembly Bolt M5x12 17
13 Washer M5 17
14 Big washer M6 3
15 Round cap nuts M6 3
16 Lock 1
17 Plastic cover 1
18 Inner pipe 1
19 Ignition 1
FIGURE 1
19

- 4 -
FIGURE 2
PATIO HEATER ASSEMBLY
ASSEMBLY INSTRUCTIONS
zList of Required Tools:
Philip Screwdriver / Adjustable Spanners / Wrenches
zLeak Detection Solution one part detergent and three parts
water
zAssemble all nuts and bolts loosely at first. Tighten all
connections after completion of assembly. This eases your
work and increases the stability of your appliance.
zBefore assembly, make sure all packing material and any
transmit protection must be moved.
zSmall deviations in equipment may occur. This is no lack of
quality but subject to improvements.
ASSEMBLY
SETP 1: Screw rear panel of housing to the base with 5pcs bolts
M5 x 12 and 5pcs washers. (Detail Abb.A)
Note: Start with two bolts at both ends of rear panel of
housing, then three bolts in the middle, which will ease the
assembly.
SETP 2: Place the housing lid onto rear panel of housing. Screw
together the housing lid and rear panel of housing with
5pcs bolts M5 x 12 and 5pcs washers. (DetailAbb. B)
SETP 3: Fix the post onto the housing lid with 4pcs bolts M5 x 12
and 4pcs washers. Then put the plastic cover over the
screws and bolts through the post. (DetailAbb. C)
SETP 4: Place the reflector to main burner using 3pcs round cap
nuts and 3pcs big washers. (Detail Abb. D)
SETP 5: Tighten inner gas pipe to main burner (See Figure 2),
Note: please examine the tightness before use. If
damages are evident, they must be eliminated
immediately. (See Leakage Test)
Then fix main burner to the post with 3 bolts M5 x 12 and
3pcs washers. (Detail Abb. E)
SETP 6: Fix the door to rear panel of housing. (See Figure 1 and
Detail Abb. F)
18

- 5 -

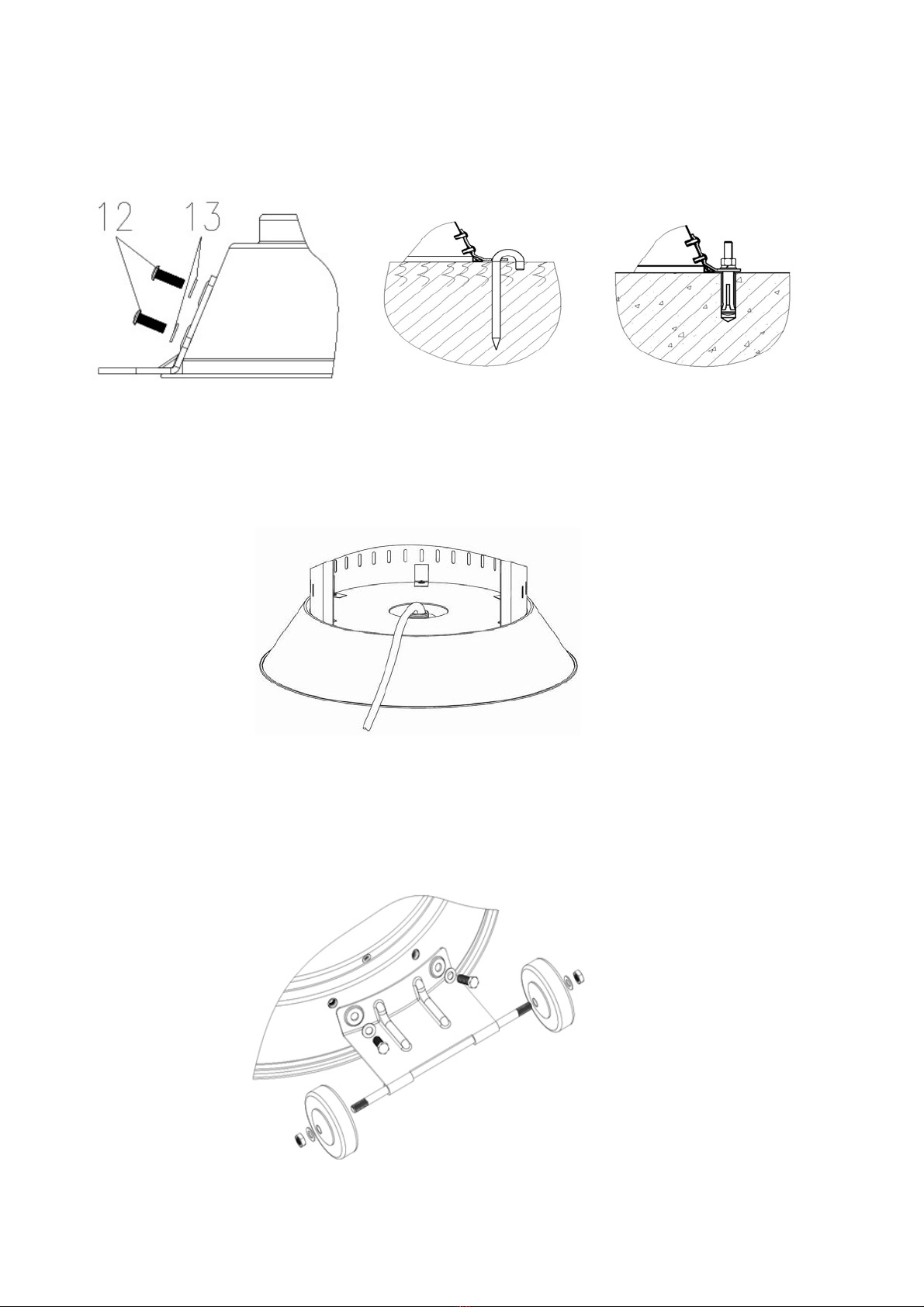

Optional base stand
Base stand assembly parts: 6pcs bolts M5 x 8 for base stands and base.
Attaching 3pcs stands to the base with bolts and nuts firstly, then strike suitable hook bolts or rawlbolts through the
stand holes into the ground or floor. (See Figure 3)
Optional water box
Remove cap from base water box and fill with water, sand or if temperatures fall below 0℃, fill with RV anti-freeze
before use. (See Figure 4)
Optional wheels
Wheels assembly parts: 2pcs bolts, 4pcs washers and 2pcs nuts for wheels assembly.
Collect wheels parts together and fix wheels to the base. (See Figure 5)
FIGURE 5
FIGURE 4
FIGURE 3

- 6 -

- 7 -

- 8 -
OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE
PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL KNOB ANTI-CLOCKWISE TO THE
PILOT SETTING. PRESS KNOB IN AND HOLD FOR 3 MINUTES BEFORE ATTEMPTING IGNITION.
TO LIGHT THE PILOT
TO LIGHT THE PATIO HEATER
zThe pilot should be lit and the knob set to PILOT.
zHold knob depressed gently and turn anti-clockwise to HIGH.
zWhen mesh glows lit, turn knob from HIGH to LOW as needed.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn the
control knob to the pilot position. Then turn the knob to the level of heat desired.
RE-LIGHTING
zTurn Control Knob to OFF.
zWait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.
zRepeat the “Lighting” steps.
TO EXTINGUISH
zHold knob depressed & turn the knob clockwise to 'OFF'
zClose the valve of the gas cylinder or the regulator after use.
zClose the gas bottle and allow this appliance to cool before moving.
Note: After use, some discoloration of the emitter screen is normal. Close regulator after use, allow the
appliance to cool before moving.
LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak tested at the factory prior to
shipment.
This appliance needs to be periodically checked for leaks and an immediate
check is required if the smell of gas is detected.
zMake a soap solution using 1 part of liquid dish-washing soap to 3 parts
water. The soap solution can be applied with a soap bottle, brush, or rag to
the leak tested points shown in the figure right.
zThe valve of the gas cylinder should be in the OFF position at this point of
the leak test. Once the soapy solution is applied to the gas connections,
the valve of the gas cylinder needs to be turned to the ON position.
zSoap bubbles will begin to form in the soapy solution if a leak is present.
zIn case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck.
zIn case of any damage or gas leakage after several attempts, contact your local dealer for assistance.
Leak Test Point ①②③④
PILOT
IGNITION
OFF
HIGH LOW
zCheck all connections prior to each use.
zTurn on main gas supply at source.
zPress to turn control knob anti-clockwise to PILOT, see right photo.
zHold knob depressed, press IGNITION button repeatedly until pilot
flame is lit, then continue to hold the knob depressed for 10
seconds until the pilot remains it after releasing knob.
zIf pilot fails to ignite or alight, press to turn knob clockwise to OFF
and re
p
eat.

- 9 -
GAS REQUIREMENTS
zThe pressure regulator and hose assembly to be used must conform to local standard codes.
zNever use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas tank may be
hazardous and should be checked out by a gas supplier.
zNever connect this appliance to an unregulated gas source.
zWhen the appliance is not in use, turn the gas cylinder OFF.
zAlways perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test
solution, do not use. Never use a flame to test for leaks.
CONNECTING TO A GAS CYLINDER
zUse 9 kg gas cylinder. Please refer to your gas supplier for suitable gas cylinder.
zRefer to your gas supplier for instructions on the use of your gas cylinder.
zOnly change gas cylinders outdoors or in a well ventilated area away from naked flames and any other source of
ignition.
zThe gas cylinder must always be used in an upright position.
zClose the heater control knob by turning fully clockwise.
zClose the gas cylinder tap and then attach the regulator onto the gas cylinder.
zTighten all connections firmly and with a spanner where appropriate. The cylinder should be located on the
cylinder base.
zCheck for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.
SECURING A GAS CYLINDER (OPTIONAL)
1. Fix both velcro tapes onto the rear tank housing using 4pcs M5*12 bolts with M5 washer and M5 nuts.
2. Position a gas cylinder inside the tank housing.
3. Connect the gas cylinder with a regulator. Please refer to the instructions attached with the regulator on
how to connect a regulator with the gas cylinder.
4. Stick velcro tapes together as above photo illustrated. The tapes must be in a proper tightness for the gas
cylinder.
Caution: Please take care that the velcro tapes. DO NOT strain the regulator assembly.

- 10 -
Dia.765mm 915mm
915mm
IMPORTANT SAFETY RULES
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of 25% of the
surface area open.
The surface area is the sum of the walls surface.
The use of this appliance in enclosed areas can be dangerous and is
PROHIBITED.
Children and adults should be aware of the high operating
temperatures of areas above the post when operating this heater.
Children should be carefully supervised when in the vicinity of the
heater.
NEVER hang anything, including clothes or any other flammable
items, on this heater.
DO NOT operate this heater unless it is fully assembled with its
reflector in place.
Respect the minimum clearances from combustible materials.
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
zKeep exterior surfaces clean.
zUse warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
zWhile washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the gas
control is exposed to water in any way, DO NOT try to use it. It must be replaced.
zAirflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
zSpiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it
unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away
smaller particles.
zCarbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm
soapy water.
Note: in a salt-air environment (such as near the sea), corrosion occurs more quickly than normal. Frequently
check the corroded areas and repair them promptly.
595mmm
830mm
825mm
2250mm
Ceiling/Overhang
Wall

- 11 -
SERVICING
zPlease consult your local dealer for servicing this appliance and replacement of its parts. The servicing of the
appliance shall be carried out only by authorised personnel.
zCaution: do not use unauthorized parts or components for this appliance, only use original equipment replacement
parts and components. The use of unauthorized parts or components will void the warranty and can create an
unsafe condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that the cylinder is removed from the
appliance.
Between uses:
zTurn control knob OFF
zTurn gas cylinder OFF
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
zTurn control knob OFF.
zDisconnect gas cylinder and move to a secure, well ventilated location outdoors. DO NOT store in a location that
will exceed 50°C.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow,
dust and debris).
If desired, cover heater to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering

- 12 -
TROUBLE SHOOTING
IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS:
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube Clean or replace orifice or pilot tube
Air in the gas line Open gas line and bleed it (pressing control knob in) for not more than
1-2 minutes or until you smell gas
Low gas pressure Gas cylinder low or empty
Pilot won’t light
Igniter fails Use match to light pilot, and obtain new
igniter and replace. ( See below pictures)
Dirt build up around pilot Clean dirt from around pilot
Connection between gas valve and pilot
assembly is loose Tighten connection and perform leak test
Pilot won’t stay lit
Bad thermocouple Replace thermocouple
Gas pressure is low Replace gas cylinder
Blockage in orifice Clear blockage
Burner won’t light Control knob is not in "ON" position Turn control knob to "ON" position
Gas pressure is low Replace gas cylinder
Outdoor temperature is greater than 5℃
(40°F) and tank is less than 25% full Replace gas cylinder
Supply hose is bent or kinked Straighten hose and perform leak test on
hose
Burner flame is low
Note: Do not operate
heater below 5
℃ (40°F)
Control knob is fully " ON" Turn control knob to "OFF", let it cool to room temperature and check burner and
orifices for blockage
Gas pressure is low Replace gas cylinder
Base is not on a level surface Place heater on a level surface
Emitter glows uneven
Note: Bottom 2.5cm of
emitter normally does
not normally glow Heater not level Level heater
Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter
Thick black smoke Blockage in burner
Turn control knob to "OFF", let it cool to
room temperature and remove
blockage and clean burner inside and
outside.
IN THE EVENT OF ANY PROBLEM, PLEASE ALWAYS CONSULT YOUR LOCAL DEALER.
If for some reasons your ignition fails to deliver a spark, the heater
can be started by inserting a lit match using supplied match holder
through the burner hole (see left photo) while pushing the control
knob in the “PILOT” position.

- 13 -
TECHNICAL DATA
Model number: H1107 & H1207
Gas type: propane
Nominal GC: 40.5MJ/h
By-pass GC: 20.00MJ/h
Test point pressure: 2.75kPa
Injector size: 1.80mm
