Osram ROADsight 50 User manual

ROADsight 50
Mobile connected Dashcam HD 1440p
English
Magyar

WARNING
1
Individual special requirements and legislationof the countries must be observed, especiallyconcer-
ning the duration of the records/use andthe transfer of data. Please make yourself familiar with the
dataprotection laws of your country and ensure thatyou comply with them. Please also familiarize
yourself and comply withthe relevant laws and regulations regarding theuse and ownership of dash
cameras in yourcountry.
DE/AT: Permanent and occasion-free recordings are not permitted, i.e. no recording of the entire rou-
te, license plates or strangers (so-called loop function). When recording an event, e.g. an accident, all
parties involved must be informed about the recording and about its transfer to the police. No posting
of recordings in public media (Internet, social media) without the consent of all persons concerned or
only after disguising the persons and license plates. It must be impossible to draw conclusions about
persons, e.g. through pictures of the surroundings.
2 The dashcam must not be fitted in a position which obscures the driver’s view of the road ahead.
3Only use the supplied power adapter, otherwise damage may occur to the dashcam. Take care when
cleaning the dashcam lens and only use a suitable lens cleaner and a soft cloth. Do NOT expose this
product to rain, moisture or water under any circumstances; doing so may result in the risk of electric
shock or fire. Do NOT perform servicing other than that contained in the instruction manual, unless you are
qualified to do so. When installing in a vehicle, always place the device securely against the windscreen
and where possible conceal the power cable under the vehicles interior trim. Make sure that the power
cable doesn’t interfere with the driver’s controls such as the steering wheel, pedals or gear lever. Do
NOT mount the dashcam in front of an airbag deployment area or in a position to obscure any interior
mirrors. Do NOT operate while driving and only adjust settings or review recordings while not driving.

If you haven’t already downloaded the app, do so now to
get the most from your dashcamera.
1 Download the app by searching for OSRAMconnect
in the App Store (iPhone) or Google Play (Android).
2 Open the app, follow the setup process shown and
enable all necessary settings when prompted.
BEFORE YOU BEGIN

1Dashcam
2Quick Start Guide
3Magnetic Mount
4USB Charging Cable
5Trim Removal Tool
6Window Sticker
PACKAGE CONTENTS
2
1
3
4
5
6

ATTENTION! Choose the installation location in advance, as the adhesive
tape on the mount is of single use.
1Ensure glass is dirt, dust and grease free.
2Warm adhesive pad part of mount in hands to ensure strong adhesion to glass.
3Once mount has been positioned connect dashcamera to the magnetic mount.

To power the device and charge the battery, use only the power adapter included.
Connect the power cable to the mount, and then plug the USB charger into the vehicles
12V power socket.
When the vehicle’s engine starts, the device turns on automatically.

INSTALLING microSD
CARD
1 Before installing a memory card, make
sure the device is turned off.
2 Insert the memory card until it clicks
into place.
3 Removing a card: press the card slightly
and then reamove it from the slot.
WARNING! Do not apply excessive force when inserting a memory card to avoid
damage to the device. If necessary, use a thin pointed device to push the card
further. To remove the memory card, push the card until it clicks and remove the
card from the slot.

TURNING ON/OFF
•When the vehicle ignition is turned ON
the dashcam turns on automatically.
•To turn the device on manually, press
the power button.
•To turn the device off press and hold the
power button for approx. 3 seconds.

CONNECTING TO MOBILE
1Switch on dashcam.
2Your camera automatically
broadcasts a Wi-Fi network.
3Open your phone’s Settings.
4Tap on Wi-Fi
or Connections.
5Select the dashcam
hotspot and enter the
password “12345678”.
6You are now connected
to your device.

ADJUSTING VIEWING ANGLE
ATTENTION! Adjusting the viewing angle can only be done along the vertical
axis, so be sure to position the device correctly on the windshield along the
horizontal axis as close as possible to the windshield’s center.
While pulling or pushing the device in the holder, ensure that the camera captures
the image in proportions of 30% sky /70% road.
Good Bad

Select different recording modes from the dropdown
menus.
RECORDING MODES
DEFAULT ECONOMY RACE-
DAY
SCENIC
LANDSCAPE COMMUTER SOCIAL MEDIA
RESOLUTION HIGH MID HIGH HIGH HIGH HIGH
SNAPSHOT HIGH MID LOW HIGH HIGH HIGH
LOOP
RECORDING 3 MIN 3 MIN 5 MIN 5 MIN 3 MIN 3 MIN
G-SENSOR
SENSITIVITY MID LOW HIGH LOW HIGH LOW

To access the Menu settings,
press the “Settings” button on
the main menu.
Video Quality: Select required option
(the highest option provides the
optimum viewing performance).
Image Resolution: 1-12 Megapixels
Loop Recording: 1, 3, or 5 minutes
Date Stamp: OFF / ON
Record Audio: OFF / ON
Parking Monitor: OFF / ON
G-sensor: OFF/LOW/MEDIUM/HIGH
MENU SETTINGS

EMERGENCY RECORDING
1Emergency recording is to protect the
current video file from being overwritten
and deleted.
2Emergency recording is activated
automatically when the G-sensor trig-
gers (sudden acceleration/decelera-
tion), or at point of collision. Emergen-
cy recording is locked automatically to
avoid erasing during loop recording.

1To access the playback
menu, press the album
button on the main screen.
2Video & Image Menu.
• Select either Videos or
Images tiles to view.
RECORDING PLAYBACK

1Short-press each video file once
to get into the playback menu.
2Press and hold each video file for
3 seconds to access the video’s
sub-menu. From there, lock,
download, share, or delete the
selected video.
VIDEO MENU

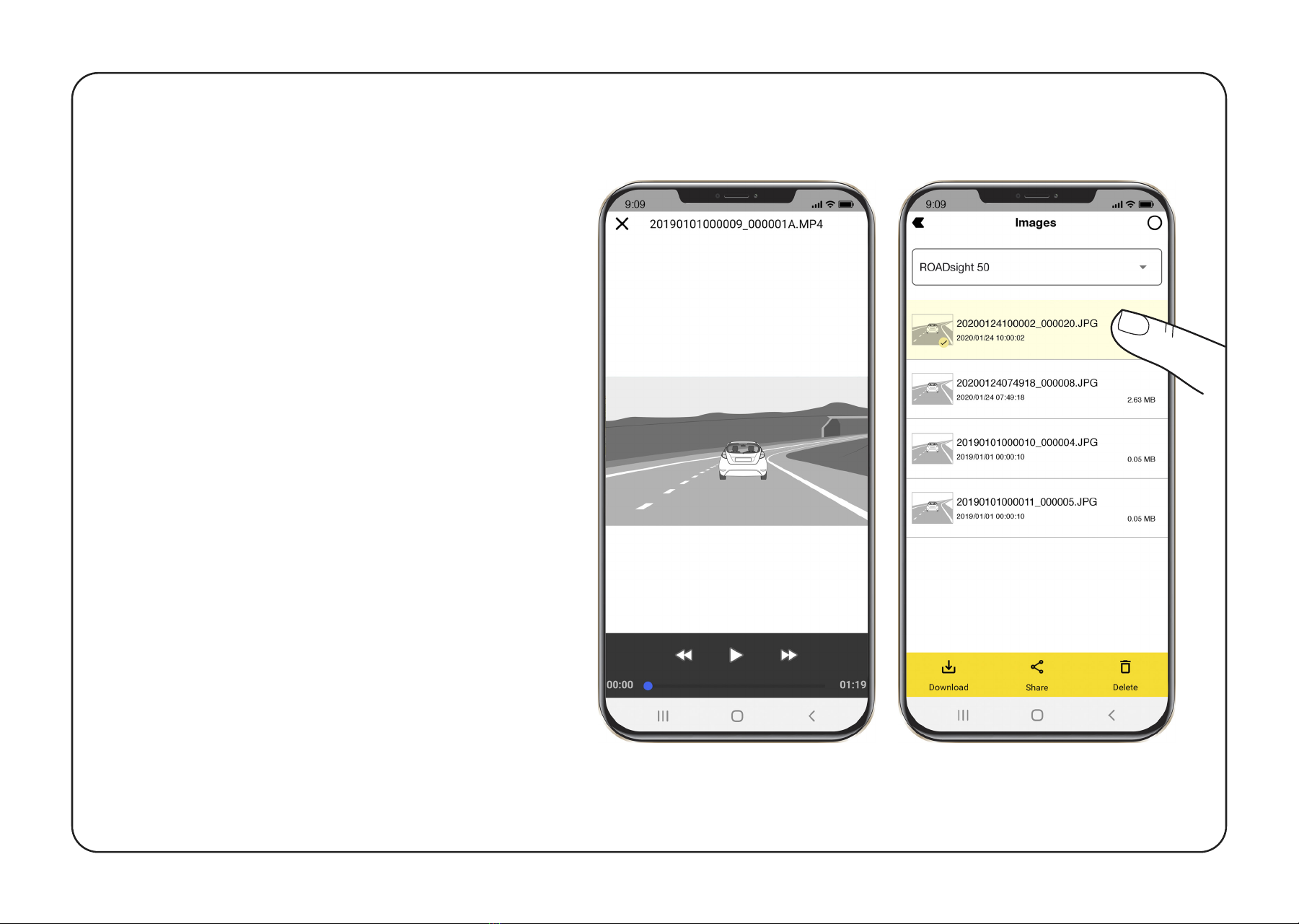

1Short-press each image file once
to get into the playback menu.
2Press and hold each image file
for 3 seconds to access the
video’s sub-menu. From there,
lock, download, share, or delete
the selected image.
IMAGE MENU

To access the Tips Menu, press
the “Tips” button on the main
menu.
TIPS MENU

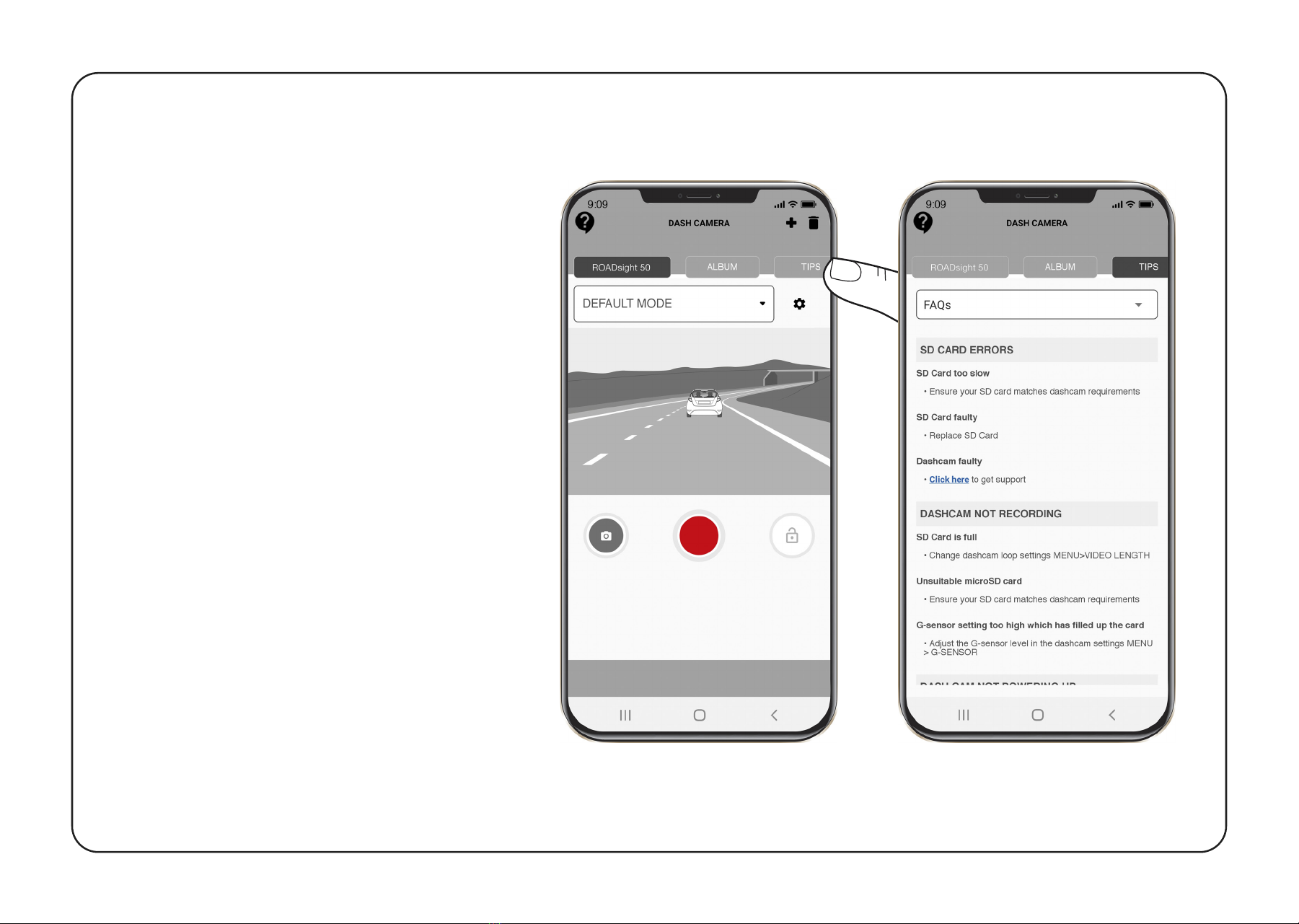

To access the FAQs Menu, press the
dropdown menu and select FAQs.
Swipe up or down to view all common
frequently asked questions.
FAQs MENU

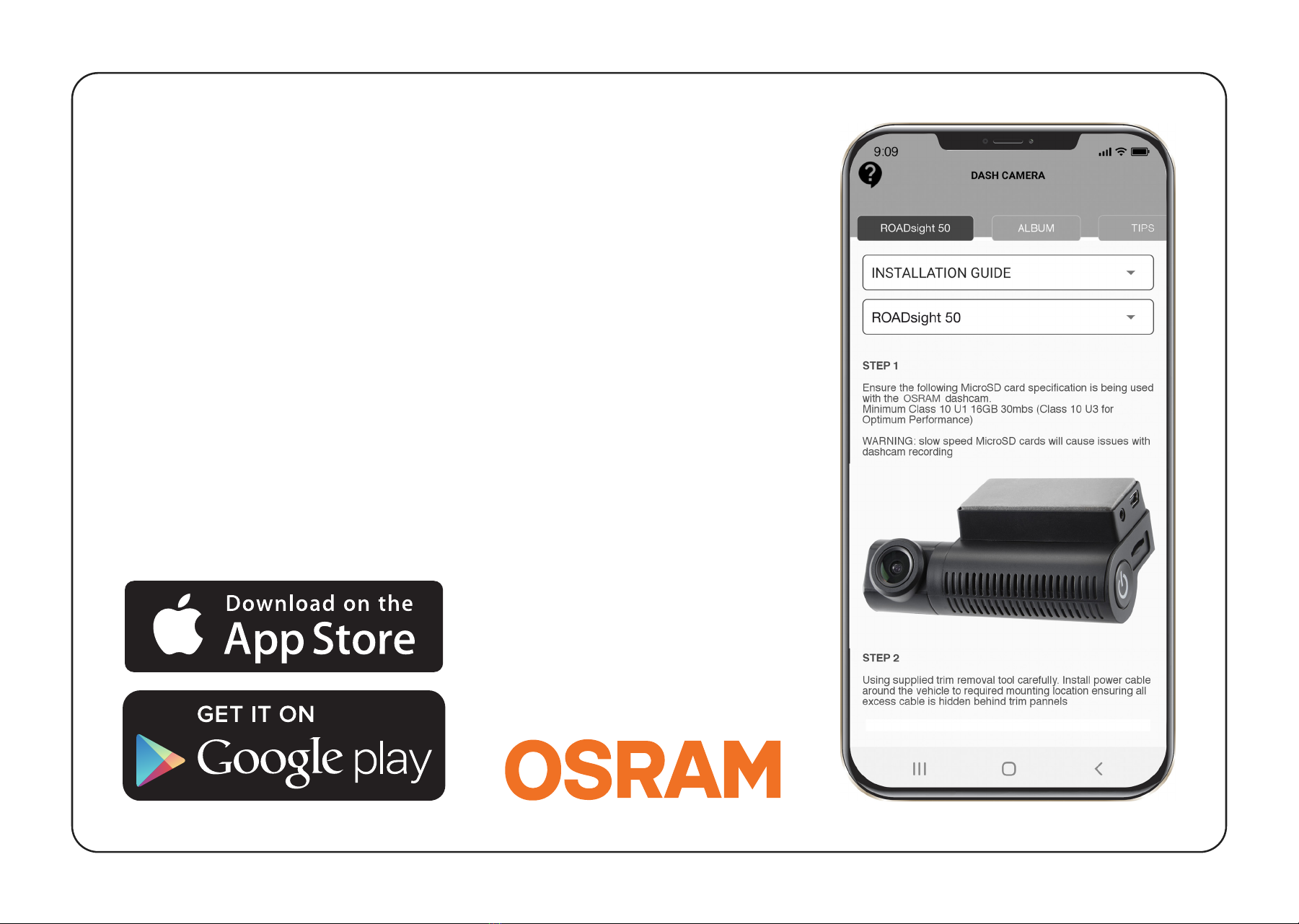

1To access the Installation Guide
Menu, press the dropdown menu
and select Installation Guide.
2Another dropdown menu will
appear. Select the dashcam
being used from the dropdown
menu.
INSTALLATION GUIDE MENU

Have an issue? Click the question mark in the top left
corner of the main menu.
CUSTOMER SERVICE HELP
